Important Note for Safe Use – For battery charging or inductive loads like motors, add an external anti-refill diode as module does not include built-in output anti-refill protection.
Why You Need This Product? – Perfect for anyone building custom power systems, charging batteries, or powering devices that need stable, efficient, and adjustable voltage and current.
Precise Current Control & High Efficiency – Adjustable constant current from 1–25A with up to 95% efficiency at 80KHz operating frequency, ensuring minimal power loss.
High Power & Versatile Applications – 600W non-isolated buck converter with adjustable constant voltage and current, ideal for LED drivers, battery chargers, DIY electronics, and power supply projects.
Built for Performance & Safety – Includes short-circuit protection (constant current mode) and a durable air-cooled heat dissipation system for continuous 500W operation in ventilated environments.
Wide Input & Output Range – Supports 12–75V DC input with adjustable output from 2.5V to 60V (output max ≈ 80% of input; e.g., 40V input gives up to 32V output).
Easy Monitoring & Durable Design – Blue LED indicator shows active output voltage; operates between -10°C to +65°C for reliable use across varied conditions.
Warranty: Product cover 1 year warranty. In case of technical query or issue feel free to contact amicikart.
Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart at 980 970 9898 or care@amicikart.com)

Product description

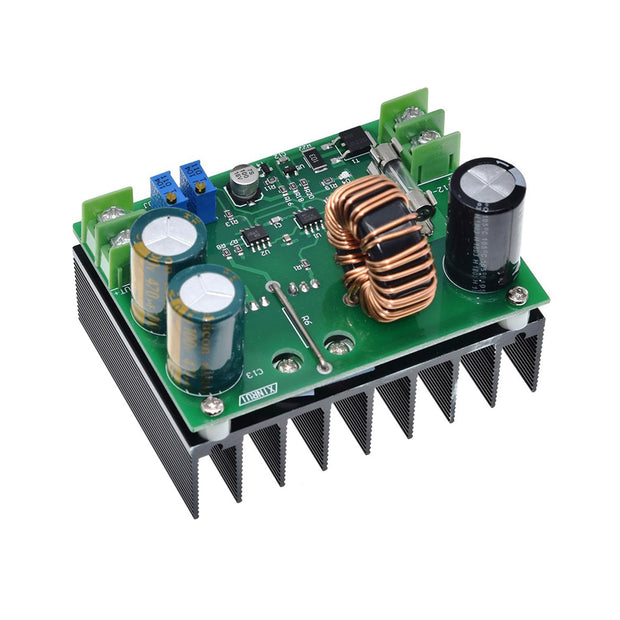

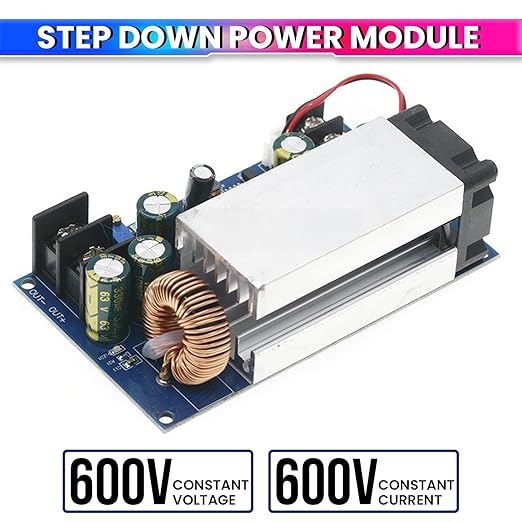

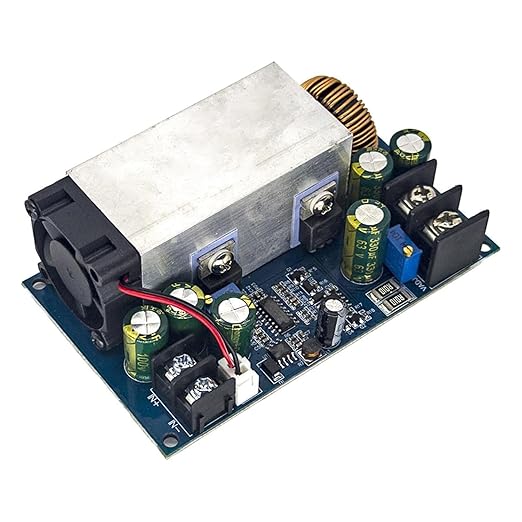

The amiciSolar 600W 25A Adjustable DC-DC Buck Converter is a powerful and reliable solution for anyone needing a flexible, high-efficiency power supply module. Whether you’re charging batteries or working on DIY electronics, this module offers continuous adjustable current (1–25A) and up to 95% conversion efficiency, ensuring optimal performance with minimal power loss. Technical Specification- Input Voltage Range: 12-75V Output Voltage Range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8) Output Minimum Voltage: 2.5V Maximum Output Voltage: Approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.) Output Constant Current: 1-25A (continuously adjustable) Maximum Output Power: 600W (working environment must be well ventilated) Continuous Maximum Working Power: 500W (ventilated environment) Continuous Maximum Working Current: 25A (under ventilated environment) Heat Dissipation Mode: air-cooled heat dissipation Input Undervoltage Protection: No Input Over-Voltage Protection: None (over-voltage prohibited) Operating Temperature: -10~+65 degrees Operating Frequency: 80KHz Conversion Efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure) Short Circuit Protection: Yes (constant current protection) Input Reverse Connection Protection: No Output Anti-Refill: No (to charge the battery, the output connected to inductive loads, such as connecting the motor must be added anti-refill diode) Work Indicator: Yes (output voltage)
