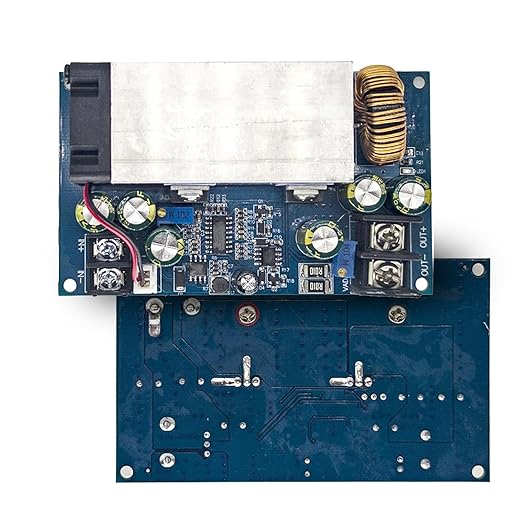

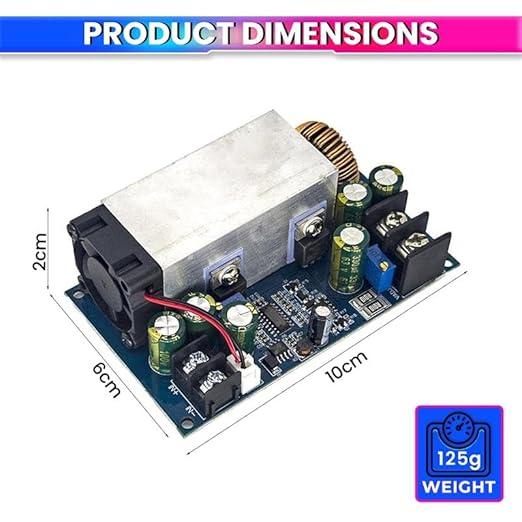

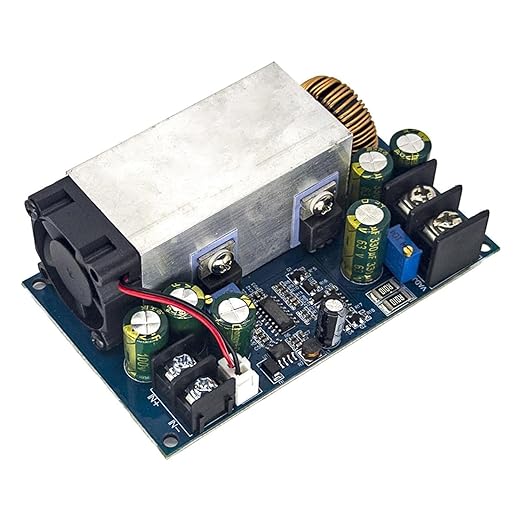

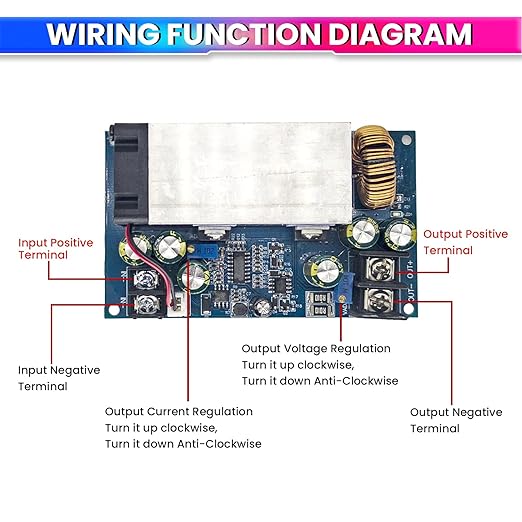

600W 25A Adjustable DC-DC Buck Converter, 12–75V to 2.5–60V Constant Voltage, Current & Power Supply Module
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 1,499.00
-41%
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,499.00
Unit price
per
Superfast Same-Day Shipping
- Important Note for Safe Use :– For battery charging or inductive loads like motors, add an external anti-refill diode as module does not include built-in output anti-refill protection.
- Why You Need This Product :– Perfect for anyone building custom power systems, charging batteries, or powering devices that need stable, efficient, and adjustable voltage and current.
- Precise Current Control & High Efficiency :– Adjustable constant current from 1–25A with up to 95% efficiency at 80KHz operating frequency, ensuring minimal power loss.
- High Power & Versatile Applications :– 600W non-isolated buck converter with adjustable constant voltage and current, ideal for LED drivers, battery chargers, DIY electronics, and power supply projects.
- Built for Performance & Safety :– Includes short-circuit protection (constant current mode) and a durable air-cooled heat dissipation system for continuous 500W operation in ventilated environments.
- Wide Input & Output Range :– Supports 12–75V DC input with adjustable output from 2.5V to 60V (output max ≈ 80% of input; e.g., 40V input gives up to 32V output).
- Easy Monitoring & Durable Design :– Blue LED indicator shows active output voltage; operates between -10°C to +65°C for reliable use across varied conditions.
-
Warranty :- Product cover 1 year warranty. In case of technical query or issue feel free to contact amicikart (To claim warranty feel free to contact amicikart at 980 970 9898 or care@amicikart.com)

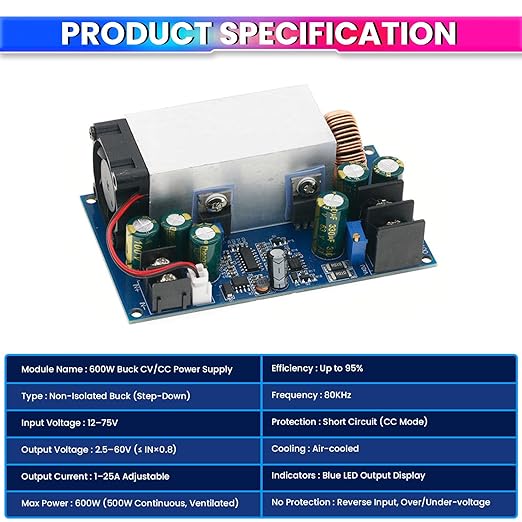

Technical Specification:
Input Voltage Range: 12-75V
Output Voltage Range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8) Output Minimum Voltage: 2.5V
Maximum Output Voltage: Approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.)
Output Constant Current: 1-25A (continuously adjustable)
Maximum Output Power: 600W (working environment must be well ventilated)
Continuous Maximum Working Power: 500W (ventilated environment)
Continuous Maximum Working Current: 25A (under ventilated environment)

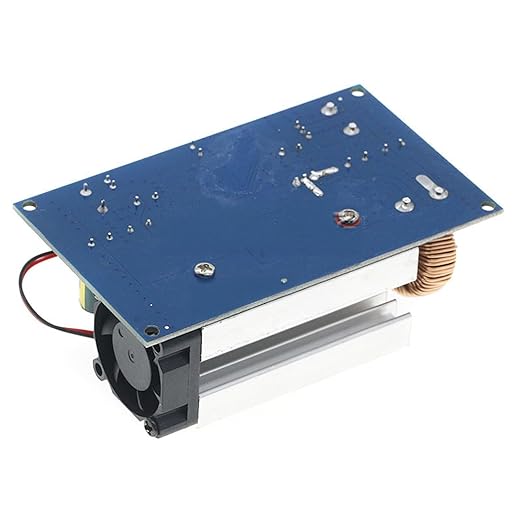

Heat Dissipation Mode: air-cooled heat dissipation
Input Undervoltage Protection: No
Input Over-Voltage Protection: None (over-voltage prohibited)
Operating Temperature: -10~+65 degrees
Operating Frequency: 80KHz
Conversion Efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short Circuit Protection: Yes (constant current protection)
Input Reverse Connection Protection: No
Output Anti-Refill: No (to charge the battery, the output connected to inductive loads, such as connecting the motor must be added anti-refill diode)
Work Indicator: Yes (output voltage)
