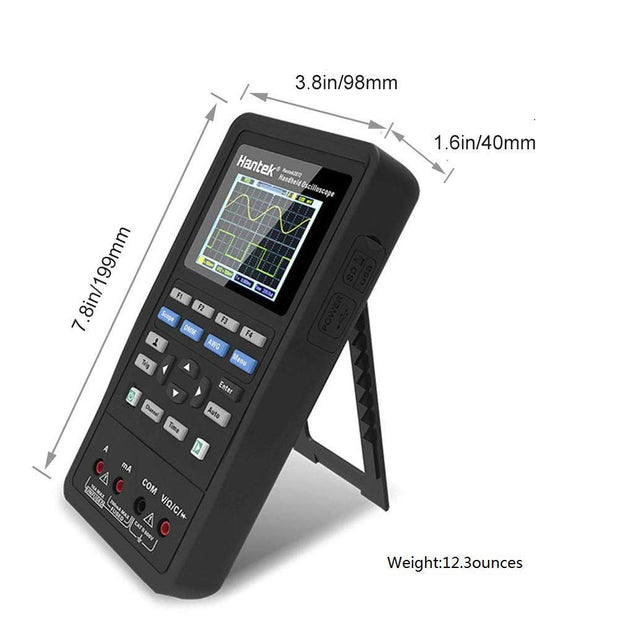

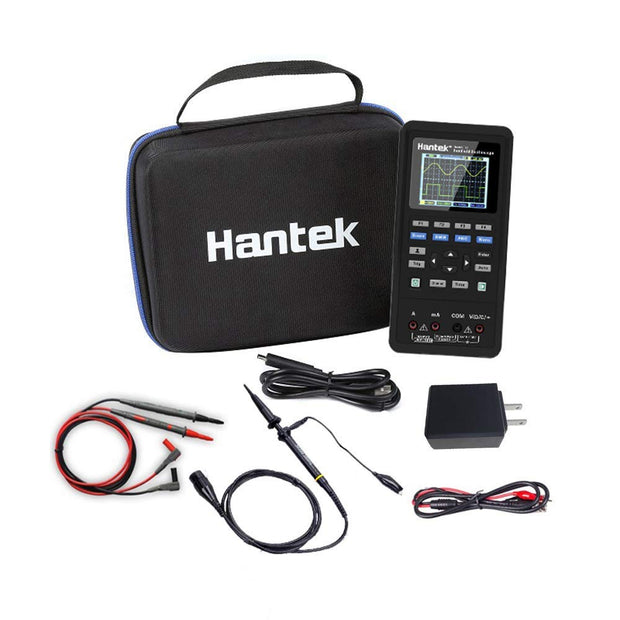

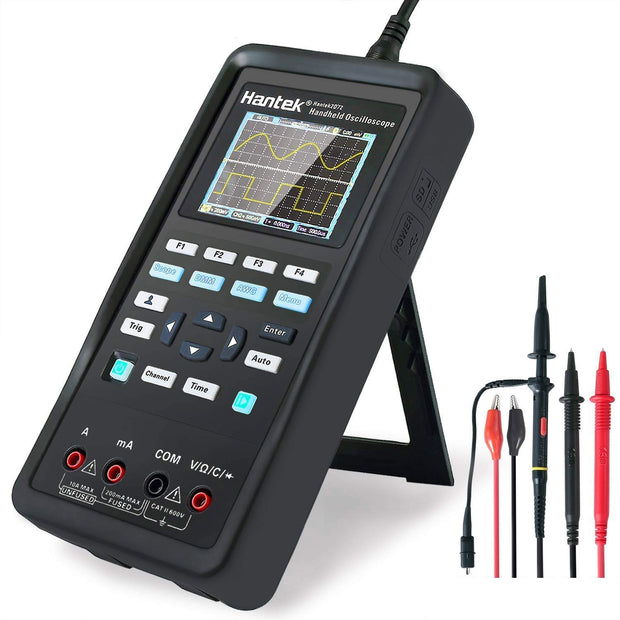

1. 3 in 1:- Oscilloscope, Waveform Generator and Digital Multimeter, Within one multi-functional handheld portable device.
2. Features: -250 MSa/s Sampling rate (single channel), 70 MHz bandwidth, 10mV~10V vertical resolution, automatic measurement, adjustable back-light brightness, 4 type arbitrary waveform, multimeter function with voltage/current/resistance/diode/capacitance measurement.
3. Portable: -Oscilloscope which is not only portable but also handheld. New light weight design which meets your different needs in one device.
4. Colorful Display: - LCD screen display waveform in form pf smooth lines that are not distorted even when magnified.
1-Year Warranty & Dedicated Support : -For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

Oscilloscope Functions:
Horizontal
Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation: (sin x)/x
Record Length: Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter: 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range: 10mV/div~10V/divat input BNC
Bandwidth Limit, typical: 20MHz
Low Frequency Response (-3db): ?10Hz at BNC
Rise Time at BNC, typical: ?5ns
DC Gain Accuracy: ?3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition Modes: Normal
Trigger
Type: Edge
Mode: Auto, Normal, single
Level: ?4 divisions from center of screen
Trigger Level Accuracy: 0.2div X volts/div within ?4 divisions from center of screen
Slope: Rising, Falling, Rising & Falling
Source: CH1/CH2
Input
Coupling: DC, AC or GND
Input Impedance,DC coupled: 25pF?3 pF, 1M??2%
Probe Attenuation: 1X, 10X
Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
Maximum Input Voltage: 150VRMS
Measurement
CursorVoltage difference between cursors: ?V; Time difference between cursors: ?T
Automatic Measurements: Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency: Sine: 1Hz~25MHz; Square: 1Hz~10MHz; Ramp: 1Hz~1MHz; EXP: 1Hz~5MHz
Sampling: 250MSa/s
Amplitude: 2.5Vpp(50?): 5Vpp(High impedance)
Frequency Resolution: 0.10%
Channel: 1CH waveform output
Waveform Depth: 512Sa
Vertical Resolution: 12 bit
Output Impedance: 50 ?
