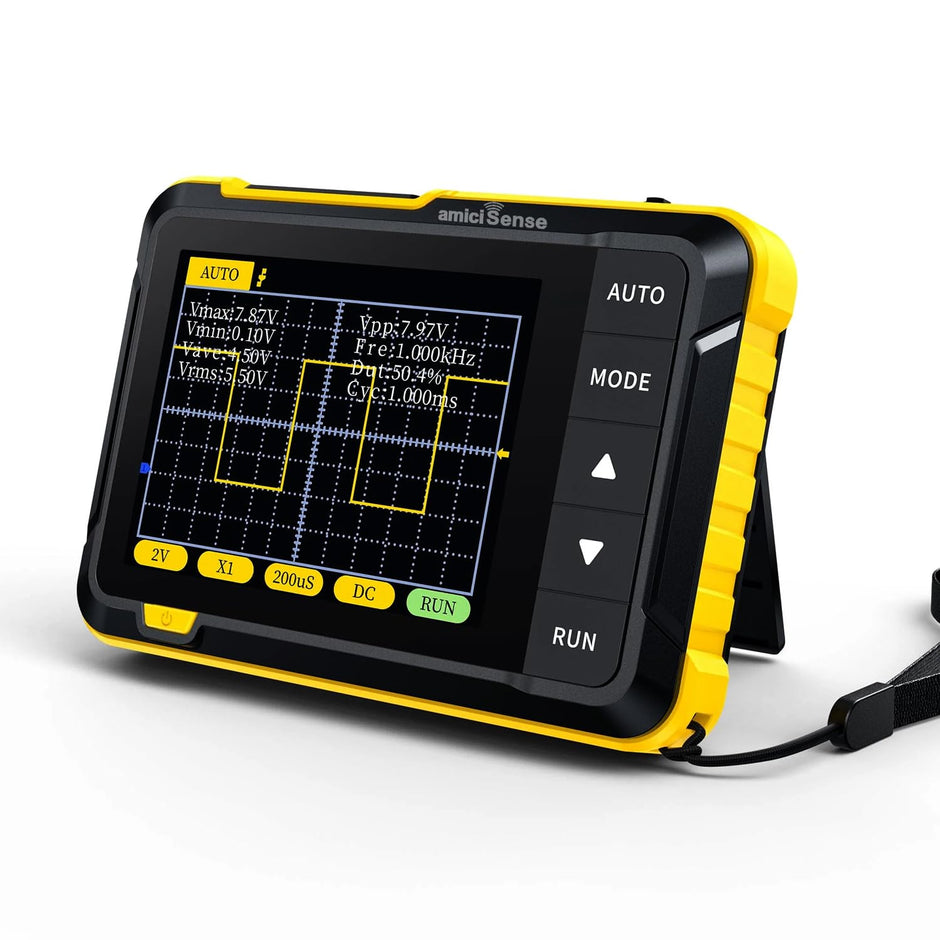

amiciSense DSO-152 Mini Digital Oscilloscope – 2.8” TFT Handheld Single Channel Oscilloscope with 200KHz Bandwidth, 2.5MS/s Sampling Rate & USB-C
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 4,399.00
-46%
Regular price
Rs. 8,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 4,399.00
Unit price
per
Couldn't load pickup availability
Description:-

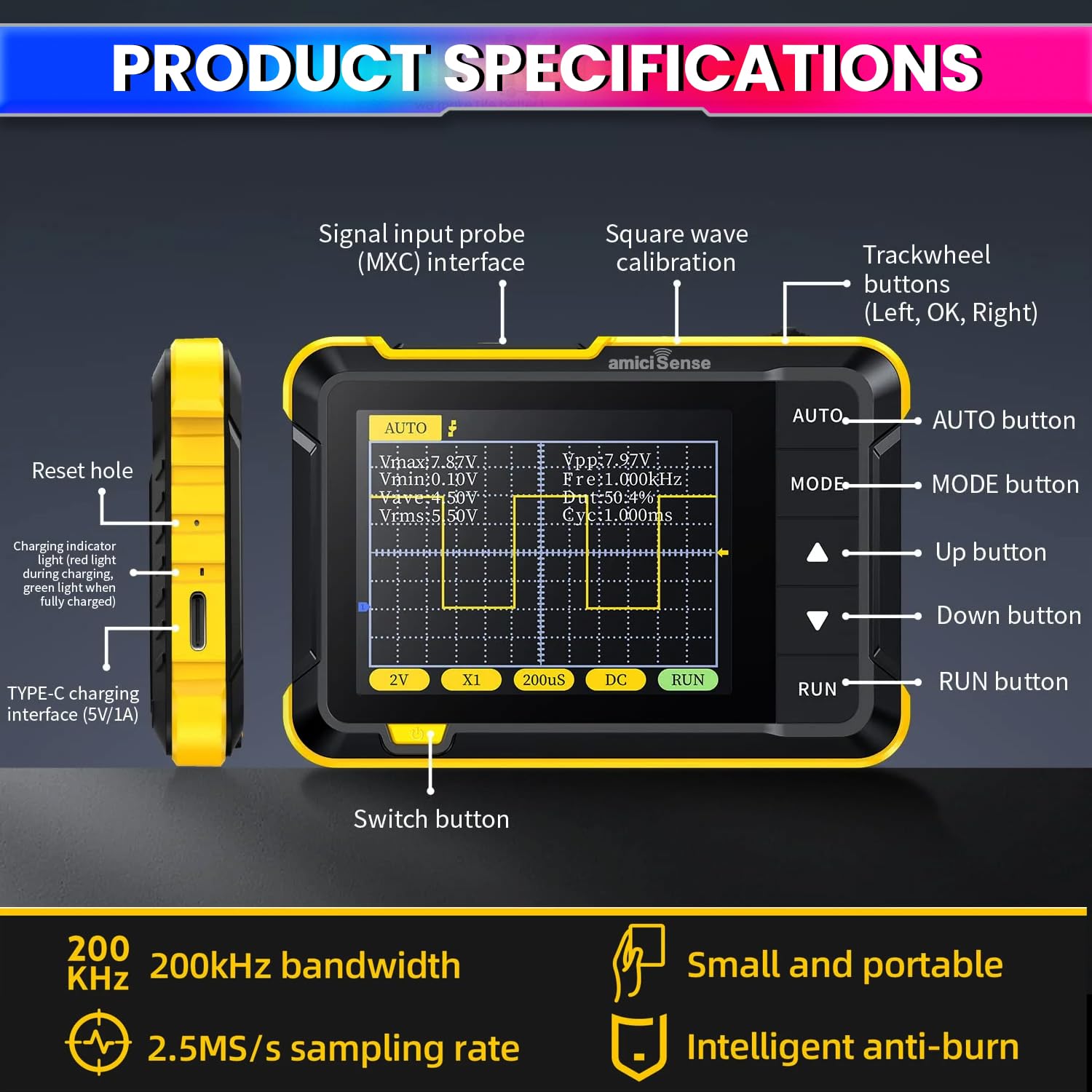

Channel:- 1
Sampling Rate:- 2.5MS/s
Bandwidth:- 200KHz
Vertical Sensitivity:- 10mV/Div - 20V/Div (Progress according to the 1-2-5 way)
Time Base Range:- 10μs/Div - 50s/Div (Progress according to the 1-2-5 way)
Voltage Range:- X1:±40V (Vpp:80V), X10:±400V (Vpp:800V)
Trigger Mode:- Auto / Normal / Single
Coupling Method:- AC/DC

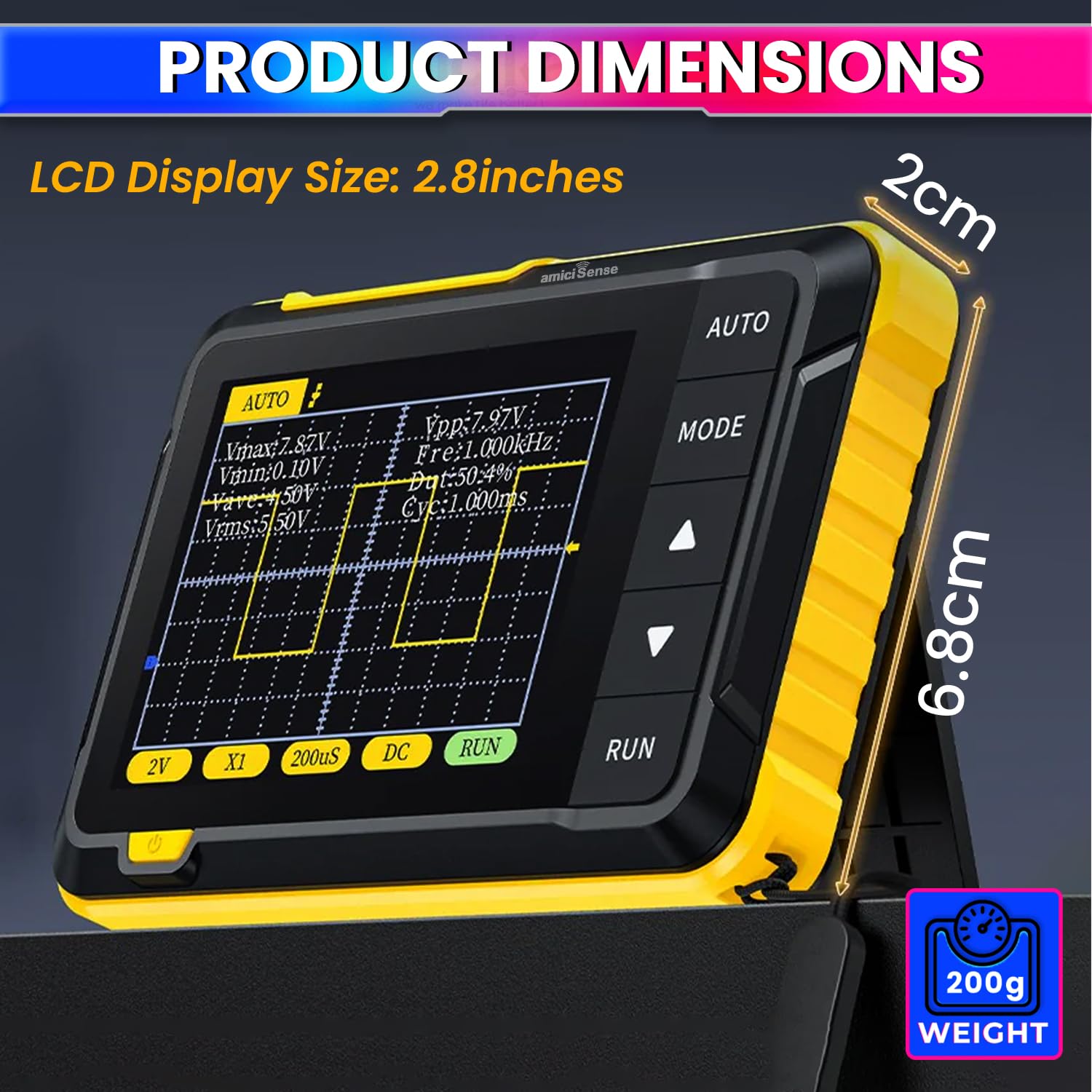

Display:- 2.8 Inches / PPI:320*240
USB Charging:- 5V/1A, Type-C
Battery Capacity:- 1000mAh
Square Wave Calibration:- Frequency: 1K, Duty cycle: 50%

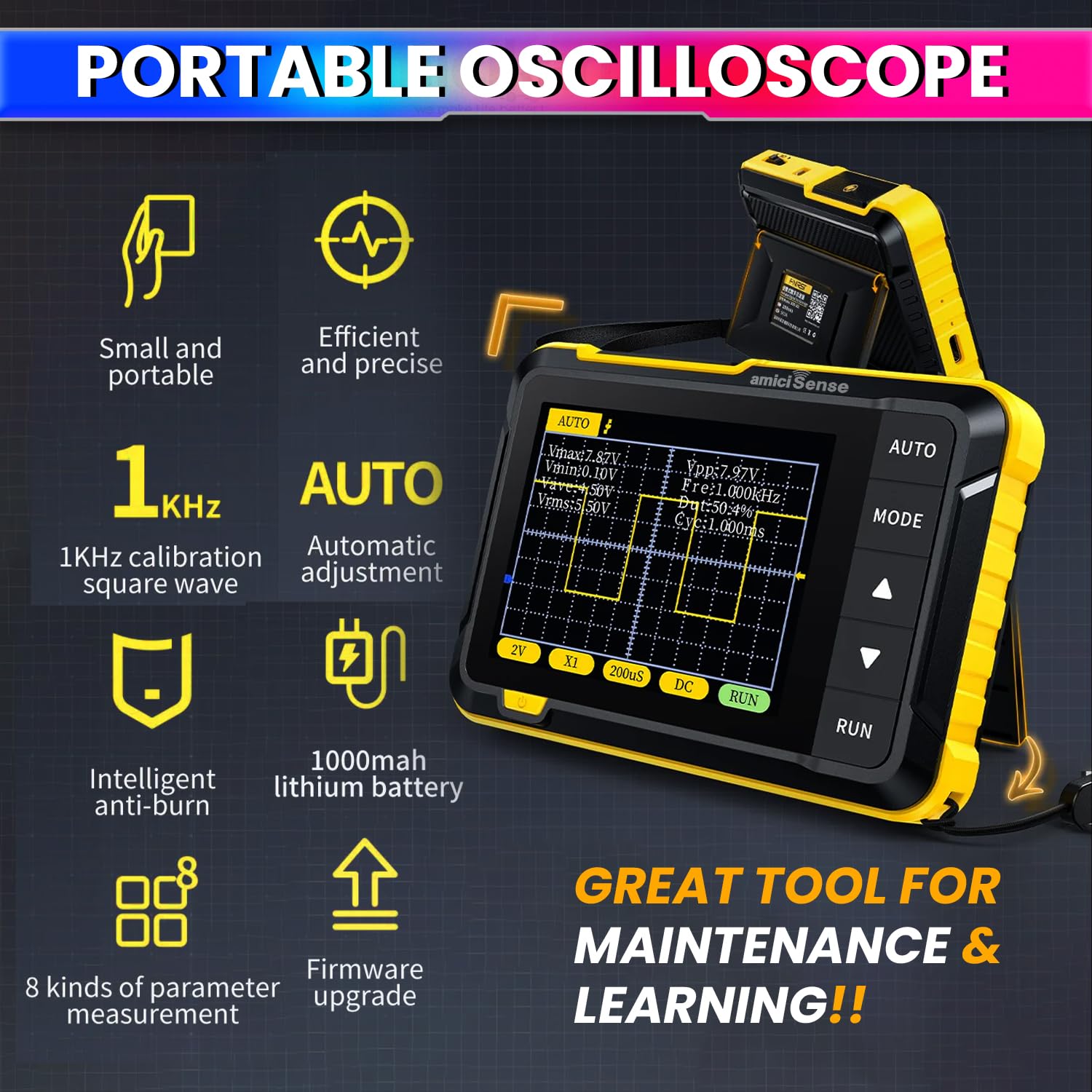

- 1. High-Precision Signal Analysis – Features a 200KHz bandwidth and 2.5MS/s sampling rate, ensuring accurate real-time measurement of analog and digital waveforms.

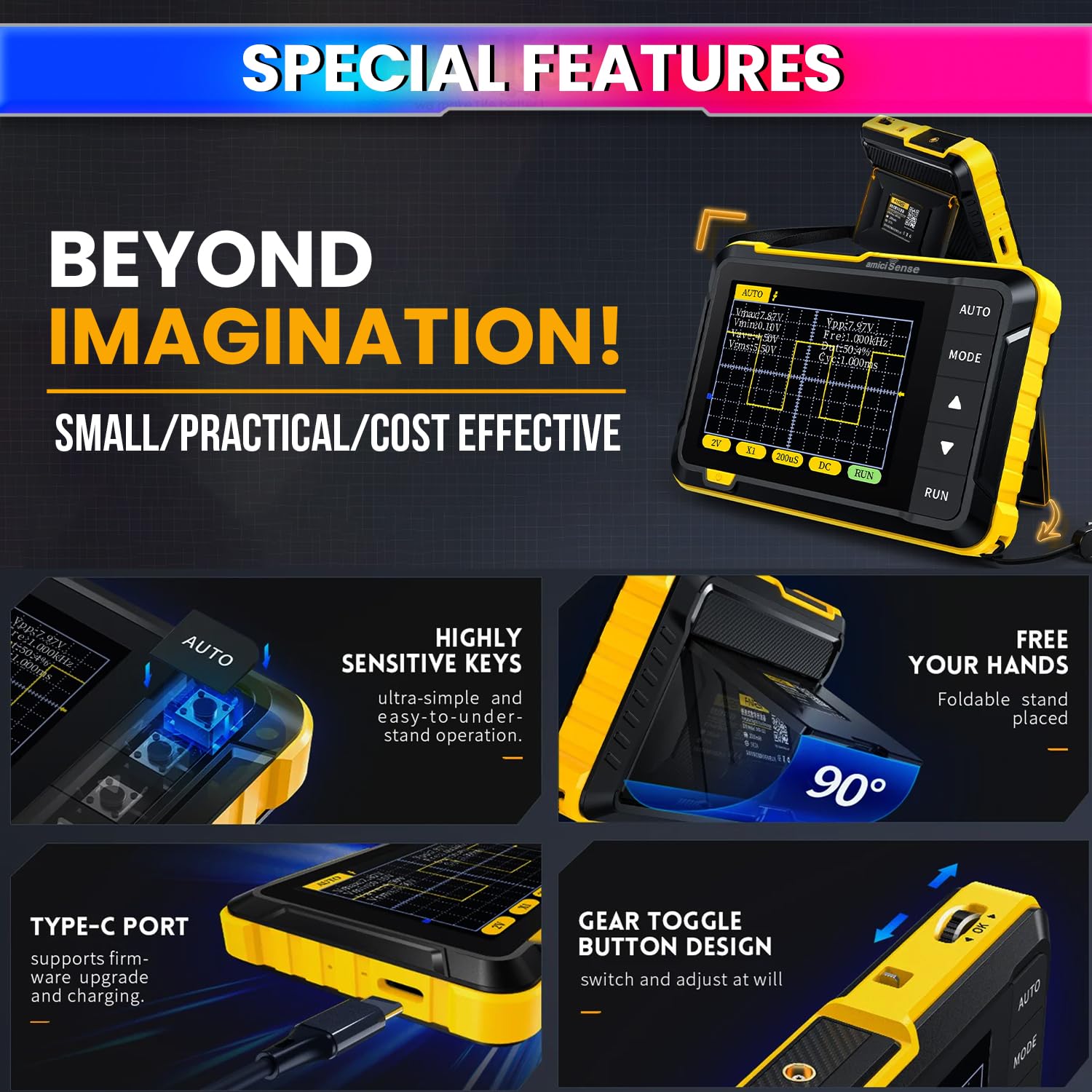

- 2. Optimized for Efficiency – One-key AUTO adjustment enables quick waveform generation, while long-press AUTO ensures baseline calibration for stable signal readings.
- 3. Versatile Triggering Options – Supports single, normal, and automatic trigger modes for capturing transient signals with precision, ideal for circuit testing and debugging.
- 4. Crisp 2.8” TFT Display – The 320×240 resolution LCD delivers high-contrast waveform visualization, making data interpretation easy even in various lighting conditions.
- 5. Portable & Long-Lasting – Lightweight and fully assembled for immediate use, featuring a 1000mAh battery with 4-hour runtime, rechargeable via USB-C.
- 6. Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart).
