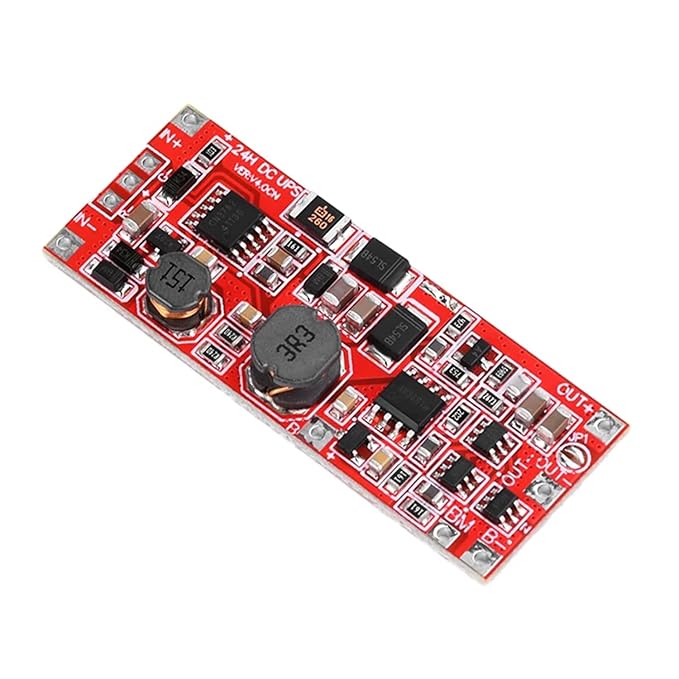

DC 12V/15V UPS Power Supply Module – 24W Backup with Step-Up Converter & Battery Protection
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 599.00
-41%
Regular price
Rs. 1,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 599.00
Unit price
per
Superfast Same-Day Shipping
Couldn't load pickup availability
- Why You Need This- Protect your devices from unexpected power cuts. This UPS module ensures uninterrupted power by automatically switching to battery backup—ideal for routers, microcontrollers, and DIY electronics.
- Dual Mode Operation – Supports both 12V and 15V input/output with built-in path-loss compensation (0.4–0.6V loss).
- Advanced Charging Protection – Three-stage charging (trickle, constant current, constant voltage) with 0.9A–1A fast charge support and over-discharge protection.
- Wide Battery Compatibility – Works with 7.4V–8.4V lithium battery packs including 18650; supports battery capacities from 4Ah to 12Ah.
- Safety-First Design – Built-in safeguards include over-discharge cutoff, reverse polarity protection, short circuit protection, and LED status indicators.
- Warranty: - The products come with 1 year warranty (To claim warranty feel free to contact amicikart).
Product description
Ensure seamless power continuity for your sensitive electronics with the amiciSmart DC 12V/15V UPS Power Supply Module. This compact yet powerful module delivers a rated 24W (usable 18W) output and intelligently switches to battery backup when voltage dips below the threshold.
Whether you're powering IoT devices, routers, DIY projects, or embedded electronics, this board is built to protect. With a smart 3-stage charging system, it efficiently charges 7.4V–8.4V lithium batteries (including 18650), offering compatibility with both 12V and 15V systems.
Take control of power interruptions—upgrade your setup with this essential UPS power module engineered for smart, safe, and stable performance.
Technical Specification-
Input voltage: DC12V/DC15V
Output voltage: DC12V/DC15V
Product power: Rated 24W (usable 18W)
Standard version charging: about 1A
Applicable batteries: 7.4V-8.4V lithium batteries
No load power consumption: 0.2-0.3mA<0.5mA

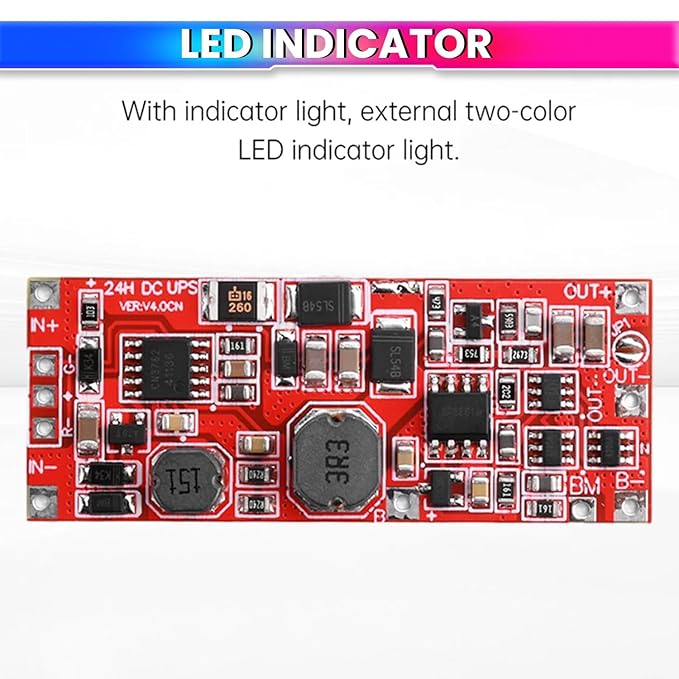

Indicator light: External dual color LED indicator light
Product features: charging + battery boost + switching + over discharge protection
Working voltage: default 12V mode/input current should be ≥ 3A
Battery capacity: slow charging for 4-6 Ah, fast charging for 4-12 Ah
Charging voltage: Voltage range 8.2-8.4V (average 8.3V)
Discharge voltage: When the battery is below 6.0V-6.4V, it will automatically disconnect
Path loss: FUSE and SS54 have a loss of approximately 0.4V-0.6V
Battery type: 7.4-8.4V lithium battery/supports 18650

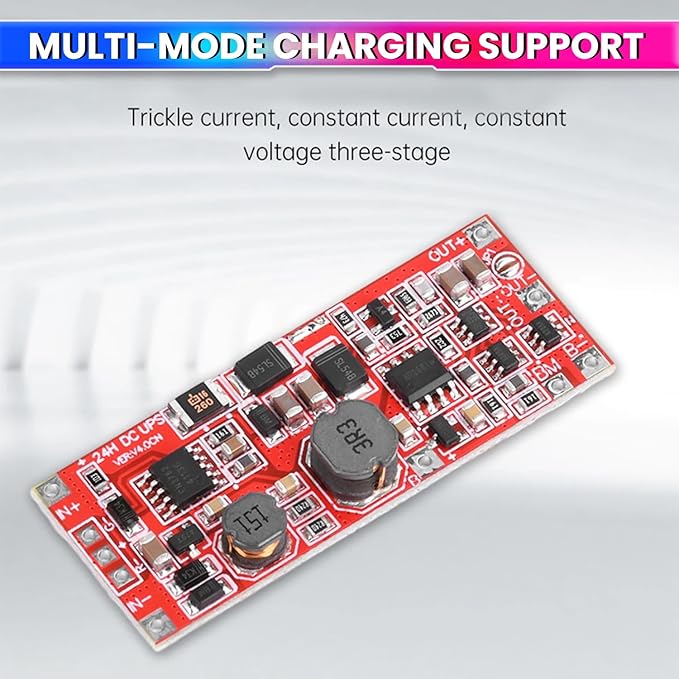

Charging method: Trickle current/constant current/constant voltage three-stage charging
Charging current: Fast charging mode approximately 0.9A-1A Charging current
Switching threshold: When the IN voltage drops by 0.8V, switch to battery power supply
