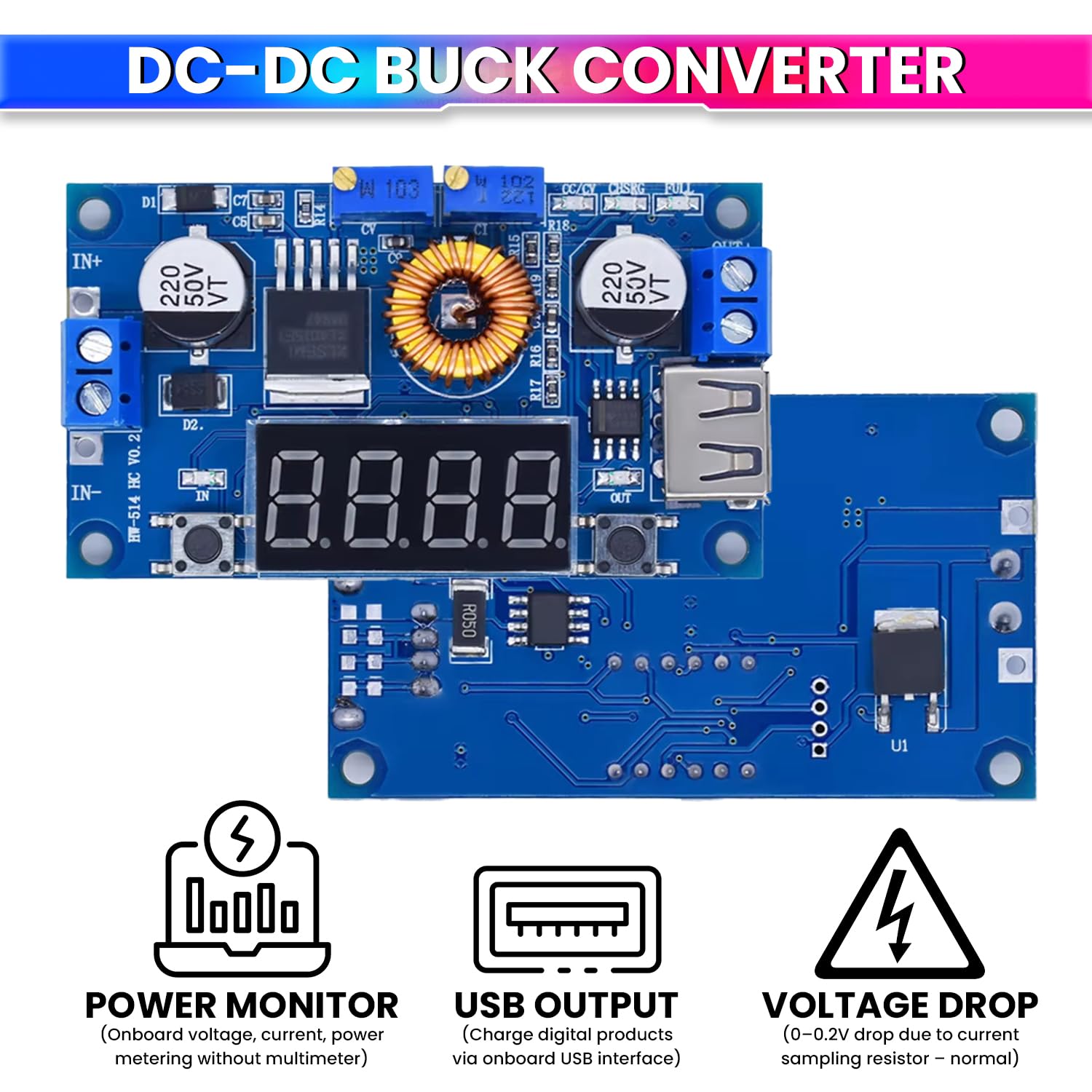

75W DC-DC Buck Converter- 5-36V to 1.3-32V Adjustable Voltage Regulator

• Wide Input and Adjustable Output Range: Supports input voltages from 5V to 36V DC, with an adjustable output range of 1.3V to 32V DC, providing flexibility for various applications.
• High Current Capacity: Delivers up to 5A output current (recommended continuous use within 4.5A) and a maximum power output of 75W (optimal performance at 50W), suitable for high-demand devices.

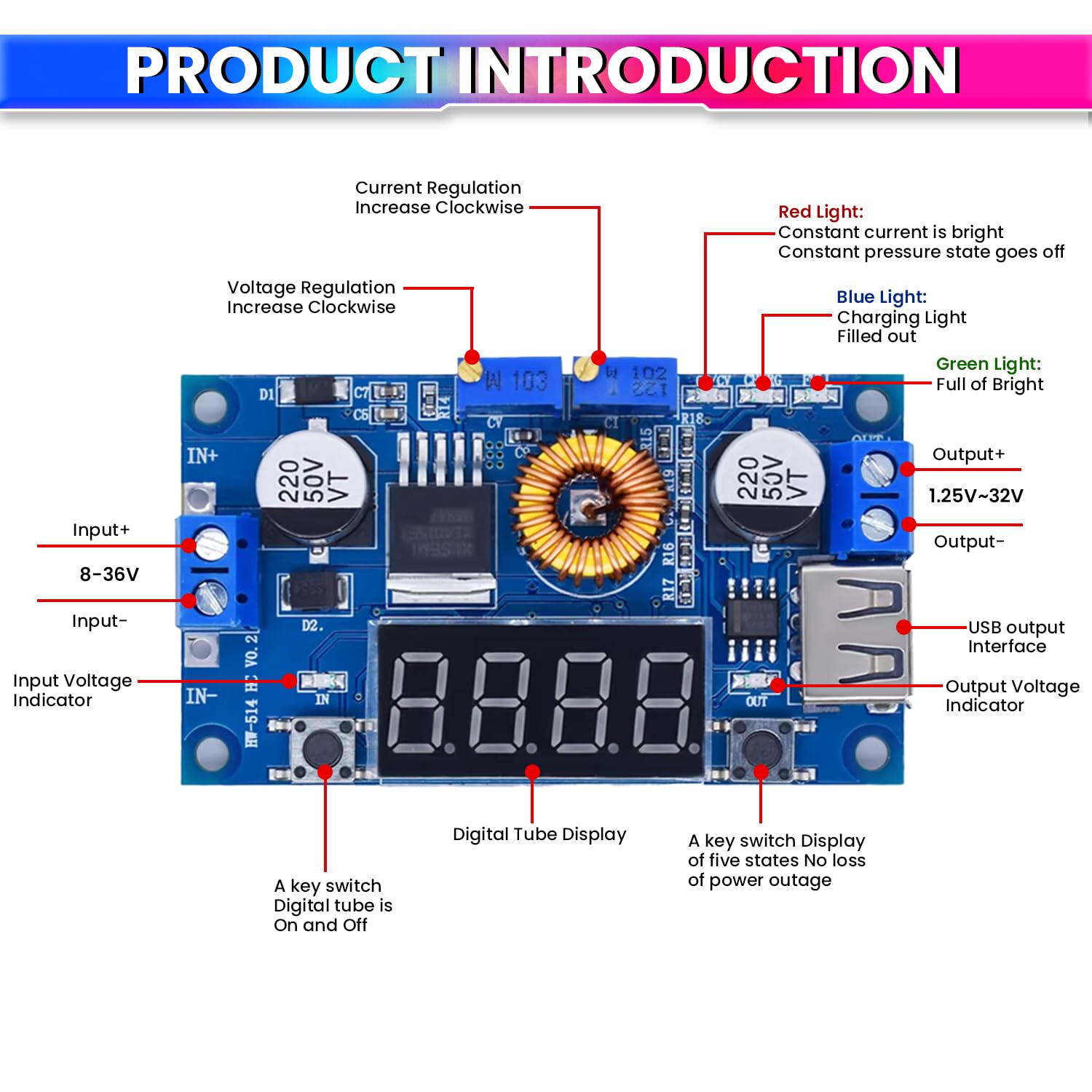

• Integrated Measurement Display: Features an onboard voltmeter and ammeter, allowing real-time monitoring of voltage, current, and power without the need for external measuring instruments.
• USB Output Port: Includes a USB interface that mirrors the module's output voltage, enabling convenient charging of compatible digital devices.
• User Advisory: Ensure correct polarity when connecting the input power supply to prevent potential damage to the module.

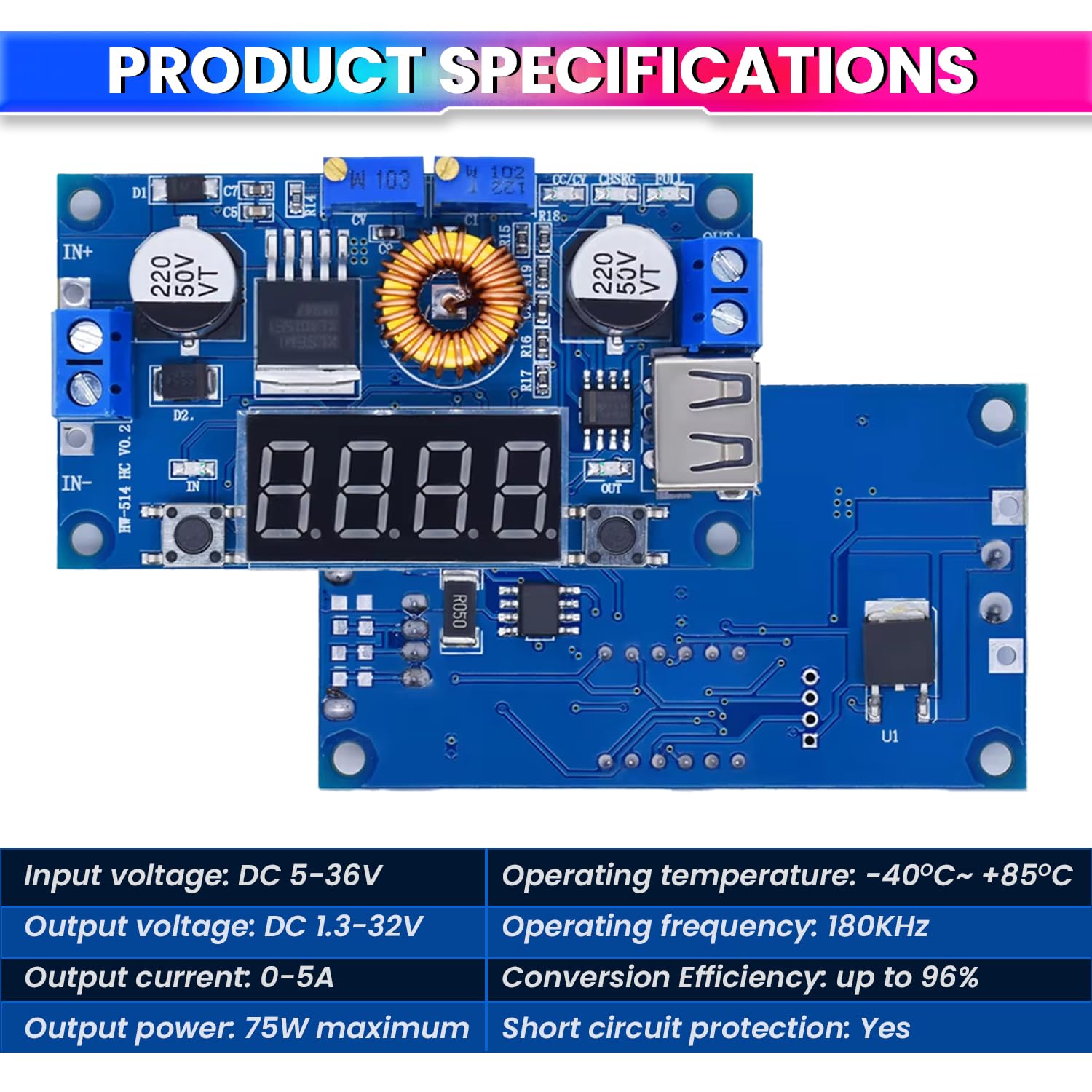

Specification:
Input voltage: DC 5-36V
Output voltage: DC 1.3-32V continuously adjustable
Output current: 0-5A (recommended for use within 4.5A)
Output power: 75W maximum (recommended in the use of 50W, large pressure difference, please reduce the power)
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: Yes
