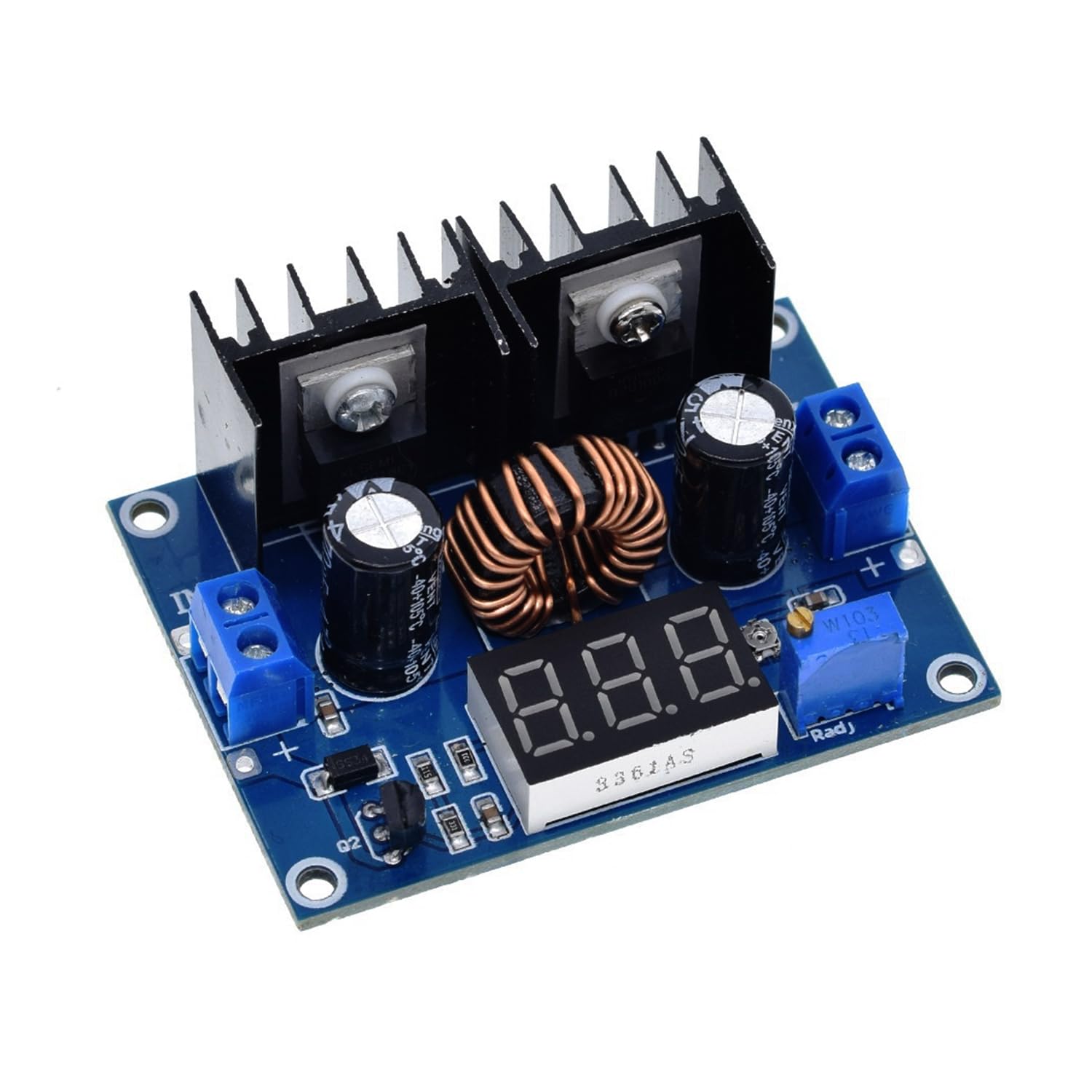

DC-DC Buck Converter, XH-M404 DC 4-40V to 1.25-36V 8A 200W Step-Down Module
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 549.00
-46%
Regular price
Rs. 1,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 549.00
Unit price
per
Superfast Same-Day Shipping
Couldn't load pickup availability
- Wide Input and Output Range: Accepts DC input from 4V to 40V and provides adjustable output from 1.25V to 36V, catering to diverse voltage regulation needs.
- High Current Capacity: Supports up to 8A output current (recommended continuous use under 5A) with a maximum power output of 200W, suitable for various high-power applications.
- Digital Voltage Display: Features a 0.36-inch red digital tube display for real-time output voltage monitoring, ensuring precise adjustments and enhanced usability.
- Efficient Performance: Achieves up to 95% conversion efficiency with a 180KHz switching frequency, delivering reliable and energy-saving operation.

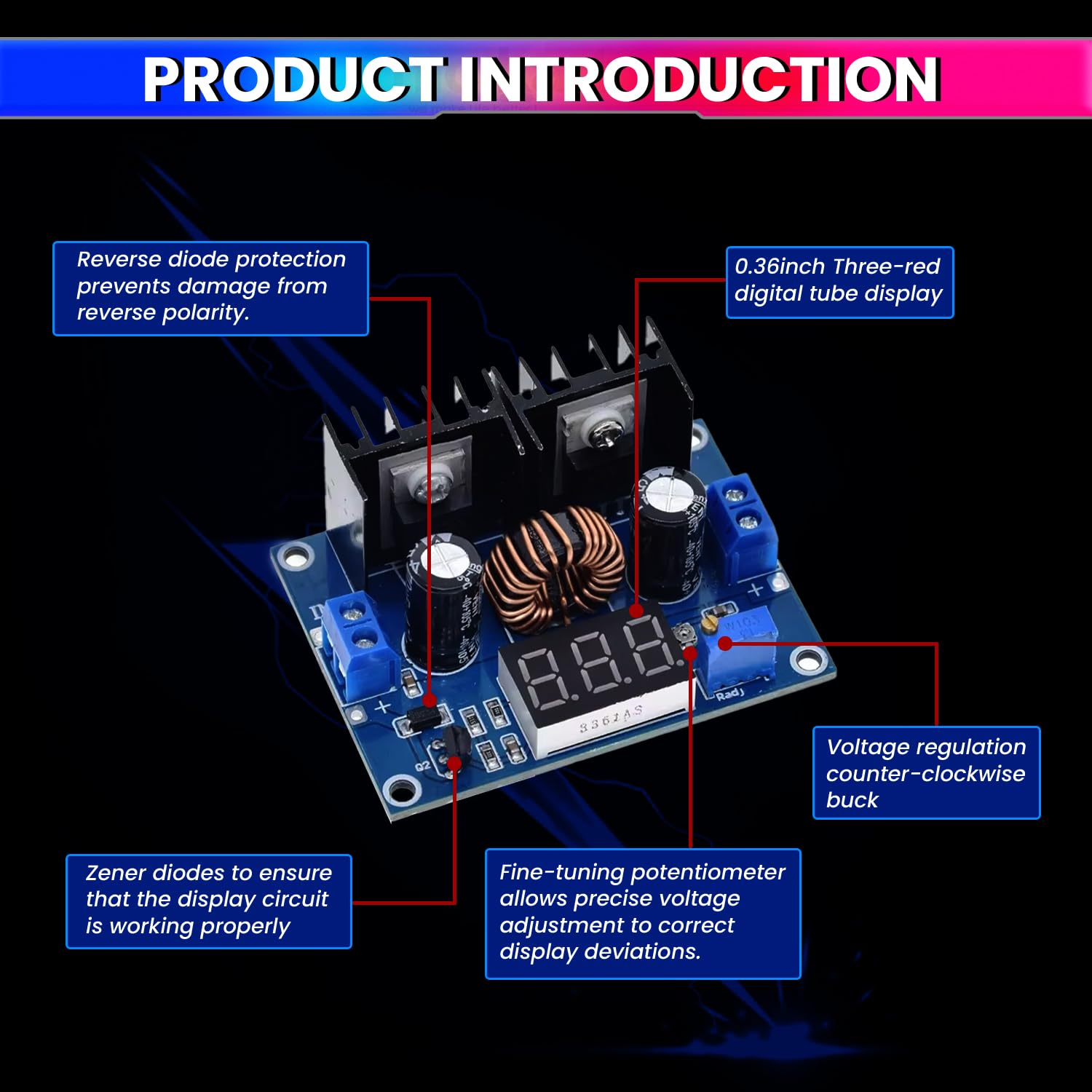

- Comprehensive Protection: Equipped with short circuit protection, input reverse polarity protection, and over-temperature protection, safeguarding both the module and connected devices.
Specification:
Input voltage(VIN): DC 4-40 V
Output voltage(VOUT): DC 1.25-36V
Output current (MAX): 8A(suggest used <5A for a long time)
Efficiency: 95%(MAX)
Switching Frequency: 180KHz
Power(MAX): 200W(MAX)
Operating temperature: -45℃~+85℃
Display method: 0.36 inch 3 red digital tube
Low stock
In stock, ready to ship
Have a question?
Description
- Wide Input and Output Range: Accepts DC input from 4V to 40V and provides adjustable output from 1.25V to 36V, catering to diverse voltage regulation needs.
- High Current Capacity: Supports up to 8A output current (recommended continuous use under 5A) with a maximum power output of 200W, suitable for various high-power applications.
- Digital Voltage Display: Features a 0.36-inch red digital tube display for real-time output voltage monitoring, ensuring precise adjustments and enhanced usability.
- Efficient Performance: Achieves up to 95% conversion efficiency with a 180KHz switching frequency, delivering reliable and energy-saving operation.
- Comprehensive Protection: Equipped with short circuit protection, input reverse polarity protection, and over-temperature protection, safeguarding both the module and connected devices.
Specification:
Input voltage(VIN): DC 4-40 V
Output voltage(VOUT): DC 1.25-36V
Output current (MAX): 8A(suggest used <5A for a long time)
Efficiency: 95%(MAX)
Switching Frequency: 180KHz
Power(MAX): 200W(MAX)
Operating temperature: -45℃~+85℃
Display method: 0.36 inch 3 red digital tube
