Know before you buy
-
For 4S packs
Balances all 4 cells in series.
-
Up to 2A balancing current
Inductive transfer between cells.
-
Starts at 45mV (±15mV)
Activates automatically when cells drift apart.
-
2.8V–4.2V per cell
For LiFePO4 (LFP), Li-ion and LTO cells whose working voltage stays inside this window.

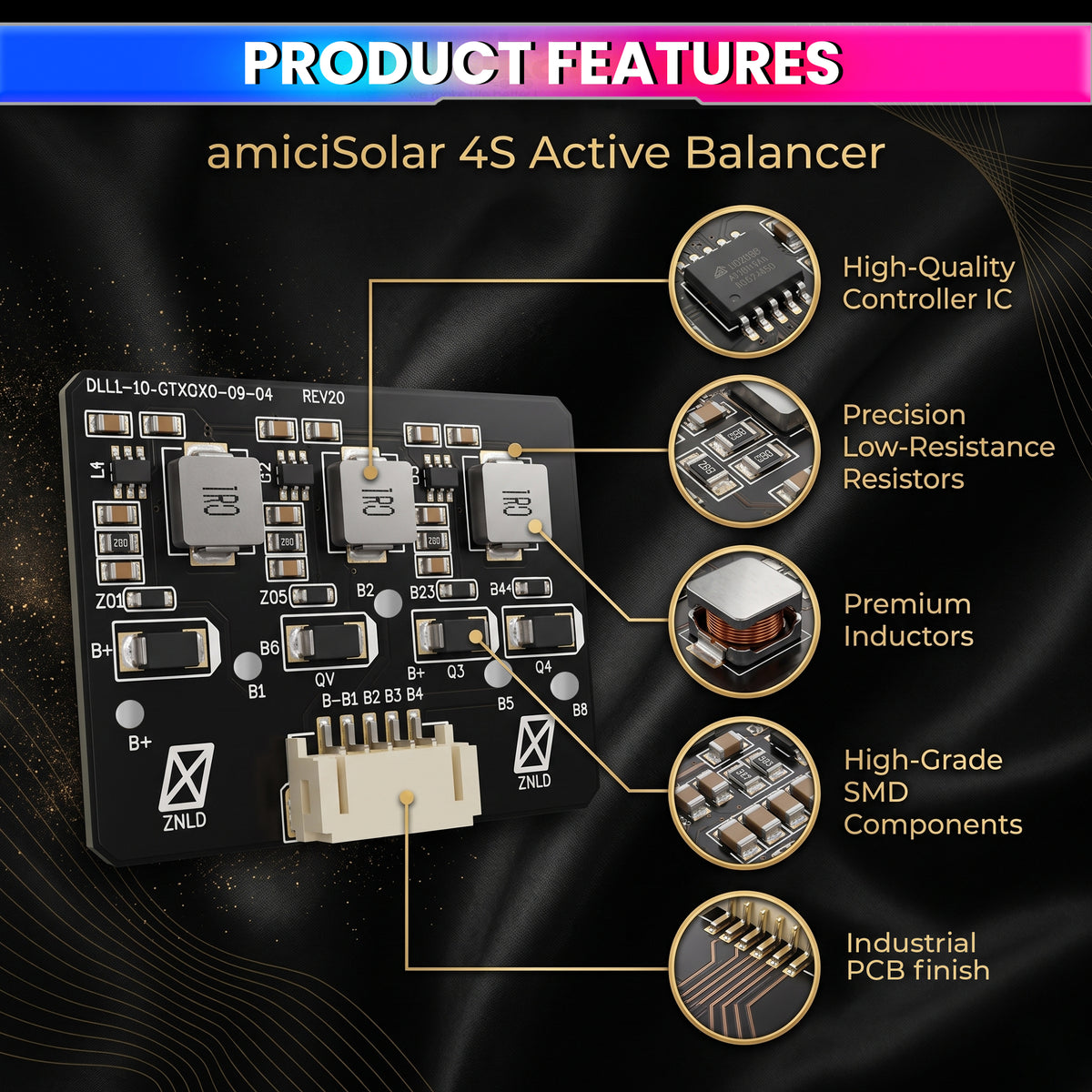

Features that make it useful
-

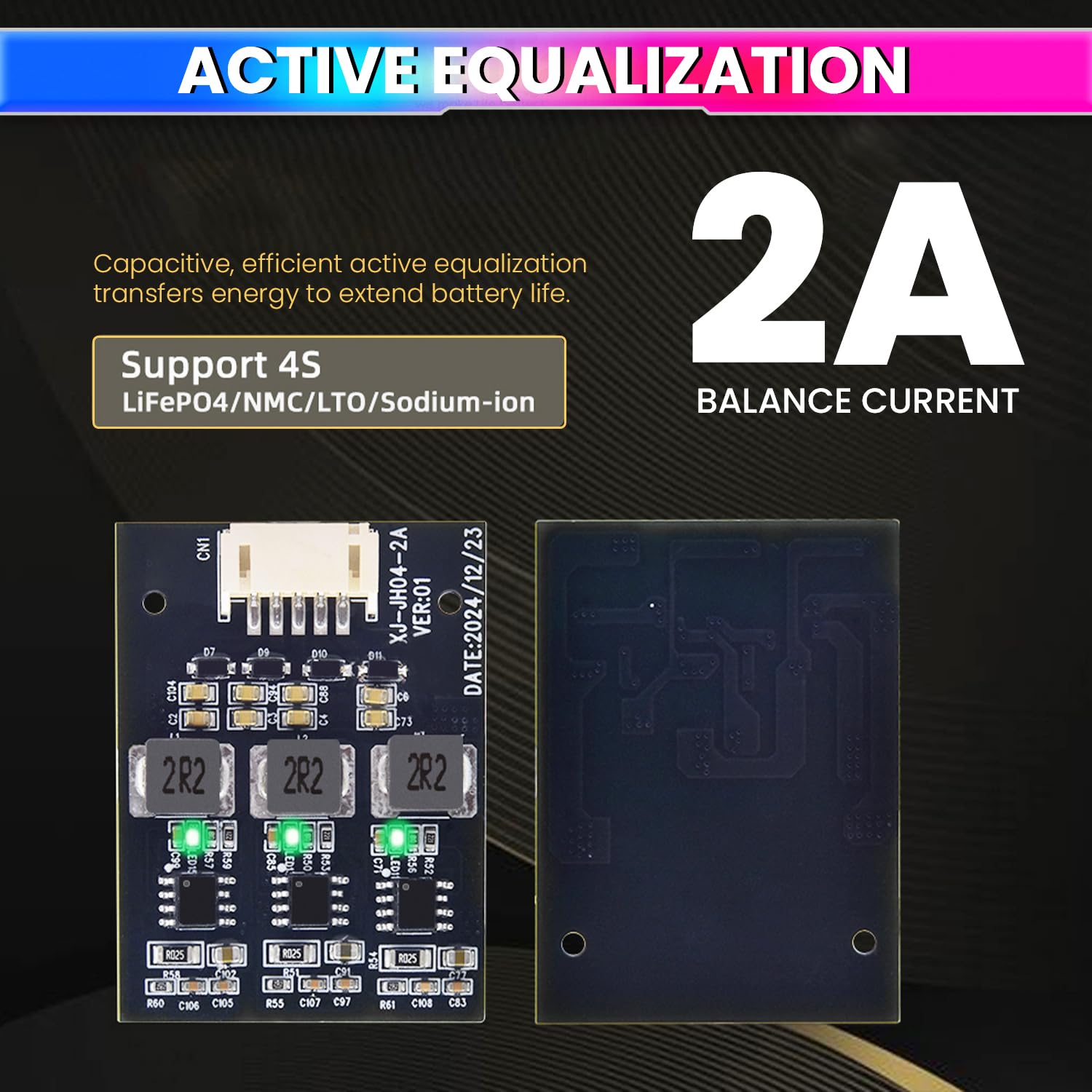

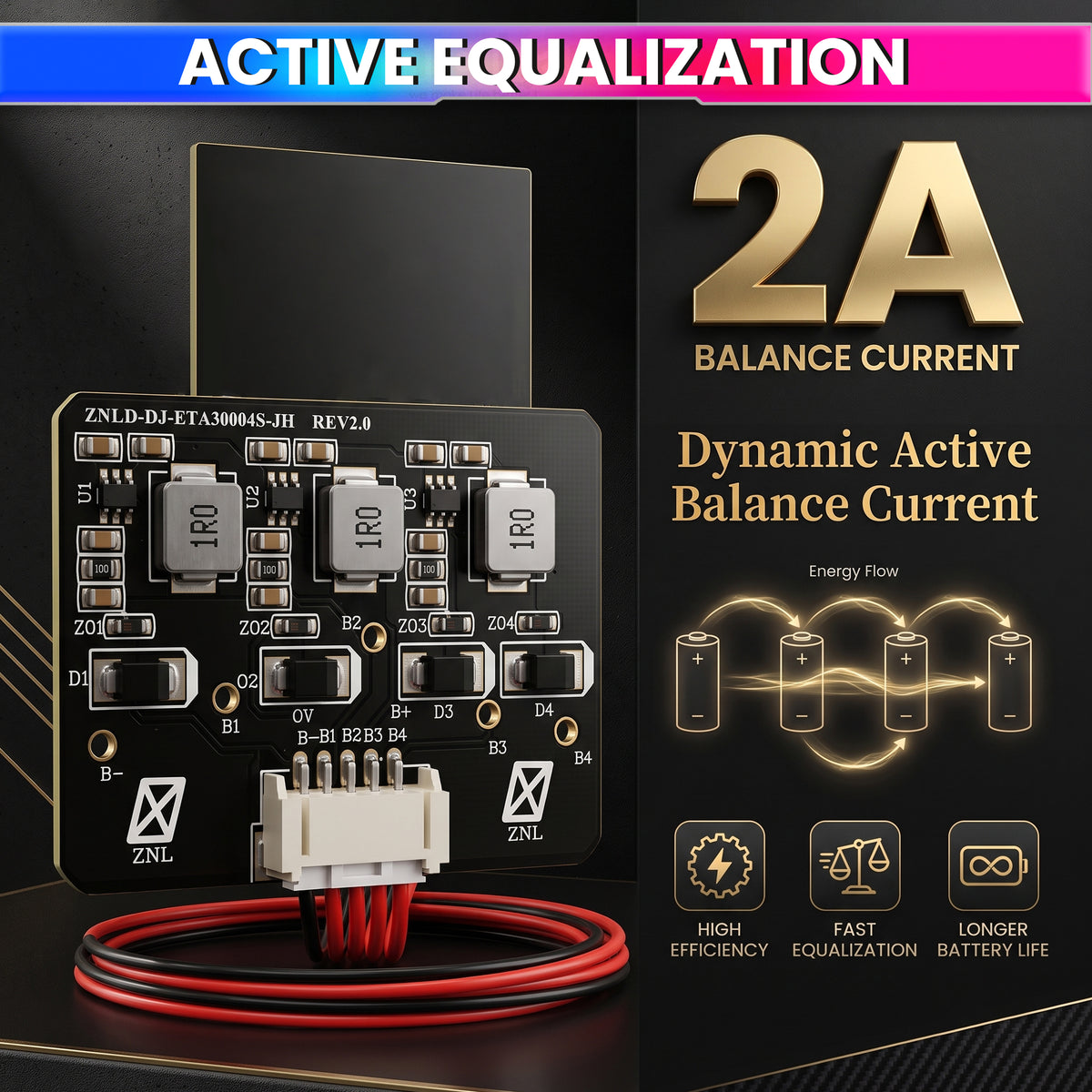

Active, not passive

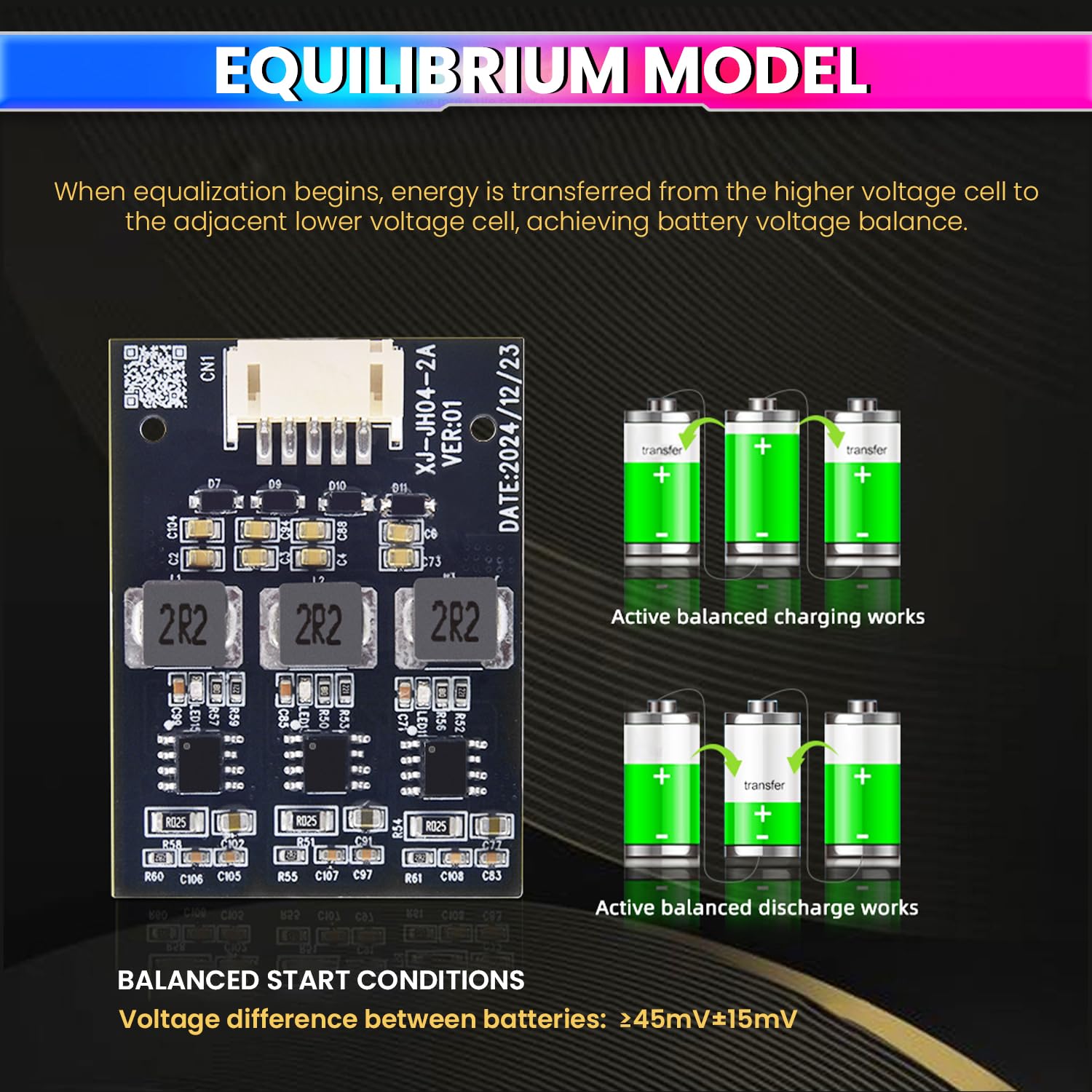

Moves energy from higher-voltage cells to lower ones instead of burning it off as heat.
-
-15°C to 65°C
Also rated for 10%–70% humidity.
-
Works alongside your BMS
It balances cells; it does not replace a BMS.
-
1-year warranty
amiciKart support.
How to use
-
Disconnect charger and loads
Work on the pack with everything disconnected.
-

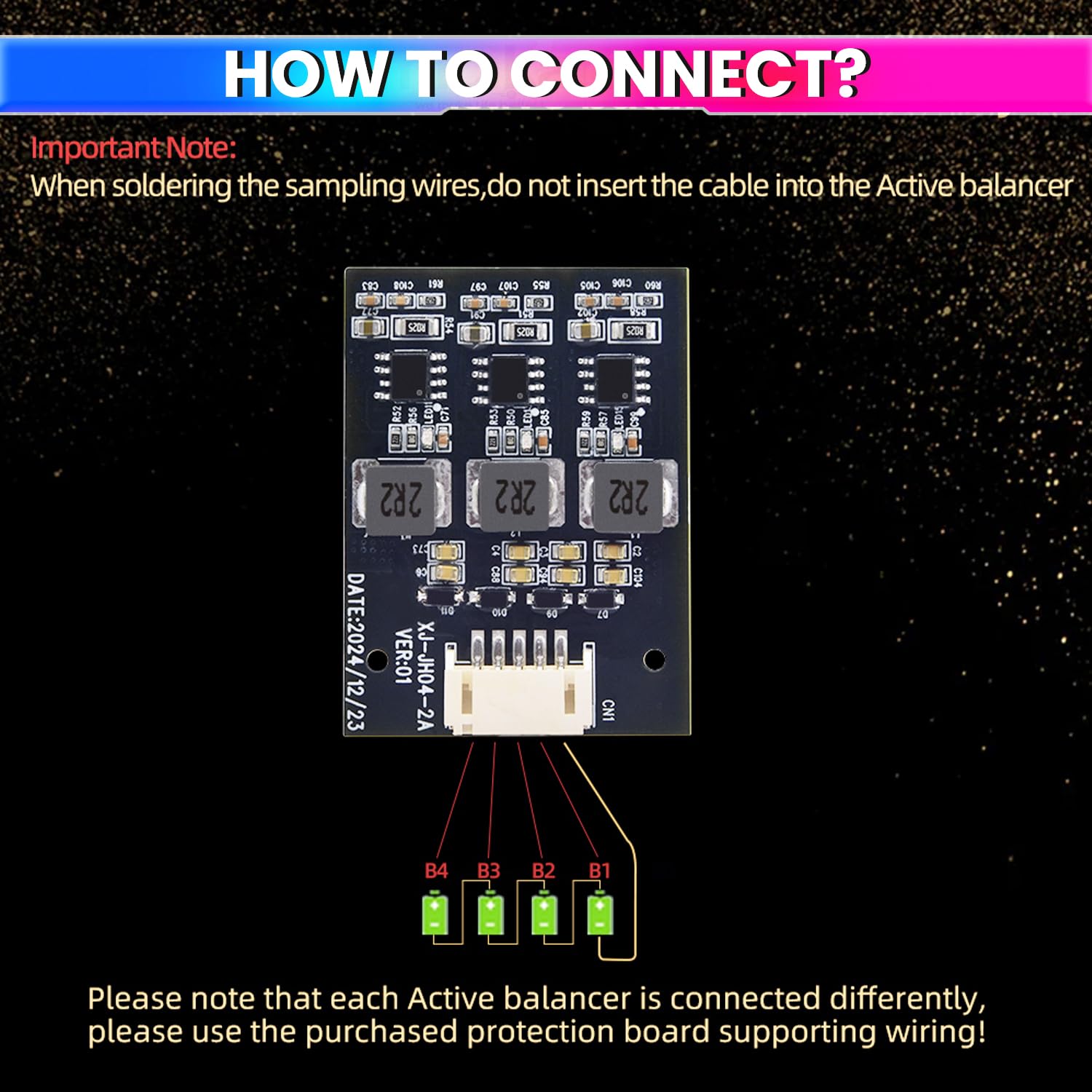

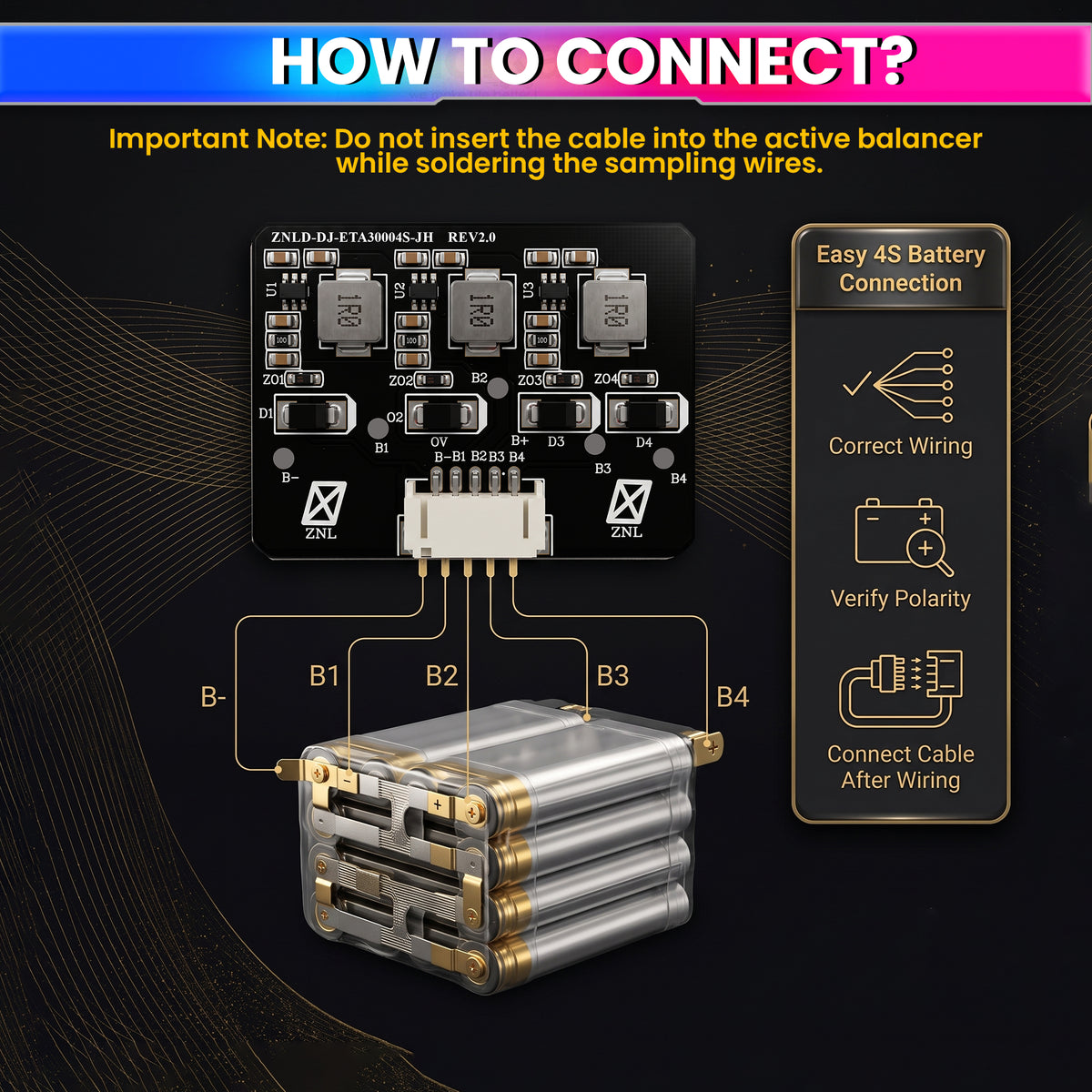

Connect the balance leads in order
Wire each lead to its cell in the order marked on the board, and check each with a multimeter before plugging in. A wrong or shorted lead can damage the board and the cells.
-
Mount and monitor
Fix the board where air can reach it and check cell voltages after the first charge.

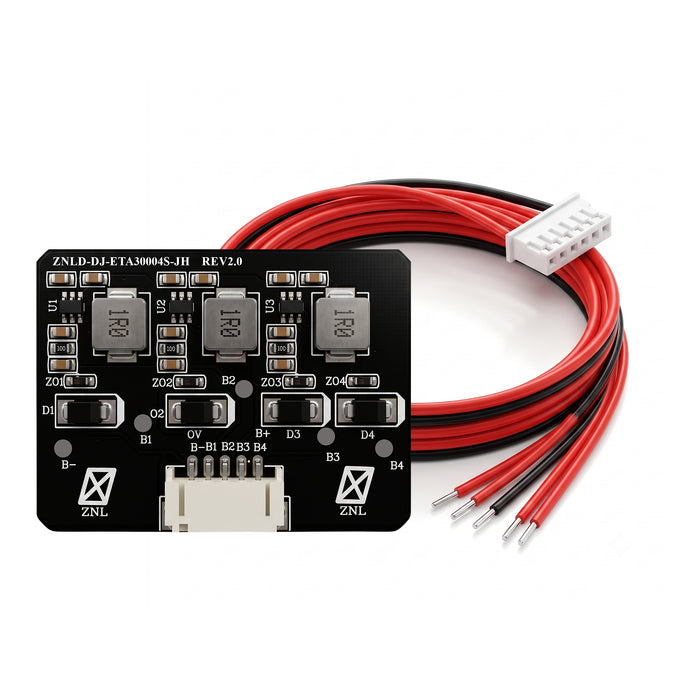

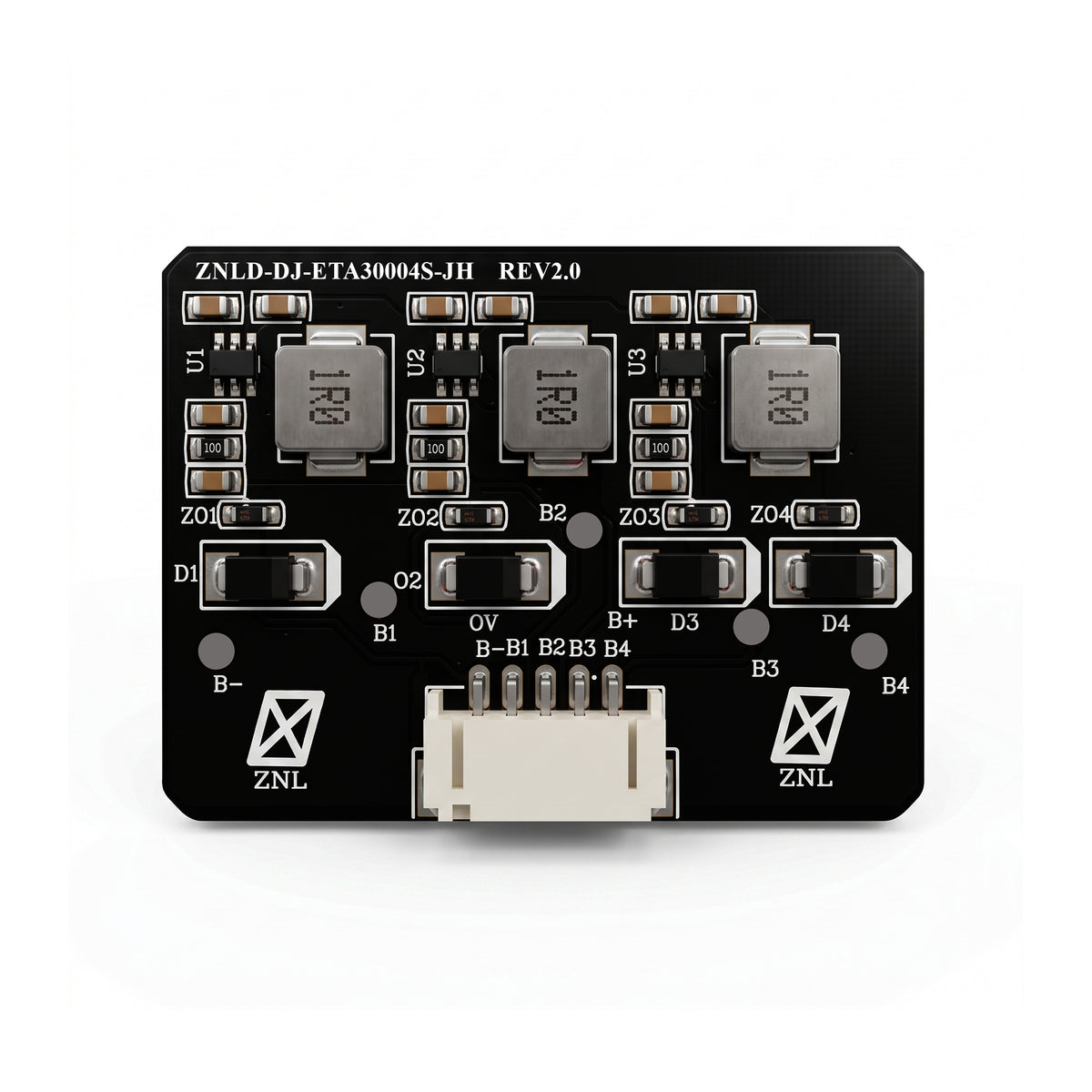

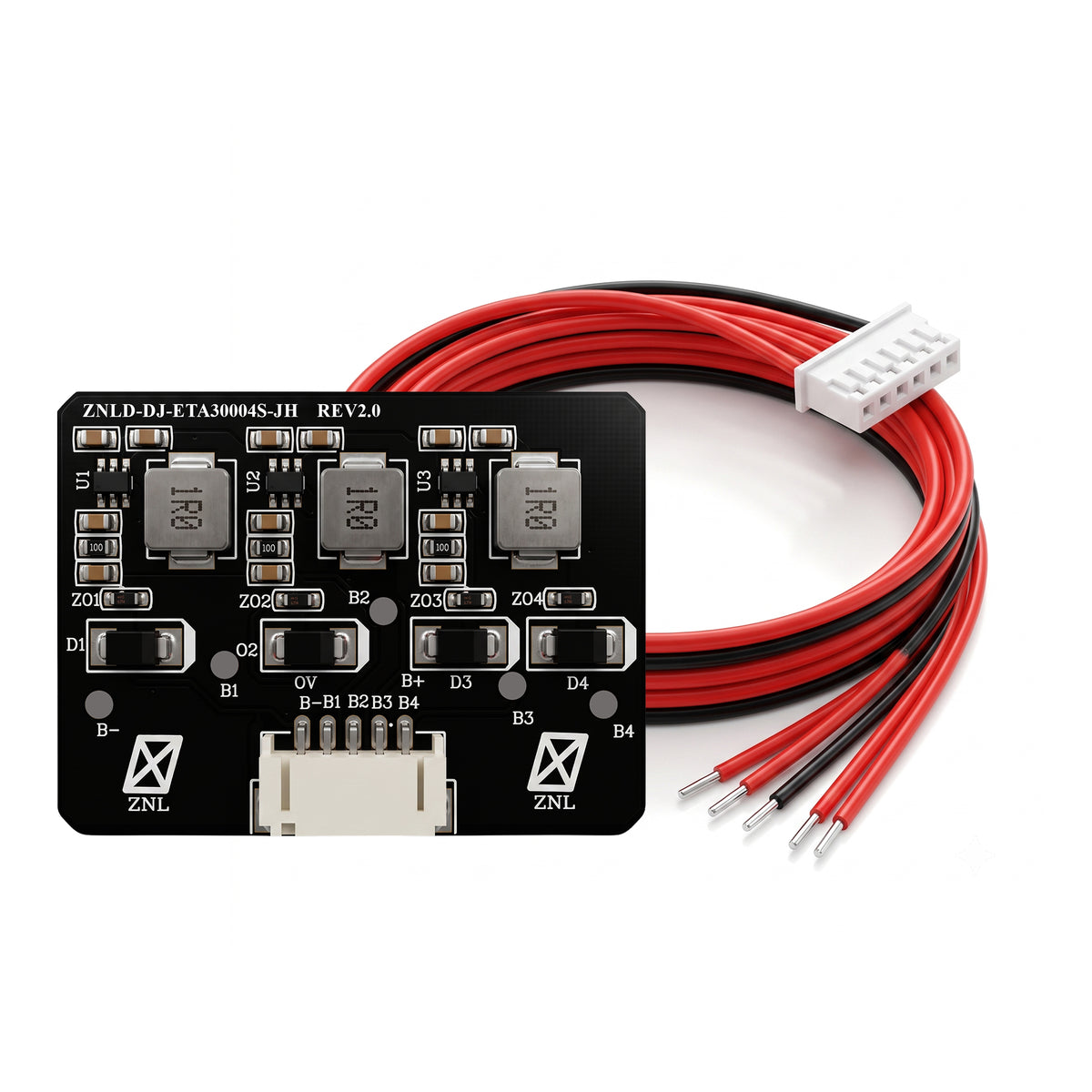

4S 2A Active Balancer, Inductive, LiFePO4 / Li-ion / LTO, 2.8V–4.2V per Cell
amiciKart · 4S packs · inductive active balancing up to 2A · starts at 45mV (±15mV) · 2.8V–4.2V per cell · LiFePO4 (LFP), Li-ion, LTO
A 4S inductive active balancer that moves energy from higher-voltage cells to lower ones at up to 2A instead of burning it off as heat. It supports LiFePO4 (LFP), Li-ion and LTO cells within a 2.8V–4.2V per-cell window, and starts balanc...
Sale price
Rs. 589.00
-51%
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 589.00
Unit price
Increments of 1
Minimum of 1
Maximum of
4S 2A Active Energy Balancer Board – Inductive Voltage Energy Equalization for LiFePO4 / Li-ion / Lipo / LTO Battery Packs (2.8V–4.2V)
Sale price
Rs. 589.00
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 589.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

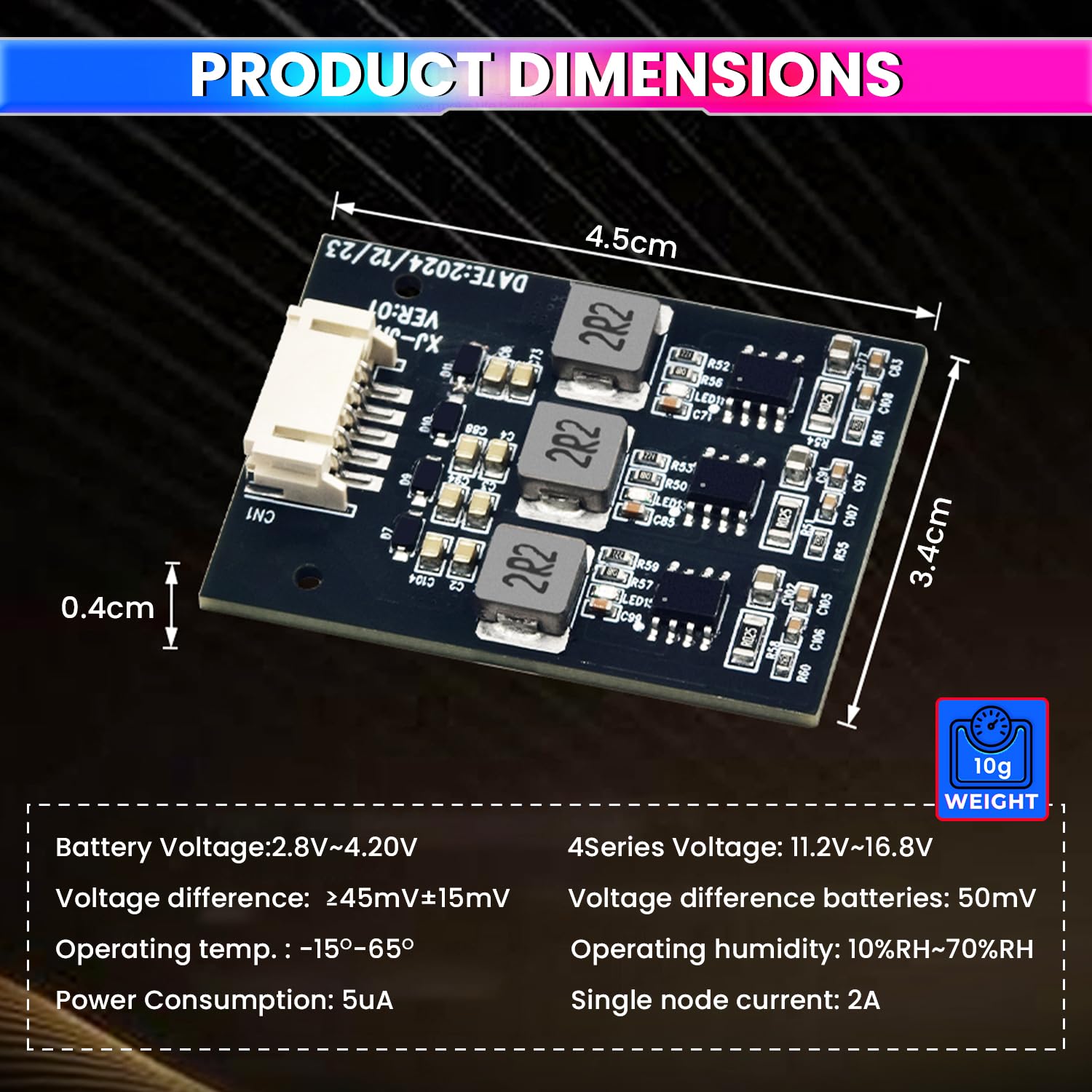

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xBAL-XJ-JH-4S-2A |
| Type | Inductive active balancer |
| Cell count | 4S |
| Balancing current | Up to 2A |
| Start threshold | 45mV (±15mV) |
| Cell voltage window | 2.8V–4.2V per cell |
| Chemistries | LiFePO4 (LFP), Li-ion, LTO |
| Operating temperature | -15°C to 65°C |
| Humidity | 10%–70% |
| Warranty | 1 year |
Frequently asked questions
Which battery types does it support?
LiFePO4 (LFP), Li-ion and LTO cells, as long as each cell's working voltage stays within 2.8V–4.2V.
When does it start balancing?
When the difference between cells reaches 45mV (±15mV).
Is it a BMS?
No. It balances cell voltages but does not protect against over-charge, over-discharge or short circuit. Use it together with a suitable BMS.
Full Product Description
4S 2A Active Balancer, Inductive, LiFePO4 / Li-ion / LTO, 2.8V–4.2V per Cell
A 4S inductive active balancer that moves energy from higher-voltage cells to lower ones at up to 2A instead of burning it off as heat. It supports LiFePO4 (LFP), Li-ion and LTO cells within a 2.8V–4.2V per-cell window, and starts balancing automatically when cells differ by 45mV (±15mV). Rated for -15°C to 65°C and 10%–70% humidity. It is a balancer, not a BMS. 1-year warranty.
- Active, not passive: Moves energy from higher-voltage cells to lower ones instead of burning it off as heat.
- -15°C to 65°C: Also rated for 10%–70% humidity.
- Works alongside your BMS: It balances cells; it does not replace a BMS.
- 1-year warranty: amiciKart support.
Important: Disconnect the charger and loads before fitting. Connect the balance leads in the marked order, check each with a multimeter, and never short cell leads. This board balances cells; use a suitable BMS for over-charge, over-discharge and short-circuit protection, and fuse the pack.
