Know before you buy
-
Input 8–60V DC · Output 12–80V DC
Boosts any 8–60V DC source to an adjustable 12–80V DC.
-
1200W continuous · 20A max
Rated 1200W continuous, 20A max input and output.
-

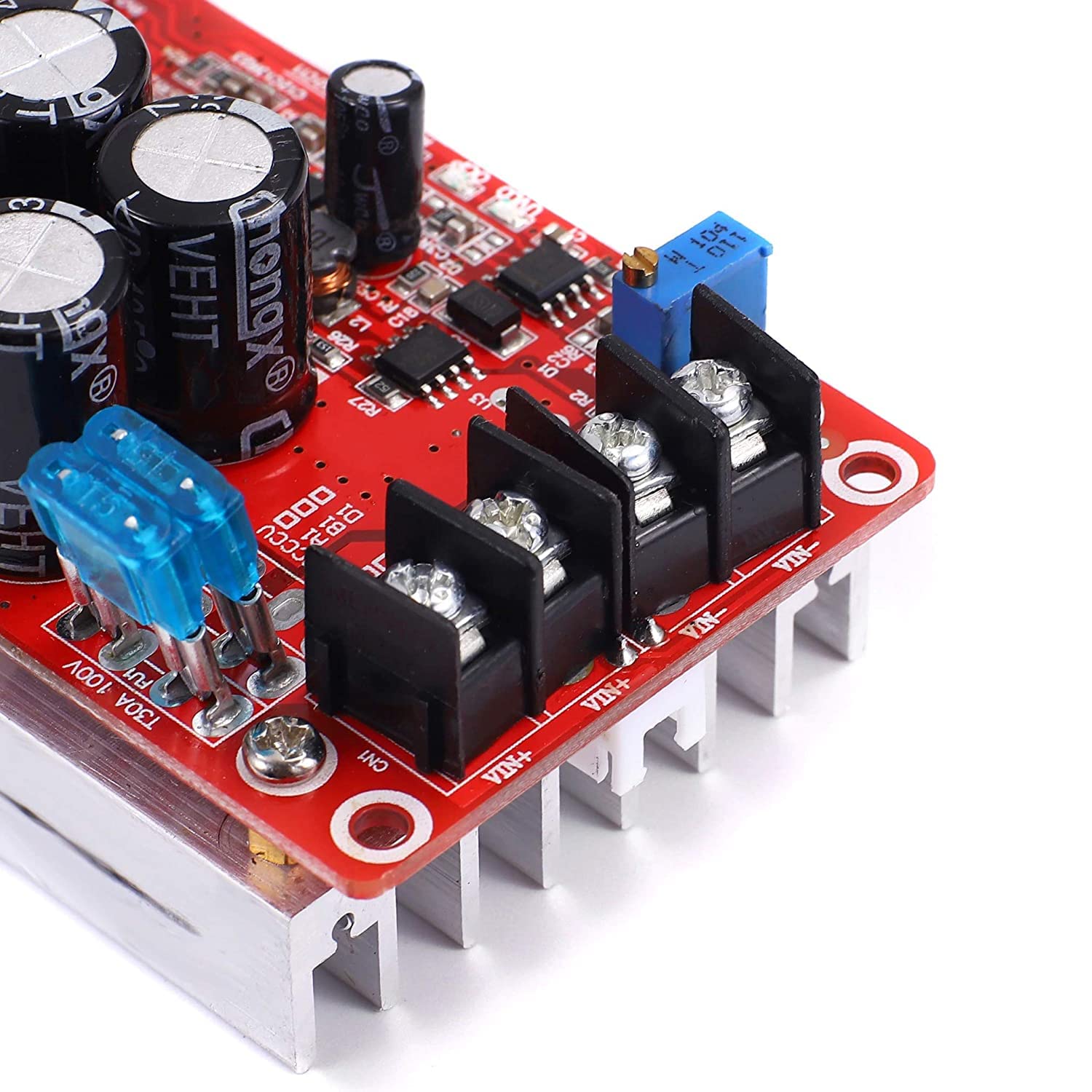

Screw terminals · 4× 3mm mounts
No soldering required.
-

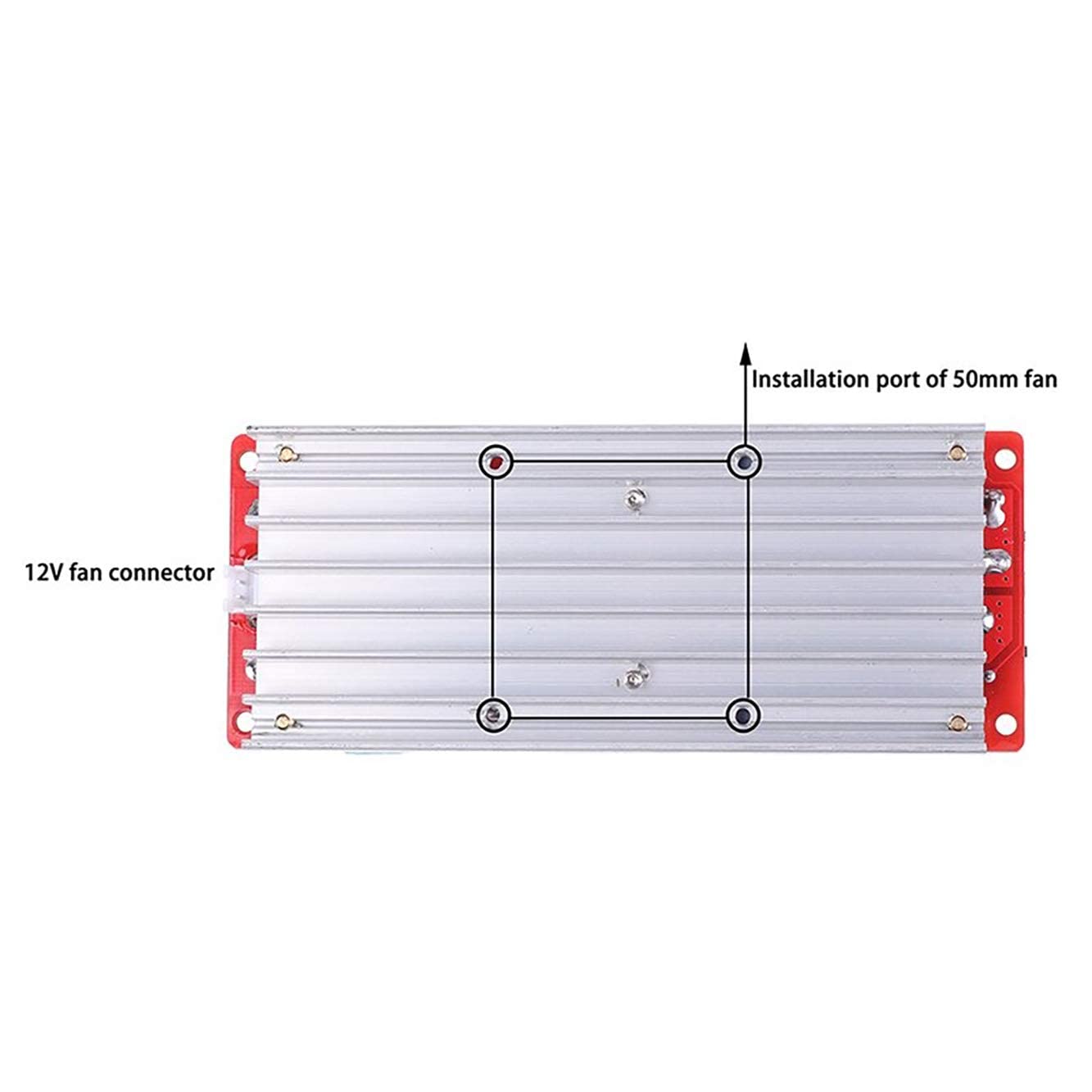

Cooling above 15A recommended
Add a heatsink or active cooling for loads above 15A.
Features that make it useful
-
Onboard potentiometer adjust
Dial in the exact output voltage between 12V and 80V.
-
E-bike / solar / LED / industrial use
Suits e-bike, solar, LED and industrial projects.
-
1-year warranty · 30-day returns
India support 980-970-9898 / care@amicikart.com.
-
Pan-India shipping
Ships across India.
How to use
-
Confirm source is within 8–60V DC before connecting
Polarity and wire gauge matter for ≤20A.
-
Set output with potentiometer within 12–80V DC / ≤1200W / ≤20A
Stay within 1200W and 20A.
-
Add heatsinking/cooling for sustained loads above 15A
Keeps the converter running reliably.
1200W DC Boost 8-60V to 12-80V 20A
amiciSmart · 1200W · input 8–60V DC · output 12–80V DC · 20A · screw terminals
Adjustable DC–DC step-up boost converter: input 8–60V DC, output 12–80V DC set by onboard potentiometer, 1200W continuous, 20A max input and output. Screw terminals (no soldering), 4× 3mm mounting holes; add cooling above 15A.
Sale price
Rs. 1,499.00
-41%
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,499.00
Unit price
Increments of 1
Minimum of 1
Maximum of
1200W DC to DC Converter, 20A Step-Up Boost Converter 8~60V to 12~80V Adjustable Power Supply
Sale price
Rs. 1,499.00
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,499.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU | 1xDC-DC-20A |
|---|---|
| Brand | amiciSmart |
| Device class | DC–DC step-up / boost converter module |
| Input | 8V–60V DC |
| Output | 12V–80V DC continuously adjustable |
| Power | 1200W continuous rated |
| Current | 20A max input & output |
| Adjustment | Onboard potentiometer |
| Connections | Screw terminals; 4× 3mm screw-mount holes |
| Cooling | Enhanced heat dissipation recommended above 15A |
| Warranty | 1 year; 30-day returns; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
What are the input and output voltages?
Input 8V–60V DC; output adjustable 12V–80V DC.
What power and current limits?
1200W continuous rated; 20A max input and output.
Do I need extra cooling?
Yes, for loads above 15A — add a heatsink or active cooling.
Full Product Description
1200W DC Boost 8-60V to 12-80V 20A
Adjustable DC–DC step-up boost converter: input 8V–60V DC, continuously adjustable output 12V–80V DC, 1200W continuous rated, 20A max input & output current, onboard potentiometer, screw terminals (no soldering), 4× 3mm screw-mount holes; enhanced heatsinking recommended above 15A. Suits e-bike, solar, LED and industrial projects.
- Onboard potentiometer adjust: Dial in the exact output voltage.
- E-bike / solar / LED / industrial use: Versatile DC power.
- 1-year warranty · 30-day returns: India support 980-970-9898 / care@amicikart.com.
- Pan-India shipping: Ships across India.
