Know before you buy
-
Input 12–90V DC
Feed it from a DC supply, battery or solar array within this range.
-
Output up to 80V, 30A, 2400W
As a step-down module, the output is always set below the input voltage.
-
0.01V / 0.01A steps
Fine voltage and current control, with 10 memory presets.
-
High-current DC
Check polarity, fuse the input, use cable rated for the current and never short the output terminals.
Features that make it useful
-

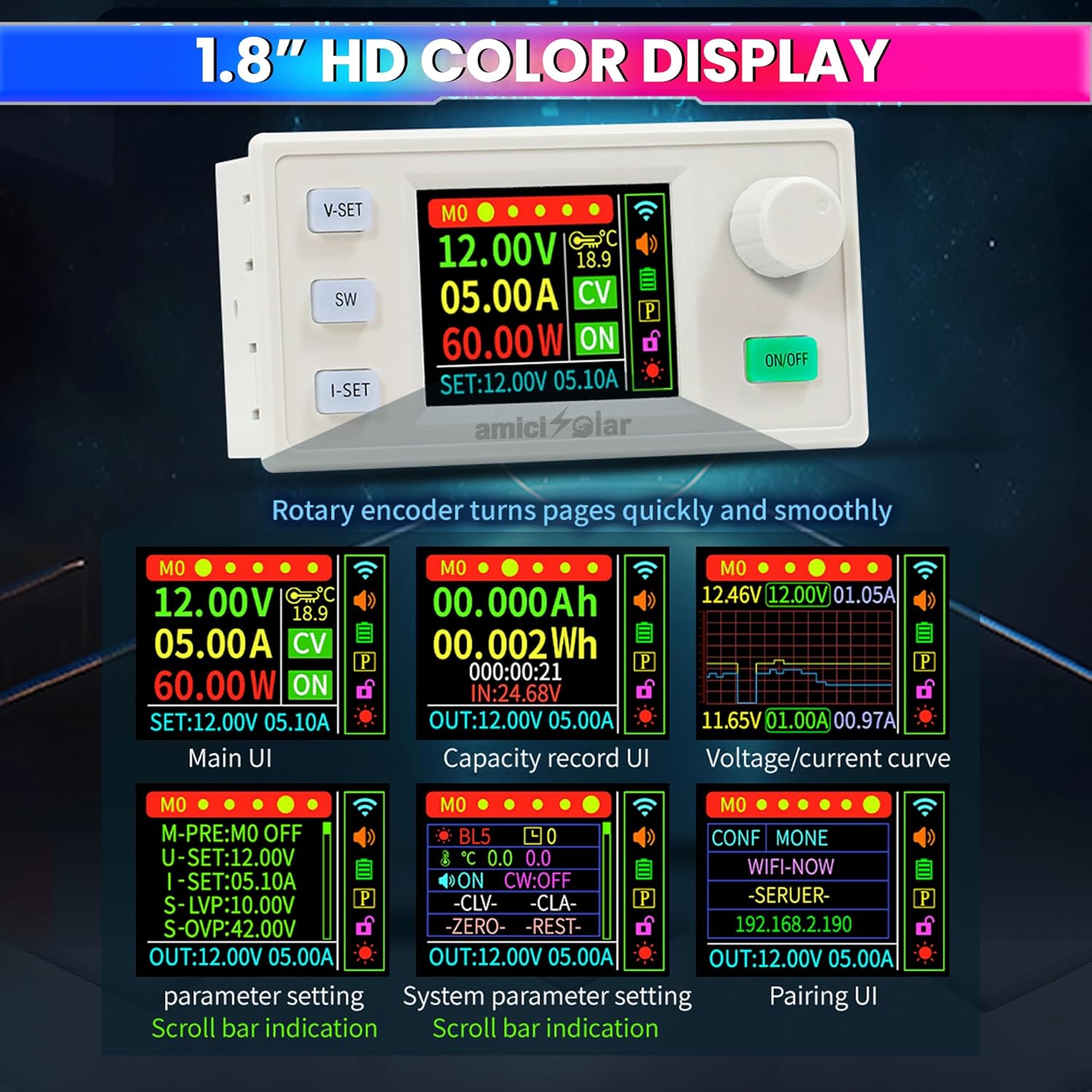

1.8-inch colour LCD
Real-time voltage, current, power and capacity.
-
MPPT for solar charging
Maximum power point tracking helps get more from your solar panels.
-
Up to 95% efficiency
Synchronous buck conversion means less heat and a stable output.
-

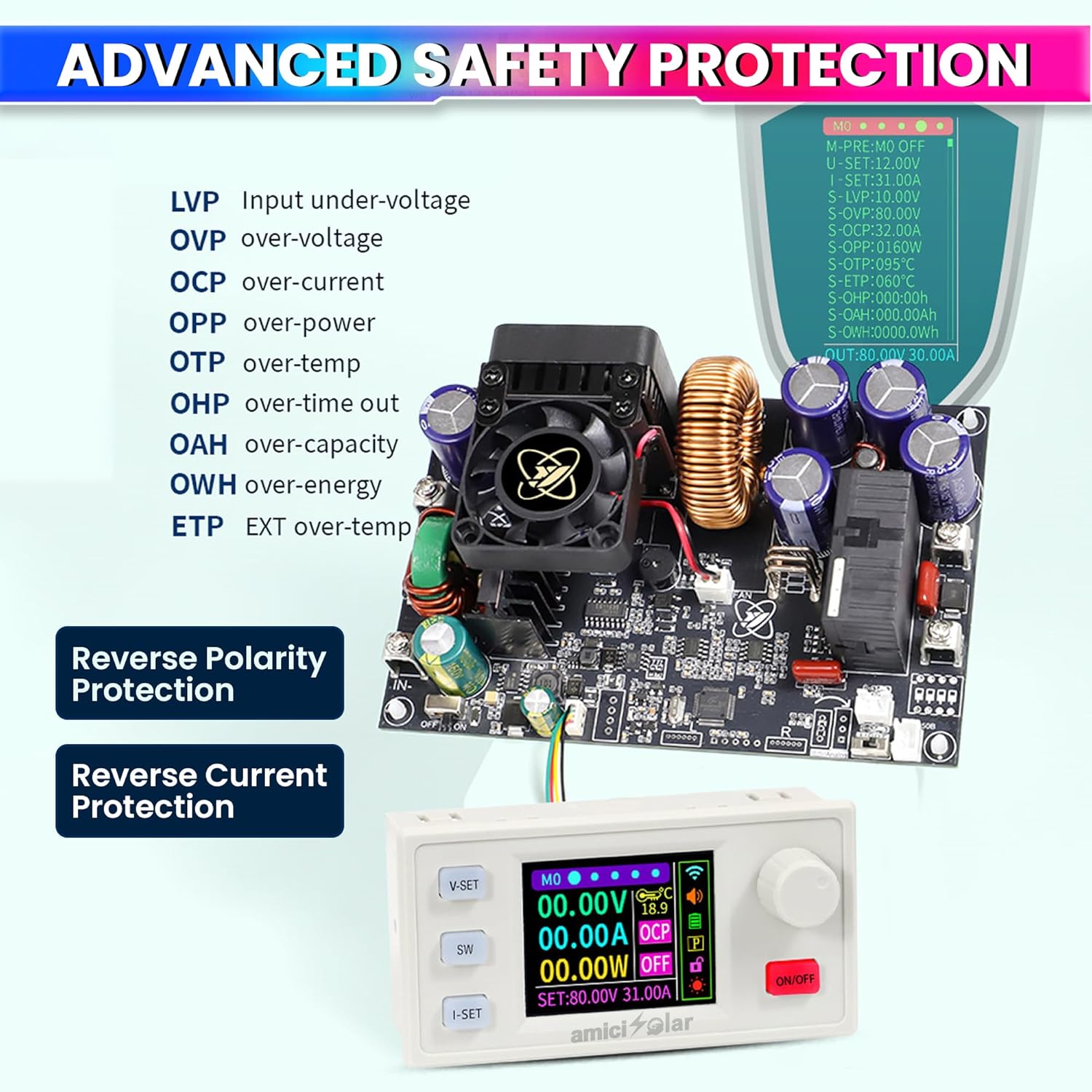

Multi-layer protection
Over-voltage, over-current, reverse polarity, overheating and under-voltage protection.
-
1-year warranty
Support by WhatsApp, call or email.
How to use
-
Check your source
Use a DC supply, battery or solar array between 12V and 90V DC. For solar, keep the panels' open-circuit voltage within 90V.
-
Wire with the power off
Connect input and output with the correct polarity, use cable rated for the current, and fit a suitable fuse on the input.
-
Set, then connect the load
Set the output voltage and current limit before connecting the load, then switch the output on.
XY8030S Buck Power Module, 12–90V DC In, up to 80V 30A 2400W
amiciKart · input 12–90V DC · output up to 80V / 30A / 2400W · 0.01V / 0.01A steps · 10 presets · 1.8-inch colour LCD · MPPT
A programmable step-down (buck) DC power module for battery charging, CNC, robotics and solar setups. It takes 12V to 90V DC in and gives an adjustable output of up to 80V and 30A, with a maximum of 2400W. Set voltage and current in 0.01...
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability
Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xPSB-80-30 |
| Model | XY8030S |
| Type | Programmable step-down (buck) DC power module |
| Input voltage | 12–90V DC |
| Output voltage | Adjustable, up to 80V DC |
| Output current | Adjustable, up to 30A |
| Output power | Up to 2400W |
| Resolution | 0.01V / 0.01A |
| Memory presets | 10 |
| Display | 1.8-inch colour LCD |
| Efficiency | Up to 95% |
| Protection | Over-voltage, over-current, reverse polarity, overheating, under-voltage |
| Warranty | 1 year |
Frequently asked questions
What input voltage does it need?
Can the output be higher than the input?
Can I charge a battery from solar panels?
Is 2400W available at every setting?
Full Product Description
XY8030S Buck Power Module, 12–90V DC In, up to 80V 30A 2400W
A programmable step-down (buck) DC power module for battery charging, CNC, robotics and solar setups. It takes 12V to 90V DC in and gives an adjustable output of up to 80V and 30A, with a maximum of 2400W. Set voltage and current in 0.01V and 0.01A steps, save 10 presets, and watch voltage, current, power and capacity on the 1.8-inch colour LCD. MPPT helps solar charging, and protection covers over-voltage, over-current, reverse polarity, overheating and under-voltage. 1-year warranty.
- 1.8-inch colour LCD: Real-time voltage, current, power and capacity.
- MPPT for solar charging: Maximum power point tracking helps get more from your solar panels.
- Up to 95% efficiency: Synchronous buck conversion means less heat and a stable output.
- Multi-layer protection: Over-voltage, over-current, reverse polarity, overheating and under-voltage protection.
- 1-year warranty: Support by WhatsApp, call or email.
Important: This is a high-current DC module. Wire it with the power off, check polarity on input and output, fit a suitable fuse on the input, use cable rated for the current, and never short the output terminals. Keep the input within 12–90V DC.
