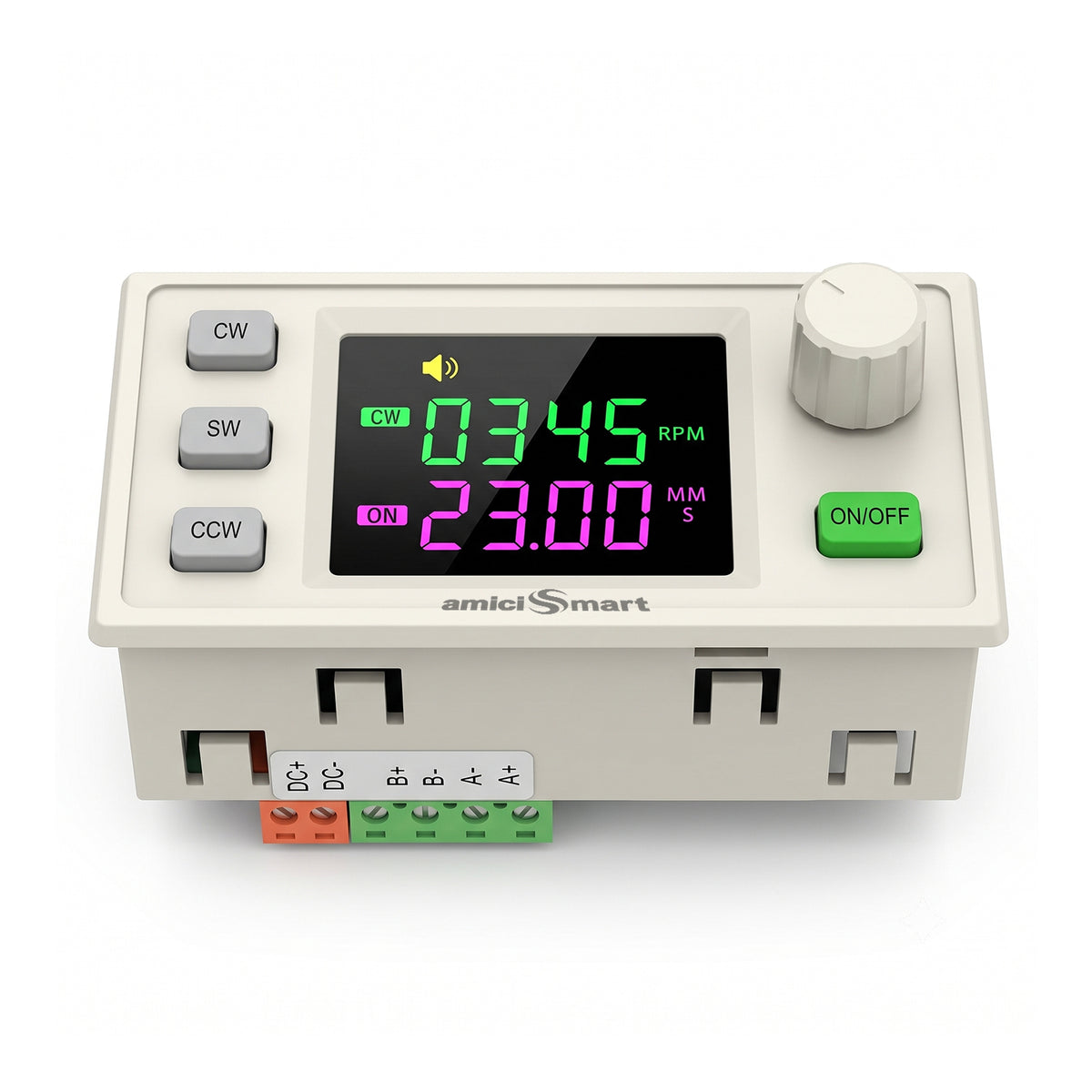

XY-SMD6 Stepper Motor Driver Controller, 10–30V 6.6A, 27 Modes, CW/CCW, LED Display, RS485 MODBUS

All-in-One Stepper Motor Driver & Controller

The amiciSmart XY-SMD6 combines a stepper motor driver and controller into one compact unit. It is designed for 42/57/86 series common-cathode stepper motors and provides built-in motion programs, CW/CCW control, homing, adjustable microstepping and digital operation.

With 27 built-in operating modes, the unit can handle different motion sequences without requiring a separate PLC or controller box for supported applications.

27 BUILT-IN Mode

The controller provides 26 motion sequence programs from P0-01 to P0-26, covering functions such as:

Encoder-follow operation
Jog control
Unidirectional cycling
Bidirectional cycling
Homing
Limit-switch stop
Time-triggered operation

This makes the unit suitable for different single-axis motion-control requirements.

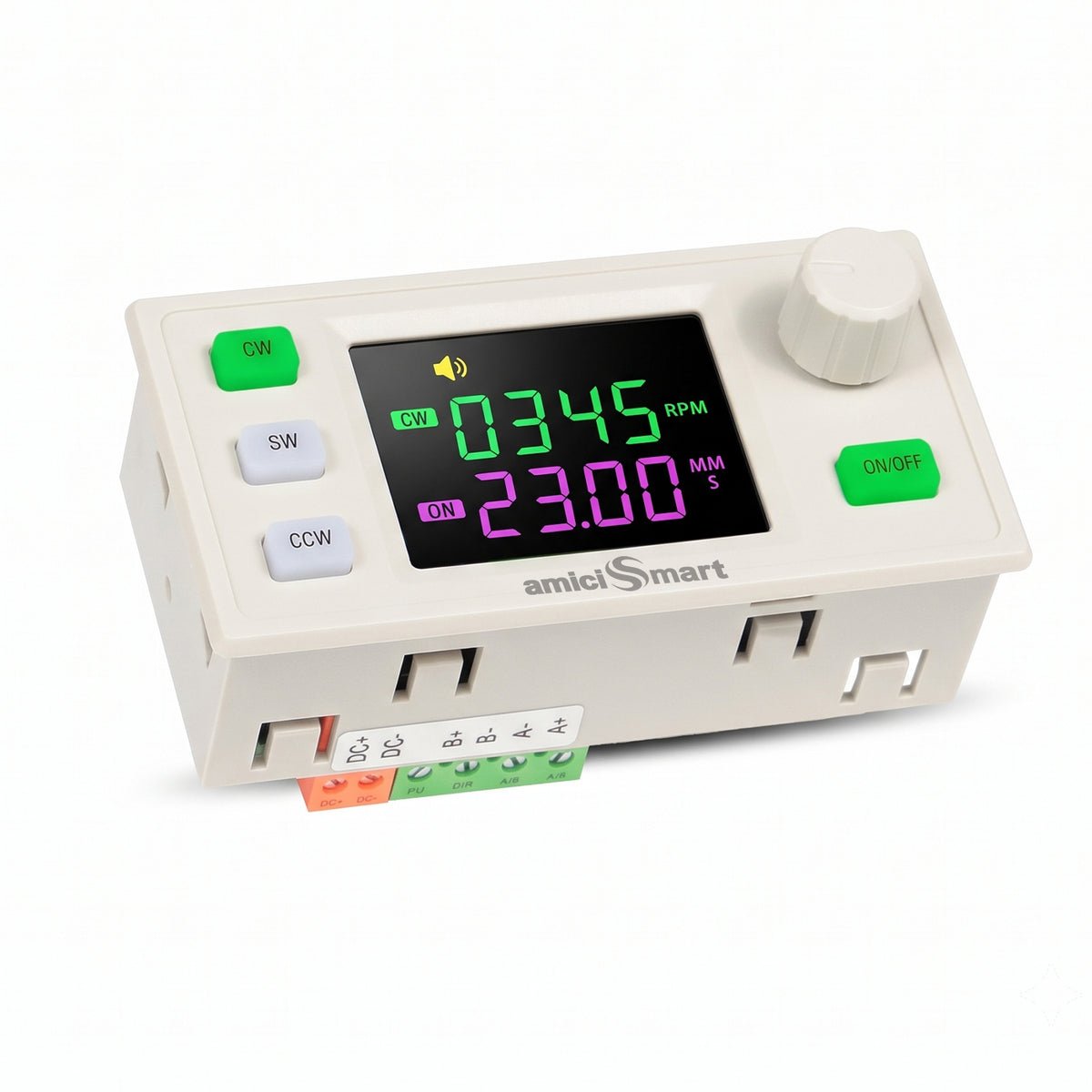

DIGITAL DISPLAY & ROTARY ENCODER

The dual-line LED display and rotary encoder provide convenient control and setup. The display can show parameters such as:

RPM
Travel speed
Position
Temperature
Cycle count


Specifications:

Model:- XY-SMD6
Product Name:- Stepper Motor Integrated Drive & Controller
Applicable Motors:- 42/57/86 Stepper Motor (Common Cathode)
Control Axes:- Single-axis
Power Supply:- DC 10V–30V
Peak Driving Current:- 6.6A
Communication Interface:- TTL Serial (Standard MODBUS Protocol)
Main System Functions:- Auto, Manual, Setup, Serial Control
Pulse Frequency Range:- 100Hz–80,000Hz
Speed Class Range:- 0–1000
Forward/Reverse Travel:- 0–9999.999mm
Microstepping Range:- 8–64 microsteps
Cycle Operation Count:- 1–9999, or Infinite Loop
CW/CCW Delay Time:- 0.000–9999.000s
Acceleration/Deceleration Control:- Yes
Reverse Connection Protection:- Yes
Over-Temperature Protection:- Yes
Active Cooling:- Yes (fan on ≥55°C, off ≤50°C)
Operating Temperature:- -10°C to 60°C (Non-condensing)
Product Dimensions:- 86 x 41 x 45mm (excl. rotary encoder)
Net / Gross Weight:- 90g / 113g

Suitable Applications

The XY-SMD6 can be used in compatible single-axis stepper motor control systems, DIY motion projects, automation setups, positioning applications and equipment requiring programmed CW/CCW movement, cycling or homing.

Compatibility Note: Please verify that your stepper motor is a 42/57/86 series common-cathode motor and that the motor/control requirements are compatible with the controller before installation.
