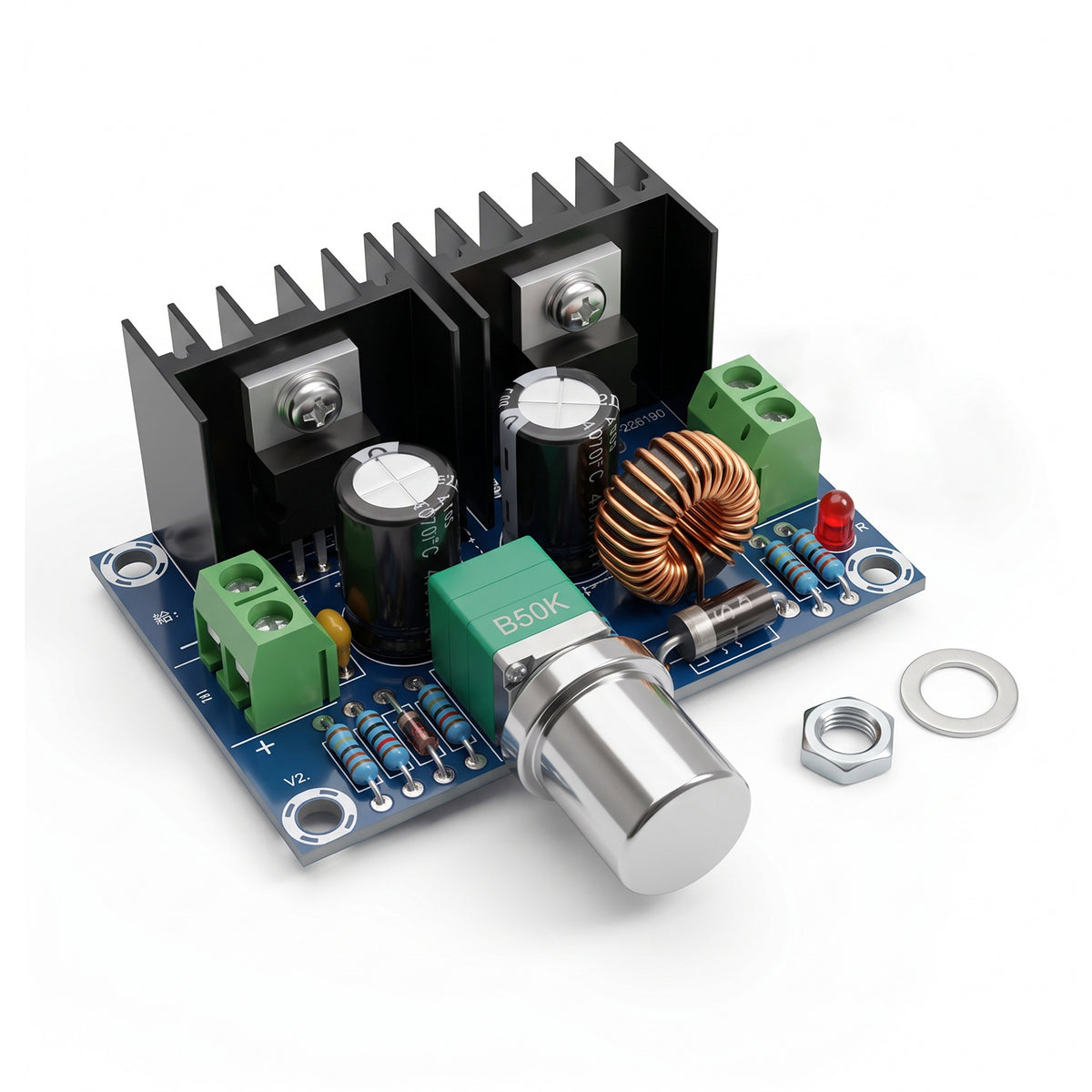

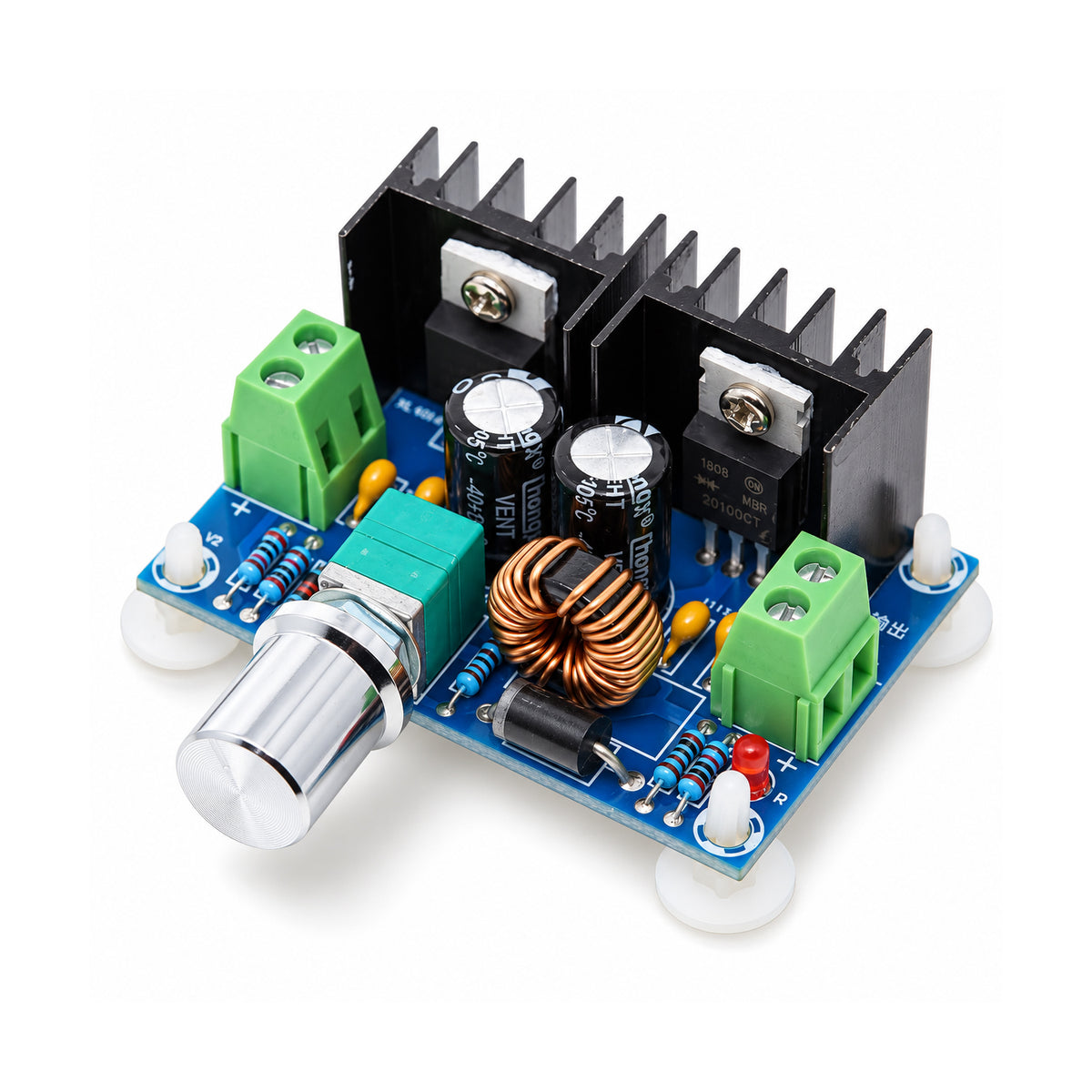

XL4016 8A 200W DC-DC Buck Converter 4–40V to 1.25–36V | 8A Maximum Output | 200W Maximum Power
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 429.00
-65%
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 429.00
Unit price
XL4016 8A 200W DC-DC Buck Converter 4–40V to 1.25–36V | 8A Maximum Output | 200W Maximum Power
Sale price
Rs. 429.00
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 429.00
Unit price
Limited time
🪔 Diwali Special: 12% OFF on everything
Use code
One use per customer · Ends 8 Nov, 11:30 PM
Superfast Shipping

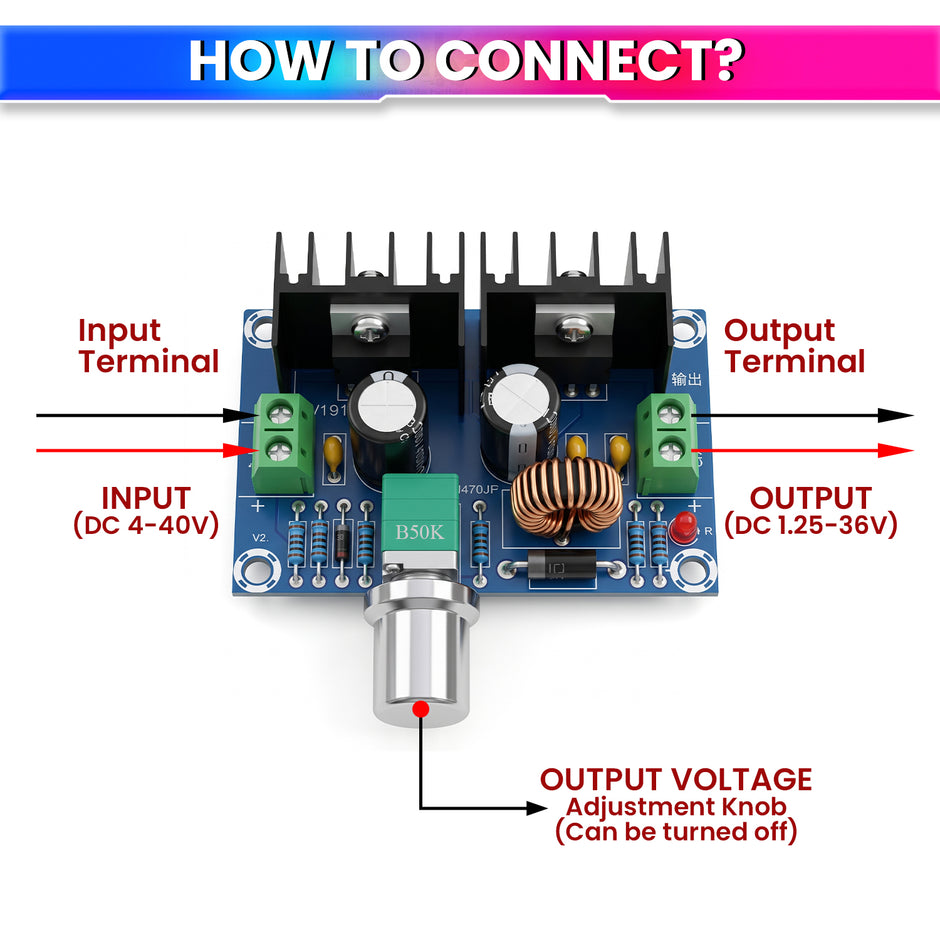

WIDE INPUT & ADJUSTABLE OUTPUT: Accepts 4–40V DC input and provides adjustable 1.25–36V DC output for compatible power supply and electronics projects.
UP TO 8A & 200W: Supports up to 8A maximum output current and 200W maximum power. For continuous operation, keep the load at around 5A or below as recommended.

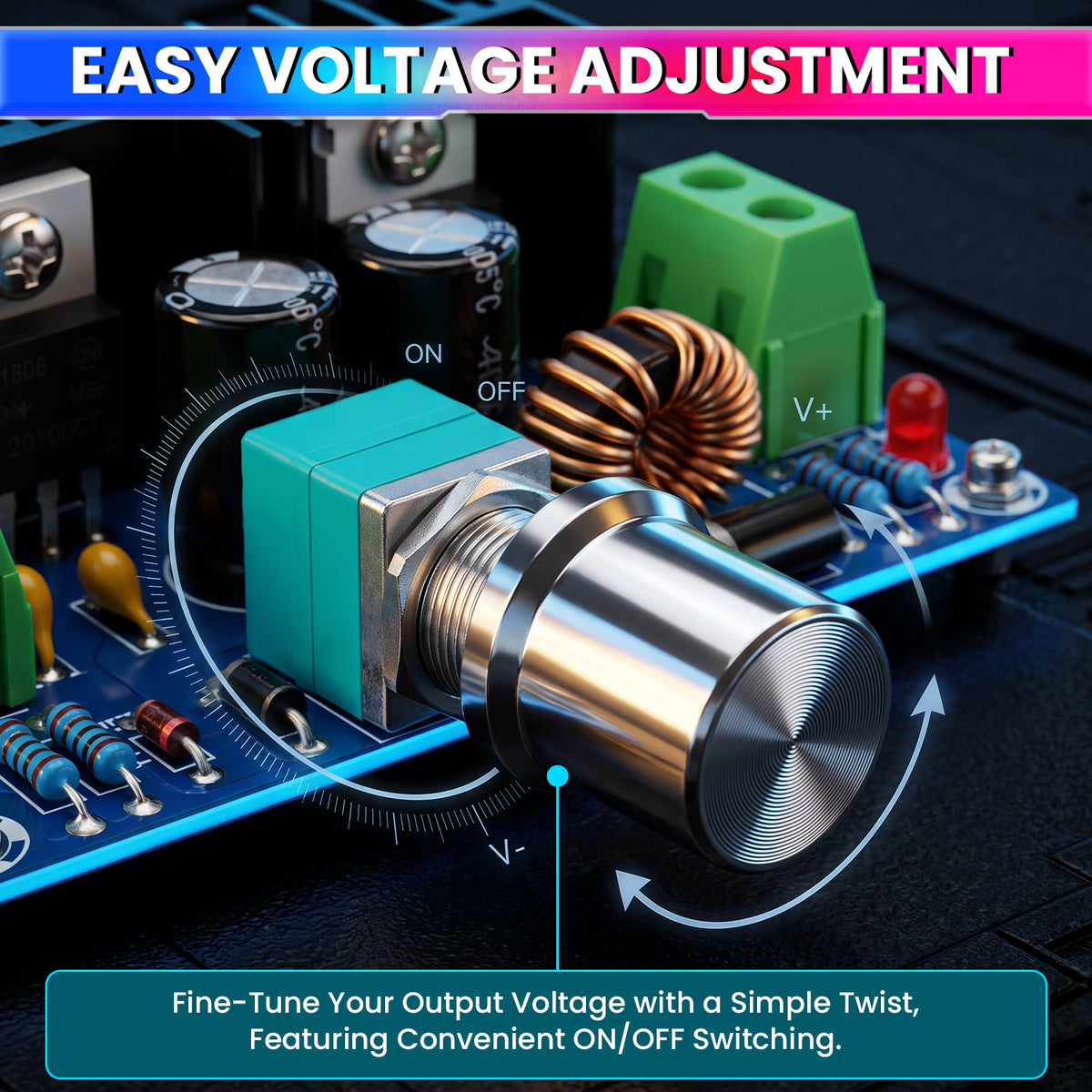

CONVENIENT VOLTAGE ADJUSTMENT: The front-mounted knob lets you adjust output voltage easily and includes a switchable function for convenient operation.

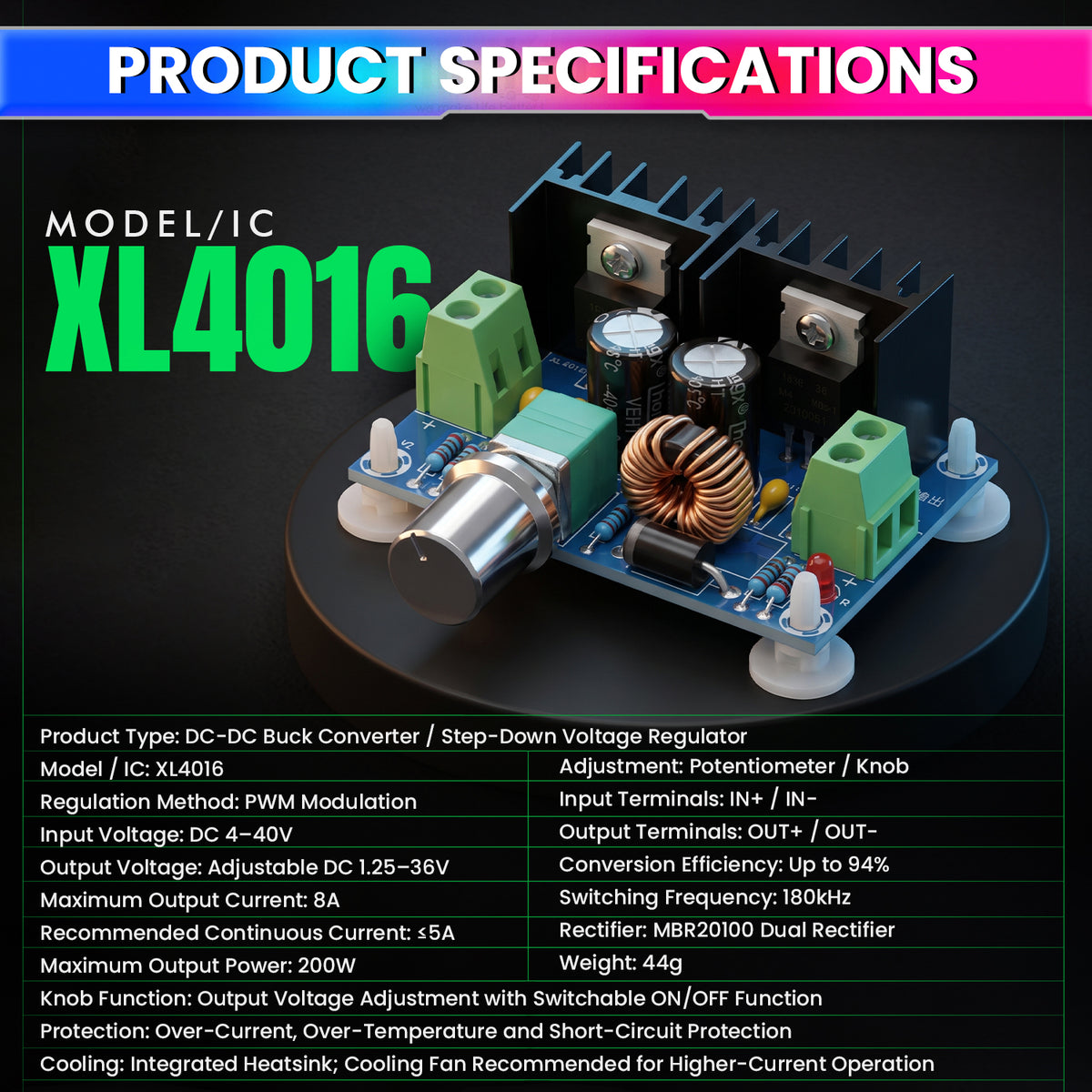

EFFICIENT STEP-DOWN CONVERSION: Uses the XL4016 regulator with PWM control, a 180kHz switching frequency and an MBR20100 dual rectifier. Specified conversion efficiency is up to 94%.
BUILT-IN PROTECTION: Includes overcurrent, over-temperature and short-circuit protection to help protect the module during operation.
COOLING FOR HIGHER LOADS: Features a heat sink. Additional fan cooling is recommended when operating at higher current to help manage heat.
COMPACT PANEL-MOUNT DESIGN: Measures 61 × 41 × 27mm and weighs approximately 44g. The adjustment knob requires a 7mm panel mounting hole.
VERSATILE DIY APPLICATIONS: Suitable for adjustable DC power supplies, electronics testing, LED projects, automotive electronics and other compatible step-down applications.
IMPORTANT: This is a step-down converter; the output voltage must be lower than the input voltage. Check input polarity, output requirements and cooling before use.
1-Year Warranty & Dedicated Support:- For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.
