Know before you buy
-
Electrician / qualified installer required
DIN-rail single-phase protector-meter. Isolate mains before install.
-
SmartLife app remote
Live V/A/W/Hz/kWh, cut-off reason + timestamp, remote control.
-
80A · adjustable OV/UV/I/leakage
OV 120–300V · UV 80–210V · overload 1–80A · leakage 10–100mA.
-
Bi-directional kWh
Tracks import and export energy for solar/net-metering; disable leakage protection while measuring bi-directionally.
Features that make it useful
-

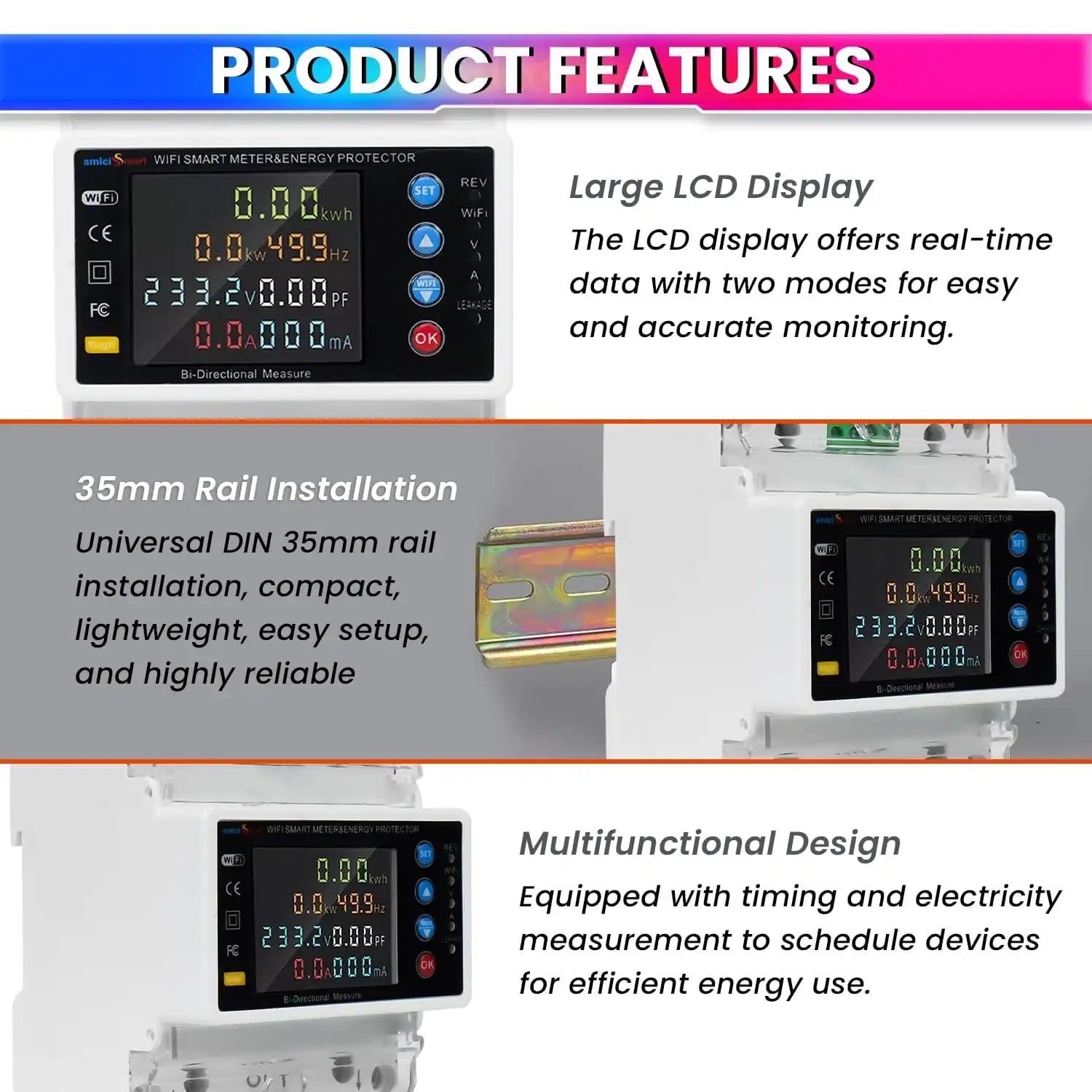

LCD + app telemetry
Voltage, current, power, frequency, energy on device and in SmartLife.
-
Multi-layer cut-off + auto reconnect
Trips on fault then restores when conditions clear.
-
Solar / net-metering oriented
Bi-directional energy tracking for rooftop solar users.
-
DIN-rail one-device stack
Replaces a separate protector, meter and remote switch.
How to use
-
Check single-phase board & 80A cable plan
Match the device to your panel with an electrician.
-
Mount on DIN-rail and pair SmartLife
Wire per markings; connect WiFi/app for remote logs.
-
Set protection limits
Adjust OV/UV/current/leakage within the ranges; disable leakage when using bi-directional measurement.

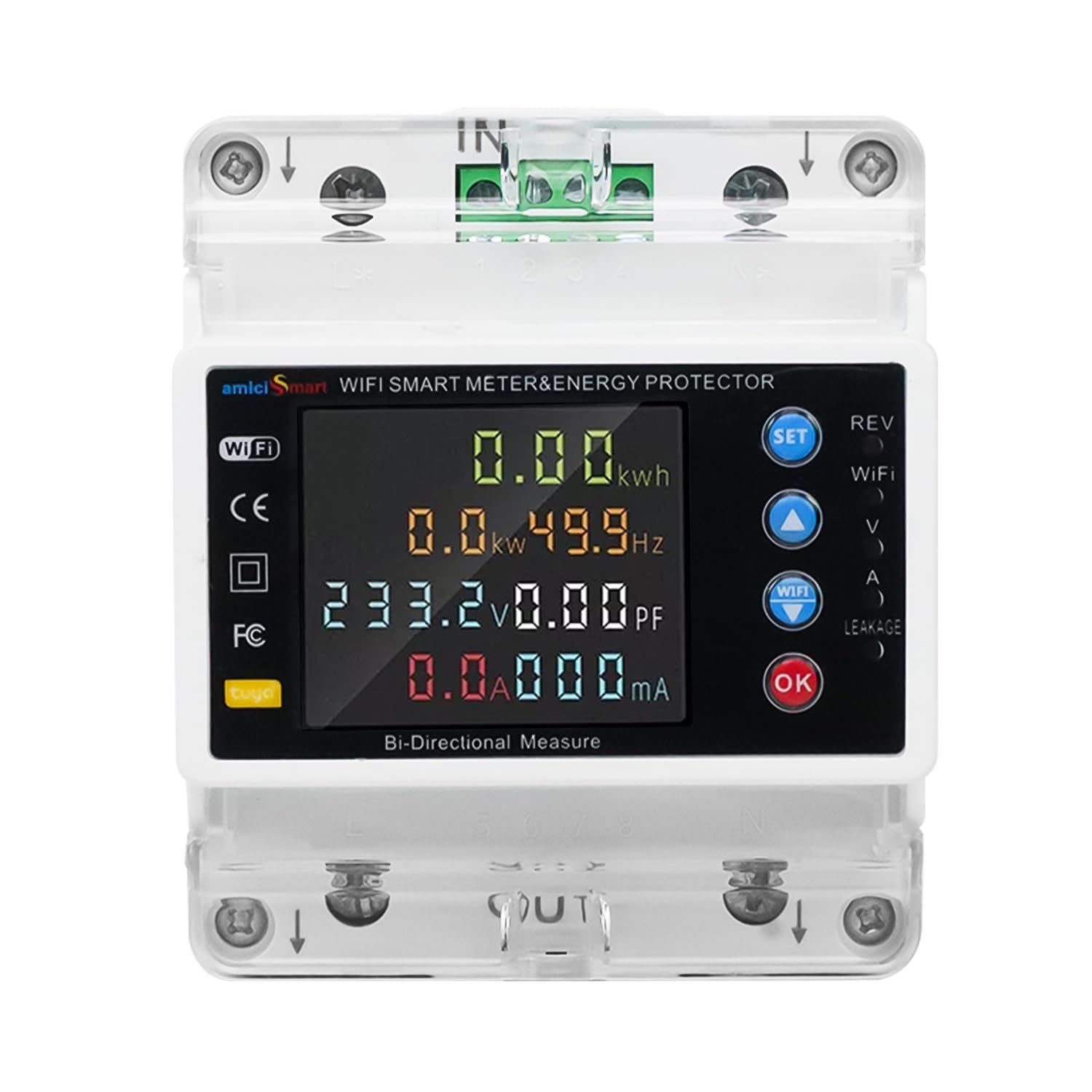

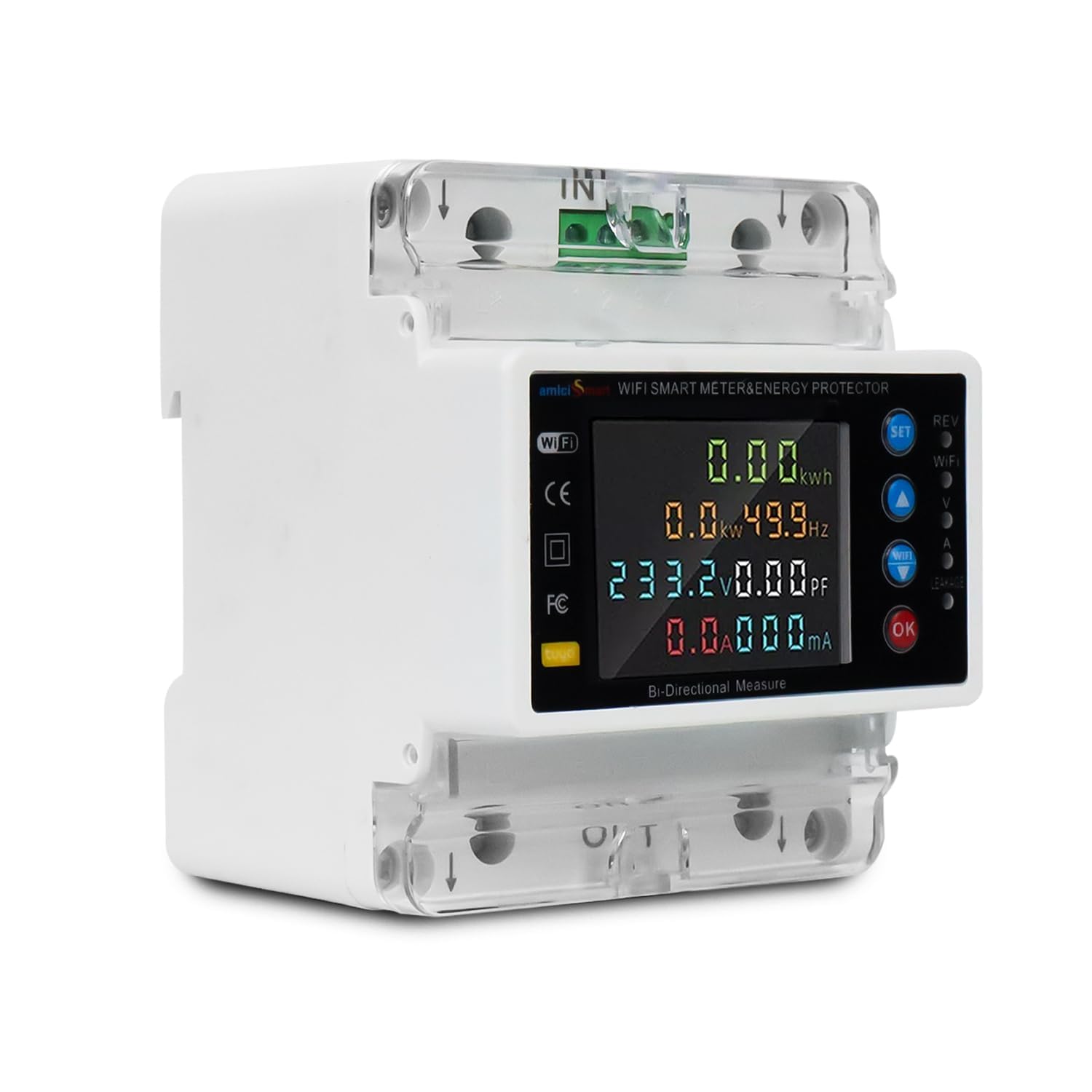

WiFi Bi-Directional Energy Meter 80A 1P
amiciSmart · 80A single-phase · SmartLife · OV/UV/overload/leakage · auto reconnect · DIN-rail
Single-phase DIN-rail WiFi meter with bi-directional (import/export) kWh, LCD and adjustable protection: OV 120–300V, UV 80–210V, overload 1–80A, leakage 10–100mA, auto reconnect, SmartLife app. Electrician install.
Sale price
Rs. 4,399.00
-38%
Regular price
Rs. 7,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 4,399.00
Unit price
Increments of 1
Minimum of 1
Maximum of
WiFi Bi-Directional Energy Meter 80A Single Phase Adjustable Over/Under Voltage, Current & Leakage Protection Auto Reconnect
Sale price
Rs. 4,399.00
Regular price
Rs. 7,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 4,399.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xCLR-MUL-PRO-1P |
|---|---|
| Brand | amiciSmart |
| Device class | WiFi single-phase bi-directional energy meter + protector |
| Current rating | 80A |
| Phase | Single-phase |
| Nominal voltage | Not specified (single-phase; see OV/UV ranges) |
| Overvoltage adjust | 120V–300V |
| Undervoltage adjust | 80V–210V |
| Overload adjust | 1–80A |
| Leakage adjust | 10–100mA |
| App | SmartLife |
| Bi-directional measurement | Disable leakage protection during bi-directional measurement |
| Mounting | DIN-rail |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Is the rated voltage 220V or 230V?
A single nominal voltage is not specified. It is for single-phase supplies, with adjustable OV 120–300V and UV 80–210V.
Can it measure solar export?
Yes — it tracks bi-directional import/export kWh. Disable leakage protection during bi-directional measurement.
Does it auto reconnect?
Yes — it reconnects automatically once fault conditions clear.
Is this meter WiFi enabled?
Yes, it connects via WiFi to the SmartLife app for remote monitoring and control, and requires a 2.4GHz WiFi network.
Full Product Description
WiFi Bi-Directional Energy Meter 80A 1P
Single-phase DIN-rail WiFi energy meter with bi-directional (import/export) kWh tracking, LCD live readouts, and adjustable protections: over/under voltage (120–300V / 80–210V), overload 1–80A, leakage 10–100mA, plus auto reconnect and SmartLife app remote monitor/control. Disable leakage during bi-directional measurement. Install by a qualified electrician.
- LCD + app telemetry: Voltage, current, power, frequency, energy on device and in SmartLife.
- Multi-layer cut-off + auto reconnect: Trips on fault then restores when conditions clear.
- For solar / net-metering: Bi-directional energy tracking for rooftop users.
- DIN-rail one-device stack: Replaces a separate protector, meter and remote switch.
