Know before you buy
-
60A MPPT · auto 12/24/48V
Auto-detects 12V / 24V / 48V DC systems.
-
Battery chemistries
Supports Lithium, LiFePO4 and Lead-Acid. Set the battery type on the unit to match your pack.
-
Install order & voltage gates
Connect the battery first, then the solar panel, then the load. Battery voltage must be at least 8V, and the panel voltage must not be lower than the battery voltage.
Features that make it useful
-
MPPT tracking
MPPT gives higher conversion efficiency than conventional PWM controllers (advertised as up to 30%).
-

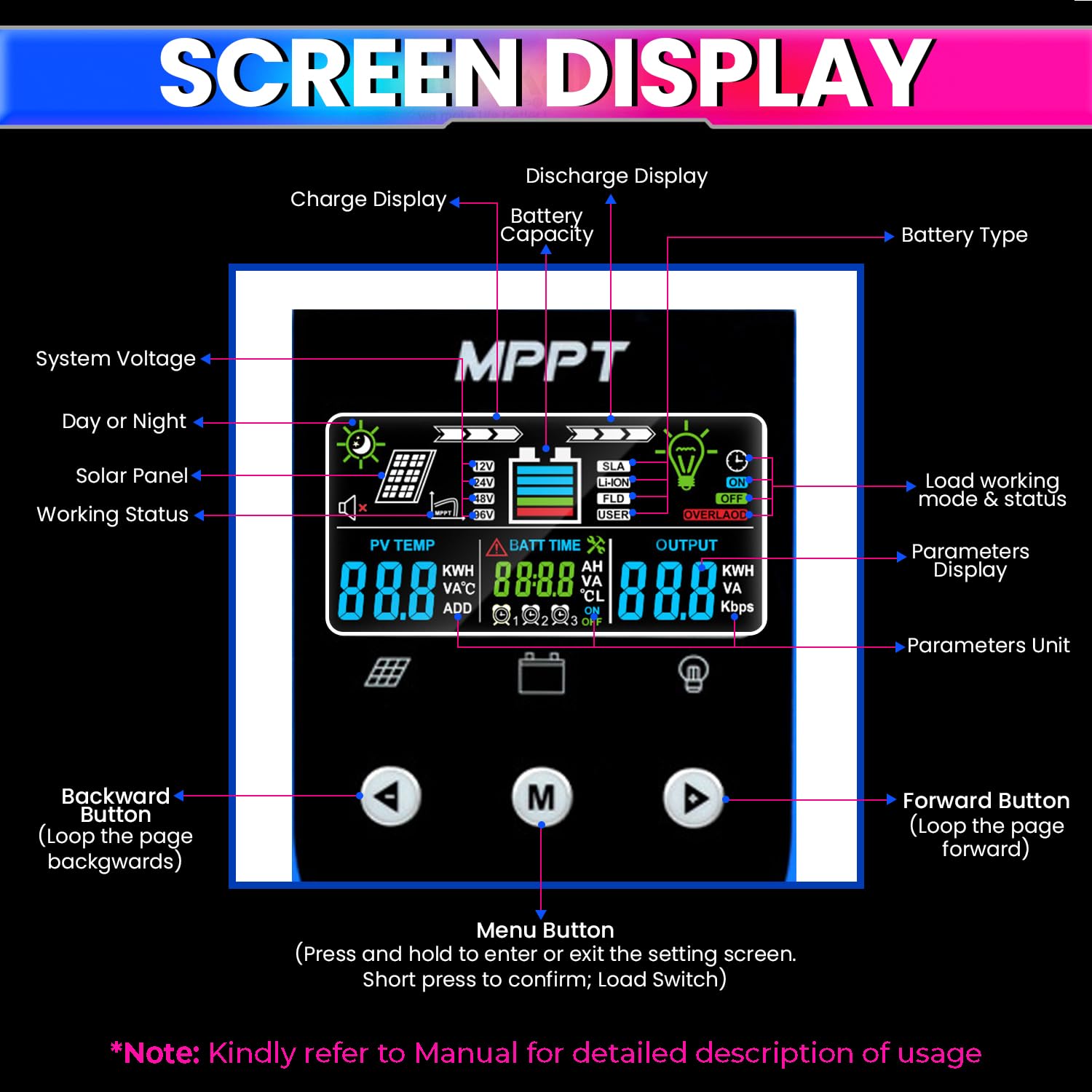

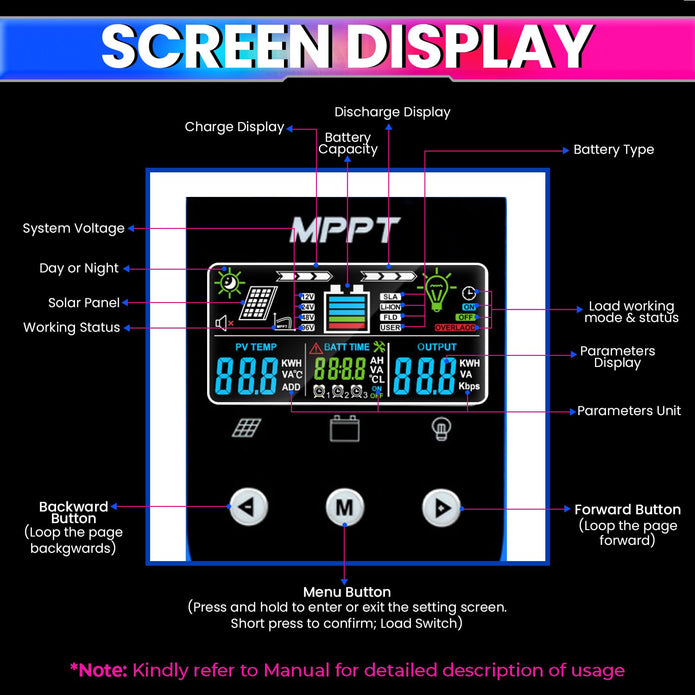

LCD live status
Real-time charging status, voltage levels and load output on LCD.
-
7-layer protection
Protection includes reverse polarity, overcharge, short-circuit, overload and low voltage.
-
Medium–large systems
Handles up to 60A and about 2.34kW for medium to large solar setups.
How to use
-
Match controller to array and battery
Make sure your system is 12/24/48V, charge current is 60A or less, and the array is within about 2.34kW.
-
Battery first, then PV, then load
Connect battery → solar panel → load. The battery must be at least 8V and the panel voltage at least the battery voltage.
-
Verify LCD and protections
Check charging status on LCD and that polarity/protection behaviour matches your commissioning checklist.
60A MPPT Solar Charge Controller
amiciKart · 60A · Auto 12/24/48V · Lithium / LiFePO4 / Lead-acid · LCD · up to ~2.34kW
60A MPPT solar charge controller with auto-detect 12V/24V/48V DC system voltage, an LCD status display, and support for Lithium, LiFePO4 and Lead-Acid batteries. Handles up to about 2.34kW, with 7-layer protection.
Sale price
Rs. 21,245.00
-16%
Regular price
Rs. 25,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 21,245.00
Unit price
Increments of 1
Minimum of 1
Maximum of
MPPT Solar Charge Controller, Intelligent Lithium Battery Regulator for Solar Panel with LCD Display (60A)
Sale price
Rs. 21,245.00
Regular price
Rs. 25,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 21,245.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xMPPT-SOLAR-60 |
|---|---|
| Brand | amiciKart |
| Device class | MPPT solar charge controller |
| Rated current | 60A |
| System voltage | Auto-detect 12V / 24V / 48V DC |
| Battery types | Lithium, LiFePO4, Lead-Acid |
| Power class | Up to ~2.34kW |
| Display | LCD |
| Protection | 7-layer incl. reverse polarity, overcharge, short-circuit, overload, low voltage |
| Connection order | Battery first → panel → load; battery ≥8V; panel voltage ≥ battery voltage |
| Warranty | 1 year + lifetime sales support |
Frequently asked questions
Is this PWM or MPPT?
MPPT (Maximum Power Point Tracking).
Which battery voltages work?
It auto-detects 12V, 24V and 48V DC systems.
Can I use LiFePO4?
Yes — it supports Lithium, LiFePO4 and Lead-Acid. Select the matching battery type on the unit.
Is there a 40A or 50A version?
Not as an option on this product — this is the 60A model. Other current ratings and PWM controllers are sold as separate products.
Full Product Description
amiciKart 60A MPPT Solar Charge Controller
- 60A MPPT · auto 12/24/48V
- Lithium / LiFePO4 / Lead-Acid
- LCD + 7-layer protection
- Install order: battery → panel → load
Warranty: 1 year, supported by amiciKart.
