BLDC Motor Driver Board 5–40V 24W With Hall Sensor | PWM Speed Control | 1.5A / 4A Max

Control Your Hall-Sensor BLDC Motor with Greater Flexibility

The amiciTech BLDC Three-Phase Motor Driver Module is designed to control compatible Hall-sensor three-phase brushless DC motors. It supports 5–40V DC input, PWM speed control, forward/reverse direction, braking and motor-speed feedback.

It is suitable for BLDC fans, pumps, small electric motors, automation equipment, DIY projects and other compatible motor-control applications.

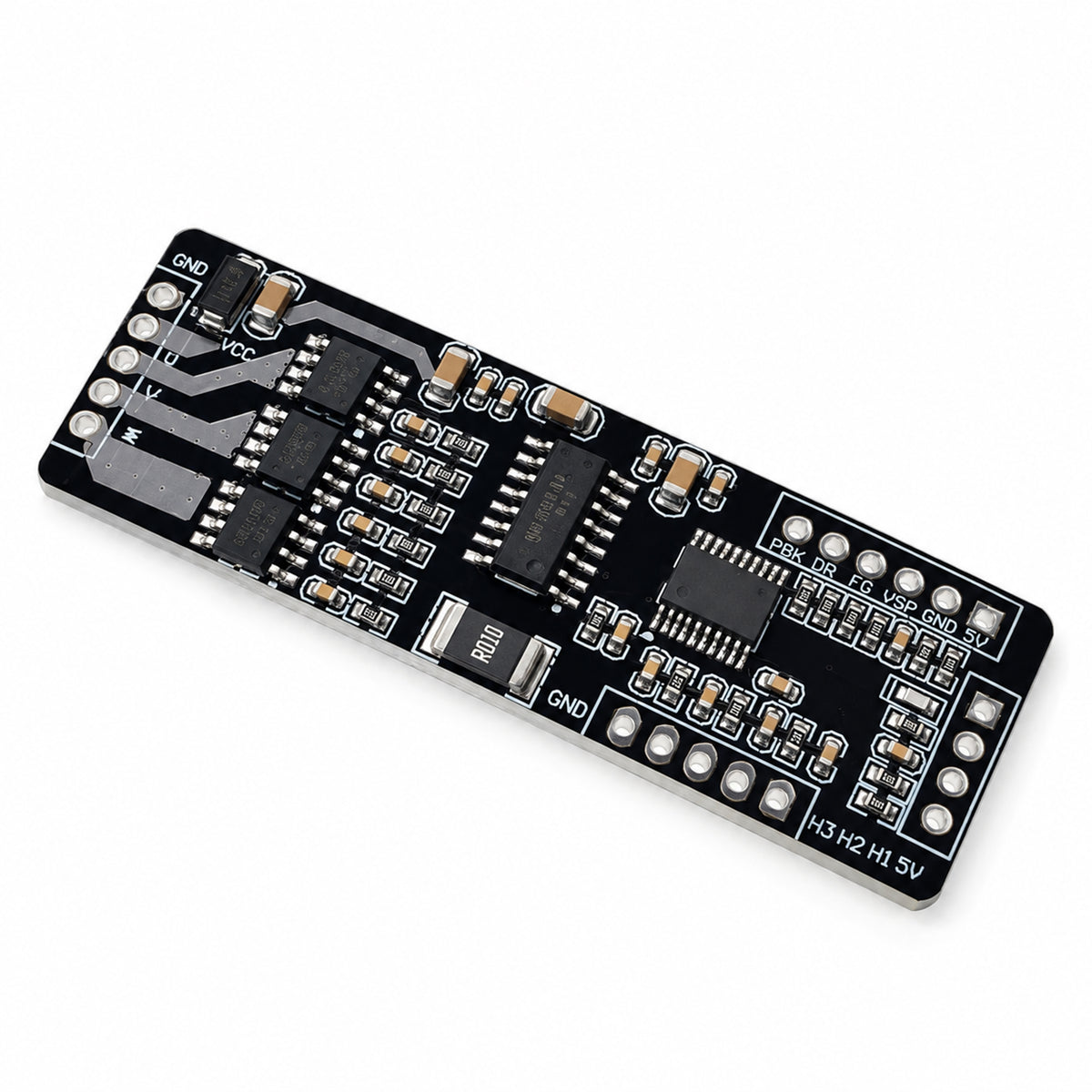

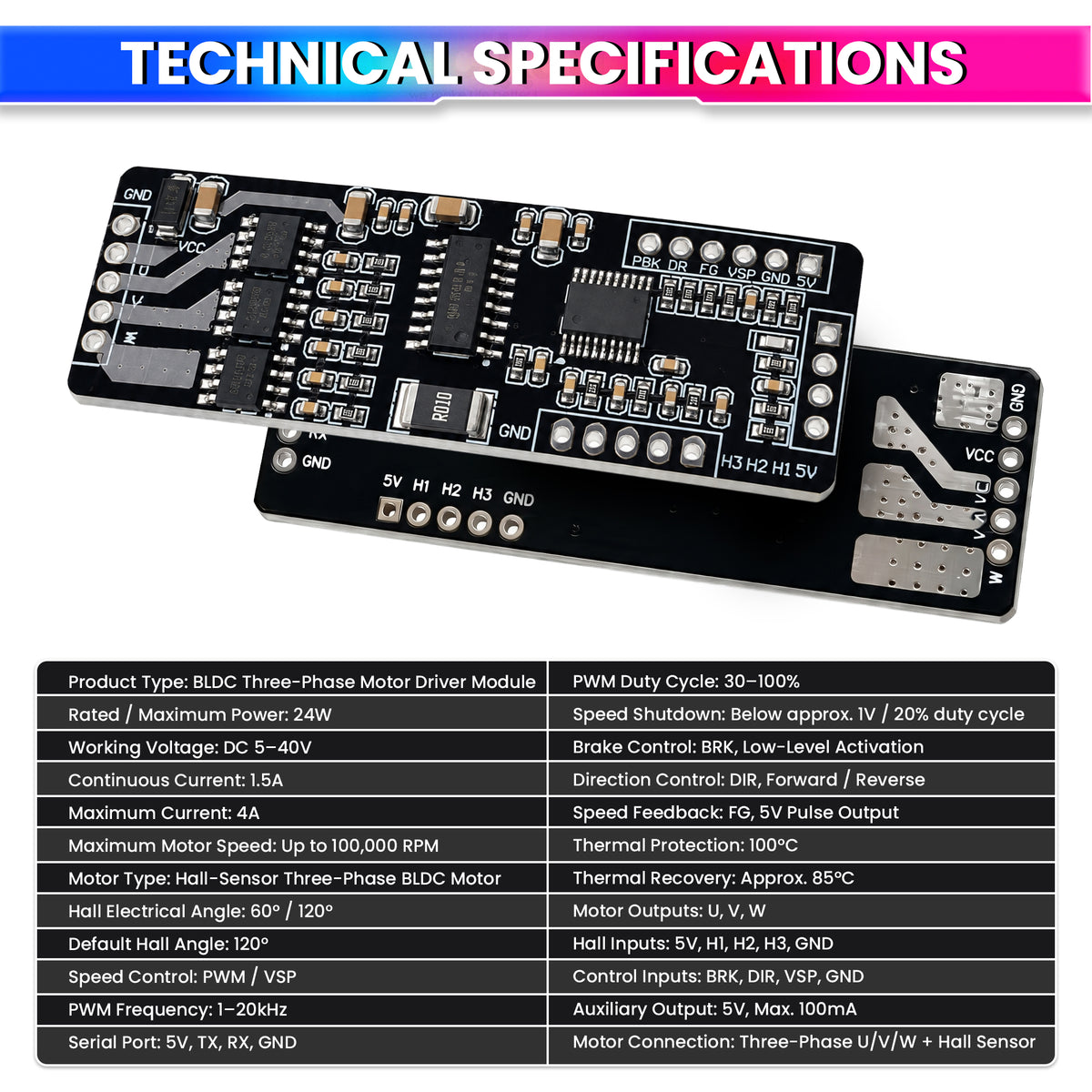

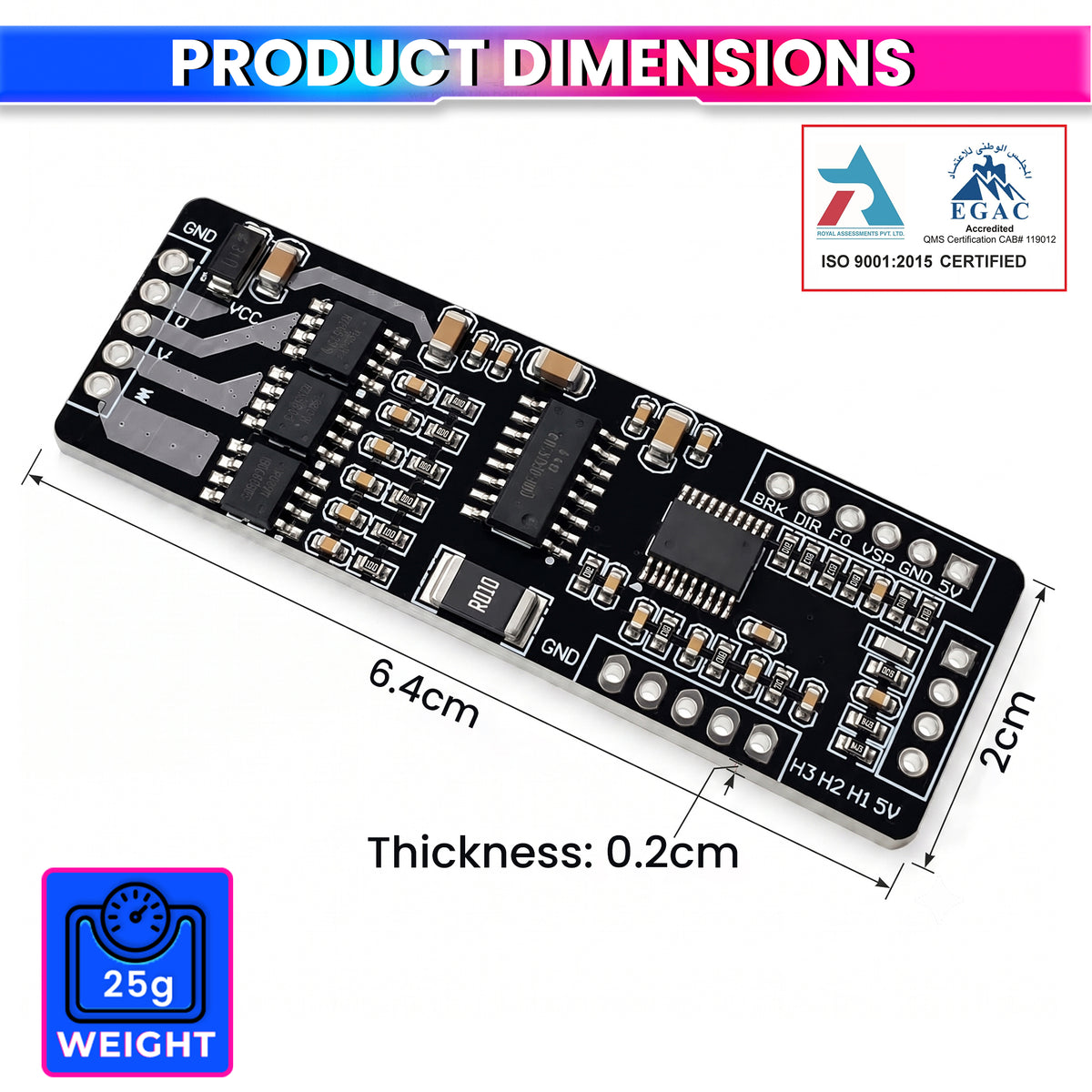

Technical Specifications :
Product Type:- BLDC Three-Phase Motor Driver Module
Rated/Maximum Power:- 24W Maximum
Working Voltage:- DC 5–40V
Continuous Current:- 1.5A
Maximum Current:- 4A
Maximum Motor Speed:- Up to 100,000 RPM
Motor Type:- Hall-Sensor Three-Phase BLDC Motor
Hall Electrical Angle:- 60° / 120°
Default Hall Angle:- 120°
Speed Control:- PWM / VSP
PWM Frequency:- 1–20kHz
PWM Duty Cycle:- 30–100%
Speed Shutdown:- Below approx. 1V / 20% duty cycle
Brake Control:- BRK, Low-level activation
Direction Control:- DIR, Forward/Reverse
Speed Feedback:- FG, 5V pulse output
Thermal Protection:- 100°C
Thermal Recovery:- Approx. 85°C

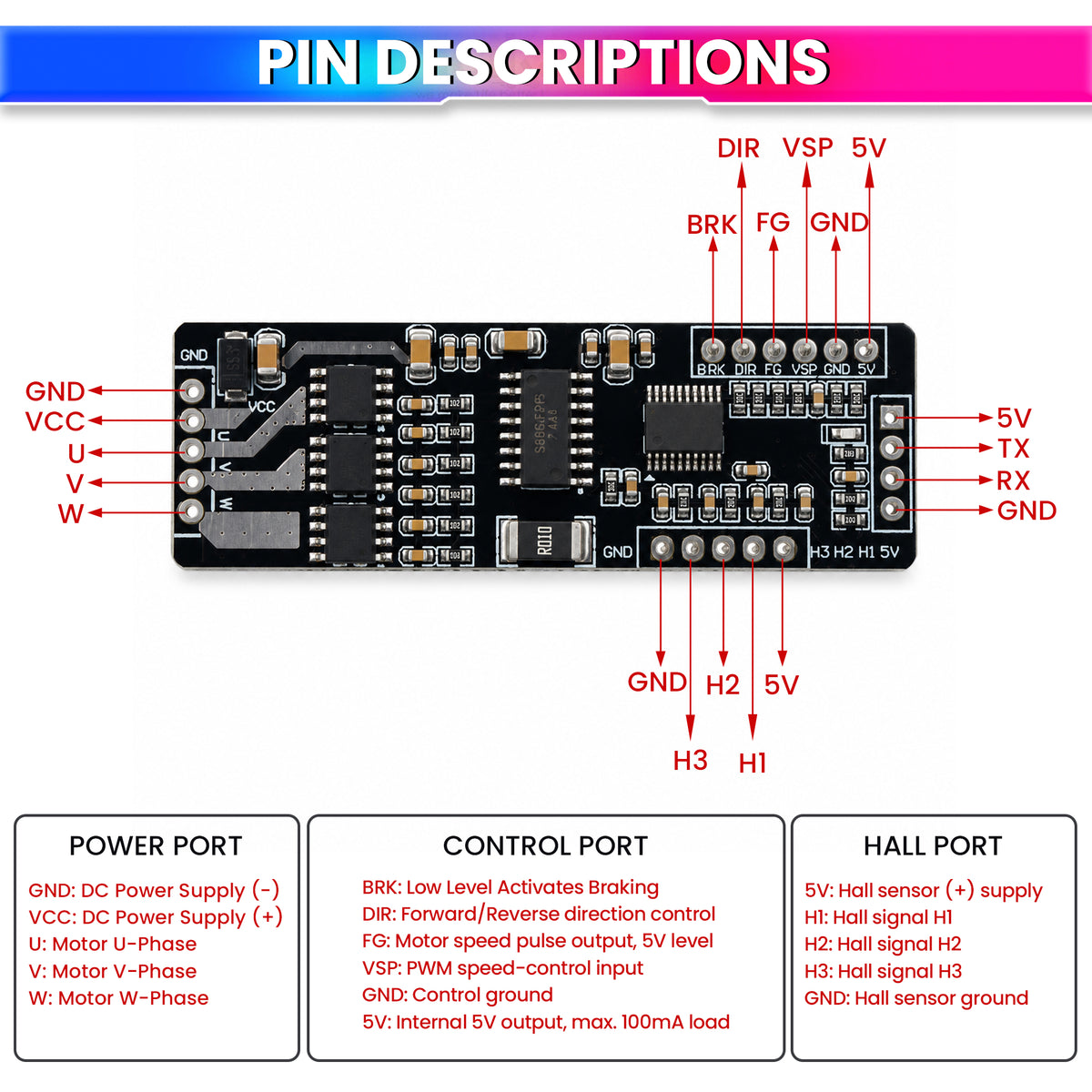

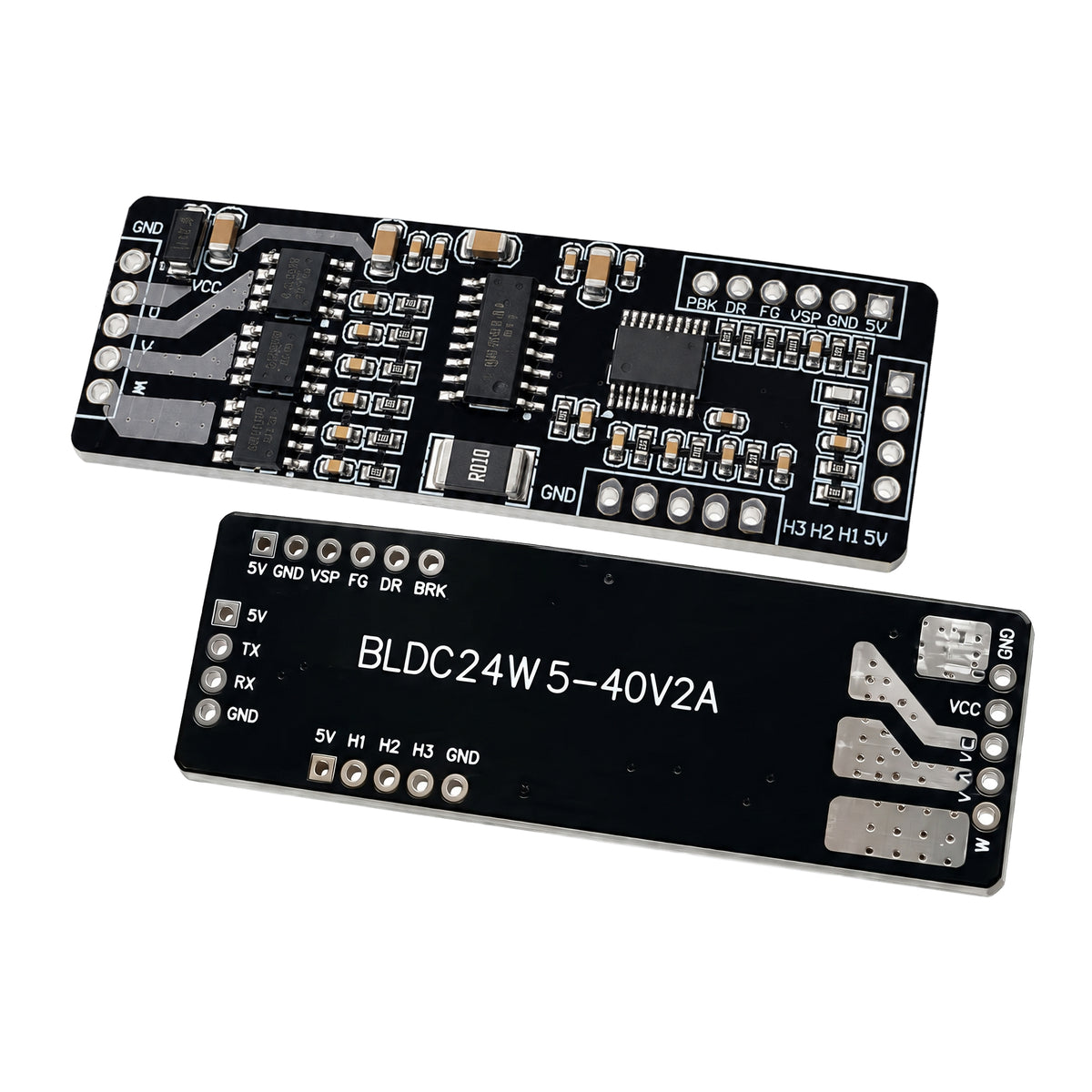

Motor Outputs:- U, V, W

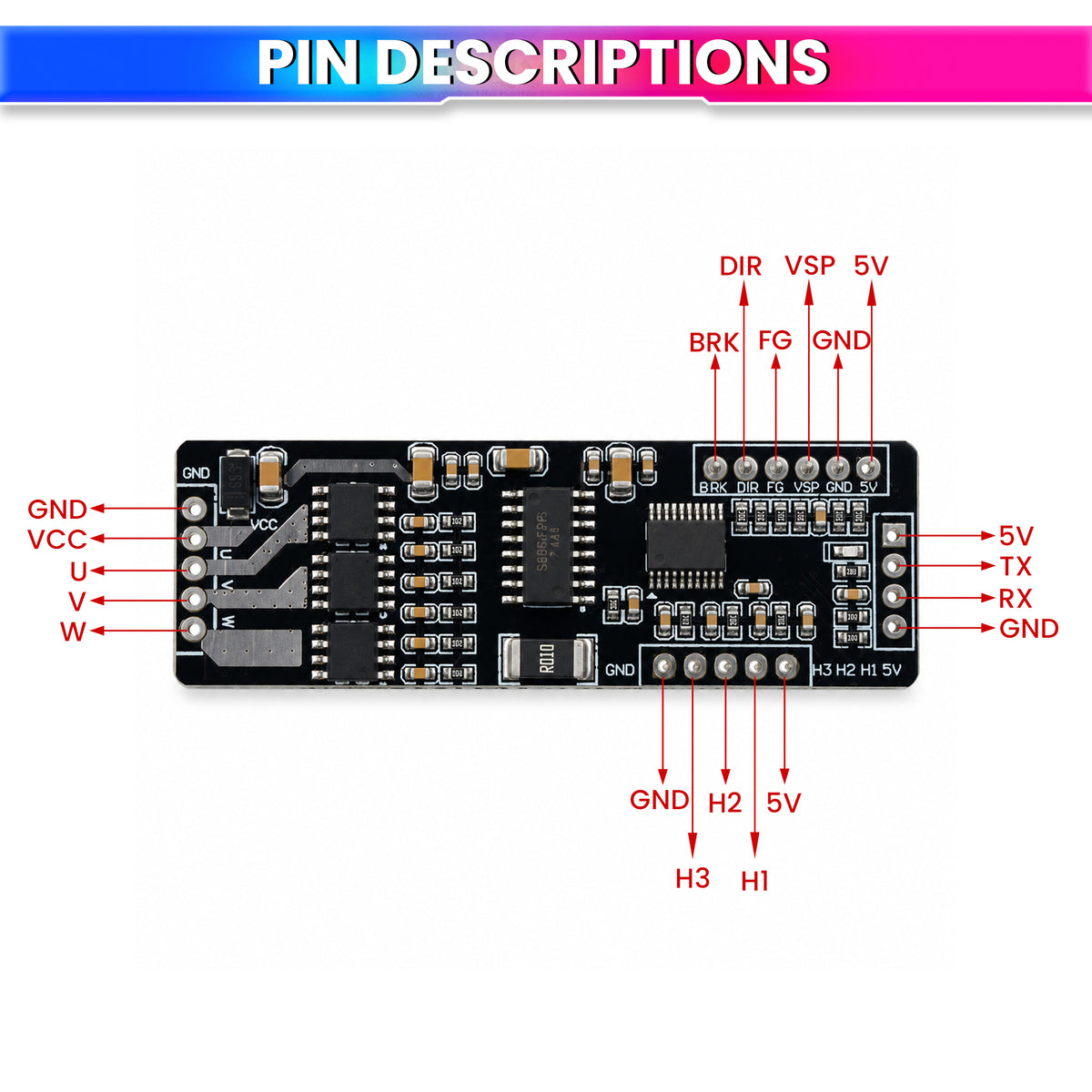

Hall Inputs:- 5V, H1, H2, H3, GND
Control Inputs:- BRK, DIR, VSP, GND
Auxiliary Output:- 5V, maximum load 100mA
Serial Port:- 5V, TX, RX, GND

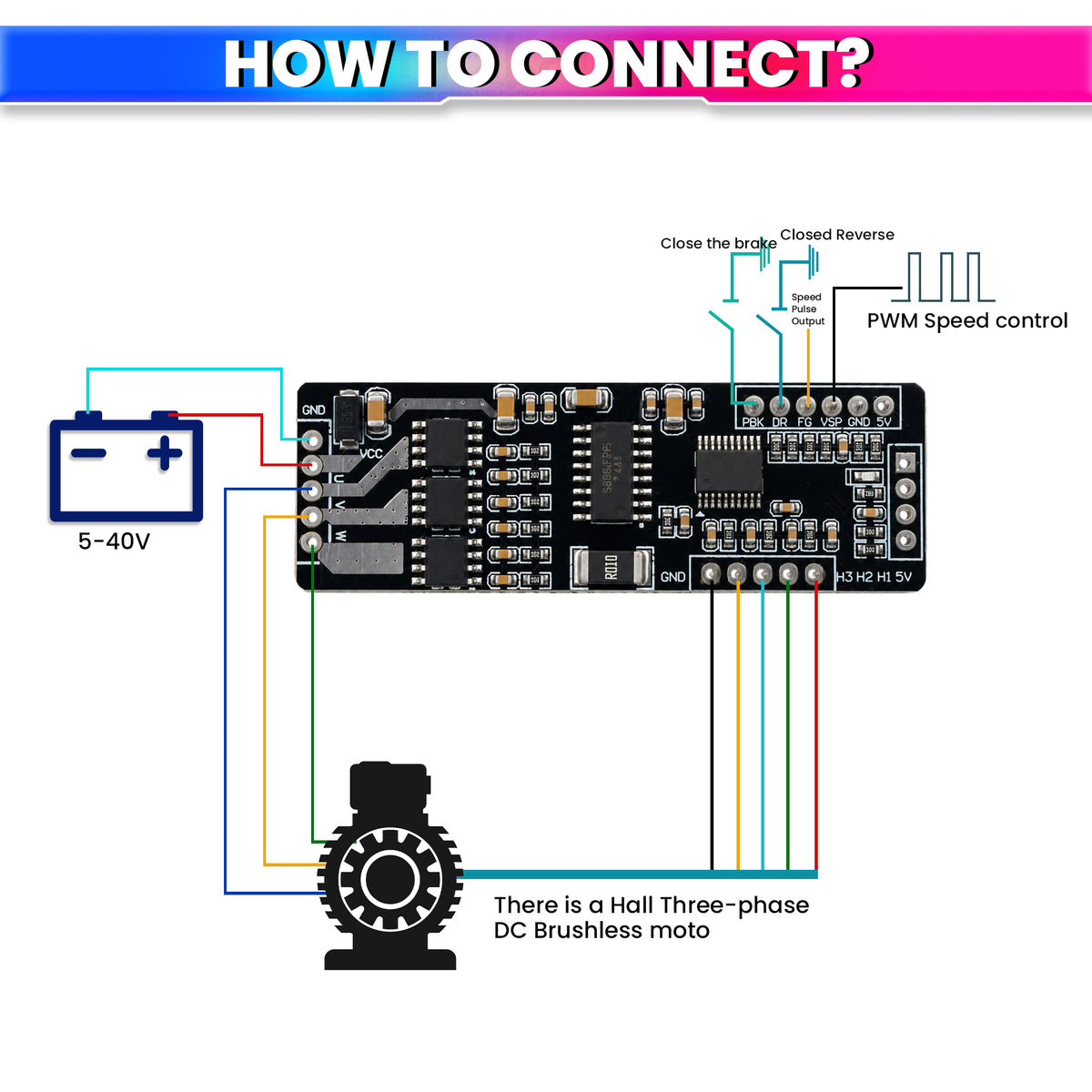

Motor Connection:- Three-phase U/V/W + Hall sensor


SUITABLE APPLICATIONS
BLDC Fans
BLDC Pumps
Small Electric Motors
DIY Motor Projects
Automation Equipment
Motor-Control Applications
Compatible Hall-Sensor Three-Phase BLDC Systems

Important: This module is designed for Hall-sensor three-phase BLDC motors. Check the motor's voltage, Hall electrical angle, current and other requirements before connecting.
