How many control pins are required to operate the CD74HC4067 module?

The module requires only 4 digital control pins (S0, S1, S2, S3) from your microcontroller to select and communicate with any of the 16 channels. An additional EN pin is used to enable or disable the module.

Can this module handle both analog and digital signals?

Yes, the CD74HC4067 supports both analog and digital signals. It can route analog inputs like temperature sensors, potentiometers, and light sensors as well as digital inputs like buttons and switches to your microcontroller's ADC or GPIO pins.

What is the operating voltage range of this multiplexer module?

The CD74HC4067 module typically operates at 2V to 6V DC, making it compatible with both 3.3V logic controllers like ESP32 and Raspberry Pi, and 5V logic boards like Arduino Uno.

Is this module compatible with Raspberry Pi and ESP32, or only Arduino?

The module is compatible with Arduino, ESP32, Raspberry Pi, STM32, and most other microcontroller platforms. It communicates via standard digital GPIO pins, so any development board with at least 4 available digital pins can control it.

What is the maximum signal frequency the CD74HC4067 can handle?

The CD74HC4067 can typically handle signal frequencies up to several MHz depending on the operating voltage. At 4.5V supply, the propagation delay is around 10-15 nanoseconds, making it suitable for most sensor and switching applications in DIY electronics projects.

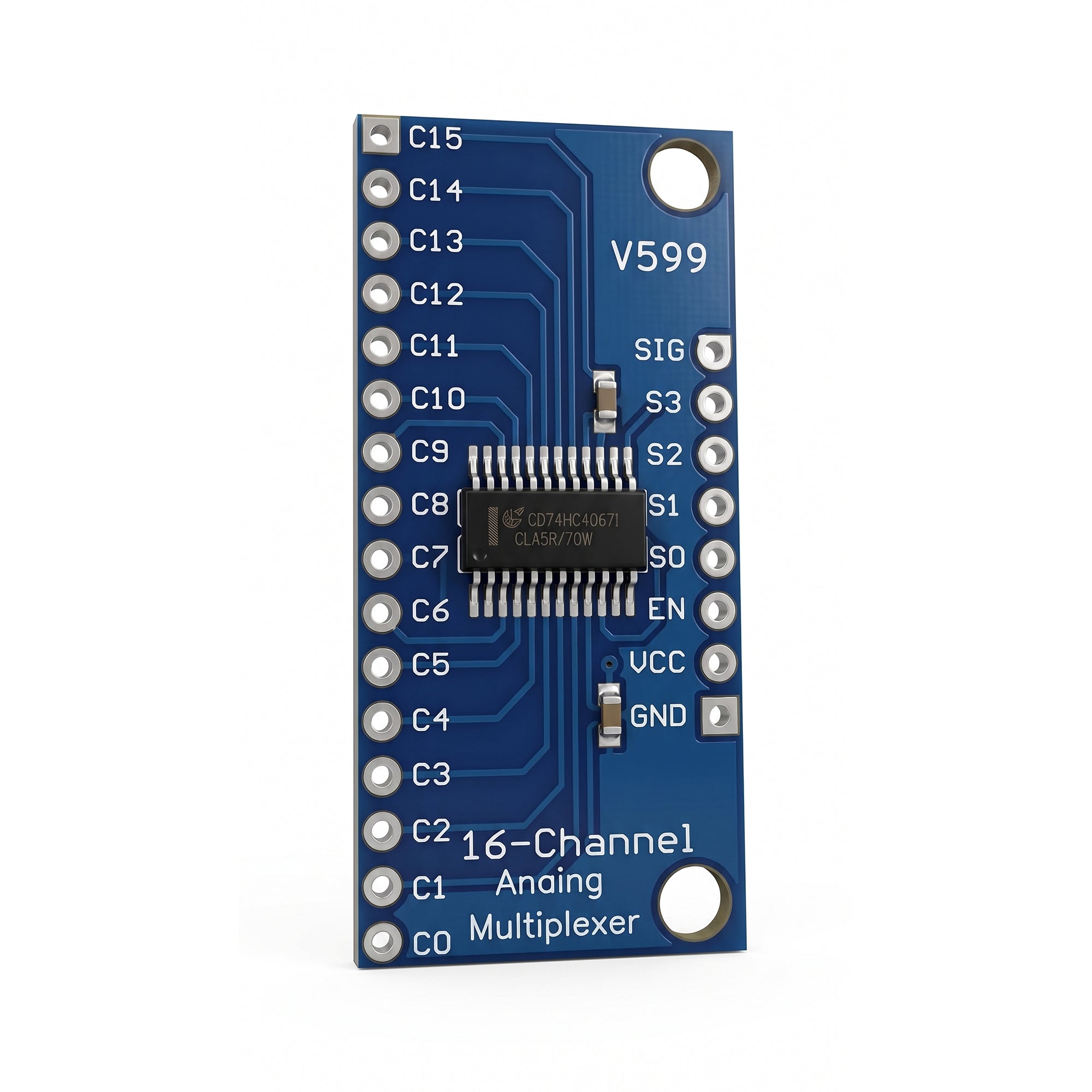

CD74HC4067 16-Channel Signal Expansion Module Compatible with Arduino

CD74HC4067 16-Channel Signal Expansion Module Compatible with Arduino

Name: CD74HC4067 16-Channel Signal Expansion Module Compatible with Arduino
Brand: amiciKart
SKU: 1xADM-16CH
Price: 219.00 INR
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 219.00 -57% Rs. 500.00 (MRP Inclusive of All Taxes)

Rs. 219.00

Chat on WhatsApp

Superfast Same-Day Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Running out of GPIO pins on your Arduino or ESP32? 🔌 The CD74HC4067 16-Channel Signal Expansion Module solves this problem by letting a single microcontroller port communicate with up to 16 different sensors or devices — no expensive controller upgrade needed.

This compact multiplexer breakout board acts like a smart traffic manager for your electronics projects. Using only 4 control pins, you can switch between 16 input or output channels seamlessly. Whether you're reading analog sensors like potentiometers and temperature probes, or digital signals from buttons and switches, this module handles both signal types with ease. It's compatible with Arduino, ESP32, Raspberry Pi, STM32, and other popular development platforms.

Ideal for robotics, home automation, weather stations, IoT builds, and STEM learning, this expansion module keeps your wiring organized and your projects scalable. Instead of juggling multiple controllers, simply plug in this board and expand your system's capability instantly. 🚀

Why choose Amicikart? Every module is quality-checked before dispatch. Enjoy free shipping across India, same-day dispatch for orders before 2 PM, cash on delivery, and 30-day easy returns. Pick up directly from our Noida facility if you need it urgently!

Connect up to 16 sensors or devices using only 4 microcontroller pins (CD74HC4067 smart switching technology) — saves valuable GPIO ports on your board
Expand your project capabilities without buying a bigger controller (works seamlessly with Arduino, ESP32, Raspberry Pi, and STM32 development platforms)
Handle both analog and digital signals effortlessly (supports temperature sensors, light sensors, buttons, potentiometers, and joysticks) — ultimate versatility for prototyping
Build organised and clutter-free circuits with a compact breakout board design (perfect for robotics, home automation, weather stations, and IoT projects)
Save 60% on your project budget with an affordable expansion solution (priced at instead of ) — ideal for students and hobbyists
Enjoy peace of mind with 30-day easy returns and Cash on Delivery available (plus free same-day dispatch for orders before 2 PM across India)

Description

The amiciTech CD74HC4067 16-Channel Multiplexer Module is designed to help you connect more sensors and devices to your microcontroller project without running out of available pins.
Think of it as a smart switchboard.
Normally, each sensor requires its own connection on your Arduino or ESP32. As your project grows, you quickly run out of available ports. This module allows a single controller connection to access up to 16 different devices, helping you build larger and more advanced projects without changing your existing controller.
Whether you're building:
✔ Home automation systems
✔ Sensor monitoring stations
✔ Robotics projects
✔ Weather stations
✔ Smart agriculture systems
✔ Educational electronics projects
✔ IoT devices
this module helps simplify wiring and reduce hardware limitations.
Technical Specifications
Model: CD74HC4067
Type: Analog/Digital Multiplexer-Demultiplexer
Channels: 16
Control Pins: S0, S1, S2, S3
Operating Voltage: 2V – 6V DC
Logic Compatibility: 3.3V & 5V Systems
Signal Support: Analog & Digital
Interface: Standard Header Pins
Compatible Boards: Arduino, Raspberry Pi, ESP32, STM32, AVR
