Know before you buy
-
Single-phase supply
For a single-phase circuit. Ask your electrician to check supply compatibility.
-
Choose the 63A rating
Have your electrician assess the combined connected load against the 63A rating.
-
Device without mount
Protective enclosure is not included in this option. Arrange DIN-rail installation by a qualified electrician.
Features that make it useful
-
Three protection settings
Adjustable over-voltage, under-voltage and overload cut-off settings.
-
Automatic reconnect
Reconnects after the supply recovers and your selected delay has passed.
-
Live LED readings
View voltage and current on the built-in display.
How to use
-
Check supply and load
Ask your electrician to check the circuit and appliance requirements against the 63A rating.
-
Install and set limits
Arrange professional installation and select suitable cut-off settings and reconnect delay.
-
Monitor the readings
View voltage and current on the LED display. Power reconnects automatically after recovery and the selected delay.

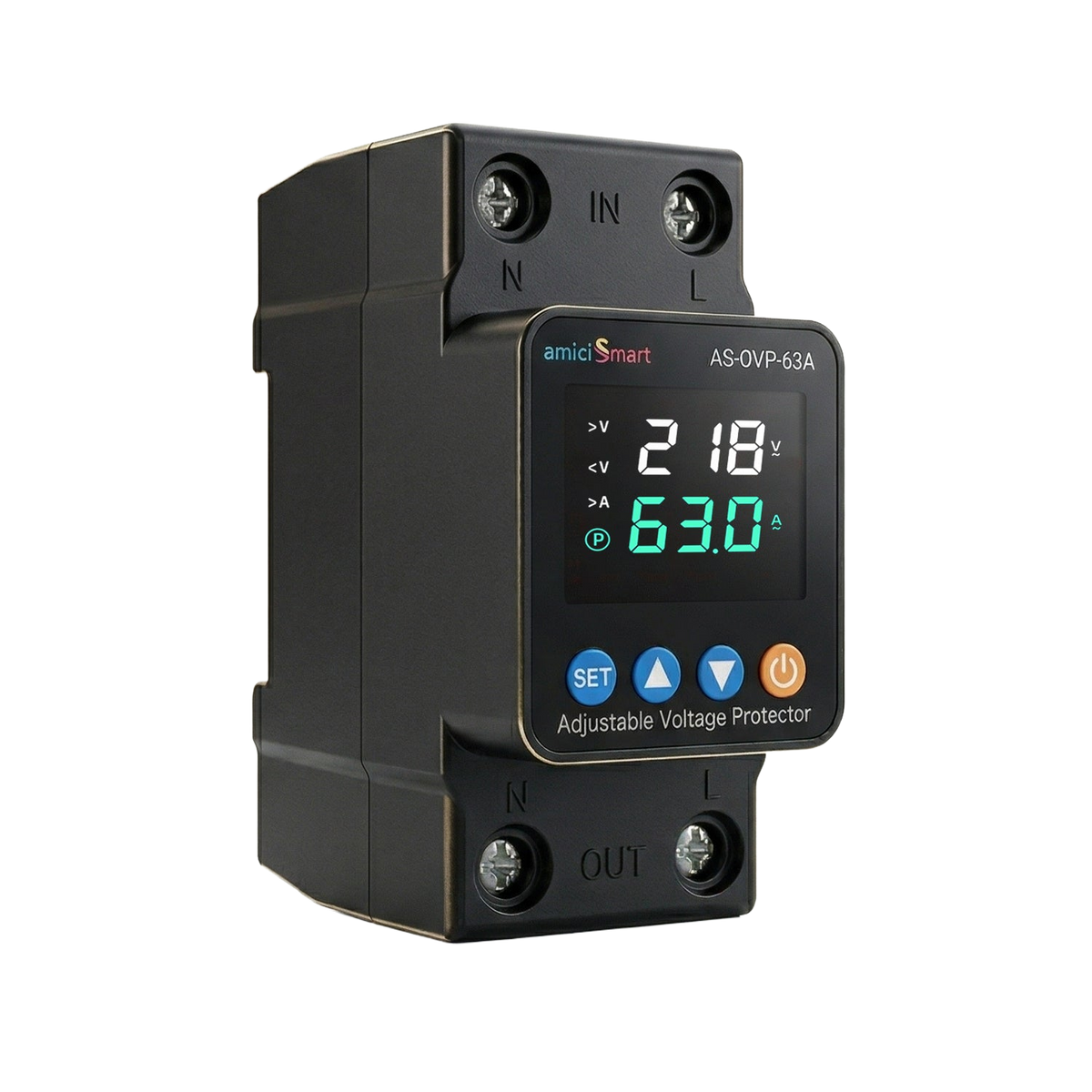

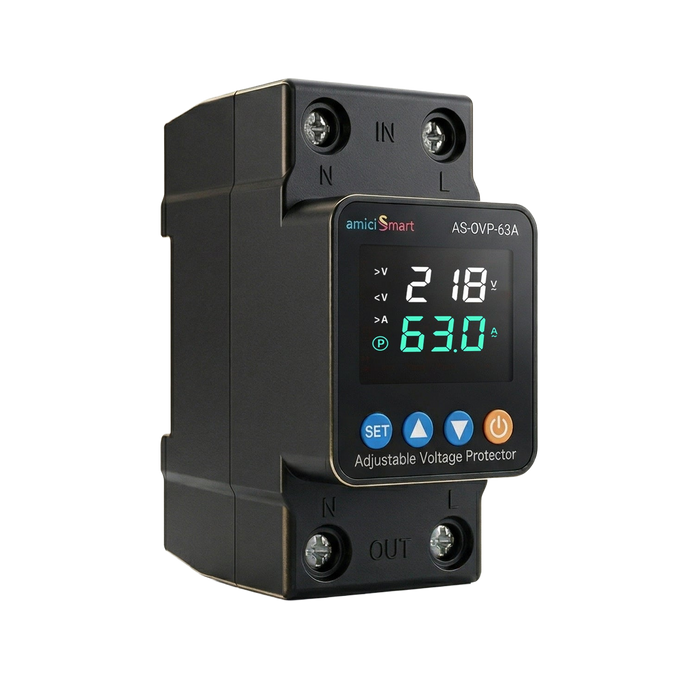

Automatic Voltage & Overload Protector
Upgraded Model · Latest Model · 63A · Black · Without mount
New Launch
Cuts power when voltage moves outside your set range or current exceeds your limit, then reconnects automatically after recovery and the selected delay.
Sale price
Rs. 1,349.00
-62%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,349.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Automatic Over/Under Voltage and Overload Protection Device 63A DIN-Rail with LED Display Adjustable Reconnect & Auto Recovery
Sale price
Rs. 1,349.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,349.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| Country of Origin | India |
|---|---|
| Model | Black model |
| Current rating | 63A |
| Package option | Device without protective mount |
| Supply | Single phase |
| Under-voltage adjustment (P5) | 80–210V; default 170V |
| Power-on delay (P1) | 1–999 seconds, adjustable |
| Recovery delay (P2) | 1–999 seconds, adjustable; default 30 seconds |
| Voltage protection action time (P7) | 0.1–10 seconds, adjustable; default 0.5 seconds |
| Overload adjustment | 1–63A |

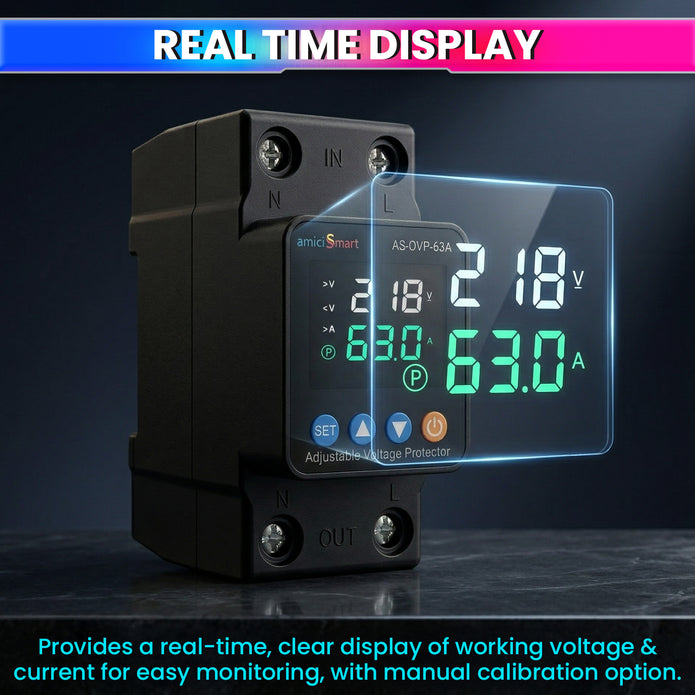

| Display | LED voltage and current readings |

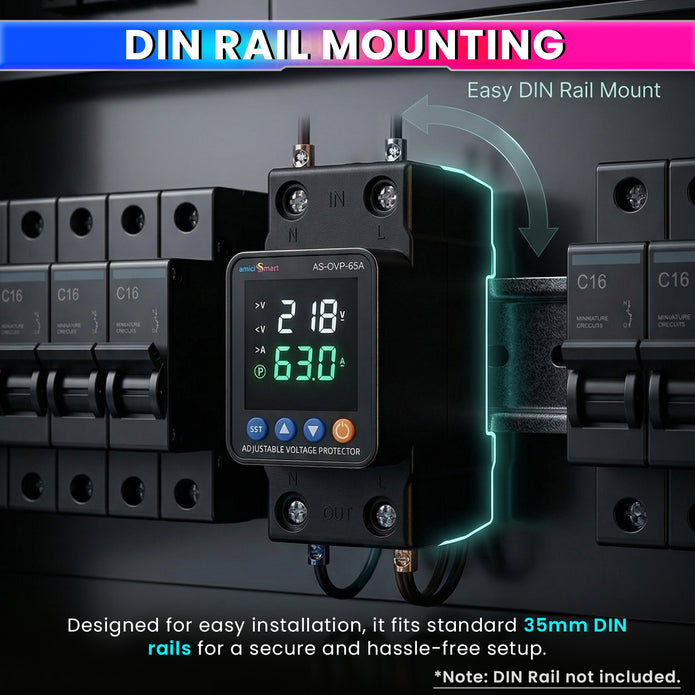

| Device mounting | DIN rail |
Frequently asked questions
Which current rating should I choose?
This listing is for the 63A black model. Ask your electrician to assess the connected load and circuit before choosing a rating.
Does this option include a mount?
This option supplies the device without a protective mount. DIN-rail mounting describes how the device is installed; it does not mean an enclosure is included.
Can I adjust the protection settings?
Yes. Under-voltage cut-off (P5) adjusts from 80–210V, with a default of 170V. The over-voltage cut-off is also adjustable, and the overload threshold adjusts from 1–63A. Have an electrician choose settings appropriate to the circuit.
How does automatic reconnect work?
After the supply recovers, power reconnects after the selected recovery delay. The black-model guide specifies separate power-on (P1) and recovery (P2) delays, each adjustable from 1–999 seconds; P2 defaults to 30 seconds.
Do I need an electrician?
Yes. Have a qualified electrician check the circuit, install the device and configure the protection settings.
Is the black model available in 80A?
The black model is currently available in 63A only, with or without the protective mount. The white 80A model is a separate product.
Full Product Description

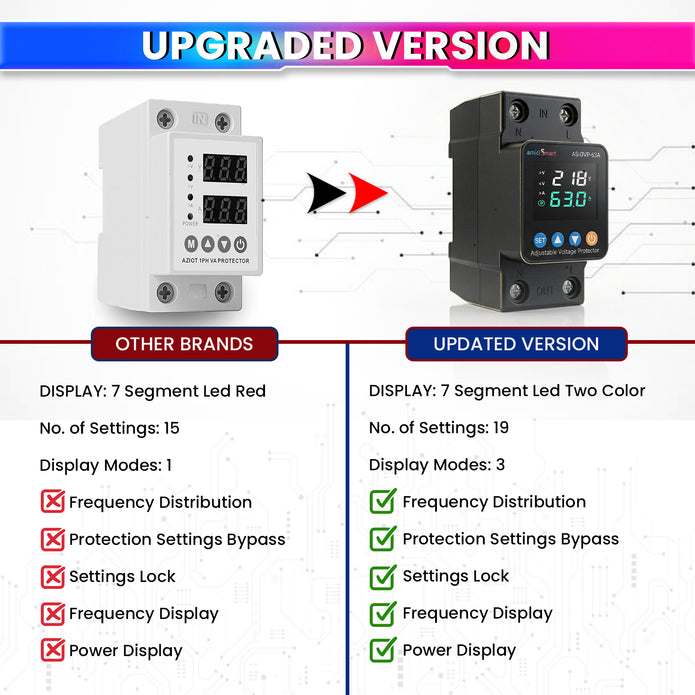

amiciSmart 63A Automatic Voltage & Overload Protector
The black AS-OVP-63A model monitors a single-phase circuit and disconnects the supply when voltage or current crosses the configured protection limits. It reconnects automatically after recovery and the selected delay.
- 63A black model, without enclosure: This listing supplies the device without a protective mount. Arrange DIN-rail installation by a qualified electrician.
- Adjustable protection: Under-voltage setting P5 covers 80–210V, with a default of 170V. Overload adjustment covers 1–63A. Over-voltage protection is also adjustable.
- Separate delays: Power-on delay P1 and recovery delay P2 each adjust from 1–999 seconds. P2 defaults to 30 seconds.
- Voltage action time: P7 adjusts from 0.1–10 seconds, with a default of 0.5 seconds; response is not fixed at 0.1 seconds for every setup.

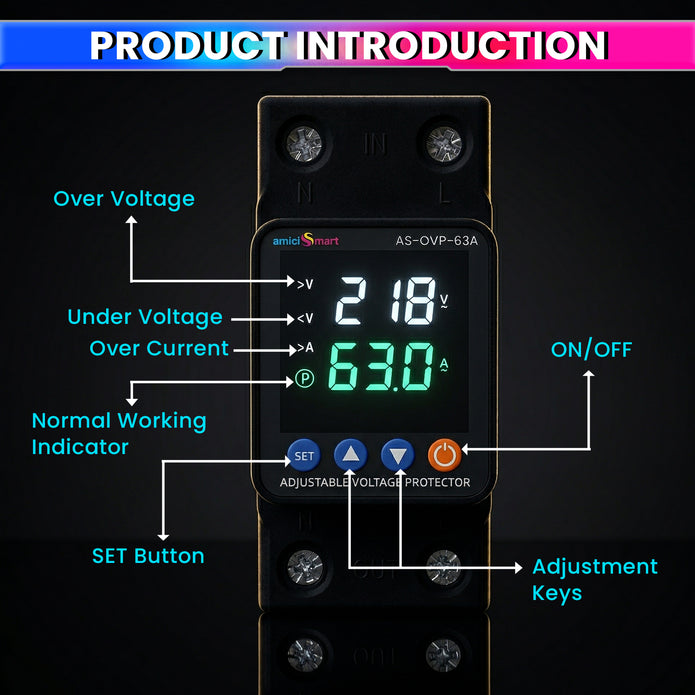

- LED display: View voltage and current on the front display.
- Installation: Ask an electrician to check circuit requirements, connected load and suitable settings. The 63A rating alone does not establish suitability for every household circuit.
The black model is currently available in 63A only. The white 80A model is a separate listing.
