Know before you buy
-
Input 19–45V DC
Needs a DC supply within 19V to 45V.
-
Light bars 60V–165V only
Don't use it with light bars below 60V or above 165V. The screen may dim or flicker.
-
Output current 10mA–1000mA
Set it to suit your LED light bars.
-
26 to 55 inch LED TVs
Universal size range.
Features that make it useful
-
Constant-current output
Automatically adjusts voltage to the LED bars, with no manual voltage setup.
-
Smooth backlight
Designed for steady light without flicker when matched to the right bars.
-
For TV repair
A universal replacement when the original backlight driver has failed.
-
Help choosing
Contact amiciKart customer service if you're not sure this model suits your TV.
How to use
-
Unplug the TV
Disconnect the TV from mains and wait before opening it. Use a qualified TV technician if you are unsure.
-
Check the light bar voltage
Confirm your LED bars operate between 60V and 165V.
-

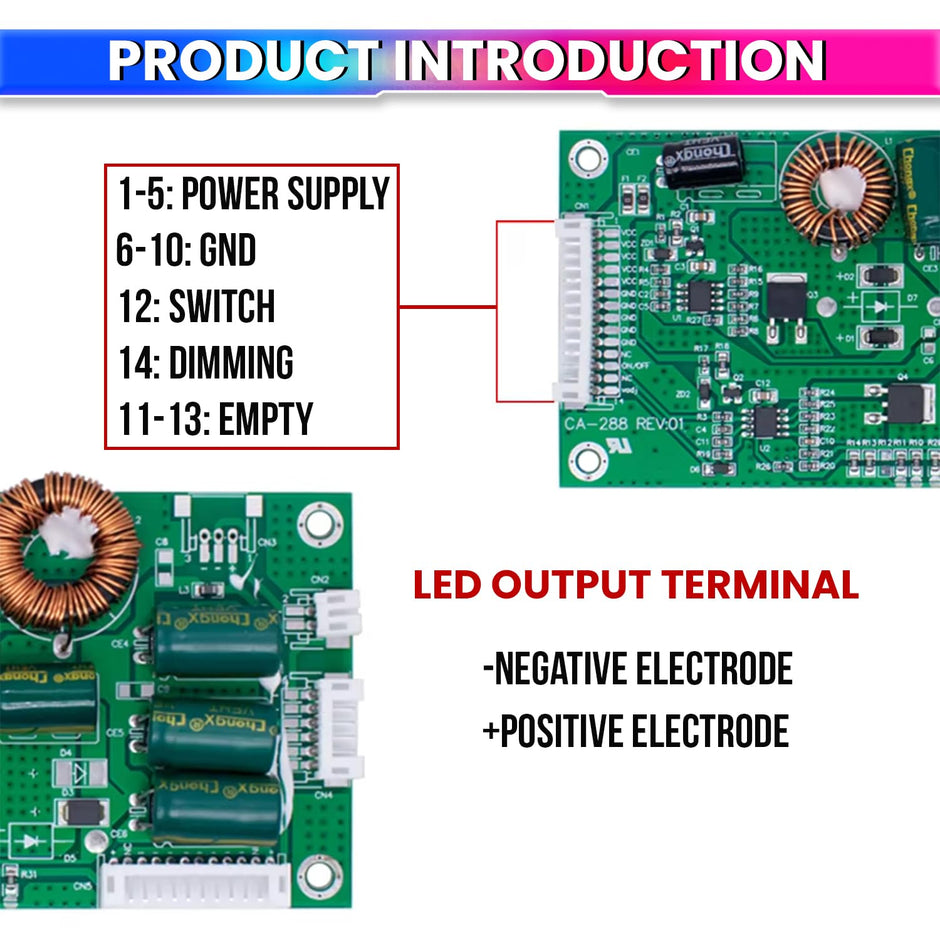

Connect input and output
Connect a 19–45V DC input and wire the output to the LED bars, observing polarity.
-
Set the current and test
Set the output current (10mA to 1000mA) to suit the bars, then power up and check for even brightness.

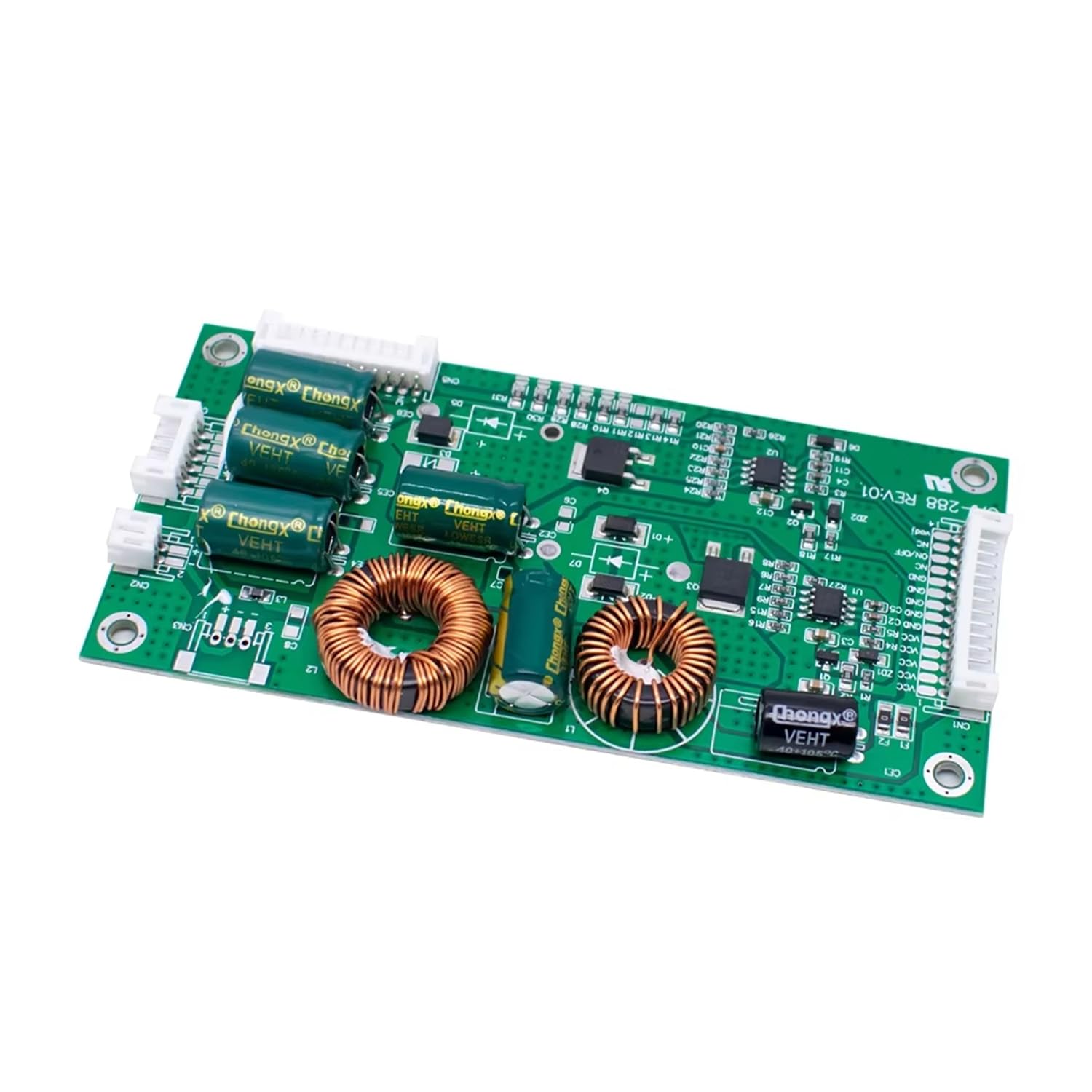

LED TV Backlight Driver 60–165V, 26–55 inch
amiciKart · universal backlight driver · 19–45V DC input · 60–165V DC output · 10mA–1000mA settable · 26–55 inch TVs
A universal constant-current backlight driver board for repairing LED TVs from 26 to 55 inches. It takes a 19–45V DC input and drives LED light bars that run between 60V and 165V DC, adjusting its voltage automatically to suit the strip....
Sale price
Rs. 599.00
-41%
Regular price
Rs. 1,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 599.00
Unit price
Increments of 1
Minimum of 1
Maximum of
LED TV Backlight Driver Board for 26-55" LED TV, Universal Backlight Module Supports 60V to 165V Voltage Range
Sale price
Rs. 599.00
Regular price
Rs. 1,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 599.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
Limited time
🪔 Diwali Special: 12% OFF on everything
Use code
One use per customer · Ends 8 Nov, 11:30 PM
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

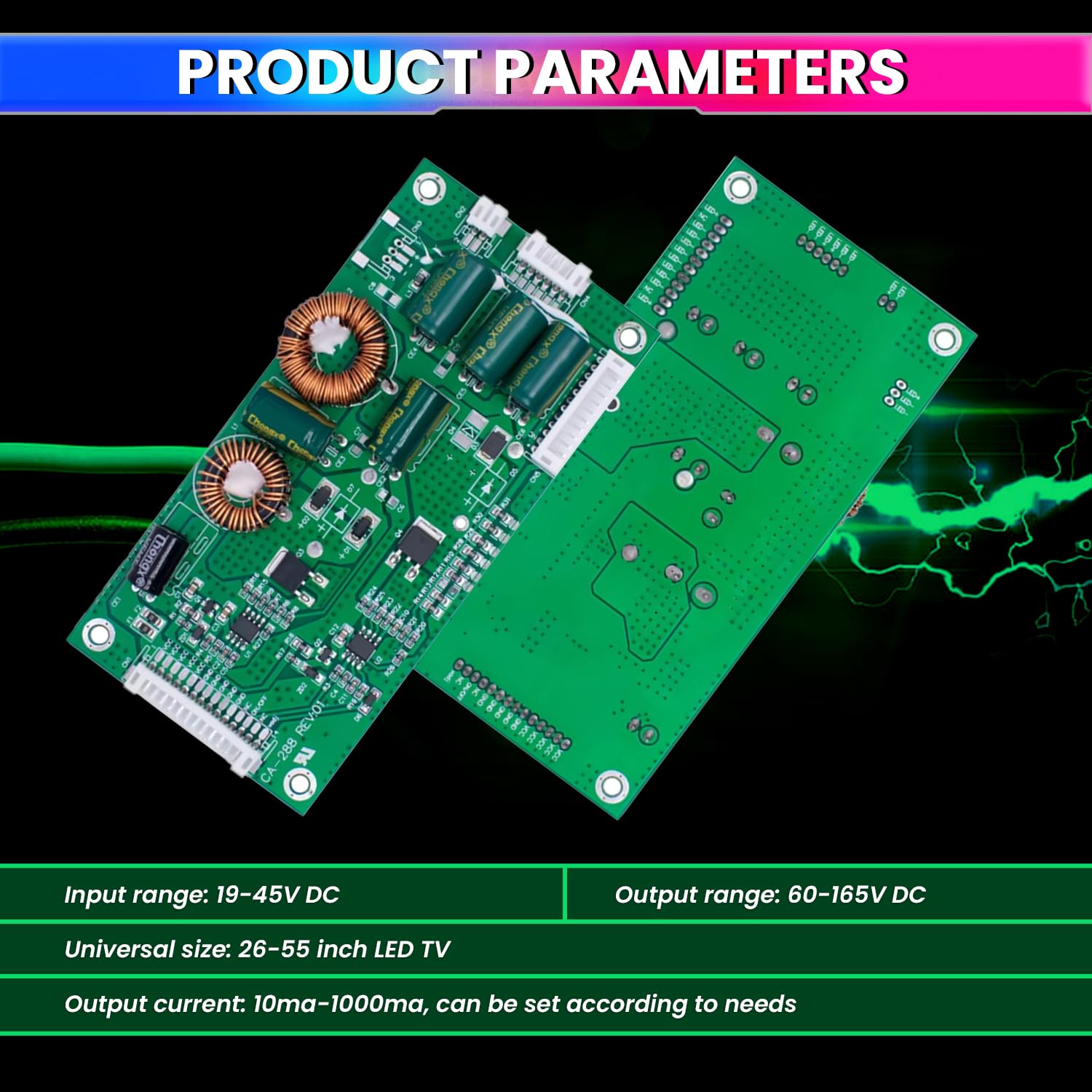

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xLED-TV-BOARD |
| Type | Universal LED TV backlight driver (constant current) |
| Input voltage | 19–45V DC |
| Output voltage | 60–165V DC |
| Output current | 10mA–1000mA, adjustable |
| TV size | 26–55 inch LED TVs |
Frequently asked questions
Will it work with my light bars?
Only if they run between 60V and 165V. Below 60V or above 165V the screen may dim or flicker.
What input does it need?
A DC supply between 19V and 45V.
Do I need to set the voltage?
No. It is a constant-current driver that adjusts voltage automatically. You set only the output current.
My light bars are below 60V. What should I do?
This model isn't suitable. Contact amiciKart for other compatible options.
Full Product Description
LED TV Backlight Driver 60–165V, 26–55 inch
A universal constant-current backlight driver board for repairing LED TVs from 26 to 55 inches. It takes a 19–45V DC input and drives LED light bars that run between 60V and 165V DC, adjusting its voltage automatically to suit the strip. Output current can be set from 10mA to 1000mA. It is only for light bars within 60V–165V; below or above that range the screen may dim or flicker.
- Constant-current output: Automatically adjusts voltage to the LED bars, with no manual voltage setup.
- Smooth backlight: Designed for steady light without flicker when matched to the right bars.
- For TV repair: A universal replacement when the original backlight driver has failed.
- Help choosing: Contact amiciKart customer service if you're not sure this model suits your TV.
Important: The output reaches up to 165V DC. Unplug the TV before working inside it, and use a qualified technician if you are unsure.
