Know before you buy
-
Vin 4–38V · Vout 1.25–36V adjustable
Set the output voltage you need.
-
Up to 5A · max 75W
Enough for most DIY loads.
-
CC & CV control modes
Constant-voltage or current-limited output.
-
−40°C to +85°C · ~180 kHz
Works in hot and cold conditions.
Features that make it useful
-

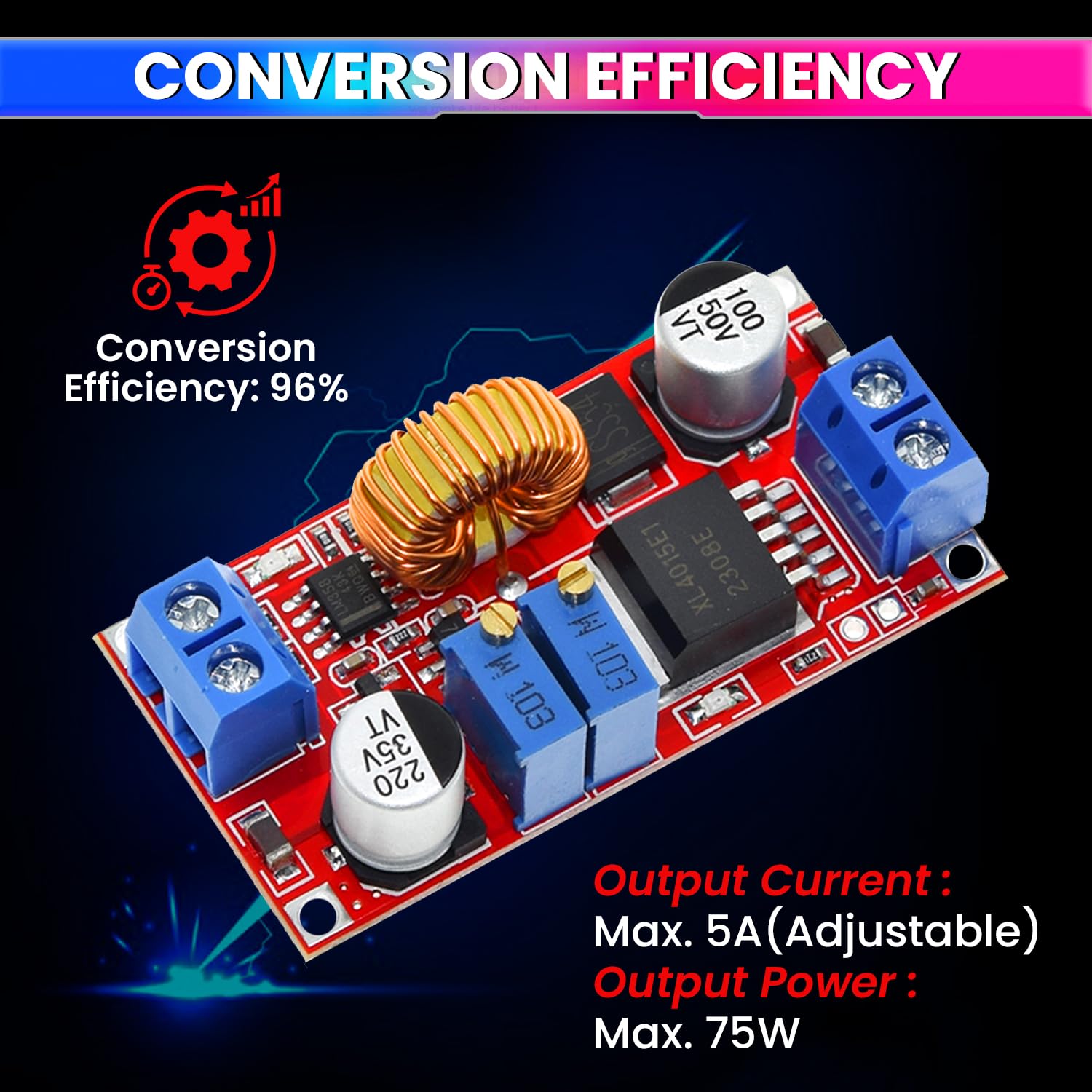

Up to 96% efficiency
Less wasted heat.
-
1-year warranty · India support
980-970-9898 / care@amicikart.com.
How to use
-

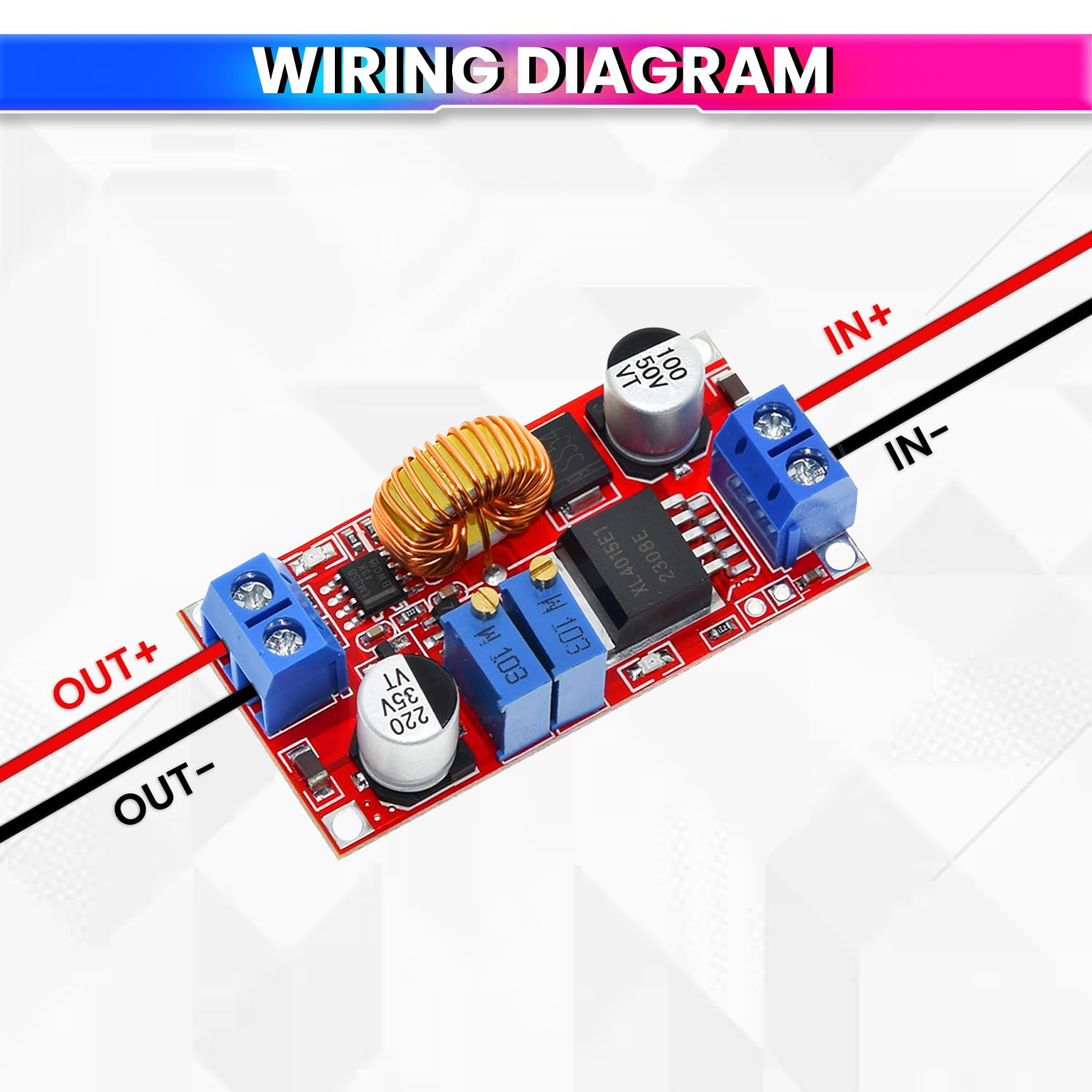

Keep input within DC 4–38V and set the output within 1.25–36V
Output must be set below the input.
-

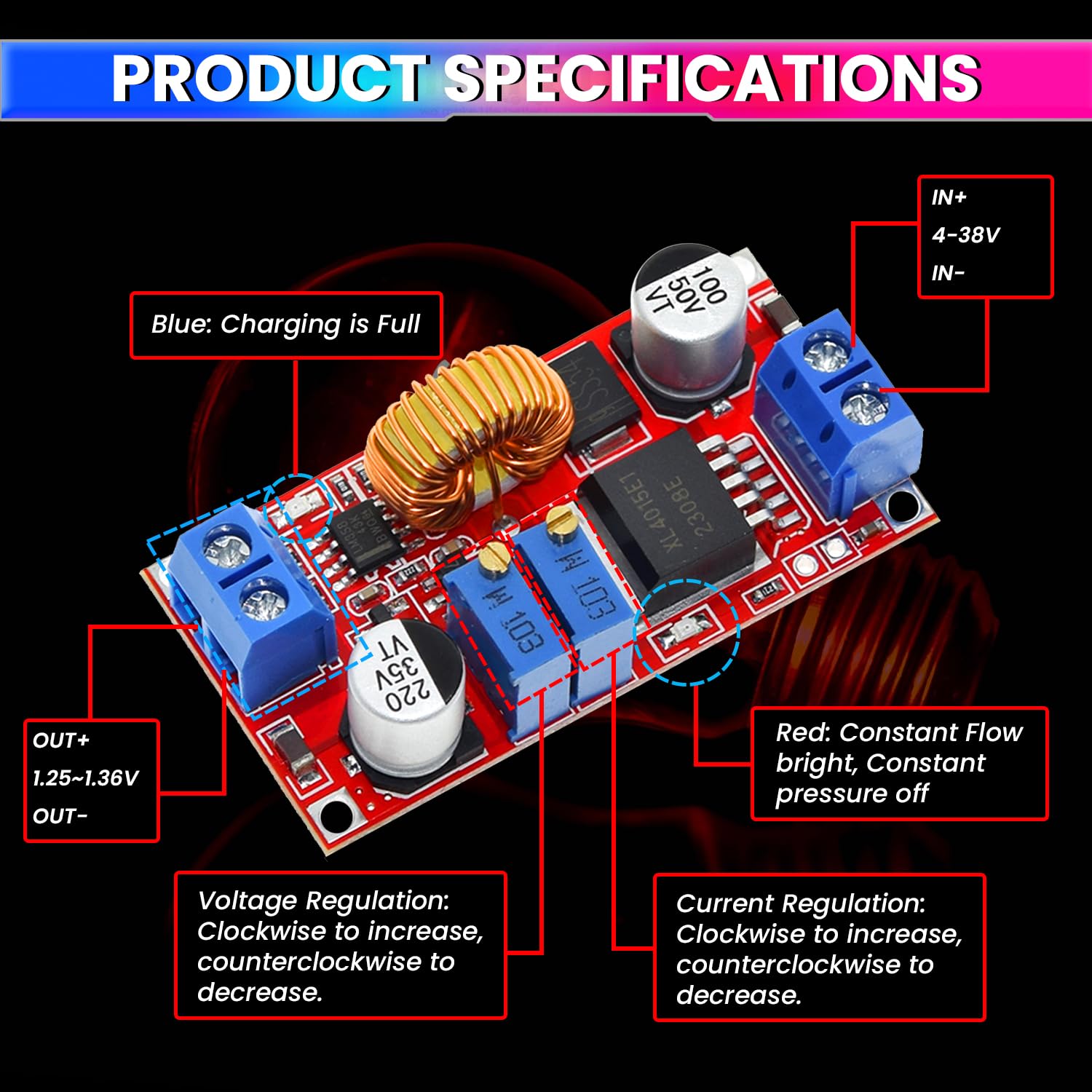

Keep the load within 5A / 75W; use CC mode when you need current limiting
CC mode limits the output current.
-
Efficiency up to 96% — actual efficiency depends on input, output and load
Check module temperature at higher loads.

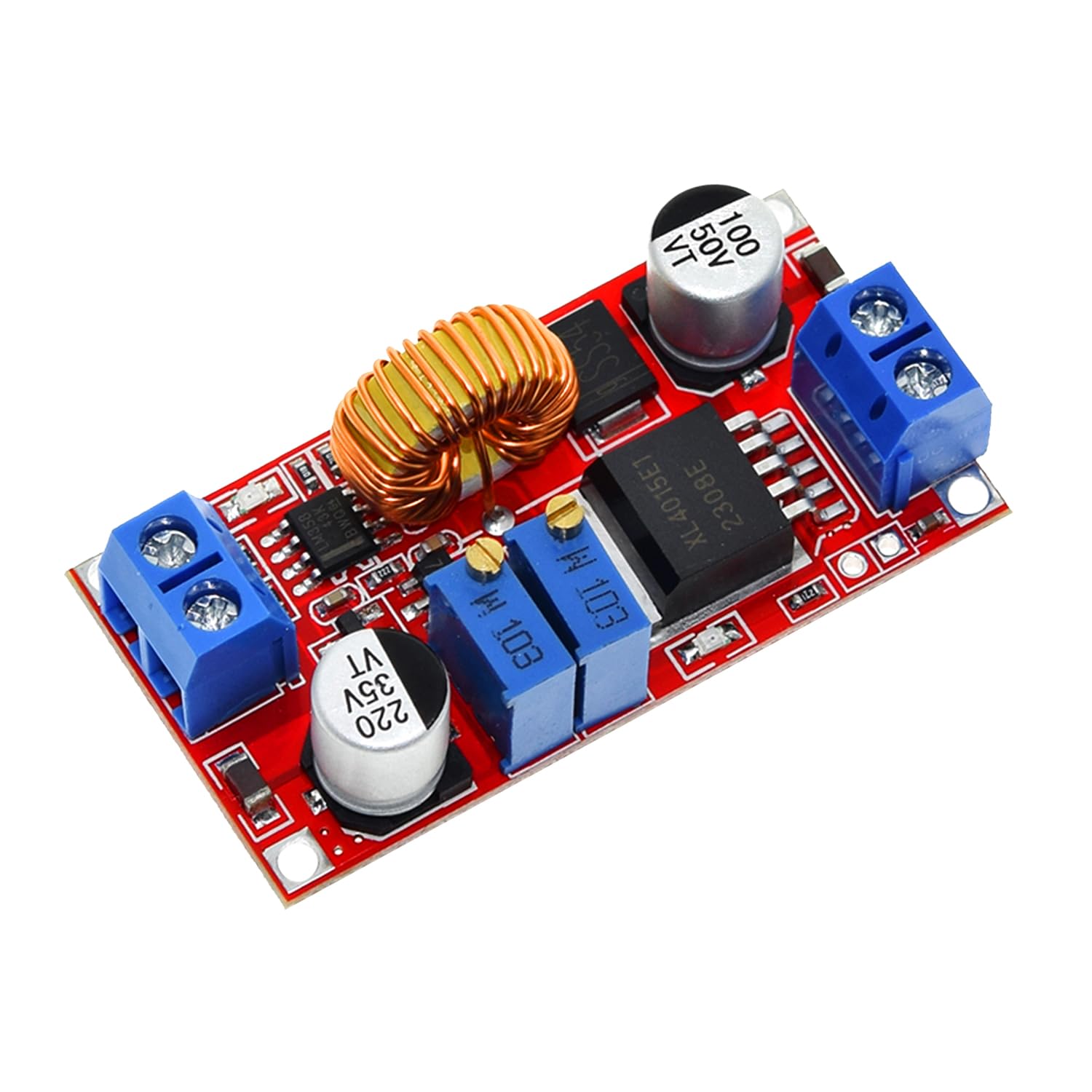

XL4015 75W 5A Buck 4-38 to 1.25-36V
amiciSolar · Vin 4–38V · Vout 1.25–36V · 5A · 75W · CC/CV

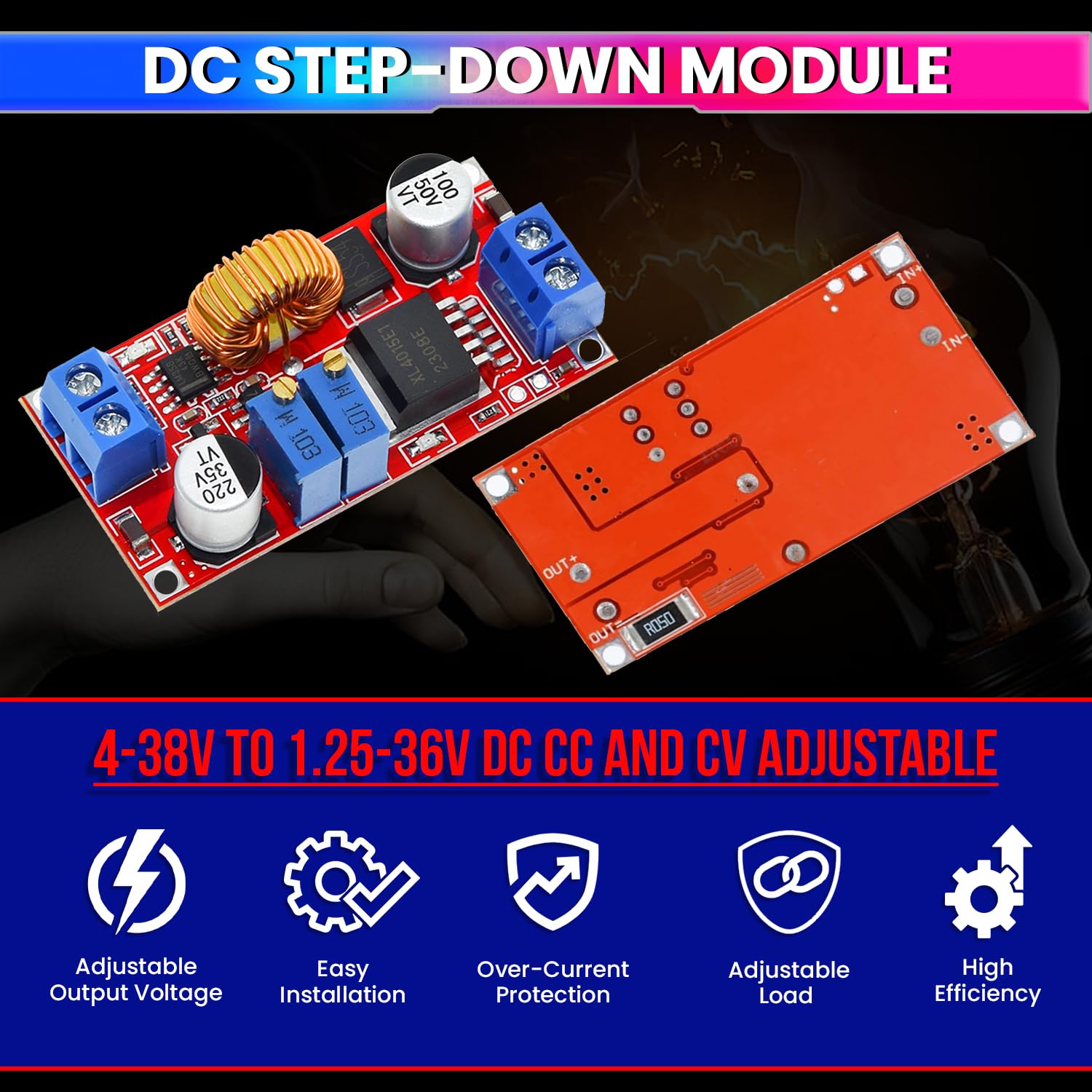

XL4015 DC-DC buck (step-down) module: input 4–38V, adjustable output 1.25–36V, up to 5A, max 75W, CC and CV modes, about 180 kHz, works from −40°C to +85°C, up to 96% efficiency. 1-year warranty.
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability

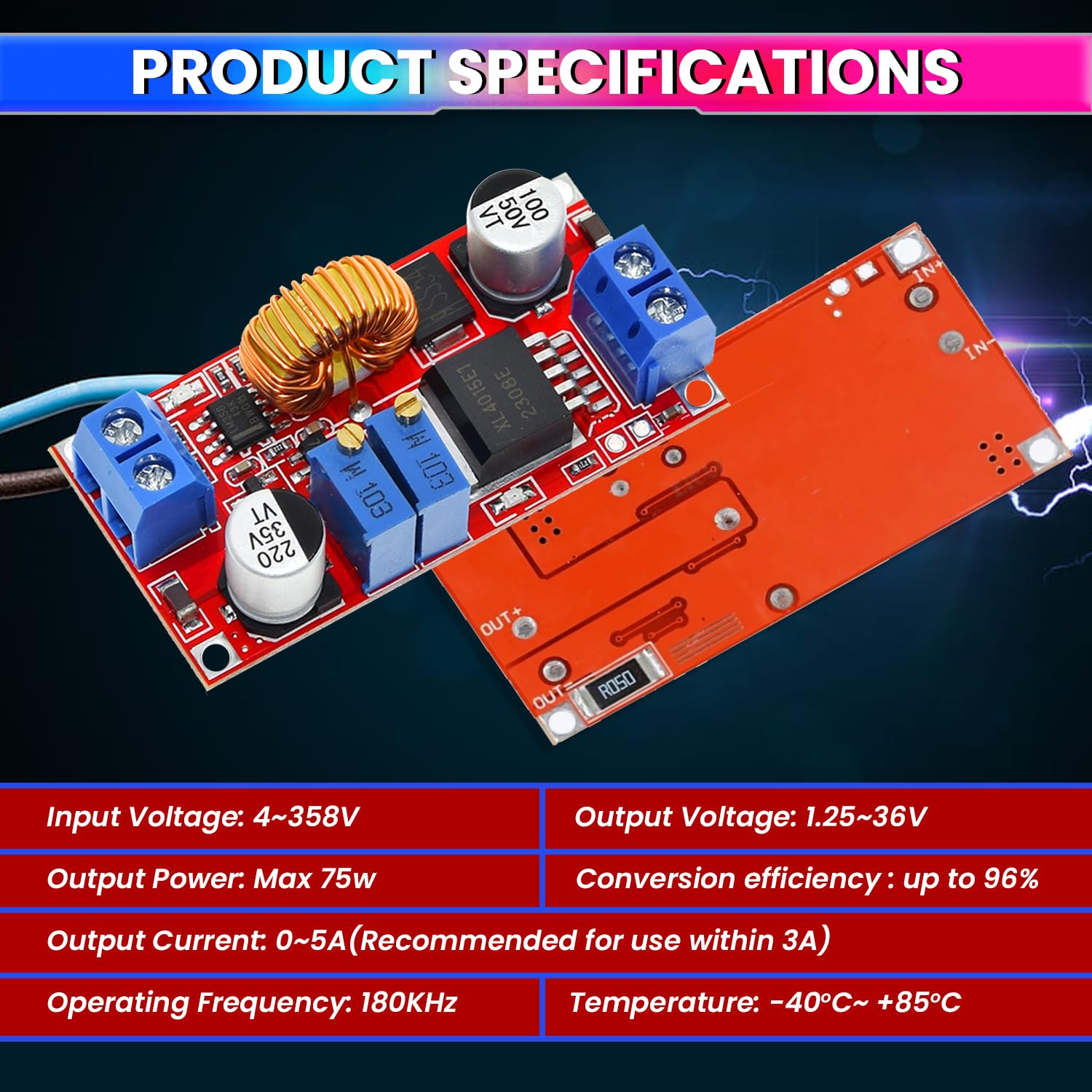

Specifications
| SKU | 1xBUCK-XL4015 |
|---|---|
| Brand | amiciSolar |
| Device class | DC-DC buck / step-down module (XL4015) |
| Vin | DC 4–38V |
| Vout | Adjustable DC 1.25–36V |
| Current / power | Up to 5A · max 75W |
| Modes | CC & CV |
| Frequency / temp | About 180 kHz · −40°C to +85°C |
| Efficiency | Up to 96% |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
What are the input and output ranges?
How efficient is it?
Full Product Description
XL4015 75W 5A Buck 4-38 to 1.25-36V
XL4015 DC-DC buck / step-down module. Vin 4–38V, adjustable Vout 1.25–36V, up to 5A output, max 75W, CC & CV control, about 180 kHz, −40°C to +85°C working range, up to 96% conversion efficiency. 1-year warranty.
- Up to 96% efficiency: Less wasted heat.
- 1-year warranty · India support: 980-970-9898 / care@amicikart.com.
