Know before you buy
-
Qualified installer recommended
AC mains, PV string and battery wiring should be planned and installed by a person familiar with off-grid/hybrid inverter electrical work. Isolate all sources before connecting.
-
12V battery · AC 240V class · Pure sine 1600W
Works with a 12V battery; AC input 240VAC class; rated 1600W with 3200VA peak; output 208/220/230/240VAC ±5%, pure sine wave.
-
PV up to 2000W · VOC ≥50V · MPPT 40–500VDC
Max PV input 2000W, MPPT tracking 40–500VDC, max PV input voltage 500VDC and max PV charge current 100A. Use panels with a VOC of 50V or more.
Features that make it useful
-
Dual AC & DC input priority
Operates on AC supply and DC (solar) input with customizable priority settings.
-
Universal 12V battery chemistries
Works with lead-acid, lithium-ion and LFP batteries.
-
MPPT PV charging
PV charging method MPPT; max charge current 100A; max AC charge current 60A.
-
RS485 / expansion communication

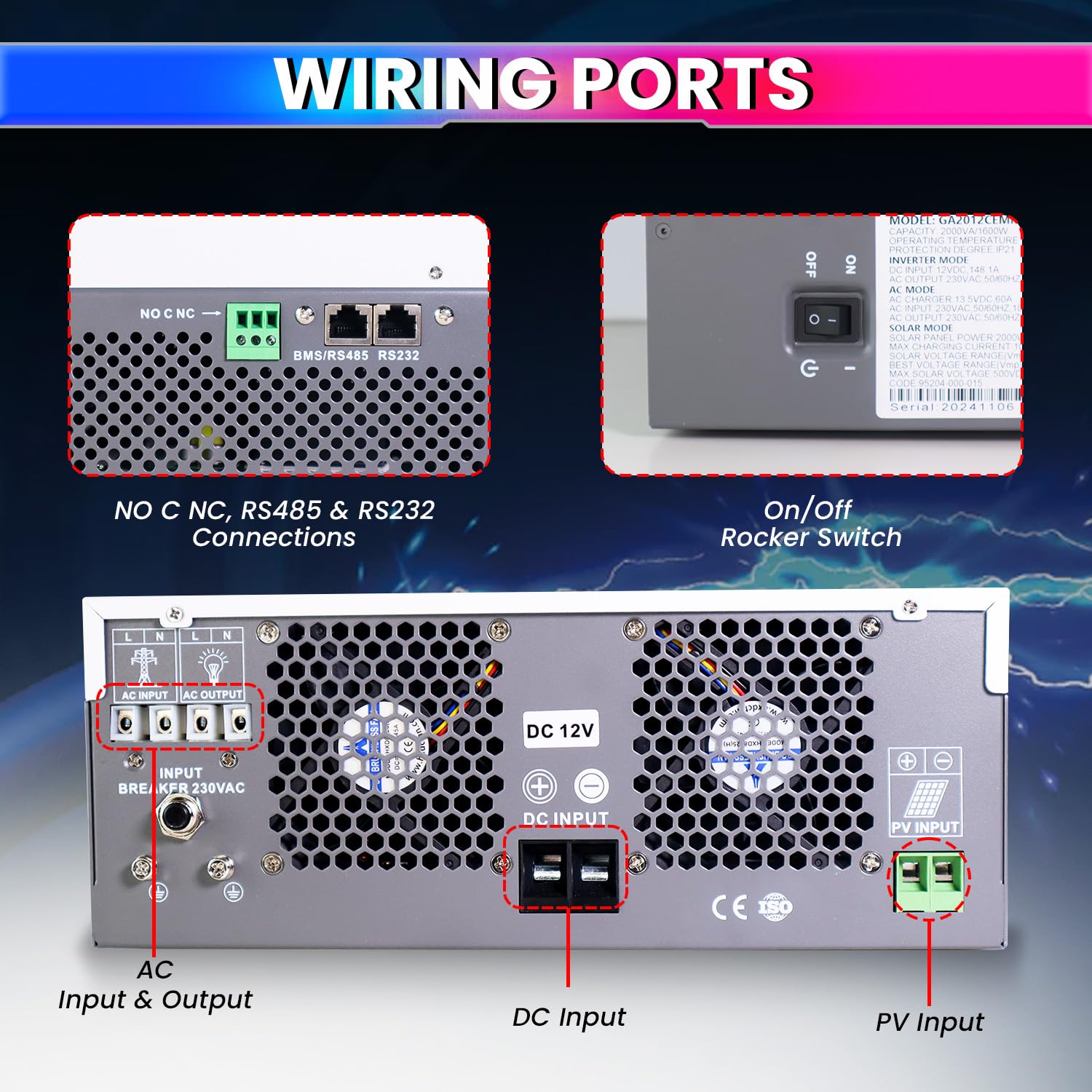

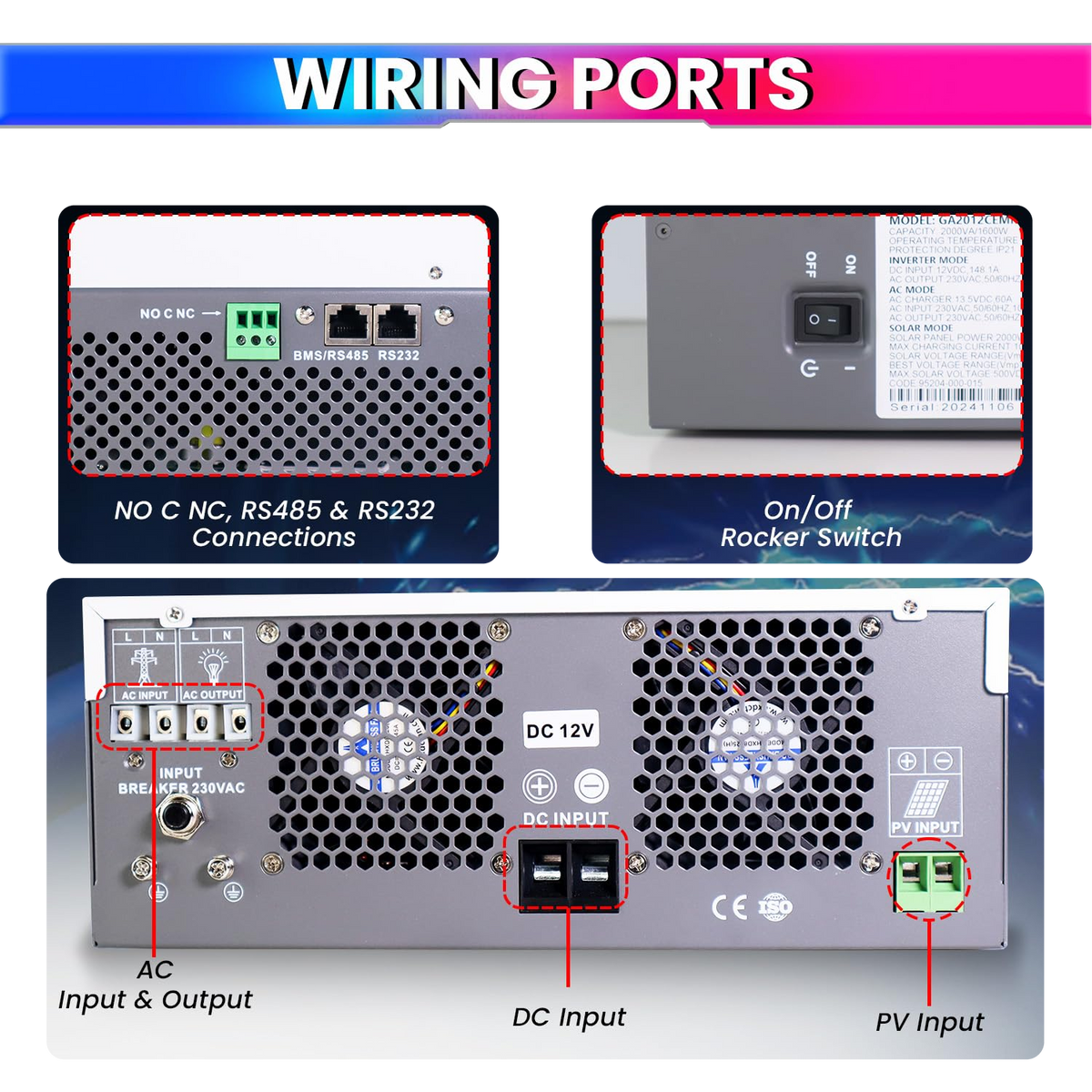

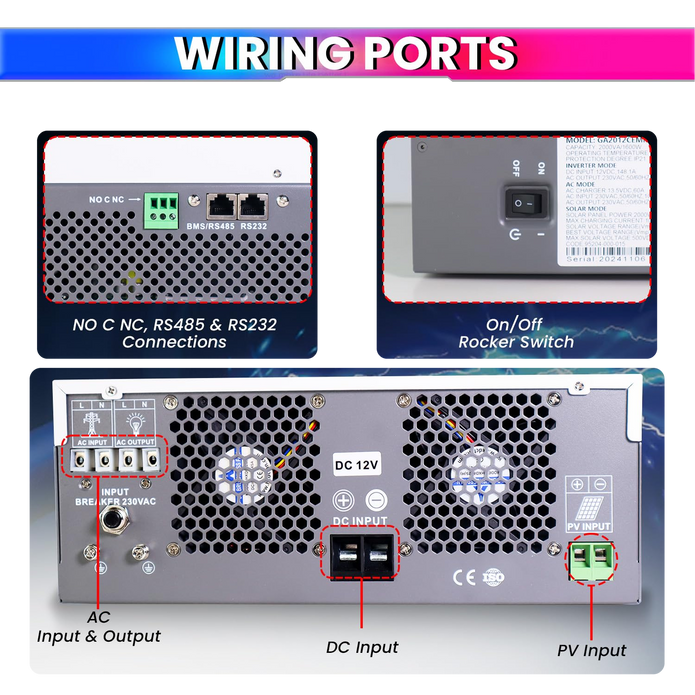

Supports an RS485 module, with an expansion slot (2×5PIN) for a lithium BMS communication card or Wi-Fi. Parallel operation is not supported.
How to use
-
Check battery, PV and load match
Make sure you have a 12V battery bank, a PV array within 2000W / 500VDC with panel VOC of 50V or more, and a continuous load of 1600W or less.
-

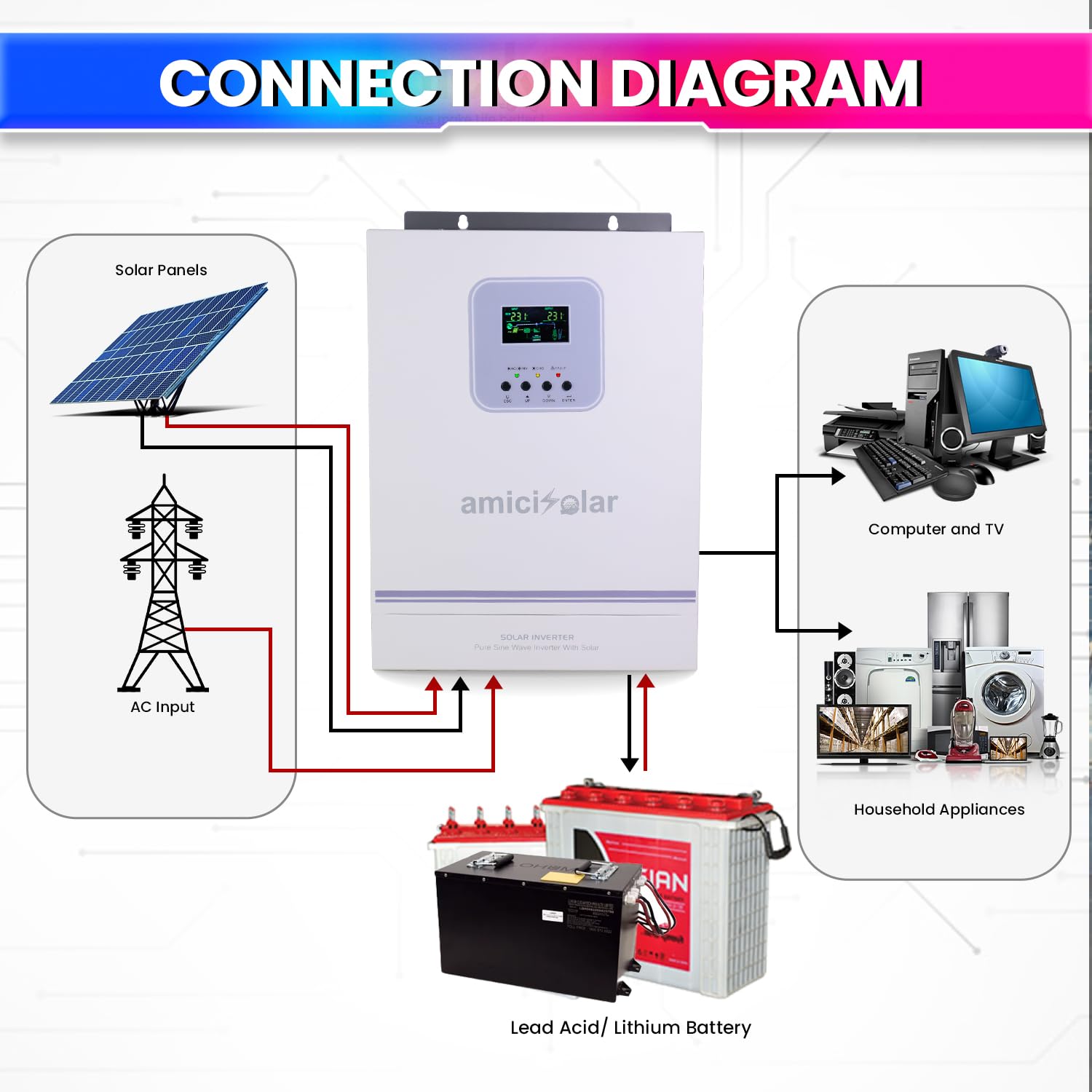

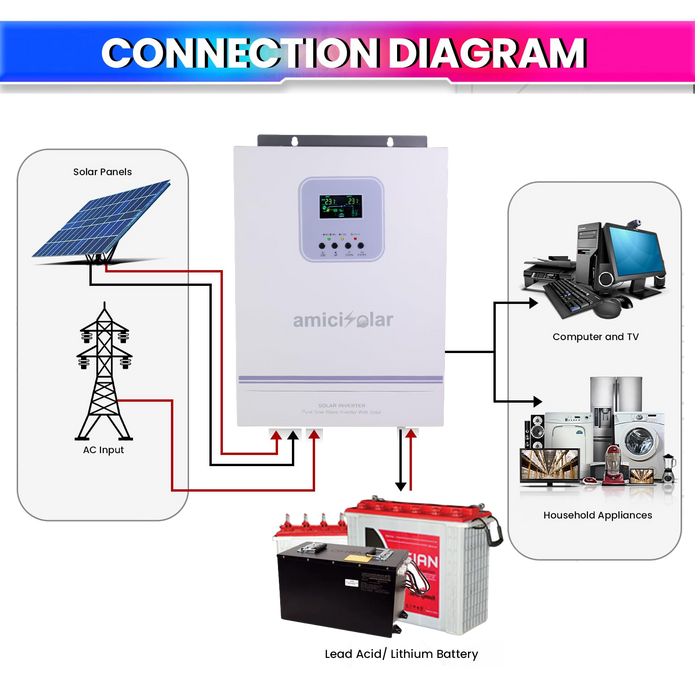

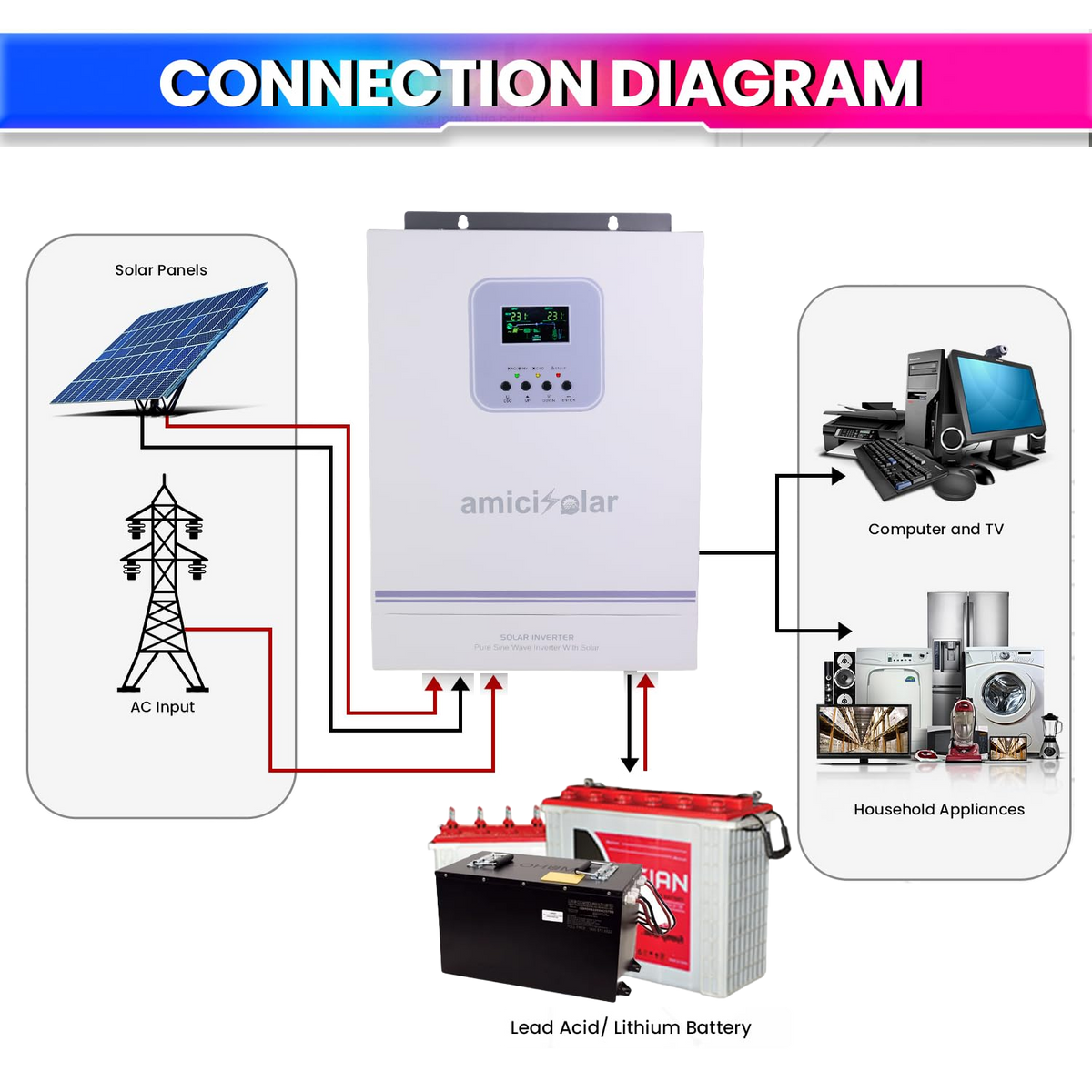

Wire battery → PV → AC with power isolated
Qualified installer connects battery, PV and AC per inverter terminal map with all sources isolated.
-
Set input priority and verify on LCD
Configure preferred AC/DC priority and confirm operating mode, load and I/O on the LCD before leaving the system live.

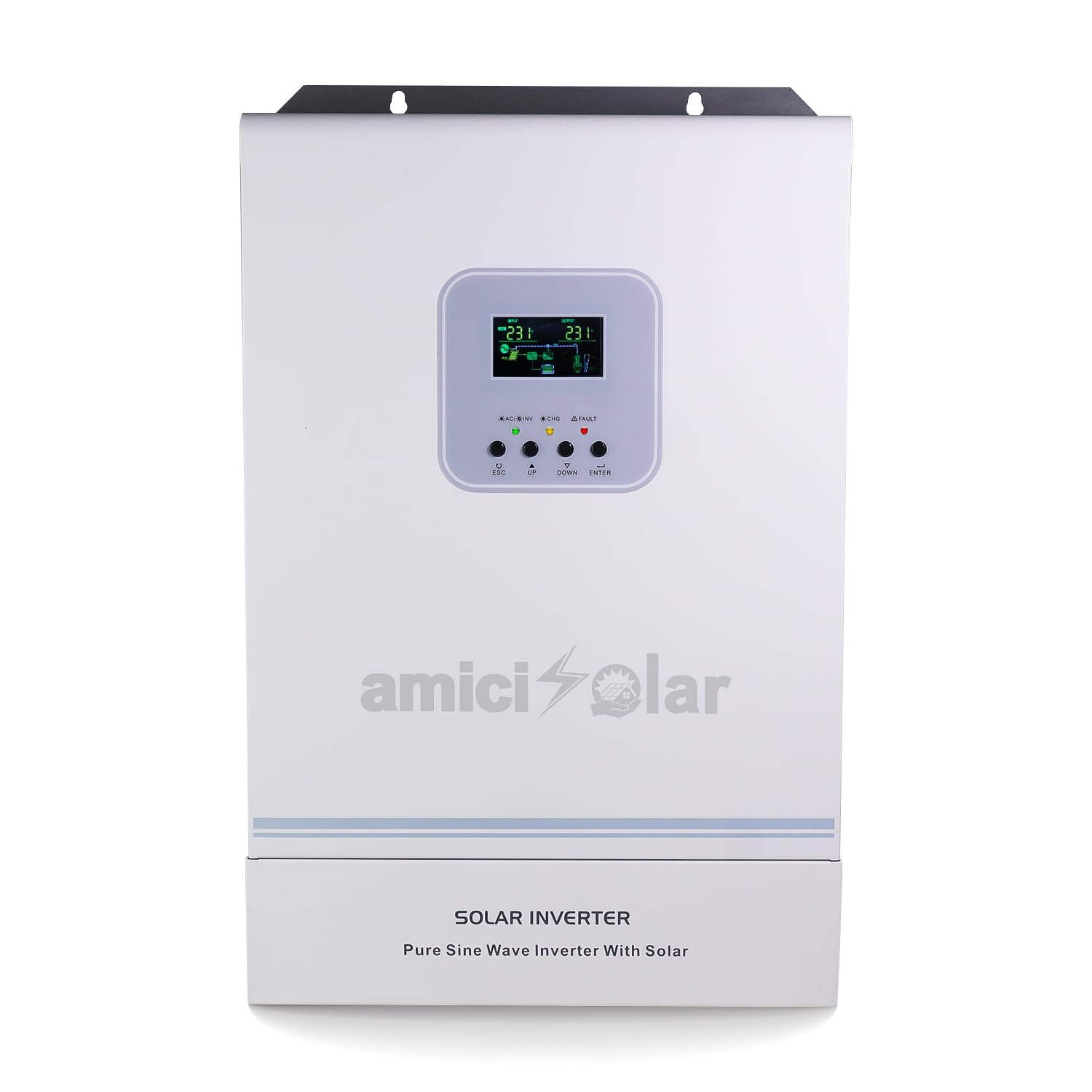

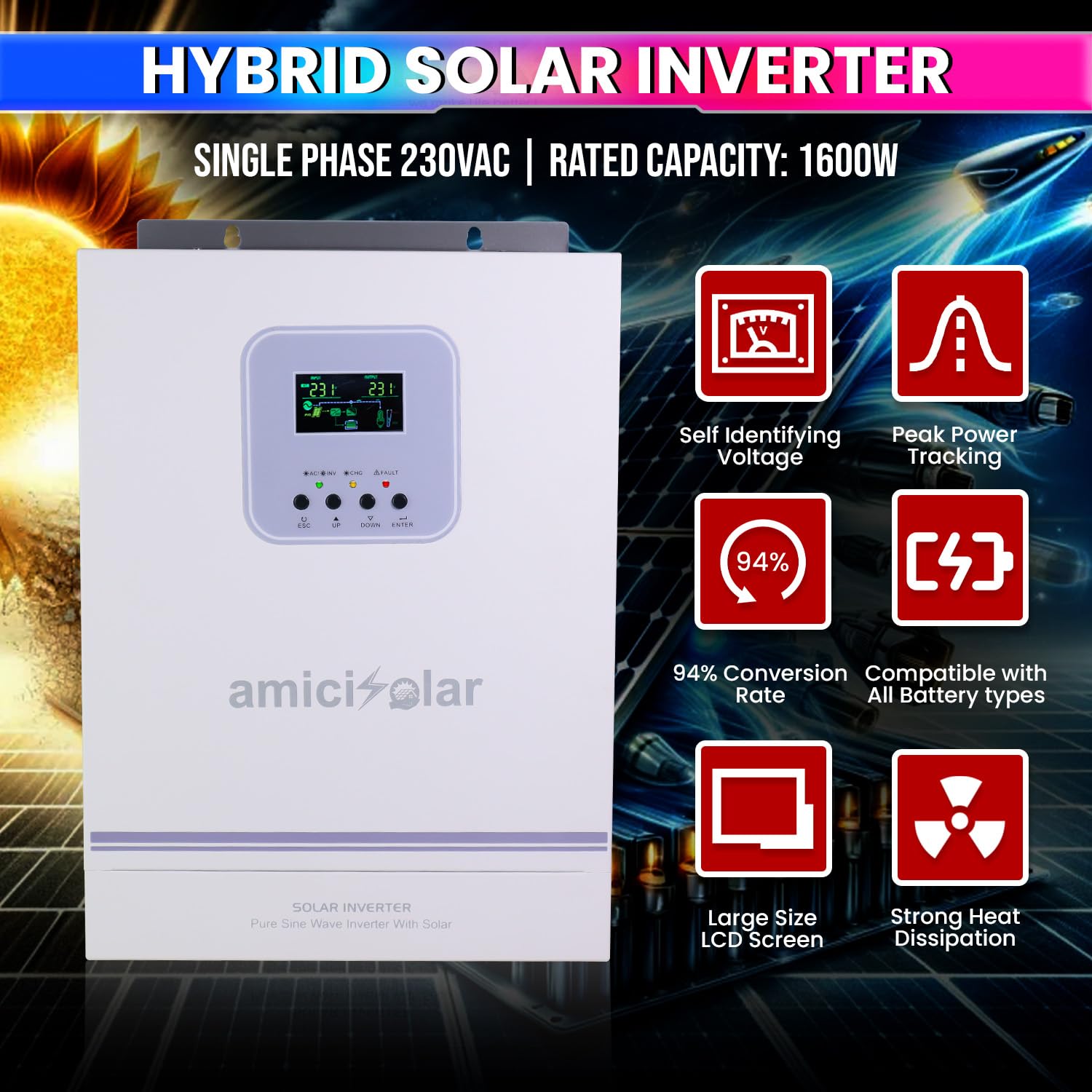

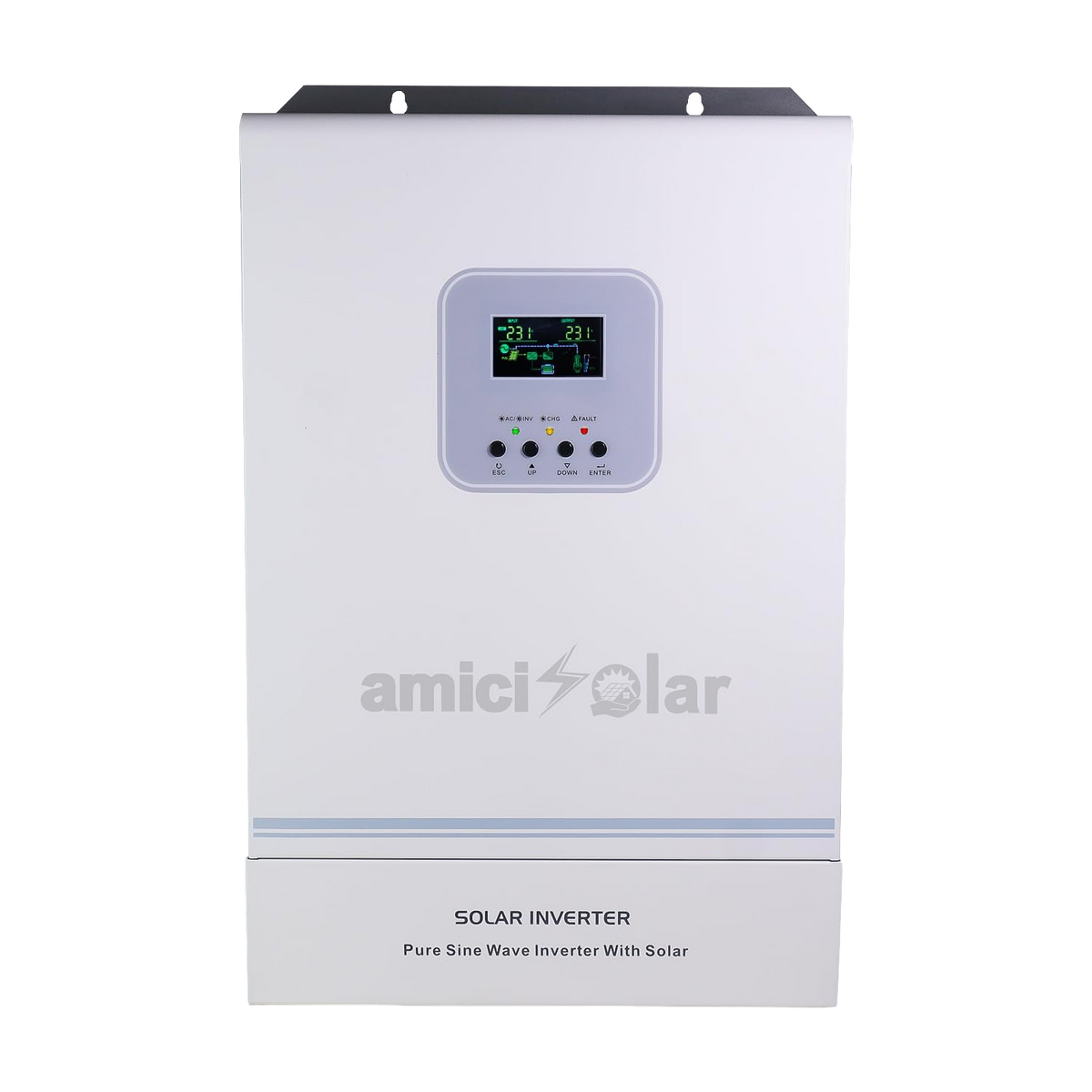

1.6kW MPPT Hybrid Solar Inverter
amiciSolar · 1600W rated · Pure sine · Dual AC/DC · Max PV 2000W · 12V battery · MPPT
Hybrid MPPT solar inverter rated 1600W with pure sine wave output, dual AC and DC (solar) input priority, support for up to 2000W PV (VOC ≥50V), and 12V lead-acid / lithium / LFP battery compatibility. Qualified installer recommended for...
Sale price
Rs. 29,999.00
-15%
Regular price
Rs. 35,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 29,999.00
Unit price
Increments of 1
Minimum of 1
Maximum of

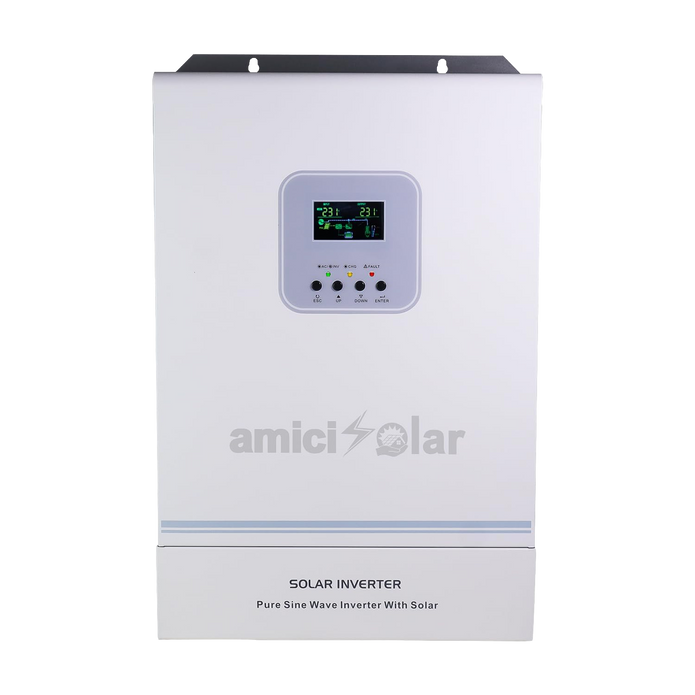

MPPT Solar Inverter | Dual AC & DC Input| Supports 2000W Solar Panel (1.6kW Hybrid Inverter)
Sale price
Rs. 29,999.00
Regular price
Rs. 35,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 29,999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xSLR-INV-1600 |
|---|---|
| Brand | amiciSolar |
| Device class | Hybrid MPPT solar inverter (pure sine) |
| Rated power | 1600W |
| Peak power | 3200VA |
| Output wave | Pure sine wave |
| AC input | 240VAC; input range 90–280VAC±3V (Normal) / 185–264VAC±3V (UPS Mode) |
| Frequency | 50/60Hz adaptive |
| Output voltage | 208/220/230/240VAC ±5% |
| Transfer time | 10ms computer / 20ms household (adjustable) |
| Battery | 12VDC; lead-acid / lithium / LFP; constant charge 14.1VDC; float 13.5VDC |
| PV charging | MPPT; max PV 2000W; tracking 40–500VDC; max PV Vin 500VDC; max PV charge 100A |
| Max AC / total charge current | 60A AC charge; 100A max charge |
| Parallel | Not supported |
| Operating temperature | 0℃–40℃ |
| Warranty | 1 year |
Frequently asked questions
Is this a pure sine inverter?
Yes. The output is a pure sine wave.
What battery voltage does it need?
A 12V battery — lead-acid, lithium or LFP.
How much solar can I connect?
Up to 2000W of PV, with a max PV input voltage of 500VDC and an MPPT range of 40–500VDC. Panel VOC should be 50V or more. Have an installer size the string.
Does it support parallel units?
No, parallel operation is not supported.
Full Product Description
amiciSolar 1.6kW MPPT Hybrid Solar Inverter
Core ratings
- Rated 1600W / peak 3200VA · pure sine · dual AC & DC input
- 12V battery (lead-acid / lithium / LFP)
- Max PV 2000W · MPPT 40–500VDC · max PV Vin 500VDC · panel VOC 50V or more
- AC input 240VAC class: 90–280VAC (Normal) / 185–264VAC (UPS mode)
Installation
Qualified installer recommended for AC, PV and battery connections. Isolate all sources before work.
Warranty: 1 year, supported by amiciKart.
