Li-ion Battery Pack | Balance Function | Temperature Sensors | Overcharge, Overcurrent & Thermal Protection

• Why You Need This :-If you're building a 3S battery pack, this BMS is essential to prevent overcharging, overheating, and unbalanced cells—ensuring long-lasting, safe, and reliable battery performance.

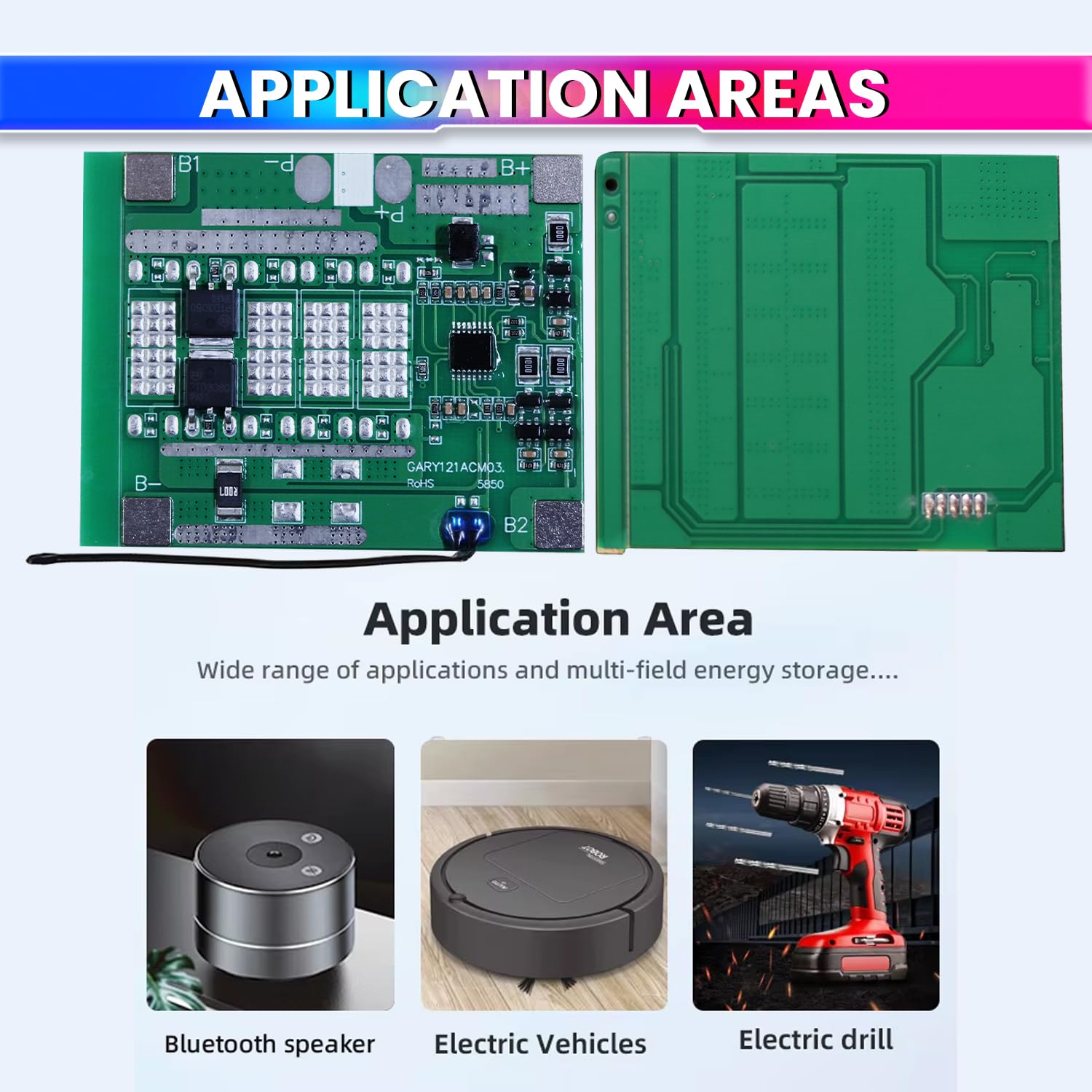

• Built for 3S Li-ion/NMC Battery Packs (11.1V–12.6V) :-Designed specifically for 3S (3-cell) lithium-ion battery packs. Ensures safe and efficient operation for DIY power banks, solar systems, and portable electronics.
• Smart Temperature Protection :-Equipped with NTC temperature sensors that cut off charging above 50 °C and discharging above 70 °C—keeping your battery safe from thermal damage.

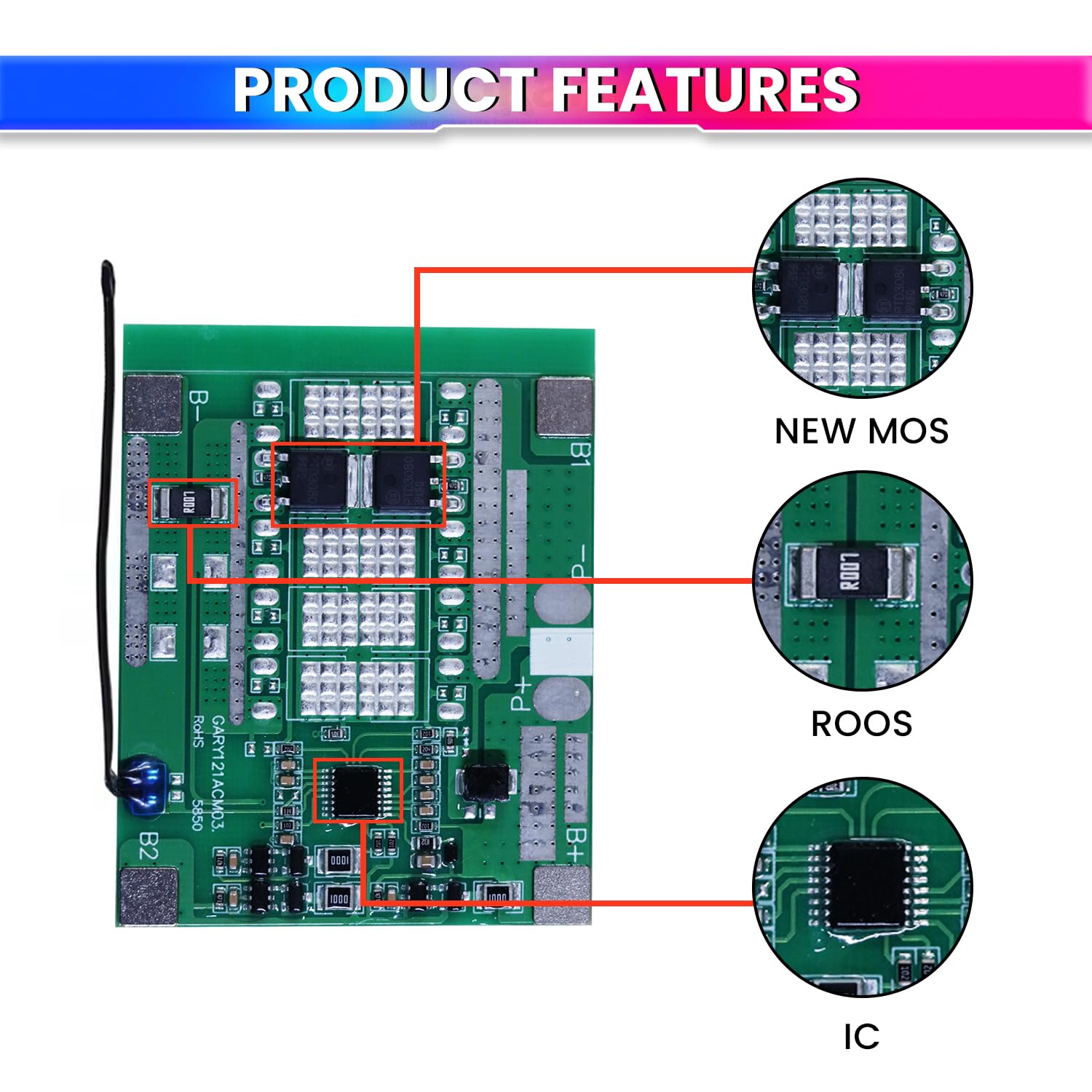

• Cell Balancing with Same-Port MOSFET :-Automatically balances cell voltages to maximize battery life. The same-port design allows for easy integration in compact setups with minimal wiring.
• Comprehensive Safety System :-Protects against overcharge (4.25V), over-discharge (2.5V), overcurrent (15A), and short circuits—ideal for both beginners and advanced battery builders.
• Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart at 980 970 9898 or care@amicikart.com)
•


Product Description:

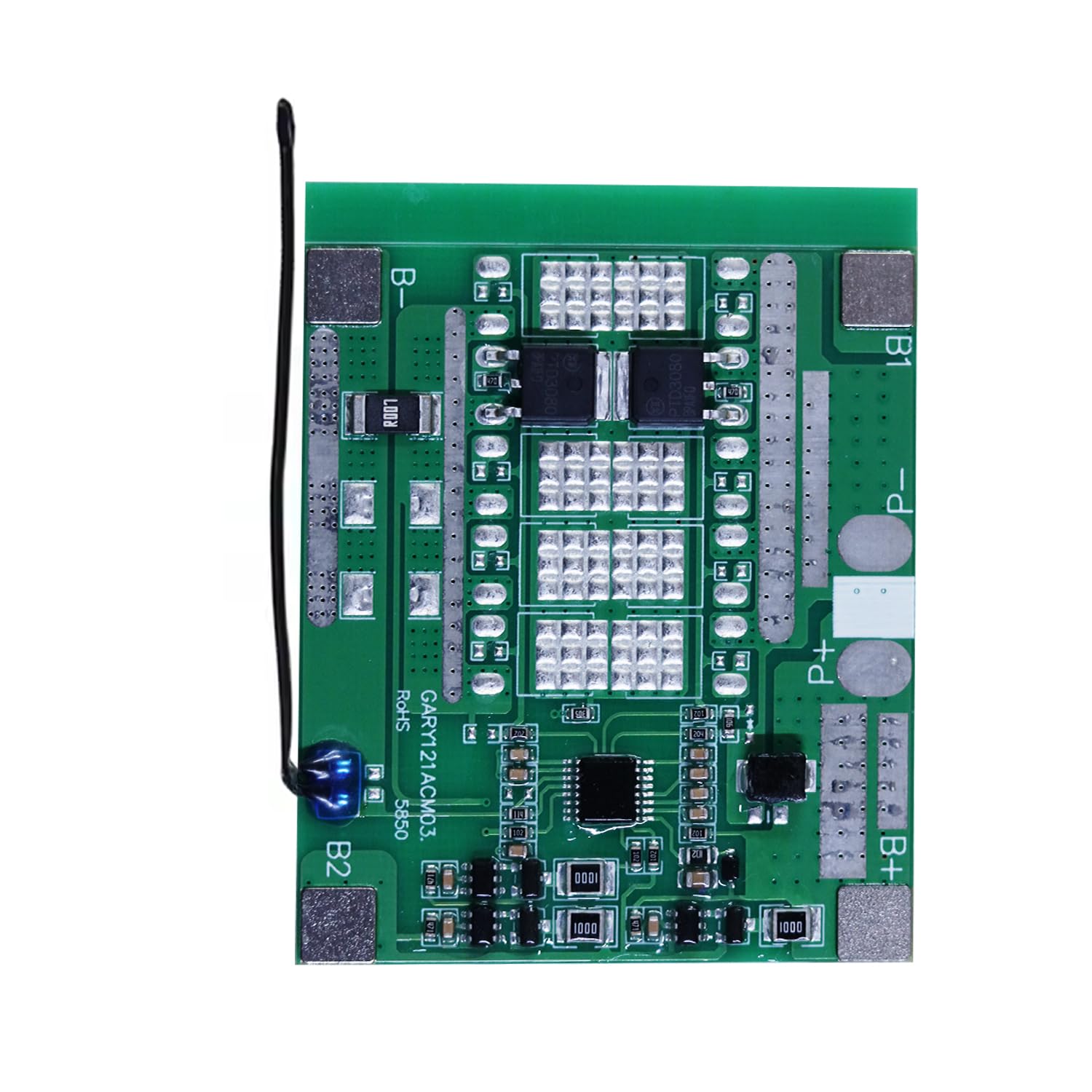

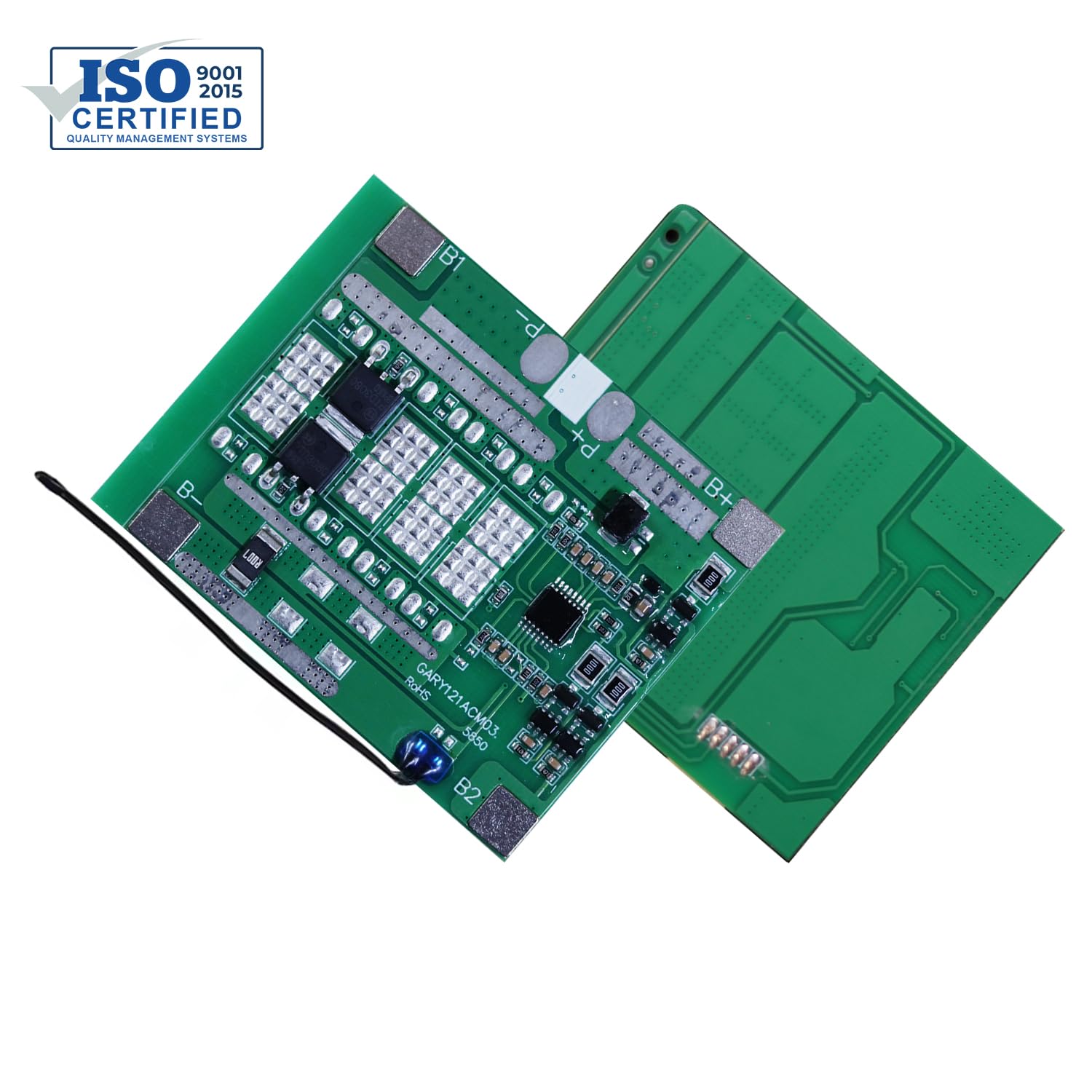

Upgrade your battery pack with the amiciSolar 3S 5A BMS, a smart protection board engineered for 3-cell (3S) lithium-ion or NMC batteries (11.1V to 12.6V). This compact yet powerful BMS offers same-port balancing, allowing charge and discharge from the same terminal, simplifying your design and saving space.
With built-in NTC temperature sensors, it ensures safe charging (up to 50 °C ±5) and discharging (up to 70 °C ±5), automatically cutting off power to prevent damage. The BMS also features advanced safety mechanisms—including overcharge, over-discharge, overcurrent, and short-circuit protection—backed by intelligent delay controls for reliable operation.
Technical Specification:
Battery Pack Charge Voltage:- 12.6V
Single Cell Overcharge Detection Voltage:- 4.25
Overcharge Recovery Voltage:- 4.15V
Overcharge Detection Delay:- 1000mS
Single Cell Over discharge Detection Voltage:- 2.5V
Over discharge Recovery Voltage:- 3V
Over discharge Detection Delay:- 1000mS
Continuous Discharge Current:- 5A
Continuous Charge Current:- 5A
Discharge Overcurrent Protection:- 15A
Overcurrent Protection Delay:- 1000mS

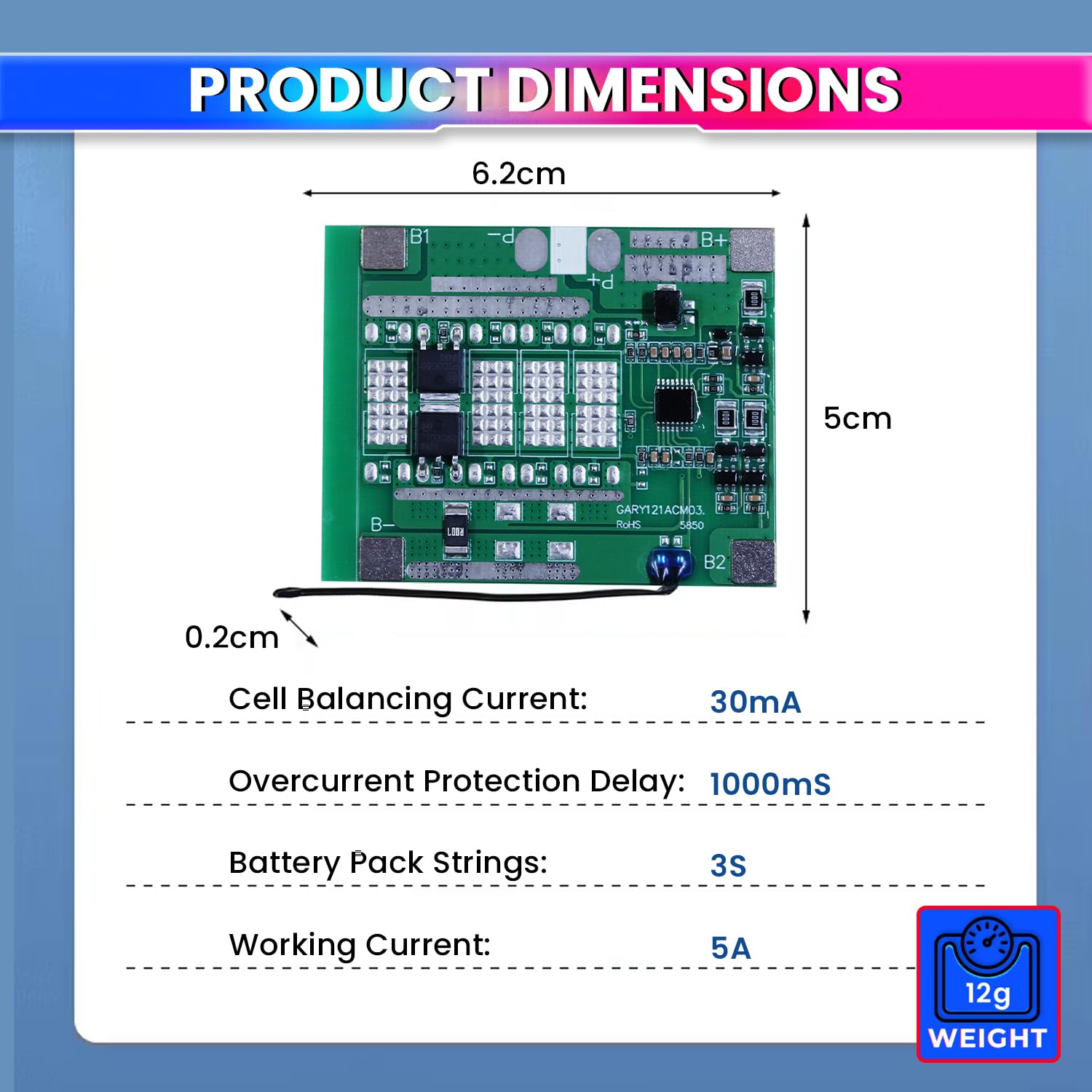

Cell Balancing Current:- 30mA
Charge Temperature Protection:- 50±5℃
Discharge Temperature Protection:- 70±5℃
