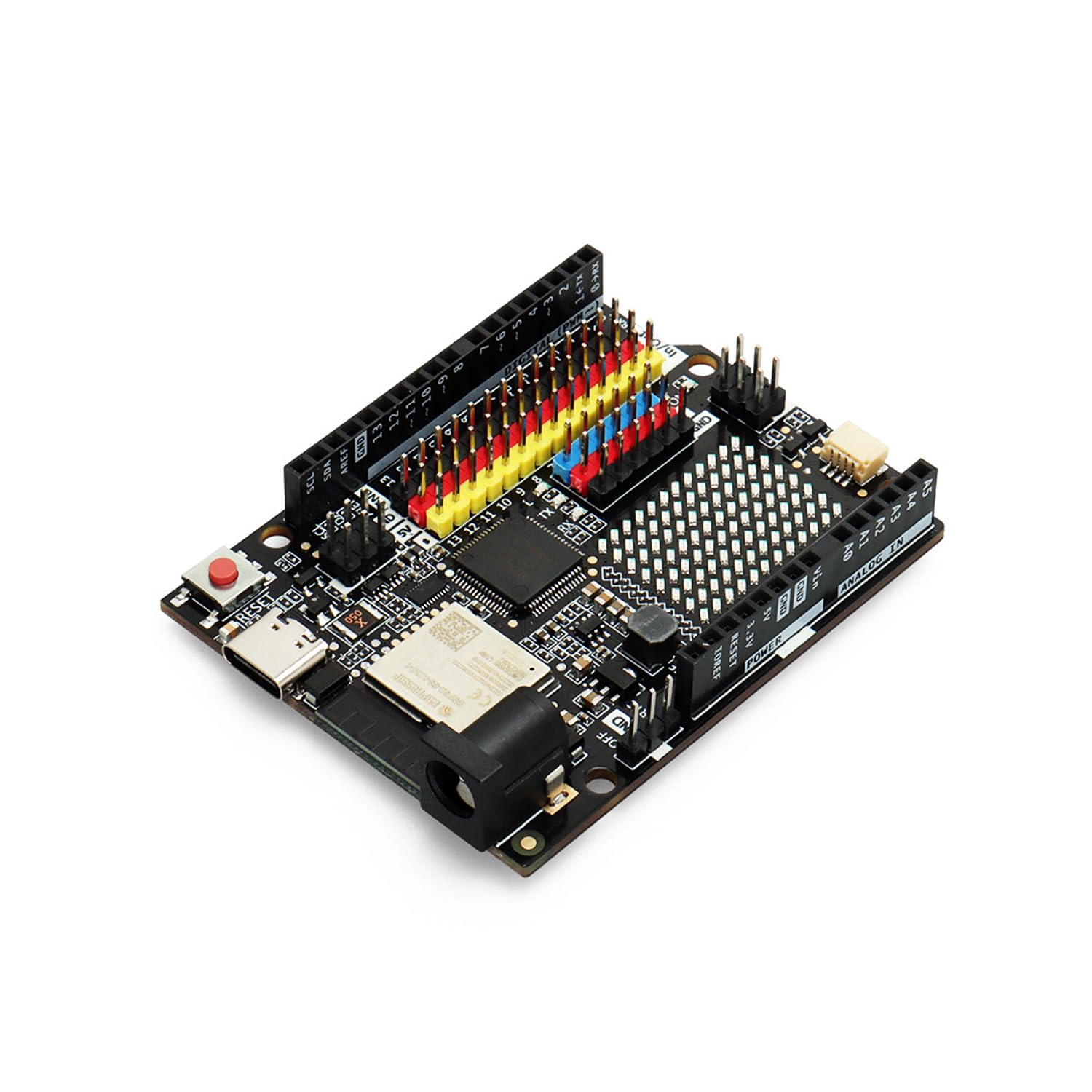

amiciSmart UNO R4 Minima Type-C USB ESP32-S3 WiFi Edition – Development Board with Renesas RA4M1, LED Matrix, CAN, DAC, and Bluetooth
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 2,069.00
-41%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,069.00
Unit price
per
Superfast Same-Day Shipping
Couldn't load pickup availability
- Next-Gen Performance with Wi-Fi + Bluetooth:-Powered by the Renesas RA4M1 (Arm Cortex-M4, 48MHz) and ESP32-S3-MINI for seamless Wi-Fi & Bluetooth connectivity. Ideal for IoT, automation, and remote monitoring through Arduino IoT Cloud.
- More Memory, More Possibilities:- With 256KB Flash, 32KB SRAM, and enhanced peripherals like 12-bit DAC, CAN bus, OP amp, and HID support, this board supports more complex and data-intensive projects than previous Uno models.
- Uno-Compatible with Smart Enhancements:- Maintains the classic Uno form factor for full compatibility with legacy shields and accessories. Features 14 digital I/Os, 6 analog inputs, and 6 PWM outputs—ready for all your projects.
- Built-in 12x8 LED Matrix + Expandability:- The onboard 96-LED matrix (12x8) lets you display animations, indicators, or graphics. Whether for educational display or smart signage, it's built to captivate and communicate visually.

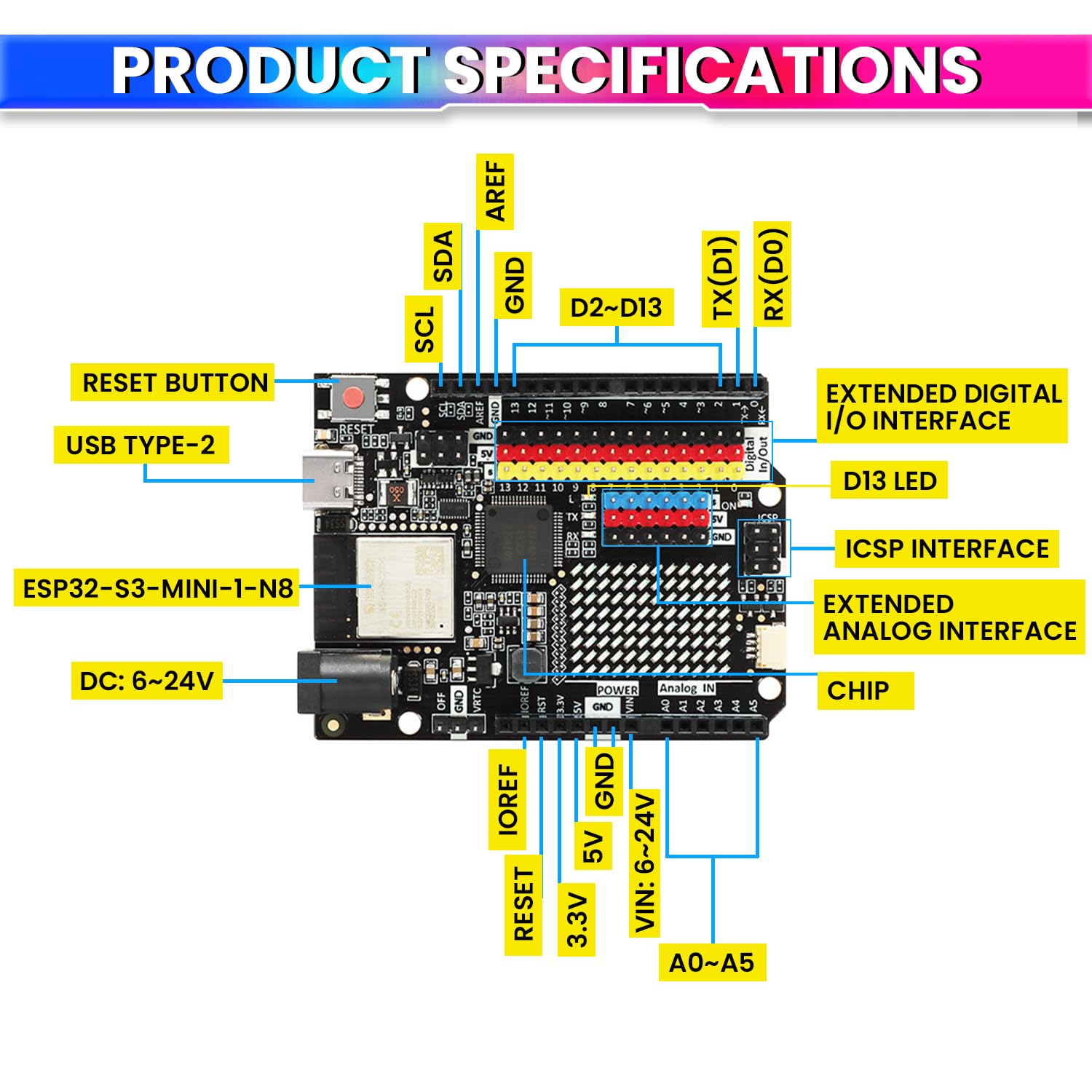

- Rich I/O + Debugging Options:- Comes with USB Type-C for programming and power, a SWD connector for professional-level debugging, Qwiic connector for plug-and-play I2C sensors, and additional OFF and VRTC pins for power management and real-time tracking.
- Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart).

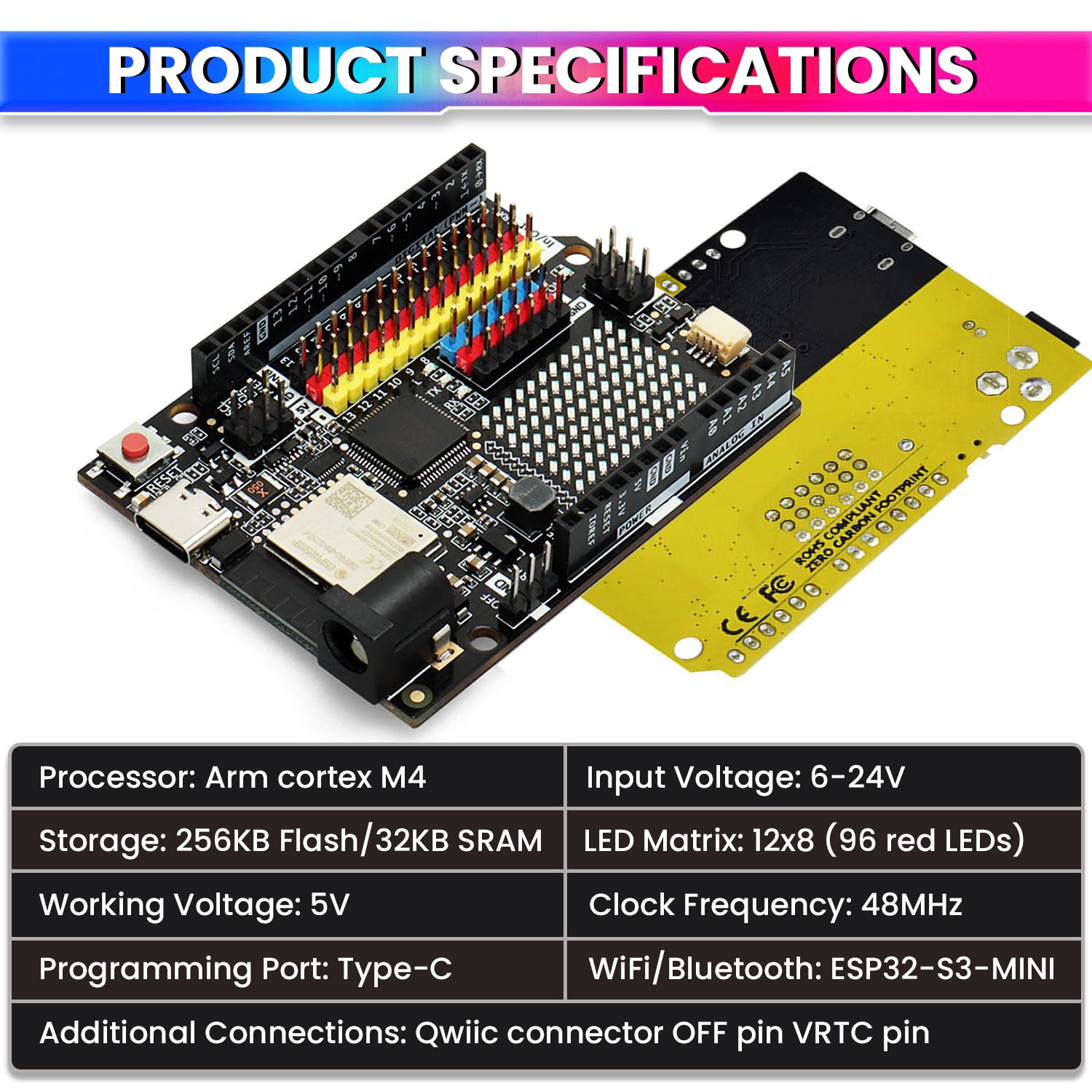

Processor:- Arm cortex M4
Storage:- 256KB Flash/32KB SRAM
Working Voltage:- 5V
Input Voltage:- 6-24V
Clock Frequency:- 48MHz
Programming Port:- Type-C
WiFi/Bluetooth:- ESP32-S3-MINI
LED Matrix:- 12x8 (96 red LEDs)
Additional Connections:- Qwiic connector OFF pin VRTC pin

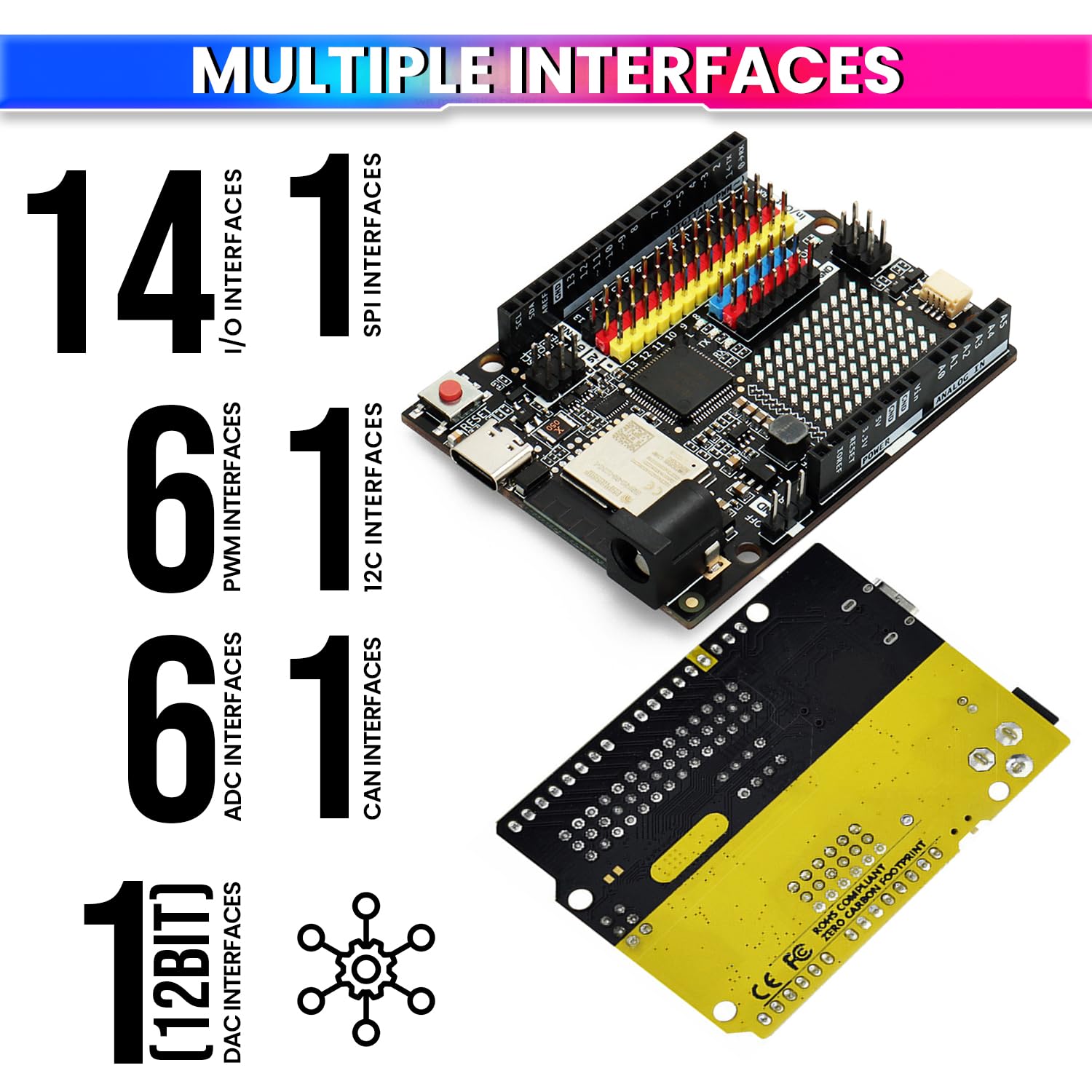

Number of digital I/O interfaces:- 14
Number of digital PWM interfaces:- 6
Number of digital ADC interfaces:- 6
Number of digital DAC interfaces:- 1 (12bit)
Number of digital SPI interfaces:- 1
Number of digital I2C interfaces:- 1
Number of digital CAN interfaces:- 1
Low stock
In stock, ready to ship
Have a question?
Description
- Next-Gen Performance with Wi-Fi + Bluetooth:-Powered by the Renesas RA4M1 (Arm Cortex-M4, 48MHz) and ESP32-S3-MINI for seamless Wi-Fi & Bluetooth connectivity. Ideal for IoT, automation, and remote monitoring through Arduino IoT Cloud.
- More Memory, More Possibilities:- With 256KB Flash, 32KB SRAM, and enhanced peripherals like 12-bit DAC, CAN bus, OP amp, and HID support, this board supports more complex and data-intensive projects than previous Uno models.
- Uno-Compatible with Smart Enhancements:- Maintains the classic Uno form factor for full compatibility with legacy shields and accessories. Features 14 digital I/Os, 6 analog inputs, and 6 PWM outputs—ready for all your projects.
- Built-in 12x8 LED Matrix + Expandability:- The onboard 96-LED matrix (12x8) lets you display animations, indicators, or graphics. Whether for educational display or smart signage, it's built to captivate and communicate visually.
- Rich I/O + Debugging Options:- Comes with USB Type-C for programming and power, a SWD connector for professional-level debugging, Qwiic connector for plug-and-play I2C sensors, and additional OFF and VRTC pins for power management and real-time tracking.
- Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart).
Processor:- Arm cortex M4
Storage:- 256KB Flash/32KB SRAM
Working Voltage:- 5V
Input Voltage:- 6-24V
Clock Frequency:- 48MHz
Programming Port:- Type-C
WiFi/Bluetooth:- ESP32-S3-MINI
LED Matrix:- 12x8 (96 red LEDs)
Additional Connections:- Qwiic connector OFF pin VRTC pin
Number of digital I/O interfaces:- 14
Number of digital PWM interfaces:- 6
Number of digital ADC interfaces:- 6
Number of digital DAC interfaces:- 1 (12bit)
Number of digital SPI interfaces:- 1
Number of digital I2C interfaces:- 1
Number of digital CAN interfaces:- 1
