Know before you buy
-
Electrician / industrial installer required
Contactor-driven 3-phase protection. Isolate supply; size contactor to load separately.
-
300–500V operating window
Monitors 3-phase supplies across a wide 300–500V range.
-
Fully adjustable thresholds
OV 390–490V · UV 300–370V · imbalance 5–29% · time 0.1–25 s.
-
Contactor sold separately
External contactor not included — must match load.
Features that make it useful
-
OV / UV / imbalance / phase sequence
Protects against overvoltage, undervoltage, voltage imbalance and wrong phase sequence.
-

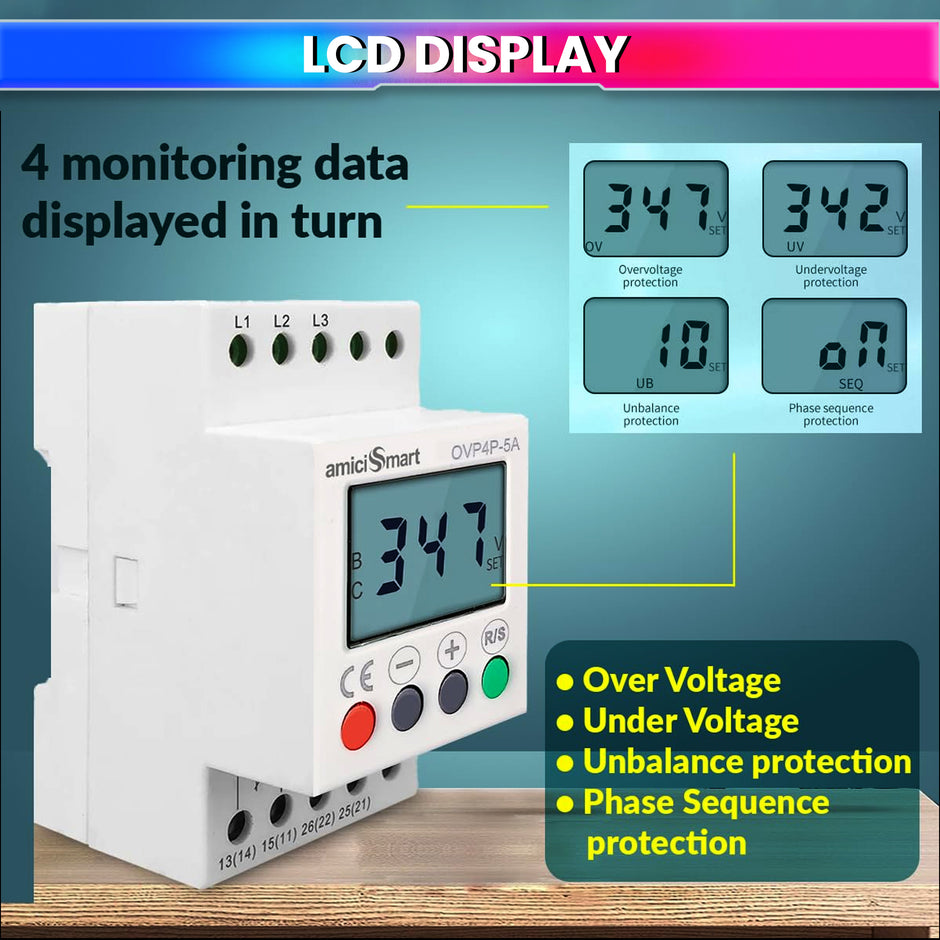

Live LCD + fault codes
Real-time voltage readings and fault status.
-
Contactor-driven heavy-duty design
Controls external contactor vs small inbuilt-relay style.
-
DIN-rail mount
Industrial/commercial panel install.
How to use
-

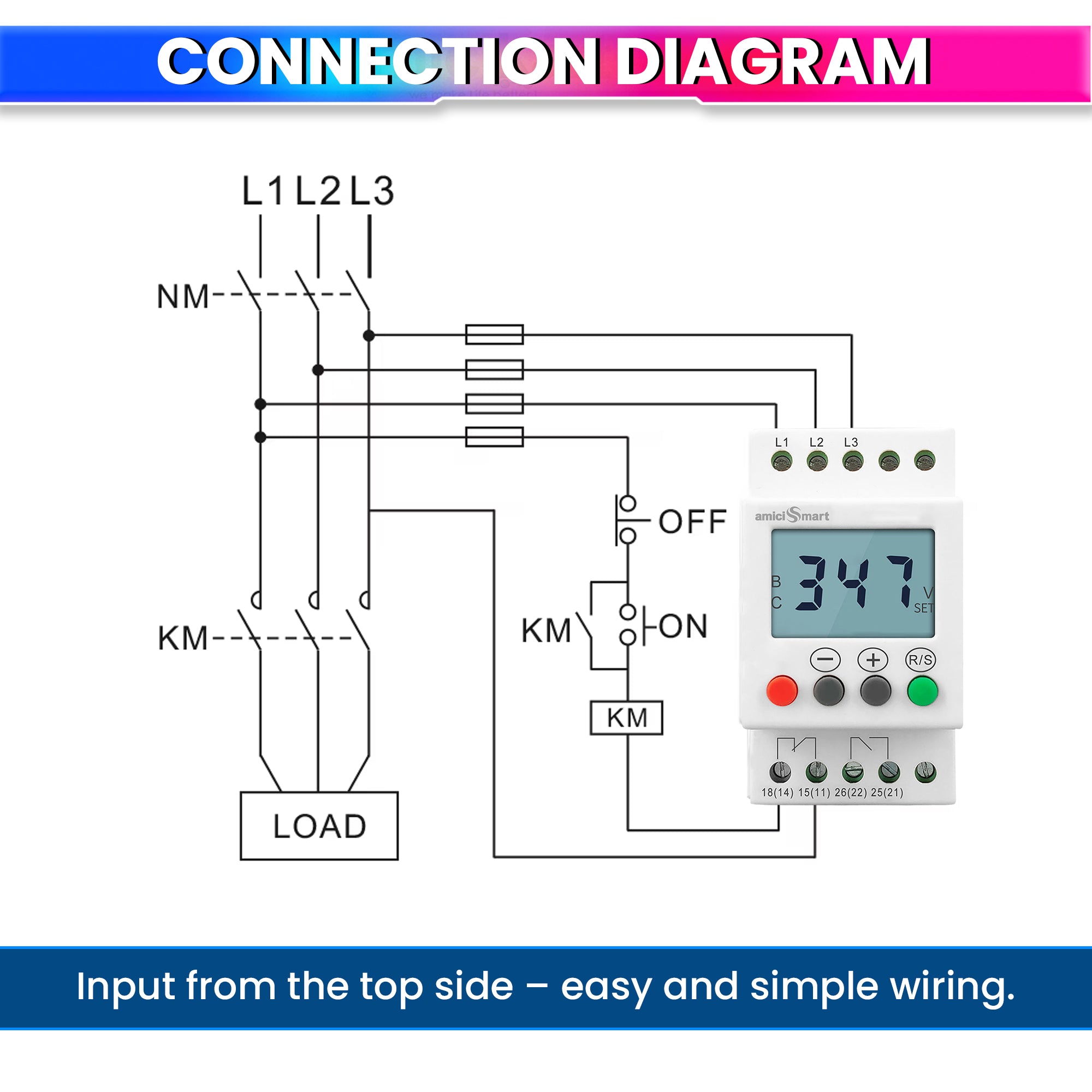

Select and wire a suitable external contactor
Contactor not in box — size to motor/load with an electrician.
-

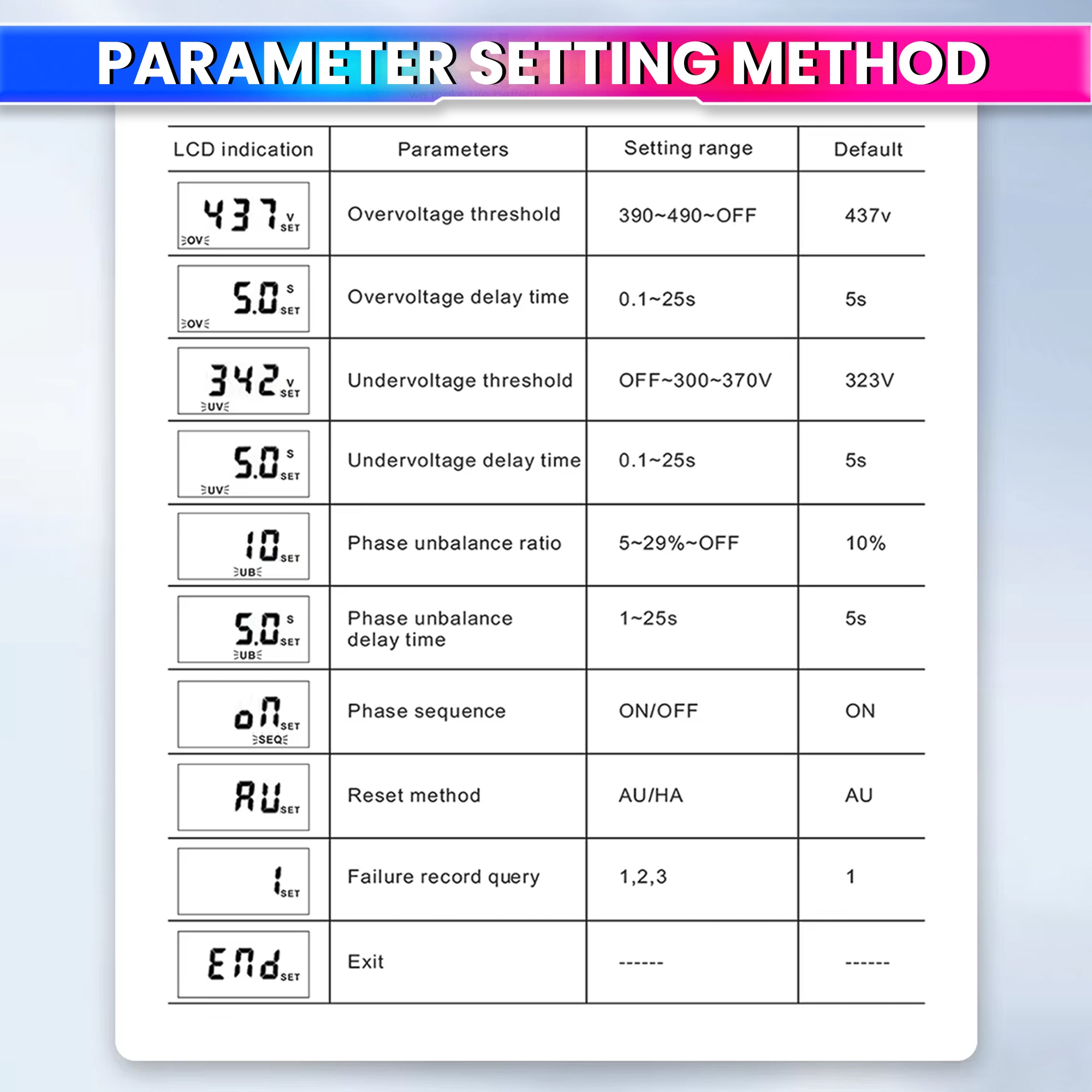

Set OV/UV/imbalance/time for the site
Use the LCD menus to set values within the adjustable ranges.
-
Check trip and reset under a supervised test
Make sure the contactor opens on a simulated fault before leaving the panel live.

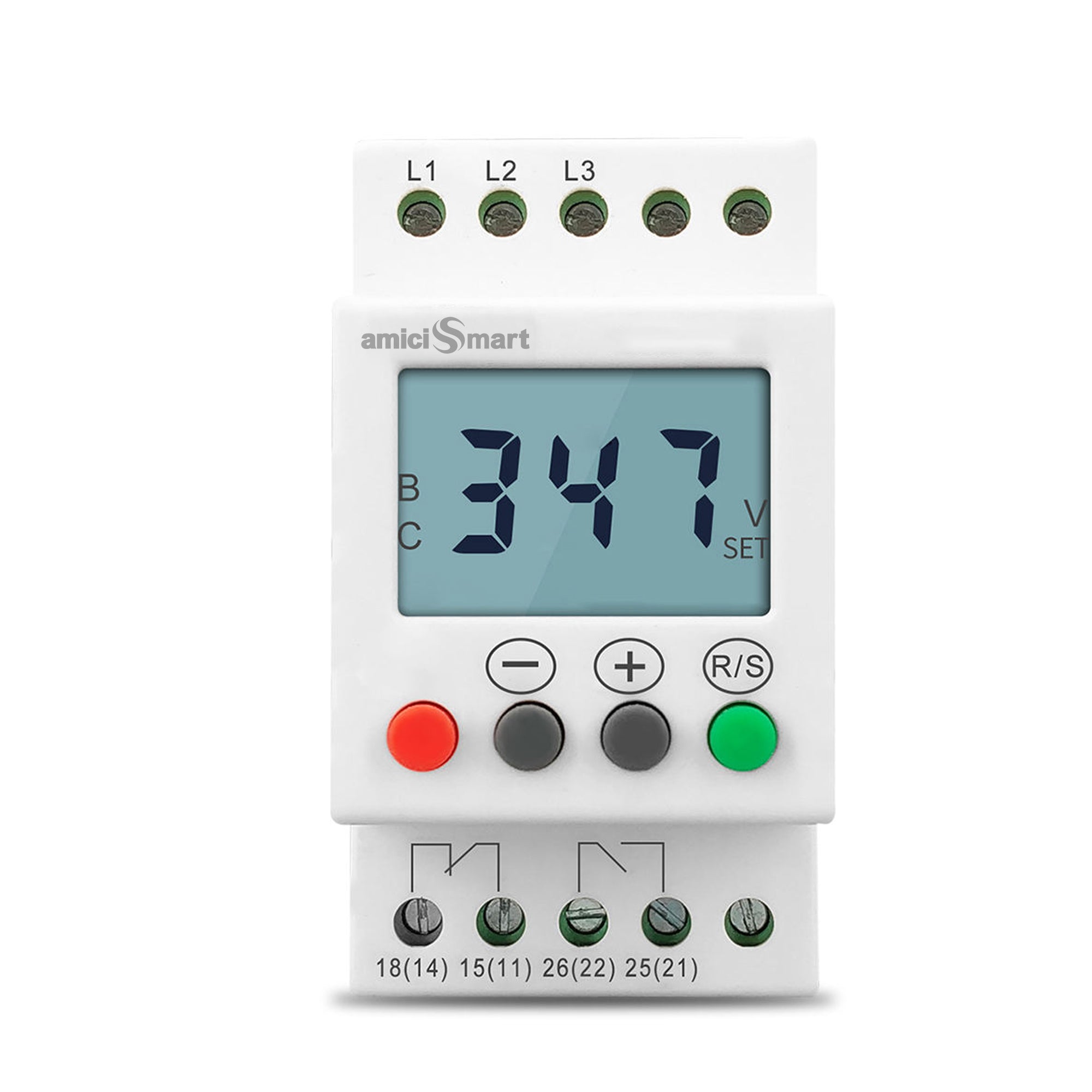

3-Phase OV/UV Protection Relay 300–500V
amiciSmart · 300–500V · LCD · adjustable OV/UV/imbalance/time · contactor-driven · DIN-rail
3-phase relay that trips an external contactor on over/under-voltage, imbalance or phase-sequence faults. 300–500V; adjustable OV 390–490V, UV 300–370V, imbalance 5–29%, trip time 0.1–25 s; LCD. Contactor not included.
Sale price
Rs. 2,299.00
-24%
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,299.00
Unit price
Increments of 1
Minimum of 1
Maximum of
3-Phase Over/Under Voltage Protection Relay 300–500V with LCD Display
Sale price
Rs. 2,299.00
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,299.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xJVR-1000-N |
|---|---|
| Brand | amiciSmart |
| Device class | 3-phase over/under voltage & phase-fault protection relay |
| Operating voltage window | 300–500V |
| Overvoltage adjust | 390–490V |
| Undervoltage adjust | 300–370V |
| Imbalance adjust | 5–29% |
| Trip time adjust | 0.1–25 seconds |
| Display | LCD — live voltage / fault codes |
| Output topology | Controls external contactor (contactor not included) |
| Mounting | DIN-rail |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Does it include a contactor?
No. Buy an external contactor separately to suit your load.
Is this the same as the 60A 3-phase auto reconnect protector?
No. That is a different product (1xTOMZN-VPD3-60) with built-in 60A switching. This relay drives an external contactor.
Can I use it on single-phase 230V?
No — it is a 3-phase 300–500V industrial relay, not a single-phase 230V protector.
Full Product Description
3-Phase OV/UV Protection Relay 300–500V
3-phase protection relay that monitors all phases and trips an external contactor on overvoltage, undervoltage, voltage imbalance, or phase-sequence faults. Operating window 300–500V; adjustable OV 390–490V, UV 300–370V, imbalance 5–29%, trip time 0.1–25 s; live LCD for voltage/fault codes. External contactor not included — buy separately for your load. Install by a qualified electrician.
- OV / UV / imbalance / phase sequence: Four fault types covered.
- Live LCD + fault codes: Real-time voltage readings and fault status.
- Contactor-driven heavy-duty design: Controls an external contactor instead of a small built-in relay.
- DIN-rail mount: Industrial/commercial panel install.
