Know before you buy
-
Electrician / industrial installer required
Contactor-driven 3-phase protection. Isolate supply; size contactor to load separately.
-
300–500V operating window (listing)
Wide 3-phase monitoring range published on listing.
-
Fully adjustable thresholds (listing)
OV 390–490V · UV 300–370V · imbalance 5–29% · time 0.1–25 s.
-
Contactor sold separately
Listing note: external contactor not included — must match load.
Features that make it useful
-

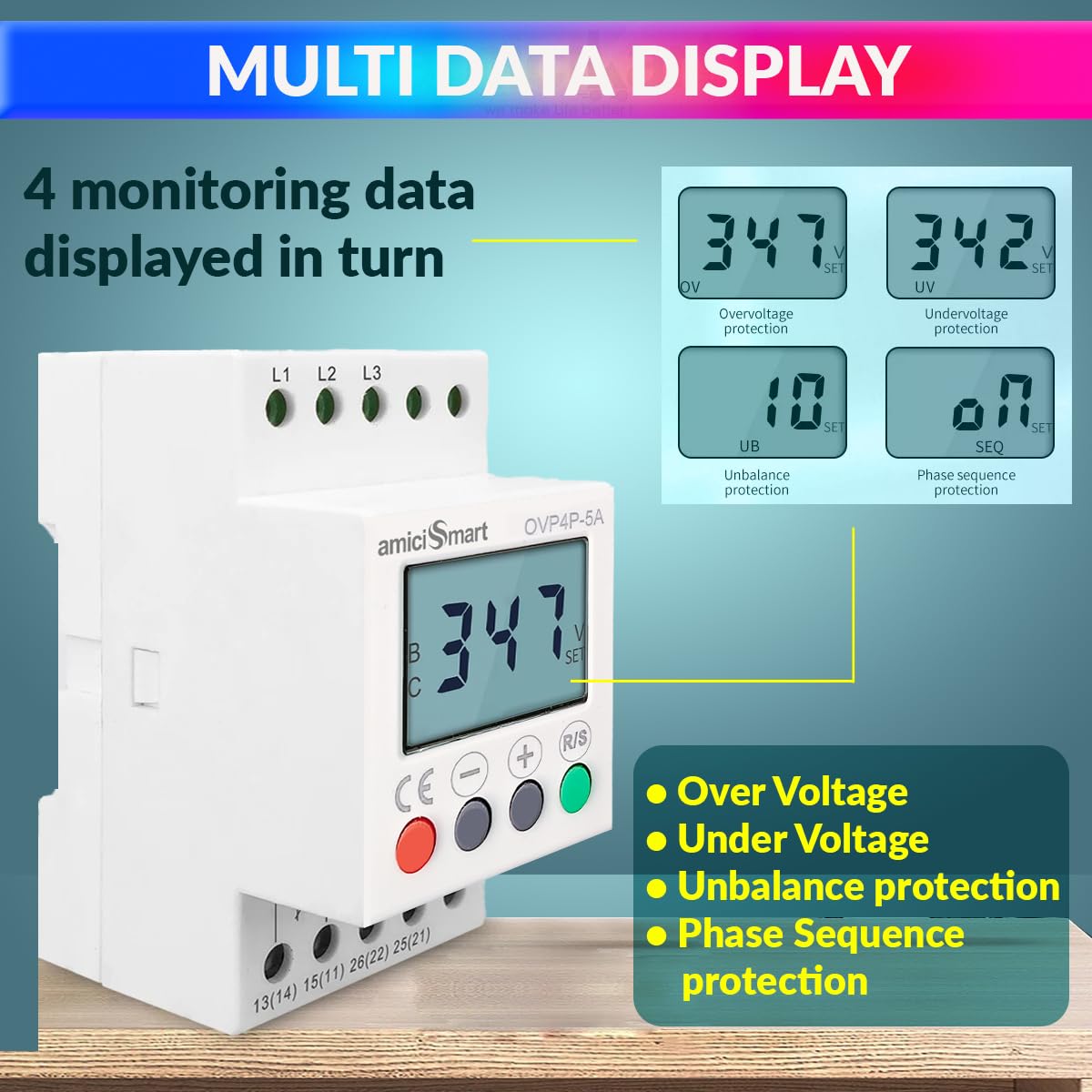

OV / UV / imbalance / phase sequence
Four fault classes called out on listing.
-

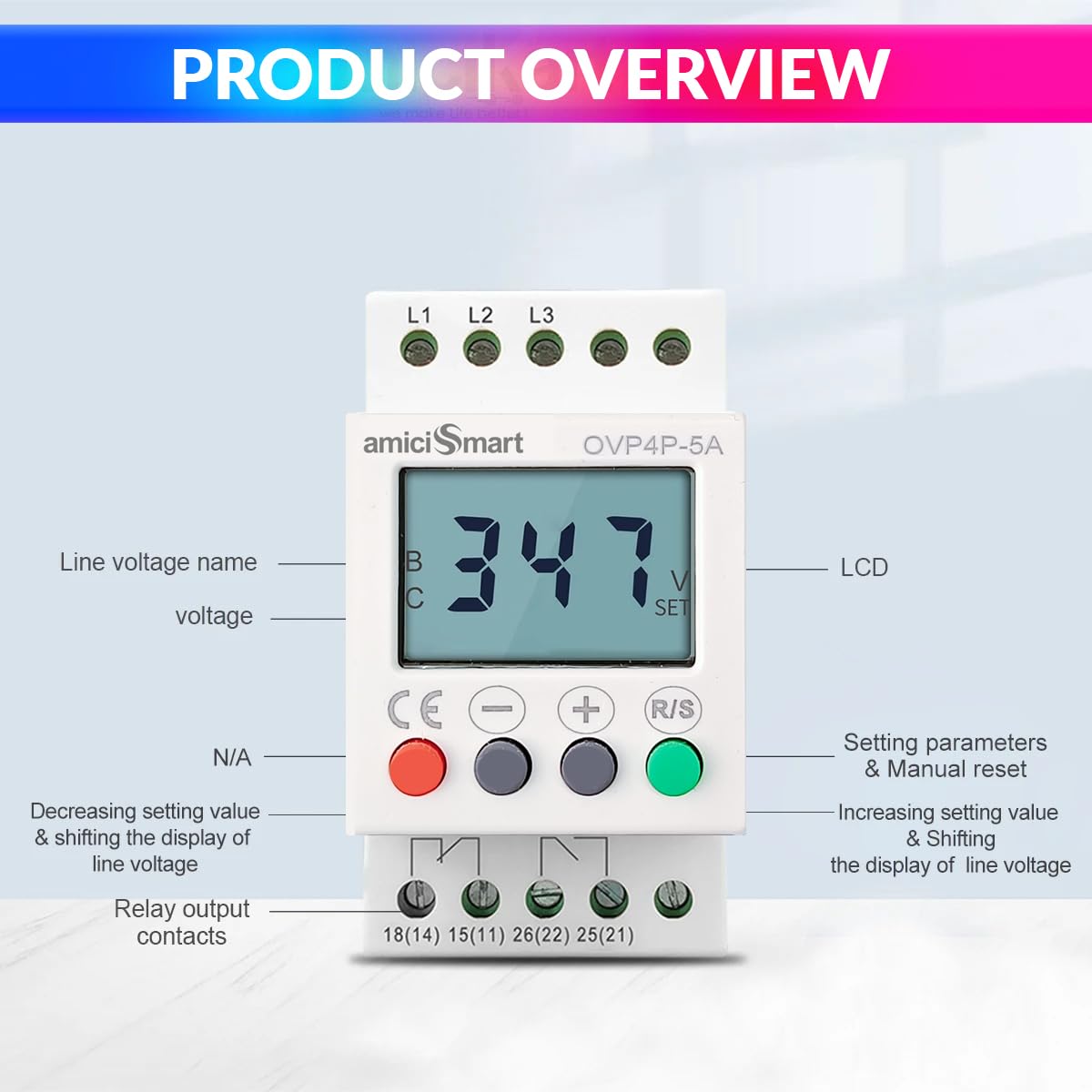

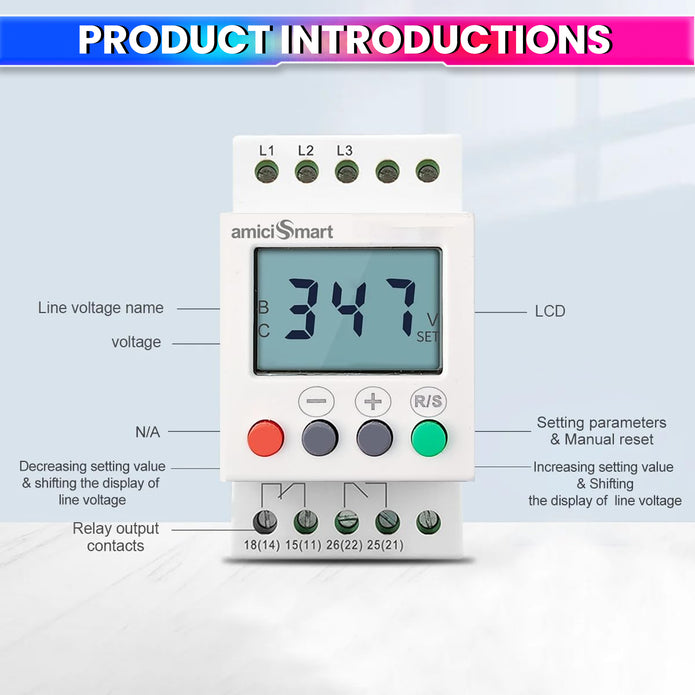

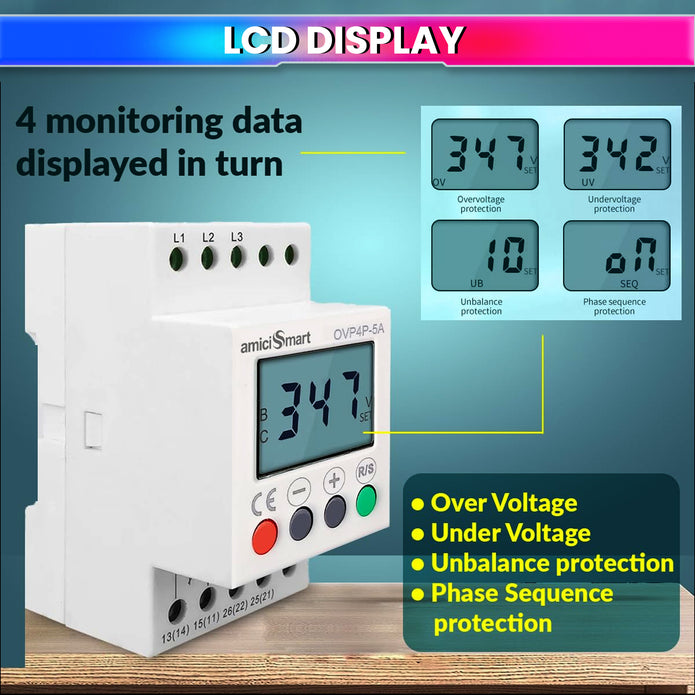

Live LCD + fault codes
Real-time voltage readings and fault status (listing).
-
Contactor-driven heavy-duty design
Controls external contactor vs small inbuilt-relay style (listing).
-
DIN-rail mount
Industrial/commercial panel install (listing).
How to use
-

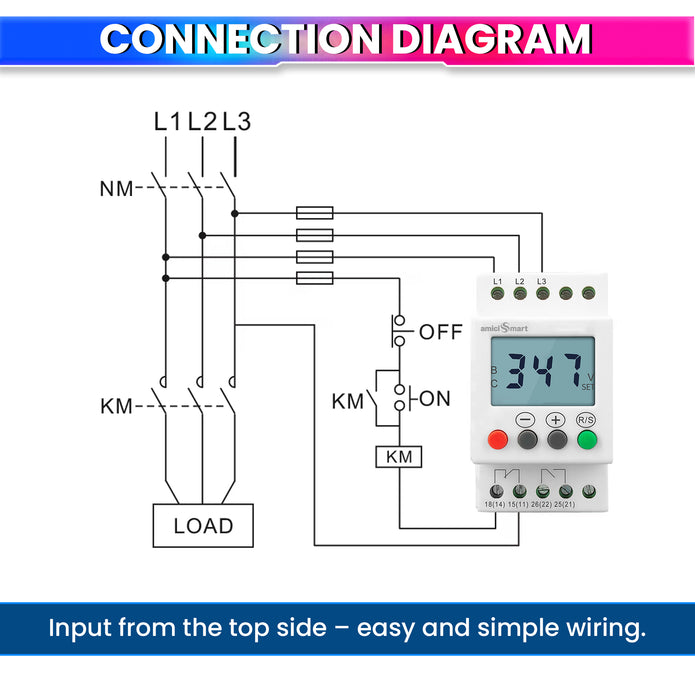

Select and wire a suitable external contactor
Contactor not in box — size to motor/load with an electrician.
-

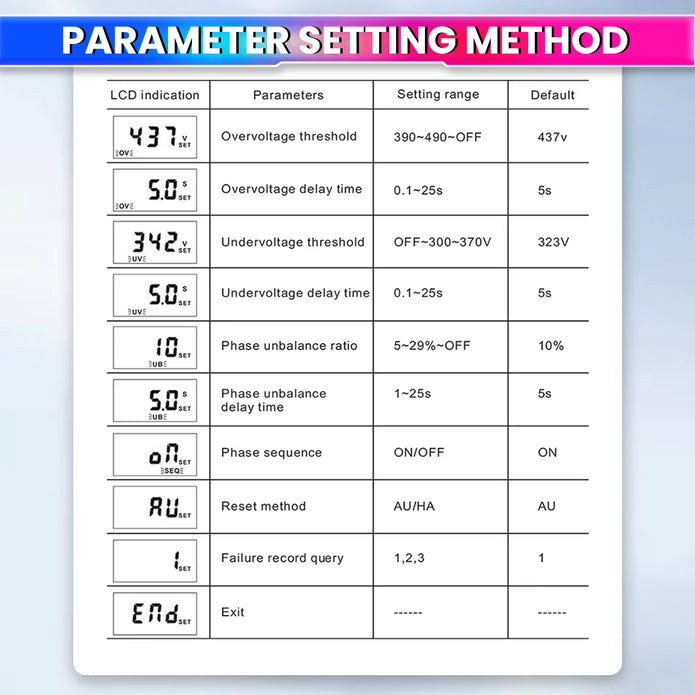

Set OV/UV/imbalance/time for the site
Use LCD menus within published adjustable ranges.
-
Verify trip/reset under supervised test
Confirm contactor opens on simulated fault before leaving panel live.

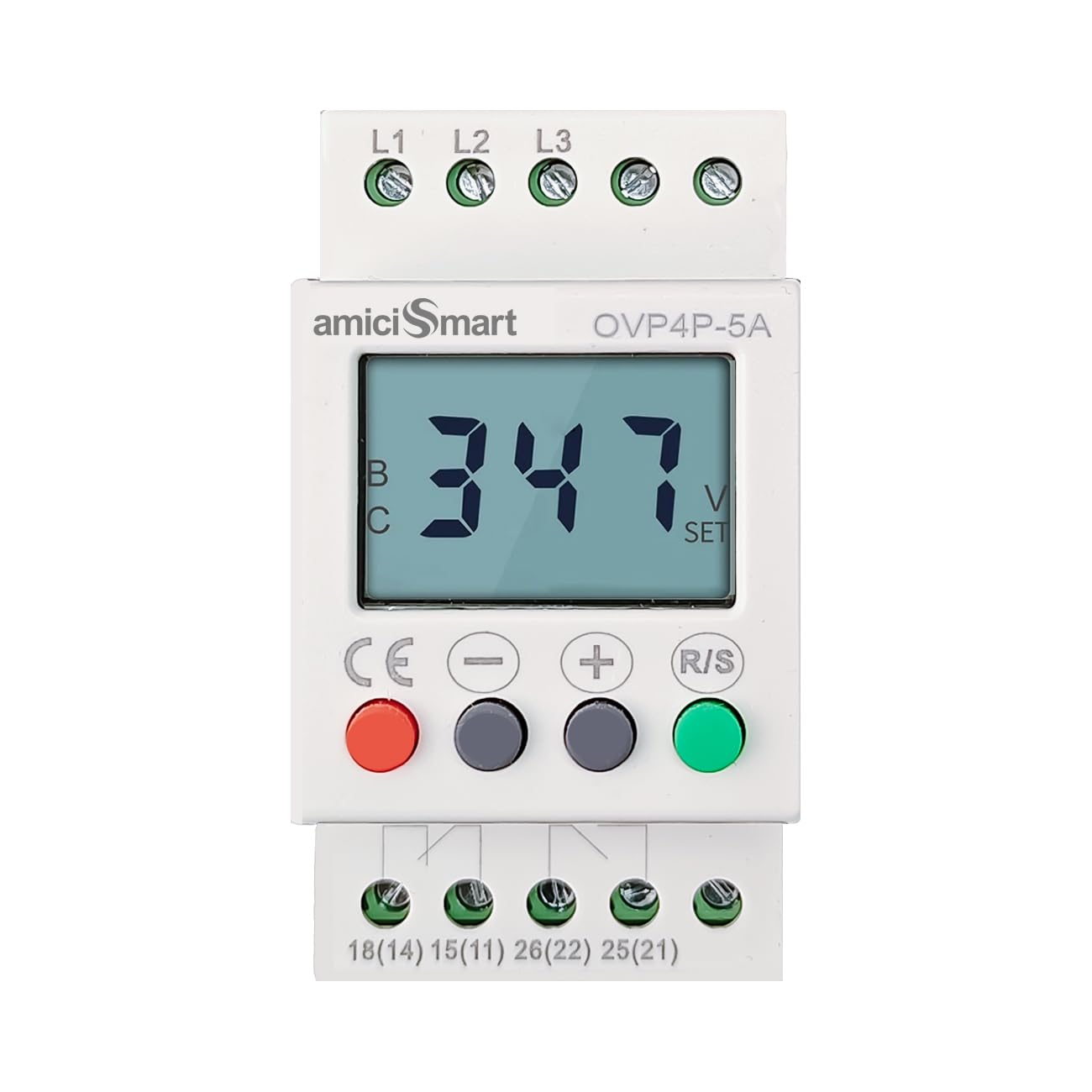

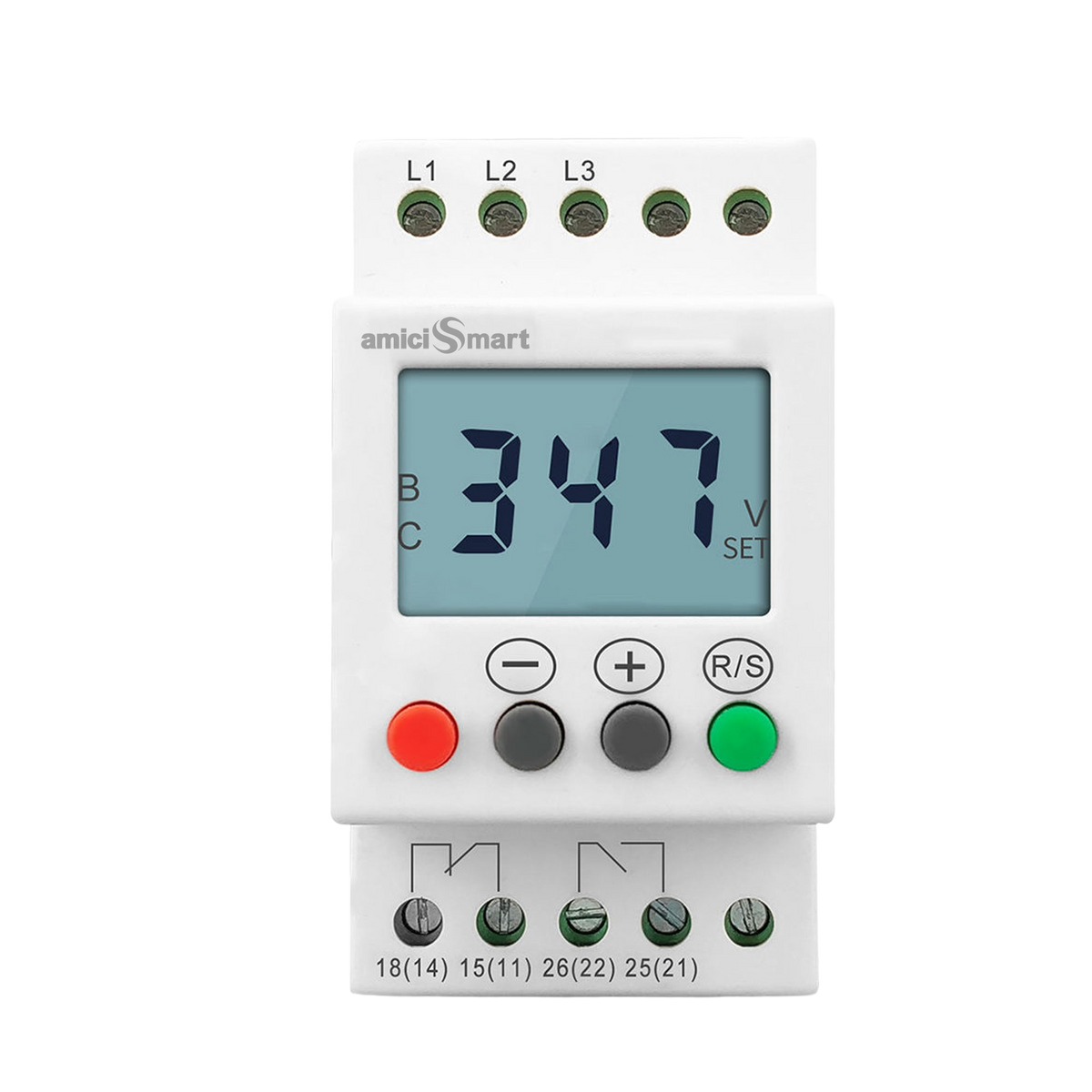

3-Phase OV/UV Protection Relay 300–500V
amiciSmart · 300–500V · LCD · adjustable OV/UV/imbalance/time · contactor-driven · DIN-rail
3-phase protection relay that monitors all phases and trips an external contactor on overvoltage, undervoltage, voltage imbalance, or phase-sequence faults. Listing operating window 300–500V; adjustable OV 390–490V, UV 300–370V, imbalanc...
Sale price
Rs. 2,199.00
-27%
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,199.00
Unit price
Increments of 1
Minimum of 1
Maximum of
3-Phase Over/Under Voltage Protection Relay 300–500V with LCD Display
Sale price
Rs. 2,199.00
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,199.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xJVR-1000-N |
|---|---|
| Product ID | 8360570650779 |
| Brand (handle) | amiciSmart |
| Device class | 3-phase over/under voltage & phase-fault protection relay |
| Operating voltage window (listing) | 300–500V |
| Overvoltage adjust (listing) | 390–490V |
| Undervoltage adjust (listing) | 300–370V |
| Imbalance adjust (listing) | 5–29% |
| Trip time adjust (listing) | 0.1–25 seconds |
| Display (listing) | LCD — live voltage / fault codes |
| Output topology (listing) | Controls external contactor (contactor not included) |

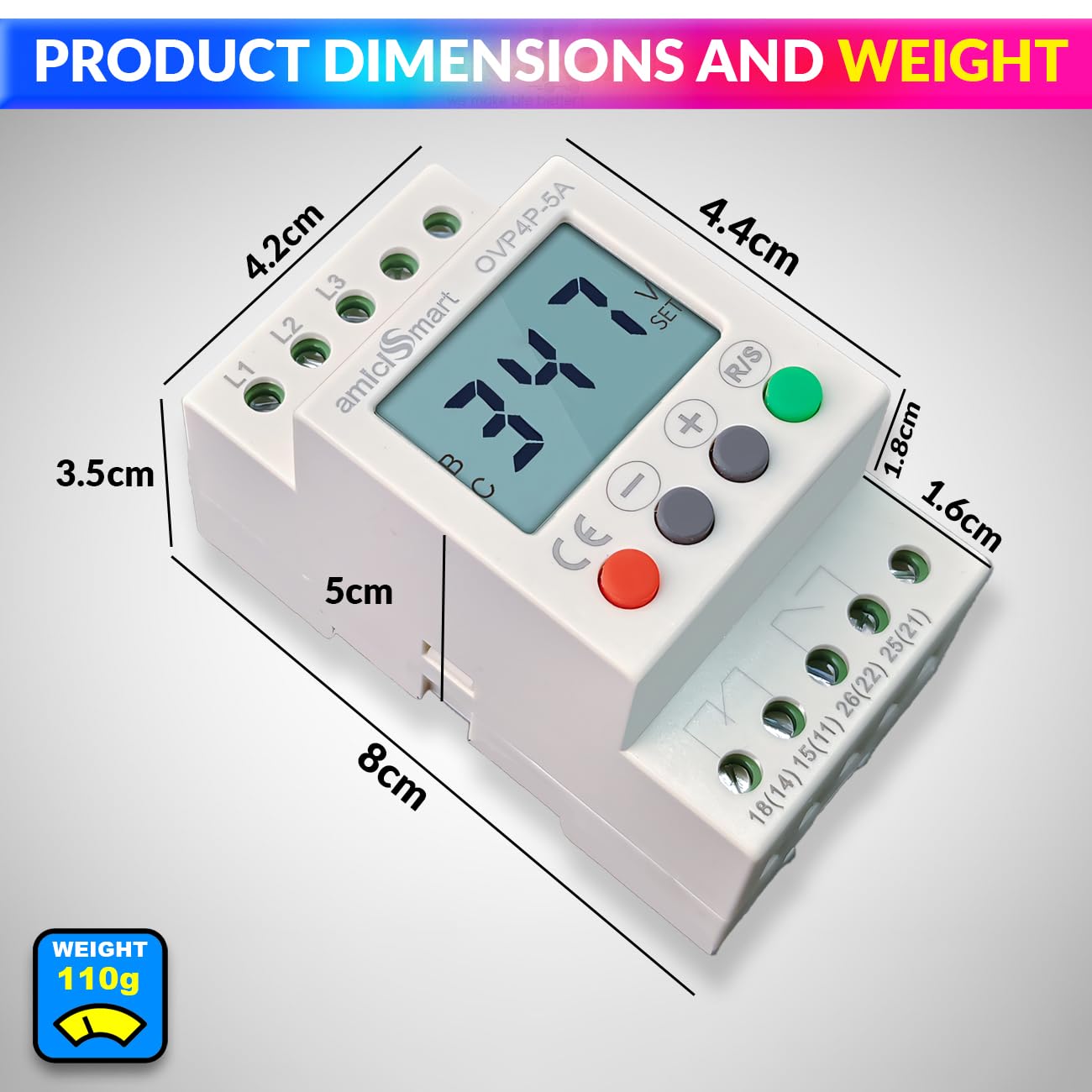

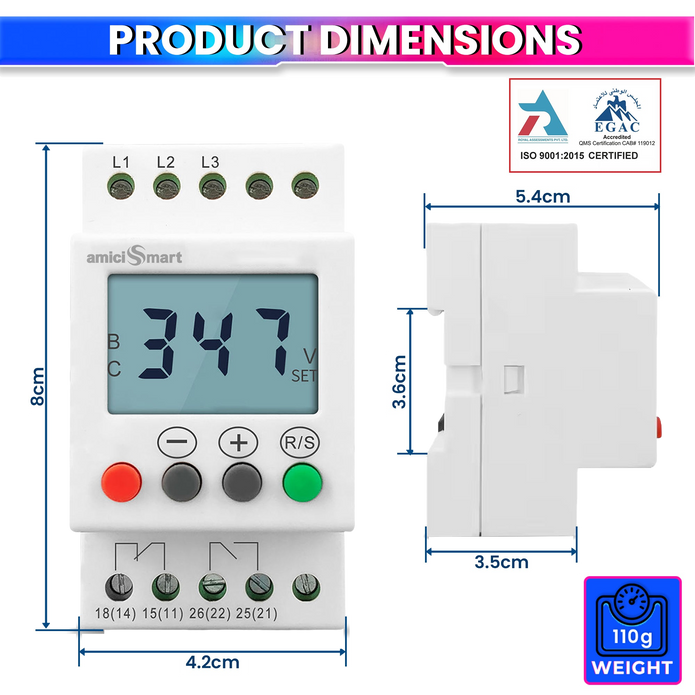

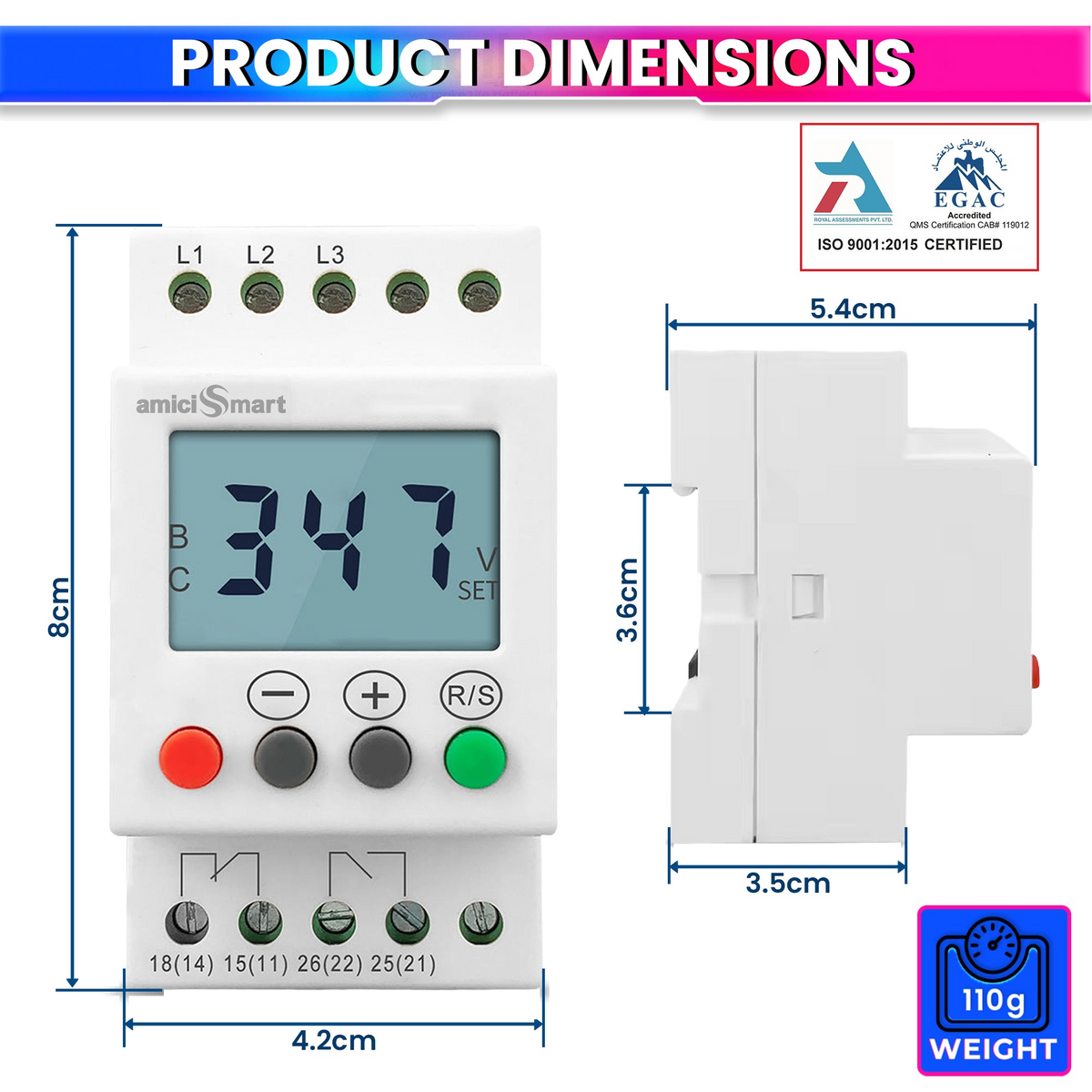

| Mounting | DIN-rail |
| Named certifications | Not published — none invented |
| Warranty (listing) | 1 year; support 980-970-9898 / care@amicikart.com |
| Evidence note | Live product.js only (Batch 6) |
Frequently asked questions
Does it include a contactor?
No. Listing states the external contactor must be purchased separately for your load.
Is this the same as the 60A 3-phase auto reconnect protector?
No. That is a different SKU (1xTOMZN-VPD3-60) with built-in 60A switching. This relay drives an external contactor.
Can I use it on single-phase 230V?
Listing positions it as a 3-phase 300–500V industrial relay — not a single-phase 230V protector.
Full Product Description
amiciSmart 3-Phase Protection Relay (300–500V)
Draft for 8360570650779 / 1xJVR-1000-N. Live listing only.
Adjustable OV/UV/imbalance/time with LCD. Contactor not included. No invented certifications. Qualified electrician required.
