Know before you buy
-
AC loads, 24–380V AC
For switching AC loads only.
-
Pick 10A, 25A or 40A
Choose a rating above your load current.
-
3–32V DC control
Driven directly by microcontrollers, PLCs and PID controllers.
-
Mains-wired
Switch off power before wiring and use an electrician if unsure.

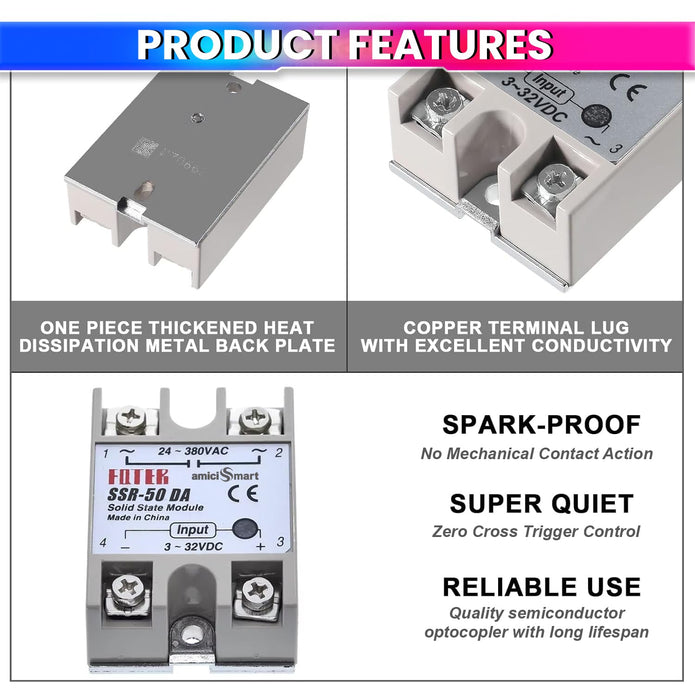

Features that make it useful
-
Silent, fast switching
No clicking; switches in under 10ms.
-
No mechanical wear
No contacts to burn out, even with frequent cycling.
-
Zero-crossing
Minimises electrical noise for connected equipment.
-
-25°C to +75°C
With 2500V AC dielectric strength and 100MΩ insulation resistance.
-
1-year warranty
Support at 980-970-9898 or care@amicikart.com.
How to use
-
Choose the rating

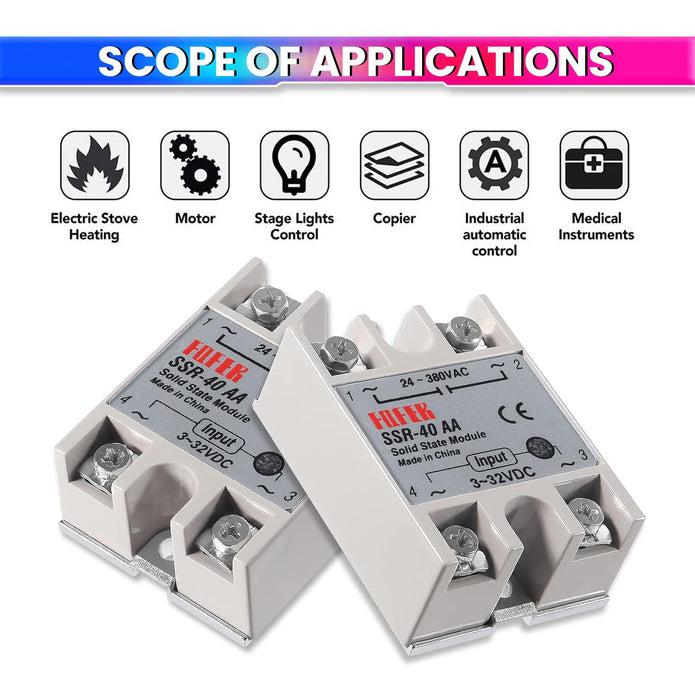

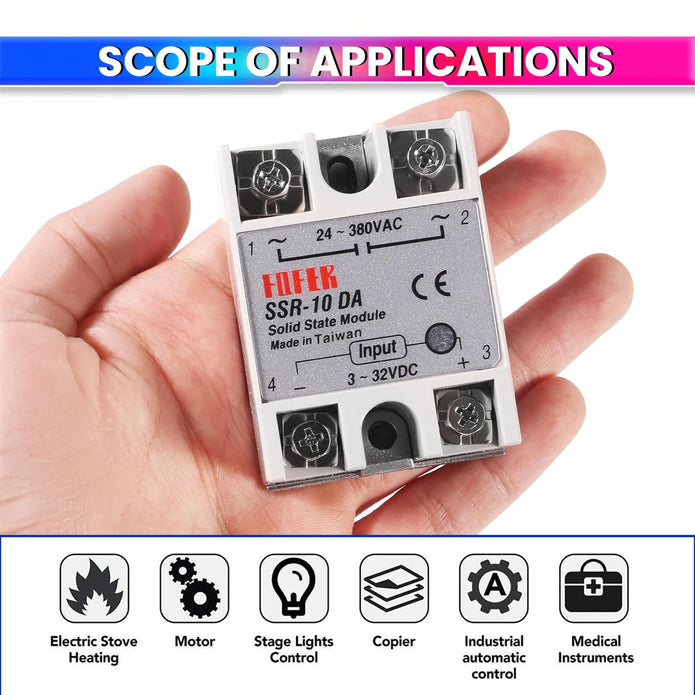

10A for small heaters and lamps, 25A for 3D printer beds and incubators, 40A for large heaters and heavy panels.
-
Switch off the power
Isolate the AC supply before wiring. Use an electrician if you are unsure.
-

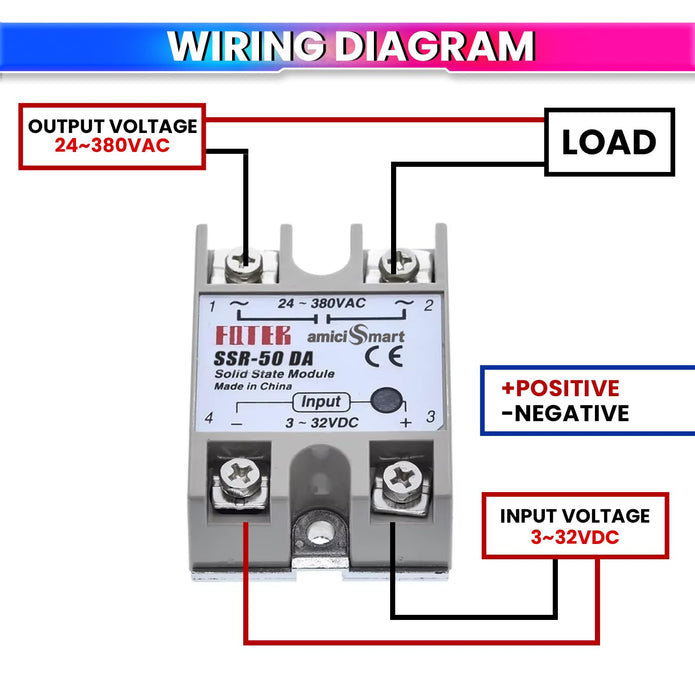

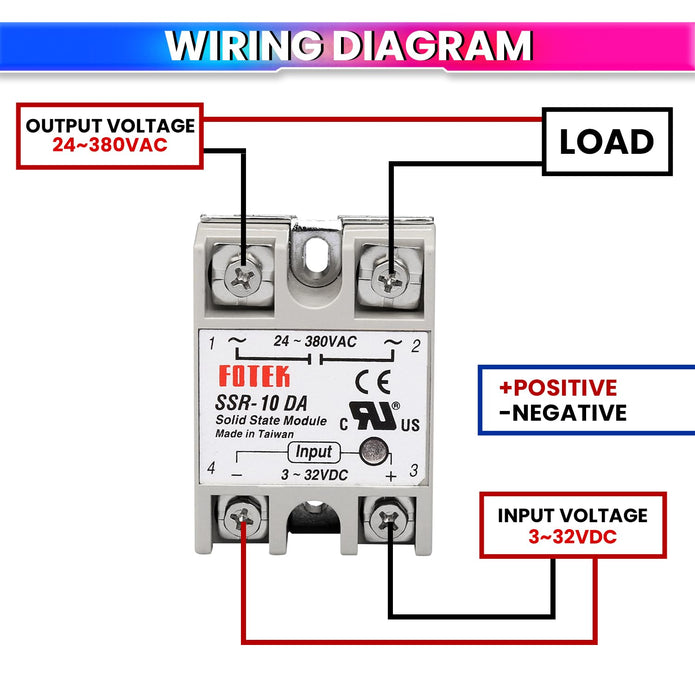

Wire control and load

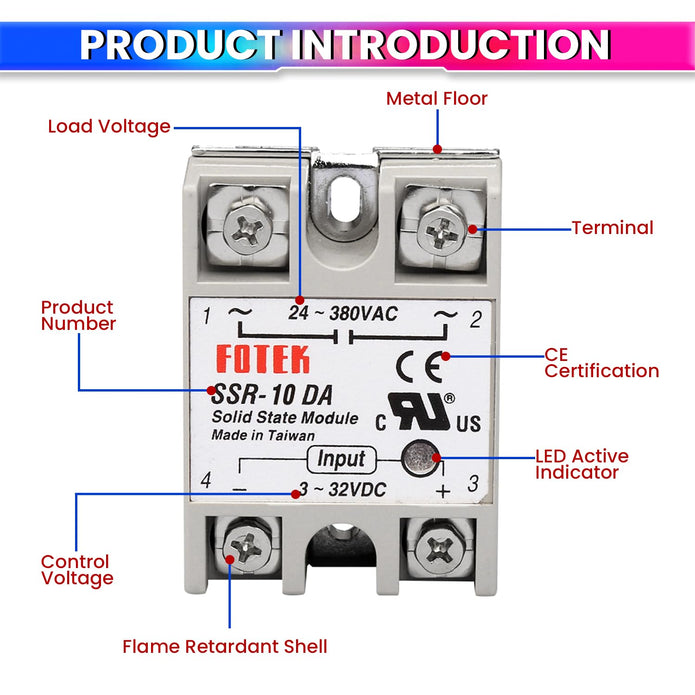

Connect your 3–32V DC control signal to the input side and the AC load to the output side, as marked. Use wiring and mounting suited to your load current.
-
Test
Restore power and check the load switches on and off with the control signal.

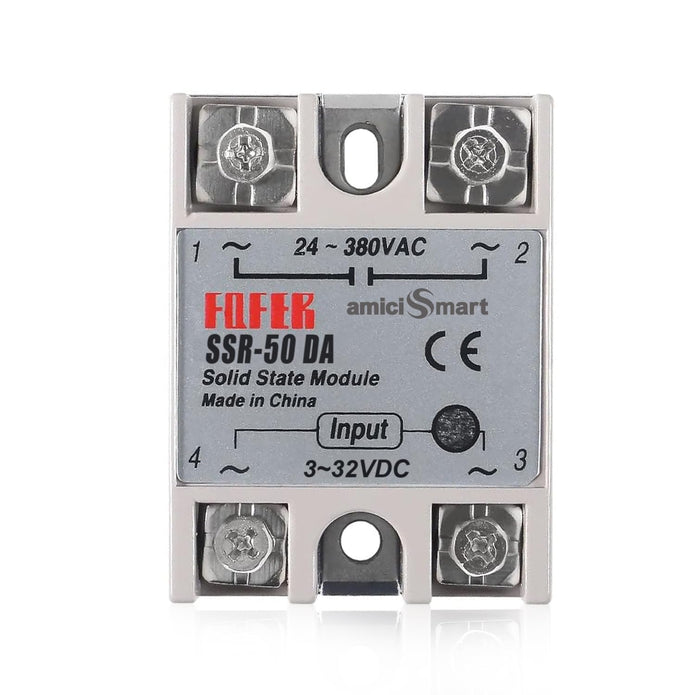

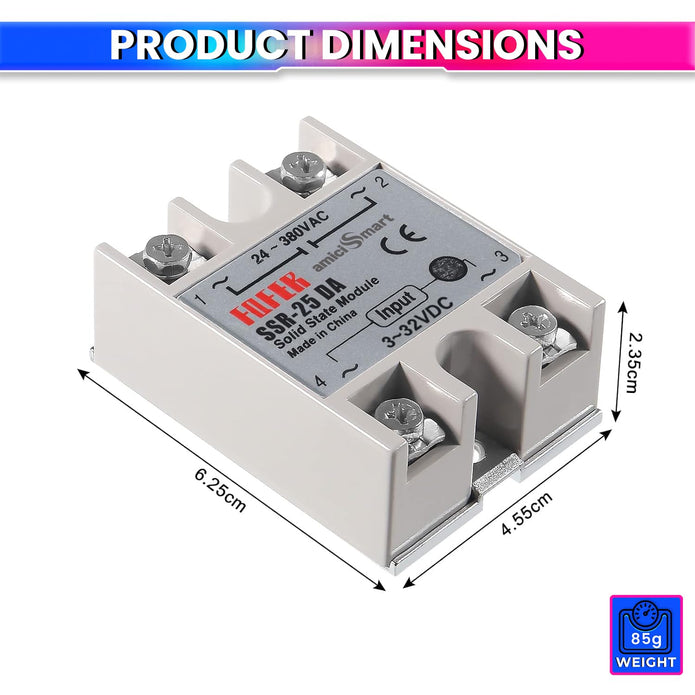

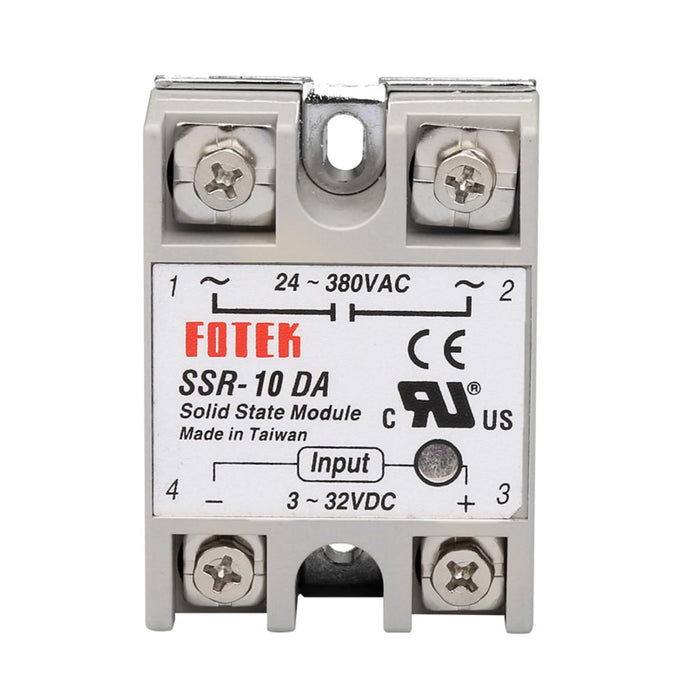

Solid State Relay 10A/25A/40A, 3–32V DC Control
amiciKart · SSR · 10A, 25A or 40A · 3–32V DC control · 24–380V AC load · zero-crossing · under 10ms switching
A solid-state relay (SSR) that switches AC loads from 24V to 380V AC using a low-voltage 3–32V DC control signal from an Arduino, Raspberry Pi, PLC or PID temperature controller. With no moving contacts it switches silently in under 10ms...
Sale price
Rs. 549.00
-55%
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 549.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Solid State Relay (SSR)
Sale price
Rs. 549.00
Regular price
Rs. 1,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 549.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

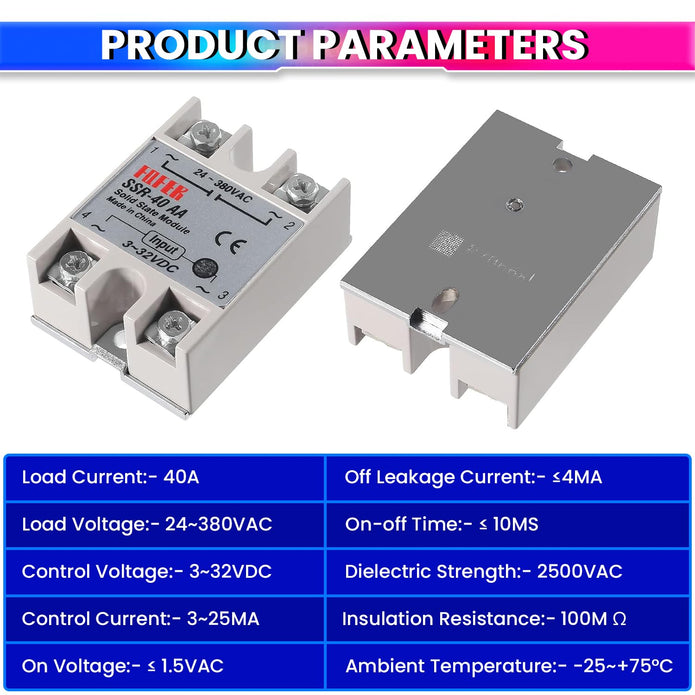

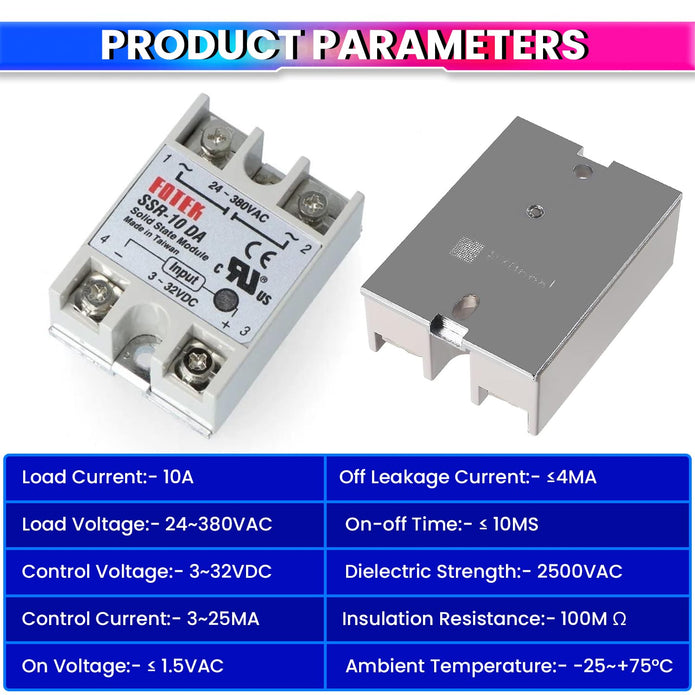

Specifications
| Brand | amiciKart |
|---|---|
| Type | Solid state relay (SSR), zero-crossing |
| Variants | 10A · 25A · 40A |
| SKUs | 1xSSD-RLY-10A · 1xSSD-RLY-25A · 1xSSD-RLY-40A |
| Load voltage | 24~380VAC |
| Control voltage | 3~32VDC |
| Control current | 3~25mA |
| On voltage | ≤1.5VAC |
| Off leakage current | ≤4mA |
| Switching time | ≤10ms |
| Dielectric strength | 2500VAC |
| Insulation resistance | 100MΩ at 500VDC |
| Ambient temperature | -25~+75°C |
| Warranty | 1 year |
Frequently asked questions
Can it switch DC loads?
It is specified for AC loads from 24V to 380V AC.
What can control it?
Any 3–32V DC signal, such as an Arduino, Raspberry Pi, PLC or PID controller.
Which rating should I choose?
Pick 10A, 25A or 40A so the rating is above your load's current.
Is it noisy?
No. It has no moving parts, so switching is silent.
Full Product Description
Solid State Relay 10A/25A/40A, 3–32V DC Control
A solid-state relay (SSR) that switches AC loads from 24V to 380V AC using a low-voltage 3–32V DC control signal from an Arduino, Raspberry Pi, PLC or PID temperature controller. With no moving contacts it switches silently in under 10ms, and zero-crossing switching reduces electrical noise. Dielectric strength is 2500V AC and it operates from -25°C to +75°C. Choose the 10A, 25A or 40A version to suit your load. 1-year warranty.
- Silent, fast switching: No clicking; switches in under 10ms.
- No mechanical wear: No contacts to burn out, even with frequent cycling.
- Zero-crossing: Minimises electrical noise for connected equipment.
- -25°C to +75°C: With 2500V AC dielectric strength and 100MΩ insulation resistance.
- 1-year warranty: Support at 980-970-9898 or care@amicikart.com.
Important: The load side is wired into mains. Always switch off the power before wiring, and use an electrician if you are unsure.
