Know before you buy
-
Multi-variant — pick ampere rating
Four options: 6A / 10A / 16A / 20A. Publish all variants together; buyer selects circuit rating.
-
220V AC · Phase + Neutral (listing)
Double-pole protection in an 18mm single-module footprint (listing).
-
C-curve · ≤0.1 s (listing)
C-curve and trip time are listing-published — included as truth only. IΔn mA / Icu kA not on page — none invented.
-

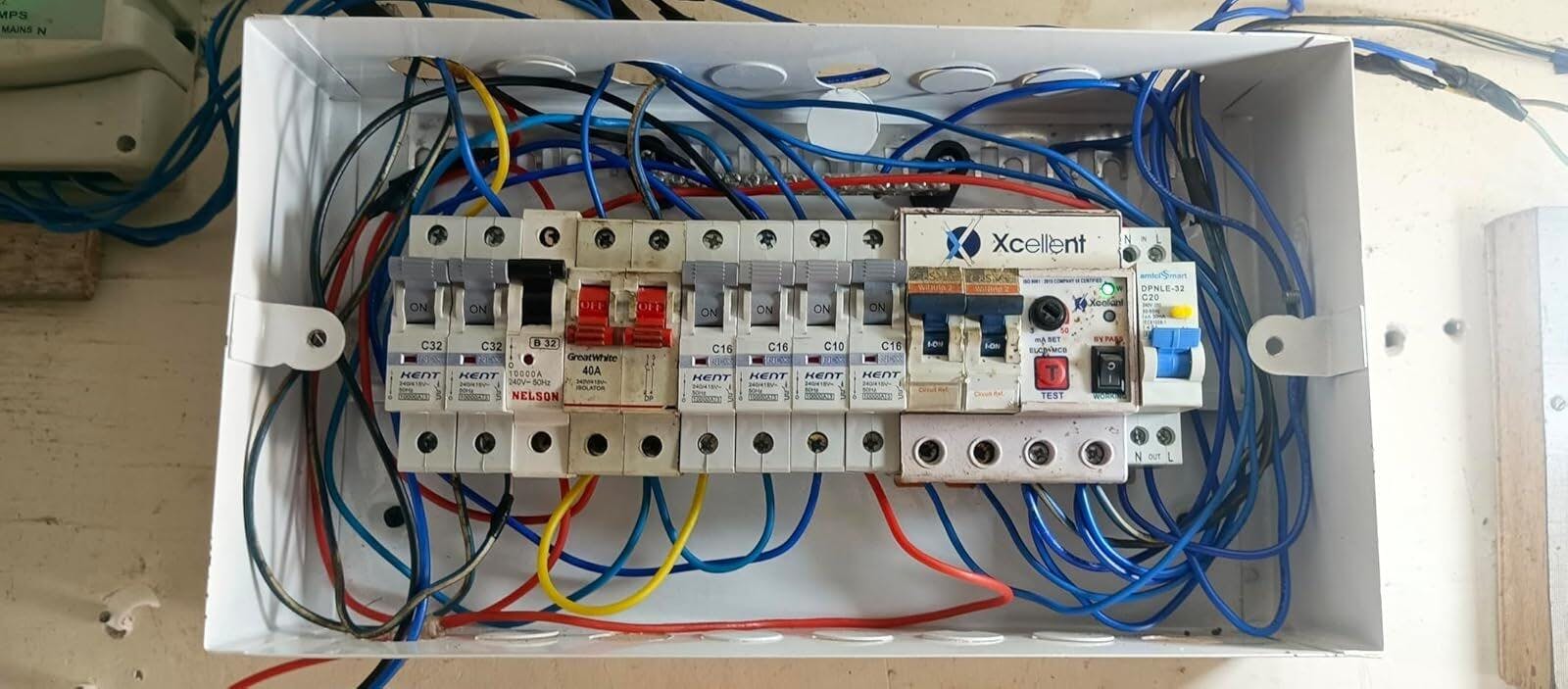

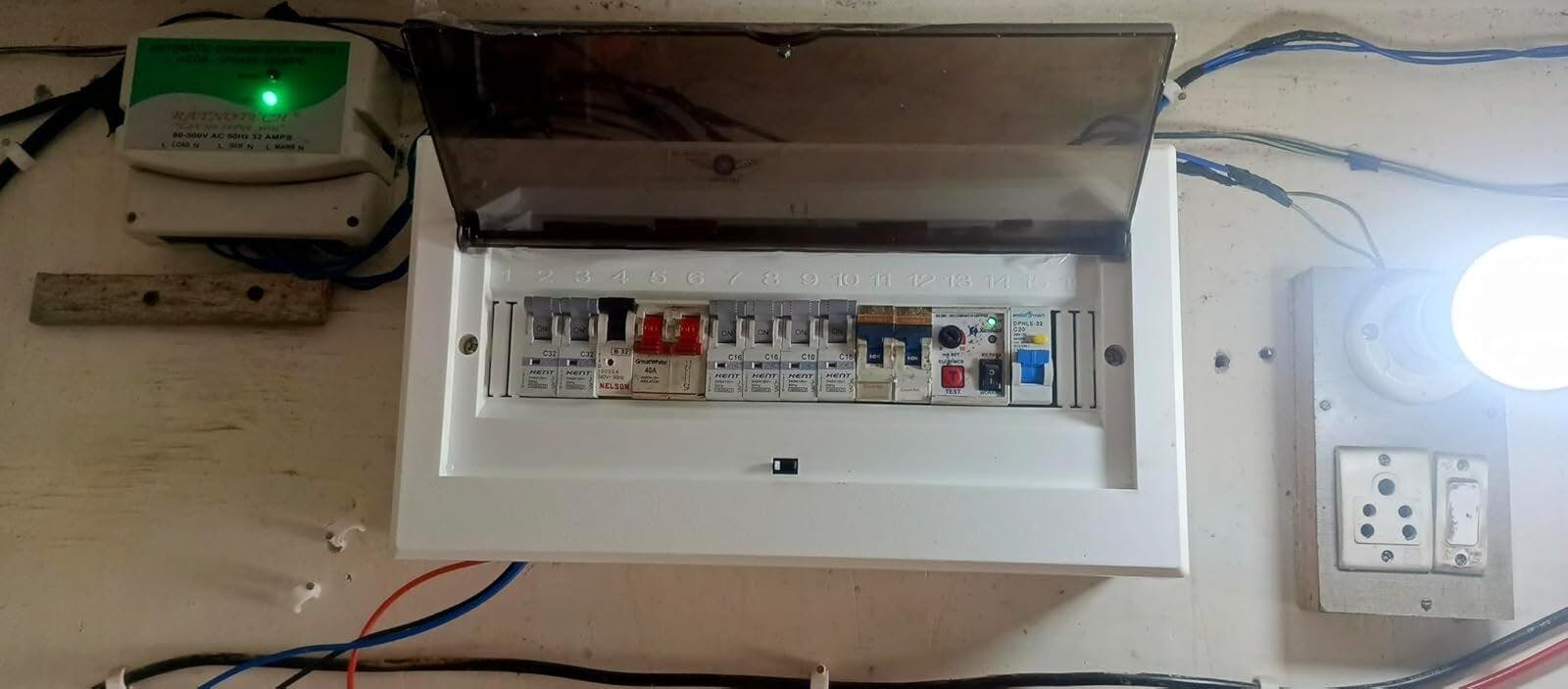

Electrician recommended for DB install
DIN-rail residual + overcurrent device. Isolate mains before work.
Features that make it useful
-
RCCB + MCB in one module
Leakage, overload and short-circuit protection without a second DB slot (listing).
-
18mm single-module DIN-rail
Same width class as a standard 1P MCB (listing).
-
C-curve for motor inrush
Listing positions C-curve for lighting/sockets and inductive motor/pump loads.
-
Amp guide on listing
6A lighting · 10A general · 16A AC/geyser · 20A heavy (listing guide — not a substitute for load calc).
How to use
-
Select ampere rating for the circuit
Match 6/10/16/20A option to cable and load with an electrician — do not upsize casually.
-
Isolate supply; mount on DIN-rail
Land Phase and Neutral per device markings; torque to device guidance.
-
Test trip function after energising
Use the device test facility if present; verify circuit behaviour under supervised conditions.

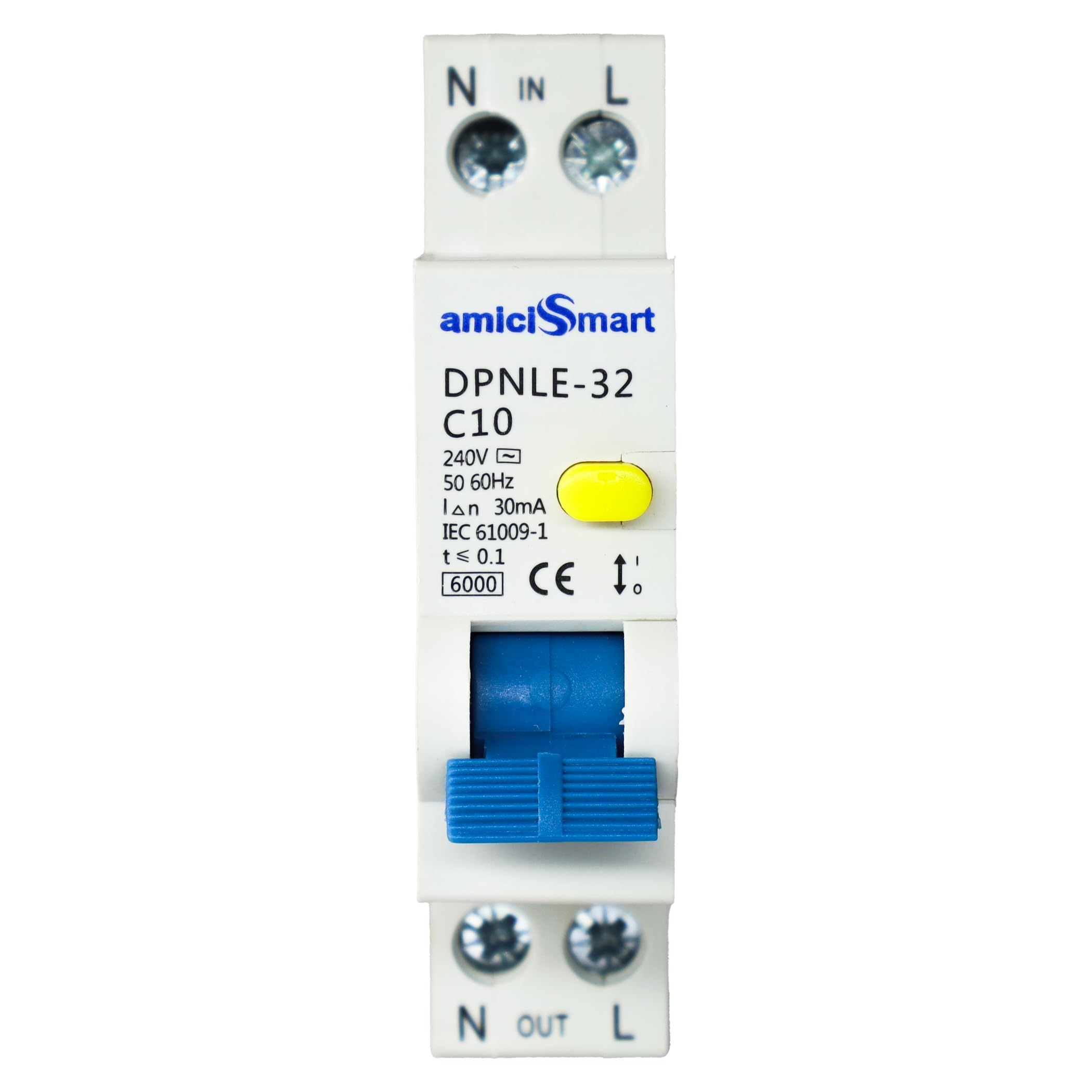

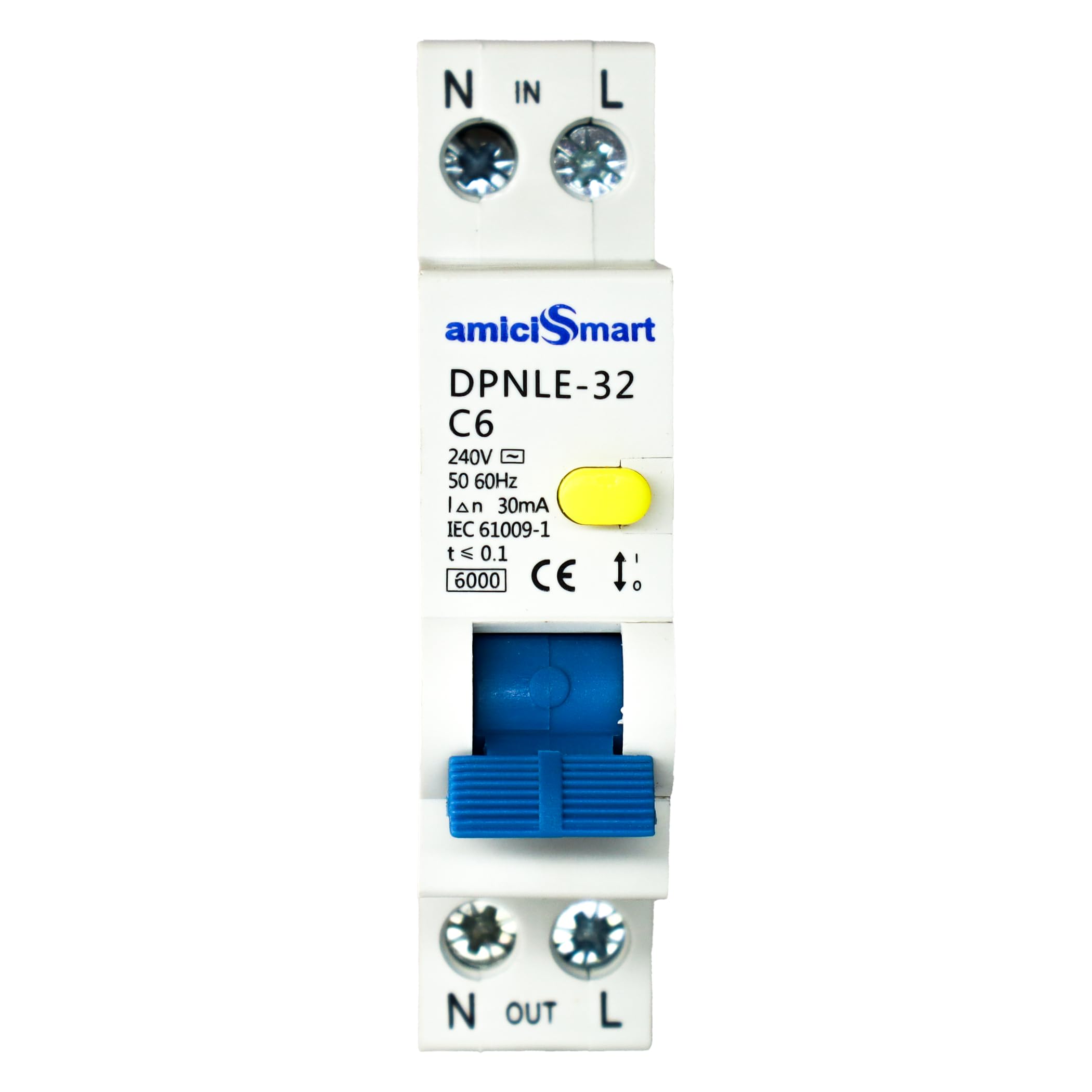

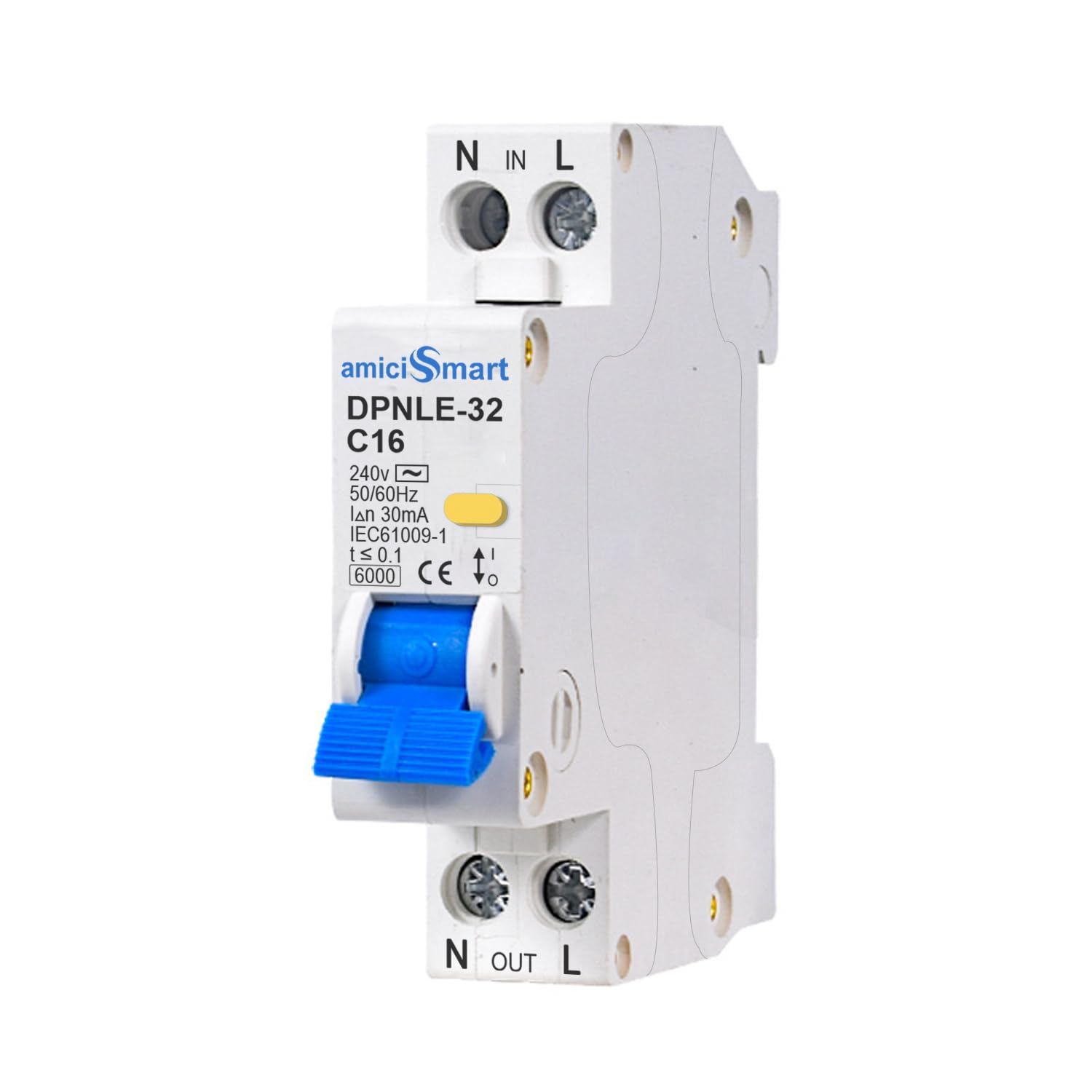

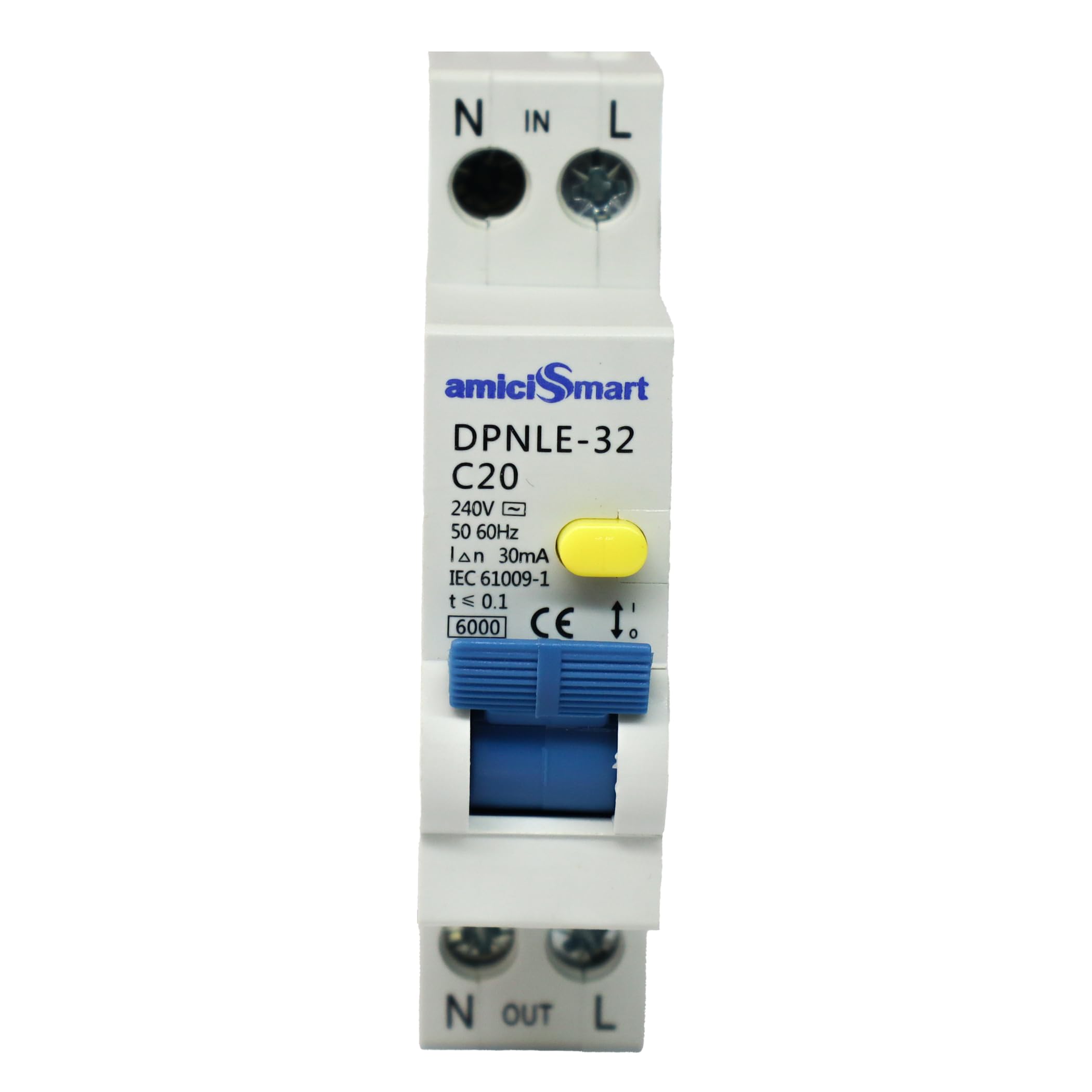

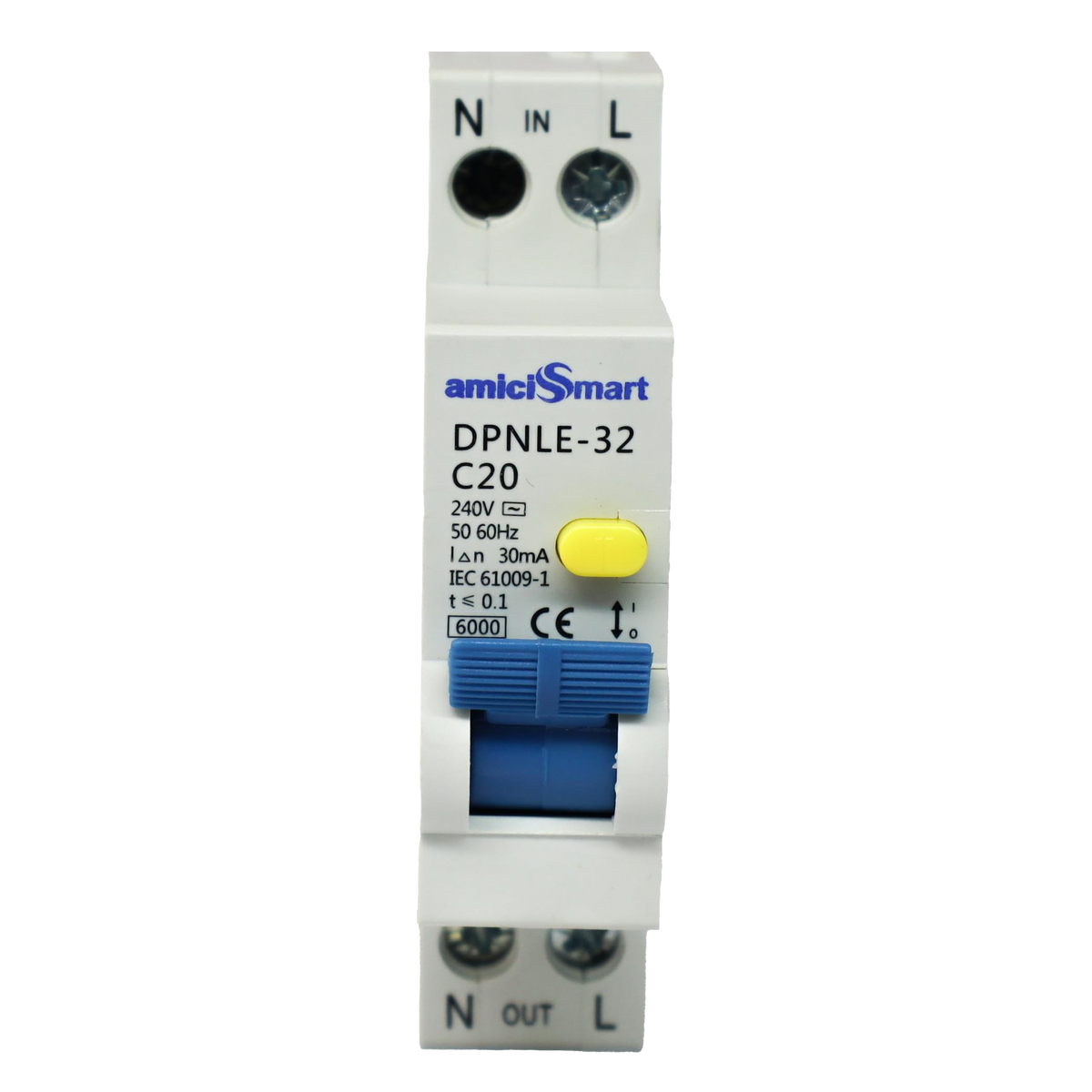

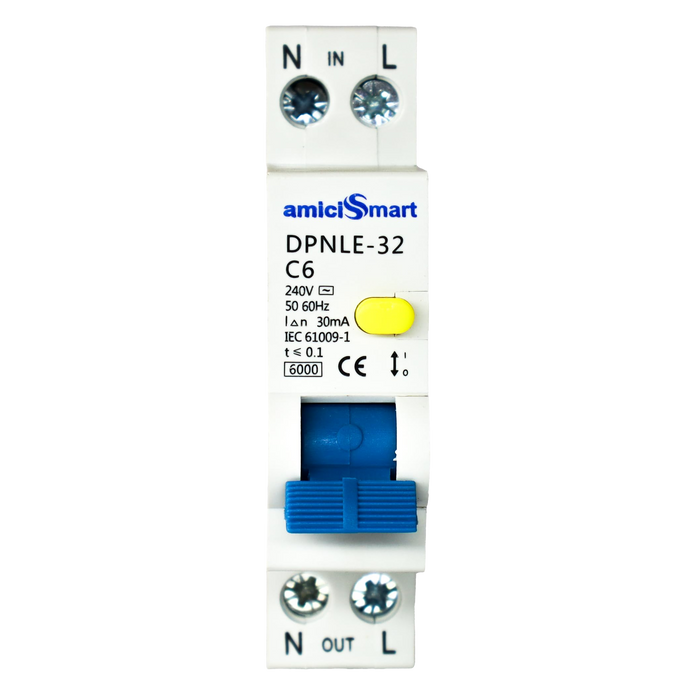

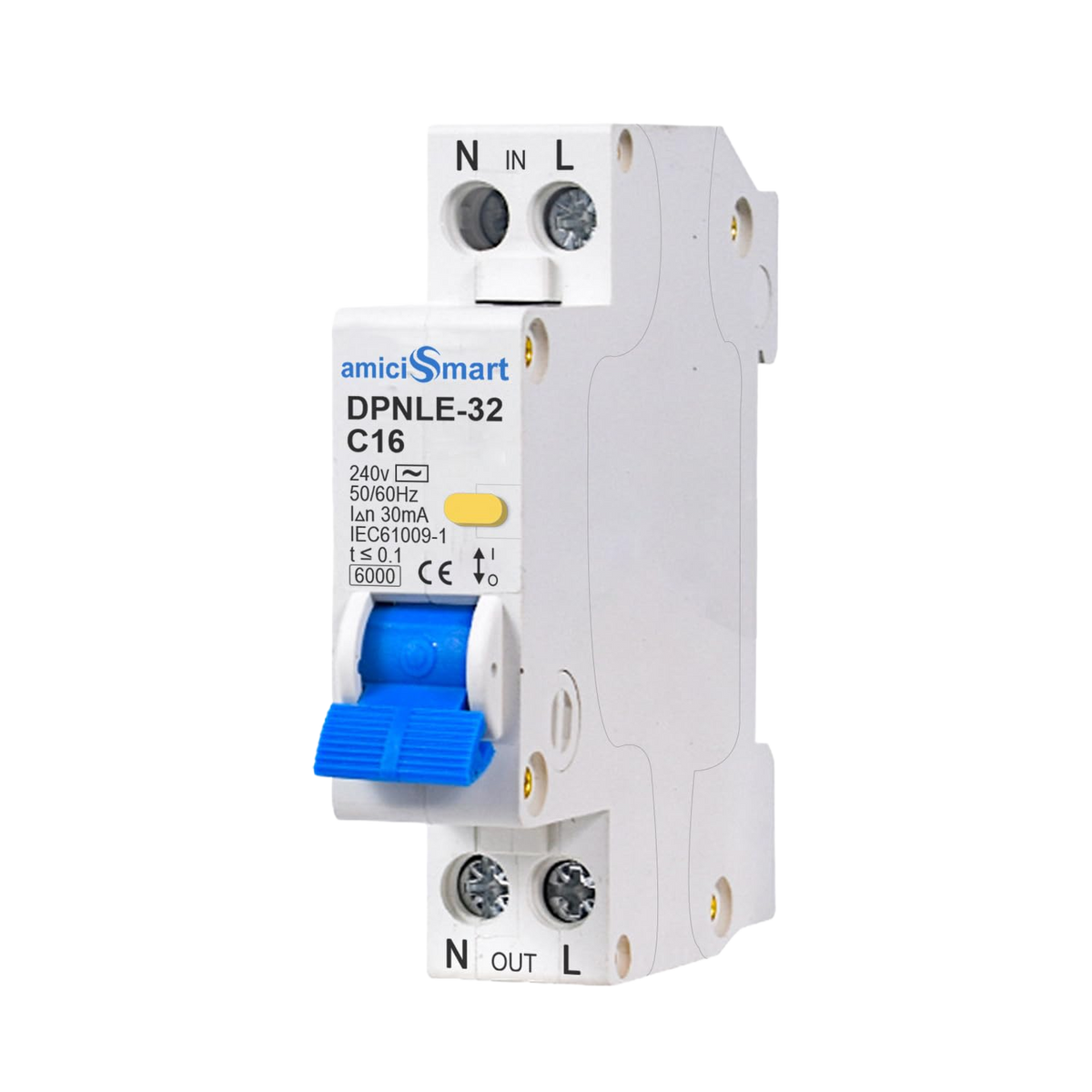

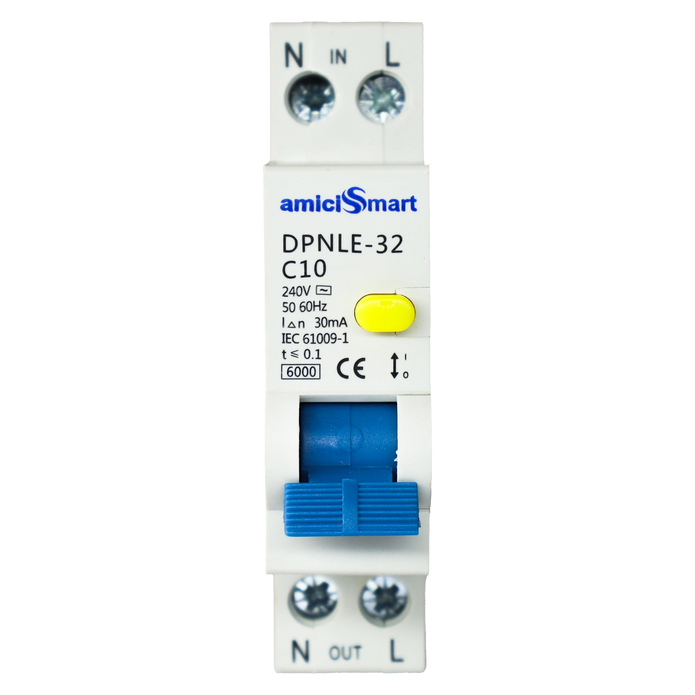

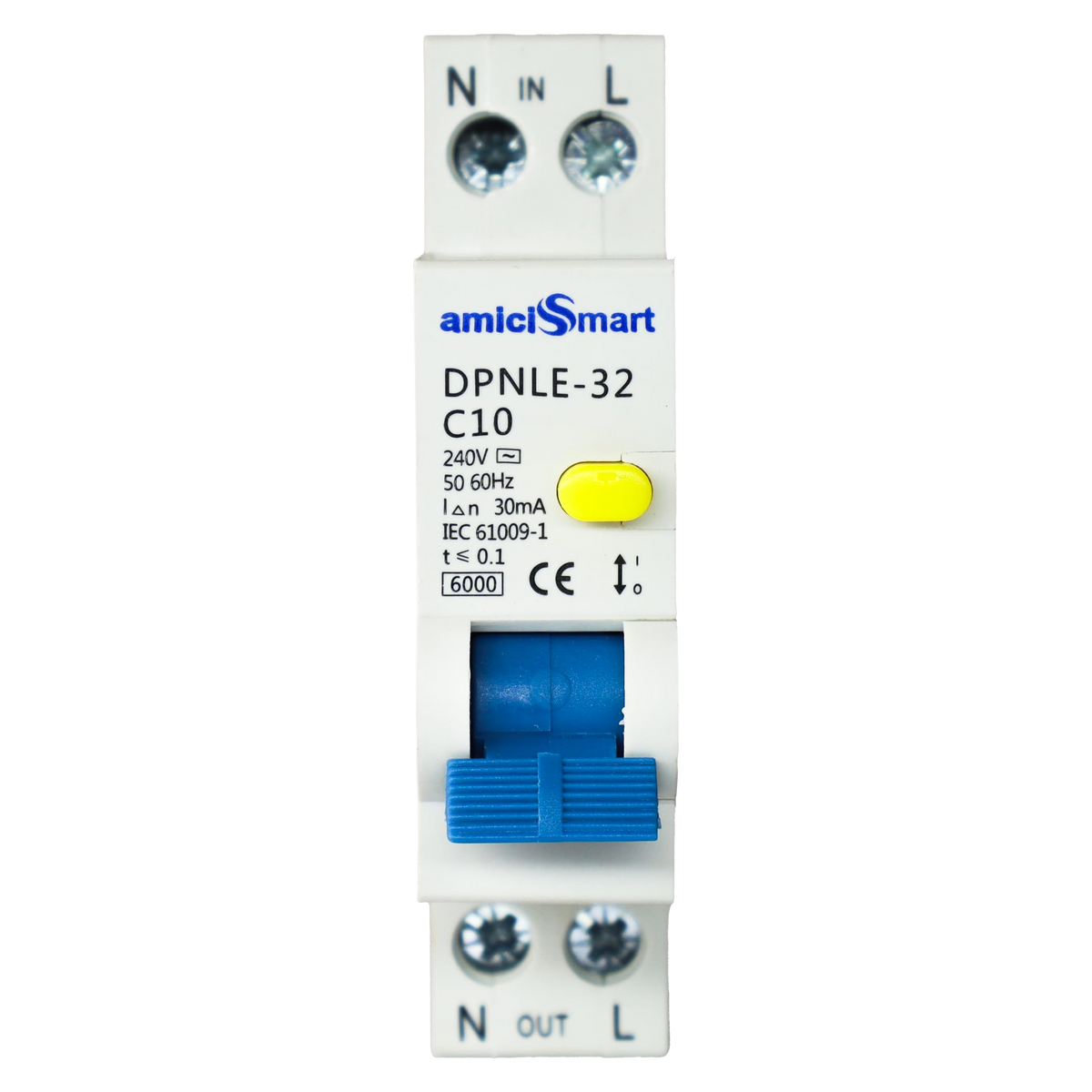

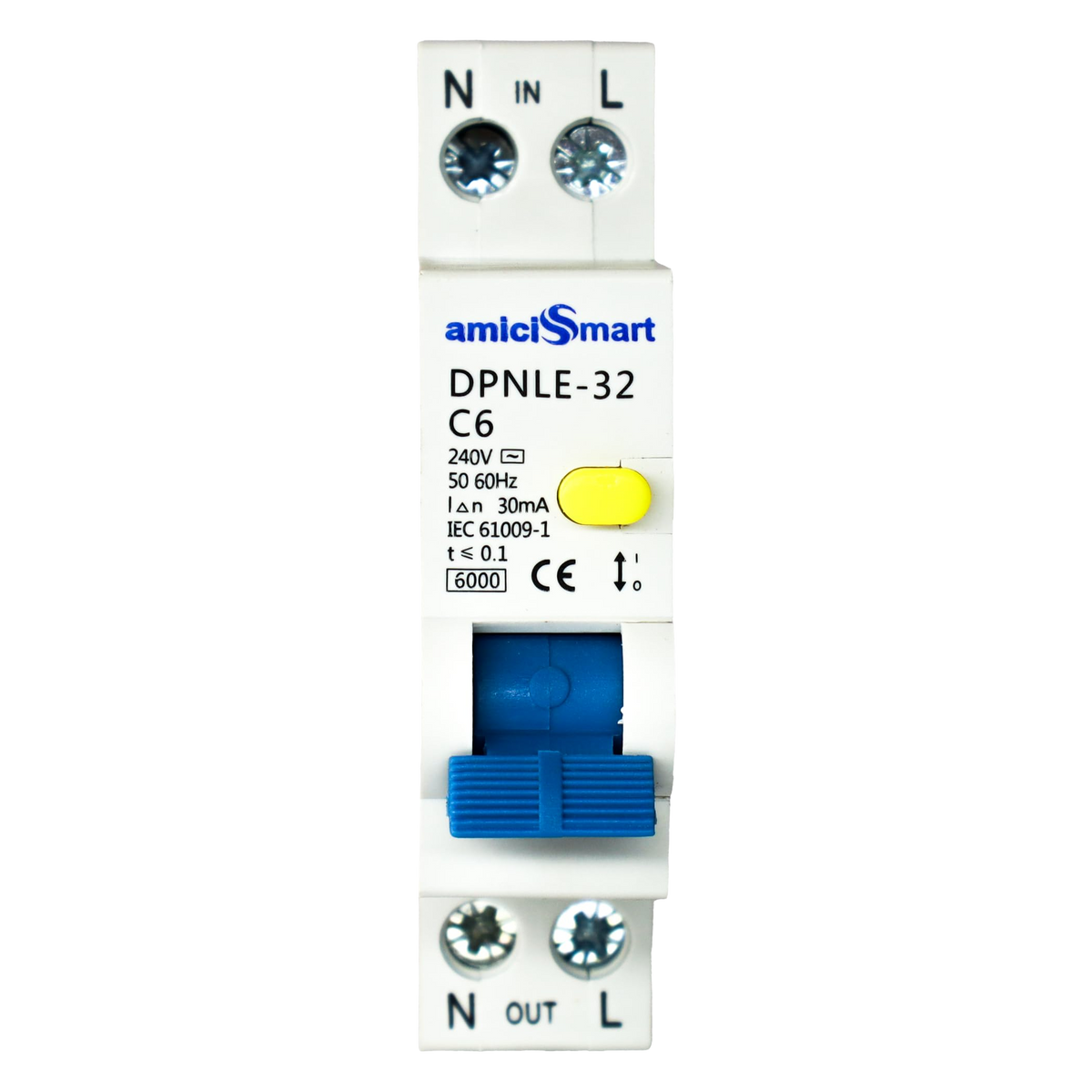

Single-Module RCBO 220V (6/10/16/20A)
amiciSmart · 220V AC · 18mm 1-module · Phase+Neutral · C-curve (listing) · ≤0.1s · 6A/10A/16A/20A
Compact single-module (18mm) RCBO combining RCCB + MCB functions on one DIN-rail slot. Listing: 220V AC, connects Phase and Neutral (double-pole protection in single-module width), C-curve for resistive and inductive/motor loads, trip ≤0...
Sale price
Rs. 1,349.00
-26%
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,349.00
Unit price
Increments of 1
Minimum of 1
Maximum of
RCBO, Single Module 220V Residual Current Circuit Breaker with Over Current and Leakage Protection
Sale price
Rs. 1,349.00
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,349.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKUs (all variants) | 1x1M-RCBO-10A · 1x1M-RCBO-20A · 1x1M-RCBO-6A · 1x1M-RCBO-16A |
|---|---|
| Product ID | 8360593424539 |
| Brand (handle) | amiciSmart |
| Device class | Single-module RCBO (RCCB + MCB) |
| Rated voltage (listing) | 220V AC |
| Ampere options (listing) | 6A · 10A · 16A · 20A |
| Module width (listing) | 18mm single-module |
| Poles / wiring (listing) | Phase + Neutral (double-pole protection in 1-module width) |
| Trip curve (listing) | C-curve (published on listing) |
| Trip time (listing) | ≤0.1 seconds |
| IΔn / Icu / residual type / IEC mark | Not published on this listing — none invented |
| Mounting | DIN-rail |
| Warranty / returns (listing) | 30-day easy returns called out; support 980-970-9898 / care@amicikart.com |
| Evidence note | Live product.js only (Batch 6) — all 4 amp variants together |
Frequently asked questions
Which amp should I buy?
Listing guide: 6A lighting/light outlets; 10A general household; 16A AC/geyser/kitchen; 20A heavy/motor. Confirm with an electrician and cable size.
Is C-curve invented?
No — C-curve is stated on the live listing for this product.
What is the leakage rating (30mA)?
IΔn is not published on this listing — we do not invent it. Ask seller/nameplate if you need a specific mA.
Is this the same as the 2-module or 4P RCBO?
No. Separate listings exist (e.g. Batch 2 2M RCBO faceplate family; Batch 3 held 4P RCBO). This SKU family is single-module 18mm with amp options.
Full Product Description
amiciSmart Single-Module RCBO 220V (6/10/16/20A)
Draft for 8360593424539. Four amp variants — publish together.
Listing: 220V AC, 18mm module, Phase+Neutral, C-curve, ≤0.1 s. IΔn/Icu/IEC type not published — none invented. Qualified electrician recommended.
