Know before you buy
-
Three-phase system
Choose this 4-pole model for a three-phase circuit.
-
Match the load
Rated 63A. Check the connected load, backup-source capacity and panel space before ordering.
-
Professional installation
Have a qualified electrician confirm compatibility and install the switch.
Features that make it useful
-
Two-source selection

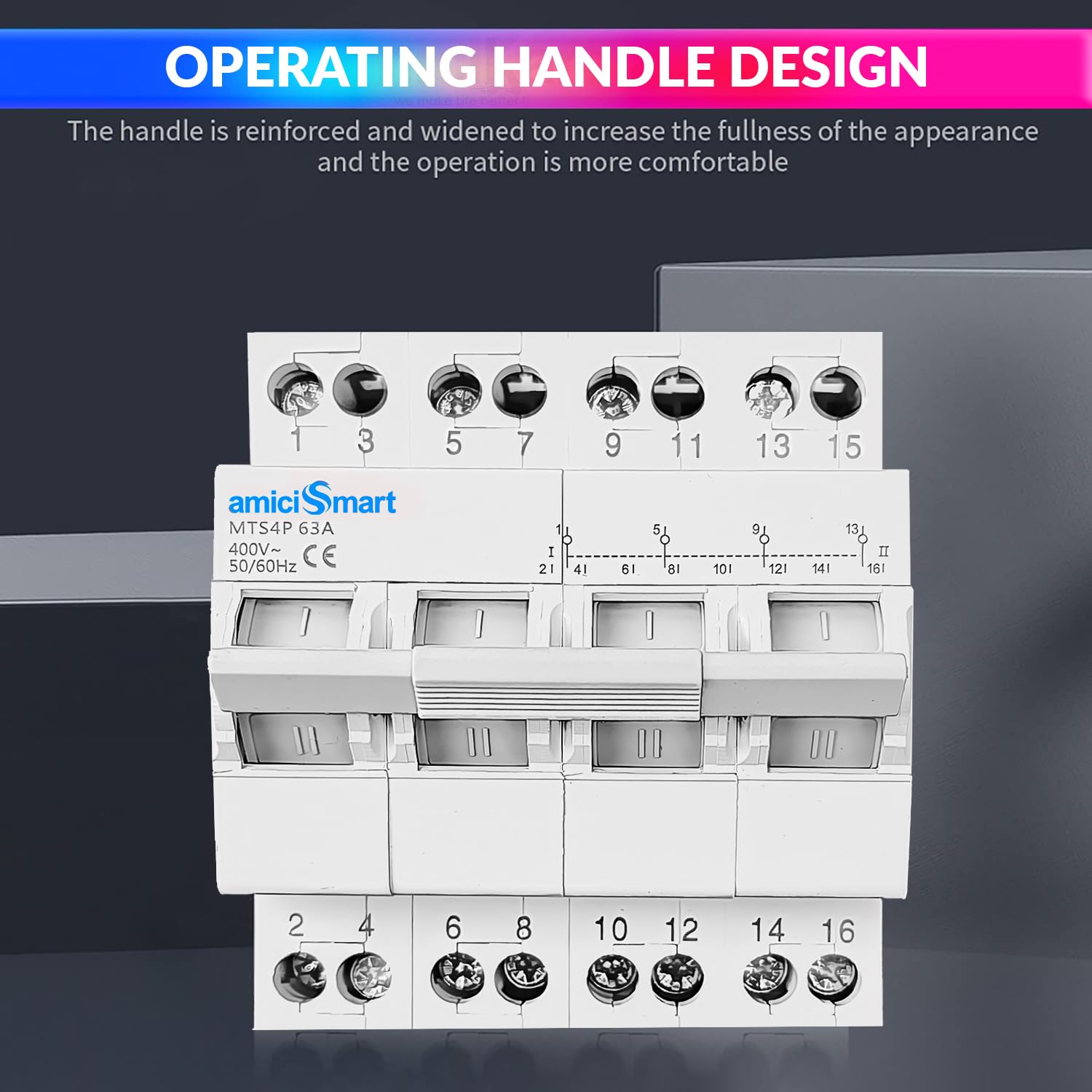

Choose one of two connected supplies with the linked operating handle.
-
Centre OFF position
The middle position disconnects the switched output from both sources.
-
Panel-friendly design
DIN-rail mounting. Check the enclosure dimensions and wiring space before fitting.
How to use
-
Confirm your setup
Check the three-phase arrangement, 63A rating and availability of a compatible backup source.
-
Arrange installation

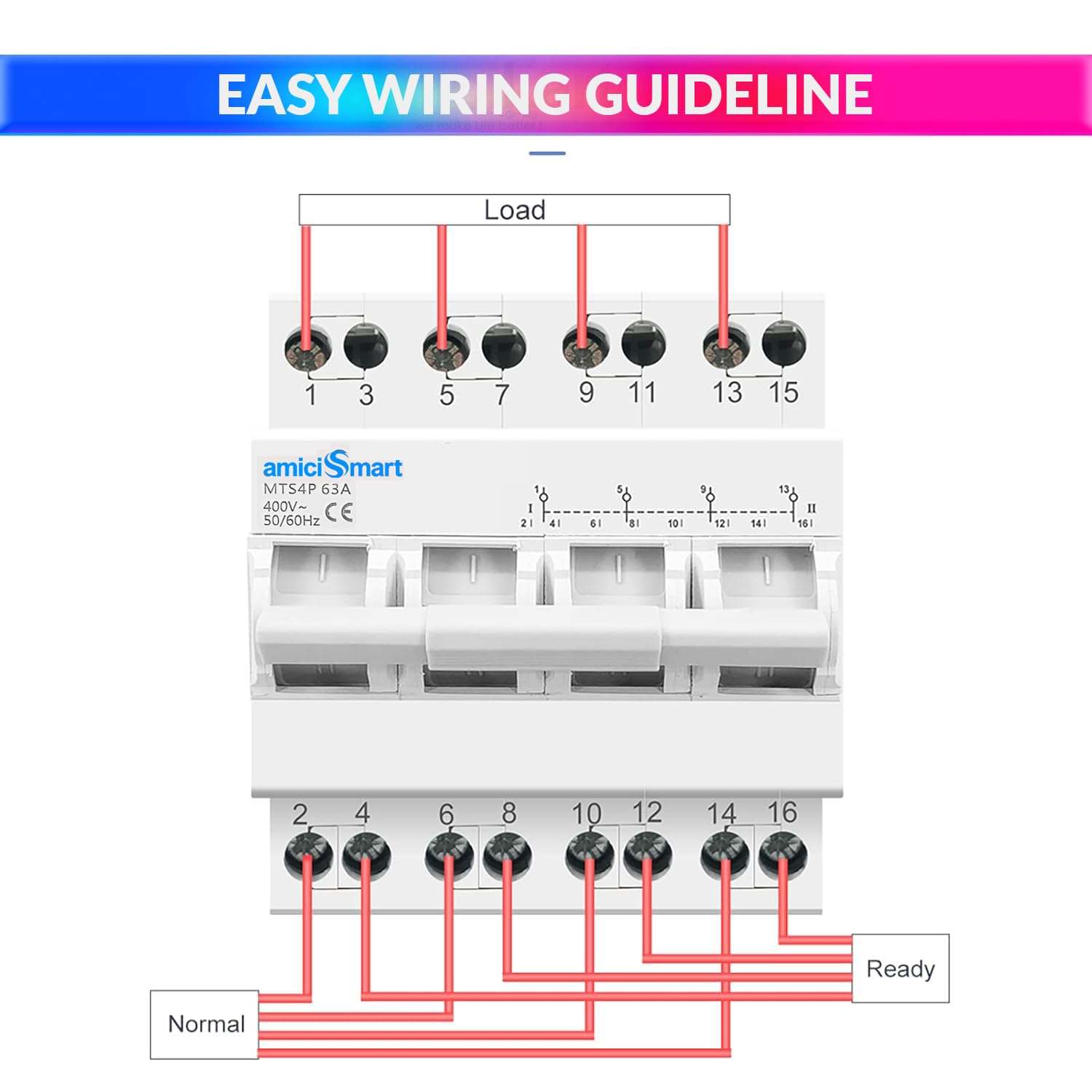

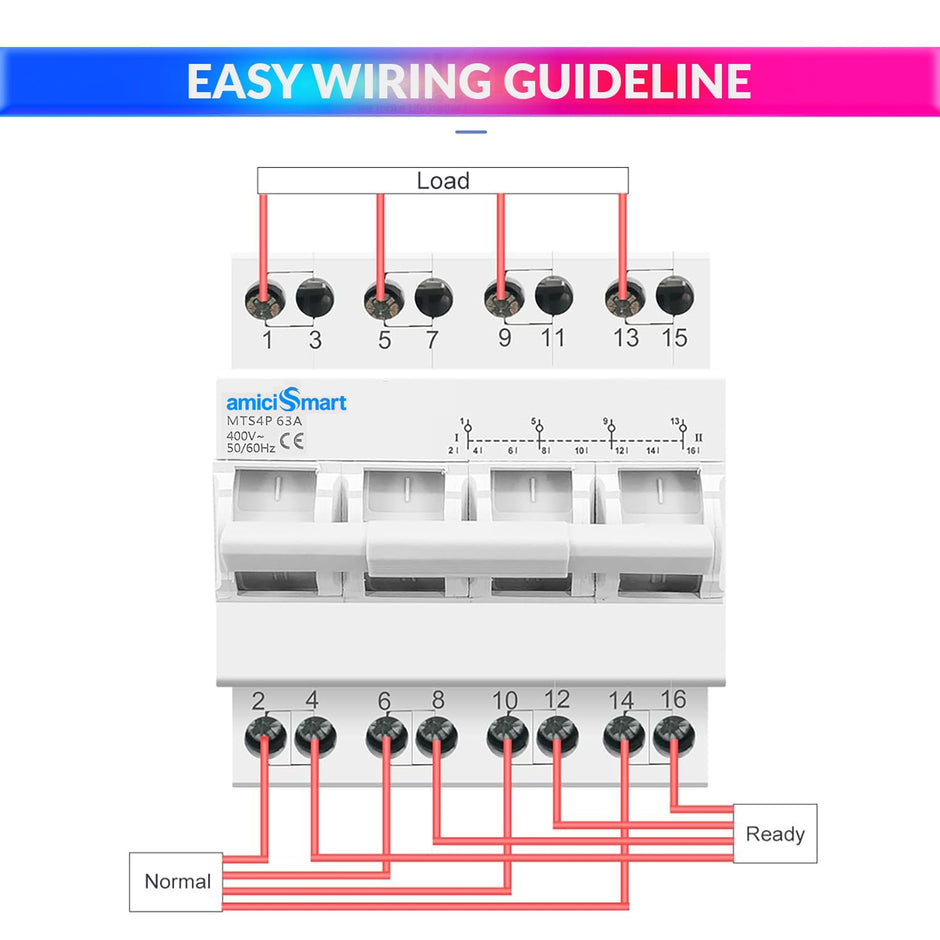

Have a qualified electrician install and label both sources and the load connections.
-

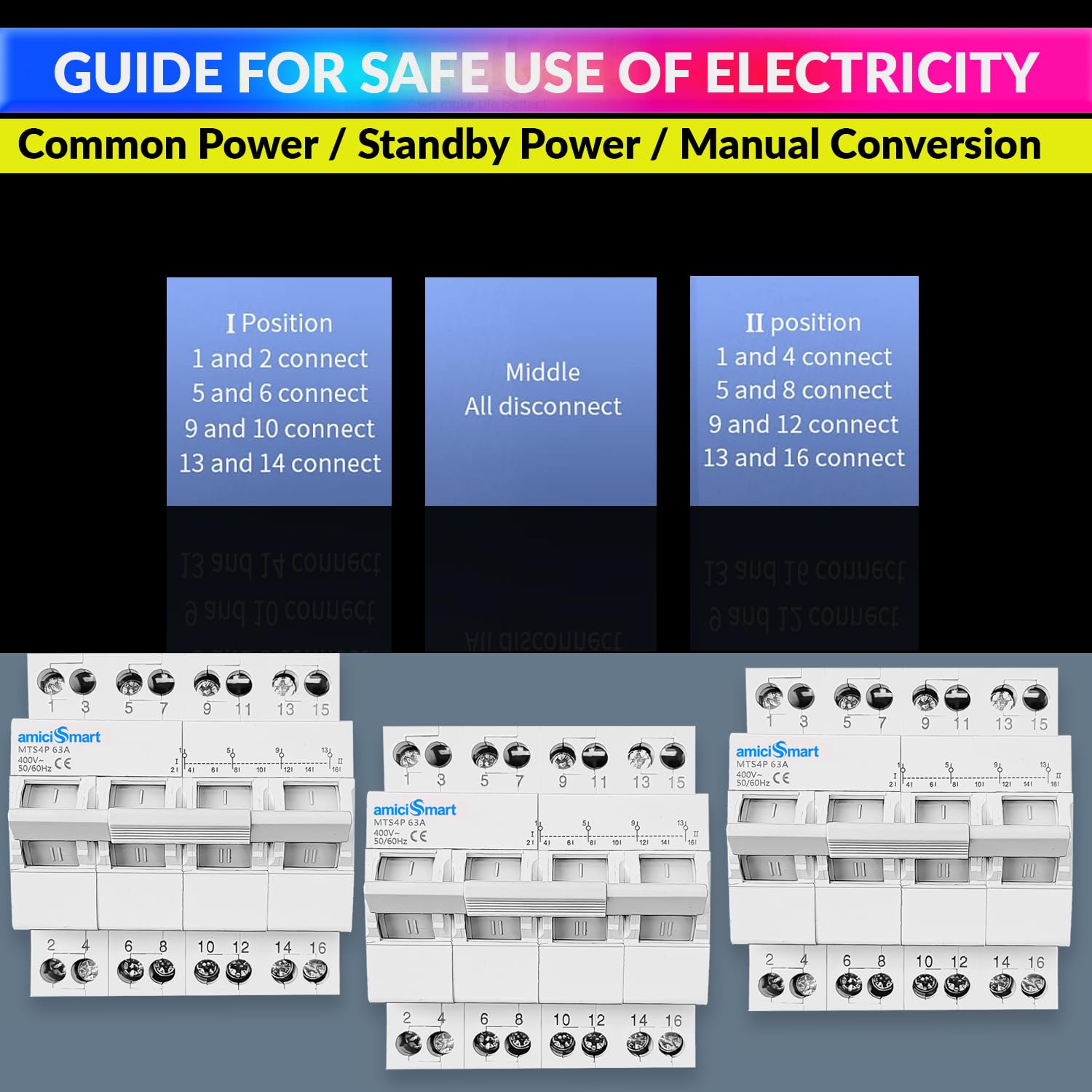

Select I, OFF or II
Use the source labels provided by your installer and the positions marked on the unit.

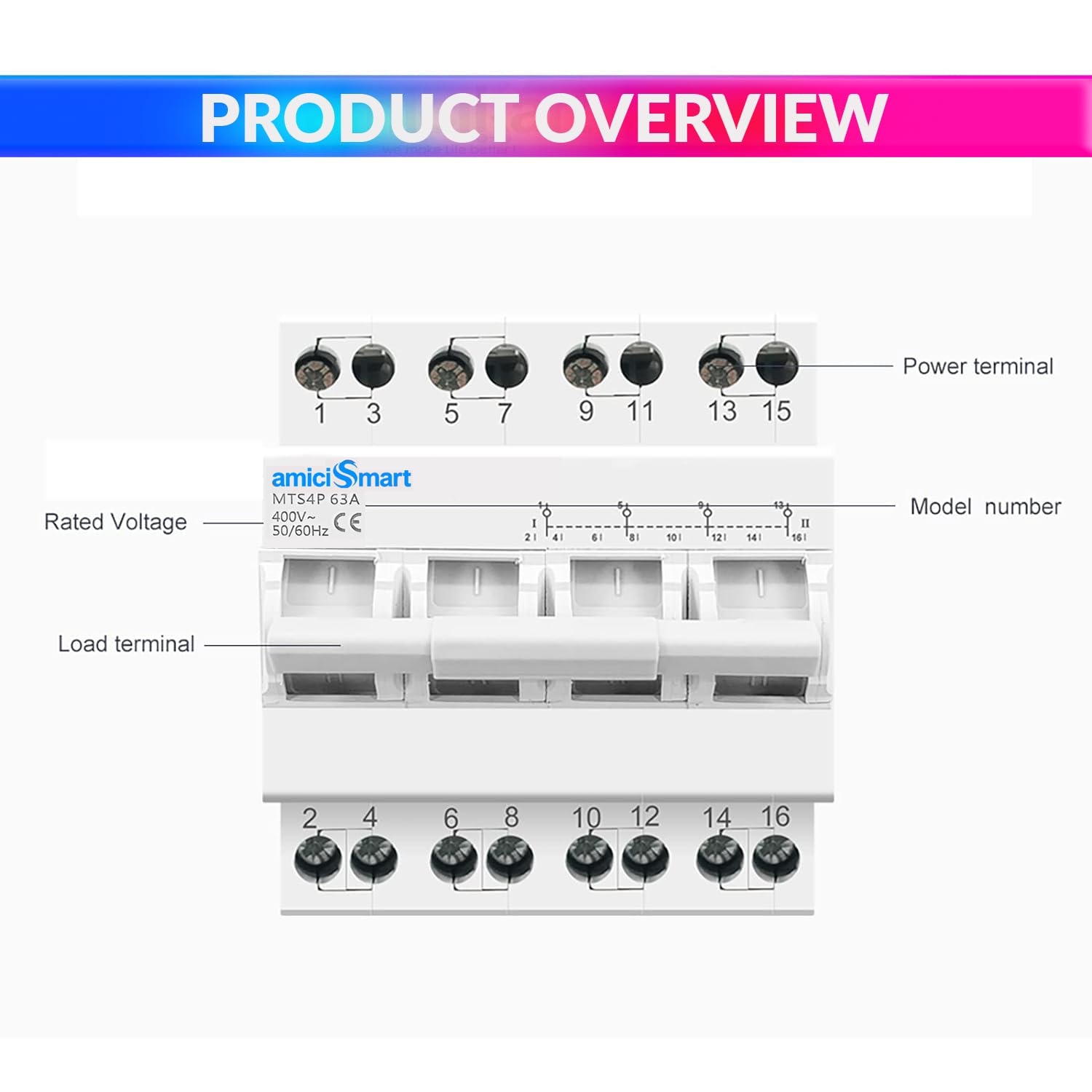

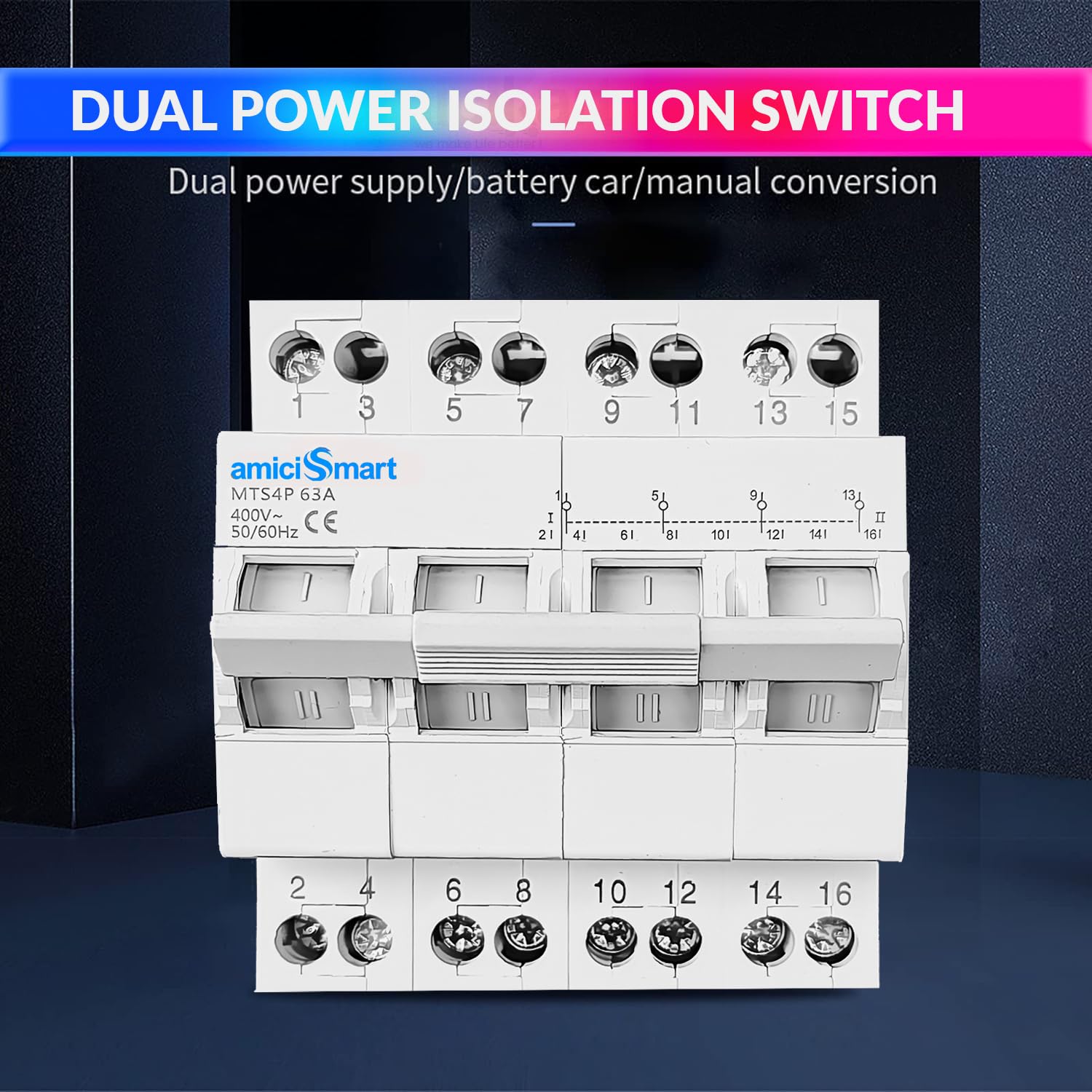

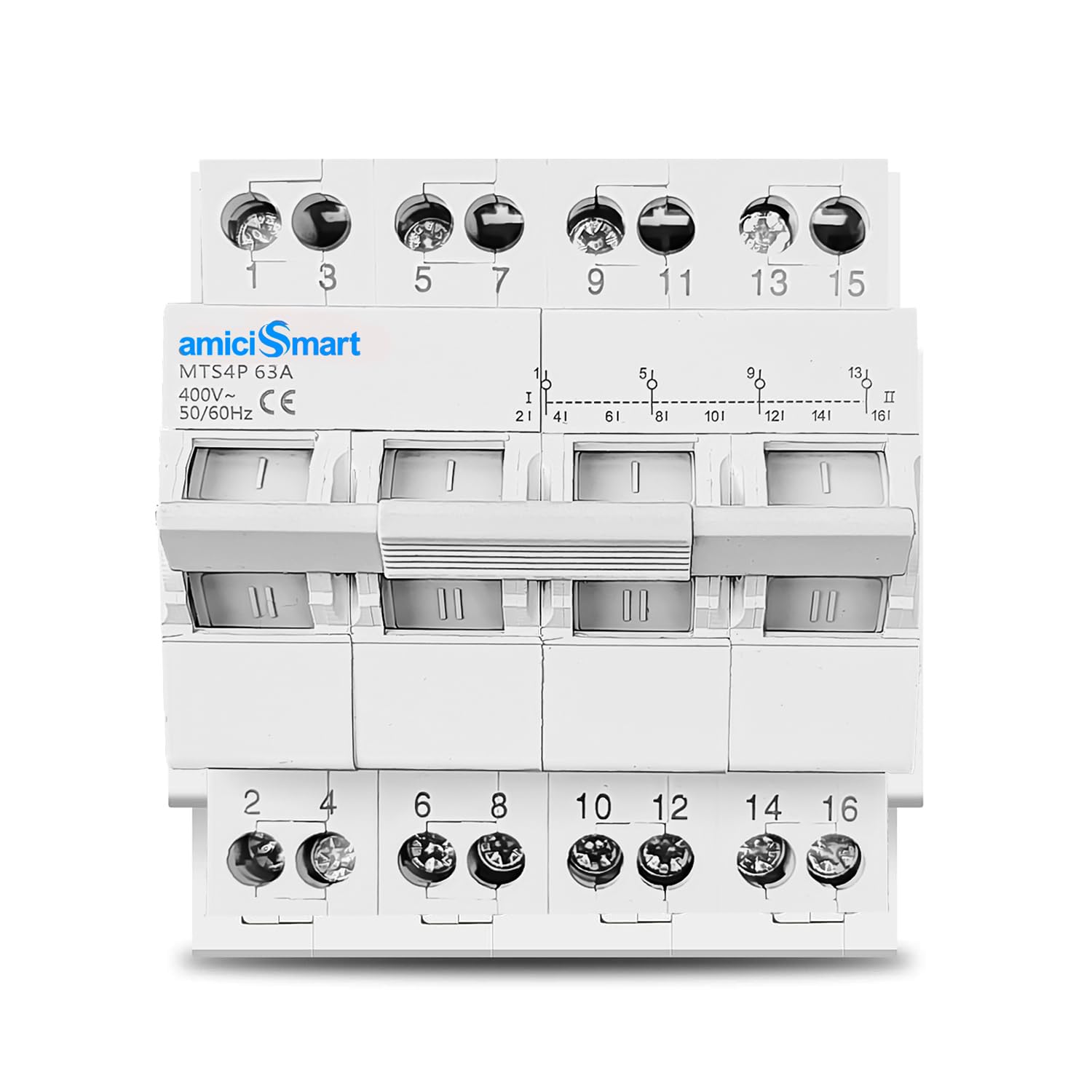

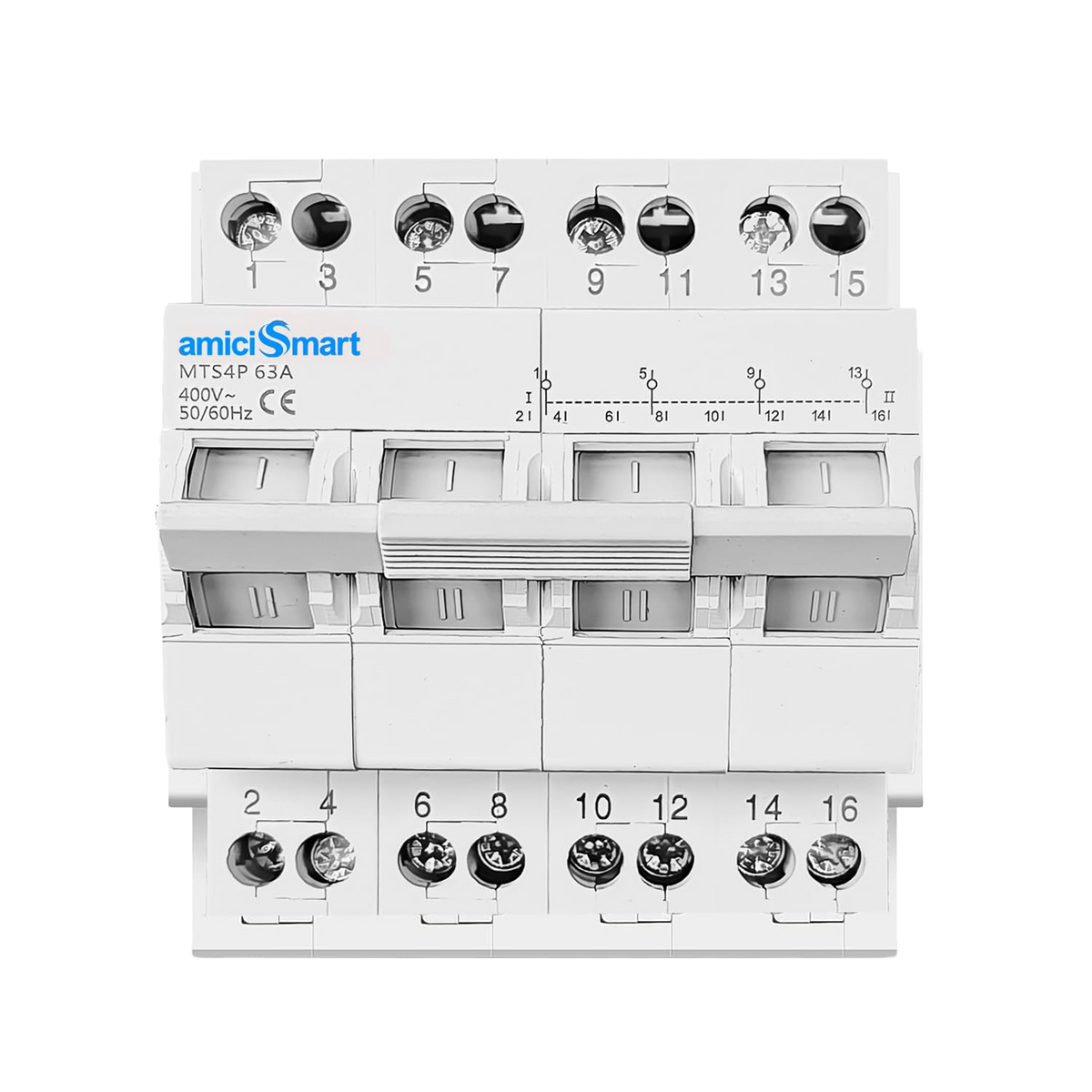

63A Manual Transfer Switch
400V AC · Three-phase · 4-pole
Select main power, backup power or OFF with one linked handle. A 63A, 4-pole three-phase manual changeover switch for direct control of two power sources.
Sale price
Rs. 999.00
-61%
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Dual Power Manual Control Transfer Switch, 63A 3-Phase Changeover Switch for Main & Secondary Power Control
Sale price
Rs. 999.00
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| Brand | amiciSmart |
|---|---|
| Model marking | MTS4P |
| Rated current | 63A |
| System | Three-phase AC |
| Poles | 4P |
| Rated voltage | 400V AC |
| Frequency | 50/60 Hz |
| Operation | Manual — I / OFF / II |
| Mounting | DIN-rail mounting |

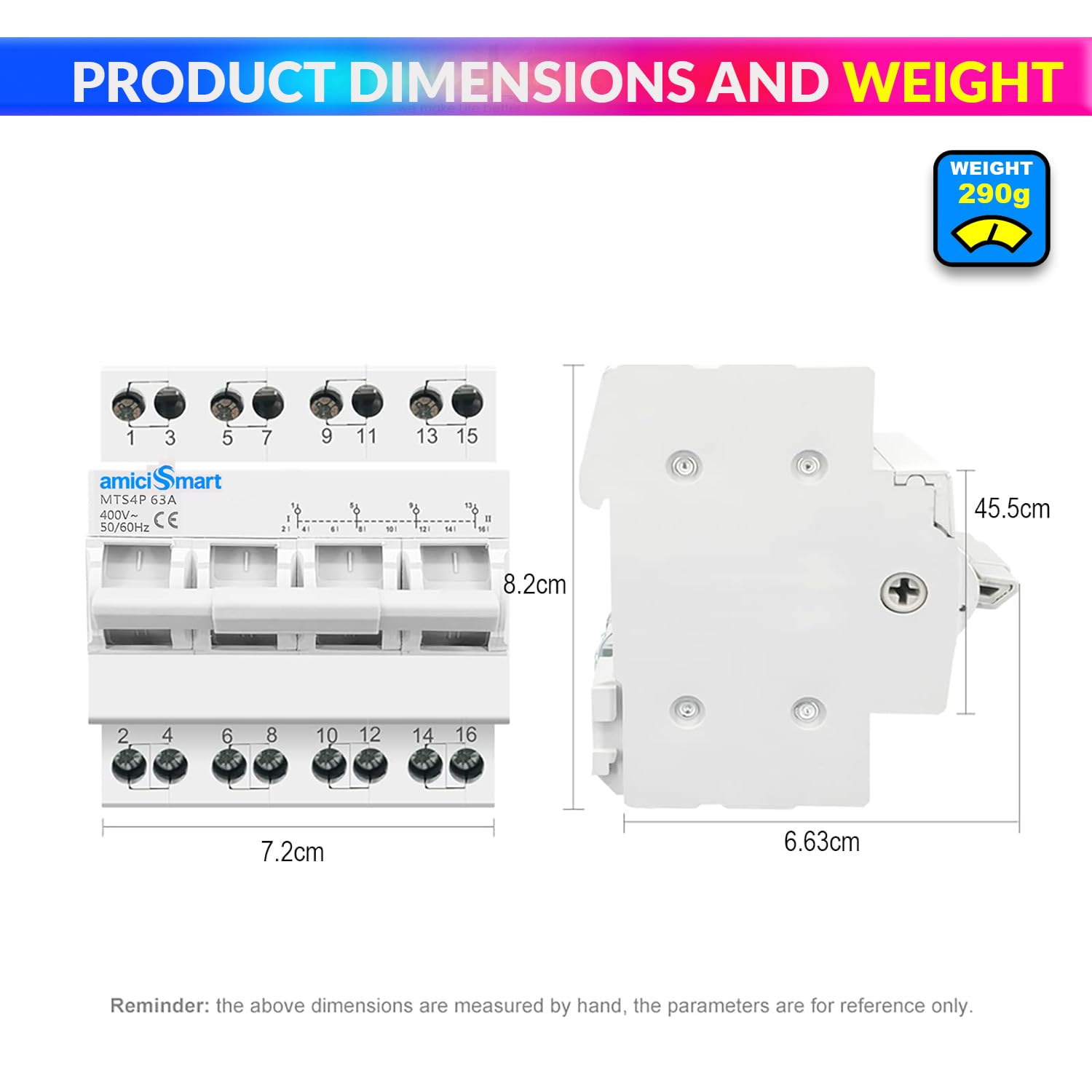

| Approx. dimensions (W × D × H) | 7.2 × 6.63 × 8.2 cm |
| Approx. weight | 290 g |
Frequently asked questions
Does this model change to backup power automatically?
No. This model is manually operated. Use the marked I / OFF / II positions and the source labels fitted by your electrician. Choose an automatic/manual model if you require automatic changeover.
Is this the single-phase or three-phase version?
This is the three-phase, 4-pole version, rated 63A. Other transfer-switch listings in this family have different pole counts, current ratings and operating modes; check all three before ordering.
Can I connect a generator or inverter as the backup source?
A compatible AC backup supply can be used as part of a correctly designed three-phase installation. Ask your electrician to verify its voltage, frequency, output capacity and wiring arrangement. The switch selects a source; it does not generate or store backup power.
What does the middle OFF position do?
The centre position disconnects the switched output from both selected sources. It does not prove that all incoming terminals are de-energised. Installation or maintenance must follow appropriate supply isolation and verification.
Will it fit my distribution board?
The listed approximate size is 7.2 × 6.63 × 8.2 cm (width × depth × height), with din-rail mounting. Allow space for terminals, wiring and safe operation; have your electrician check the enclosure before purchase.
Can I choose it from the current rating alone?
No. The 63A rating is one part of selection. Confirm phase arrangement, pole count, connected load, starting current, backup-source capacity and the installation requirements. Do not assume the full home or business load is suitable just from the product name.
Full Product Description
63A Manual Transfer Switch — Three-phase, 4P
The amiciSmart 63A dual power manual transfer switch is designed to select between main and backup AC supplies in a three-phase installation. It is a four-pole changeover device for homes, shops, workshops or commercial panels where its ratings and installation requirements match the application.
Direct control with I / OFF / II positions
The linked handle selects one of the two sources, with a centre OFF position that disconnects the switched output. Follow the I / OFF / II markings and the source labels fitted by your installer rather than assuming an up/down direction.
- Rated current: 63A.
- Three-phase AC; 4P configuration.
- Rated voltage: 400V AC; frequency: 50/60Hz.
- DIN-rail mounting; approximate dimensions: 7.2 × 6.63 × 8.2 cm (W × D × H). Approximate weight: 290 g.
- Manual source selection with a centre OFF position and linked pole operation.
Choose a compatible power setup
The backup source must be available and correctly sized for the connected load. A generator or inverter installation needs compatible AC voltage, frequency, phase arrangement and wiring. This transfer switch does not produce electricity, store energy or convert three-phase power to single-phase power.
Installation and operation
Have a qualified electrician confirm load suitability, enclosure space and the required wiring and protection. Product dimensions are approximate and do not include all installation clearances. Use the markings and instructions supplied with the actual unit. A switching or OFF position must not be treated as proof that incoming terminals are safe to touch.
Choose the right model
This listing is for the 63A three-phase manual model. Other family members differ in operation, number of poles and current rating. Compare these details before choosing.
Support
Contact amiciKart for product and installation-document queries. Current warranty, delivery, returns and payment information is shown by the store's policy and checkout sections.
