Know before you buy
-

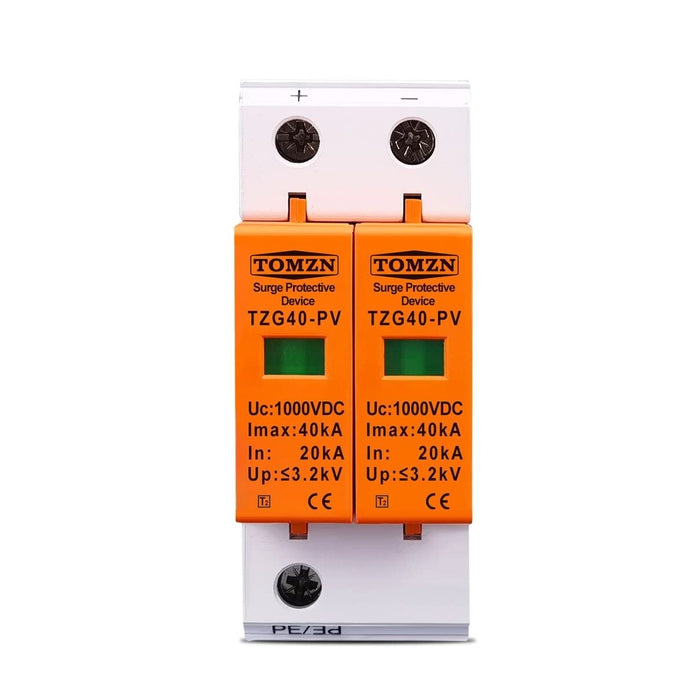

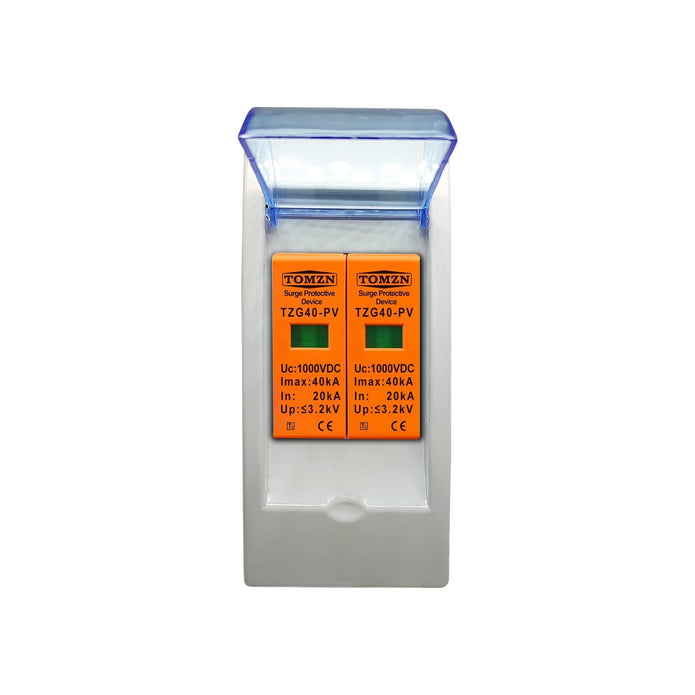

DC with Mount: 1000V DC
2-pole, for solar PV and DC circuits. DIN rail mount included.
-
AC with Mount: 230V AC, Uc 275V
2-pole, for AC distribution boards and MCB panels. DIN rail mount included.
-
AC: 230V AC, Uc 275V, no mount bracket
2-pole. Choose this only if you already have a suitable mounting arrangement.
-
Electrician installation
Must be fitted by a qualified electrician with the DC side isolated and the mains switched off.
Features that make it useful
-
20kA nominal, 40kA maximum discharge
Handles the surge currents typical of residential and small commercial installations.
-
Responds in under 25ns
Clamps transient overvoltages almost instantly.
-

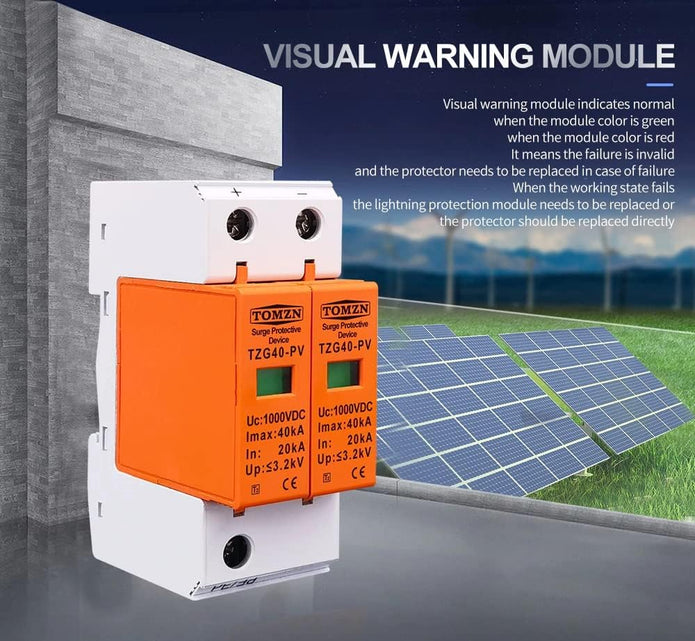

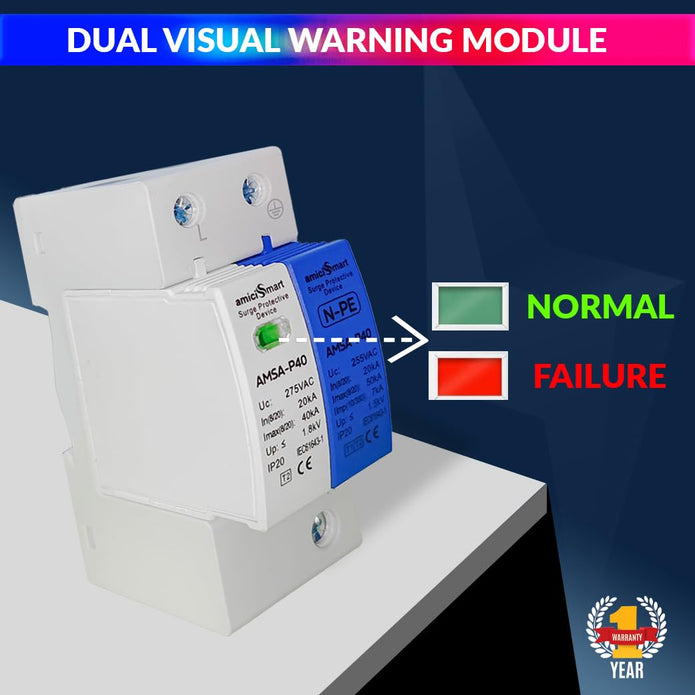

Green/red status indicator
Green means protected; red means the device needs replacing.
-
Made for storm-prone areas
Helps protect solar systems and home appliances from lightning-induced surges.
-
1-year warranty
Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
How to use
-
Pick the right option

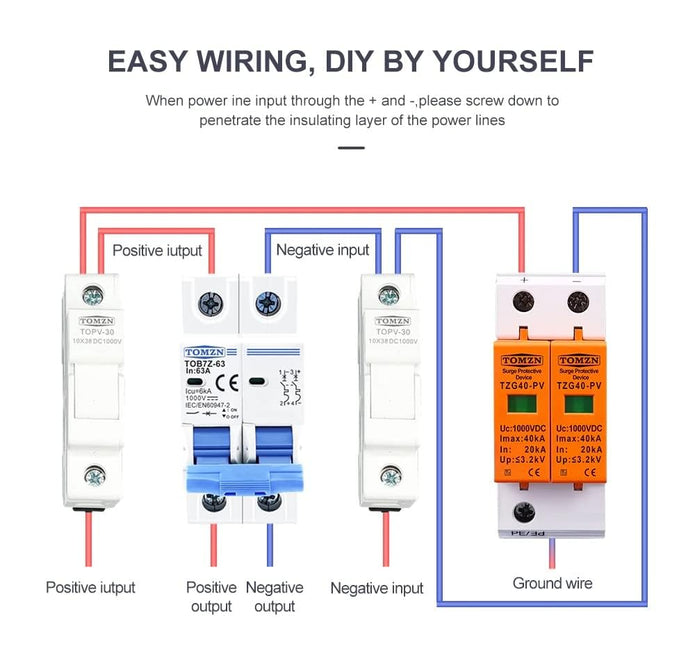

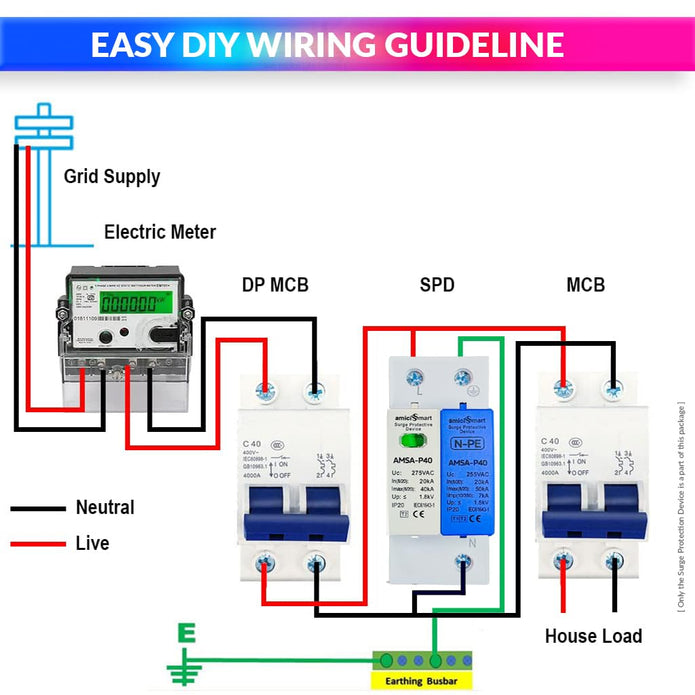

DC with Mount for solar PV or DC circuits up to 1000V DC. AC with Mount for 230V AC boards. AC (no mount bracket) only if you already have a way to mount it.
-
Isolate everything before work
A qualified electrician should install it. Isolate the solar/DC side (solar panels produce voltage whenever light falls on them) and switch off the mains at the main breaker before any work.
-
Check the indicator
After installation, the indicator should show green. If it turns red, have the device replaced.

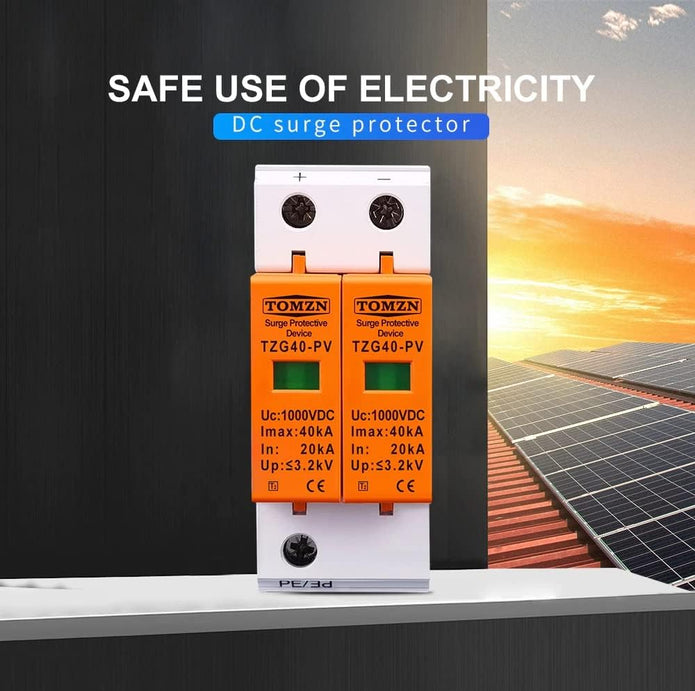

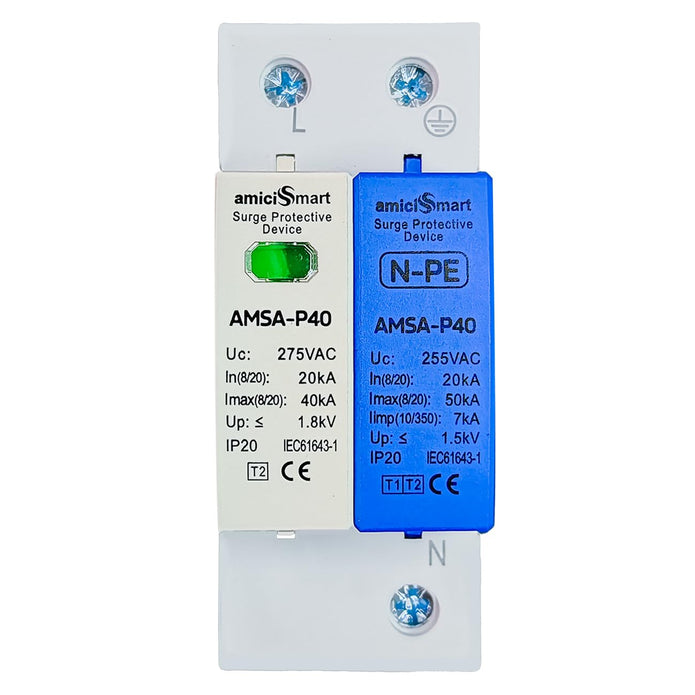

Surge Protector SPD, 2-Pole, DC 1000V or AC 230V (Uc 275V)
amiciKart · 2-pole · DC with Mount: 1000V DC · AC with Mount / AC: 230V AC, Uc 275V · 20kA nominal / 40kA max · <25ns · status indicator
A 2-pole surge protection device (SPD) that clamps voltage surges, such as those caused by lightning, before they reach your equipment. Choose DC with Mount for solar PV and DC circuits up to 1000V DC, AC with Mount for 230V AC distribut...
Sale price
Rs. 1,999.00
-38%
Regular price
Rs. 3,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
DC Surge Protector, SPD Lightning Protection Device for Solar Application
Sale price
Rs. 1,999.00
Regular price
Rs. 3,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

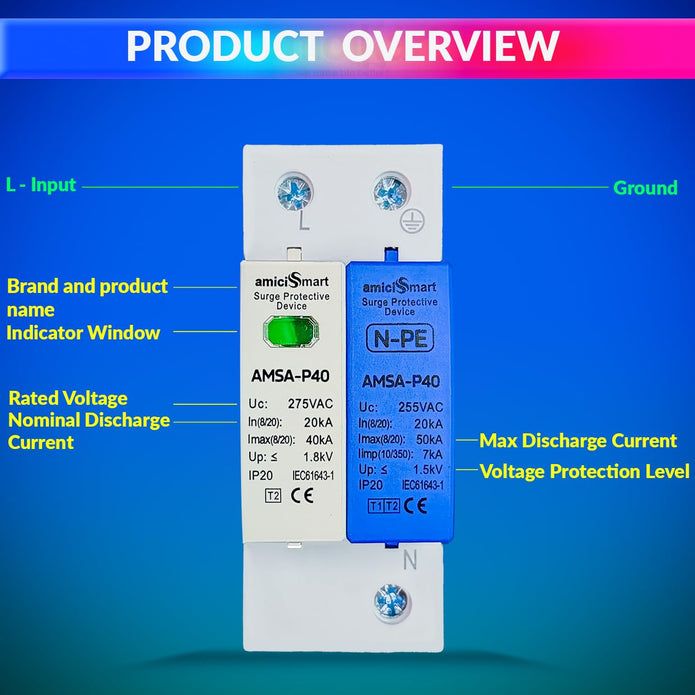

Specifications
| Brand | amiciKart |
|---|---|
| Type | Surge protection device (SPD) |
| Option: DC with Mount | SKU 1xSPD-DC-M · 1000V DC · 2-pole · DIN rail mount included |
| Option: AC with Mount | SKU 1xSPD-AC-M · 230V AC · Uc 275V AC · 2-pole · DIN rail mount included |
| Option: AC | SKU 1xSPD-AC · 230V AC · Uc 275V AC · 2-pole · without mount bracket |
| Discharge current | 20kA nominal (In), 40kA maximum (Imax) |
| Response time | Under 25ns |
| Warranty | 1 year |
| Support | 980-970-9898 / care@amicikart.com |
Frequently asked questions
Which option do I need for my solar panels?
DC with Mount. It is rated for 1000V DC and is 2-pole.
Which option is for my home AC board?
AC with Mount, or AC if you already have a mounting arrangement. Both are 2-pole, for 230V AC, with a maximum continuous operating voltage (Uc) of 275V AC.
What is the difference between AC with Mount and AC?
They have the same 230V AC, Uc 275V AC, 2-pole rating. AC with Mount includes the DIN rail mount; AC comes without the mount bracket.
How do I know it is still working?
Check the indicator: green means protected, red means it needs replacing.
Does it protect against a direct lightning strike?
It clamps voltage surges on your wiring, such as those caused by lightning, before they reach your equipment. It is one part of a protection system, not a replacement for proper earthing.
Can I install it myself?
It should be installed by a qualified electrician, with the solar/DC side isolated and the mains switched off first.
Full Product Description
Surge Protector SPD, 2-Pole, DC 1000V or AC 230V (Uc 275V)
A 2-pole surge protection device (SPD) that clamps voltage surges, such as those caused by lightning, before they reach your equipment. Choose DC with Mount for solar PV and DC circuits up to 1000V DC, AC with Mount for 230V AC distribution boards (maximum continuous operating voltage Uc 275V AC), or AC, the same 230V AC rating without the mount bracket. The device supports 20kA nominal and 40kA maximum discharge current, responds in under 25 nanoseconds, and has a green/red status indicator. It comes with a 1-year warranty.
- 20kA nominal, 40kA maximum discharge: Handles the surge currents typical of residential and small commercial installations.
- Responds in under 25ns: Clamps transient overvoltages almost instantly.
- Green/red status indicator: Green means protected; red means the device needs replacing.
- Made for storm-prone areas: Helps protect solar systems and home appliances from lightning-induced surges.
- 1-year warranty: Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
Important: A qualified electrician should install this device. Before any work, isolate the solar/DC side (panels produce voltage whenever light falls on them) and switch off the mains at the main breaker. Replace the device when the indicator shows red.
