Know before you buy
-
125A at 1000V DC
Made for high-voltage DC solar PV, wind and hybrid systems.
-
2-pole, C curve
Double-pole DC breaker with a C trip curve.
-
10kA breaking capacity
Interrupts fault currents before they reach your inverter, batteries or panels.
-
Electrician installation
Must be fitted by a qualified electrician with the circuit isolated.
Features that make it useful
-
35mm DIN rail mount
Fits standard combiner boxes and distribution panels.
-
Long service life
Rated for 20,000+ mechanical and 8,000+ electrical operations.
-
Built for solar installs
Housing withstands heat, humidity and vibration in outdoor enclosures.
-
1-year warranty
Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
How to use
-
Isolate everything first
Switch off and isolate the circuit, including the solar panel side, before any work. Installation should be done by a qualified electrician.
-

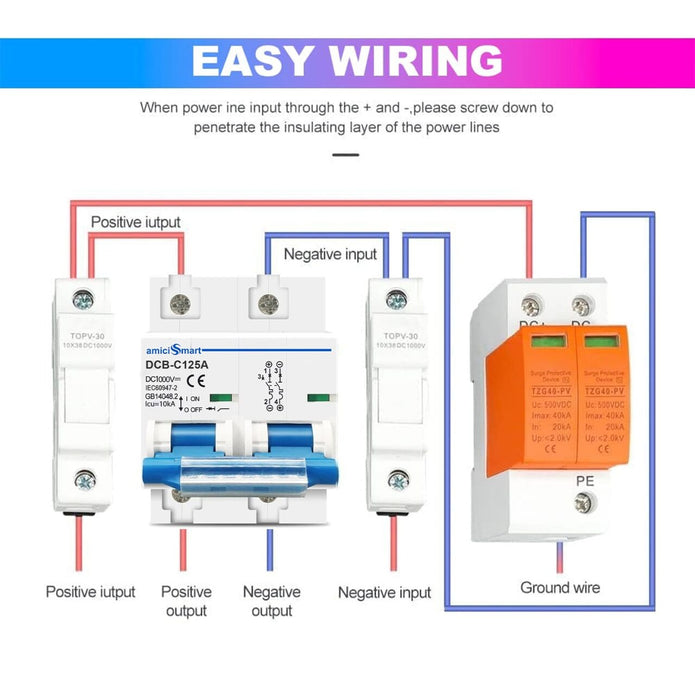

Mount and connect

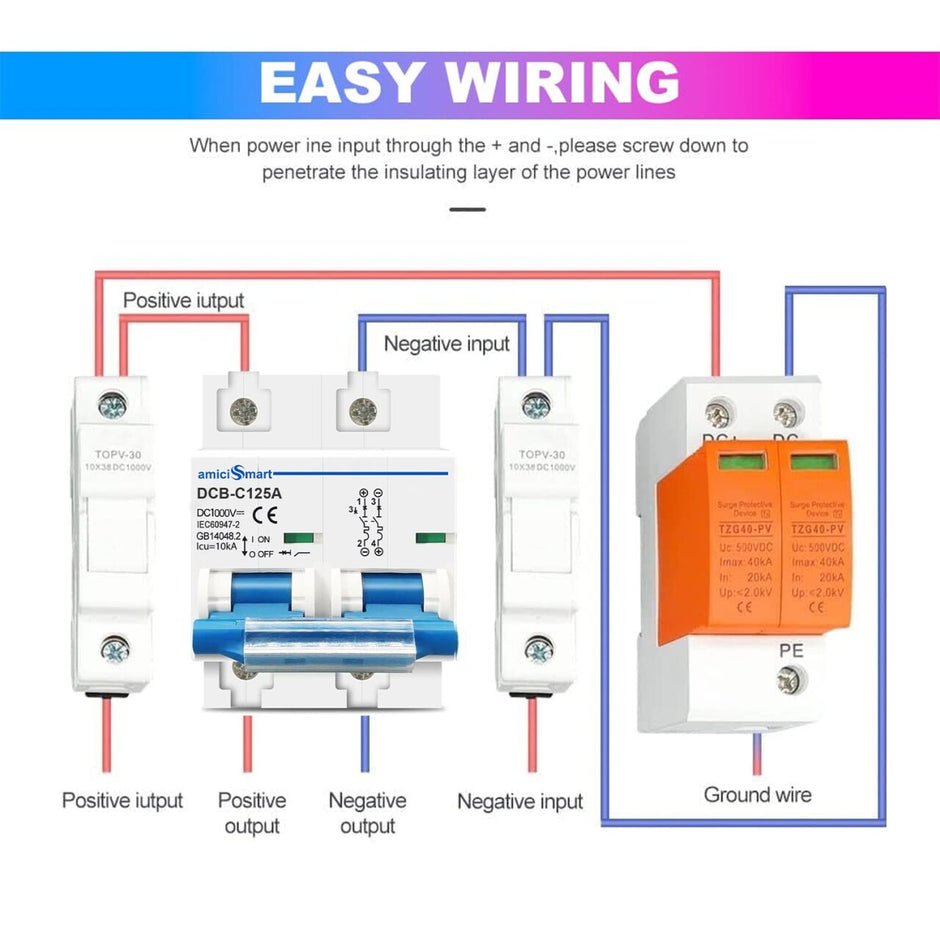

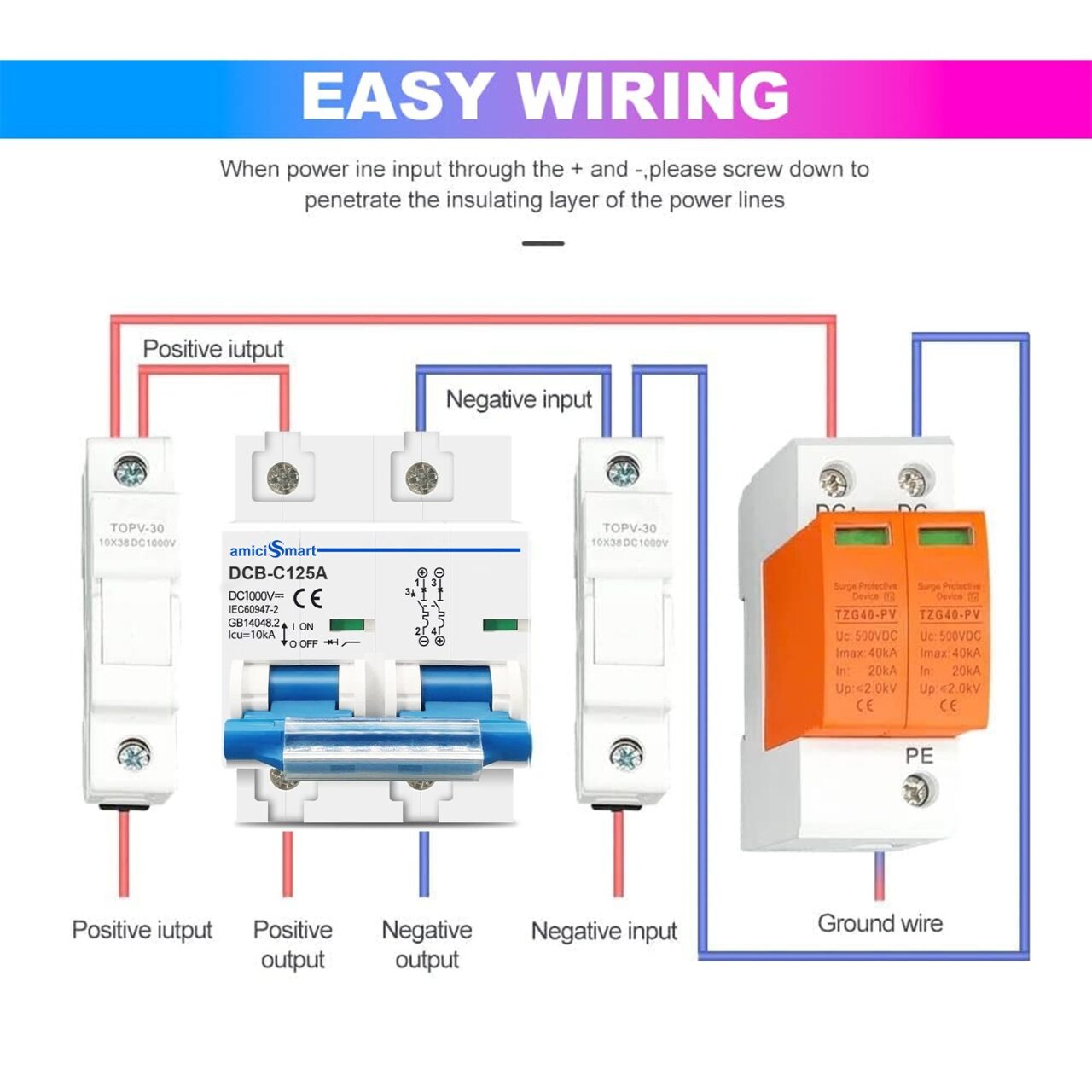

Fit the breaker in the enclosure on a standard 35mm DIN rail and connect it into the DC circuit it protects, keeping within its voltage and current rating.
-
Switch on and check
Restore the supply and switch the breaker on. Use the ON/OFF switch to isolate the circuit manually during maintenance.

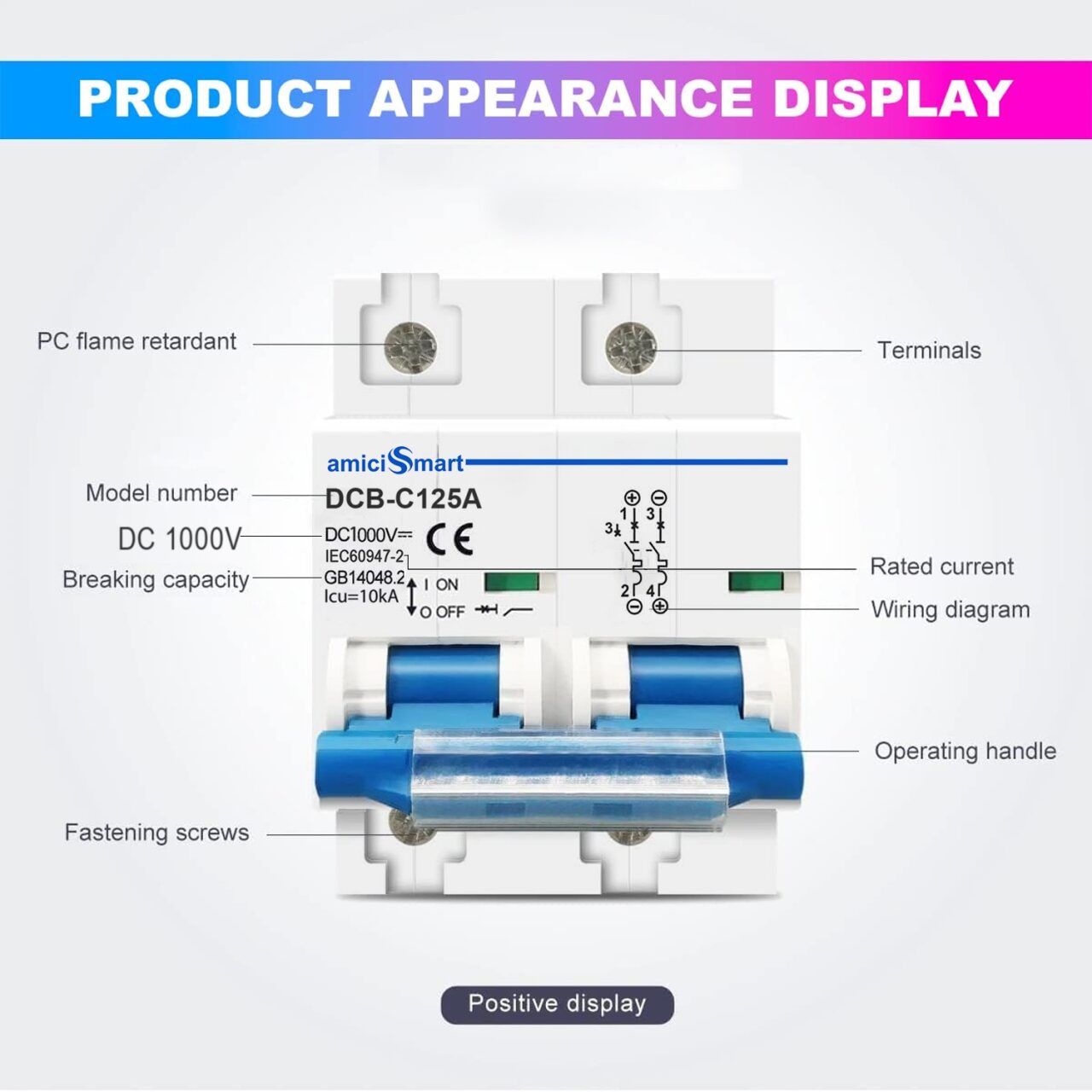

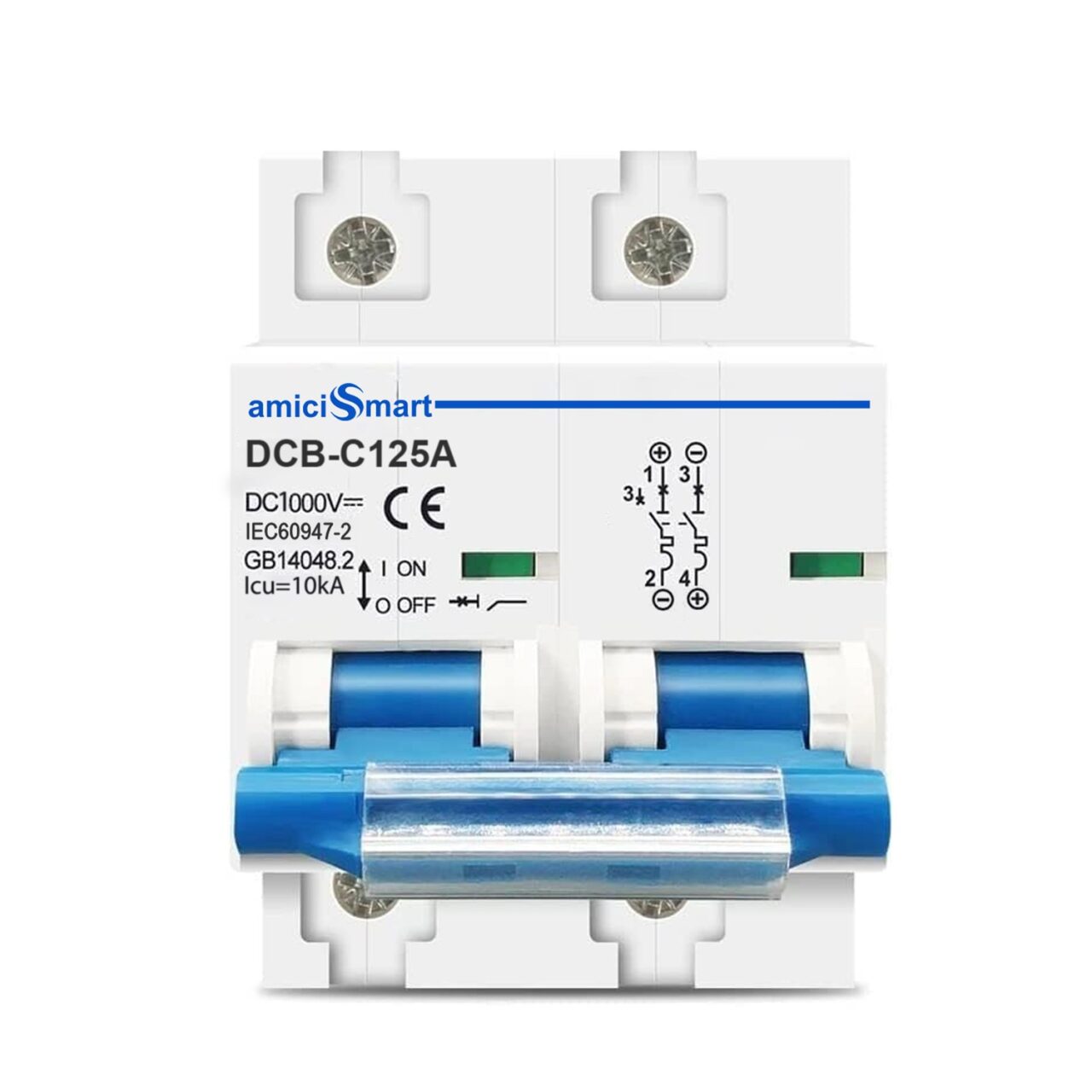

DC MCB 125A 1000V, 2-Pole, C Curve, 10kA
amiciKart · 125A · 1000V DC · 2-pole · C curve · 10kA breaking capacity · 35mm DIN rail
A 2-pole DC miniature circuit breaker for solar PV, wind and hybrid DC systems. It is rated 125A at 1000V DC with a C trip curve and 10kA breaking capacity, protects against overload and short circuit, and mounts on a standard 35mm DIN r...
Sale price
Rs. 1,395.00
-61%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,395.00
Unit price
Increments of 1
Minimum of 1
Maximum of
DC Circuit Breaker MCB with High Voltage Capacity 125A 1000V MCB for PV/Solar System
Sale price
Rs. 1,395.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,395.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xDC-MCB-125A |
| Type | DC miniature circuit breaker (MCB) |
| Rated current | 125A |
| Rated voltage | 1000V DC |
| Poles | 2 |
| Trip curve | C |
| Breaking capacity | 10kA |
| Mounting | 35mm DIN rail |
| Mechanical life | 20,000+ operations |
| Electrical life | 8,000+ operations |
| Warranty | 1 year |
| Support | 980-970-9898 / care@amicikart.com |
Frequently asked questions
How many poles does it have?
It is a 2-pole breaker. A single-pole 125A version is a separate product.

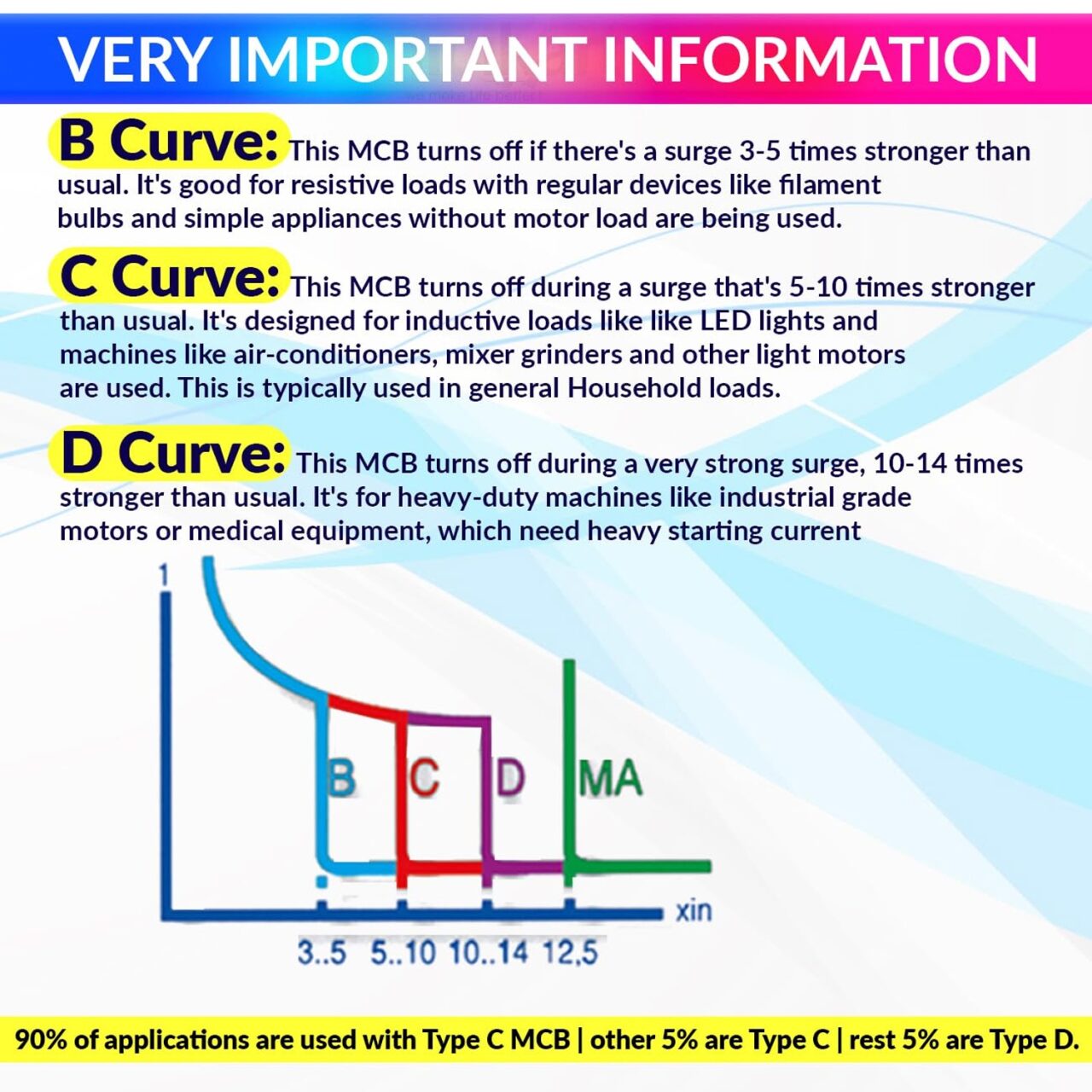

What is the trip curve?
C curve.
Can I use it on AC?
It is designed and rated for DC systems at up to 1000V DC and 125A.
Can I install it myself?
It should be installed by a qualified electrician with the circuit isolated, including the solar panel side.
Full Product Description
DC MCB 125A 1000V, 2-Pole, C Curve, 10kA
A 2-pole DC miniature circuit breaker for solar PV, wind and hybrid DC systems. It is rated 125A at 1000V DC with a C trip curve and 10kA breaking capacity, protects against overload and short circuit, and mounts on a standard 35mm DIN rail. Rated for 20,000+ mechanical and 8,000+ electrical operations, with a 1-year warranty.
- 35mm DIN rail mount: Fits standard combiner boxes and distribution panels.
- Long service life: Rated for 20,000+ mechanical and 8,000+ electrical operations.
- Built for solar installs: Housing withstands heat, humidity and vibration in outdoor enclosures.
- 1-year warranty: Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
Important: This breaker must be installed by a qualified electrician with the circuit isolated. Solar panels produce voltage whenever light falls on them, so isolate the panel side as well as the battery or inverter side before any work.
