Know before you buy
-
600V DC, 100A
Sized for rooftop solar strings and high-capacity DC distribution boards.
-
2-pole, C curve
Double-pole DC breaker with a C trip curve.
-
Overload and short-circuit protection
Built for direct current, which arcs differently from AC.
-
Electrician installation
Must be fitted by a qualified electrician with the circuit isolated.
Features that make it useful
-
35mm DIN rail mount
Clips onto a standard DIN rail in your distribution box.
-
Compact IP20 body
70×50×50mm and 280g, to sit alongside existing components.
-
Solar and hybrid systems
Protects inverters, charge controllers and wiring on DC circuits.
-
1-year warranty
Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
How to use
-
Isolate everything first
Switch off and isolate the circuit, including the solar panel side, before any work. Installation should be done by a qualified electrician.
-

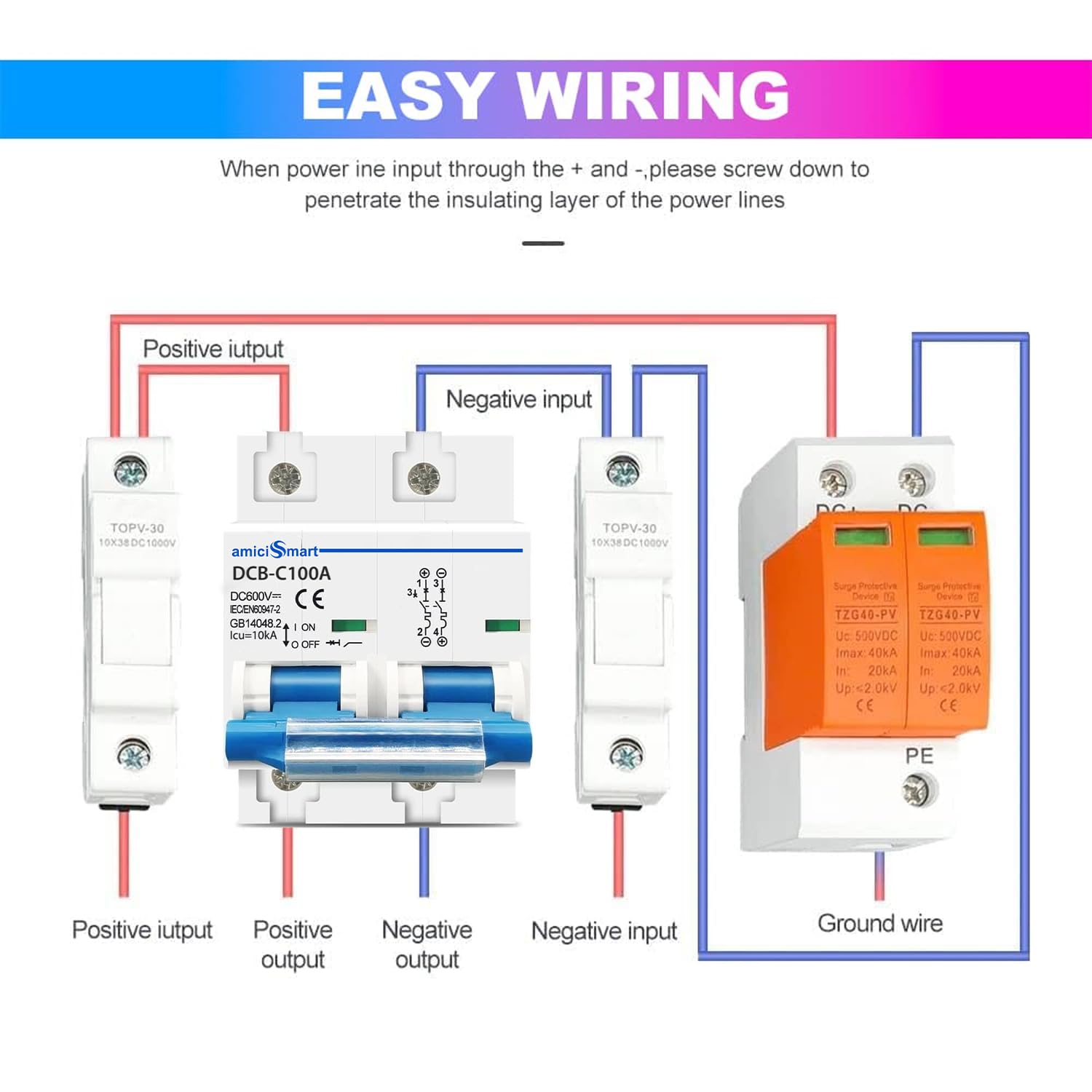

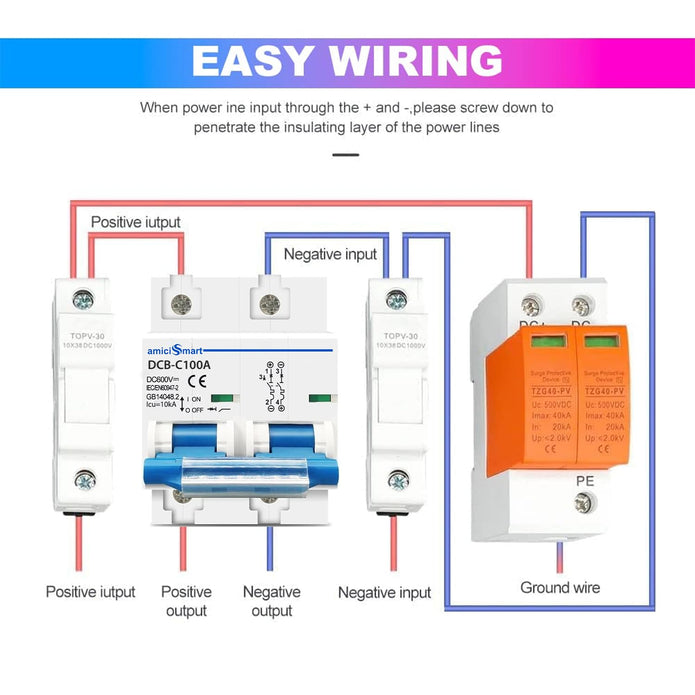

Mount and connect
Fit the breaker in the enclosure on a standard 35mm DIN rail and connect it into the DC circuit it protects, keeping within its voltage and current rating.
-
Switch on and check
Restore the supply and switch the breaker on. Use the ON/OFF switch to isolate the circuit manually during maintenance.

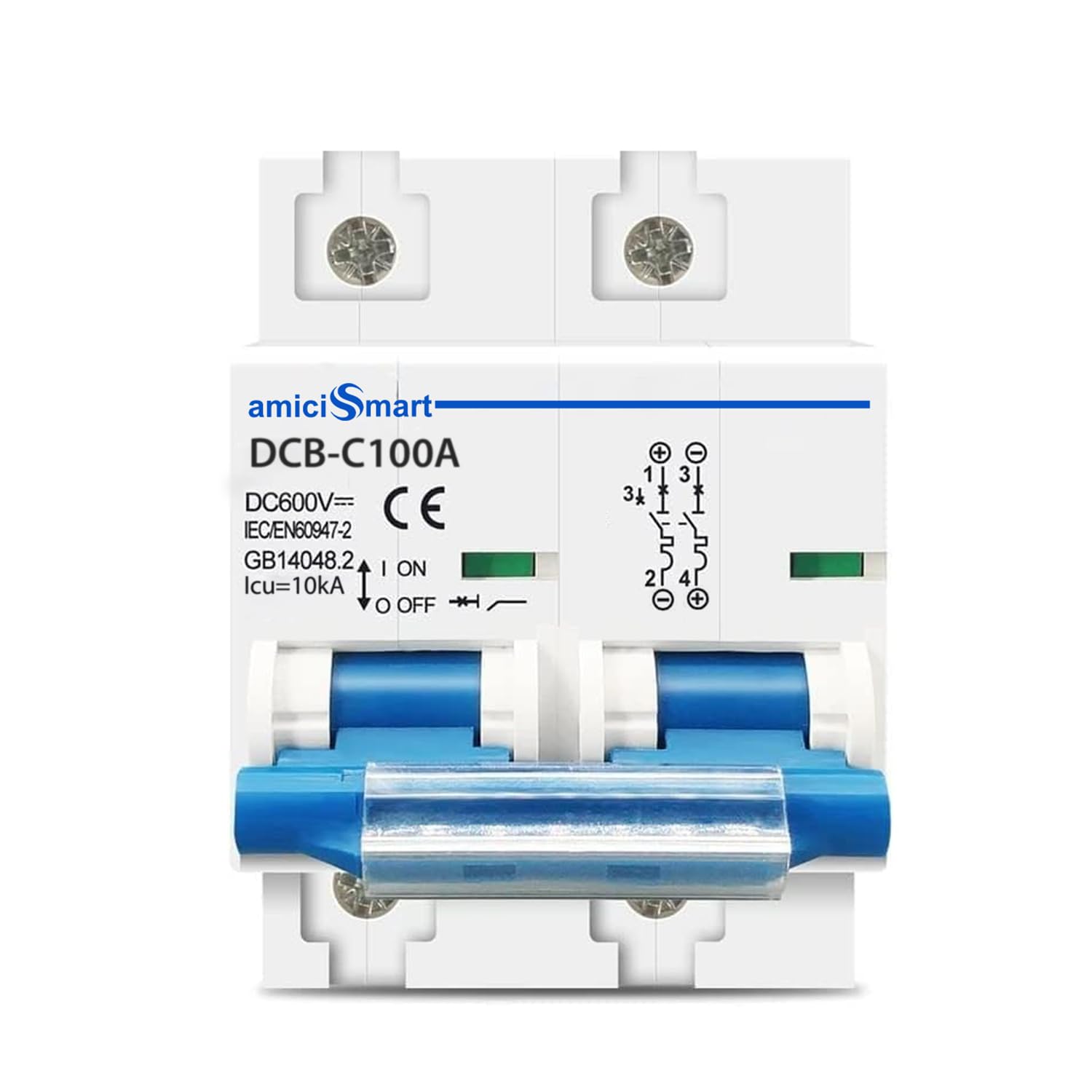

DC MCB 100A 600V, 2-Pole, C Curve, DIN Rail
amiciKart · 100A · 600V DC · 2-pole · C curve · 35mm DIN rail · IP20
A 2-pole DC circuit breaker for solar panel strings, wind-solar hybrid systems and DC distribution boards. It is rated 600V DC and 100A with a C trip curve, protects against both overload and short circuit, and mounts on a standard 35mm ...
Sale price
Rs. 1,199.00
-66%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,199.00
Unit price
Increments of 1
Minimum of 1
Maximum of
600V 100A DC Circuit Breaker for Solar Panel System, Overload & Short-Circuit Protection, DIN Rail
Sale price
Rs. 1,199.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,199.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

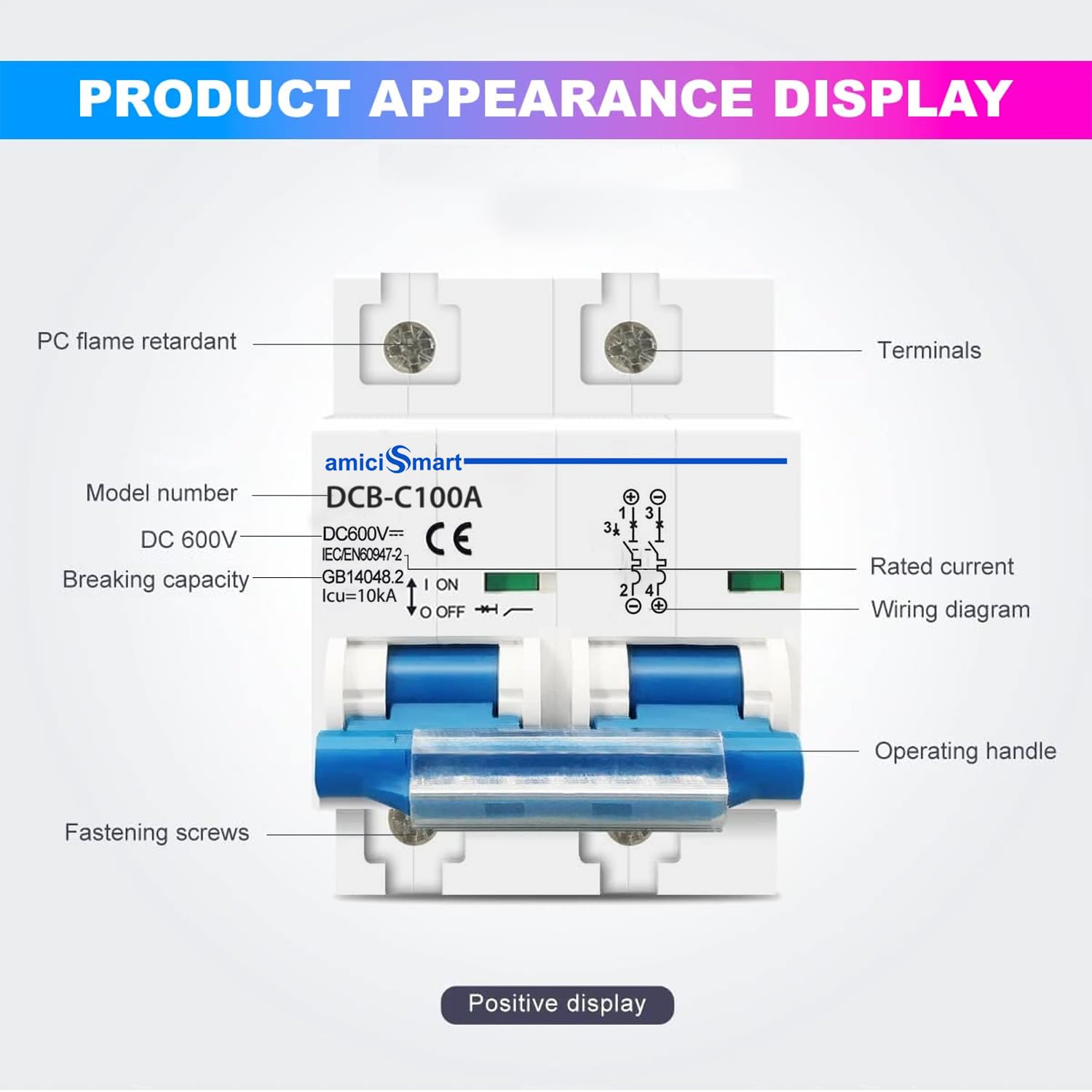

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xDC-MCB-100A |
| Type | DC circuit breaker (MCB) |
| Rated voltage | 600V DC |
| Rated current | 100A |
| Poles | 2 |
| Trip curve | C |
| Protection | Overload and short circuit |
| Mounting | 35mm DIN rail |
| Ingress rating | IP20 |

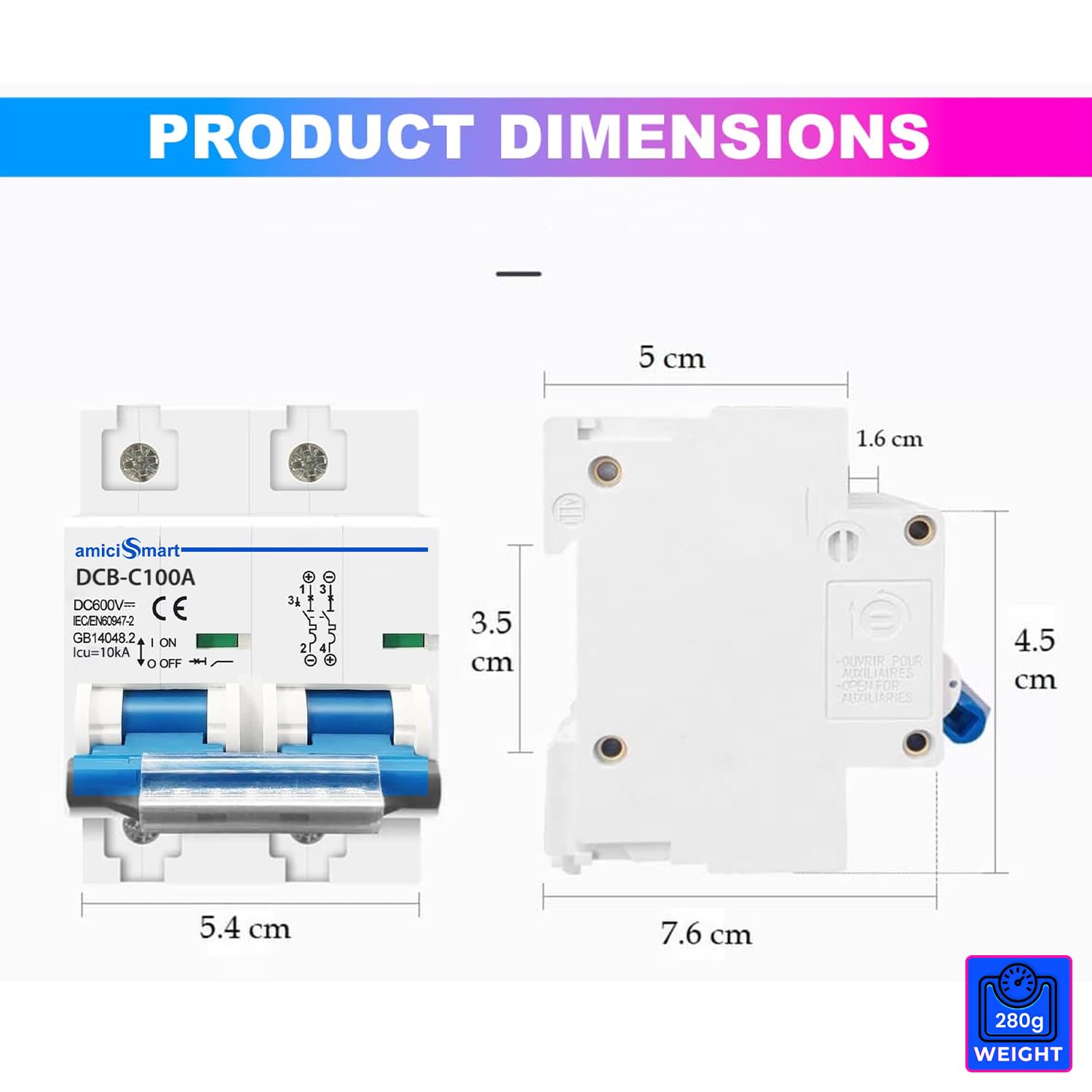

| Size | 70×50×50mm |
| Weight | 280g |
| Warranty | 1 year |
| Support | 980-970-9898 / care@amicikart.com |
Frequently asked questions
How many poles does it have?
It is a 2-pole breaker.

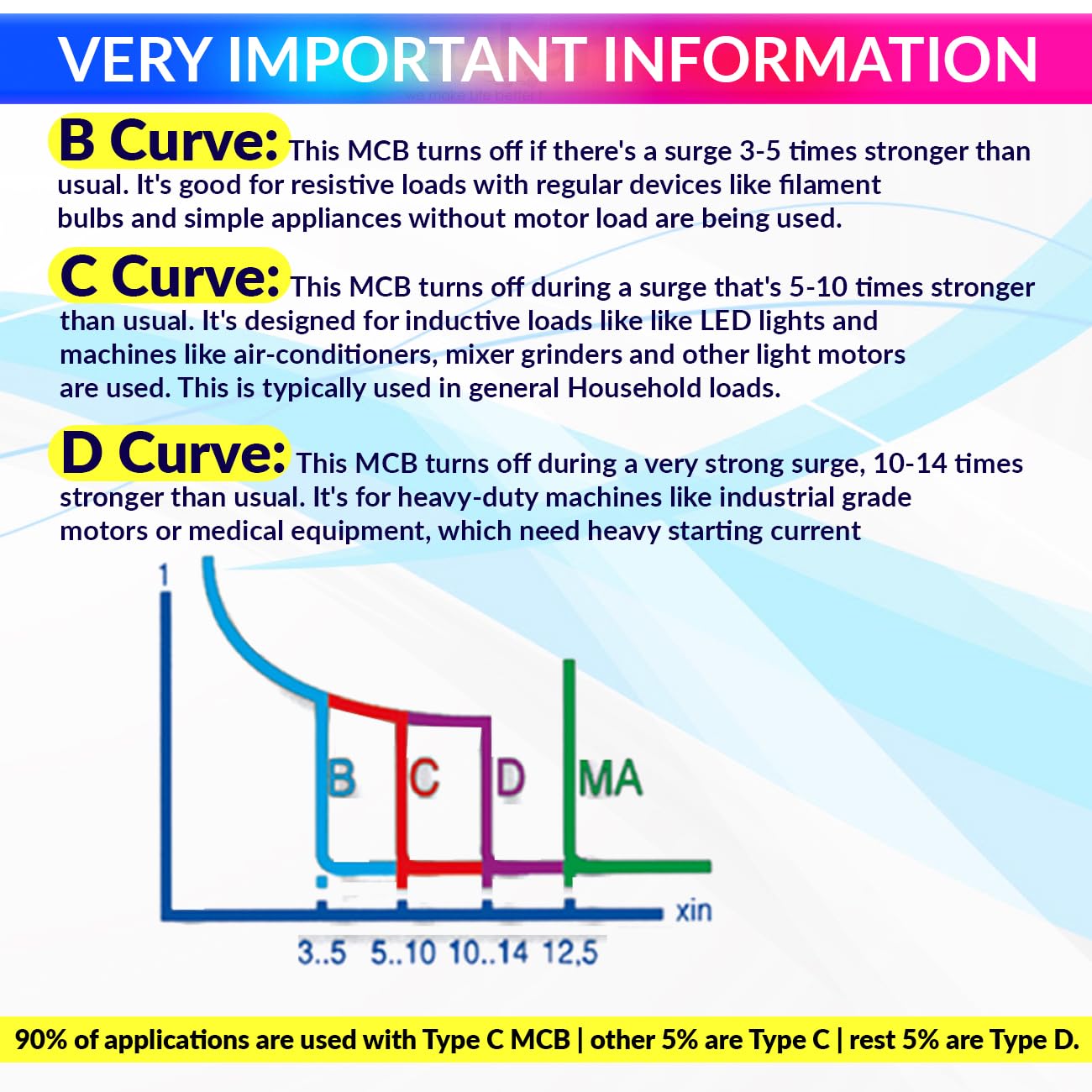

What is the trip curve?
C curve.
Can I use an AC breaker on my solar DC circuit instead?
DC arcs are harder to break than AC ones. This breaker is designed for DC circuits at up to 600V DC and 100A.
Can it go outdoors?
The body is IP20, so fit it inside a suitable enclosure.
Can I install it myself?
It should be installed by a qualified electrician with the circuit isolated, including the solar panel side.
Full Product Description
DC MCB 100A 600V, 2-Pole, C Curve, DIN Rail
A 2-pole DC circuit breaker for solar panel strings, wind-solar hybrid systems and DC distribution boards. It is rated 600V DC and 100A with a C trip curve, protects against both overload and short circuit, and mounts on a standard 35mm DIN rail in a compact IP20 body (70×50×50mm, 280g). It comes with a 1-year warranty.
- 35mm DIN rail mount: Clips onto a standard DIN rail in your distribution box.
- Compact IP20 body: 70×50×50mm and 280g, to sit alongside existing components.
- Solar and hybrid systems: Protects inverters, charge controllers and wiring on DC circuits.
- 1-year warranty: Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
Important: This breaker must be installed by a qualified electrician with the circuit isolated. Solar panels produce voltage whenever light falls on them, so isolate the panel side as well as the battery or inverter side before any work.
