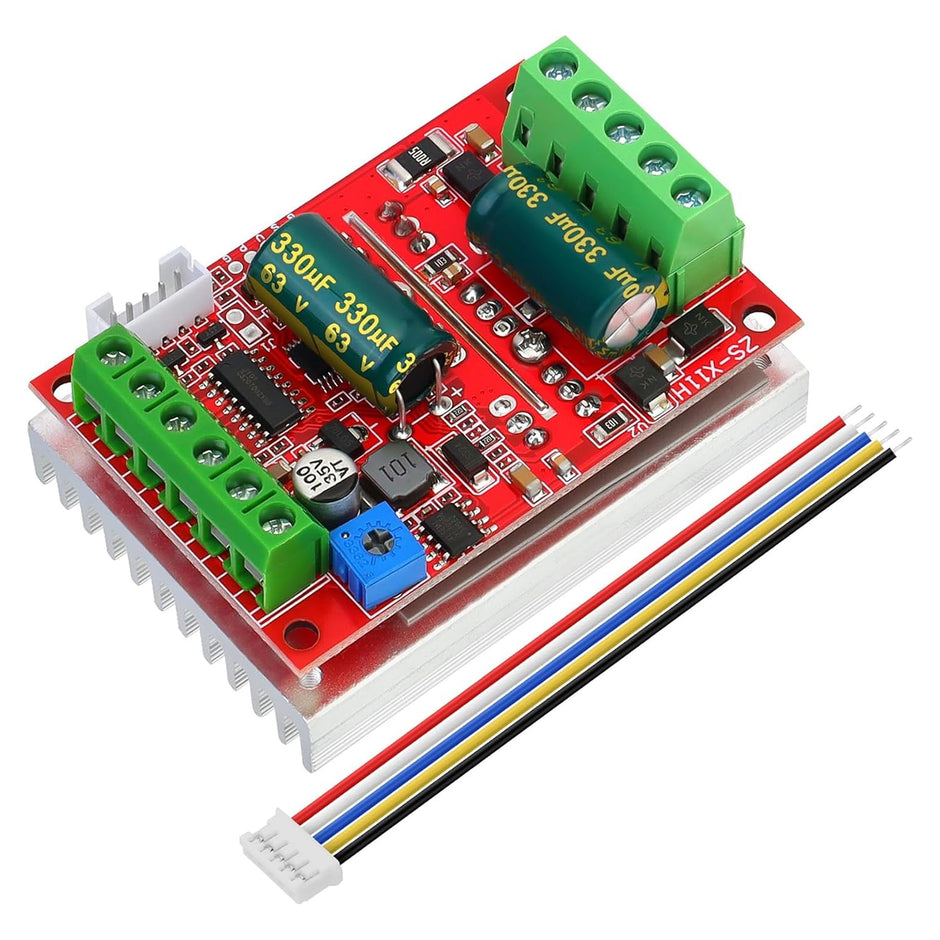

Three-Phase Brushless Motor Controller with PWM and Hall Sensor Support

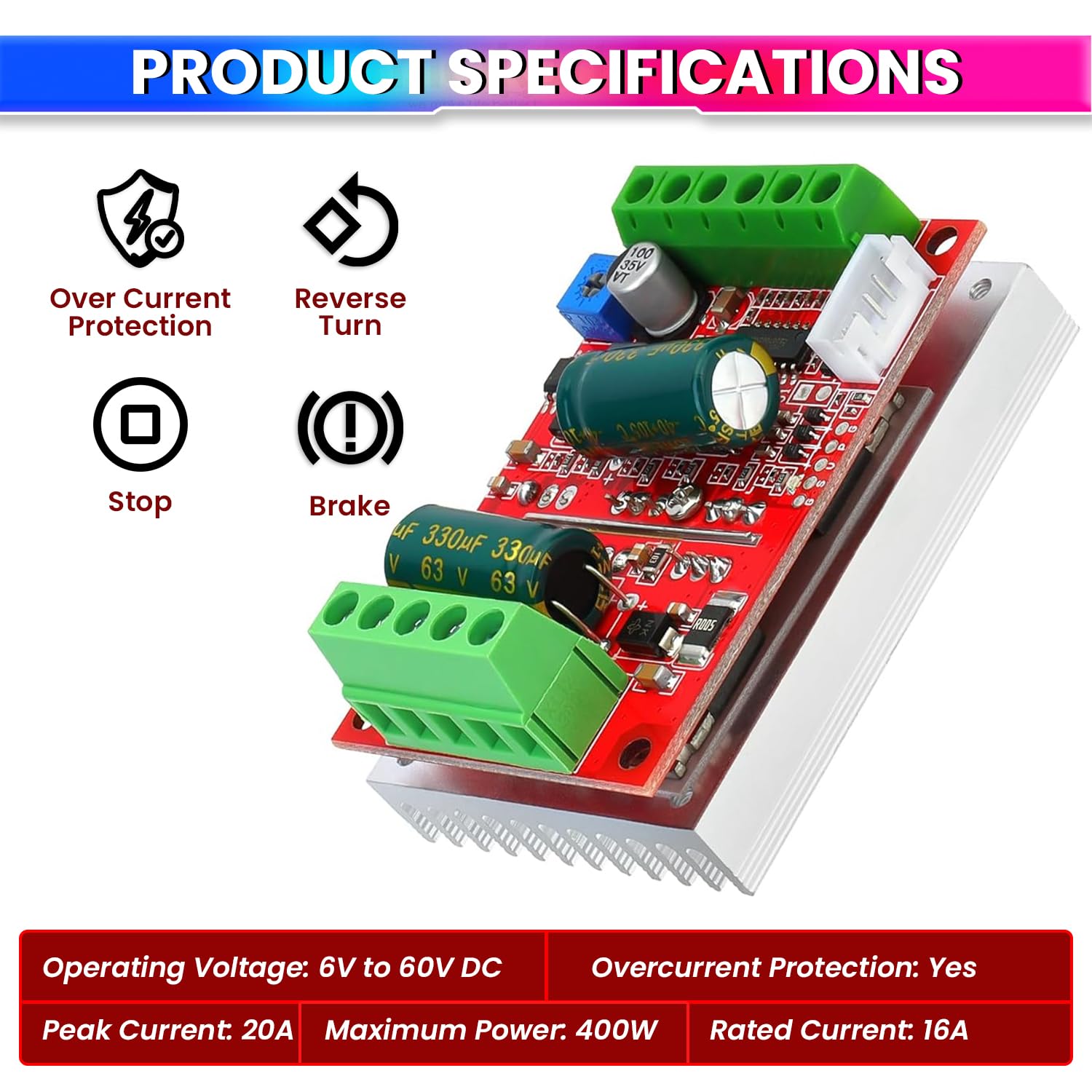

• Wide Voltage Compatibility: Operates effectively within a DC input range of 6V to 60V, accommodating various power sources.

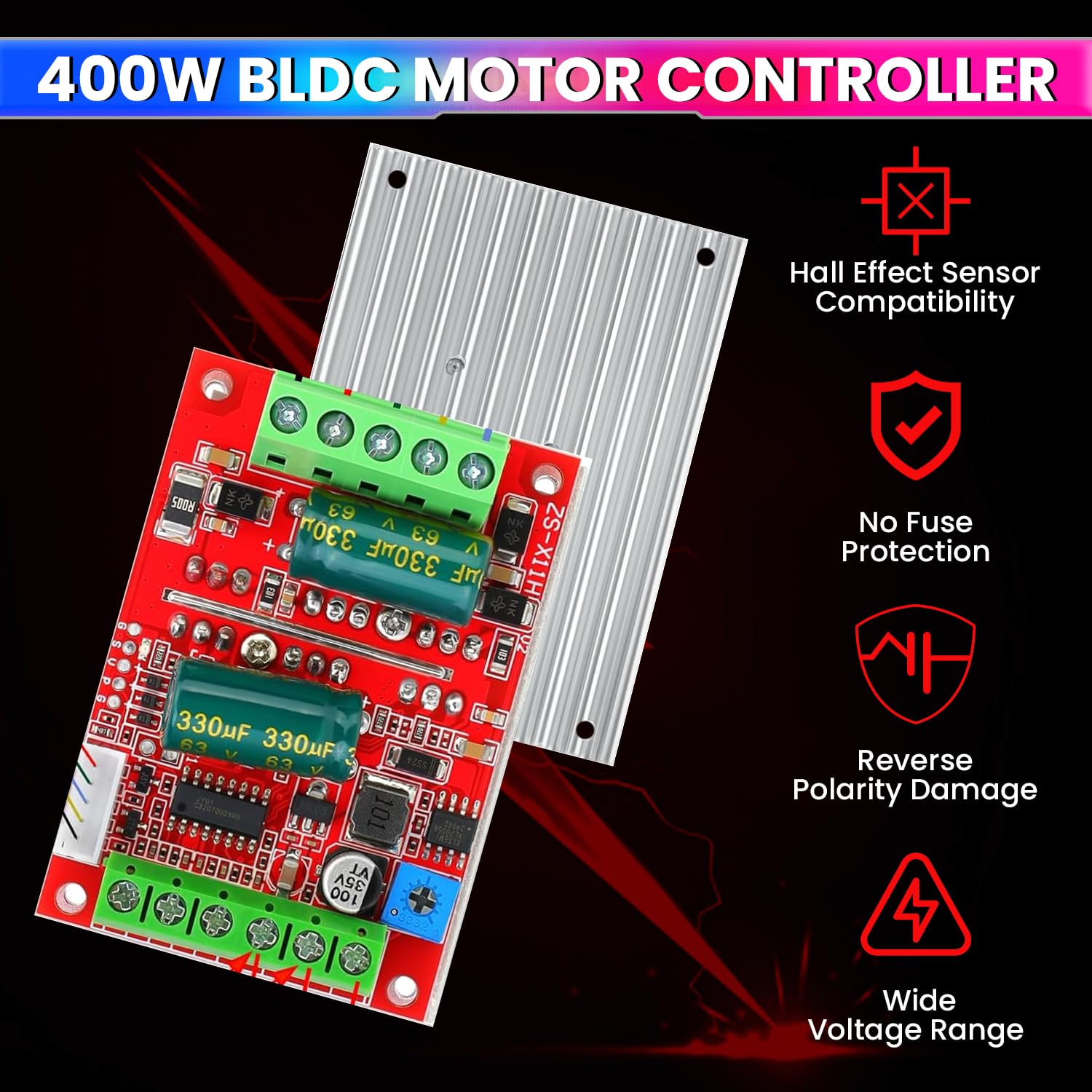

• High Power Capacity: Supports applications up to 400W, with a continuous current rating of 16A and a peak current of 20A, ensuring robust performance.
• Versatile Control Options: Compatible with PLC 0-5V analog control and accepts PWM signals with amplitudes between 2.5V and 5V for precise speed regulation.

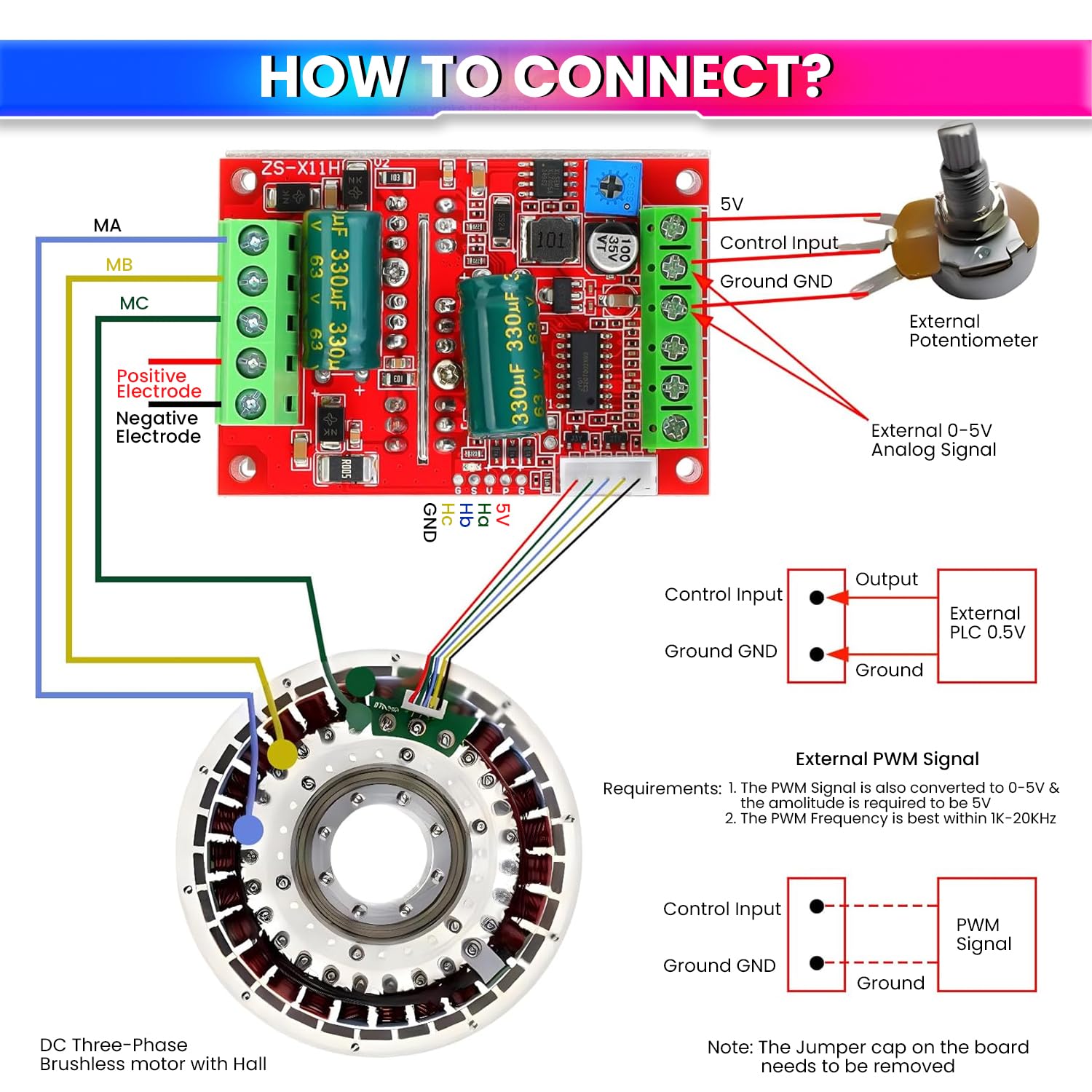

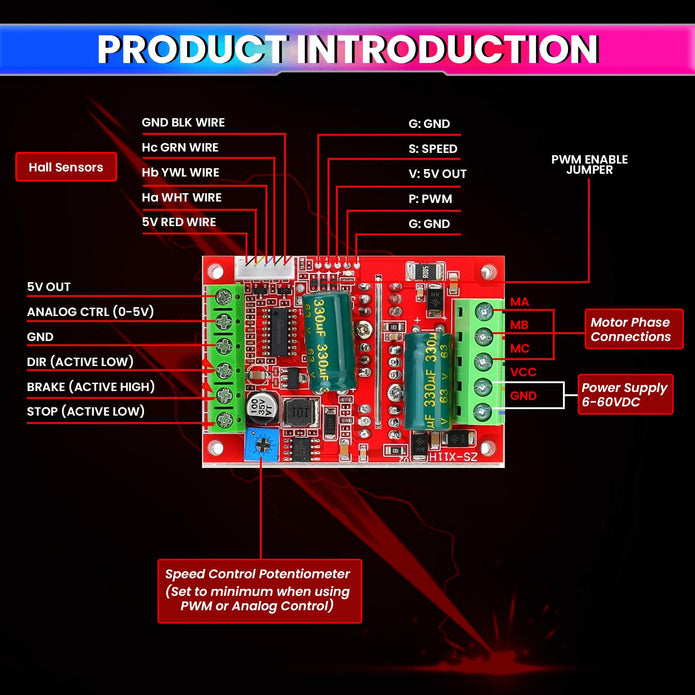

• Comprehensive Interface Support: Features phase outputs (MA, MB, MC), a 5V power supply, speed pulse signal output (SC), direction control (DIR), stop control (STOP), brake control (BRAKE), and Hall sensor inputs (Ha, Hb, Hc) for seamless integration with various motor setups.
• Compatibility Note: Designed specifically for DC brushless motors equipped with Hall sensors and an electrical angle of 120 degrees. Ensure your motor meets these specifications for optimal performance.
• Safety Precautions: Accurately match the motor's Hall signal wires (Ha, Hb, Hc) with the controller's corresponding inputs to ensure proper functionality. Perform initial tests using low voltage and current to verify correct wiring before applying full operational power, minimizing the risk of damage.
• Application: This controller is ideal for applications requiring precise control of brushless DC motors, such as electric vehicles, drones, fans, and industrial equipment.
• Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart at 980 970 9898 or care@amicikart.com)
