Know before you buy
-
Electrician / qualified installer required
3-phase 60A DIN-rail protector. Isolate supply; verify phase wiring.
-
380V · 60A · 22.8 kVA (listing)
Heavy-duty 3-phase rating published on title and body.
-
Trip <1s · reconnect ~60s (listing)
Cuts above 460VAC / below 300VAC; restores in ~60s inside 300–460VAC.
-
Single SKU · 1xTOMZN-VPD3-60
Built-in switching protector — not the external-contactor JVR relay.
Features that make it useful
-
Automatic OV/UV cut-off
Protects motors/pumps/appliances from surges and dips (listing).
-
Auto re-connect
No manual reset when voltage stabilises (listing).
-
Green / red LED status
Green normal · red fault (listing).
-
35mm DIN-rail compact body

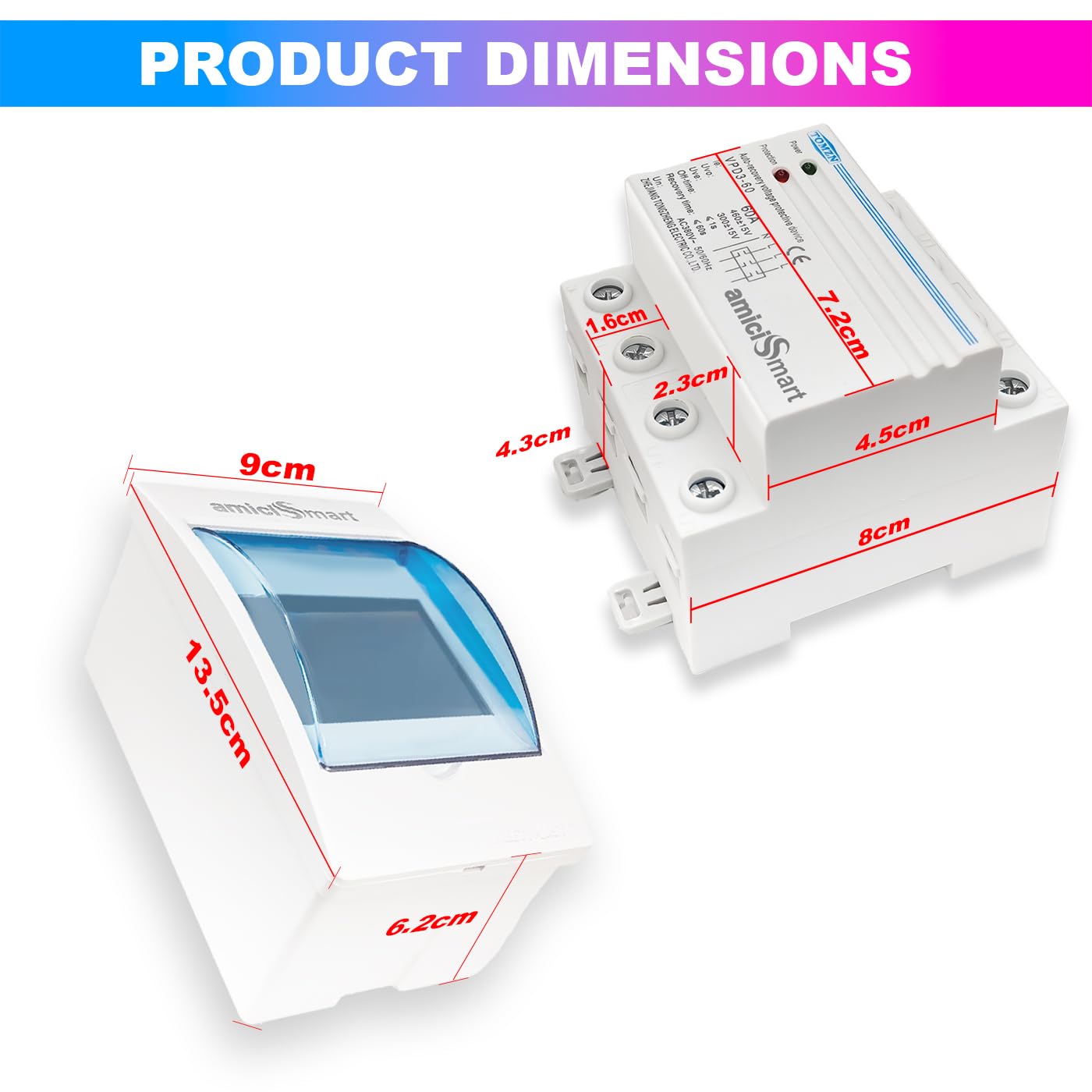

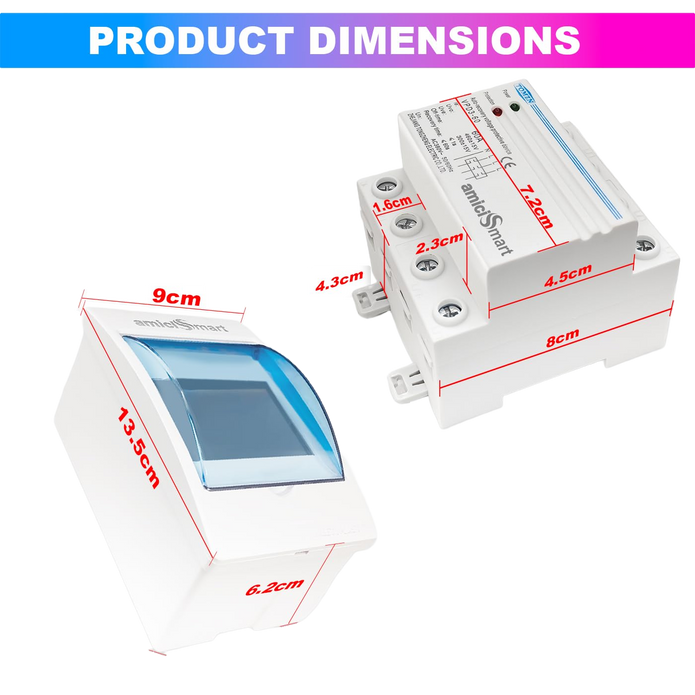

Listing size about 35×70×77 mm.
How to use
-
Confirm 3-phase 380V board and 60A cable
Match protector to incomer/load with an electrician.
-

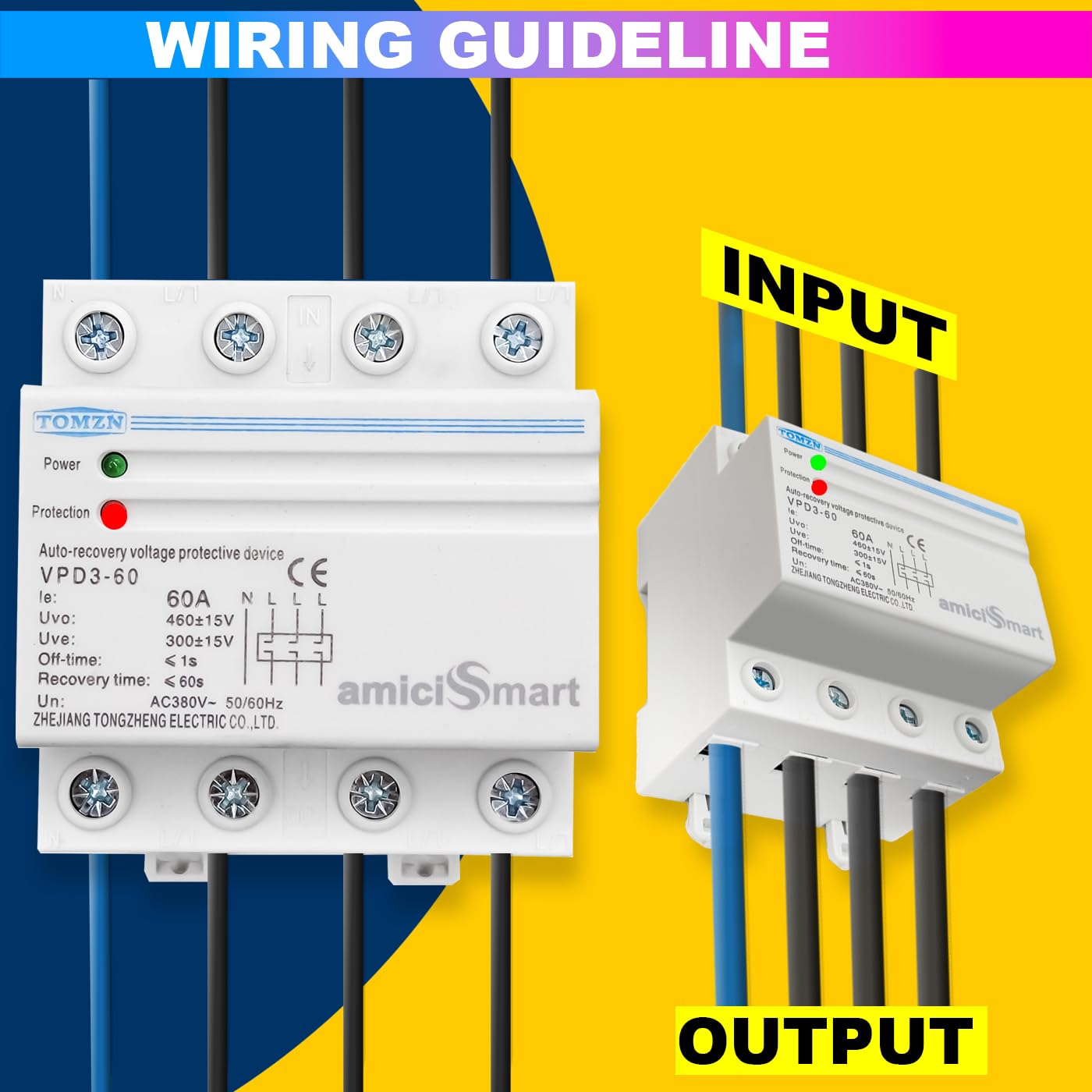

Mount on DIN-rail and land 4-wire connections
Follow device markings for 3-phase + neutral topology as applicable.
-
Verify LED and trip/reconnect behaviour
Supervised test before leaving the panel unattended.

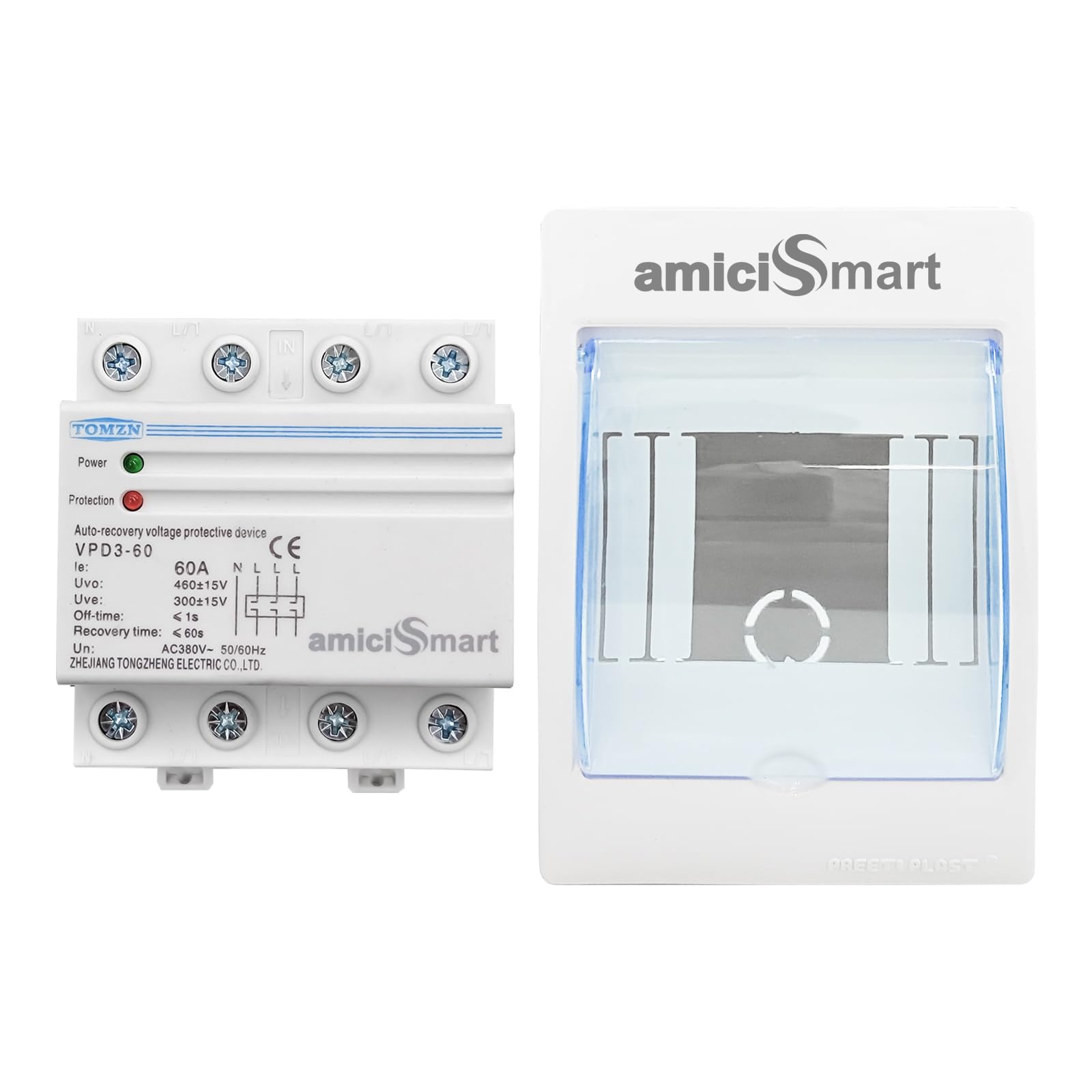

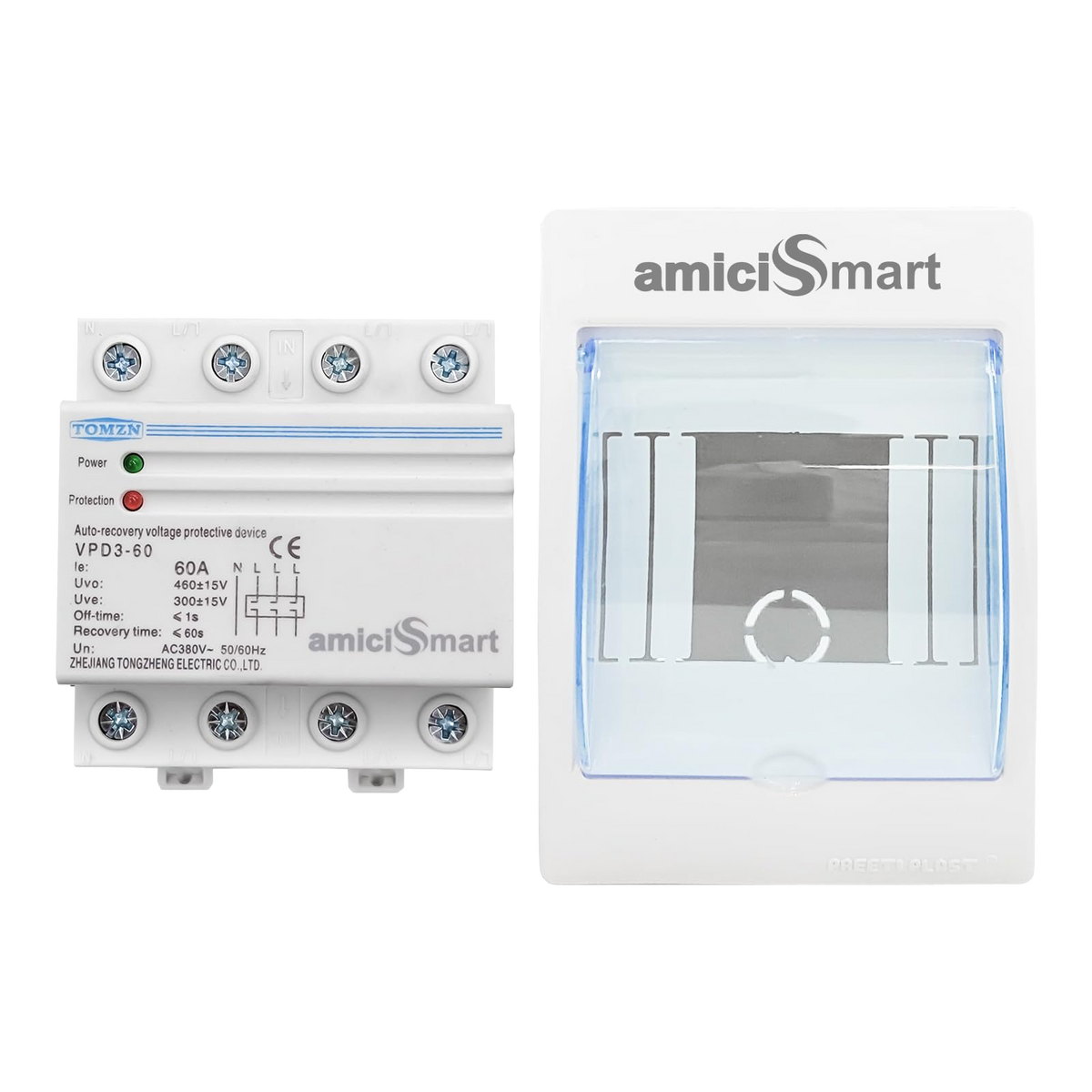

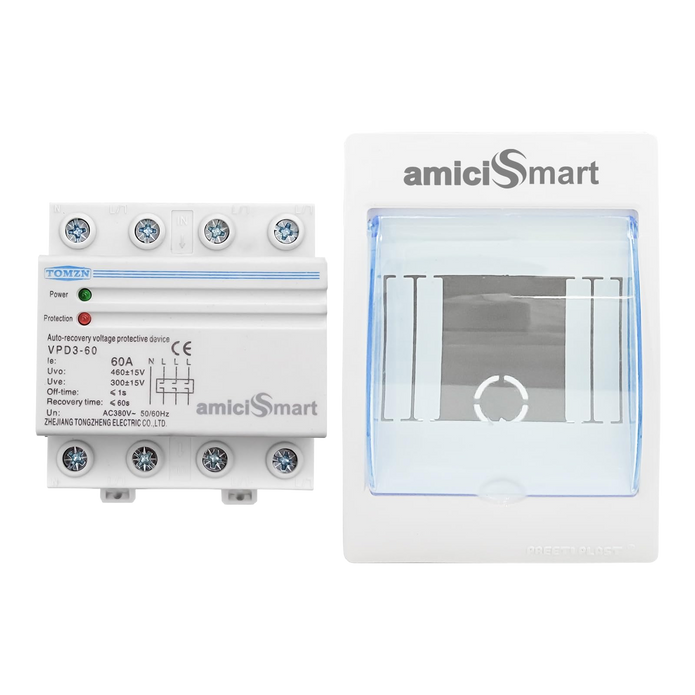

3-Phase Auto OV/UV Protector 380V 60A
amiciSmart · 380V · 60A · 22.8 kVA · trip <1s · auto reconnect ~60s · DIN-rail · 300–460VAC window
DIN-rail 3-phase automatic over/under voltage protector with built-in switching. Listing: 380V, 60A, max load 22.8 kVA, 50/60 Hz; trips in under 1 second above 460VAC or below 300VAC; auto reconnect within about 60 seconds when supply re...
Sale price
Rs. 2,499.00
-45%
Regular price
Rs. 4,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,499.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Automatic Over/Under Voltage Protector with Auto Re-Connect 4 Wire Din-Rail Mounted 3 Phase 380V, 60A
Sale price
Rs. 2,499.00
Regular price
Rs. 4,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 2,499.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xTOMZN-VPD3-60 |
|---|---|
| Product ID | 8360587231387 |
| Brand (handle) | amiciSmart |
| Device class | 3-phase automatic over/under voltage protector with auto reconnect |
| Rated voltage (listing) | 380V |
| Rated current (listing) | 60A |
| Max load (listing) | 22.8 kVA |
| Frequency (listing) | 50/60 Hz |
| Cut-off thresholds (listing) | Above 460VAC or below 300VAC |
| Cut-off response (listing) | Under 1 second |
| Safe / reconnect window (listing) | 300–460VAC · reconnect within ~60 seconds |
| Indicators (listing) | Green = normal · Red = fault |
| Size (listing) | About 35×70×77 mm · 35mm DIN-rail |
| Named certifications | Not published — none invented |
| Warranty (listing) | 1 year; support 980-970-9898 / care@amicikart.com |
| Evidence note | Live product.js only (Batch 6) |
Frequently asked questions
Is this the same as the JVR-1000 relay?
No. JVR-1000 (1xJVR-1000-N) drives an external contactor. This SKU is a 60A built-in switching protector.
What voltages make it trip?
Listing: trips when voltage goes above 460VAC or below 300VAC, in under 1 second.
Do I reset it manually?
Listing: auto reconnect within about 60 seconds after voltage returns to 300–460VAC.
Full Product Description
amiciSmart 3-Phase Auto Voltage Protector 380V 60A
Draft for 8360587231387 / 1xTOMZN-VPD3-60. Live listing only.
380V / 60A / 22.8 kVA, trip <1s outside 300–460VAC, auto reconnect ~60s. Distinct from contactor-driven JVR relay. Qualified electrician required.
