Know before you buy
-
Single-phase supply
For a single-phase, 220V AC circuit. Check your supply before ordering.
-
Choose the 63A rating
Have your electrician assess the combined connected load against the 63A rating.
-
Mount included
Includes the protective mount shown. Arrange installation by a qualified electrician.
Features that make it useful
-
Three protection settings
Adjustable over-voltage, under-voltage and overload cut-off settings.
-
Automatic reconnect
Reconnects after the supply recovers and your selected delay has passed.
-

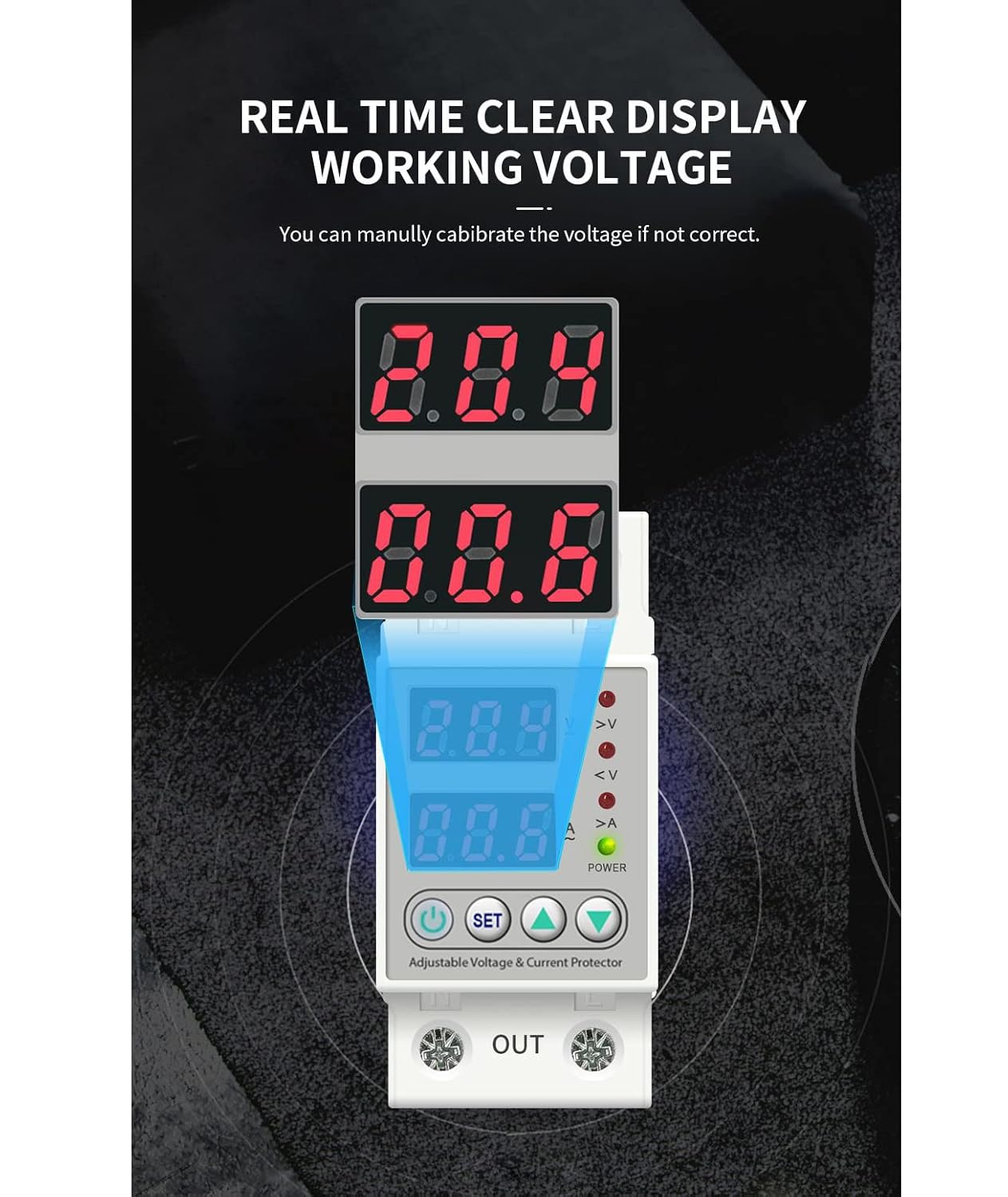

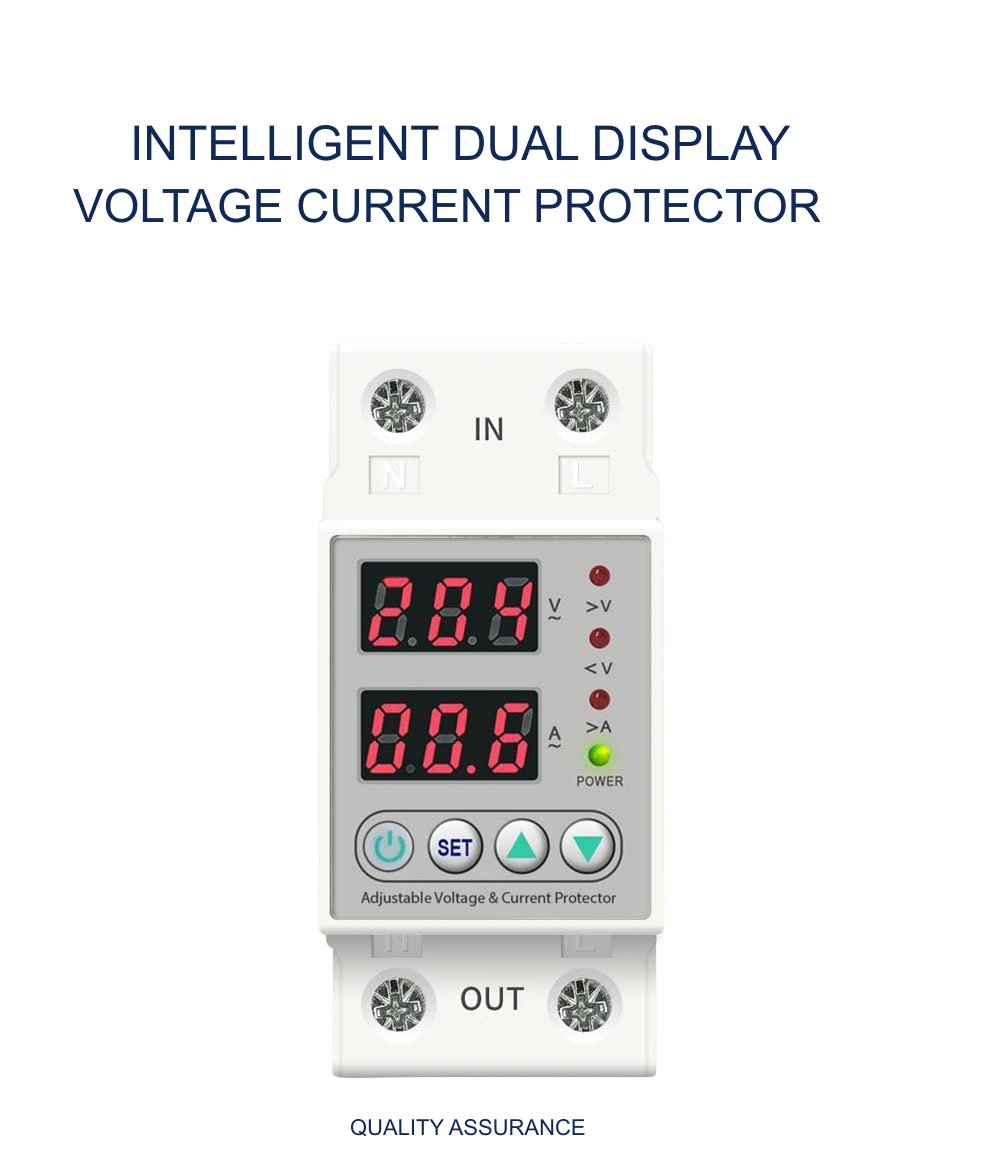

Live LED readings
View voltage and current on the built-in display.
How to use
-
Check supply and load
Ask your electrician to check the circuit and appliance requirements against the 63A rating.
-
Install and set limits
Arrange professional installation and select suitable cut-off settings and reconnect delay.
-
Monitor the readings
View voltage and current on the LED display. Power reconnects automatically after recovery and the selected delay.

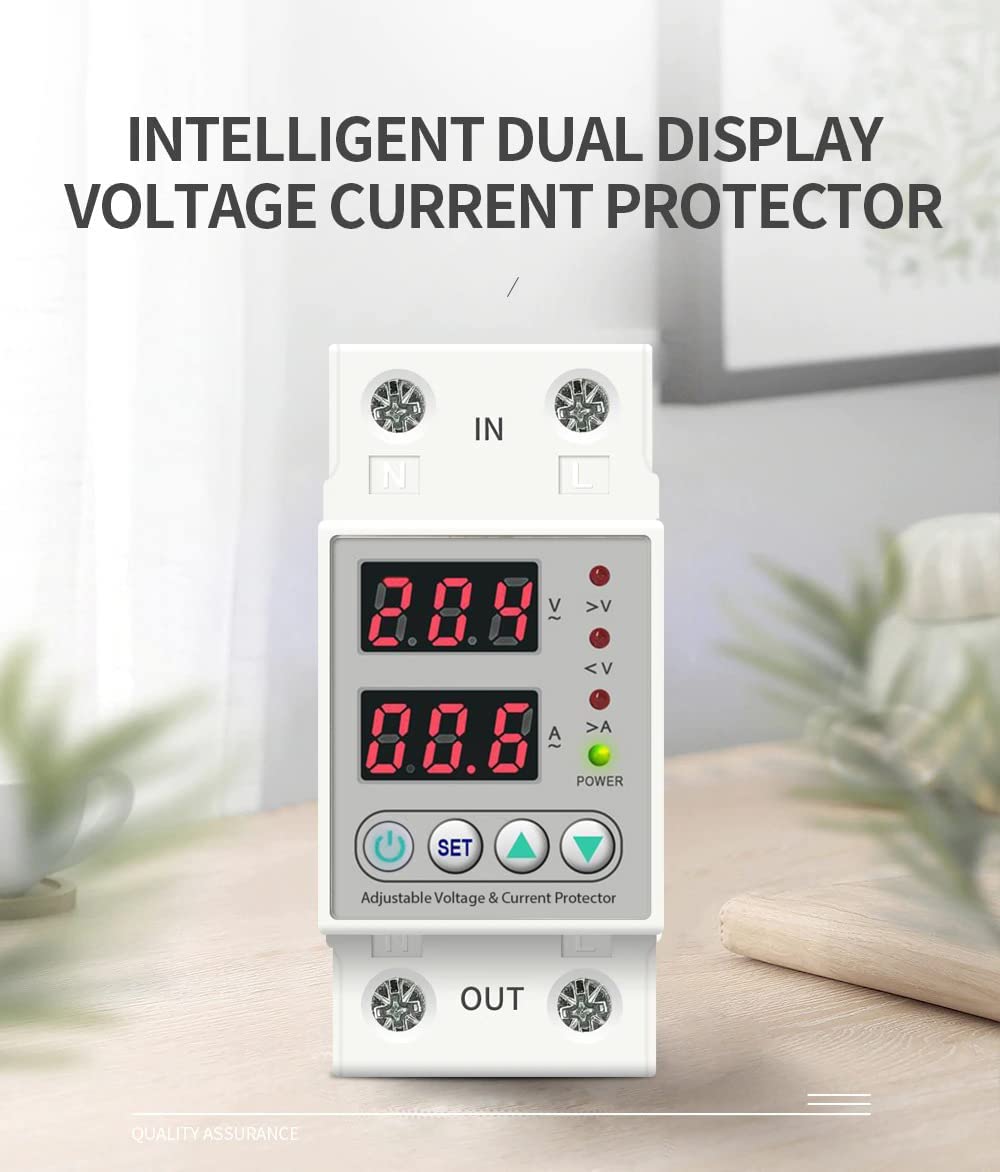

Automatic Voltage & Overload Protector
220V AC · 63A · White model · With mount
Must Buy
Cuts power when voltage moves outside your set range or current exceeds your limit, then reconnects automatically after recovery and the selected delay.
Sale price
Rs. 1,399.00
-61%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,399.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Automatic Over/Under Voltage & Overload Protector, 220V 63A DIN-Rail Mount with LED Display & Auto Reconnect
Sale price
Rs. 1,399.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,399.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

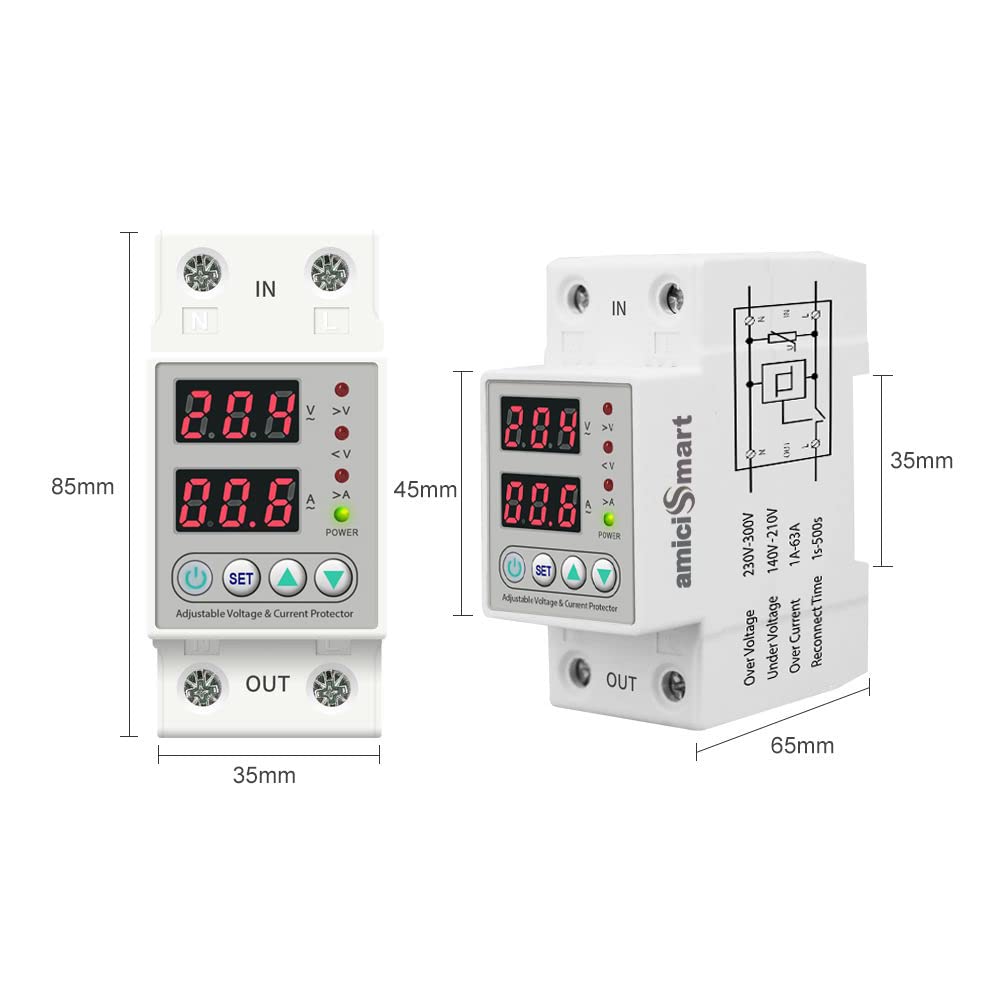

Specifications
| Model | White model |
|---|---|
| Current rating | 63A |
| Package option | Device with protective mount |
| Supply | Single phase, 220V AC |
| Over-voltage adjustment | 230–300V |
| Under-voltage adjustment | 80–210V |
| Overload adjustment | 1–63A |
| Listed response time | 0.1 seconds |
| Reconnect delay | 1–500 seconds, adjustable |
| Display | LED voltage and current readings |

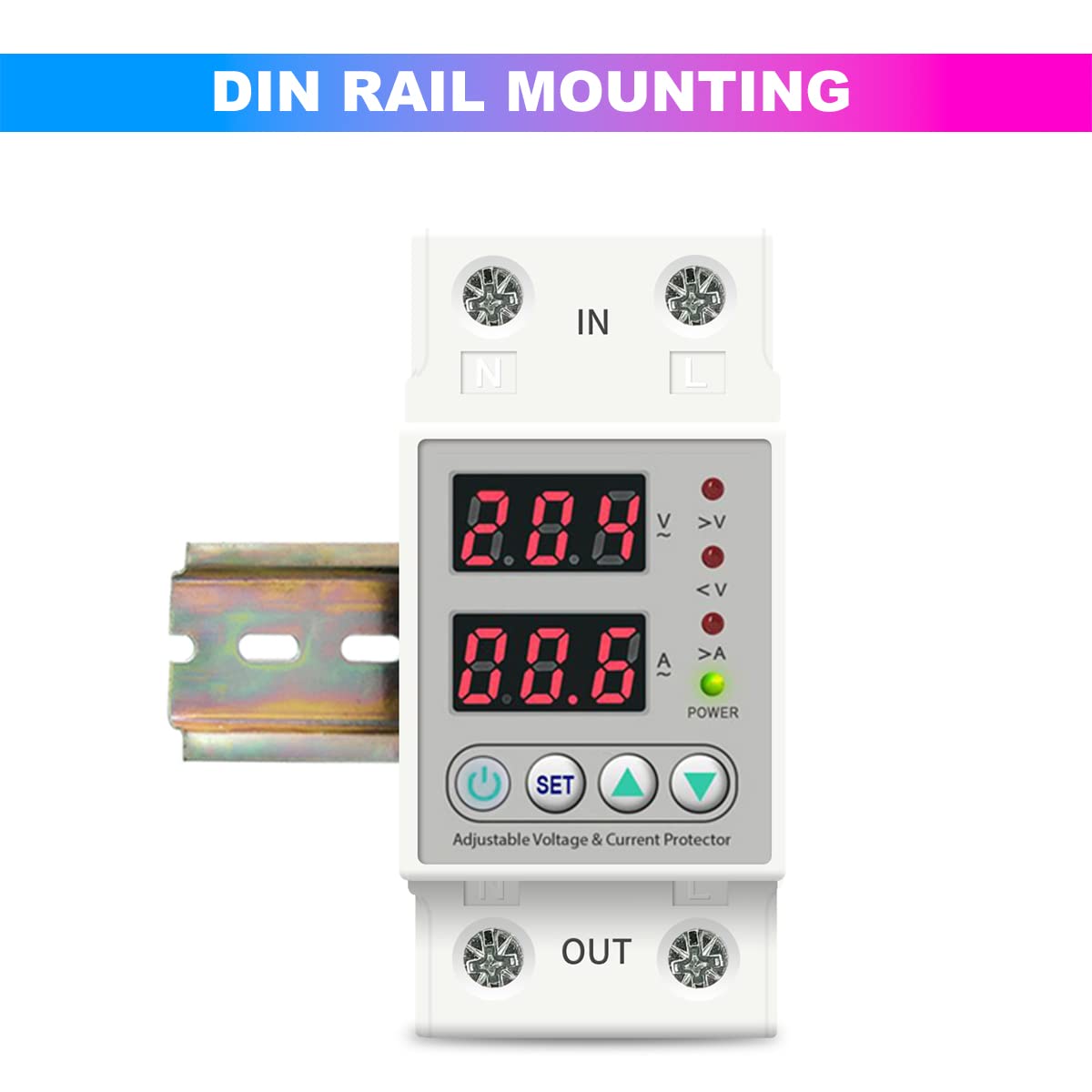

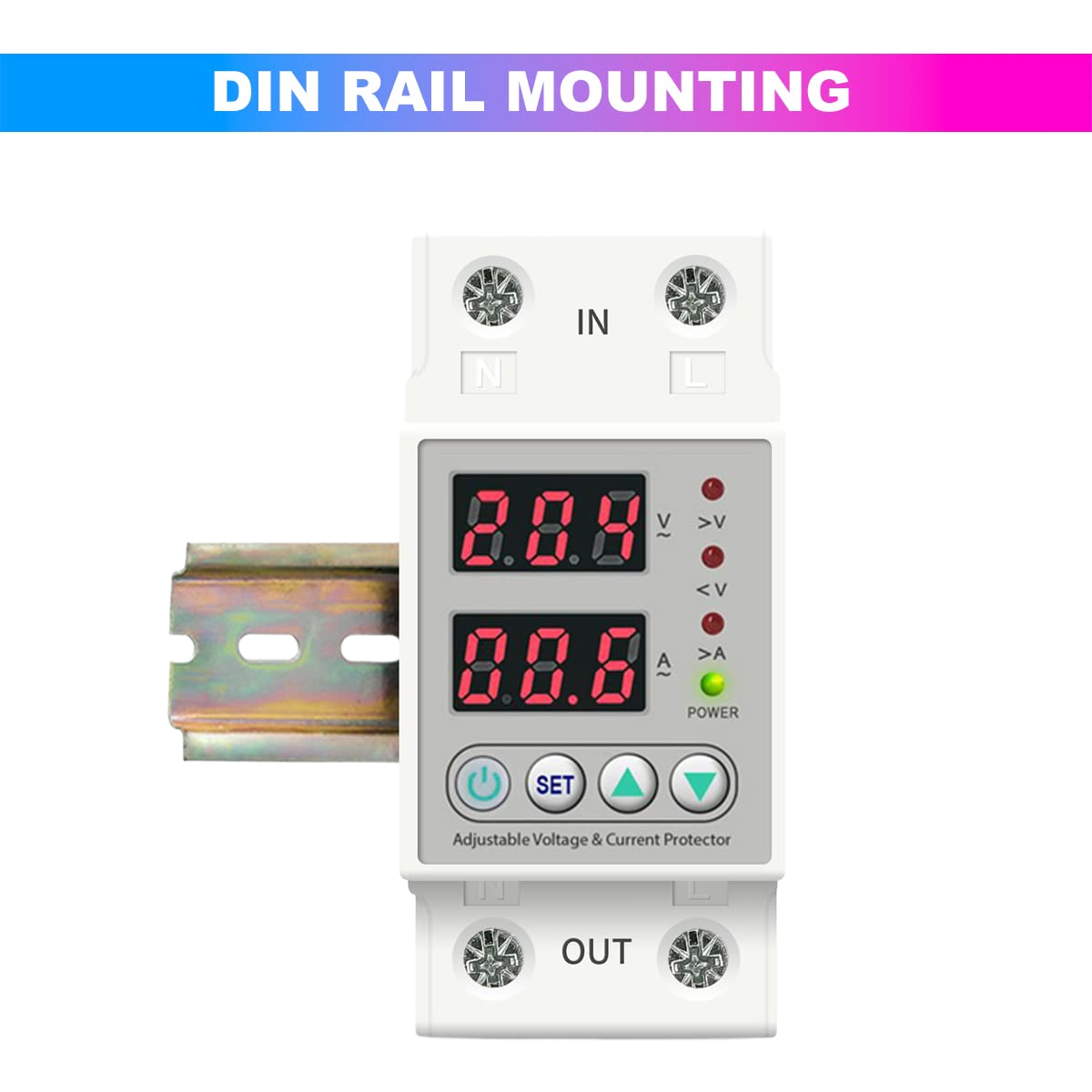

| Device mounting | DIN rail |
Frequently asked questions
Which current rating should I choose?
This listing is for the 63A white model. Ask your electrician to assess the connected load and circuit before choosing a rating.

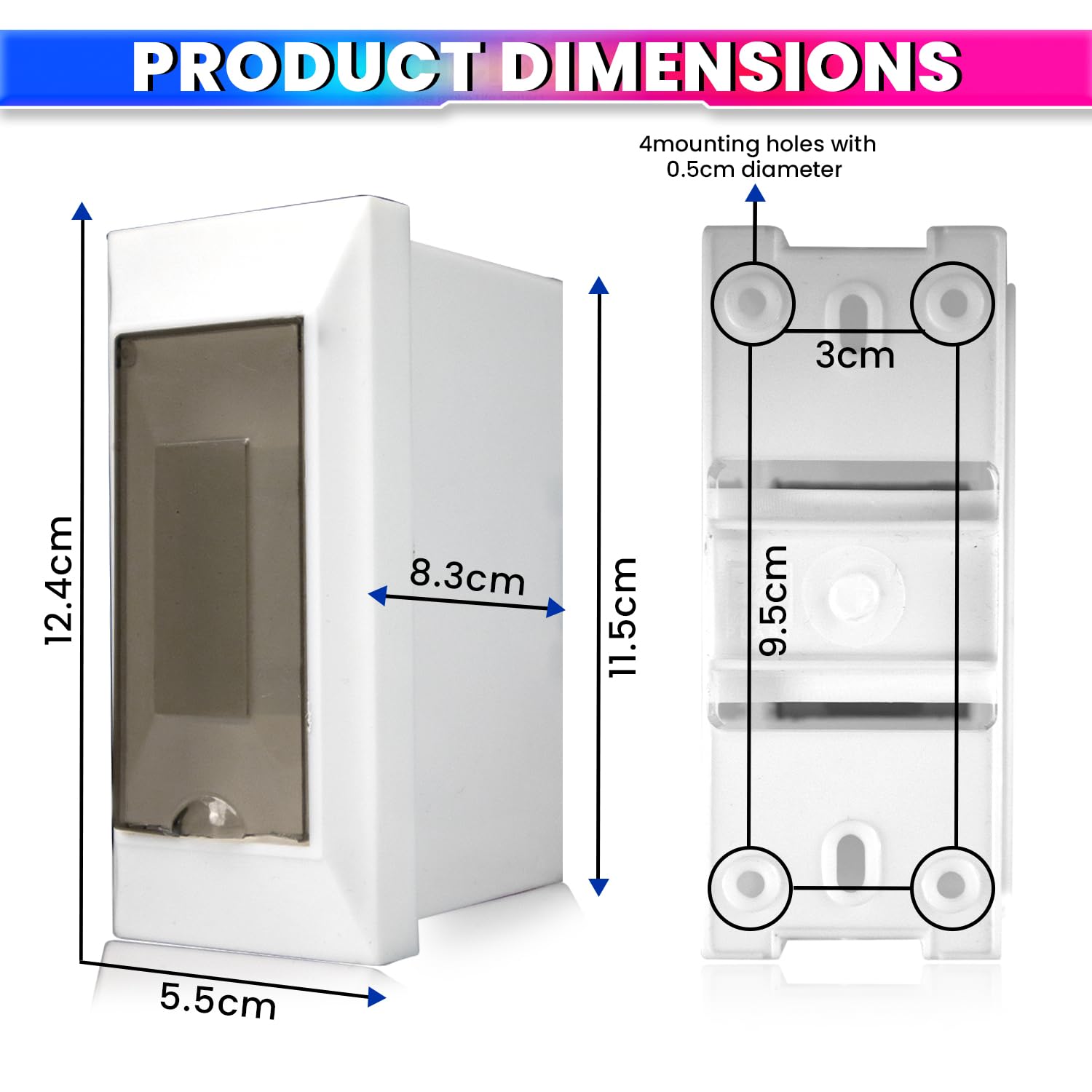

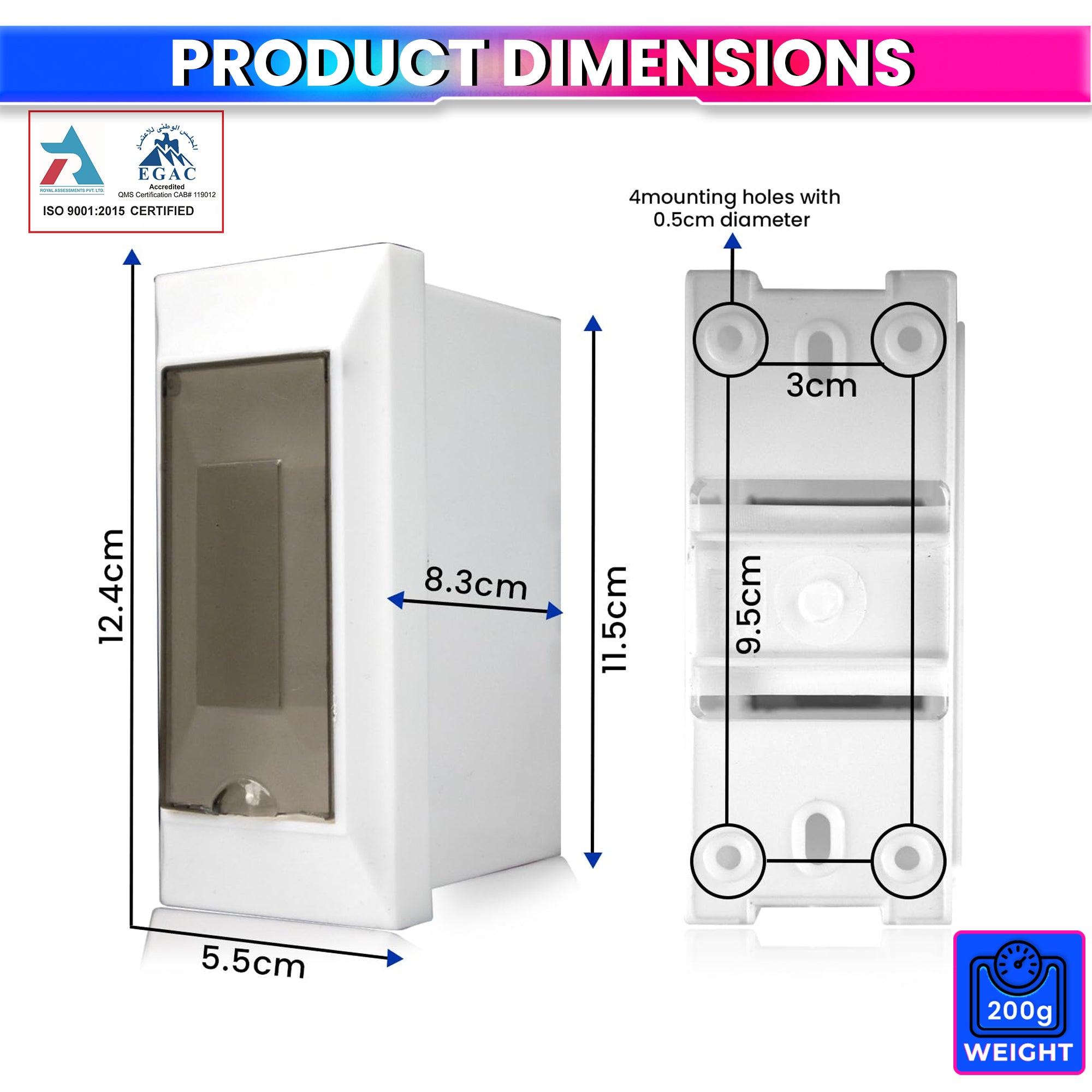

Does this option include a mount?

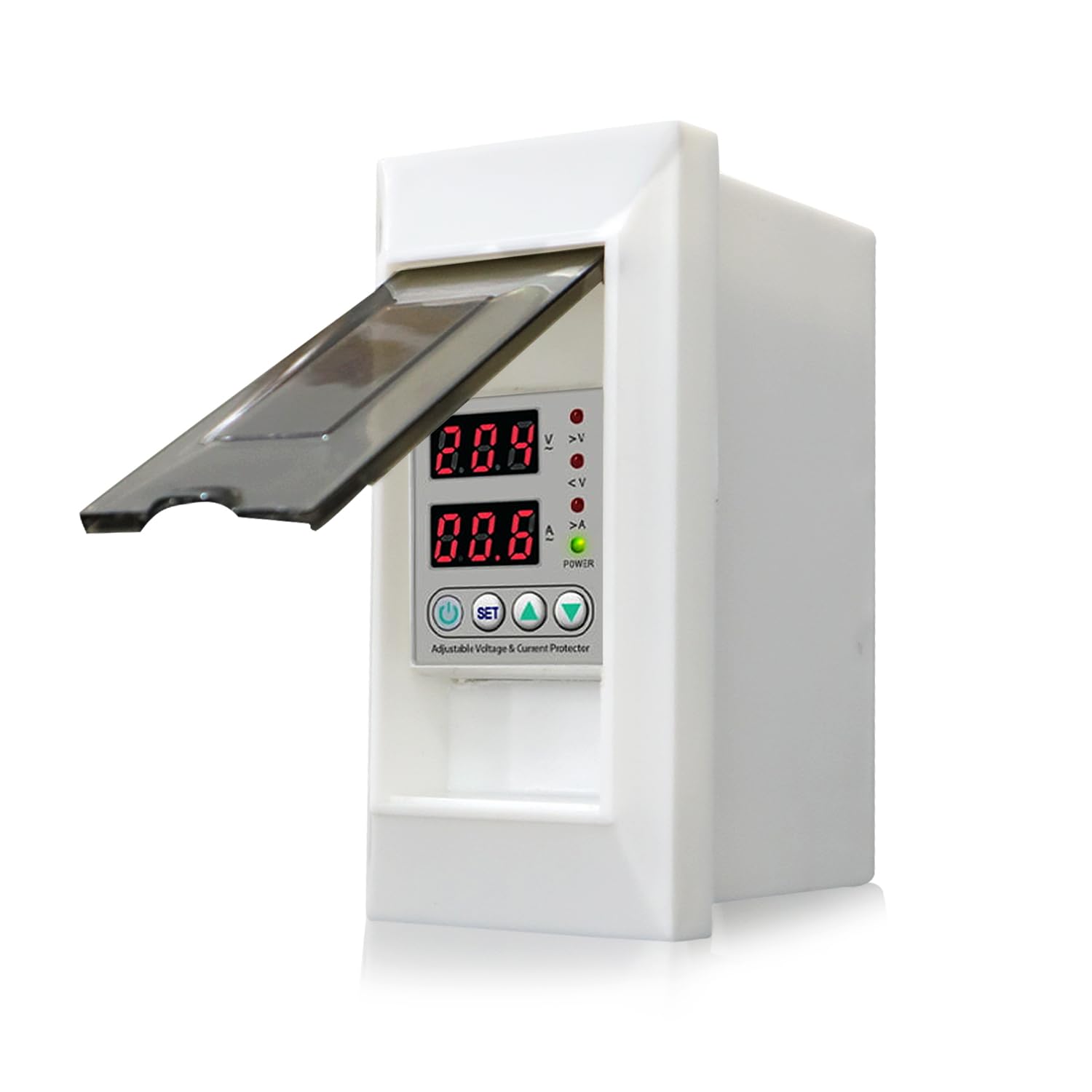

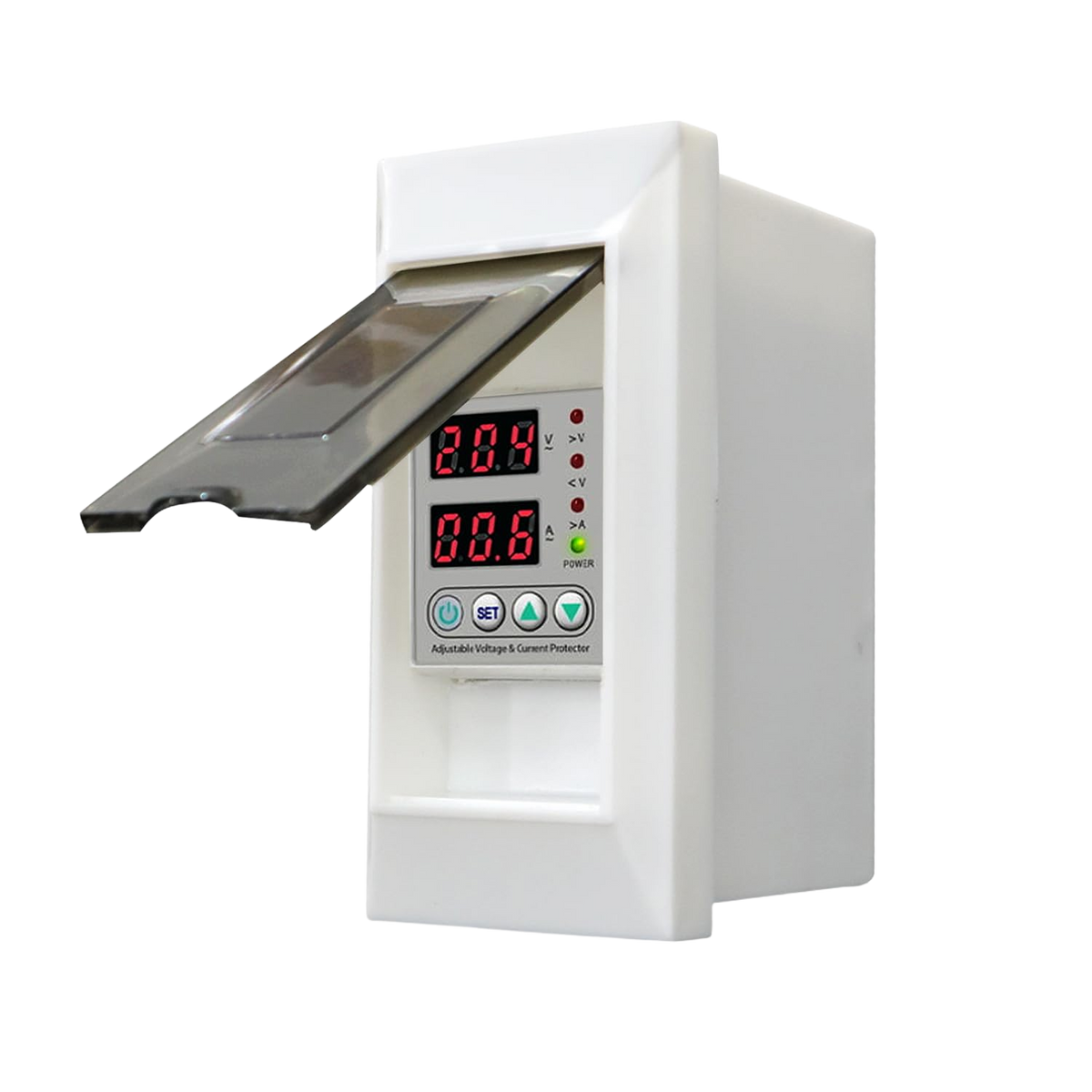

Yes. This option includes the device and the protective mount shown in its product photograph.

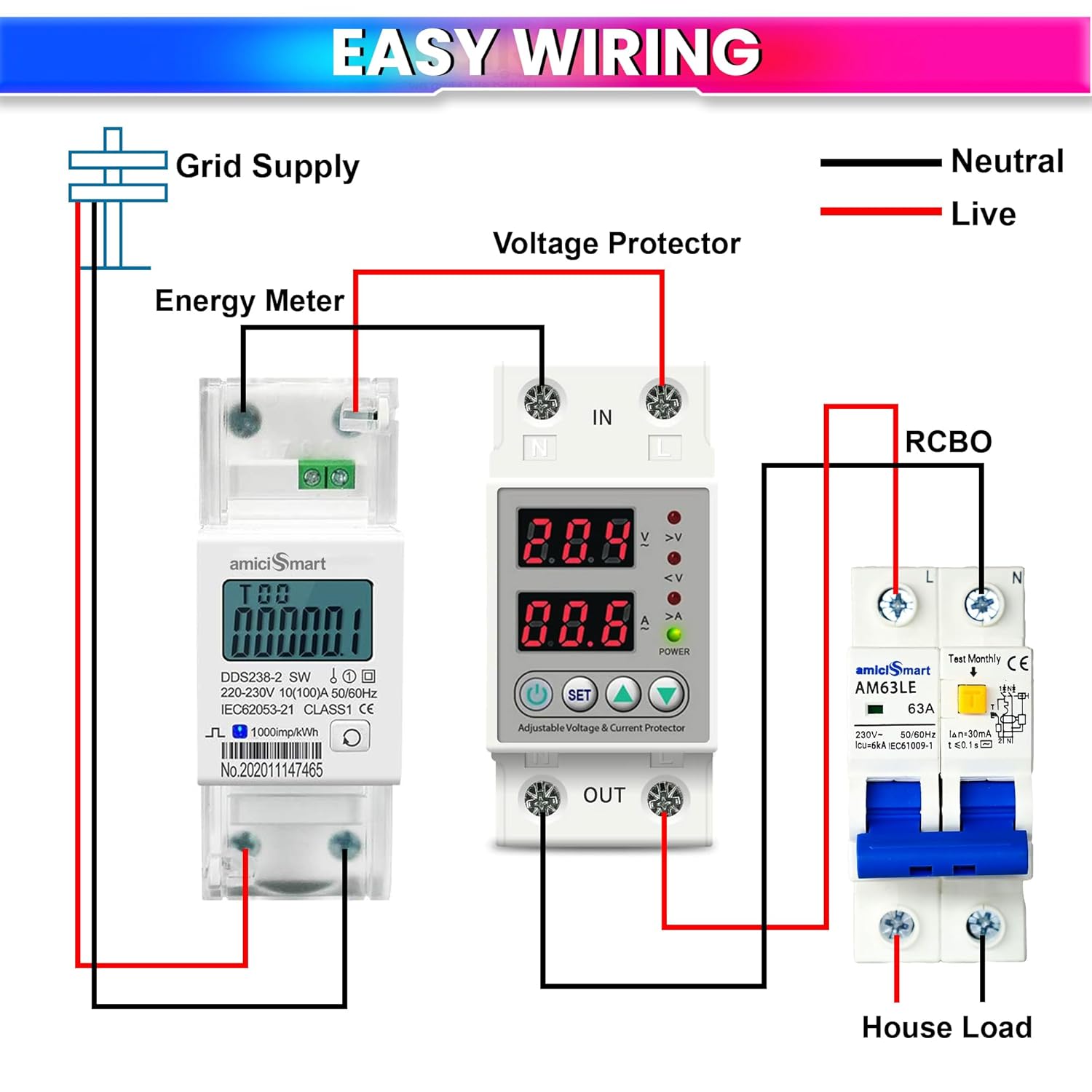

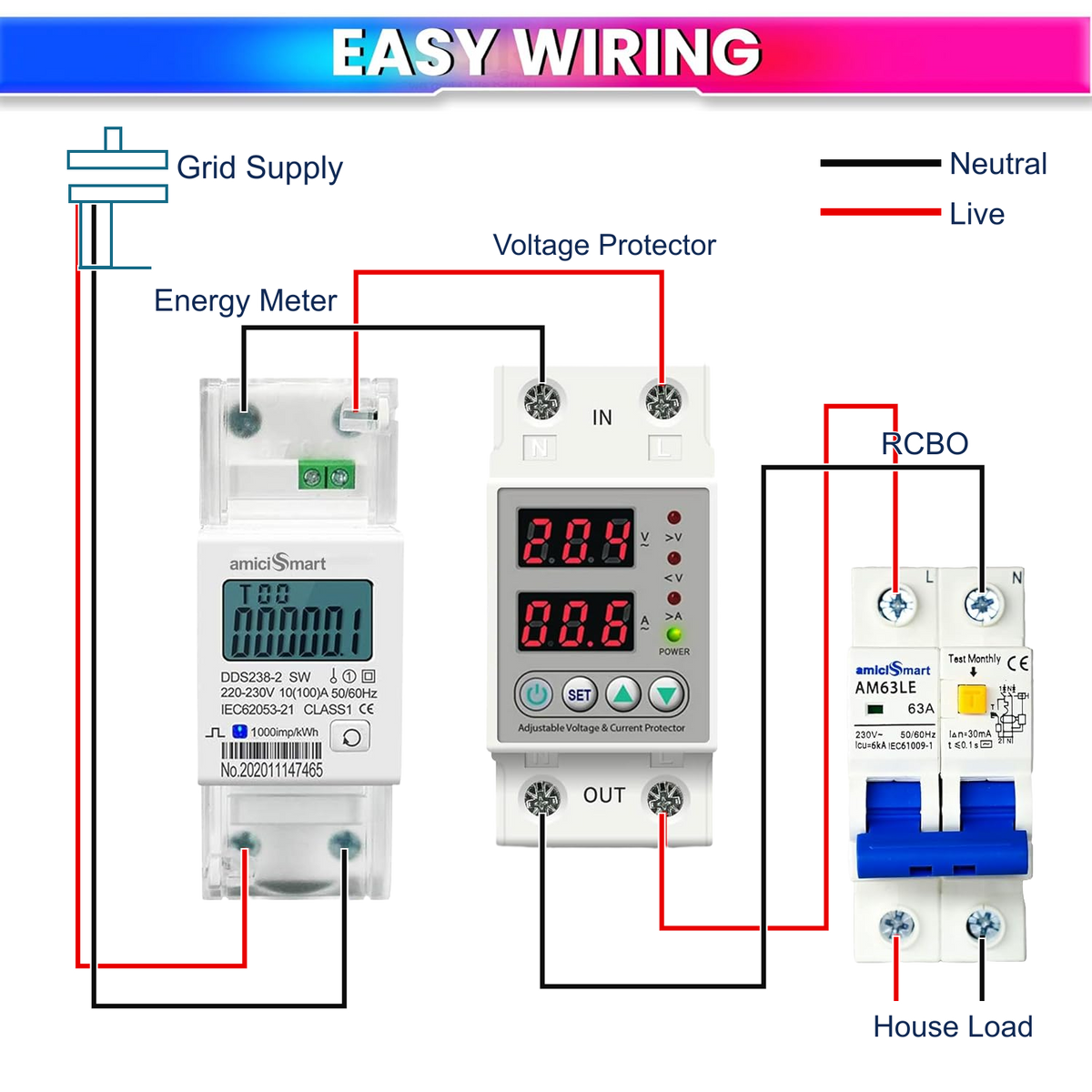

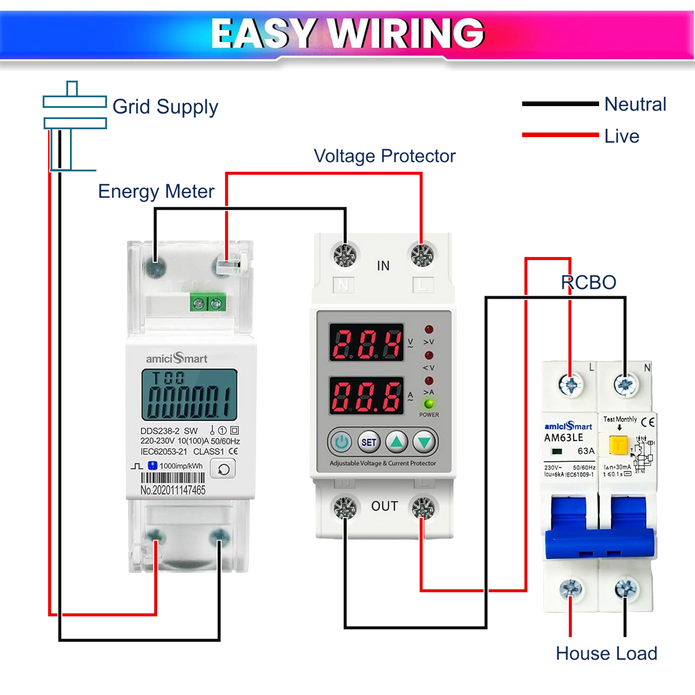

Are the energy meter and RCBO shown in the wiring graphic included?
No. This option includes the voltage protector and protective mount. The other devices in the wiring graphic illustrate a circuit arrangement.
Can I adjust the protection settings?
Yes. The listed settings are 230–300V for over-voltage, 80–210V for under-voltage and 1–63A for overload.
How does automatic reconnect work?
After the supply recovers, power reconnects automatically after the selected delay. The listing specifies an adjustable delay of 1–500 seconds.
Do I need an electrician?
Yes. Have a qualified electrician check the circuit, install the device and configure the protection settings.
Full Product Description
Automatic Over/Under Voltage & Overload Protector, 220V 63A DIN-Rail Mount with LED Display & Auto Reconnect
One power surge can silently destroy your refrigerator, AC, or washing machine — this device stands between your appliances and that disaster.
The amiciKart Automatic Voltage & Overload Protector is a professional-grade, DIN-rail mounted safety device designed to guard your entire home's electrical circuit from the three most damaging power threats: over-voltage (230–300V), under-voltage (80–210V), and overload current (1–63A). With a lightning-fast 0.1-second response time, it cuts power before your appliances even register the fault. The built-in LED display shows real-time voltage and current readings, so you always know exactly what's coming into your home — no guesswork, no hidden damage building up over time.
What makes this smarter than a basic voltage stabiliser is the Auto Reconnect feature. Once your supply returns to a safe range, the device automatically restores power within an adjustable 1–500 second window — no manual reset, no running to the distribution board at 2 AM. It mounts directly onto standard Indian DIN-rail distribution boards, making installation clean, professional, and permanent. Built to handle a maximum sustainable voltage of 440V, it acts as a true sacrificial shield: in an extreme surge event, the device absorbs the damage so your appliances don't have to.
Ideal for homes, shops, offices, and rental properties across India — anywhere voltage instability is a daily reality. Backed by a 1-year warranty and amiciKart's dedicated Indian support team reachable via WhatsApp, call, or email. Free shipping all over India, same-day dispatch for orders placed before 2 PM.
- Whole-circuit protection in one device – safeguards ALL home appliances simultaneously from over-voltage (230–300V), under-voltage (80–210V), and overload (1–63A) with a lightning-fast 0.1-second cutoff response
- Auto-reconnects when power normalises – no manual reset required; adjustable reconnect delay of 1–500 seconds ensures supply resumes only when voltage is stable, preventing repeat damage
- Real-time LED display shows live voltage and current readings – so you always know exactly what's happening with your power supply at a glance
- Fits standard Indian distribution boards effortlessly – DIN-rail mount design allows quick, professional installation without any additional hardware or rewiring
- Surge sacrifice protection up to 440V – in an extreme surge event, the device absorbs the damage itself so your expensive appliances remain completely safe
- Exceptional value – cheaper than replacing a single damaged refrigerator, AC, or washing machine; COD available across India
- 1-year warranty with dedicated Indian customer support – reach our team via WhatsApp, call, or email (📞 980-970-9898 | ✉️ care@amicikart.com); backed by 30-day easy returns and free pan-India shipping
Keep your home and appliances safe from sudden voltage or current fluctuations with this automatic over/under voltage and overload protector. Designed for single-phase systems, it provides three-in-one protection—over-voltage, under-voltage, and overload—acting within 0.1 seconds to prevent damage.
With an adjustable auto-reconnect delay (1–500 seconds), the device automatically restores power once the voltage returns to a safe level. It offers a protection range of 230–300V (over-voltage), 80–210V (under-voltage), and 1–63A (overload), ensuring reliable operation in all situations.
Built to handle surges up to 440V, the device will sacrifice itself in extreme cases—keeping your appliances completely safe. Ideal for homes, offices, and workshops, it’s compact, easy to install with a DIN-rail mount, and features a clear LED display for live voltage monitoring.
Specifications:
Voltage protection range: 0- 450V for 40A; 0- 600V for 50A/63A.
Impulse withstand voltage: 4KV (in compliance with safety standard for electrical appliance of category).
Normal use conditions: Ambient air temperature shall not be more than +55°C and not less than -20° C and the 24h average temperature shall not be more than +35° C.
Altitude of the installation place shall not exceed 2000m.
Atmospheric conditions: Humidity
