Know before you buy
-
Electrician / qualified installer required
DIN-rail switchboard wiring. Isolate mains before install. Not a plug-and-play appliance guard.
-
80A · OV/UV/OC (listing)
Commercial identity SKU 1xOVER-VOL-80A is 80A. Listing ranges: OV 230–300V, UV 80–210V, overload 1–80A — adjustable thresholds.
-
Single SKU · 1xOVER-VOL-80A
One variant (Default Title). Related 63A protectors are separate product IDs — do not merge amp families.
-
Does not replace MCB/RCBO
Voltage/overload protector alongside—not instead of—required circuit breakers planned by an electrician. No trip-curve claim on listing.
Features that make it useful
-
3-in-1 OV / UV / overload
Cuts supply on over-voltage, under-voltage or overload per adjustable setpoints (listing).
-
~0.1 s response (listing)
Marketing cites ~0.1-second cut-off on dangerous fluctuations (listing).
-
Auto-reconnect 1–500 s
Restores supply after conditions recover; reconnect delay adjustable 1–500 seconds (listing).
-

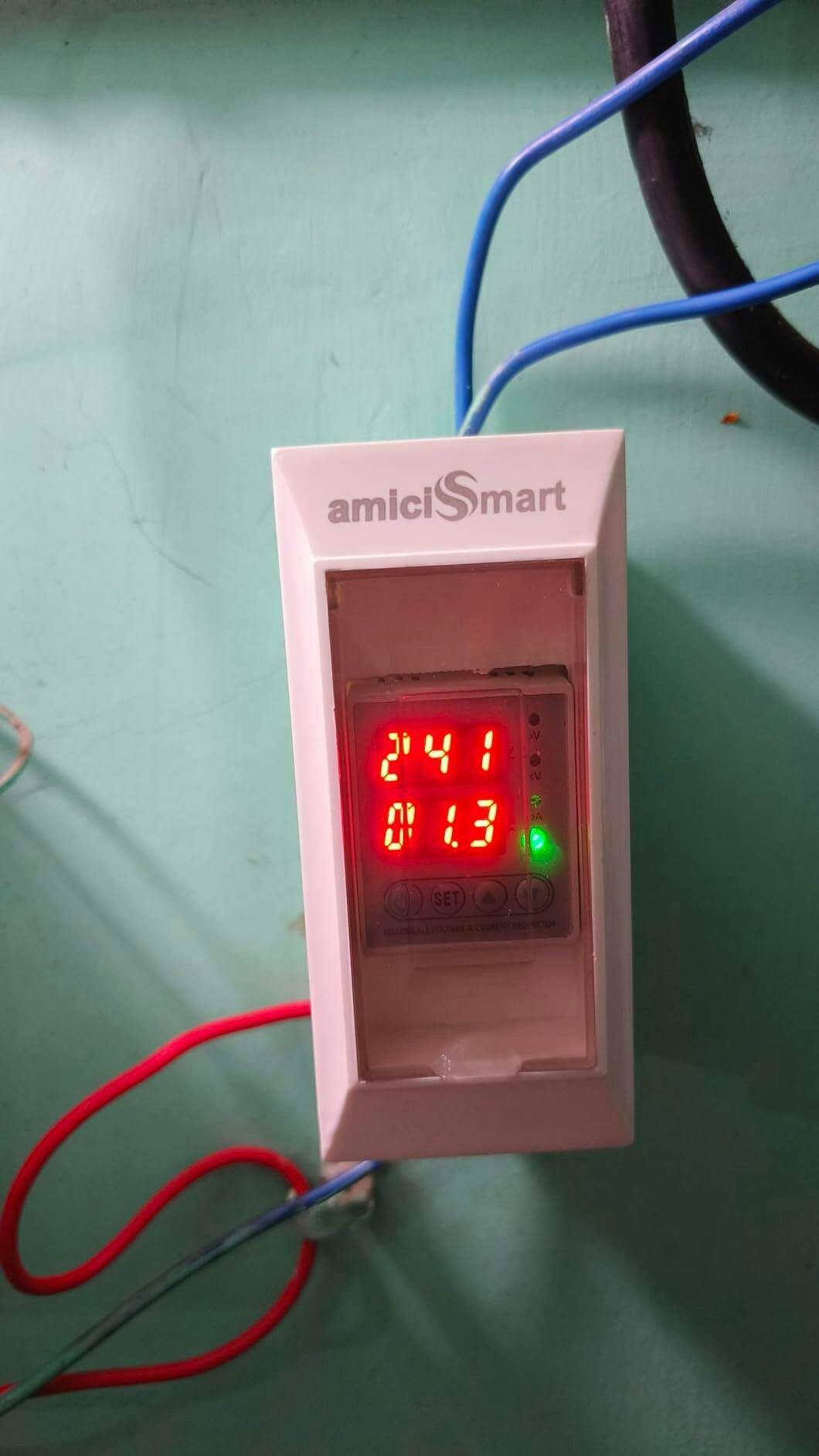

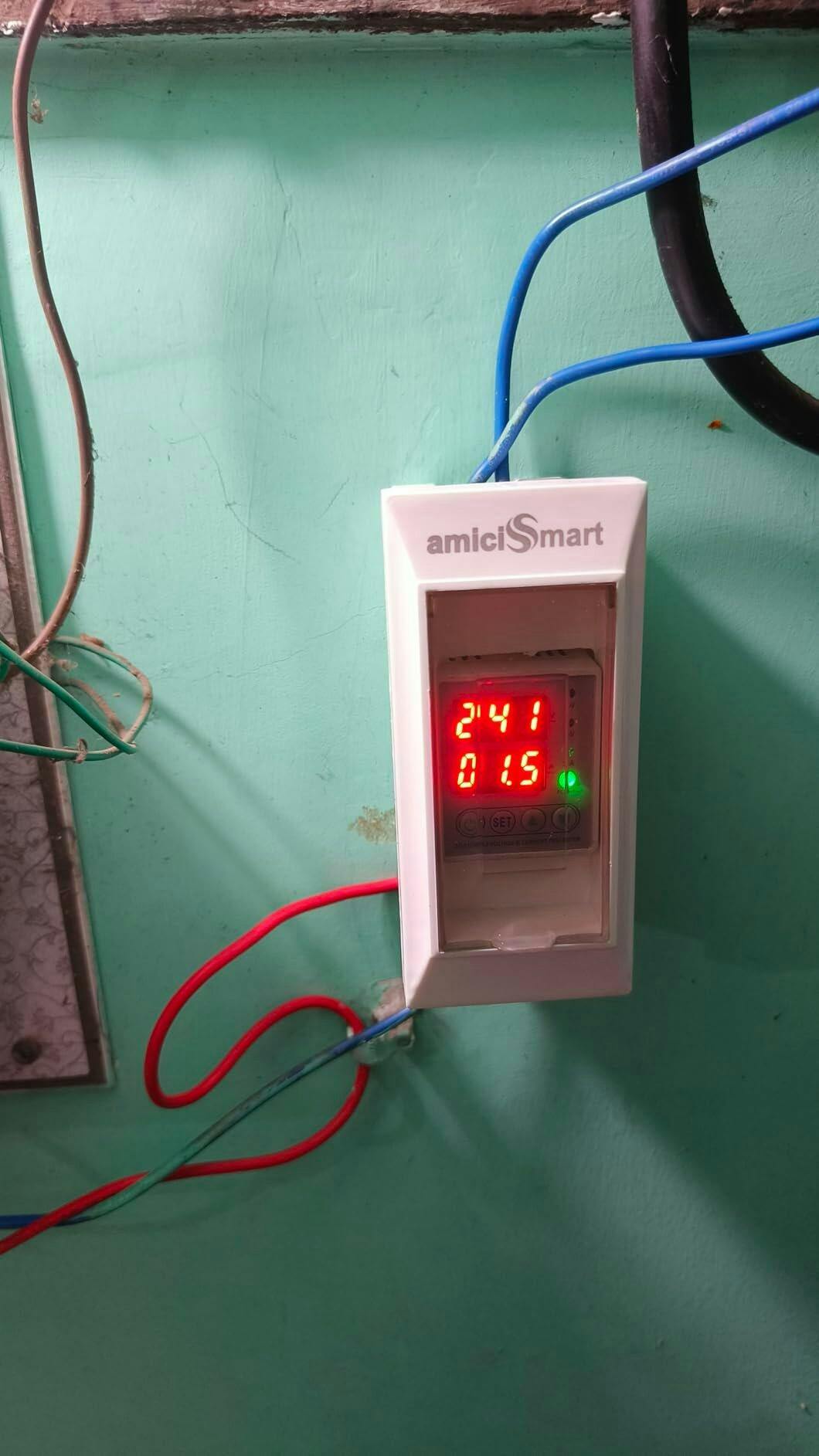

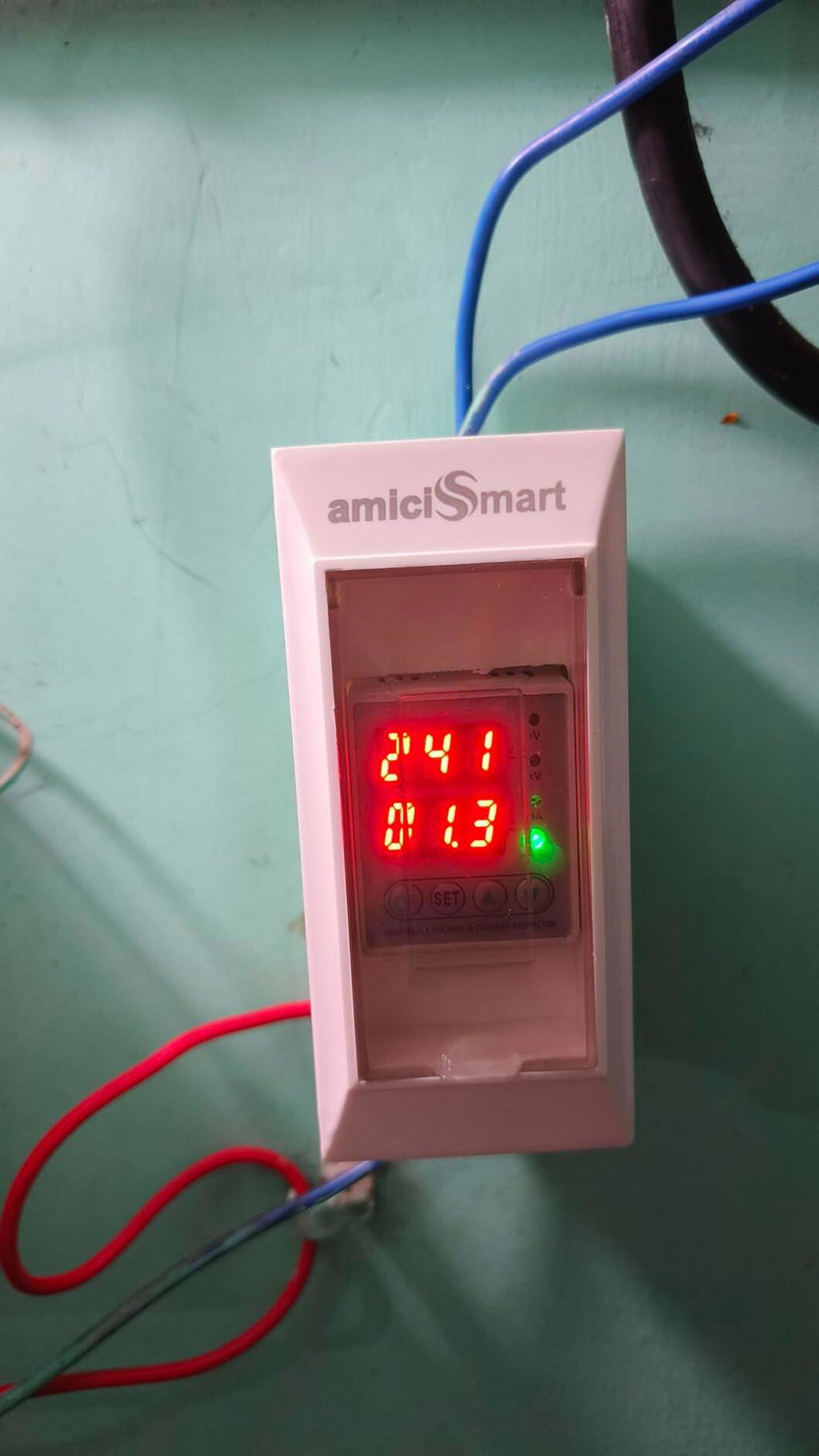

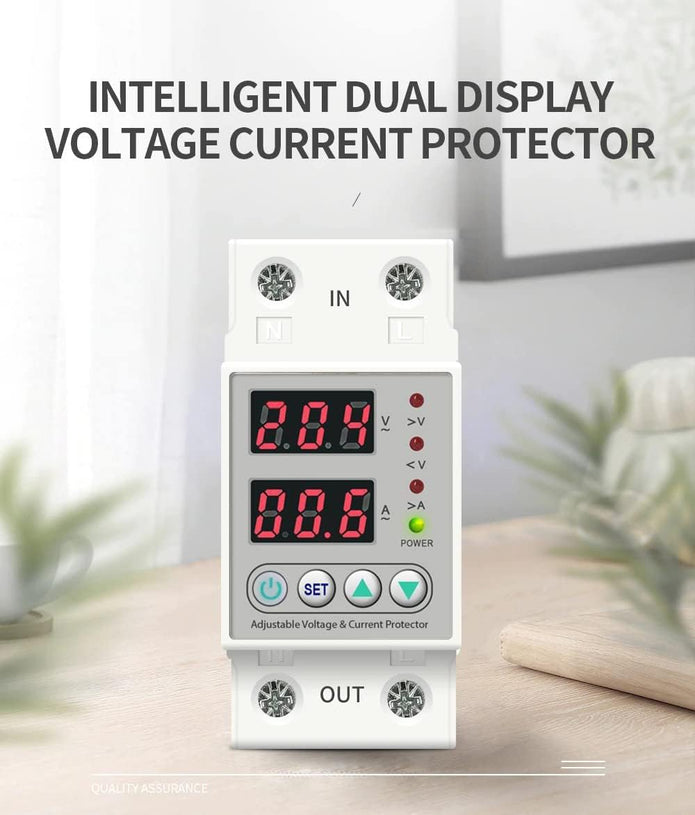

LED voltage & current display
Live voltage and current readout on the unit (listing).
How to use
-
Confirm load ≤80A with electrician
Match cable, DIN space and single-phase load to the 80A commercial rating before purchase/install.
-

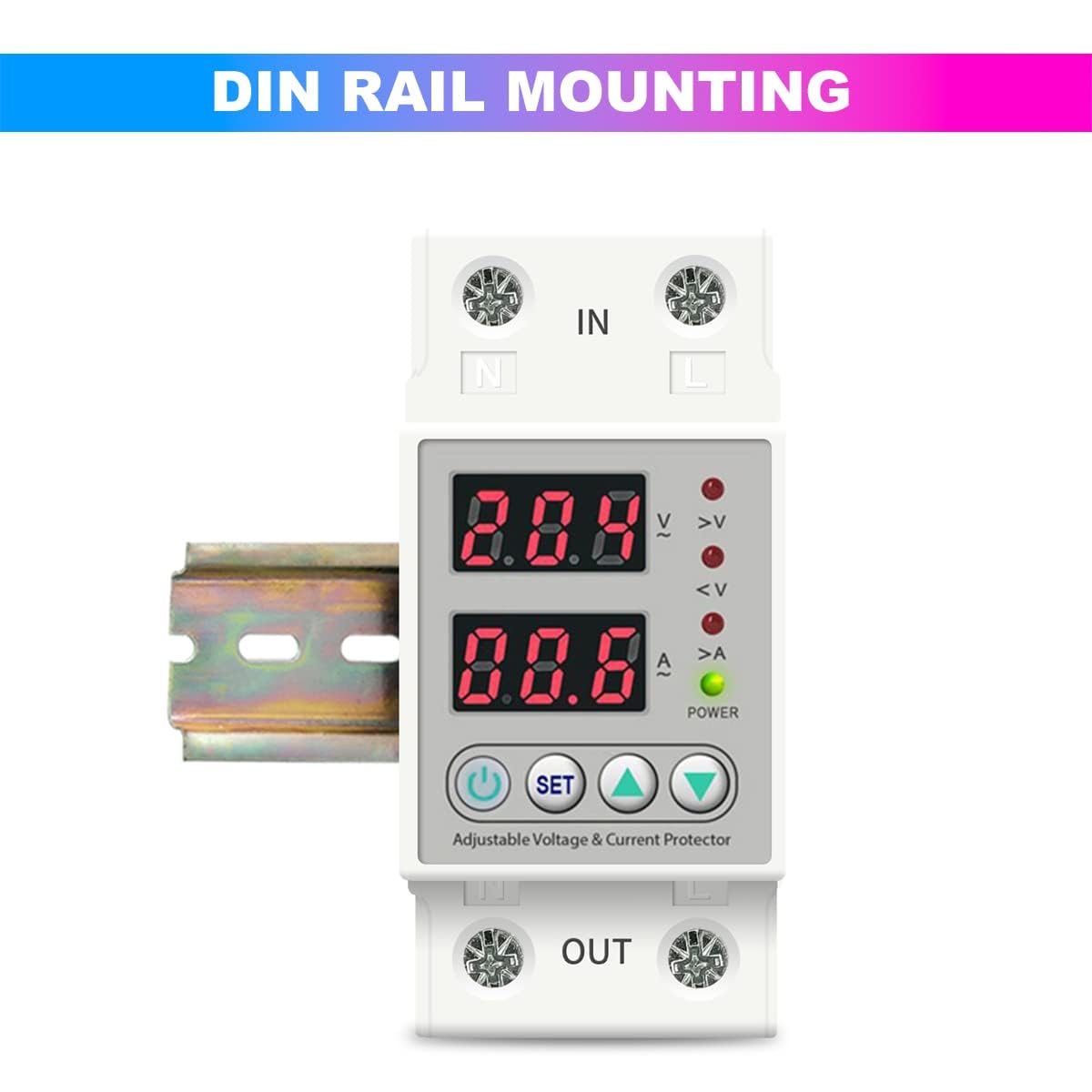

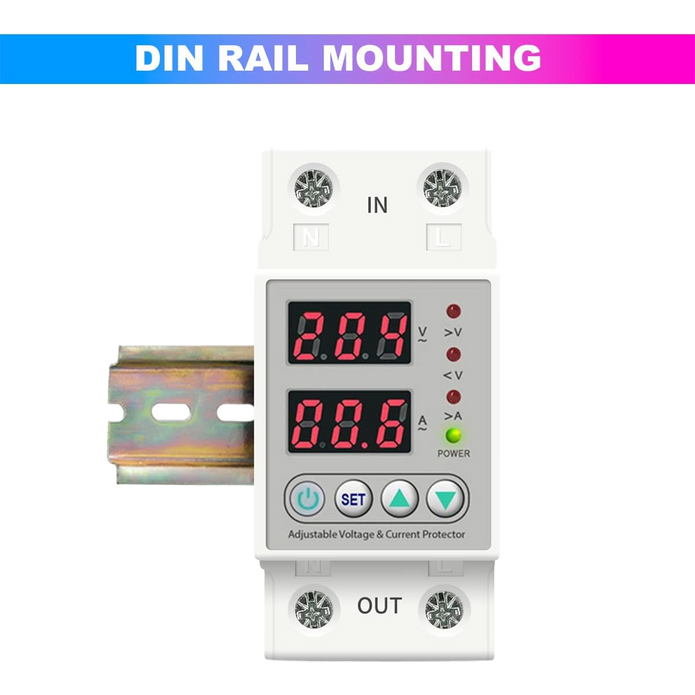

Isolate power and mount on DIN-rail

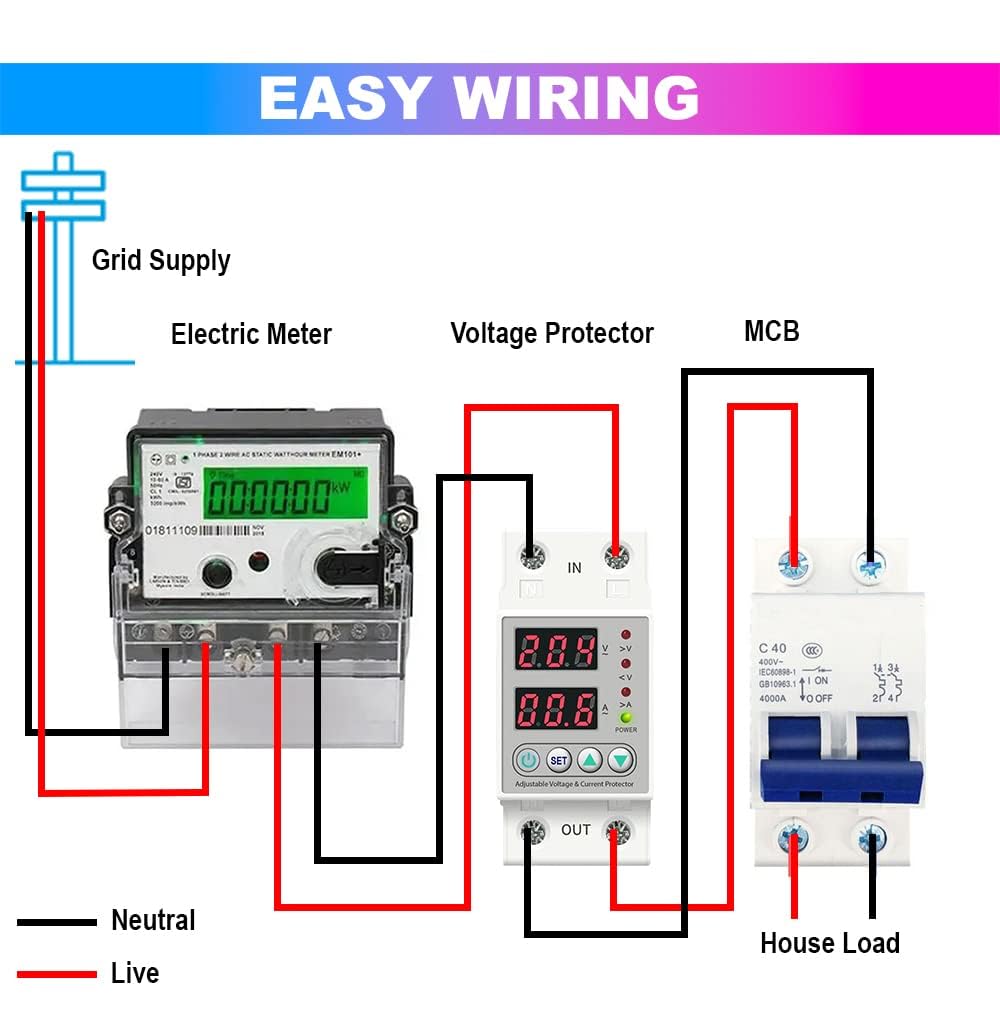

Qualified installer disconnects supply, wires per terminal map on the device, and remounts cover before energising.
-
Set thresholds and test reconnect
Configure OV/UV/OC and reconnect delay for the site; supervised trip/reconnect check before leaving the board live.

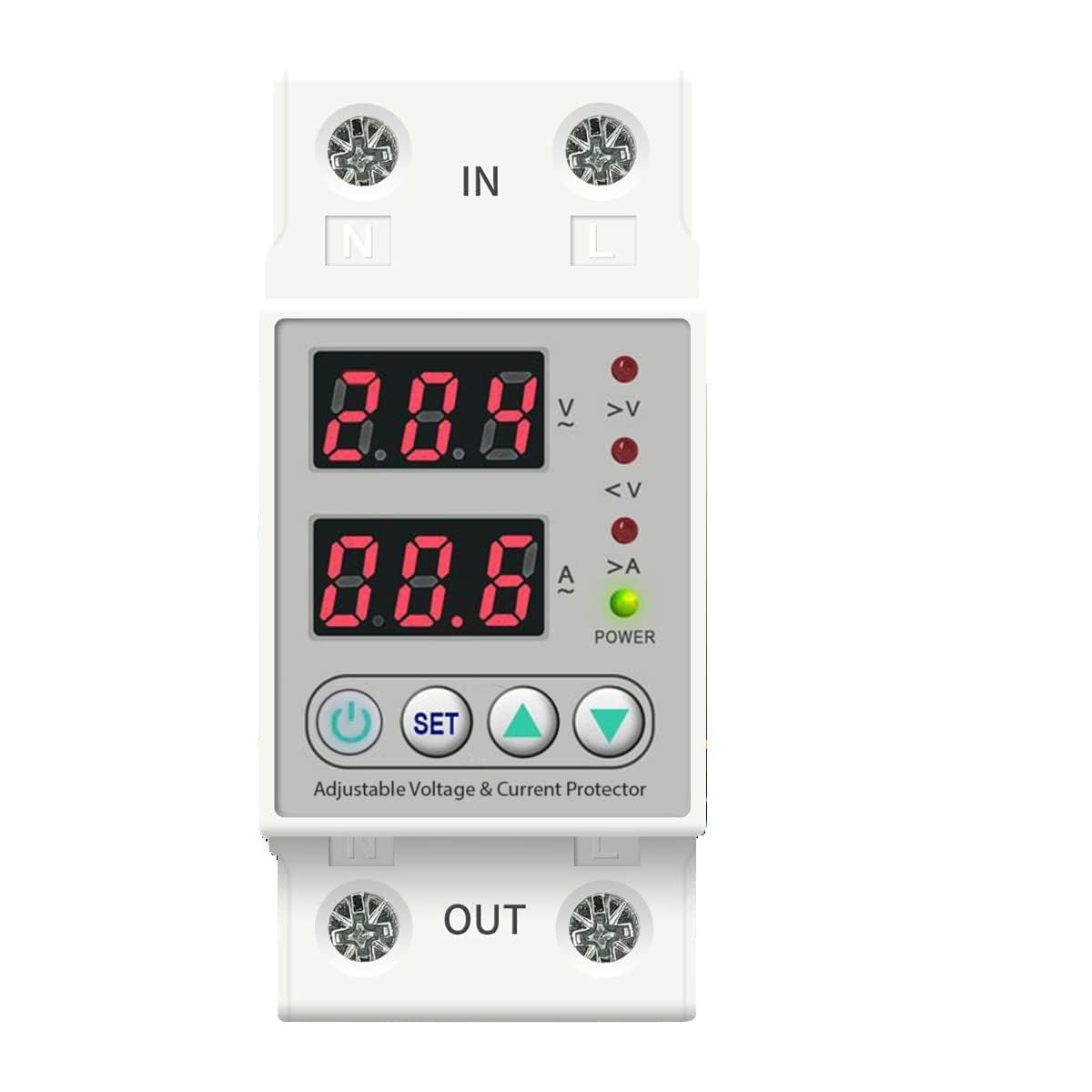

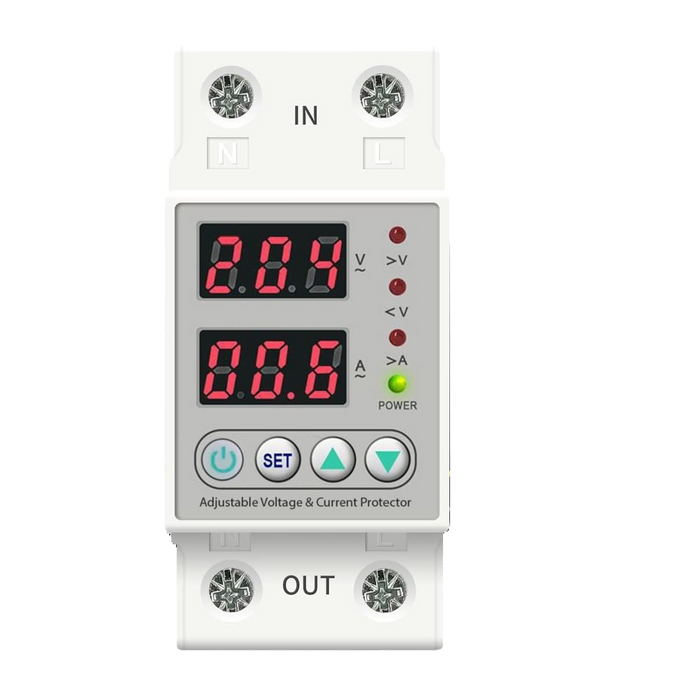

Single-Phase OV/UV Protector 80A
amiciSmart · 80A · OV/UV/OC · Auto-reconnect · LED · DIN-rail · Single-phase
DIN-rail single-phase automatic voltage and overload protector rated 80A. Listing: over-voltage adjustable 230–300V, under-voltage 80–210V, overload 1–80A, ~0.1 s cut-off, auto-reconnect delay 1–500 s, LED voltage/current display. Handle...
Sale price
Rs. 1,599.00
-55%
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,599.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Single Phase Automatic Voltage Protector with Over/Under Voltage & Overload Protection with Auto-Reconnect & LED Display (80A)
Sale price
Rs. 1,599.00
Regular price
Rs. 3,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,599.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

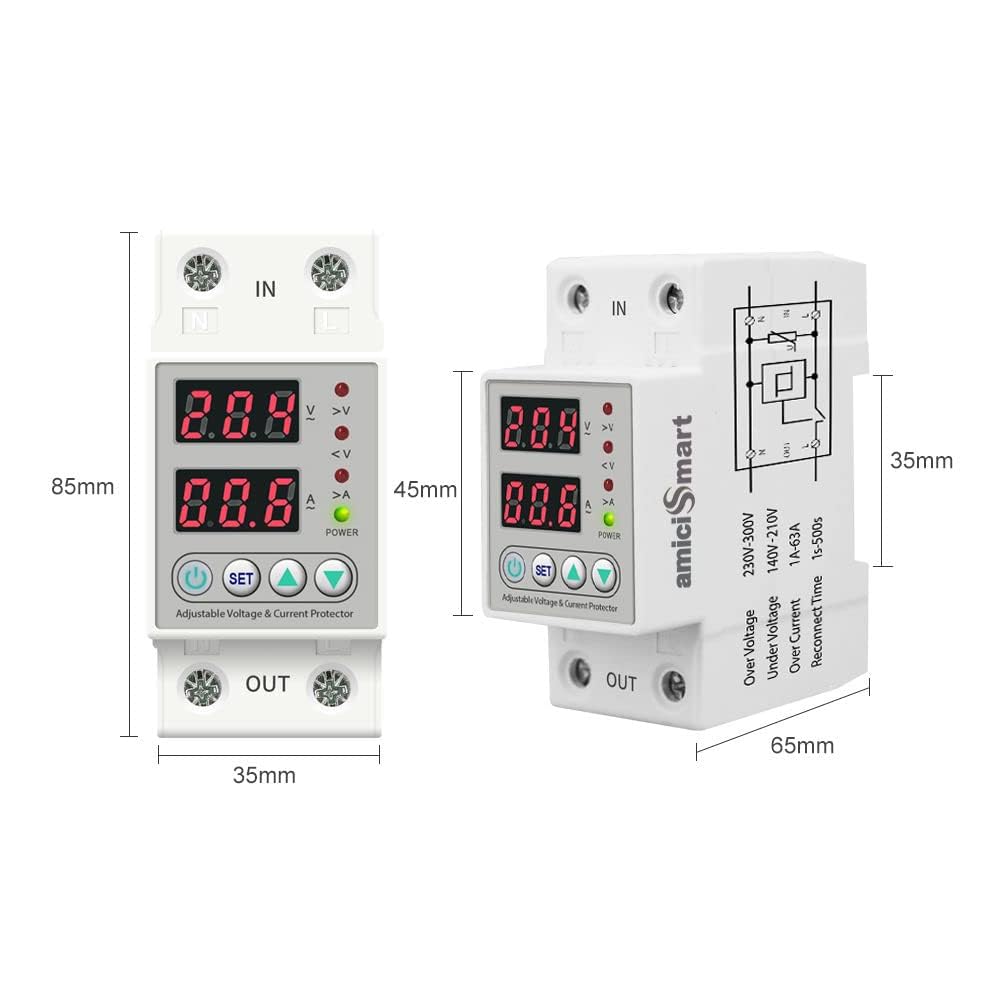

Specifications
| SKU | 1xOVER-VOL-80A |
|---|---|
| Product ID | 8360577990811 |
| Brand (handle) | amiciSmart |
| Device class | Single-phase automatic over/under-voltage & overload protector |
| Rated current (commercial) | 80A |
| Supply class (handle) | Single-phase 220V-class (handle). Body does not separately restate nominal VAC beyond OV/UV windows — do not invent alternate nominals |
| Over-voltage range (listing) | 230–300V (adjustable) |
| Under-voltage range (listing) | 80–210V (adjustable) |
| Overload / current range (listing) | 1–80A (adjustable) |
| Response time (listing marketing) | ~0.1 seconds |
| Auto-reconnect delay (listing) | 1–500 seconds (adjustable) |
| Display | LED voltage and current |
| Mounting | Standard DIN-rail |
| Trip curve / certifications | Not published on listing — none invented |
| Warranty (listing) | 1 year; support 980-970-9898 / care@amicikart.com |
| Evidence note | Live product.js only (Batch 4) |
Frequently asked questions
Is this the 63A protector?
No. This listing/SKU is 80A (1xOVER-VOL-80A). Separate 63A single-phase protector products exist — do not treat them as variants of this ID.
What voltages does it trip on?
Per listing: over-voltage adjustable 230–300V, under-voltage 80–210V, overload 1–80A. Set thresholds for your appliances with an electrician.
Does it replace my MCB?
No. Listing positions it as voltage/overload protection with auto-reconnect. Keep required upstream breakers.
Do I need an electrician?
Yes for DIN-rail switchboard install. Isolate mains before work.
Full Product Description
amiciSmart Single-Phase OV/UV Protector (80A)
Draft for product 8360577990811, SKU 1xOVER-VOL-80A. Evidence: live listing product.js only.
DIN-rail single-phase protector with adjustable over-voltage (230–300V), under-voltage (80–210V), overload (1–80A), ~0.1 s cut-off marketing claim, auto-reconnect delay 1–500 s, and LED voltage/current display.
Handle brands 220V-class single-phase. Related 63A protectors are separate products. No trip curve or certification invented. Qualified electrician required.
