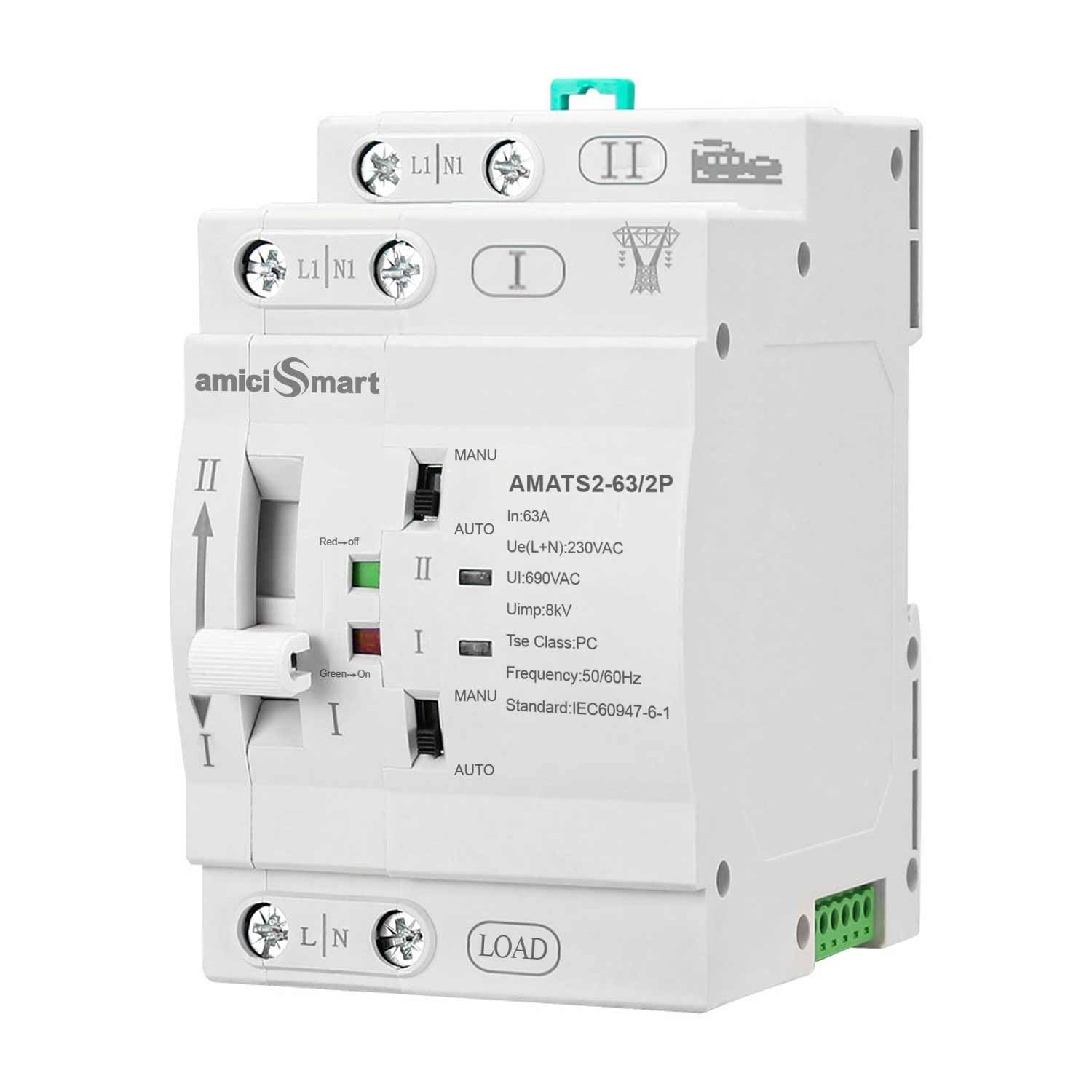

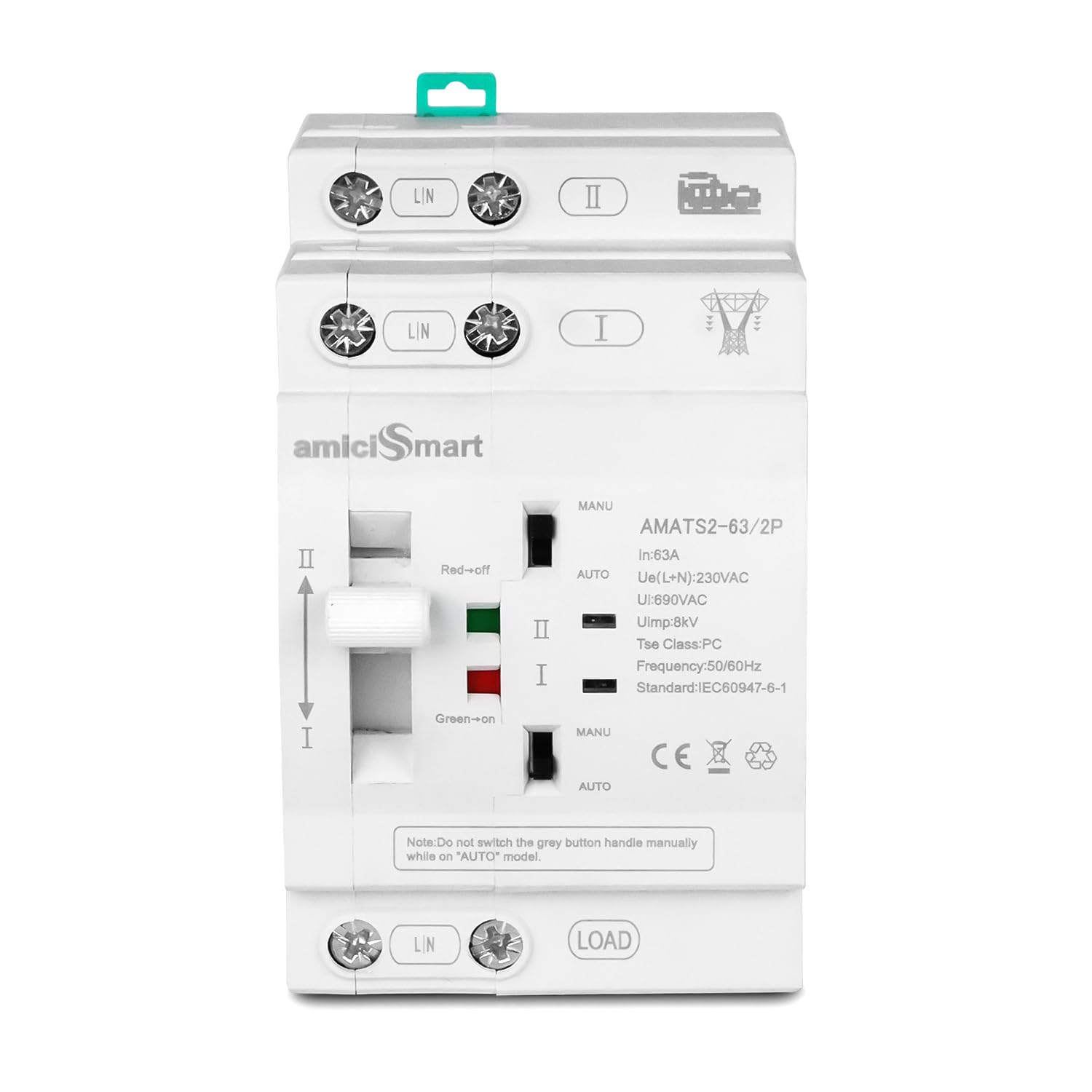

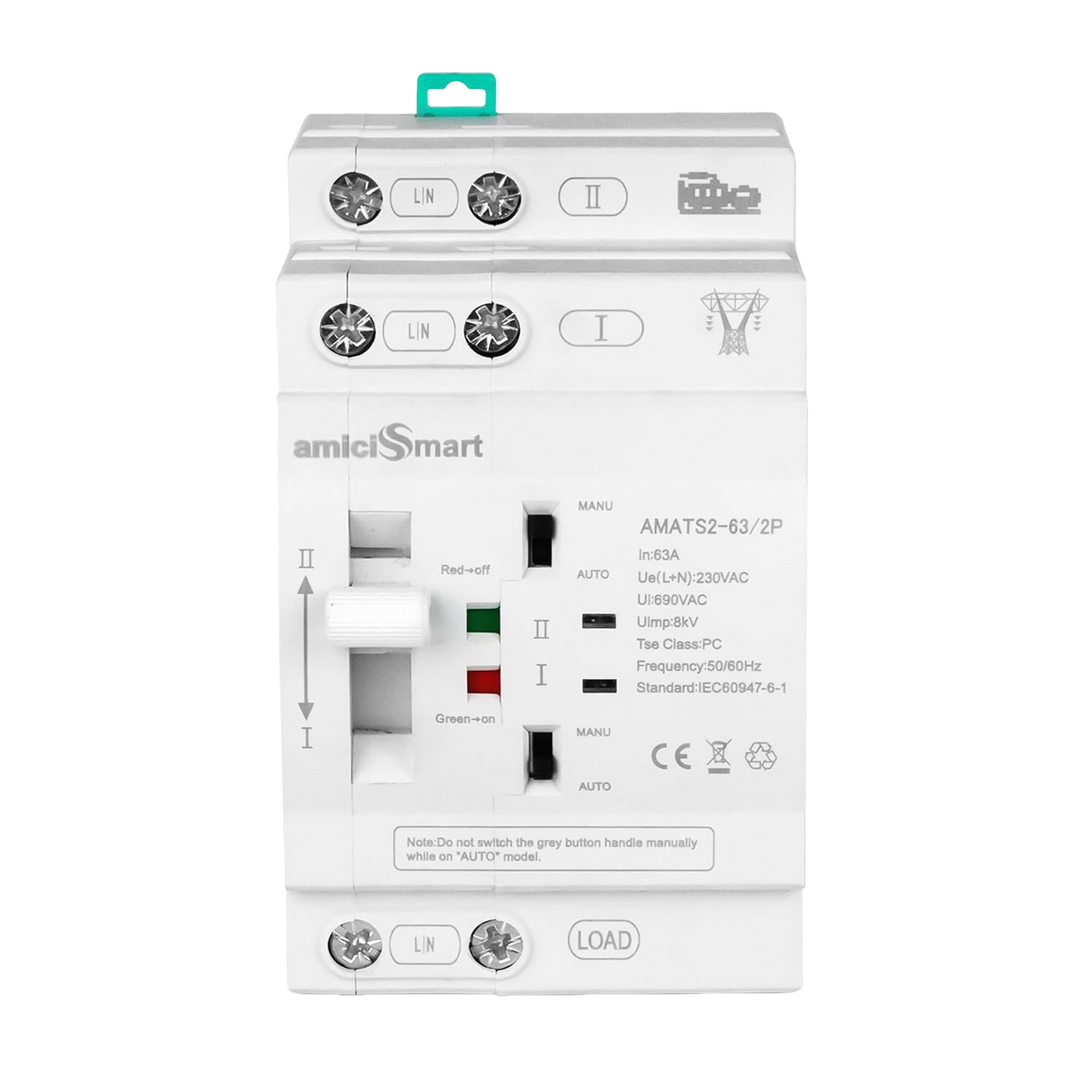

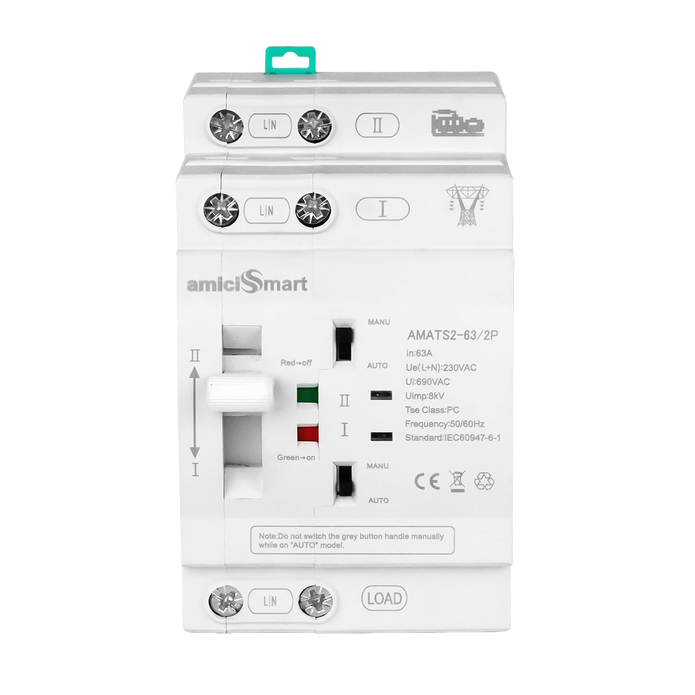

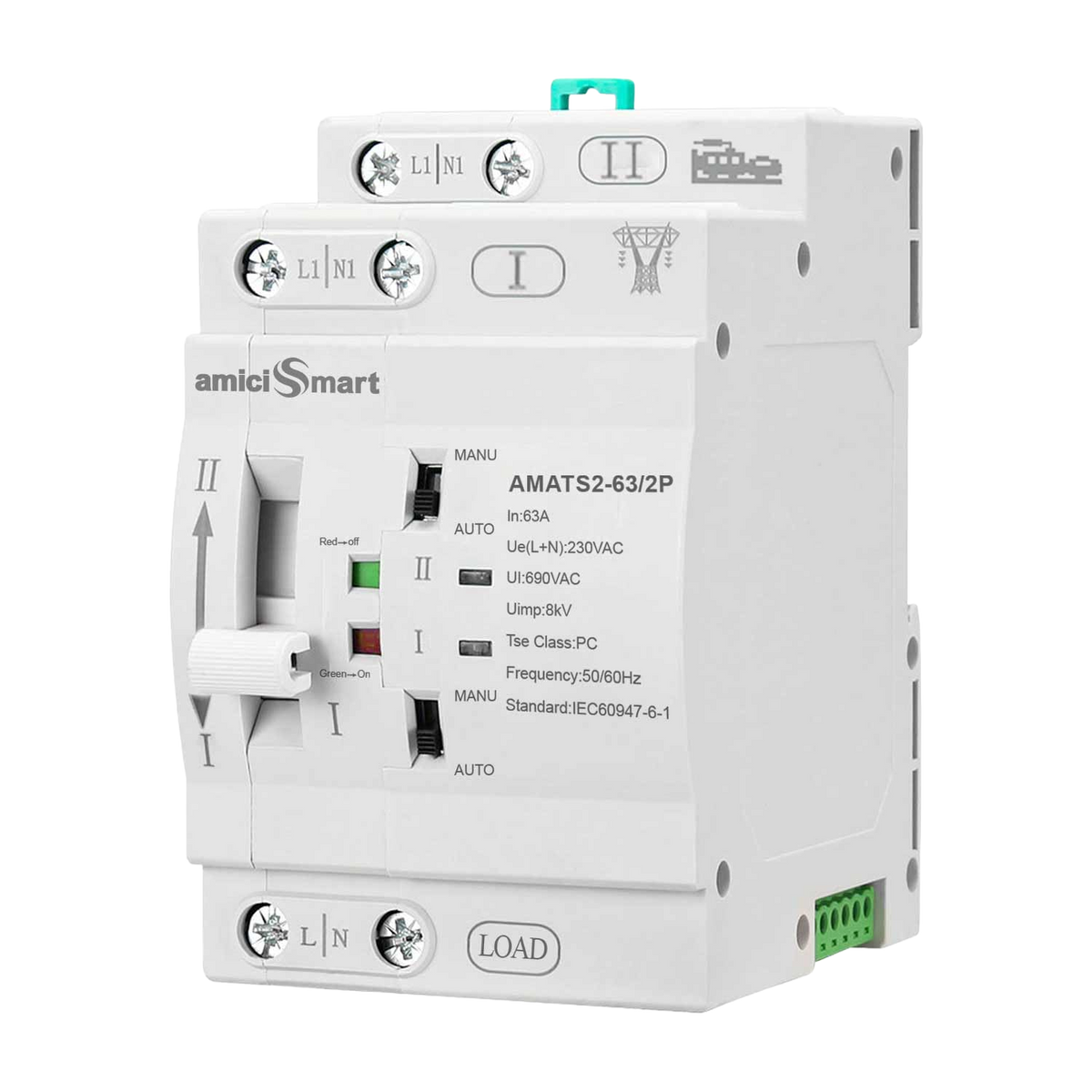

63A Dual Power Transfer Switch 230VAC Single-Phase with Automatic and Manual Changeover Switch

The 63A Dual Power Automatic Transfer Switch is designed to provide uninterrupted power switching between the main supply and a backup source. With a fast switching time of just 50 milliseconds, it ensures smooth changeover during power outages, making it ideal for sensitive appliances and equipment.

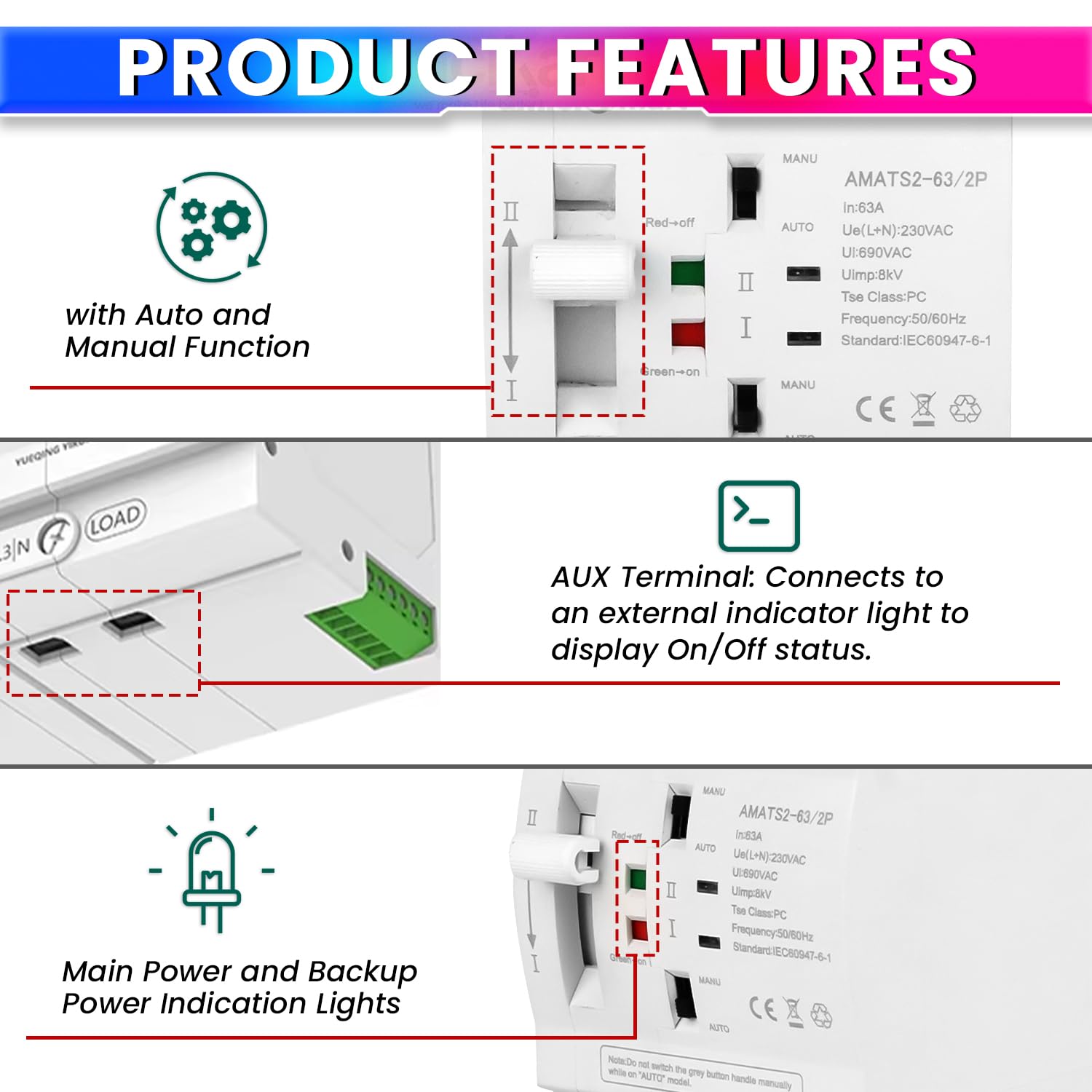

Supporting a working voltage of 220V and a frequency of 50–60 Hz, this single-phase changeover switch is compatible with a wide range of home and commercial setups. Users can easily choose between automatic mode for seamless switching or manual mode for controlled operation, depending on the application.

Engineered with high-quality silver alloy contacts, the switch offers improved conductivity and long-lasting durability.

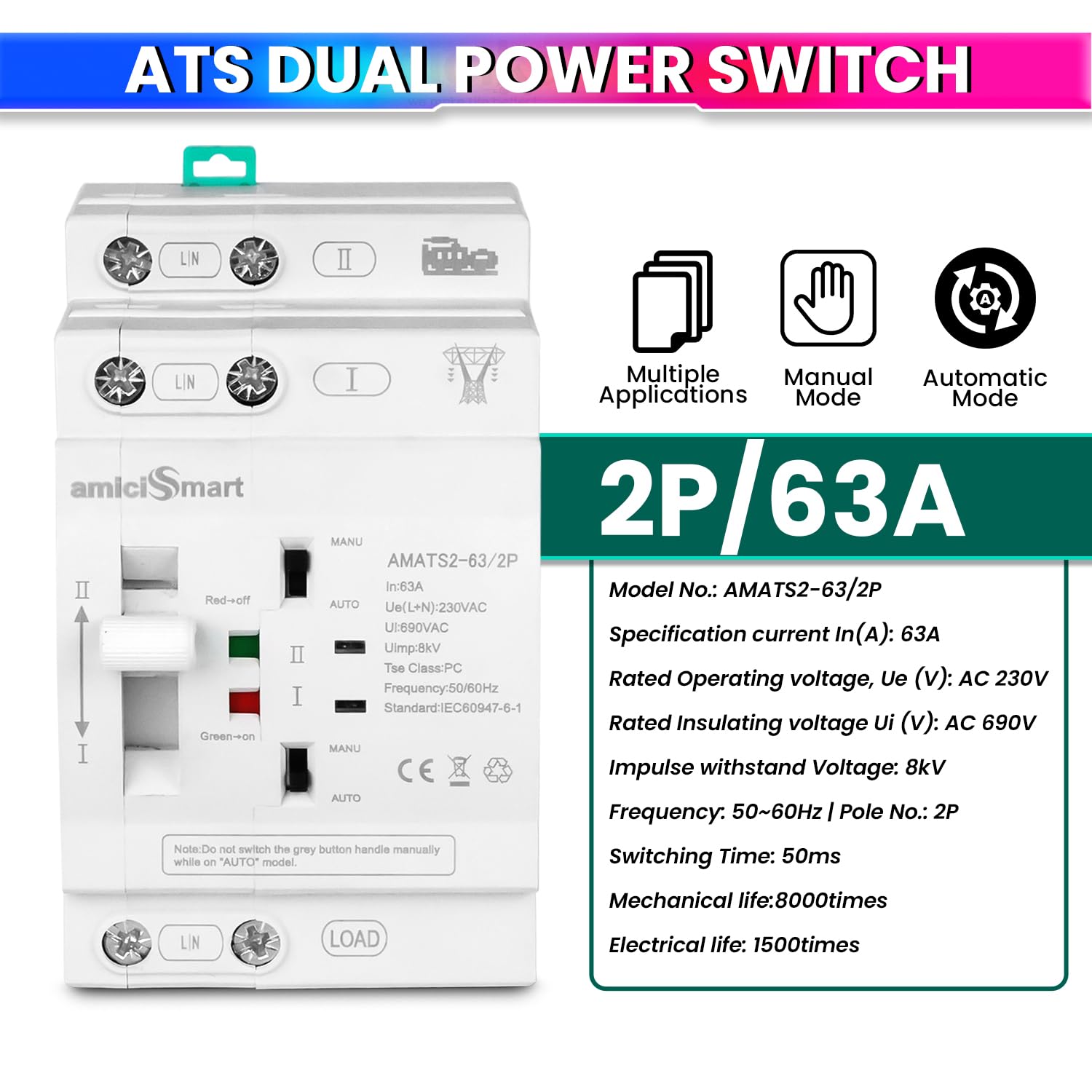

Specifications:
Specification current In(A):- 63A
Rated operating voltage, Ue (V):- AC 230V
Rated insulating voltage Ui (V):- AC 690V
Impulse withstand Voltage:- 8kV
Frequency:- 50-60Hz
Pole No.:- 2P
Switching Time:- 50ms
Mechanical life:- 8000times
Electrical life:- 1500times
