Know before you buy
-
Electrician required — not DIY
Have a licensed electrician plan it, install it on the DIN rail and commission it — especially on 63A circuits.
-
Single-phase ~230V · up to 63A + upstream MCB
For single-phase two-wire use, rated 63A. It must be combined with an MCB for short-circuit protection and does not replace required breakers.
-
Mount option is separate

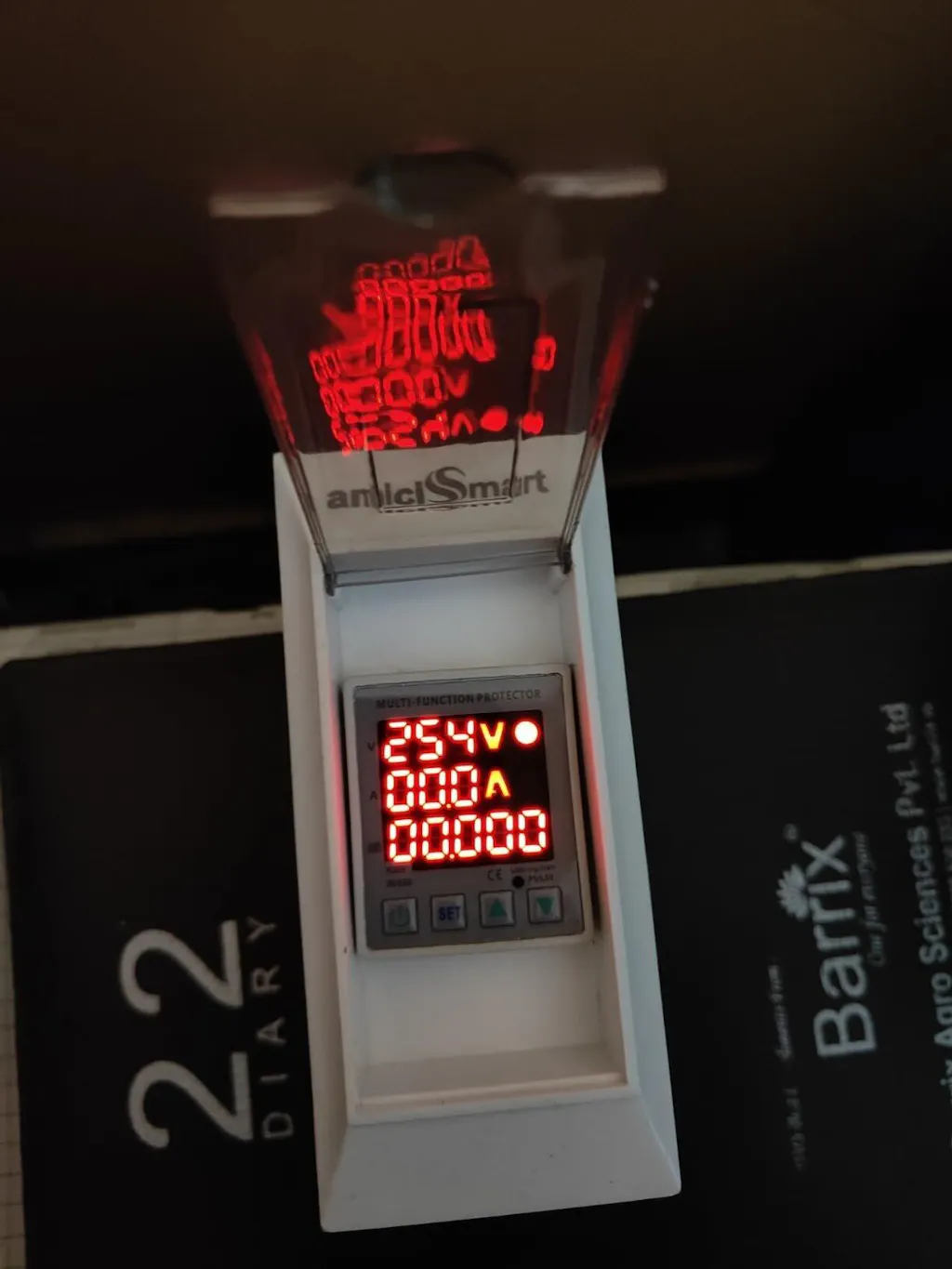

Without Mount (1xTOMZN-DDS238-VAP) vs With Mount (1xTOMZN-DDS238-VAP-M). Pick the accessory you need.
Features that make it useful
-
Adjustable OV / UV / OC protection
Over-voltage 120–300V, under-voltage 85–300V and overload 1–63A. Factory defaults: over-voltage 270V, under-voltage 170V, over-current 40A.
-
Auto reconnect
Reconnects automatically after the supply recovers, with an adjustable delay — check the delay range in your unit's settings menu.
-
LCD energy + live electricals
Shows active energy (kWh), voltage, current and power, with bi-directional total active energy metering.
-
DIN-rail compact body
About 35×81×60 mm and fits a 35 mm DIN rail.
How to use
-
Plan circuit with a licensed electrician + MCB
With your electrician, check the single-phase supply, 63A suitability, cable capacity and the upstream MCB.
-
Install on DIN rail and set limits
Electrician wires L/N in and out per the device diagram (neutral must be correct). Set OV / UV / OC and reconnect behaviour for your site.
-
Check readings and trip behaviour
Check the LCD V/A/W/kWh readings, then test the protective trips and auto-reconnect under supervised conditions.
63A Digital Energy Meter + Voltage/Overload Protector
230V single-phase · Over/under voltage · Over-current · Auto reconnect · LCD · Optional mount
DIN-rail single-phase meter/protector with LCD V / A / W / kWh, adjustable over-voltage, under-voltage and overload cut-offs, and auto-reconnect. With or without mount. Install by a qualified electrician with an upstream MCB.
Sale price
Rs. 1,799.00
-56%
Regular price
Rs. 4,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Digital Energy Meter Over/Under Voltage & Overload Protection Device with Auto Reconnect and LCD Display 63A 230V
Sale price
Rs. 1,799.00
Regular price
Rs. 4,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU — Without Mount | 1xTOMZN-DDS238-VAP |
|---|---|
| SKU — With Mount | 1xTOMZN-DDS238-VAP-M |
| Installation | By a qualified electrician, with an upstream MCB |
| Device type | DDS238-VAP multi-function protector / energy monitor |
| Supply | Single-phase two-wire AC; 230V / 63A |
| Working voltage | 85–300V |
| Over-voltage range | 120–300V adjustable (default 270V) |
| Under-voltage range | 85–300V adjustable (default 170V) |
| Over-current range | 1–63A adjustable (default 40A) |
| Reconnect / switch-on delay | Adjustable — see the unit's settings menu |
| Fault response | 0.1 s fault response |
| Metering | Bi-directional total active energy; display to 9999.9 kWh class |
| Accuracy | ±0.5% V/A/W; ±1% active energy (IEC62053-21) |
| Mounting / size | 35 mm DIN rail; ~35×81×60 mm |
| Frequency | 50/60 Hz |
| Warranty | 1 year (12 months from sale) |
Frequently asked questions
Do I need the With Mount option?
Buy With Mount (1xTOMZN-DDS238-VAP-M) if you want the mount accessory included. Without Mount is the meter/protector alone.
Can this replace my MCB?
No. It must be combined with a miniature circuit breaker (MCB) for short-circuit protection. Use it for metering and adjustable voltage/current protection alongside an MCB, not instead of one.
What are the factory defaults?
Over-voltage 270V, under-voltage 170V and over-current 40A, with a short default switch-on delay. Always check the settings in your unit's menu.
Is installation DIY / no electrician?
No. As a 63A device that needs short-circuit protection, it should be planned and installed by a qualified electrician. The neutral must be connected correctly for the protector to work.
Does it meter solar export?
It measures bi-directional total active energy, but it is not a replacement for a utility net-metering meter.
Full Product Description
DDS238-VAP Digital Energy Meter & Voltage/Overload Protector (63A)
Available Without Mount (1xTOMZN-DDS238-VAP) or With Mount (1xTOMZN-DDS238-VAP-M).
Installation
Install by a qualified electrician with an upstream MCB. This protector must be combined with a miniature circuit breaker for short-circuit protection.
Protection & metering
- Adjustable over-voltage, under-voltage and over-current protection with LCD V / A / W / kWh.
- Automatic or manual reclosing after the supply recovers.
- Malignant-load / pure-resistive limit features and fault-reason logs.
Support
1-year (12-month) warranty, supported by amiciKart.
