Know before you buy
-
Electrician required — not DIY
Despite storefront “DIY / no electrician” wording, guided buying prefers a licensed electrician for planning, DIN-rail install and commissioning—especially on 63A circuits.
-
Single-phase ~230V · up to 63A + upstream MCB
Listing and DDS238-VAP manual describe single-phase two-wire use, rated 63A class. Manual requires combining with an MCB for short-circuit protection. This device is not a substitute for required breakers.
-
Mount option is separate

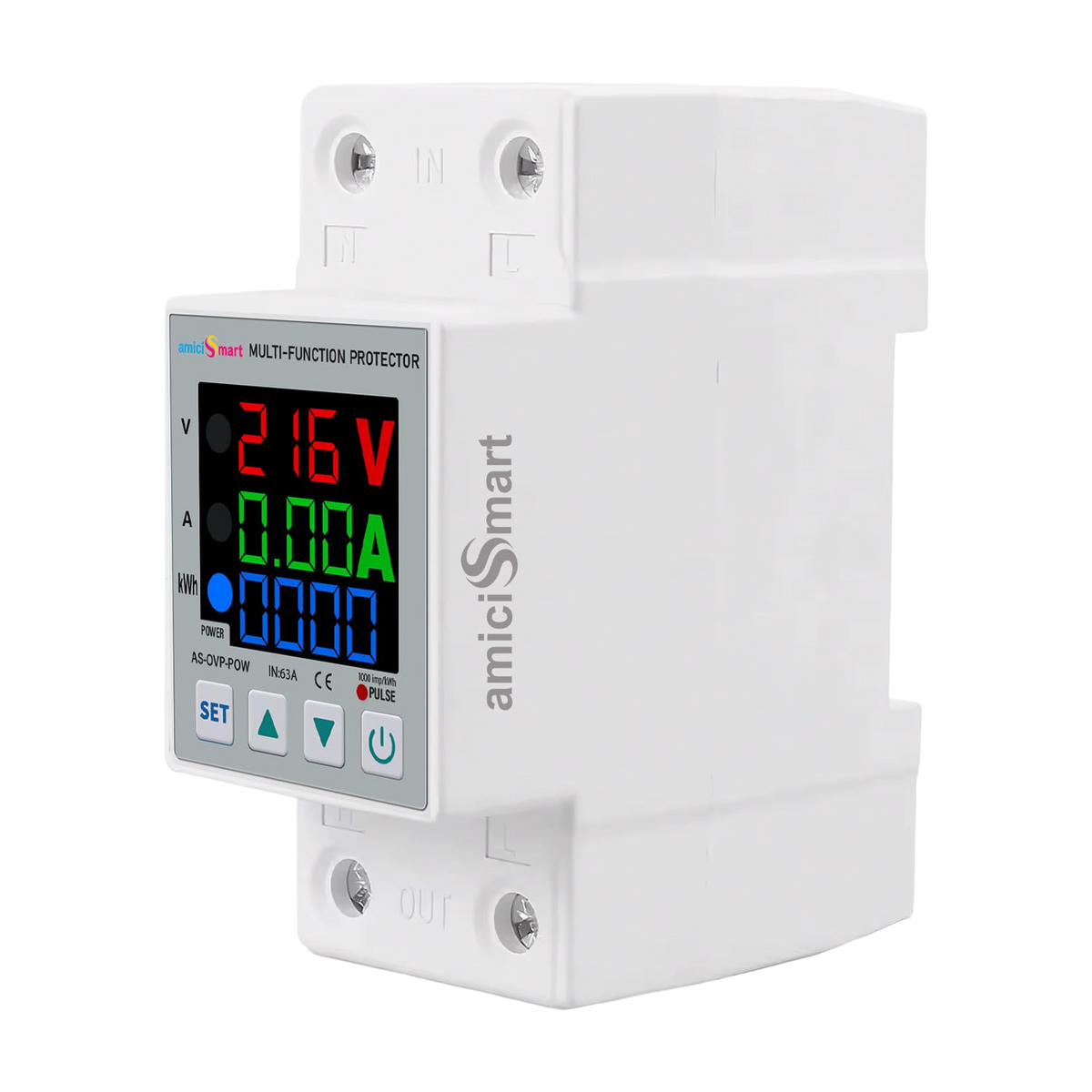

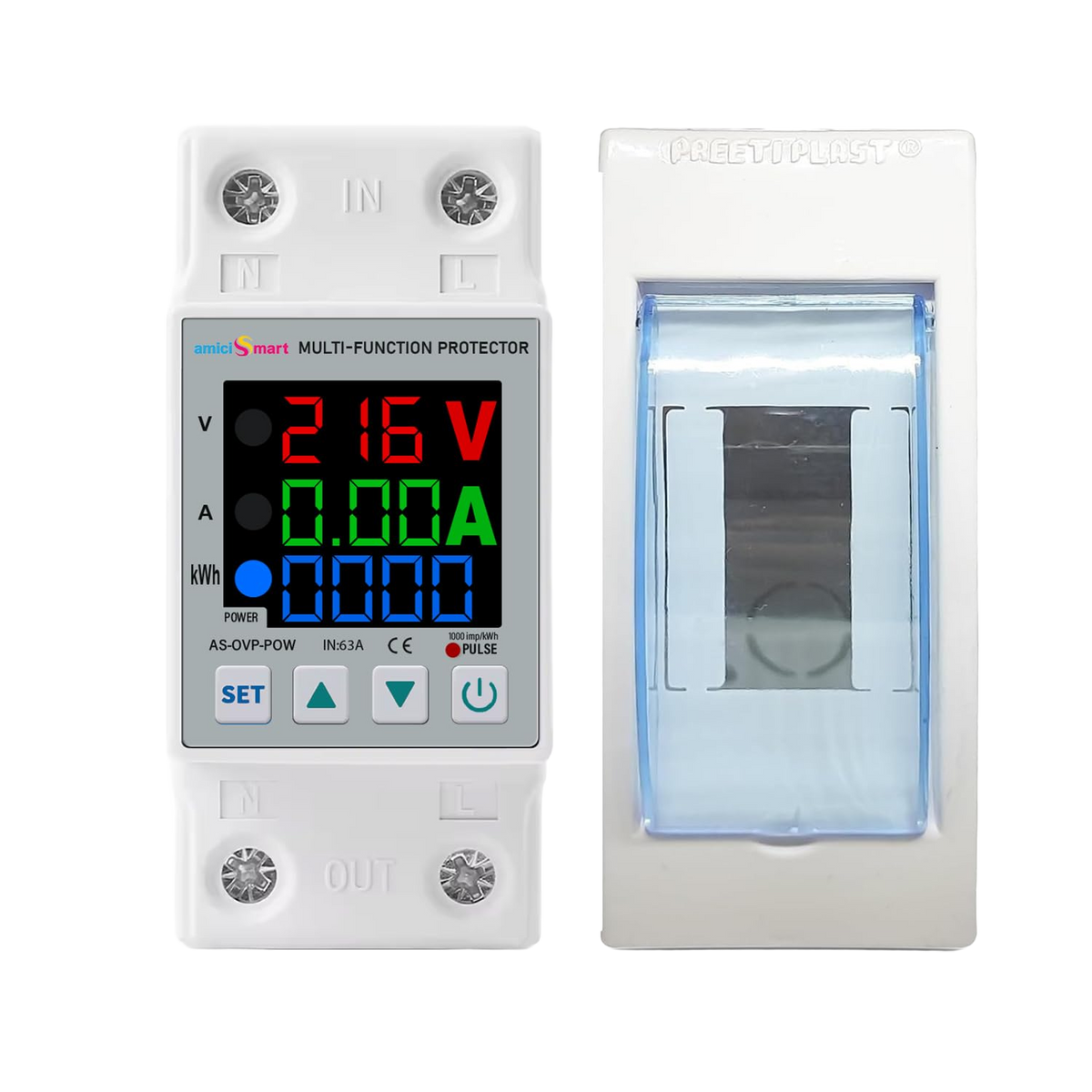

Without Mount (1xTOMZN-DDS238-VAP) vs With Mount (1xTOMZN-DDS238-VAP-M). Pick the accessory you need.
Features that make it useful
-

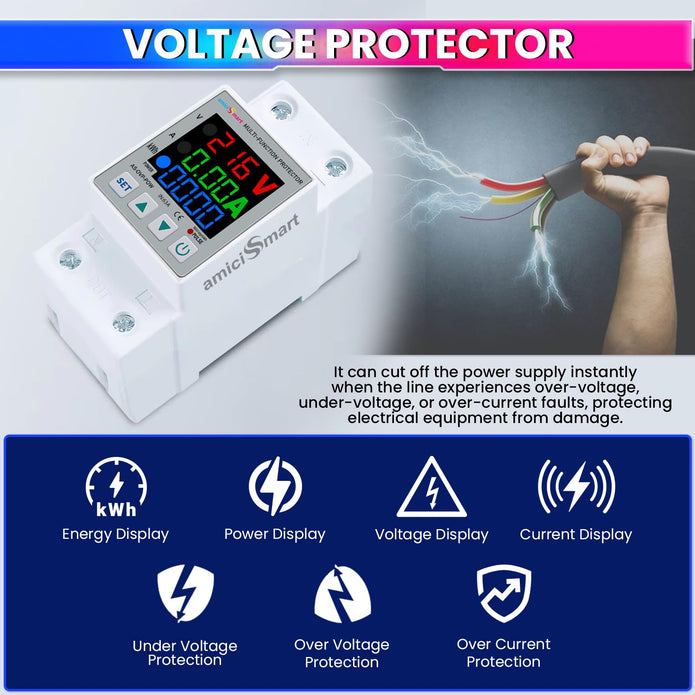

Adjustable OV / UV / OC protection
Listing: over-voltage 120–300V, under-voltage 85–300V, overload 1–63A. Manual defaults: OV 270V, UV 170V, OC 40A (63A device).
-
Auto reconnect
Listing allows ~1–500 s reconnect delay; manual documents delay settings in a 2–255 s style range—see flags.
-

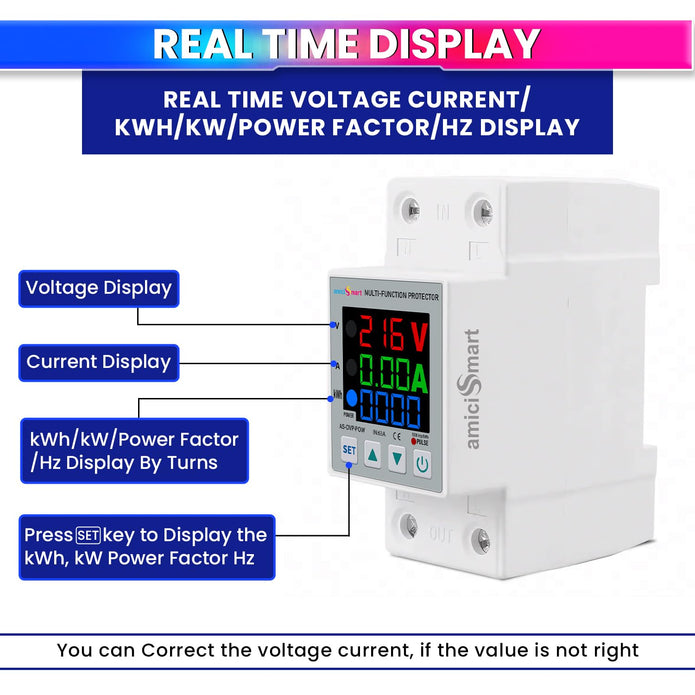

LCD energy + live electricals
Shows active energy (kWh), voltage, current and power. Manual also notes bi-directional total active energy metering.
-
DIN-rail compact body

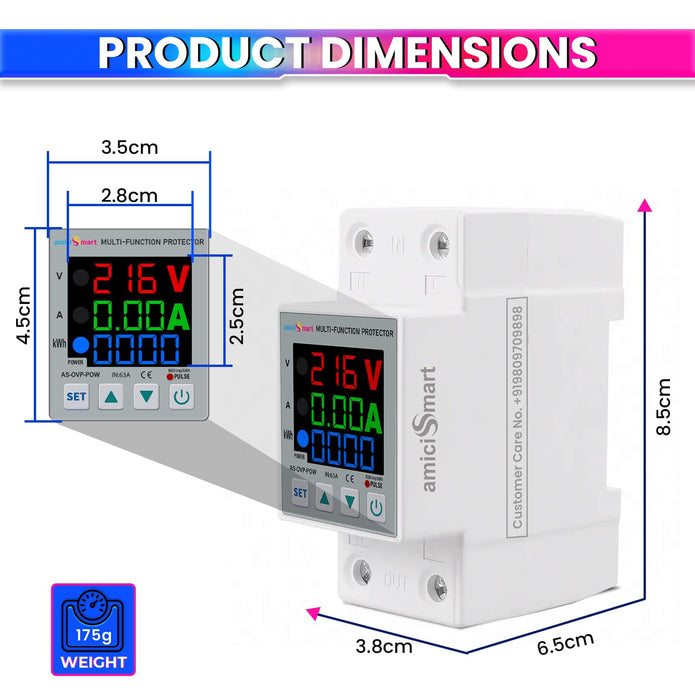

Manual dimensions ~35×81×60 mm on 35 mm DIN rail.
How to use
-
Plan circuit with a licensed electrician + MCB
Confirm single-phase supply, 63A suitability, cable capacity and an upstream MCB. Do not follow “no electrician needed” marketing for this 63A protector.
-
Install on DIN rail and set limits

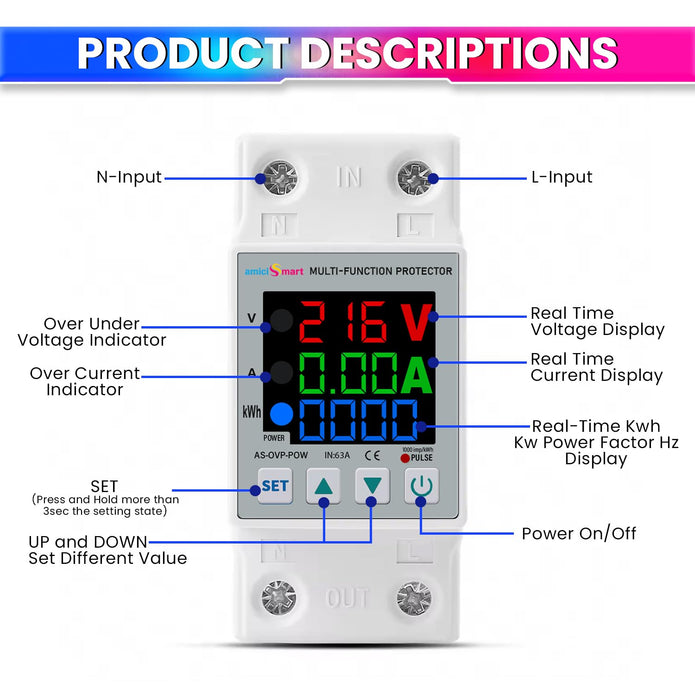

Electrician wires L/N in and out per the device diagram (neutral must be correct). Set OV / UV / OC and reconnect behaviour for your site.
-
Verify readings and trip behaviour
Check LCD V/A/W/kWh, then confirm protective trips and auto-reconnect under supervised test conditions.
63A Digital Energy Meter + Voltage/Overload Protector
230V single-phase · Over/under voltage · Over-current · Auto reconnect · LCD · Optional mount
DIN-rail single-phase meter/protector that shows V / A / W / kWh on an LCD, with adjustable over-voltage, under-voltage and overload cut-offs and automatic reconnect after recovery. Choose without mount or with mount. Requires a qualifie...
Sale price
Rs. 1,799.00
-56%
Regular price
Rs. 4,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Digital Energy Meter Over/Under Voltage & Overload Protection Device with Auto Reconnect and LCD Display 63A 230V
Sale price
Rs. 1,799.00
Regular price
Rs. 4,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU — Without Mount | 1xTOMZN-DDS238-VAP |
|---|---|
| SKU — With Mount | 1xTOMZN-DDS238-VAP-M |
| Install preference (owner / guided) | Qualified electrician + upstream MCB — not DIY / no-electrician |
| Device type (manual) | DDS238-VAP TYPE multi-function protector / energy monitor |
| Supply | Single-phase two-wire AC; listing 230V / 63A class |
| Working voltage (manual) | 85–300V |
| Over-voltage range | Listing 120–300V; manual adjustable 85–300V (default 270V) |
| Under-voltage range | Listing & manual 85–300V (manual default 170V) — upper UV bound looks odd; confirm UI behaviour |
| Over-current range | 1–63A (manual default 40A); manual notes special-order 80A variant exists—this listing is 63A |
| Reconnect / switch-on delay | Listing 1–500 s; manual delay docs ~2–255 s style — conflict flag |
| Response claim (listing) | 0.1 s fault response (marketing) |
| Metering (manual) | Bi-directional total active energy; display to 9999.9 kWh class |
| Accuracy (manual) | ±0.5% V/A/W; ±1% active energy (IEC62053-21 cited) |
| Mounting / size (manual) | 35 mm DIN rail; ~35×81×60 mm |
| Frequency (manual) | 50/60 Hz |
| Warranty | Listing 1 year; manual 12 months from sale |
| Evidence note | Live Shopify listing + OCR/read of Downloads PDF 1xTOMZN-DDS238-VAP.pdf (DDS238-VAP TYPE). Product Manuals library path not confirmed via MCP. |
Frequently asked questions
Do I need the mount variant?
Buy With Mount (1xTOMZN-DDS238-VAP-M) if you want the mount accessory included. Without Mount is the meter/protector alone.
Can this replace my MCB?
No. Manual explicitly requires combining with a micro circuit breaker (MCB) for short-circuit protection. Use as metering + adjustable voltage/current protection alongside—not instead of—an MCB.
What are the factory defaults?
Per DDS238-VAP manual read: over-voltage default 270V, under-voltage 170V, over-current 40A on the 63A device, with short default switch-on delay. Always re-check on your unit’s menu.
Is installation DIY / no electrician?
No—guided preference is electrician + upstream MCB. Listing may market DIY-friendly DIN form-factor, but manual safety expectations, 63A class, and short-circuit protection requirements mean a qualified electrician should plan and install. Neutral must be connected correctly for the protector to work.
Does it meter solar export?
Manual describes bi-directional total active energy measurement. It is not a full grid-tied net-metering utility meter replacement.
Listing says reconnect up to 500 seconds but the manual looks different—what should I trust?
Both are flagged. Confirm on a physical unit menu before publishing a single delay range. Do not silently pick the larger marketing number.
Full Product Description
DDS238-VAP Digital Energy Meter & Voltage/Overload Protector (63A)
Draft for product 8360613347483. Variants: 1xTOMZN-DDS238-VAP (Without Mount) and 1xTOMZN-DDS238-VAP-M (With Mount).
Identity combines the live Shopify listing with technical evidence from 1xTOMZN-DDS238-VAP.pdf (OneDrive Downloads; Product Manuals SharePoint root not listable via MCP). Manual title: DDS238-VAP TYPE.
Installation preference (owner 2026-09-18 IST)
Electrician + upstream MCB required. Guided content rejects DIY / no-electrician marketing for this 63A protector. Manual requires combining with a micro circuit breaker for short-circuit protection.
Protection & metering
- Adjustable over-voltage, under-voltage and over-current protection with LCD V / A / W / kWh.
- Auto or manual reclosing behaviour after recovery (per manual modes).
- Manual also documents malignant-load / pure-resistive limit features and fault-reason logs—not emphasised in storefront copy.
Conflicts still open
- Reconnect delay: listing 1–500 s vs manual ~2–255 s class settings.
- OV lower bound: listing 120V vs manual 85V adjustable floor.
Support
1-year / 12-month warranty language across listing and manual. amiciKart care channels as published on the store.
