Know before you buy
-
Electrician required
Circuit breakers and residual-current devices must be selected and installed by a qualified electrician for the panel, cable and load.
-
32A · 30mA · 6kA

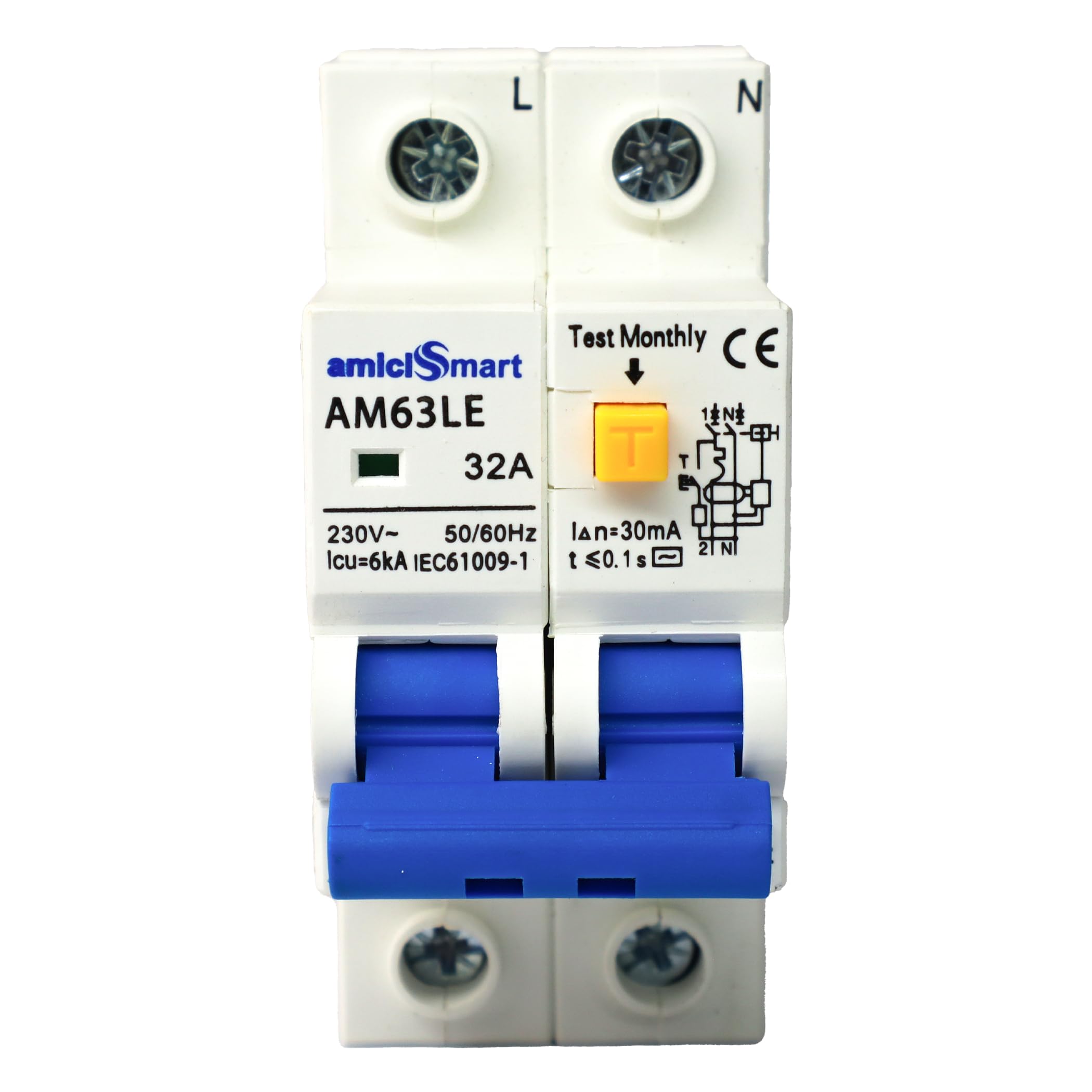

Marked on the front: 32A, 230V~ 50/60Hz, IΔn=30mA, Icu=6kA, IEC61009-1, t≤0.1s, Type AC, with a separate leakage on/off control.
-
Trip curve not marked
No B/C trip-curve letter is marked on the front of this breaker.
Features that make it useful
-

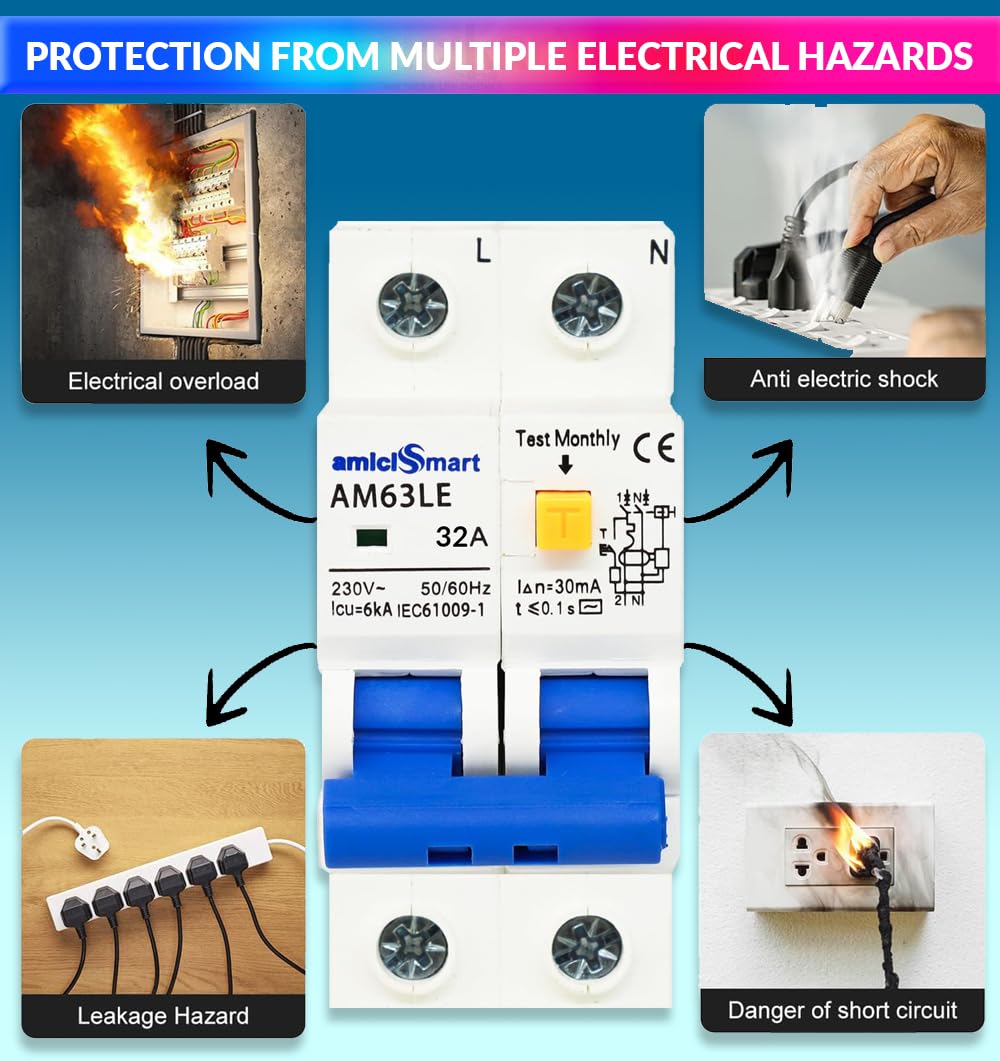

3-in-1 protection
Residual current leakage, overcurrent and short-circuit protection in one DIN-rail RCBO.
-

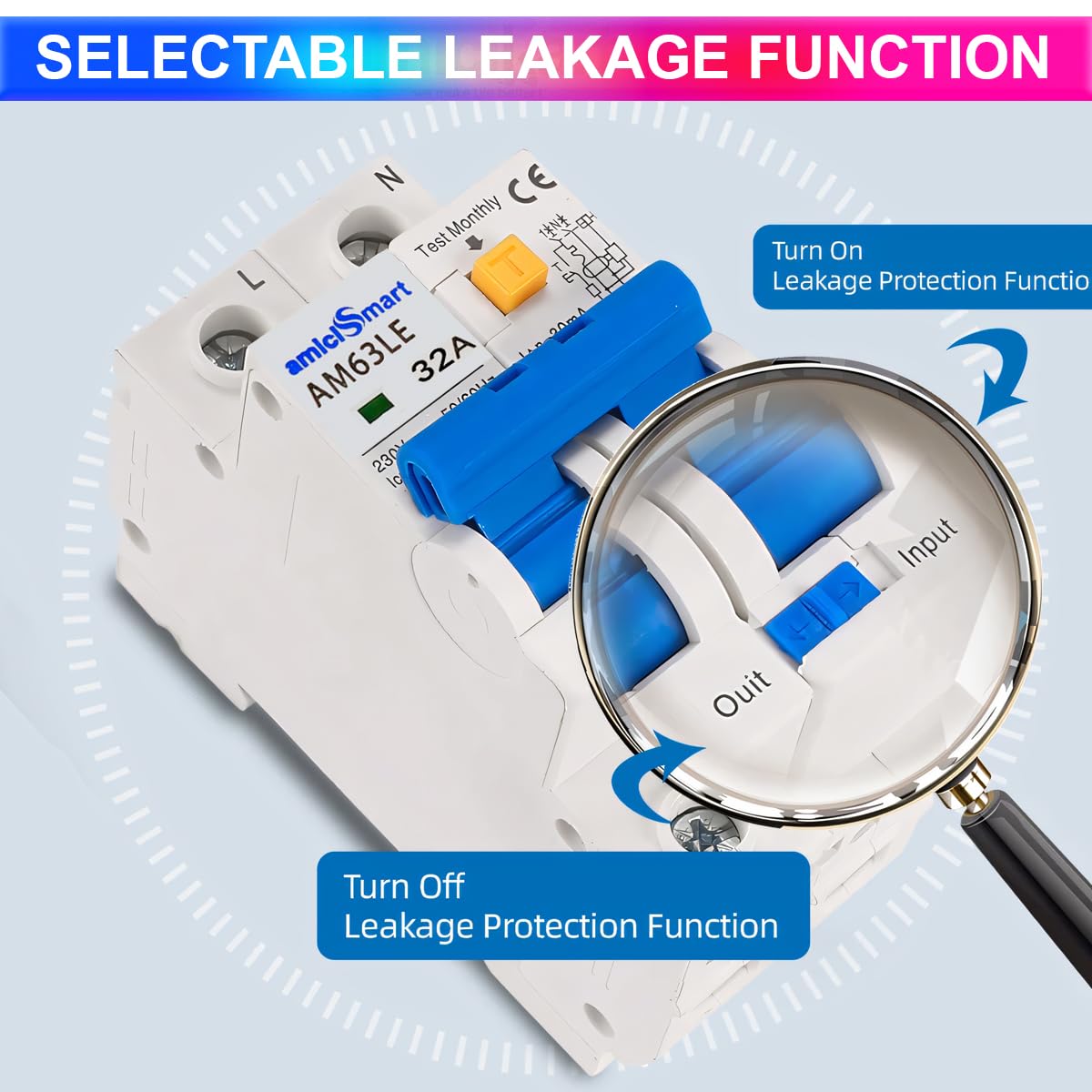

Separate leakage control switch
Independently enable/disable leakage protection without removing the breaker. Follow electrician practice when testing.
-
Fast trip · Type AC
Trips in t≤0.1s; Type AC residual protection. IΔn=30mA; Icu=6kA.
-
AM63LE range · 32A
The same AM63LE model comes in 16A, 32A, 63A and 80A, each sold as a separate product; the ampere rating is printed on the front.
How to use
-
Have an electrician size the circuit
Check the load current and cable, and that a 32A / 30mA Type AC RCBO is right for that circuit.
-
Isolate the board and mount on DIN rail

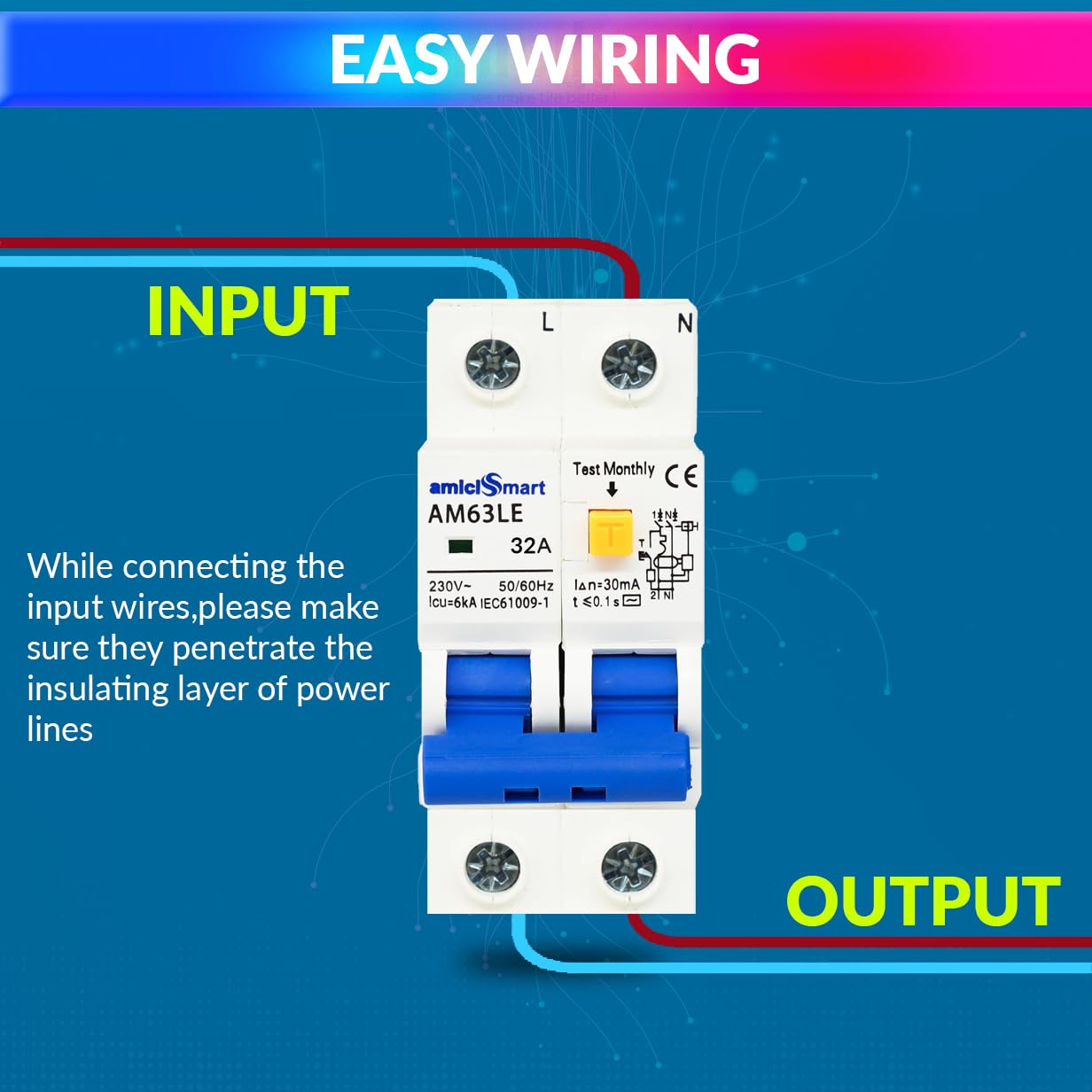

Qualified installer mounts the RCBO, wires L/N line/load correctly, and tests the leakage function monthly with the yellow T button / approved tester.
-
Use leakage switch only with understanding
Leaving leakage protection OFF removes shock-protection benefit—do not treat as a convenience default.
RCBO 32A with Leakage Control Switch
amiciSmart · AM63LE · 32A · 230V~ 50/60Hz · IΔn 30mA · Icu 6kA · Type AC · IEC61009-1 · Separate leakage ON/OFF · DIN-rail
Two-module AM63LE RCBO (32A, 230V~) with leakage, overcurrent and short-circuit protection, plus a separate switch to turn leakage protection on or off. IΔn 30mA, Icu 6kA, t≤0.1s, Type AC, IEC61009-1. Electrician install.
Sale price
Rs. 899.00
-56%
Regular price
Rs. 2,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 899.00
Unit price
Increments of 1
Minimum of 1
Maximum of
32A RCBO Circuit Breaker Leakage, Overcurrent & Short-Circuit Protection with Leakage On/Off Switch
Sale price
Rs. 899.00
Regular price
Rs. 2,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 899.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU | 1x2M-RCBO-MO-32A |
|---|---|
| Brand | amiciSmart |
| Model | AM63LE |
| Rated current In | 32A |
| Rated voltage / frequency | 230V~ 50/60Hz |
| IΔn | 30mA |
| Icu | 6kA |
| Standard | IEC61009-1 |
| Trip time | t≤0.1s |
| Residual type | Type AC |
| Trip curve letter | Not marked on the breaker |
| Leakage control | Dedicated ON/OFF switch for leakage protection |

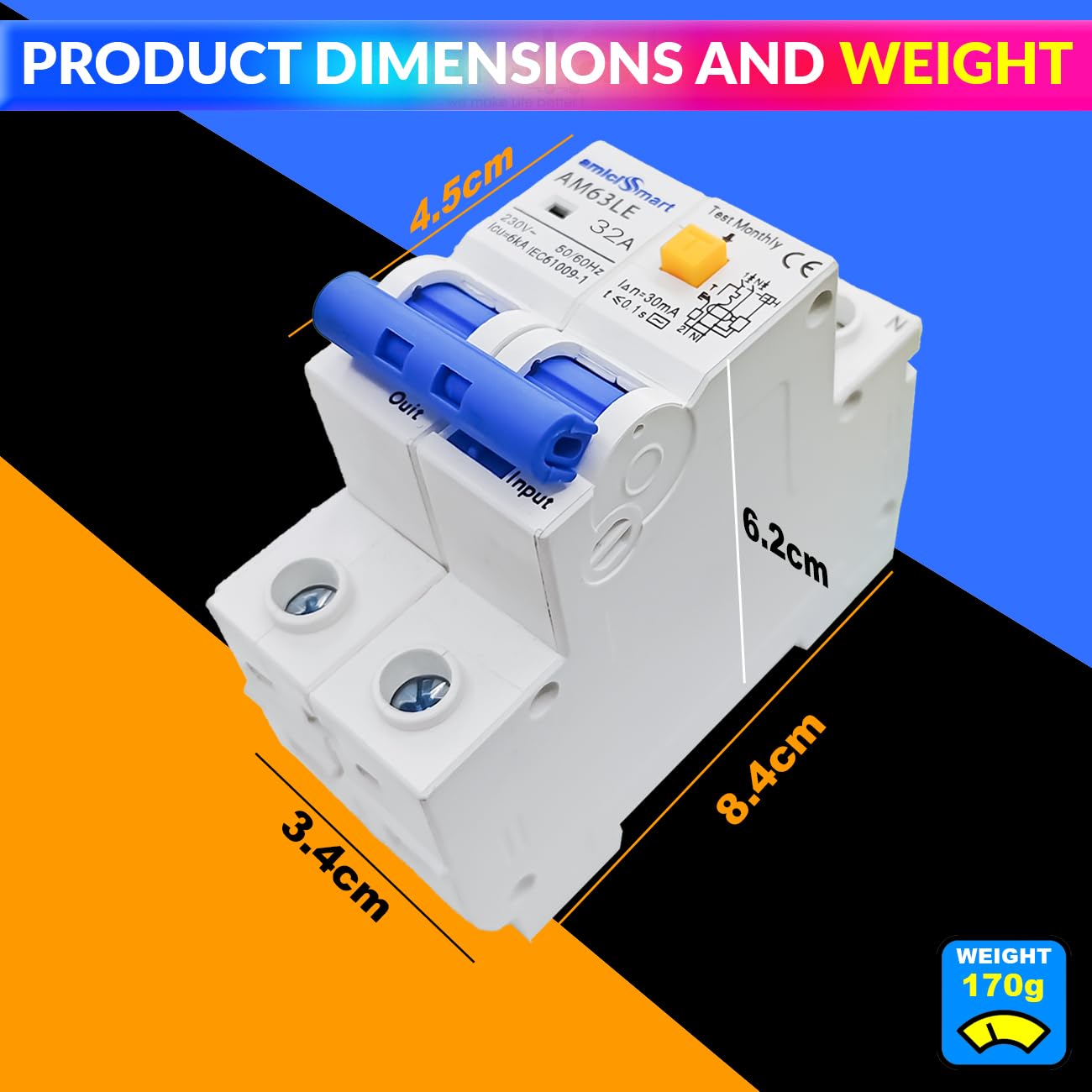

| Mounting | DIN-rail · 2-module style |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Is this the 32A model?
Yes. The AM63LE breaker has 32A printed on the front.
What is the residual current rating?
IΔn=30mA (Type AC).
What trip curve is it (B/C)?
No trip-curve letter is marked on the breaker.
What is the leakage switch for?
It lets you independently turn leakage protection on or off—for example during certain tests—without removing the breaker. Leaving it off disables leakage protection.
Are the 16A/32A/63A/80A versions options on this page?
No. They are the same AM63LE model in different ratings, each sold as a separate product.
Full Product Description
amiciSmart RCBO AM63LE (32A) with Separate Leakage Control
Ratings (AM63LE)
- 32A · 230V~ 50/60Hz · IΔn=30mA · Icu=6kA · IEC61009-1 · t≤0.1s · Type AC
- Trip curve letter: not marked on the breaker
Other ratings
Also sold as separate products: 16A, 63A and 80A.
Qualified electrician required.
