Know before you buy
-
5–40V in · 1.2–35V out
Wide step-down window for DIY/lab loads.
-
Up to 9A · 300W peak class
High-current XL4016 module.
-
Independent CV and CC pots
Tune voltage and current limits separately.
-
Heatsink · fan if >65°C
Aluminium heatsink fitted; add a cooling fan if it runs above 65°C.
Features that make it useful
-
XL4016 IC platform
Built around the high-current XL4016 buck converter chip.
-

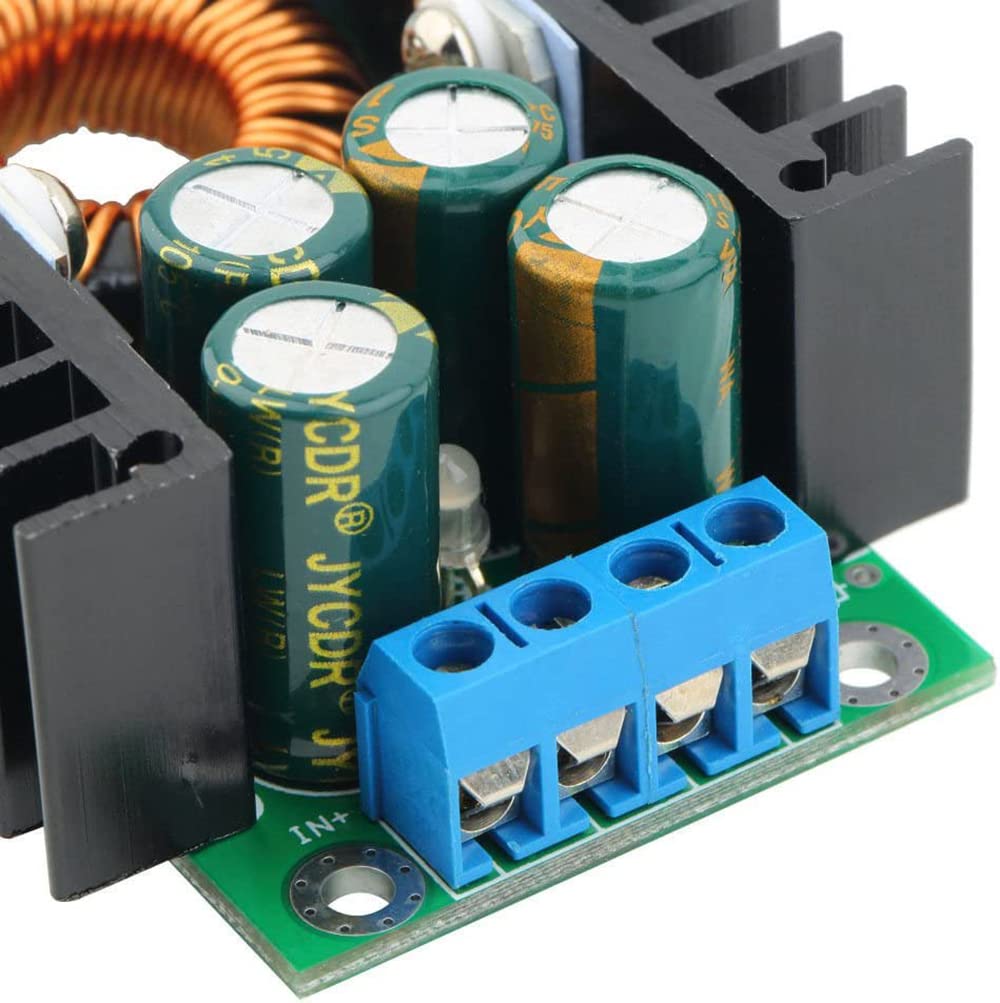

Screw-terminal PCB
No soldering required for typical hookup.
-
Arduino / Pi / motor / LED / charger DIY use
Power Arduino, Raspberry Pi, motors, LEDs or battery chargers.
-
1-year warranty · India support
980-970-9898 / care@amicikart.com.
How to use
-
Check the source is 5–40V and the output you need is 1.2–35V (below input)
Buck requires Vin > Vout with margin.
-

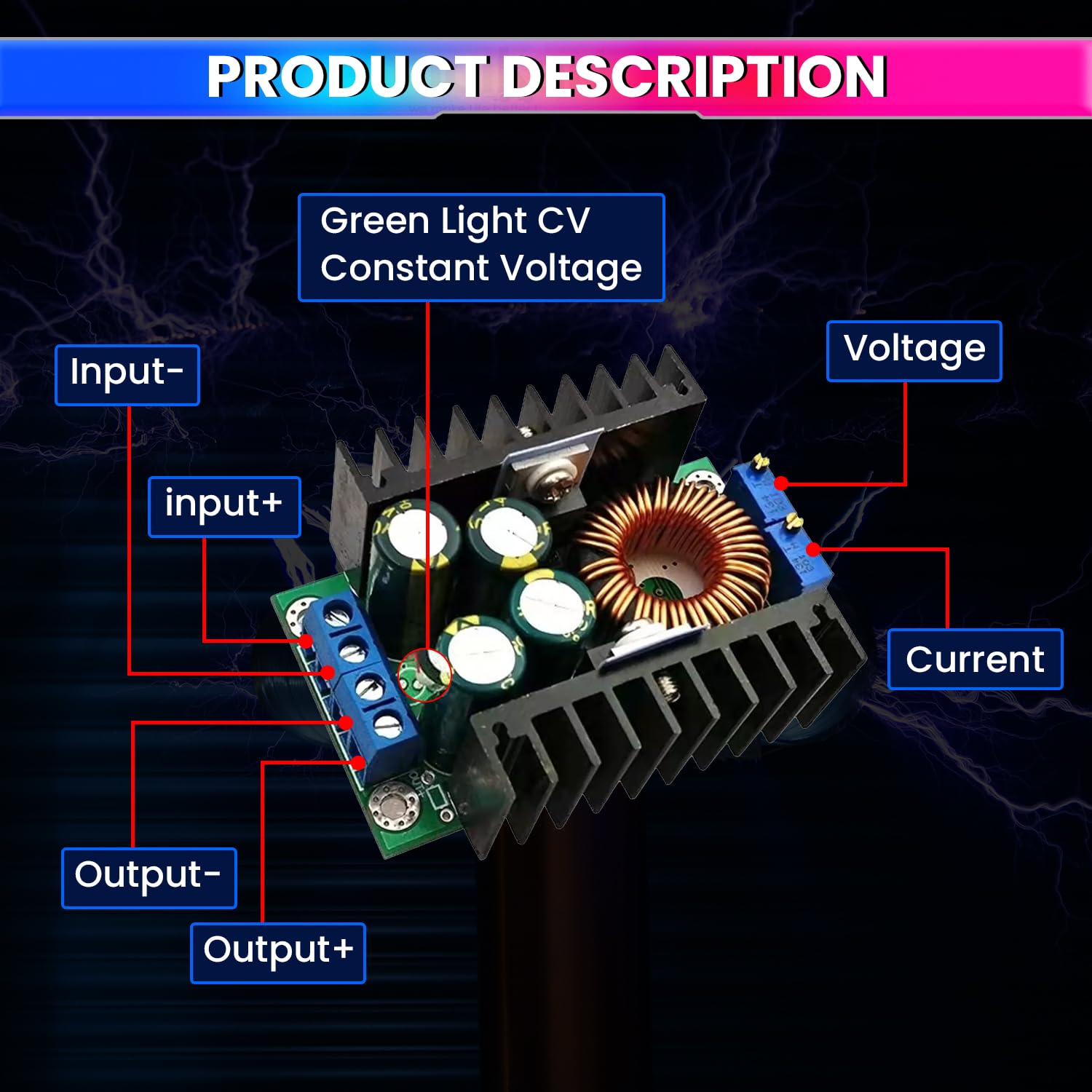

Set CV/CC pots before connecting sensitive loads; use screw terminals
Check the output with a multimeter first.
-
Monitor heatsink; add cooling fan if power-tube temperature exceeds 65°C
Under heavy load the heatsink gets hot — add a fan above 65°C.
300W XL4016 Buck 5-40V to 1.2-35V 9A
amiciSmart · XL4016 · 5–40V in · 1.2–35V out · up to 9A / 300W · CV/CC pots · heatsink

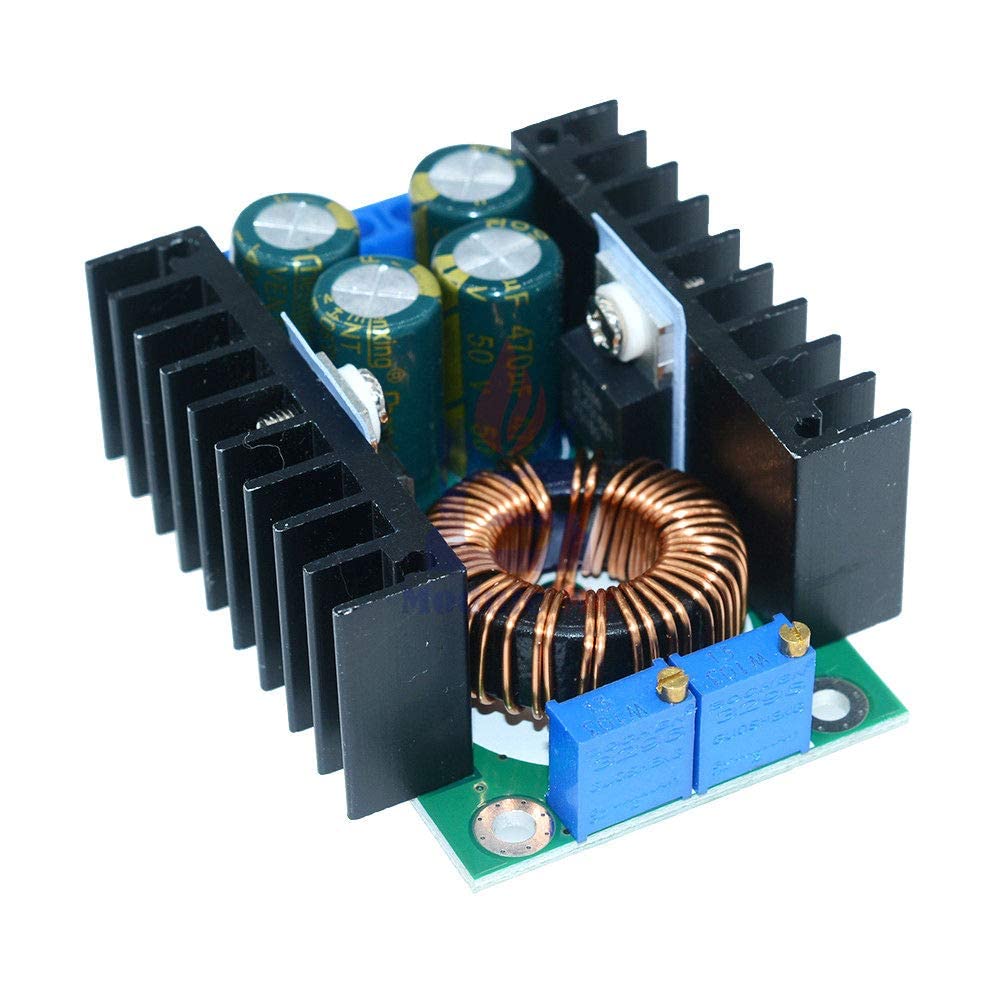

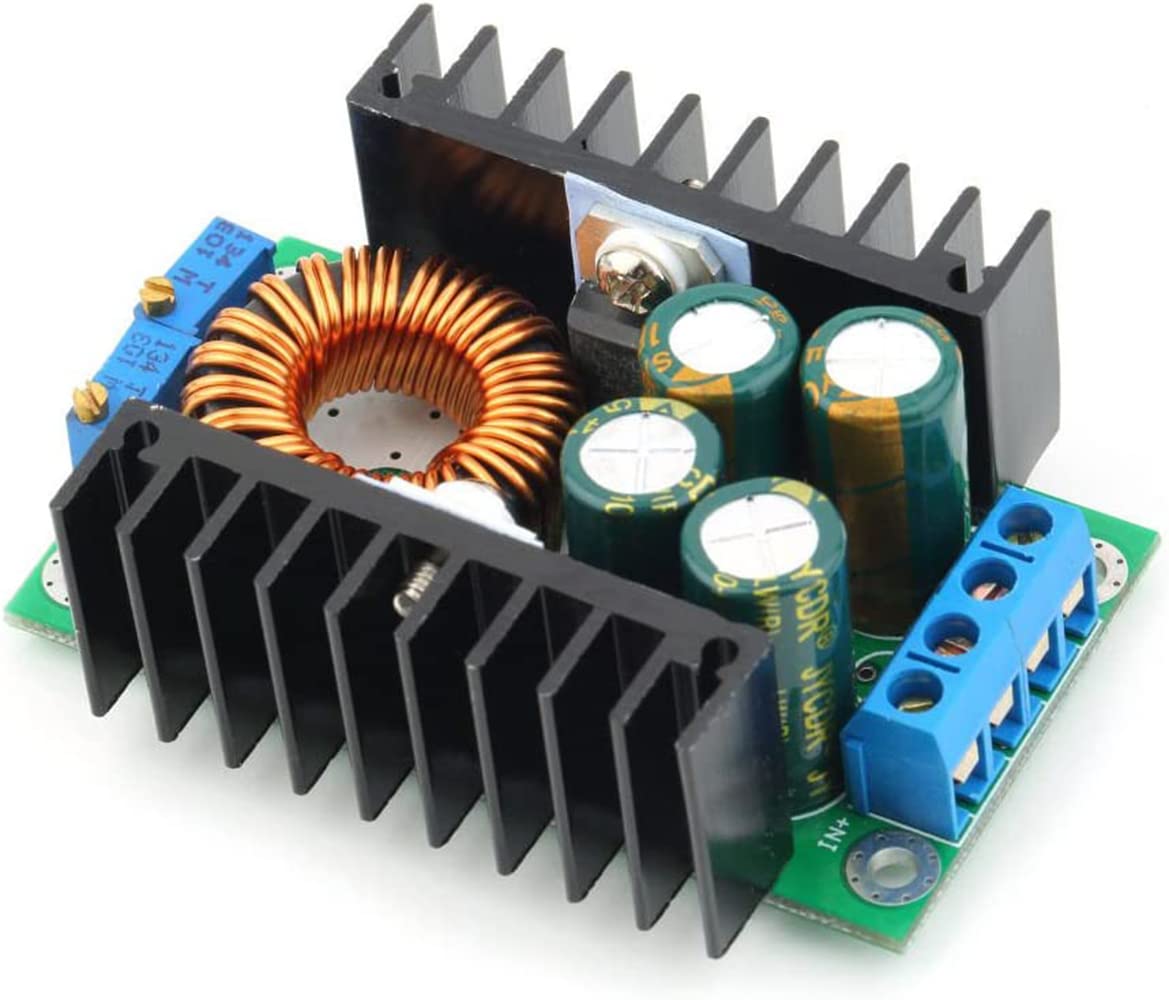

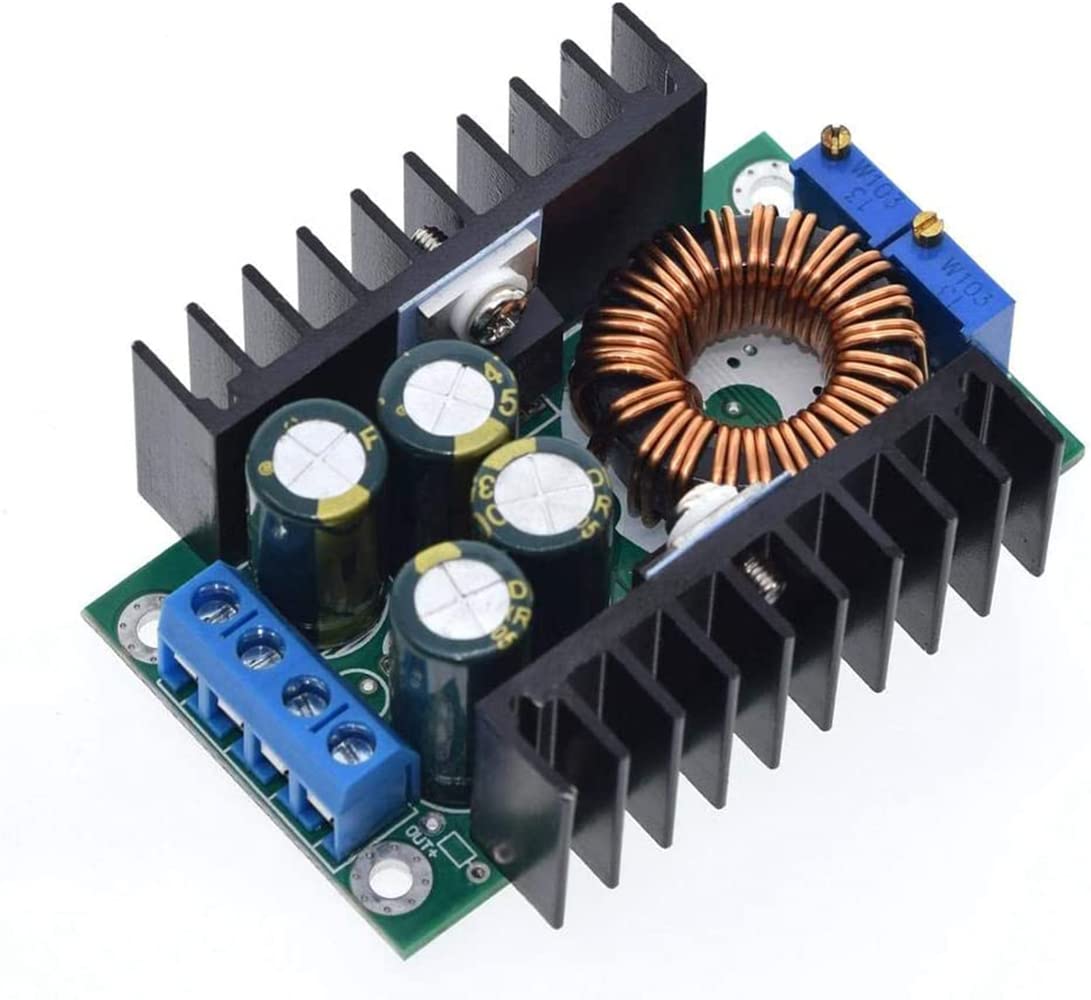

XL4016 DC-DC buck (step-down) module: 5–40V DC in, adjustable 1.2–35V out, up to 9A continuous / 300W peak. Separate CV and CC pots, screw terminals and aluminium heatsink (add a fan above 65°C). For Arduino, Pi, motor and LED projects.
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU | 1xDC-BUCK-300 |
|---|---|
| Brand | amiciSmart |
| Device class | DC-DC buck / step-down power module (XL4016) |
| Input | 5–40V DC |
| Output | Adjustable 1.2–35V |
| Current | Up to 9A continuous |
| Power | Up to 300W peak class |
| Control | CV and CC potentiometers |
| Thermal | Aluminium heatsink; add fan if >65°C |
| Connections | Screw-terminal PCB |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
What are the input/output ranges?
What current and power?
Full Product Description
300W XL4016 Buck 5-40V to 1.2-35V 9A
XL4016 DC-DC step-down module: 5–40V DC input, adjustable 1.2–35V output, up to 9A continuous and 300W peak class, with independent CV and CC potentiometers and an aluminium heatsink (add a fan above 65°C).
- XL4016 IC platform: High-current buck converter.
- Screw-terminal PCB: No soldering required for typical hookup.
- Arduino / Pi / motor / LED / charger DIY use: Flexible bench and project power.
- 1-year warranty · India support: 980-970-9898 / care@amicikart.com.
