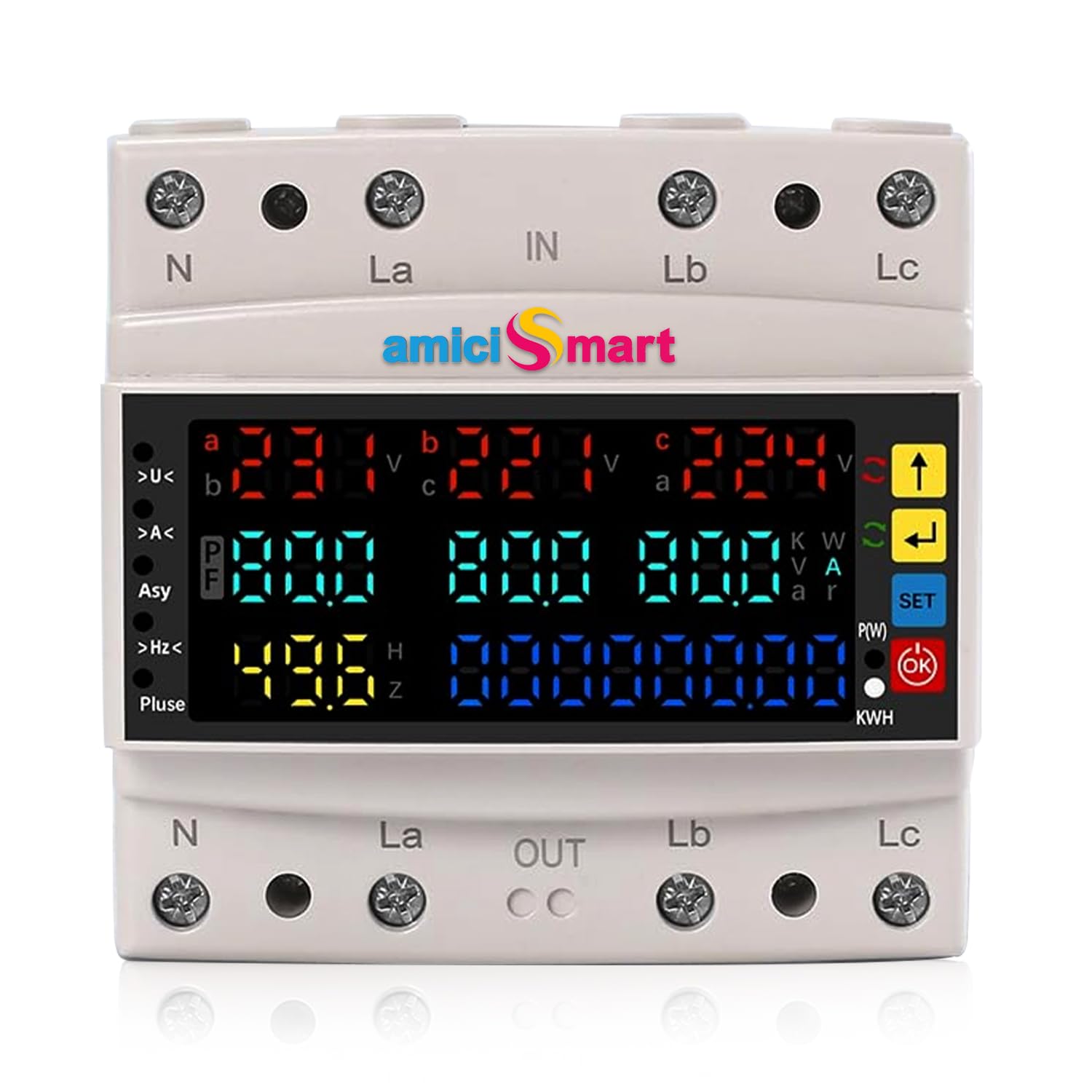

3-Phase Energy Meter 80A – Auto-Reconnect, Voltage/Current Protection, LCD, DIN Rail, 220V

• Why You Need This Device :- It acts as a 24/7 smart guard for your 3-phase system, automatically detecting and preventing electrical faults like over/under voltage, current imbalance, and phase loss—protecting your appliances, avoiding costly damage, and ensuring uninterrupted power.

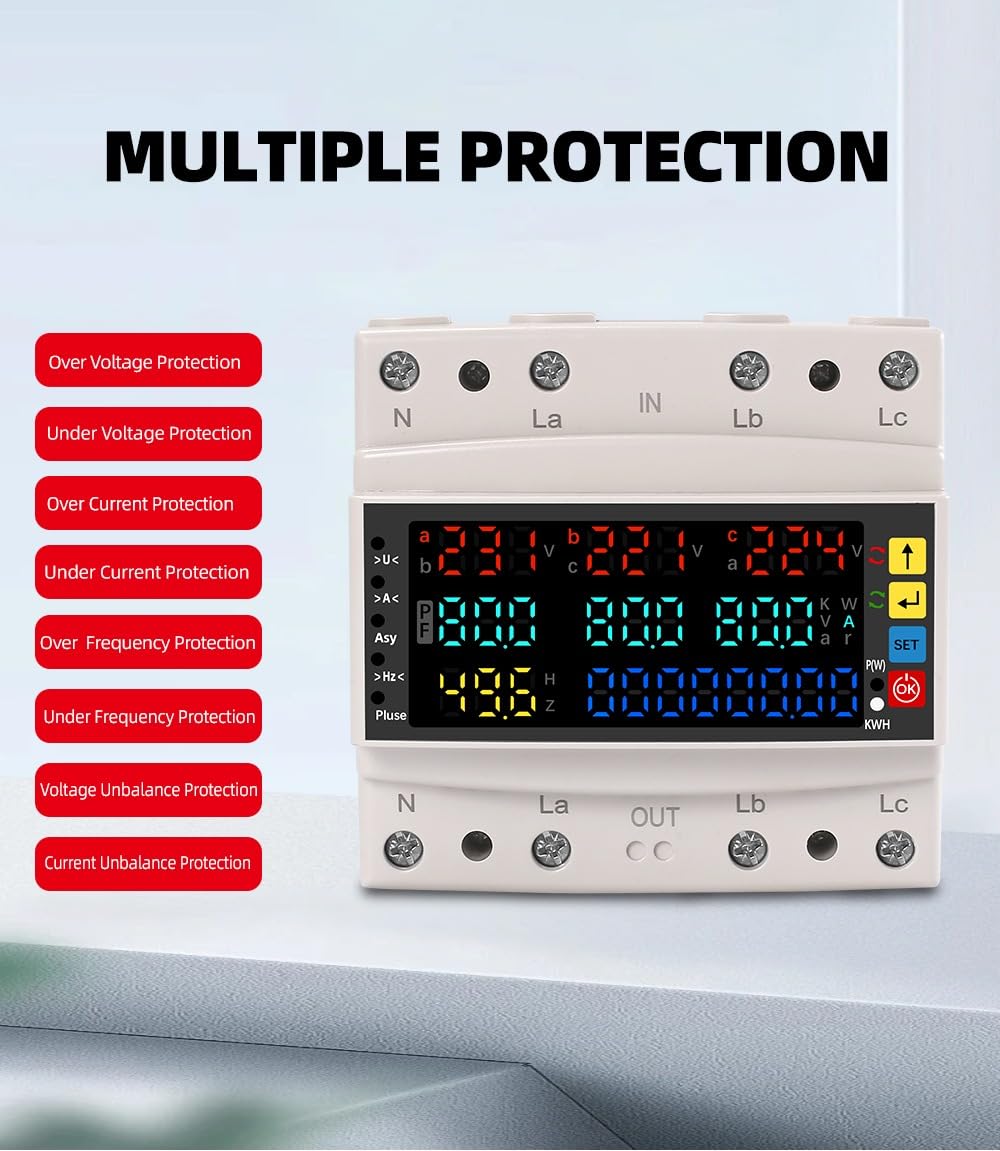

• All-in-One :- With 3-phase energy monitoring, it provides over/under voltage, current, and frequency protection—plus phase-loss, phase-sequence, and imbalance protection.
• Auto Reconnect Functionality :- Automatically restores power once parameters return to safe levels, reducing downtime and eliminating manual resets.

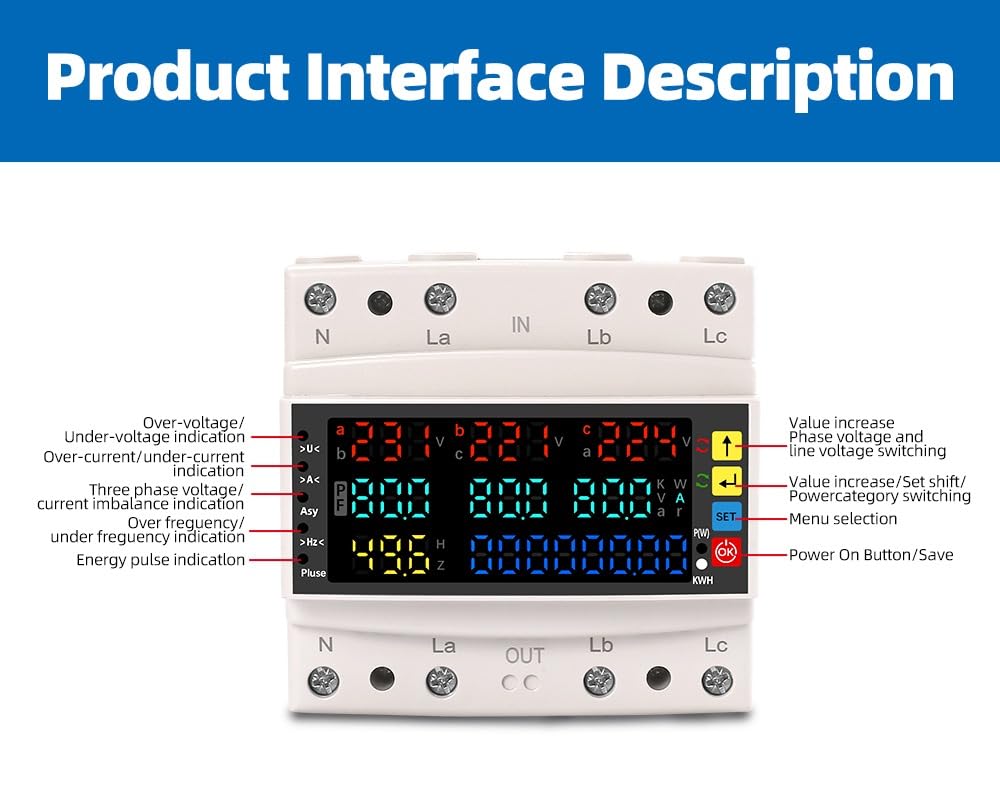

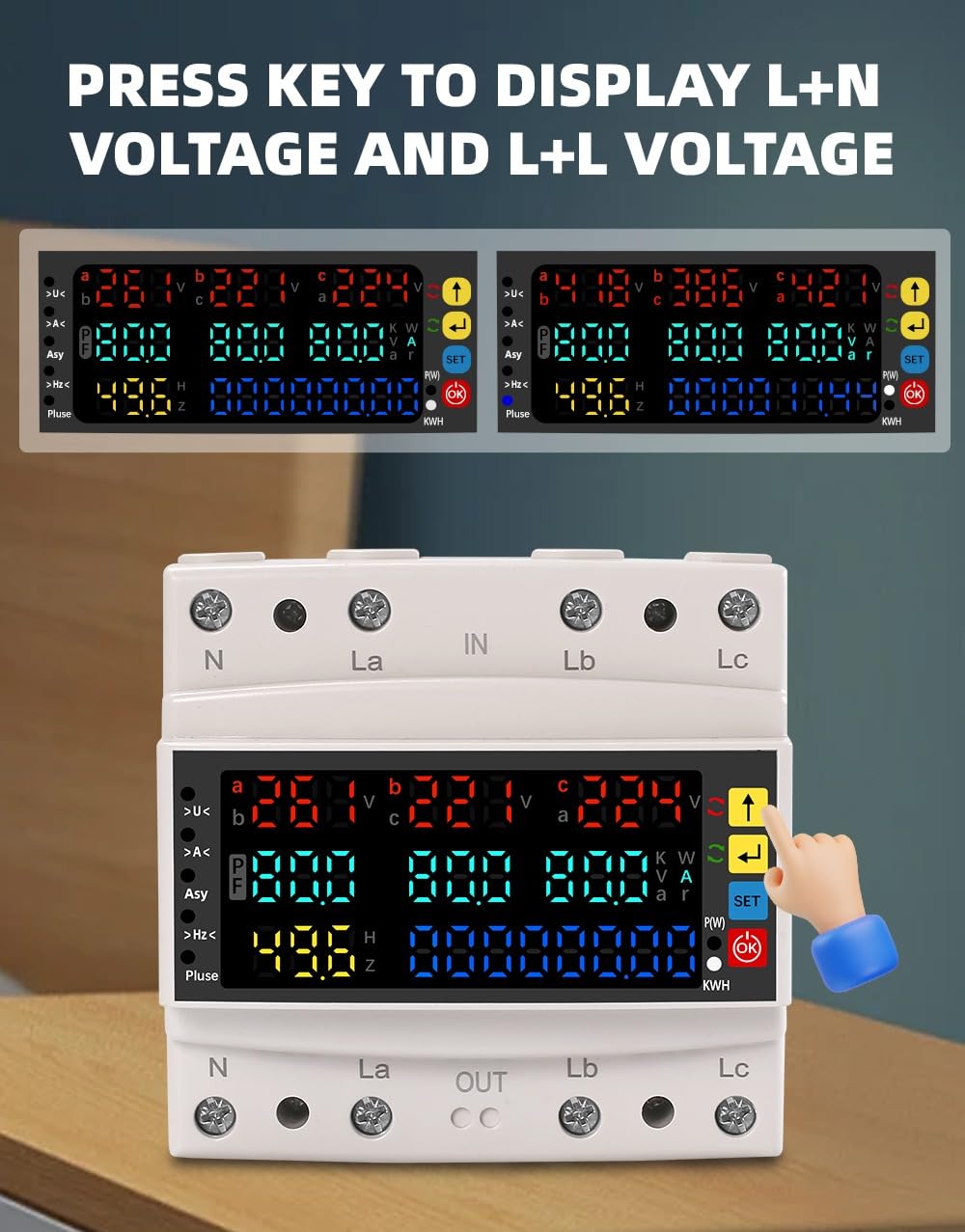

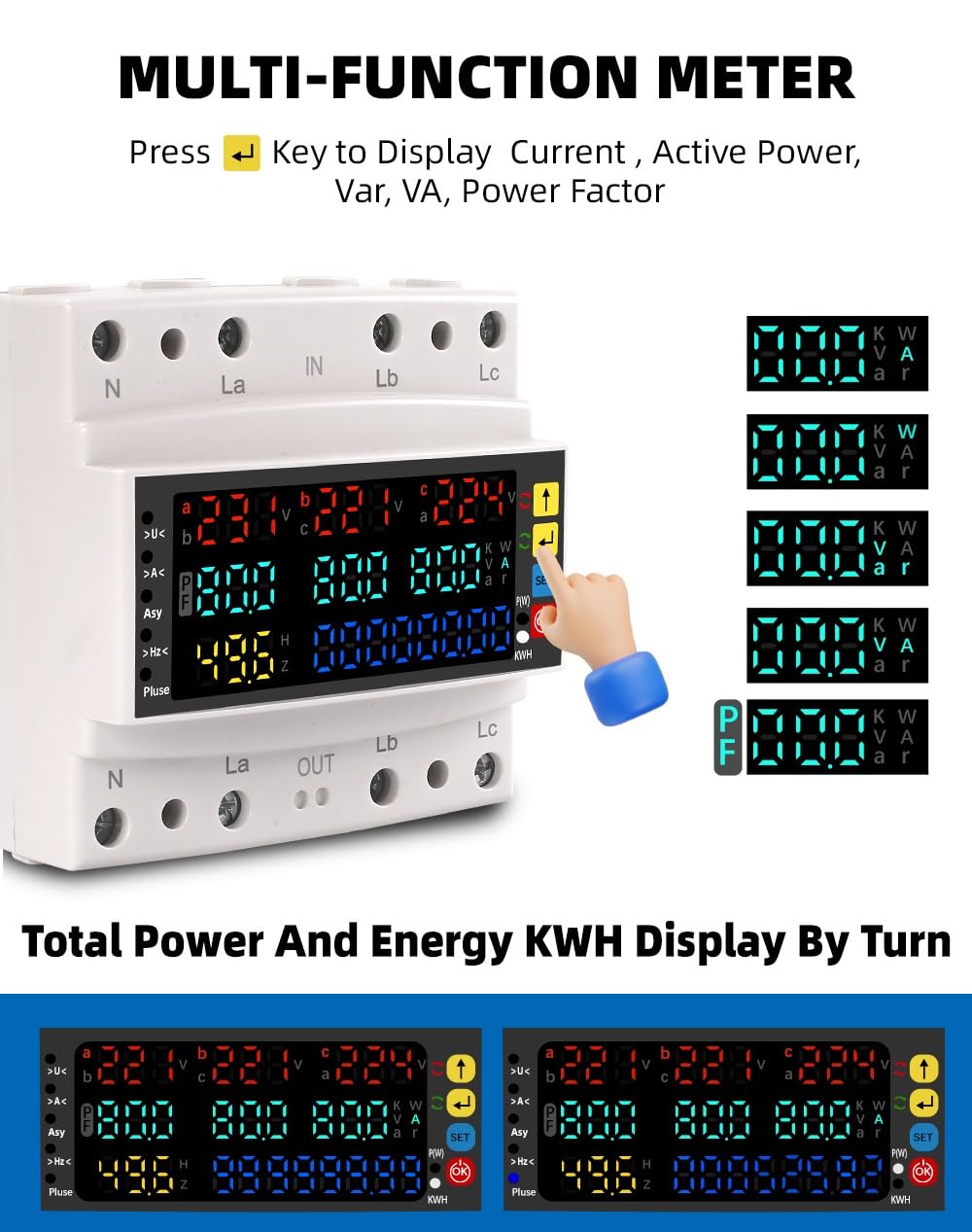

• Real-Time Smart Monitoring :- Displays real-time voltage, current, power factor (PF), apparent power (VA), reactive power (VAR), frequency, active power, and total energy consumption (kWh)—ideal for energy audits, load balancing, and fault diagnostics.
• Adjustable Delay Timers :- Customize power-on and recovery delays (1–999s) to prevent false triggers and protect connected appliances from unstable power spikes.
• Easy & Secure Installation :- Designed for industrial and residential use with 35mm DIN rail mounting. Compact, durable, and built for long-term performance in demanding environments.
•  Warranty :-The products come with 1 year warranty (To claim warranty feel free to contact amicikart at 980-970-9898 or care@amicikart.com).

Technical Specification:

Rated Supply Voltage: AC 230V
High Measurement Accuracy: 0.5 Class
Max Load Capacity: Supports up to 80A

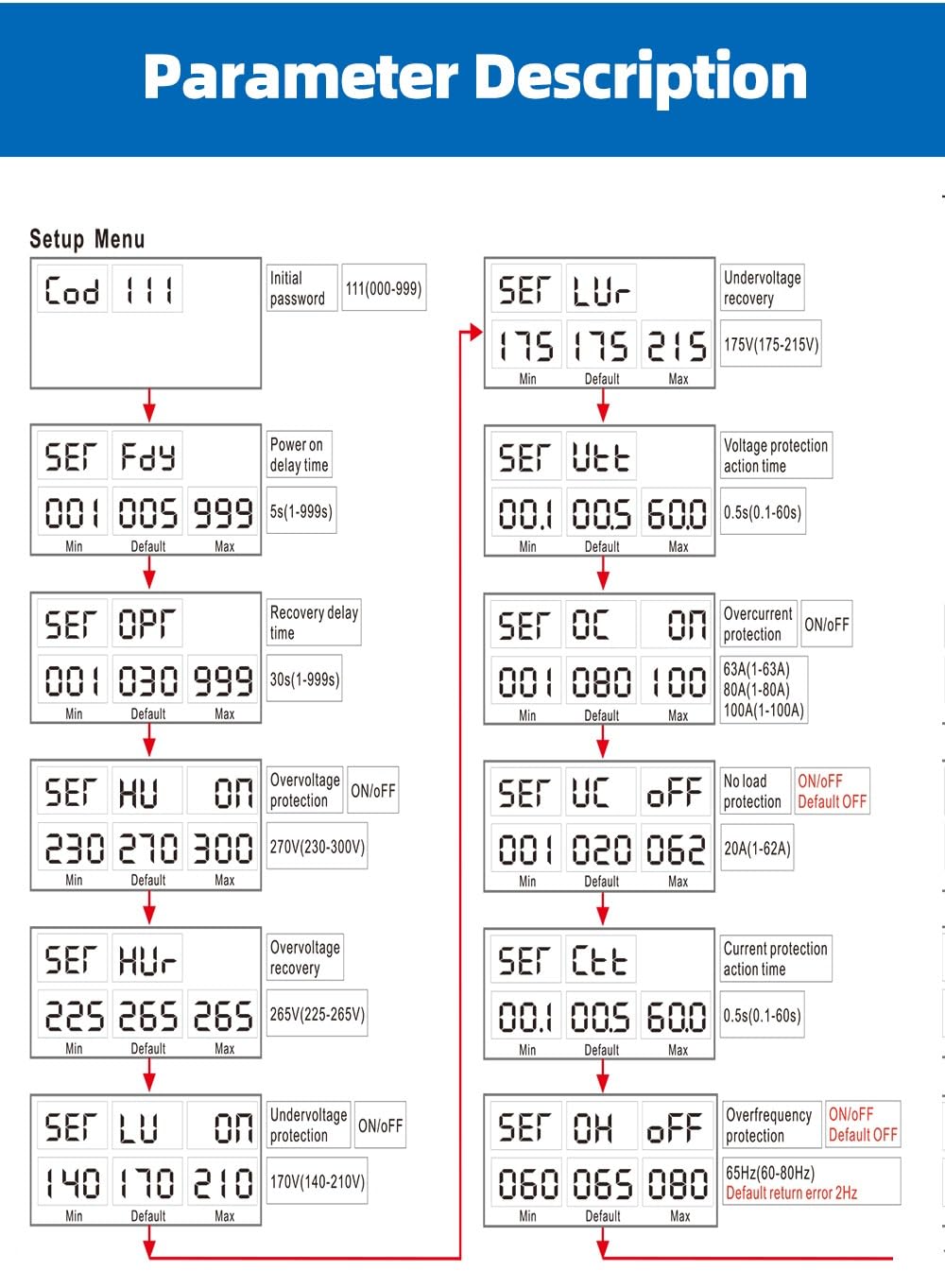

Adjustable Power-On Delay: 1s to 999s (Default: 30s)
Recovery Delay Time: 1s to 999s (Default: 30s)
Over-Voltage Protection: Adjustable 230V~300V (Default: 270V)
Over-Voltage Recovery: Adjustable 225V~295V (Default: 265V)
Under-Voltage Protection: Adjustable 140V~210V (Default: 170V)
Under-Voltage Recovery: Adjustable 175V~215V (Default: 175V)
Under-Voltage Action Time: 0.1s to 30s (Default: 0.5s)
Over-Current Protection: Adjustable 0.5A~80A (Default: ON)
No-Load Protection: Adjustable 1A~62A (Default: OFF)
Over-Current Recovery Delay: 1s to 500s (Default: 30s)

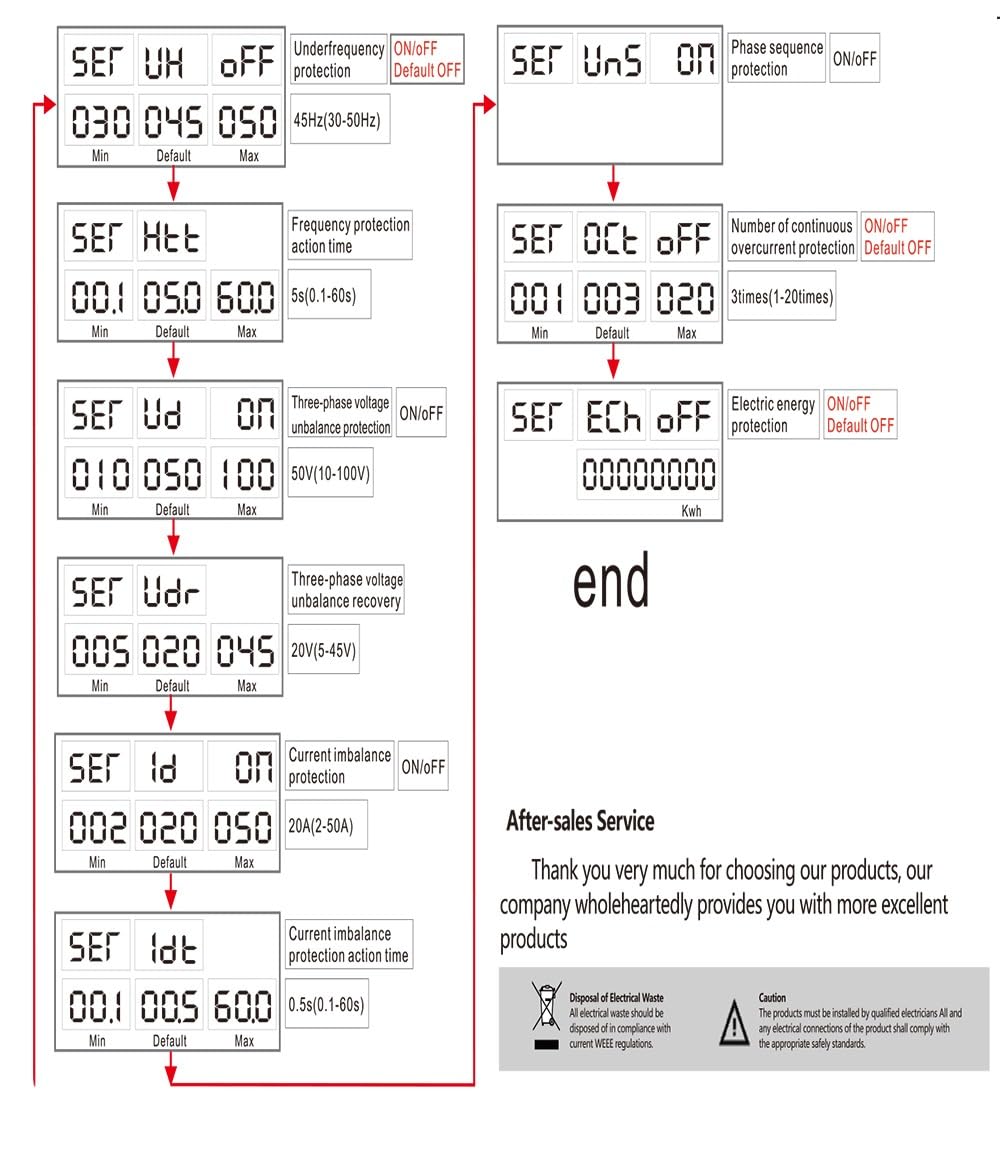

Frequency Over-Protection: Adjustable 60Hz~80Hz (Default: OFF)
Frequency Under-Protection: Adjustable 30Hz~50Hz (Default: OFF)
Frequency Action Time: 0.1s to 30s (Default: 5s)
Voltage Unbalance Protection (Three-Phase): 10V~100V (Default: ON)
Voltage Unbalance Recovery: 5V~45V (Default: 20V)
Current Unbalance Protection (Three-Phase): 2A~50A (Default: ON 20A)
Current Unbalance Action Time: 0.1s to 30s (Default: 0.5s)
Phase Sequence Protection: ON/OFF (Default: ON)
Over-Current Protection Limit: 1 to 20 Times (Default: ON)
Easy Installation: 35mm DIN Rail Mountable
