Know before you buy
-
Qualified electrician required
Installation and configuration must be carried out by a qualified electrician with the power isolated.
-
63A · 230V L-N / 415V L-L
For a 230V line-to-neutral / 415V line-to-line supply. Have your electrician check the load, cable size and panel space against the 63A rating.
-
63A model
This product is the 63A protector, SKU 1x3-PHASE. Check the device rating before installation.
Features that make it useful
-

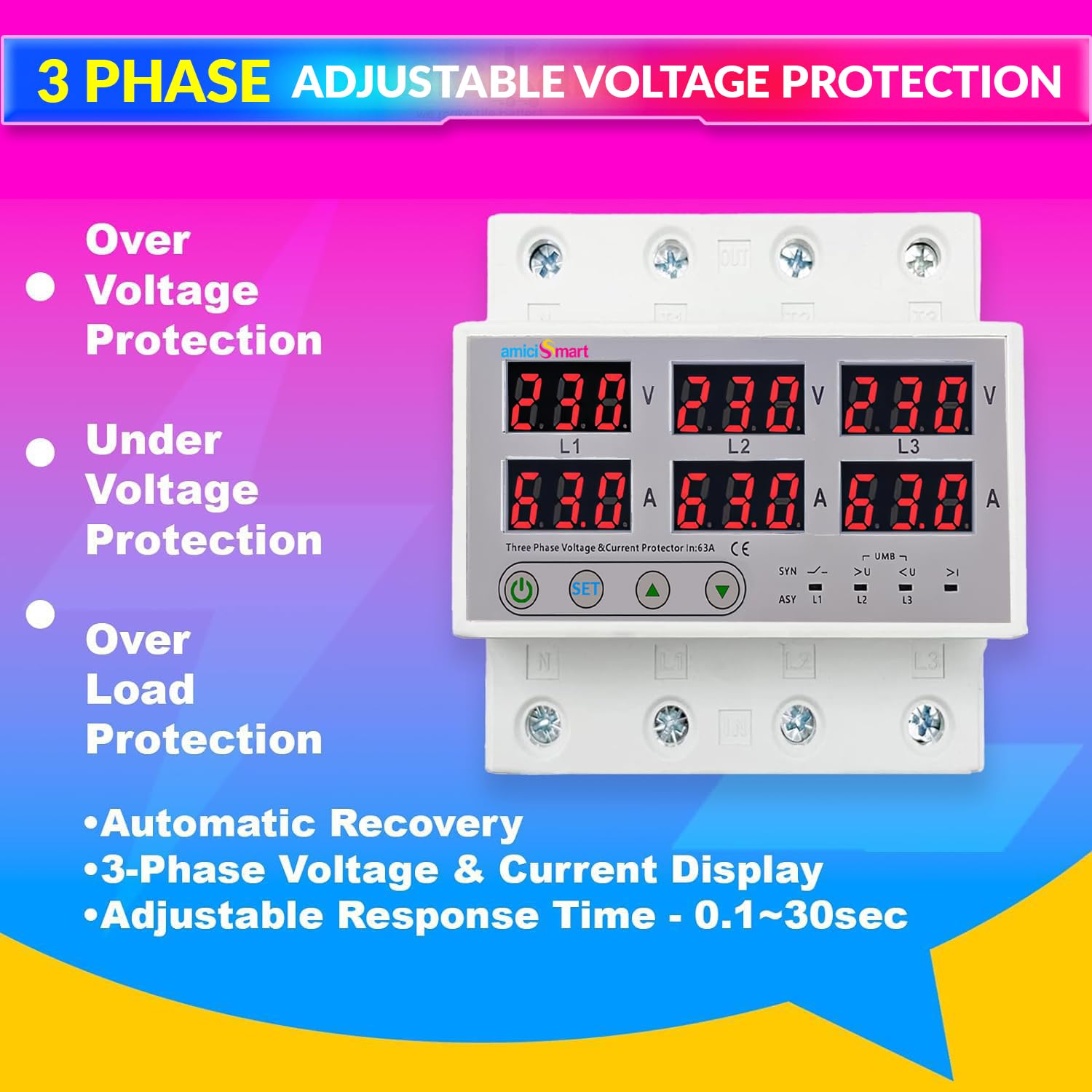

5-in-1 electrical protection
Over-voltage, under-voltage, over-current, phase-loss and phase-imbalance protection in one device.
-

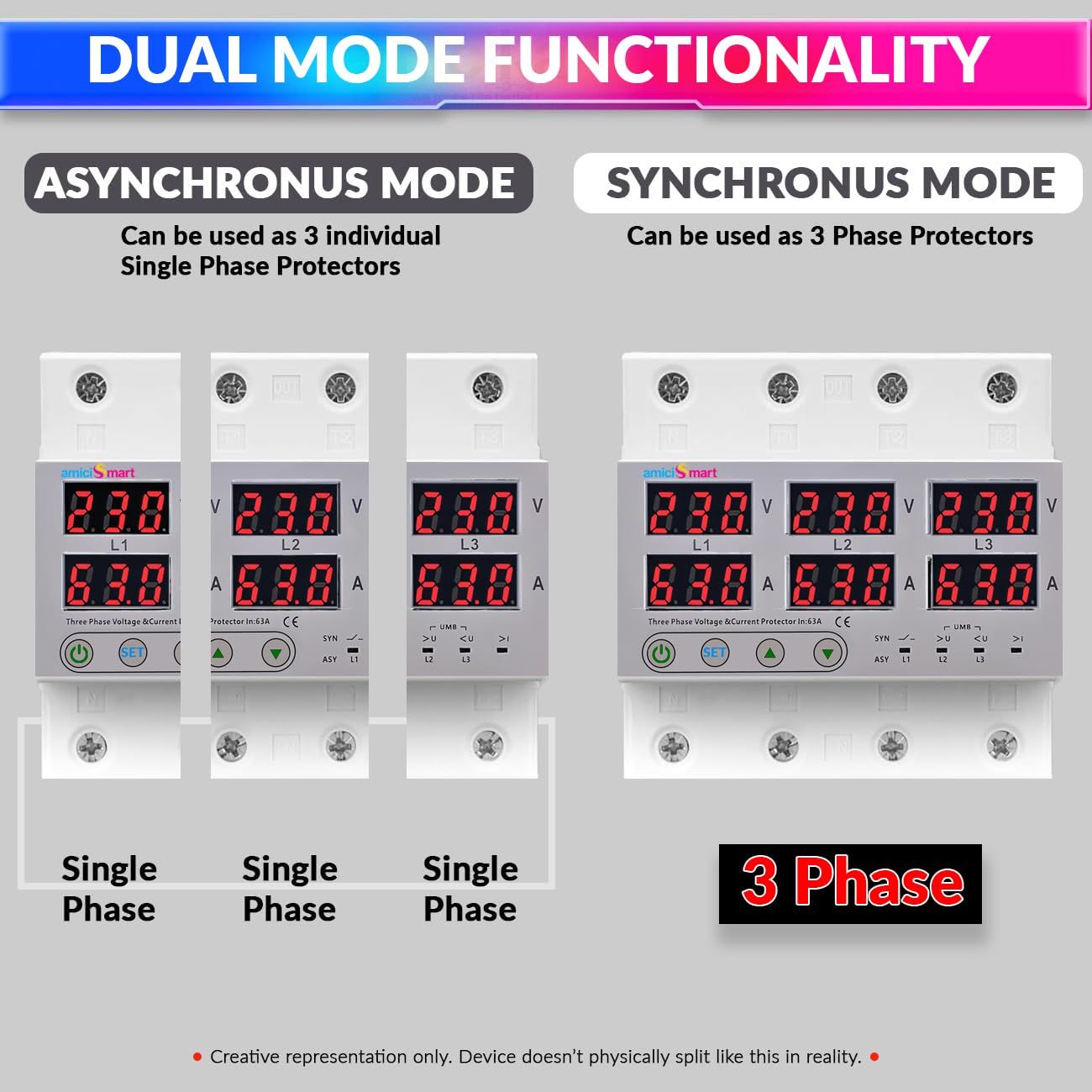

Synchronous & asynchronous modes
Synchronous control treats the three phases together; asynchronous control operates per phase. Have your electrician select the mode appropriate for the connected equipment.
-
Configurable thresholds & timing
Adjustable phase imbalance from 20–99V and protection action time from 0.1–30 seconds. Configure protection limits and recovery delays to suit the installation.
-

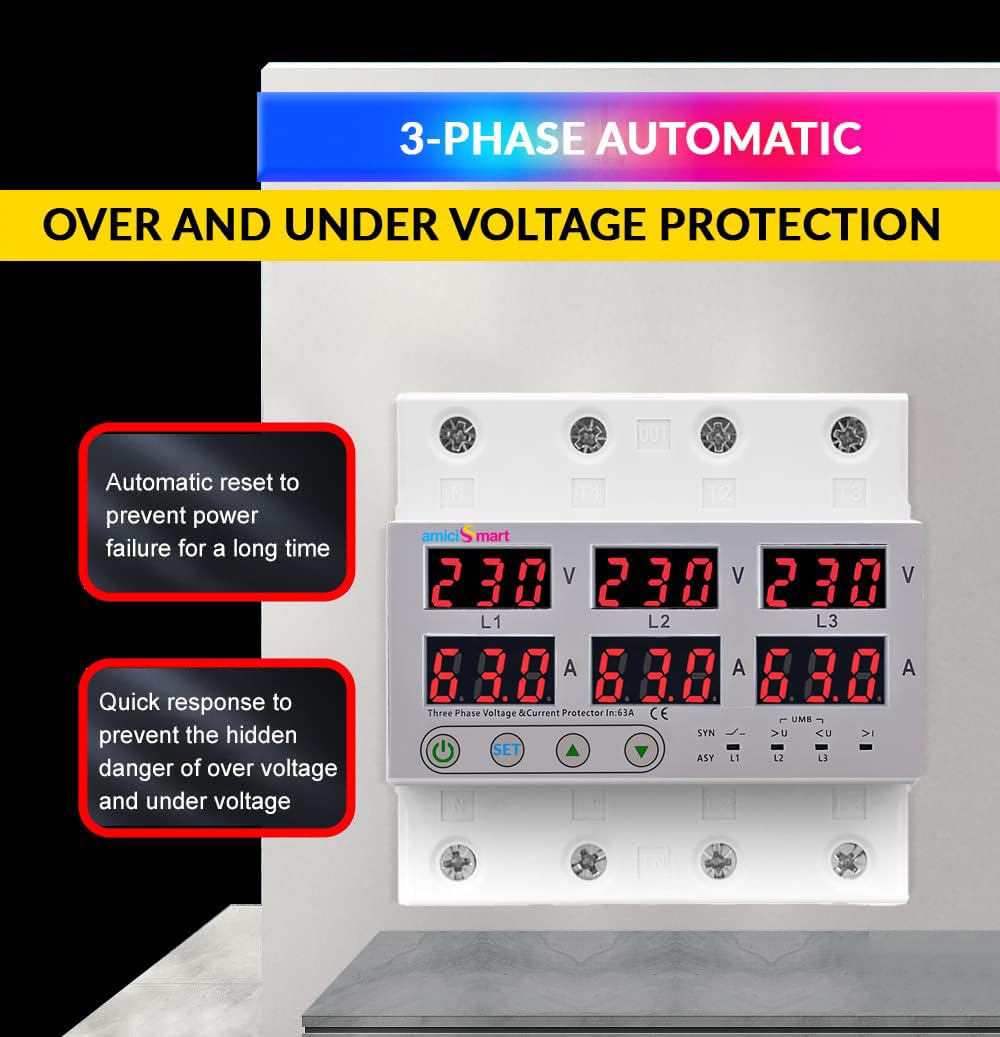

Auto-reconnect after recovery
Automatically reconnects after the monitored supply returns within the configured limits and the selected recovery delay has elapsed.
How to use
-
Plan with a licensed electrician
Confirm the load, cable size, panel space and 230V line-to-neutral / 415V line-to-line supply are suitable for the 63A device.
-

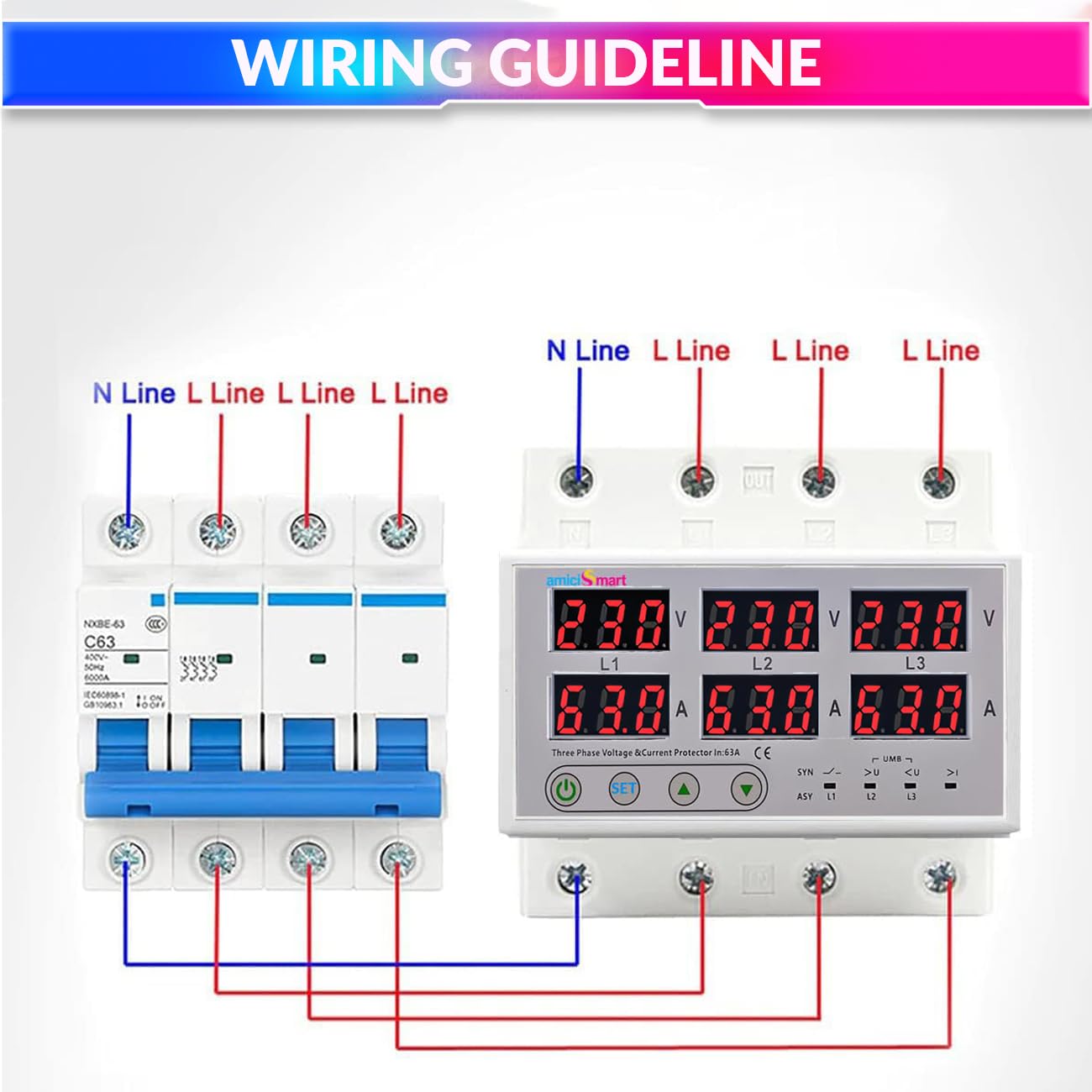

Isolate power and wire terminals
The installer must isolate the supply, verify the terminal markings and wire the device according to its instructions.
-
Set limits, mode and verify trips
Configure OV/UV/OC, imbalance, sync/async and delays for the site. Supervised test of trip and auto-reconnect before leaving the panel live.

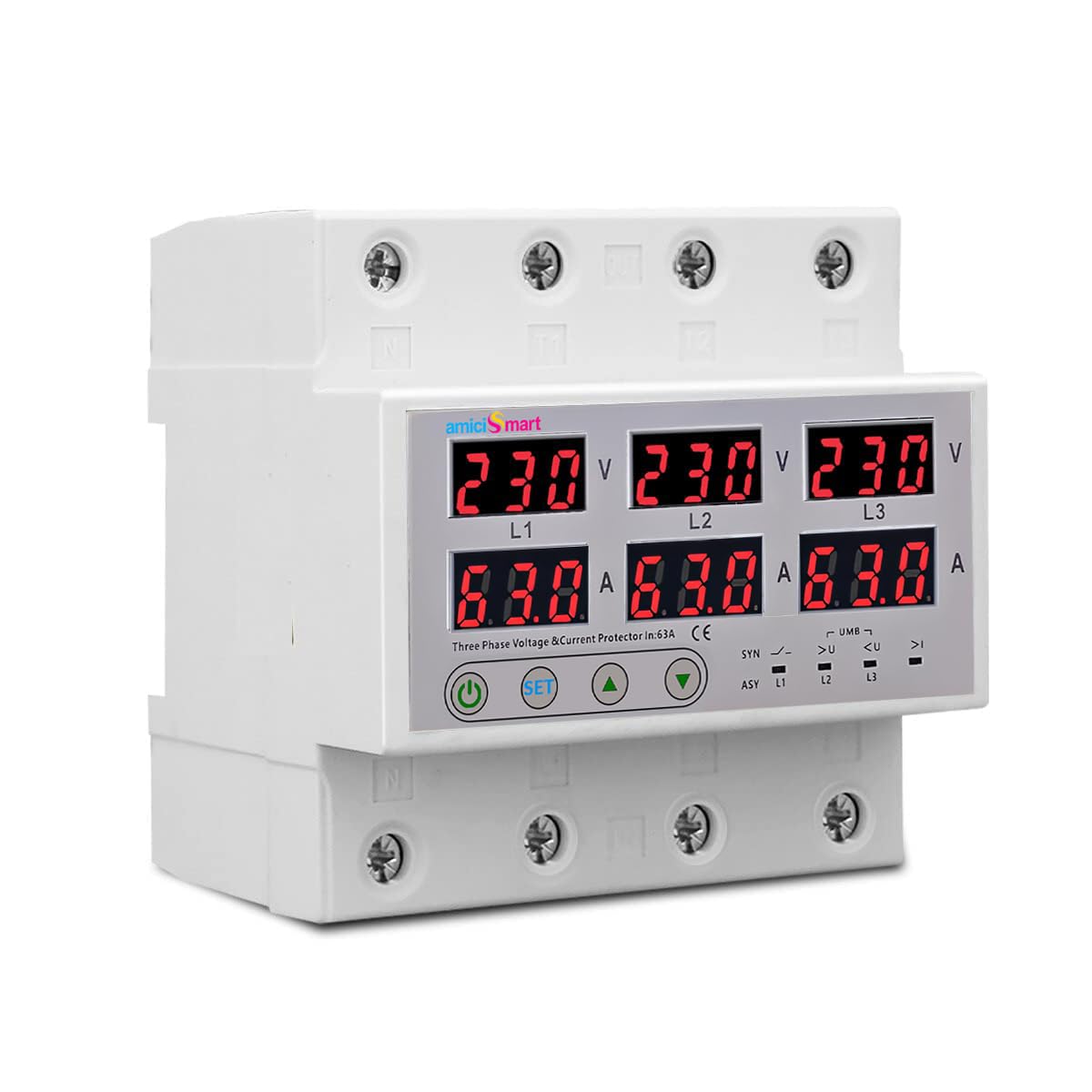

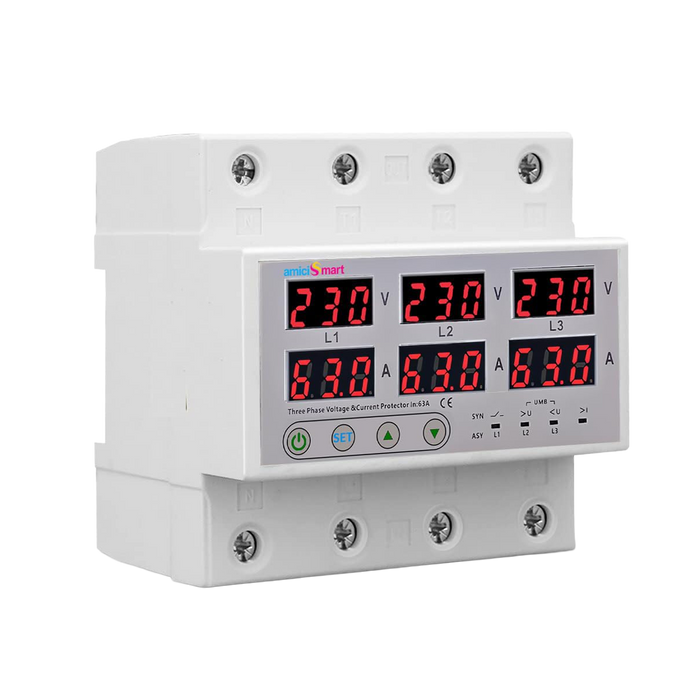

3-Phase OV/UV Protector 63A
amiciSmart · 63A · 230V L-N / 415V L-L · OV/UV/OC · Phase-loss & imbalance · Sync/Async · Auto-reconnect · DIN-rail
DIN-rail 3-phase voltage and current protector rated at 63A for motors, pumps and industrial loads. Monitors over-voltage, under-voltage, over-current, phase loss and phase imbalance, with synchronous or asynchronous control and automati...
Sale price
Rs. 4,599.00
-18%
Regular price
Rs. 5,600.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 4,599.00
Unit price
Increments of 1
Minimum of 1
Maximum of
amiciSmart 3-Phase Automatic Over/Under Voltage Protector 63A with Over-Current, Phase-Loss & Phase-Imbalance Protection, Auto-Reconnect & Synchronous & Asynchronous Mode (220VAC, White)
Sale price
Rs. 4,599.00
Regular price
Rs. 5,600.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 4,599.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos
Specifications
| SKU | 1x3-PHASE |
|---|---|
| Brand | amiciSmart |
| Device type | 3-phase voltage and current protector |
| Rated current | 63A |
| Supply voltage | 230V line-to-neutral / 415V line-to-line |
| Protection functions | Over-voltage, under-voltage, over-current, phase loss and phase imbalance |
| Operating modes | Synchronous and asynchronous |
| Phase imbalance setting | 20–99V |
| Protection action time setting | 0.1–30 seconds |
| Reconnection | Automatic after recovery and the configured delay |

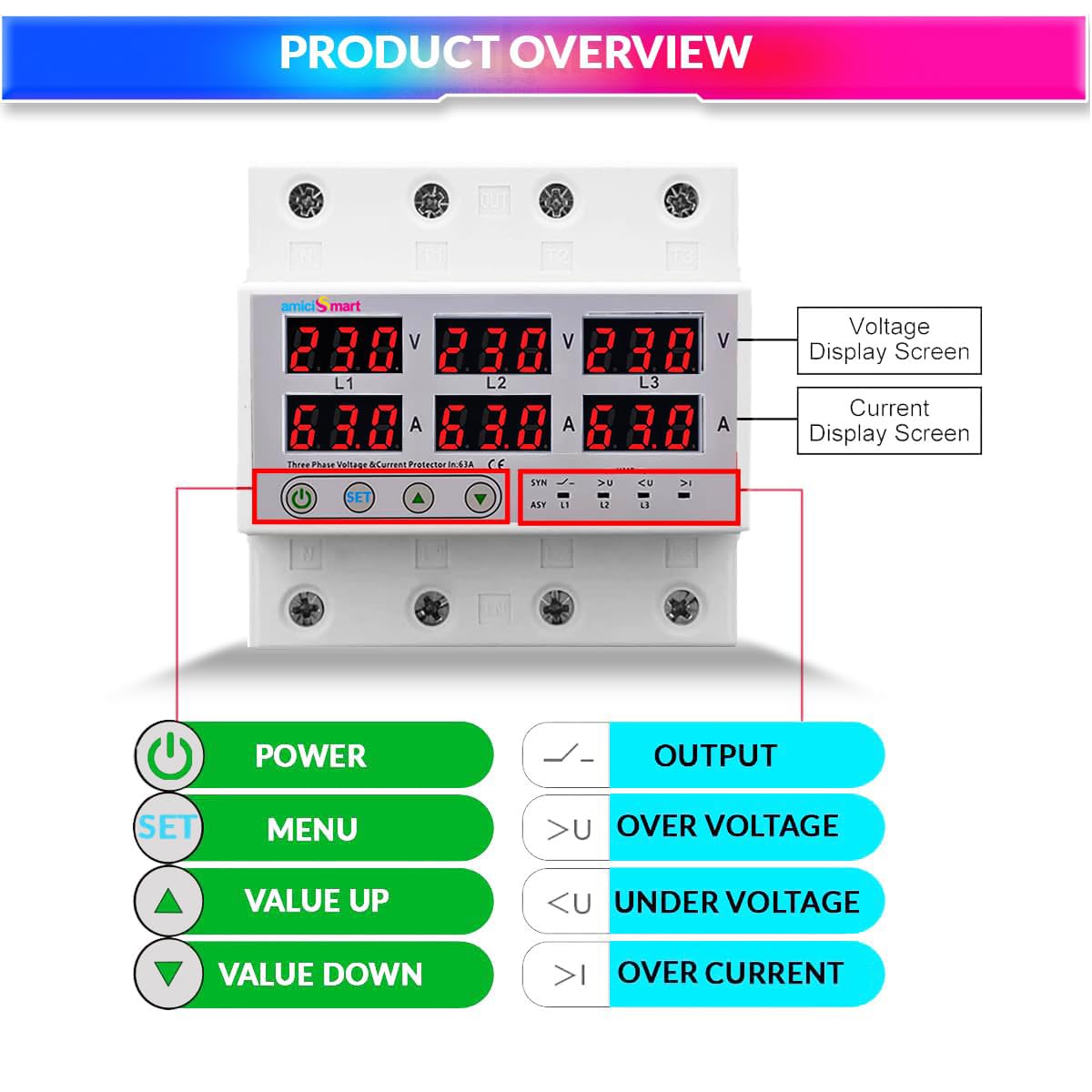

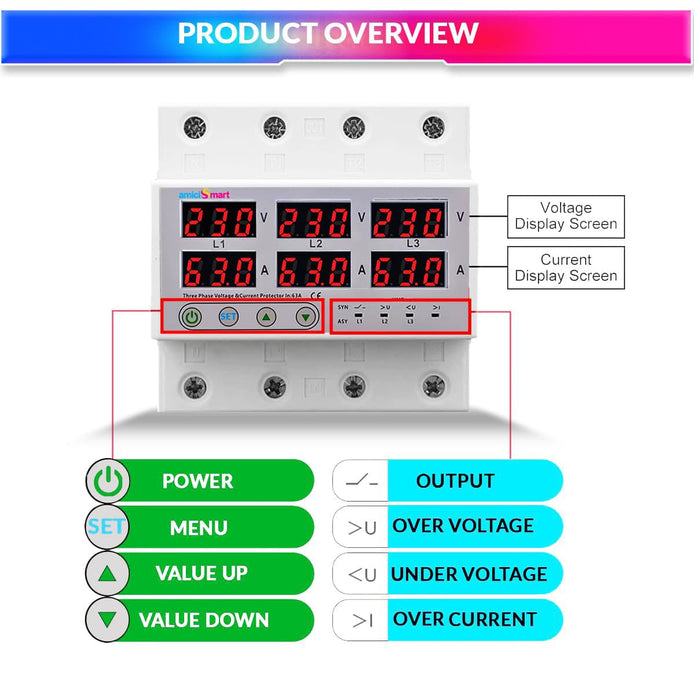

| Display | Digital voltage and current display |
| Mounting | DIN rail |
| Installation | Qualified electrician required |
| Warranty | 1 year |
Frequently asked questions
Do I need an electrician?
Yes. Installation, wiring and configuration must be carried out by a qualified electrician with the supply isolated.
What supply voltage does this support?
This model is intended for a 230V line-to-neutral / 415V line-to-line supply.
What is the current rating?
This listing is for the 63A model, SKU 1x3-PHASE.
What do synchronous and asynchronous modes mean?
Synchronous mode treats the phases together, while asynchronous mode operates per phase. Your electrician should select and verify the correct mode for your equipment before use.
Can this replace my circuit breaker?
Do not use this protector as a replacement for the circuit breakers and other protection required for your installation. Have a qualified electrician specify the complete protection arrangement.
Full Product Description
amiciSmart 3-Phase Automatic Voltage and Current Protector — 63A
Protect and monitor a three-phase supply with adjustable over-voltage, under-voltage, over-current, phase-loss and phase-imbalance protection. This DIN-rail device is rated at 63A and is intended for a 230V line-to-neutral / 415V line-to-line supply.
Protection and control
- Five protection functions in one device.
- Synchronous and asynchronous operating modes for different installation requirements.
- Adjustable phase imbalance from 20–99V.
- Adjustable protection action time from 0.1–30 seconds.
- Automatic reconnection after recovery and the configured delay.
- Digital voltage and current display for monitoring.
Choose and install correctly
This listing is the 63A model, SKU 1x3-PHASE. A qualified electrician must confirm the load, supply, wiring, circuit protection and panel space before installation. Isolate all power before wiring or servicing. Configure and verify the operating mode, protection thresholds and delays before putting the equipment into service.
Warranty and support
Includes a 1-year warranty. For product assistance, contact amiciKart at care@amicikart.com or 980-970-9898.
