Know before you buy
-
230VAC coil · 16A / 2-pole
230VAC coil, rated 16A per pole on both poles.
-
Latching / impulse behaviour
Momentary pulse toggles; state held without continuous coil draw.
-
Multi-point push-button control
Several momentary switches → one relay (staircase/corridor tone).
-
DIN-rail install
Standard panel form factor.
Features that make it useful
-
Lighting & corridor circuits
Ideal for staircase, corridor and multi-point lighting.
-
Fans · motors · HVAC contactors
Also suits fans, motor starters and HVAC contactors — stay within 16A.
-
No continuous coil power when latched
Saves energy: no coil power needed once latched.
-
1-year warranty · India support
980-970-9898 / care@amicikart.com.
How to use
-
Check the 230VAC coil supply and 16A load
Do not exceed 16A per pole.
-

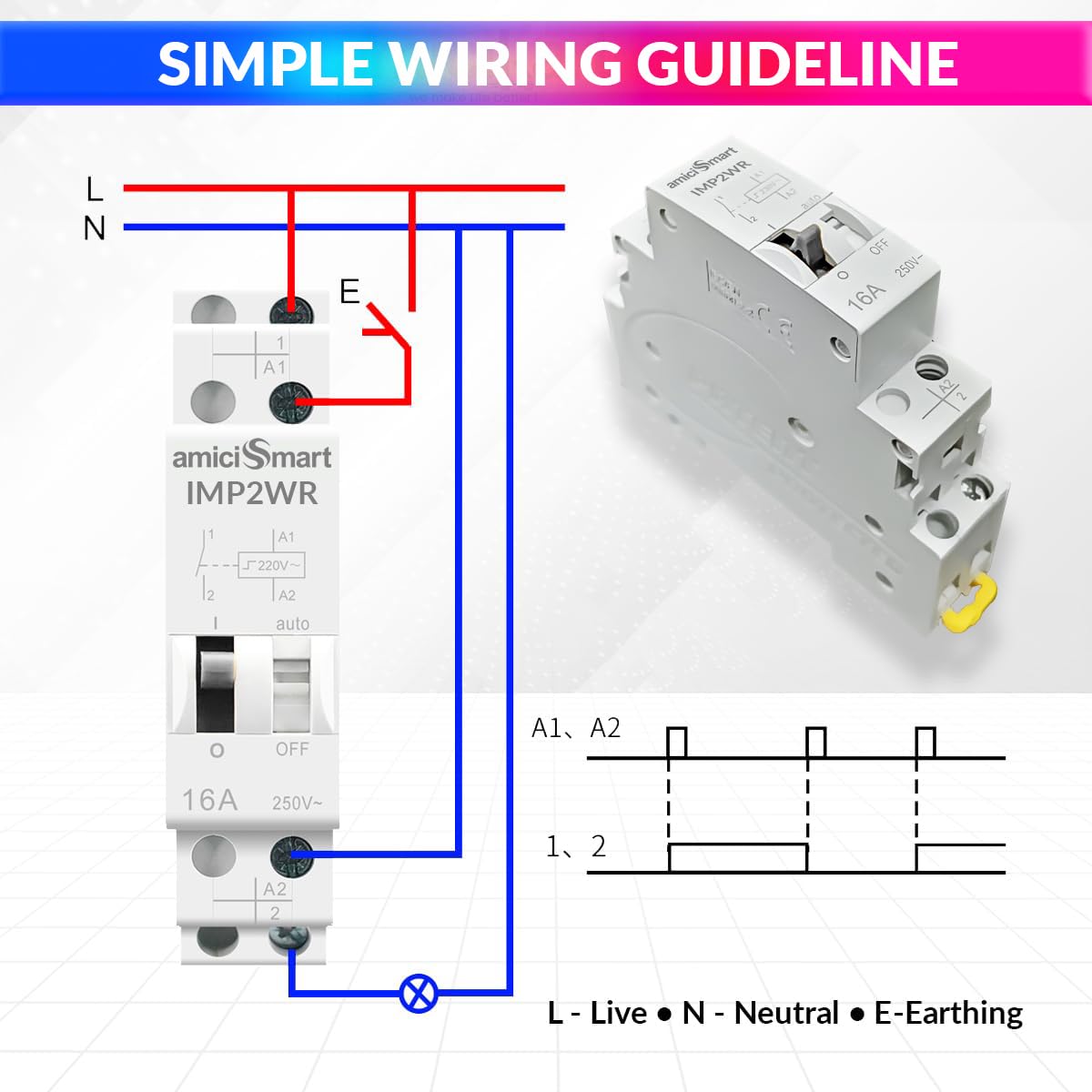

Wire momentary push-buttons to pulse input
Use momentary push-buttons, not maintained switches.
-
Mount on DIN rail; test ON/OFF from each point
Check the state holds after a pulse and after a short supply interruption.

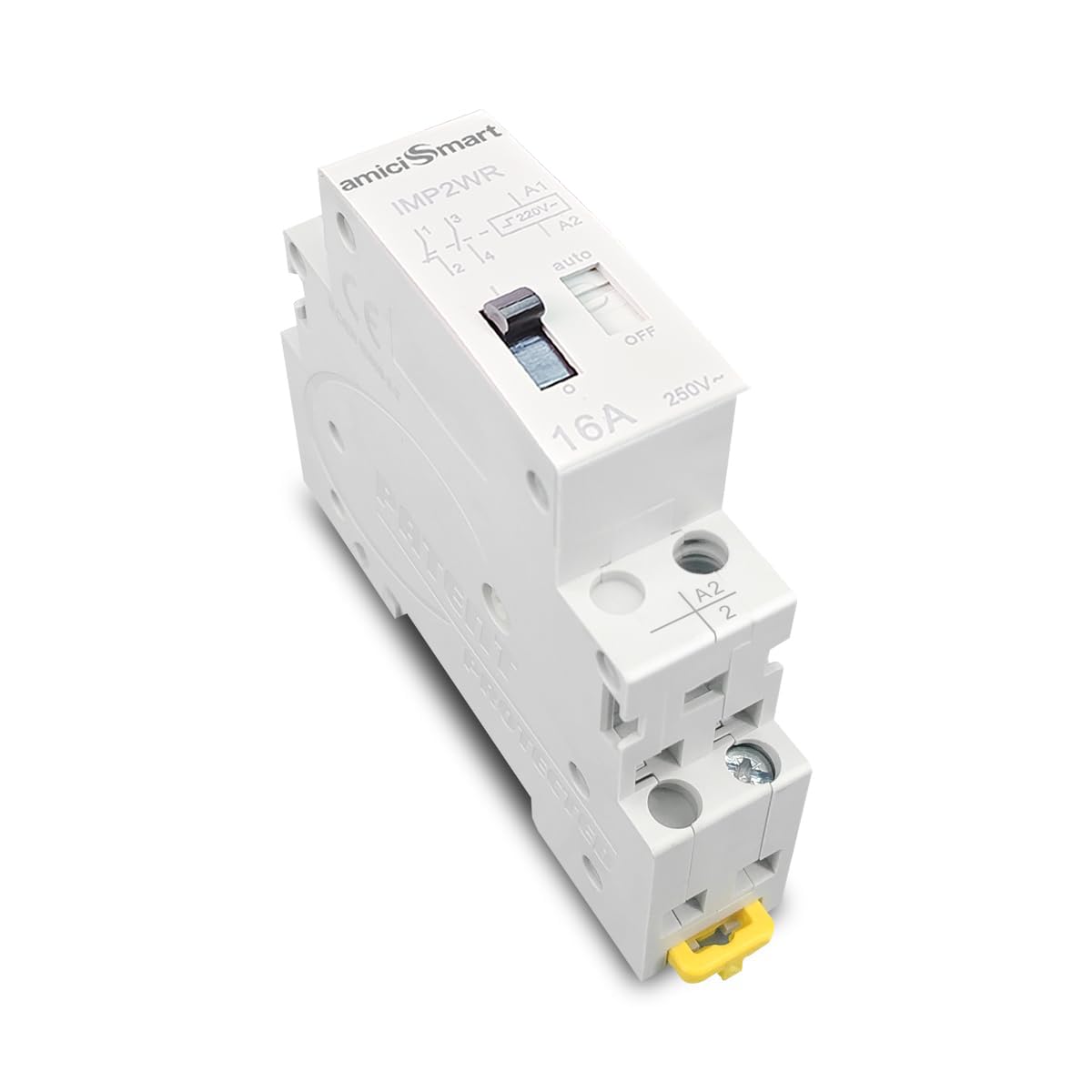

16A Impulse / Latching Relay 2P 230VAC
amiciSmart · 16A per pole · 2-pole · 230VAC coil · Momentary-pulse latching · DIN rail
2-pole 230VAC latching (impulse) relay, 16A per pole, for multi-point push-button control of lighting, fans, motor starters and HVAC contactors. Holds its last ON/OFF state without continuous coil power; toggles on a short pulse. DIN rail.
Sale price
Rs. 999.00
-38%
Regular price
Rs. 1,600.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
16A Impulse Relay, 2 Pole 230VAC Latching Relay for Line Control
Sale price
Rs. 999.00
Regular price
Rs. 1,600.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xIMPUL-RLY |
|---|---|
| Brand | amiciSmart |
| Device class | 2-pole impulse / latching relay |
| Coil / control | 230VAC |
| Contacts | 2-pole · 16A per pole |
| Behaviour | Latching on momentary pulse; holds last state |
| Mount | DIN rail |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Is this an MCB or RCBO?
No — it is a latching/impulse control relay, not a protective circuit breaker.
Does the coil need continuous 230V when ON?
No — once pulsed, it latches and holds its state without continuous coil power.
Can I switch 16A loads?
Yes, up to 16A per pole — design within that and local wiring practice.
Full Product Description
16A Impulse / Latching Relay 2P 230VAC
2-pole 230VAC latching (impulse) relay rated 16A per pole for multi-point push-button control of lighting, fans, motor starters, and HVAC contactors. Holds last ON/OFF state without continuous coil power; toggles on short-duration pulse. DIN-rail panel fit.
- Lighting & corridor circuits: Staircase, corridor and multi-point lighting.
- Fans · motors · HVAC contactors: Stay within 16A.
- No continuous coil power when latched: Saves energy.
- 1-year warranty · India support: 980-970-9898 / care@amicikart.com.
