Optical Fiber Meter, 800–1700nm Rechargeable Tester with 7 Wavelengths, SC/ST/FC Compatible

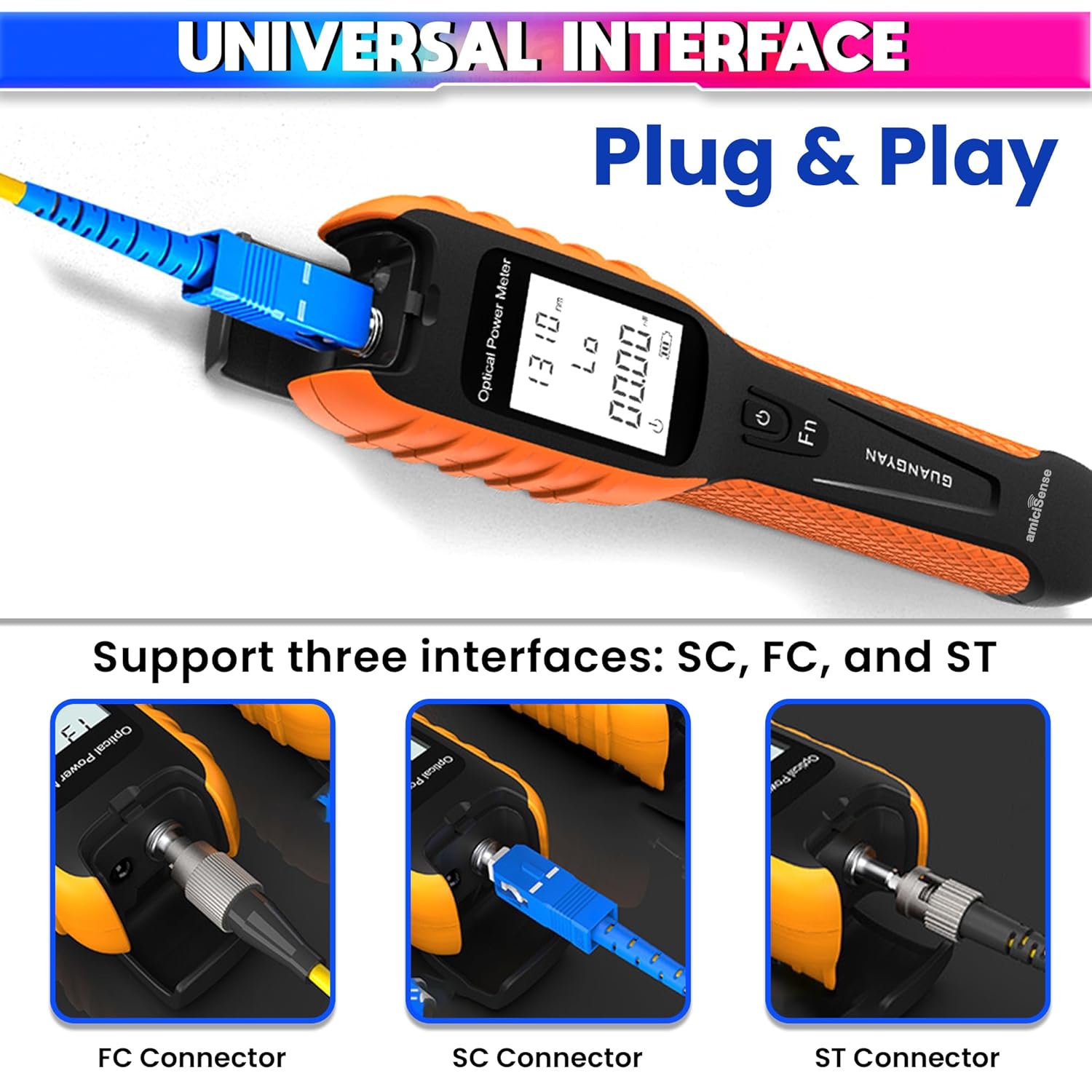

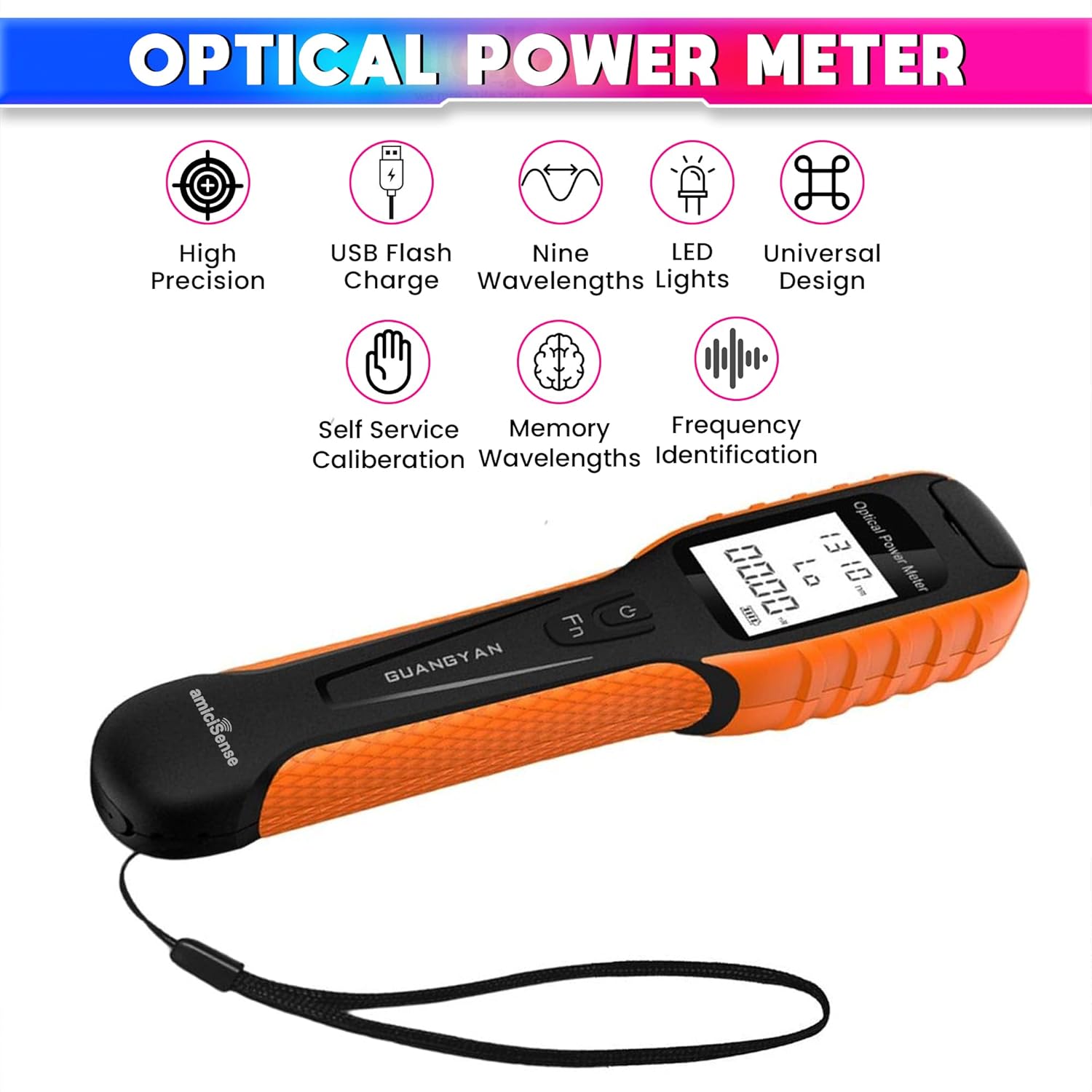

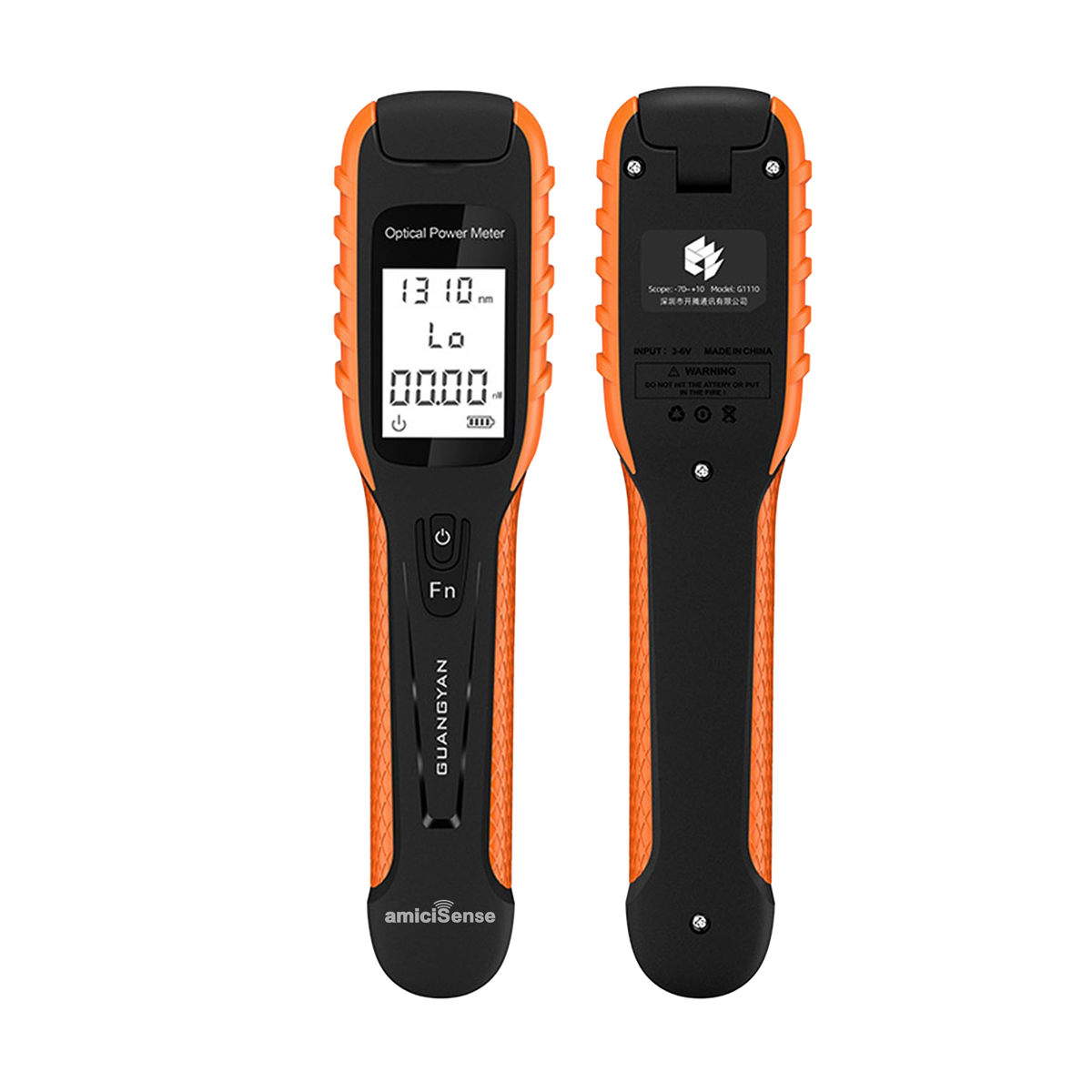

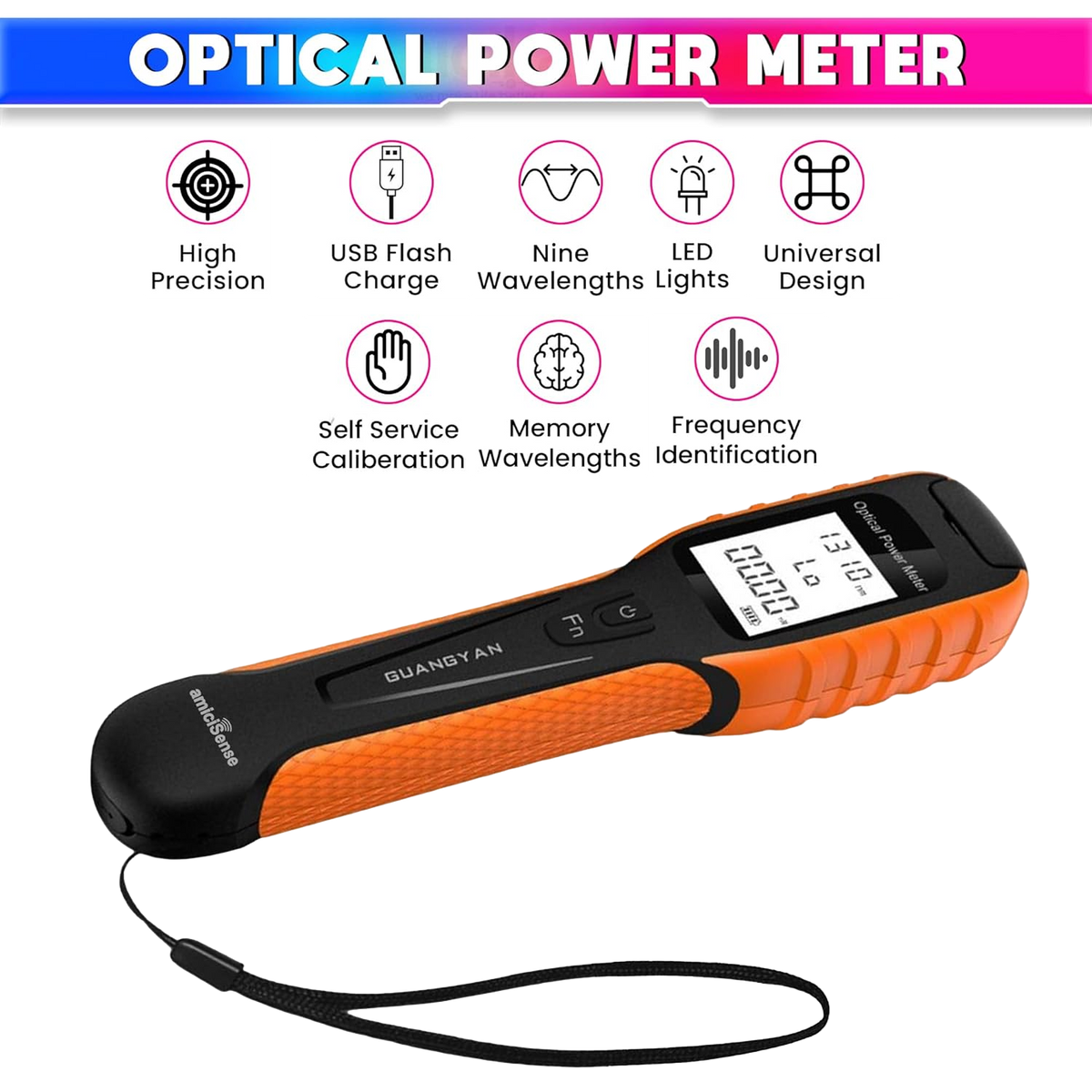

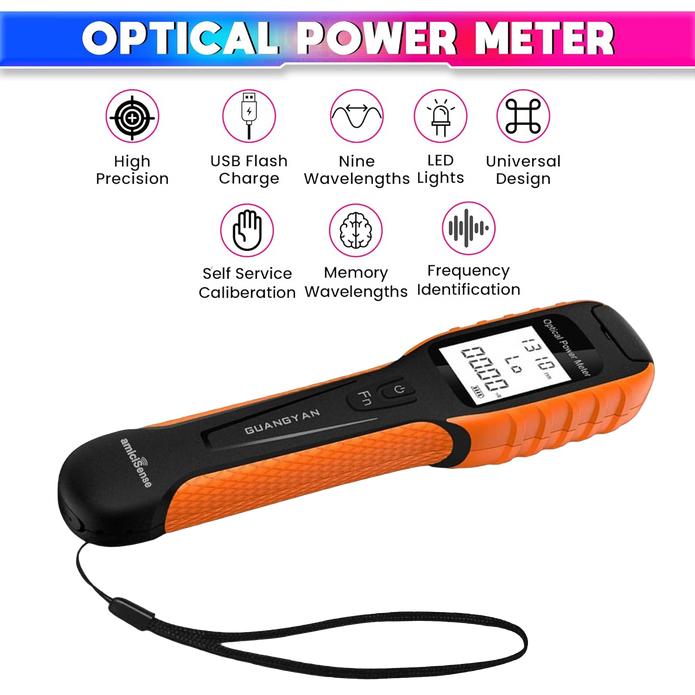

The amiciSense Optical Fiber Power Meter (800–1700nm) is a compact, high-precision testing tool designed for fiber-optic installation, troubleshooting, and maintenance. Engineered with a universal 2.5mm interface, it supports SC, FC, and ST connectors—making it a versatile choice for technicians and DIY users who need fast and reliable optical measurements.

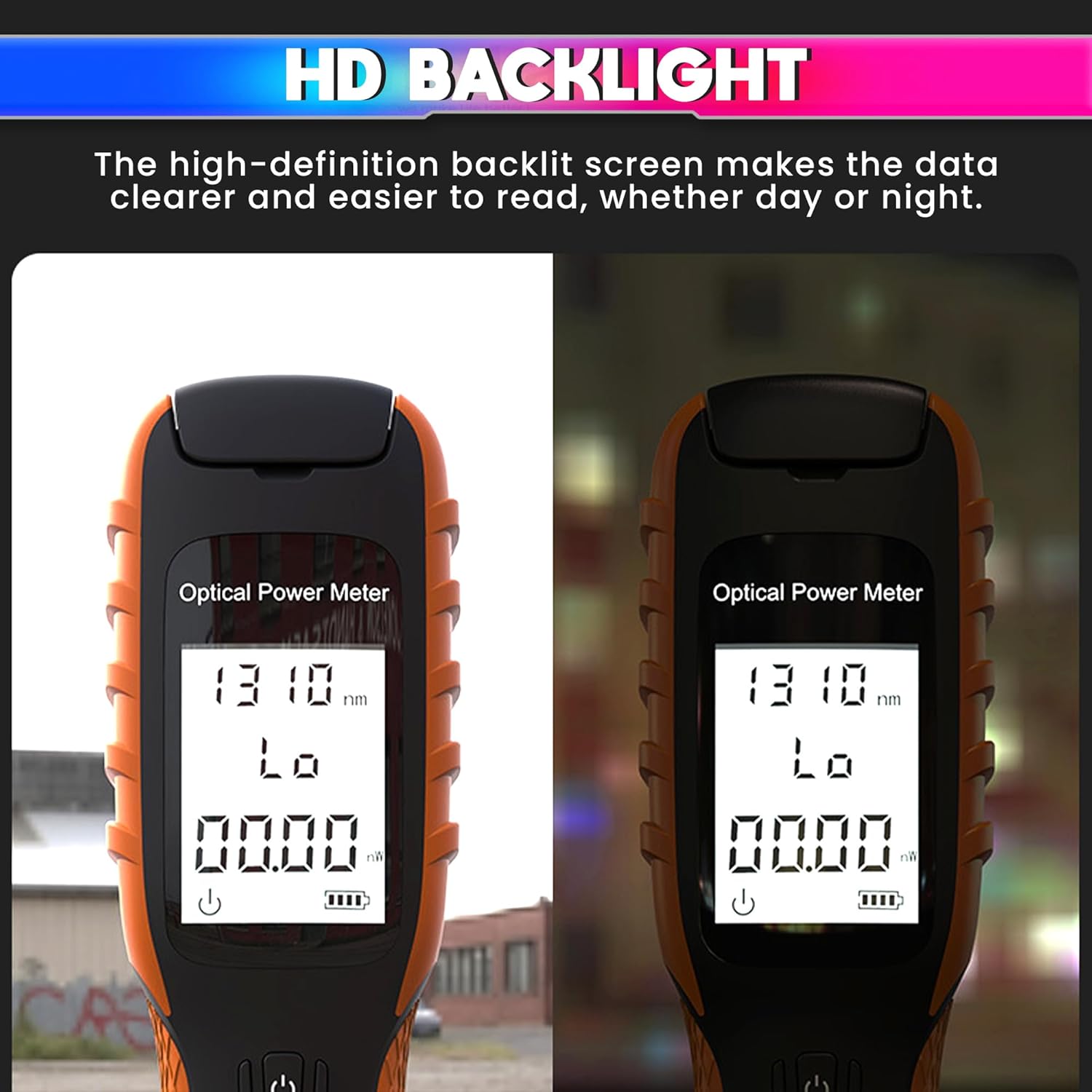

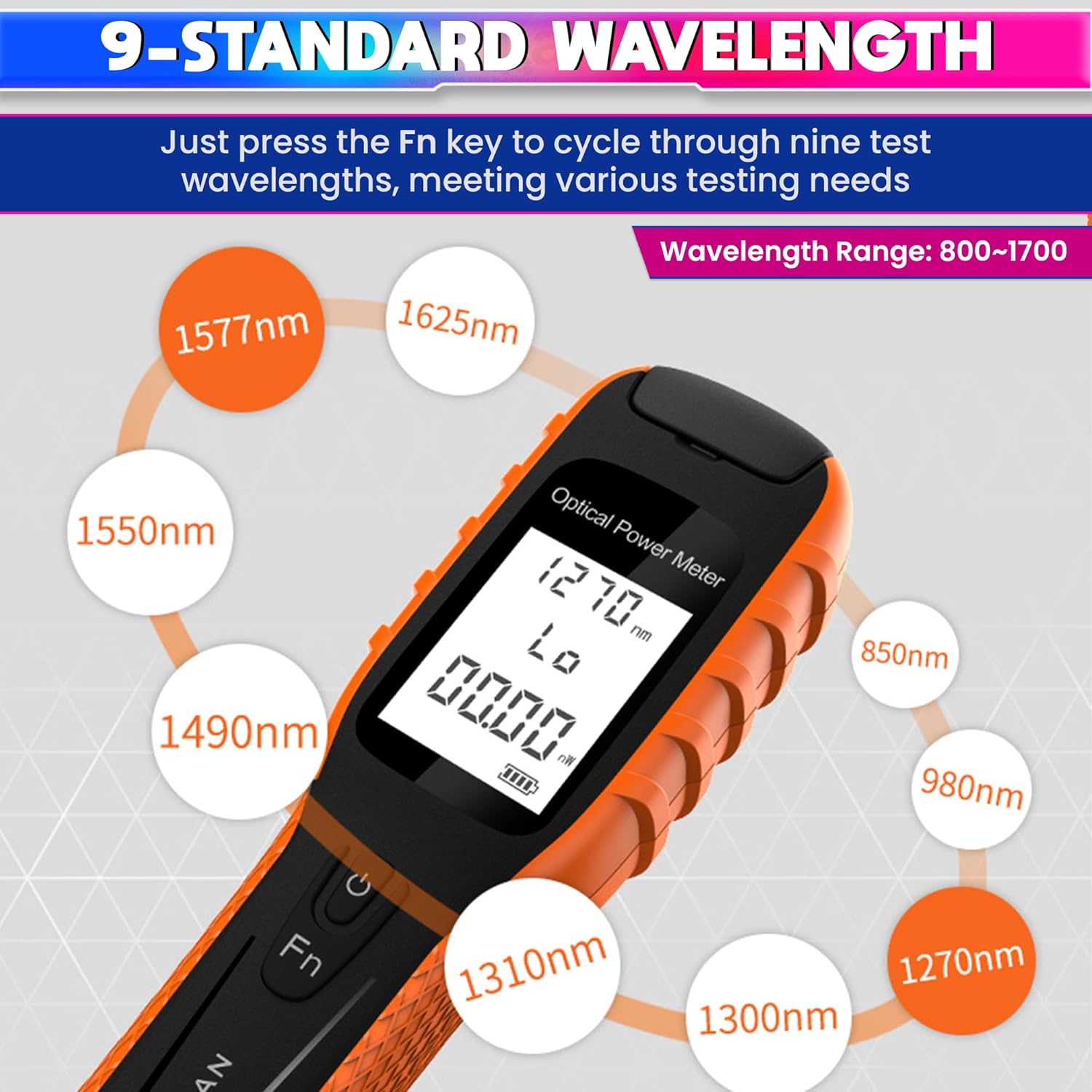

This meter supports seven calibrated wavelengths (850/980/1300/1310/1490/1550/1625nm), ensuring compatibility across most fiber-optic communication systems. Its high-sensitivity InGaAs detector provides stable readings, while the bright LCD display guarantees clear visibility in all environments.

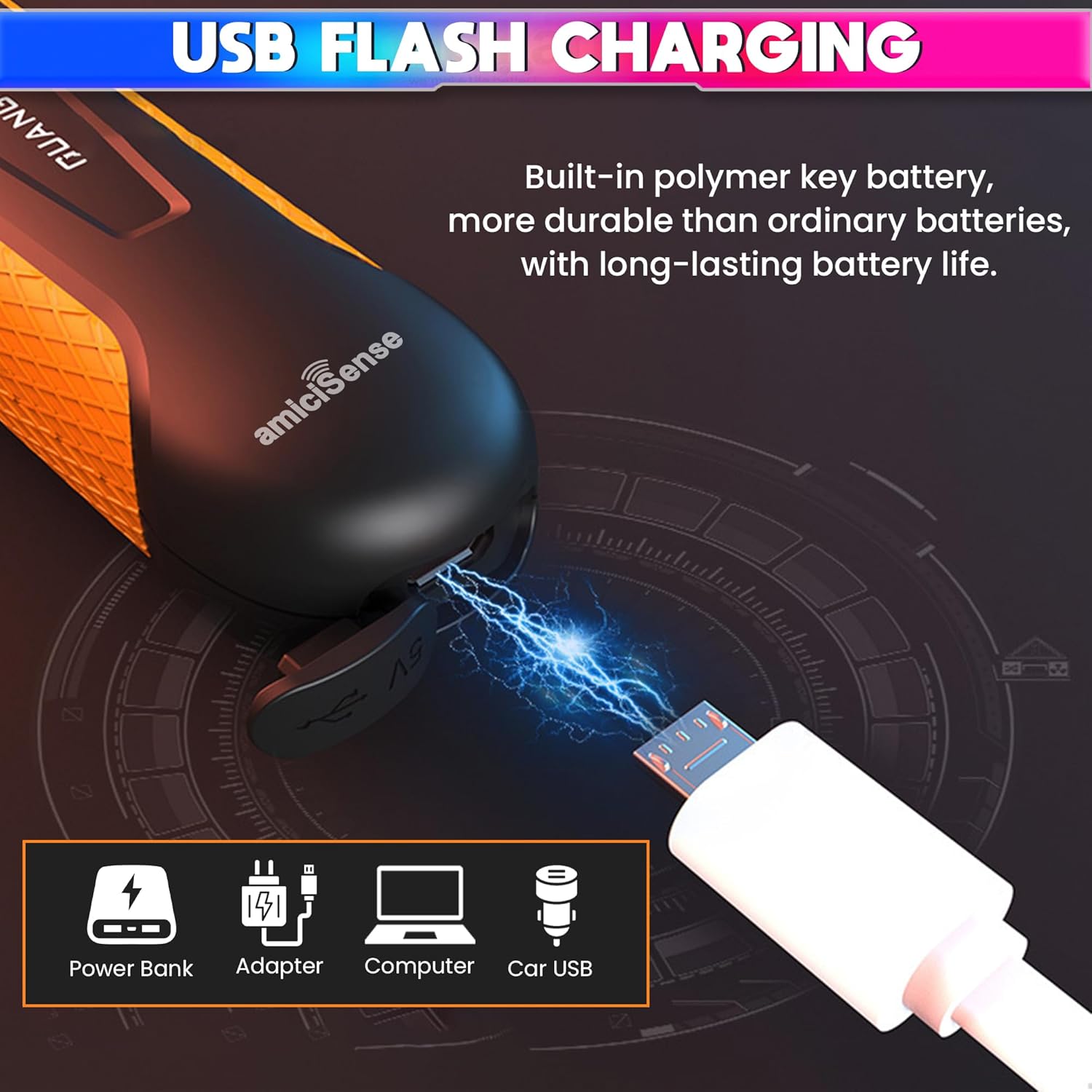

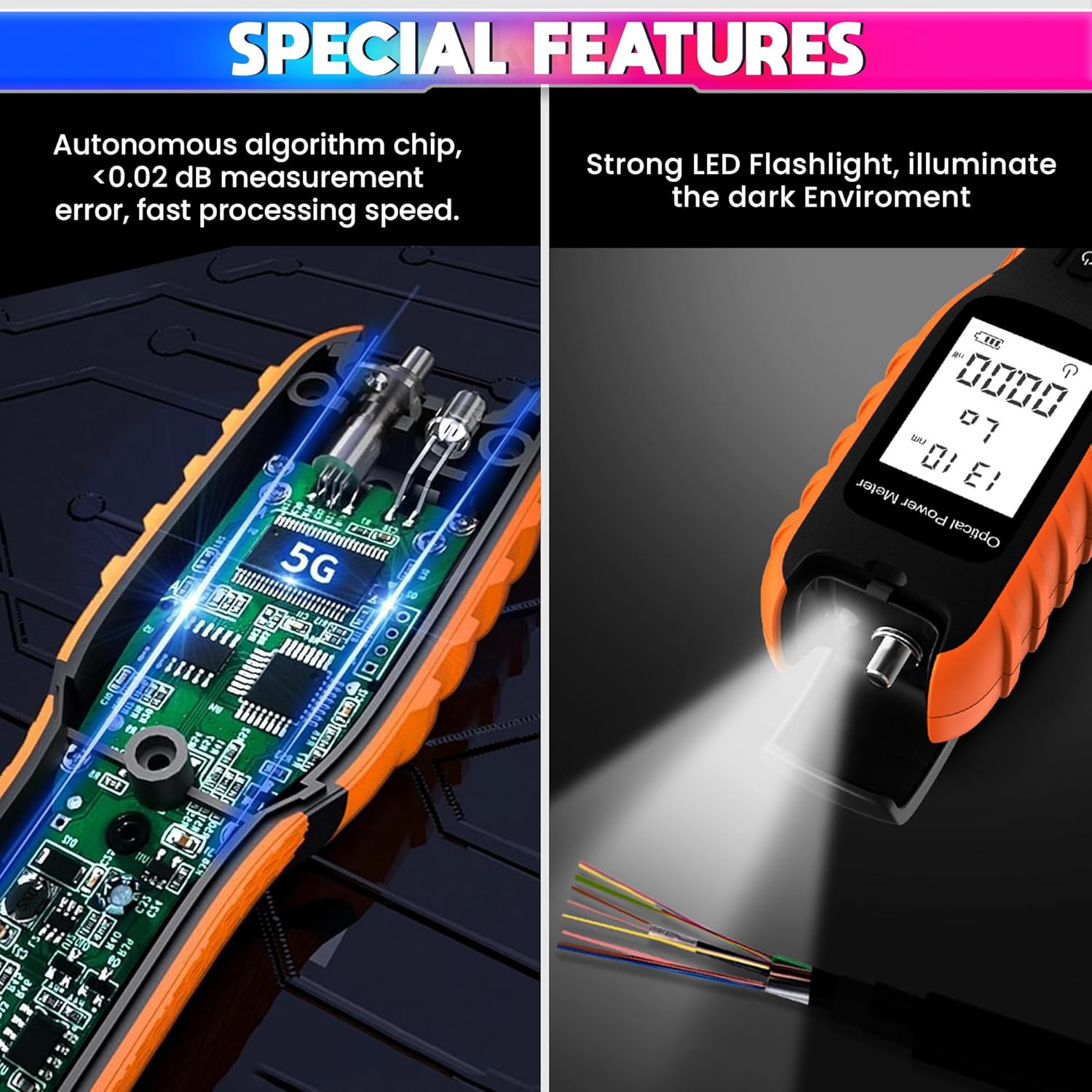

An integrated LED flashlight helps users work comfortably in dark spaces, and the built-in 400mAh battery delivers long operation time with quick USB charging. It also features one-key data storage, automatically cycling up to 40 saved measurement records for easy data review.

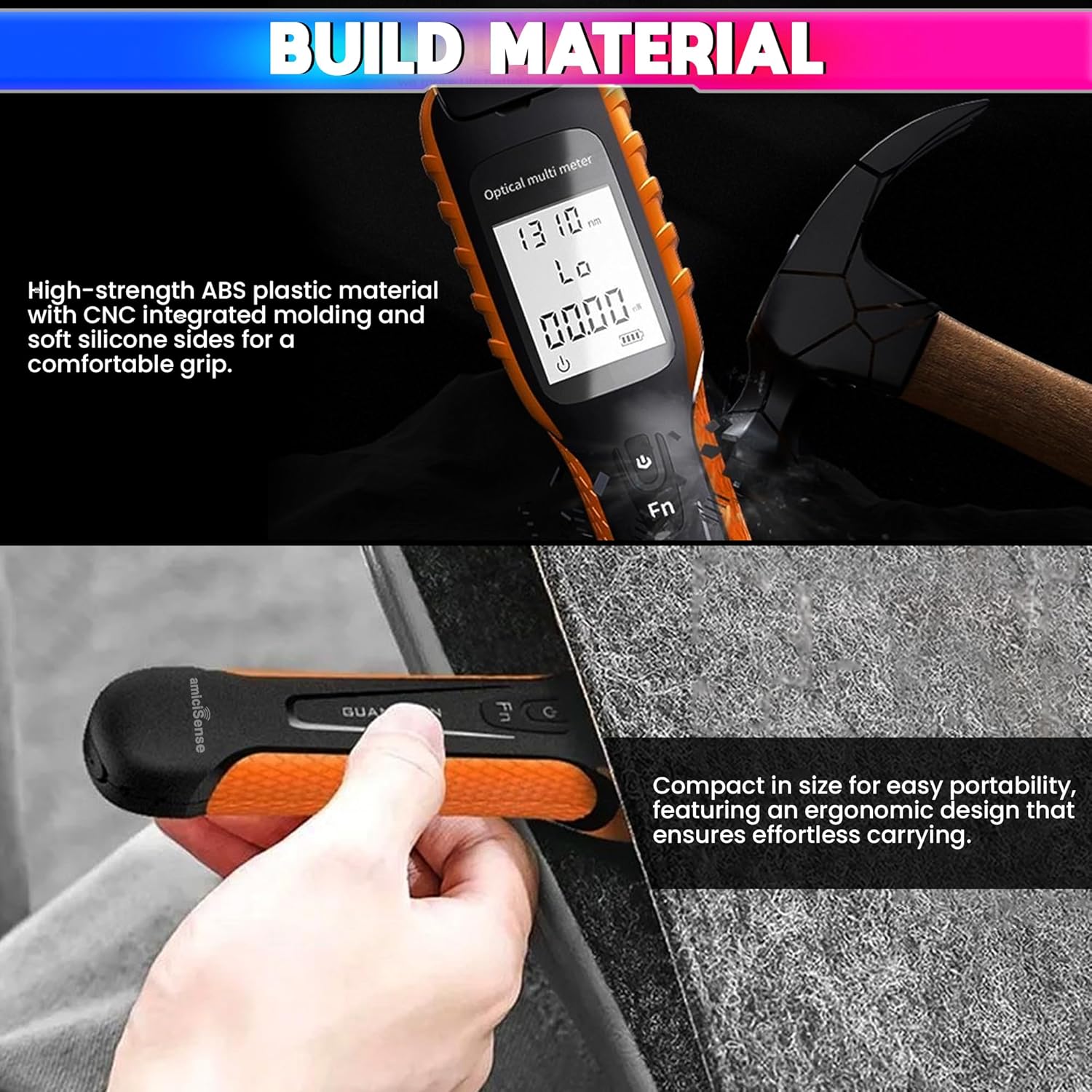

Lightweight, durable, and designed for professional accuracy, this optical power meter is an essential tool for fiber-optic maintenance, FTTH installations, and network engineering tasks.

Product Parameters:
- Standard wavelength: 850/980/1300/1310/1490/1550/1625nm
- Wavelength range: 800~1700
- Measuring range: -70 to 10dBm
- Probe type: InGaAs
- Uncertainty: ~5%
- Display resolution: linear display: 0.1%. Logarithmic display: 0.01dBm
- Frequency identification: 0Hz, 270Hz, 1000Hz and 2000Hz
- Quiescent current: 18uA
- Working current: 25mA
- Endurance time: 20H
- Charging voltage: 5V
- Charging current: 500mA
- Charging time: 3H
- Automatic shutdown time: 10 minutes
- Power supply mode: built-in lithium battery, USB port
- Battery capacity: 400mAh
- Net weight: 52g

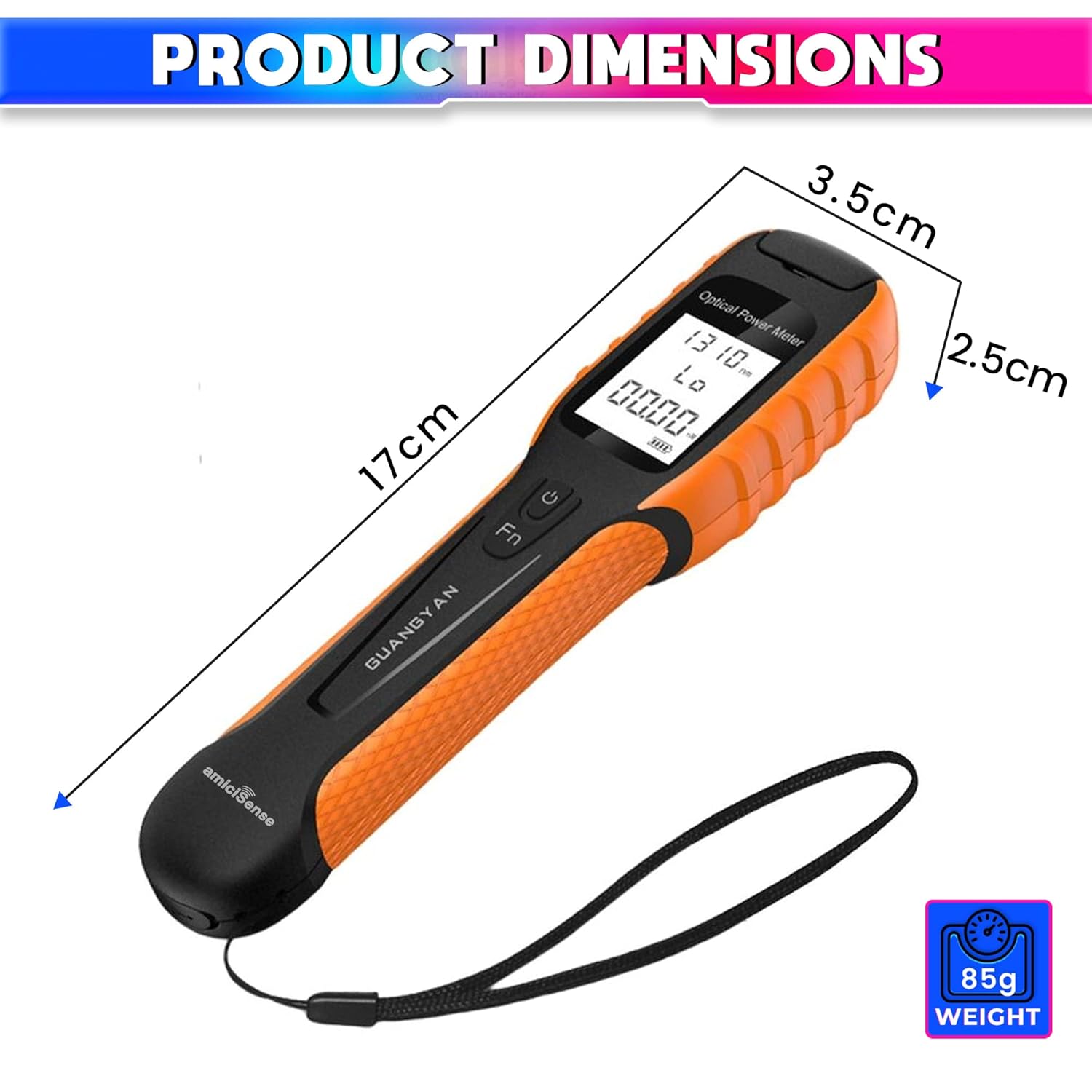

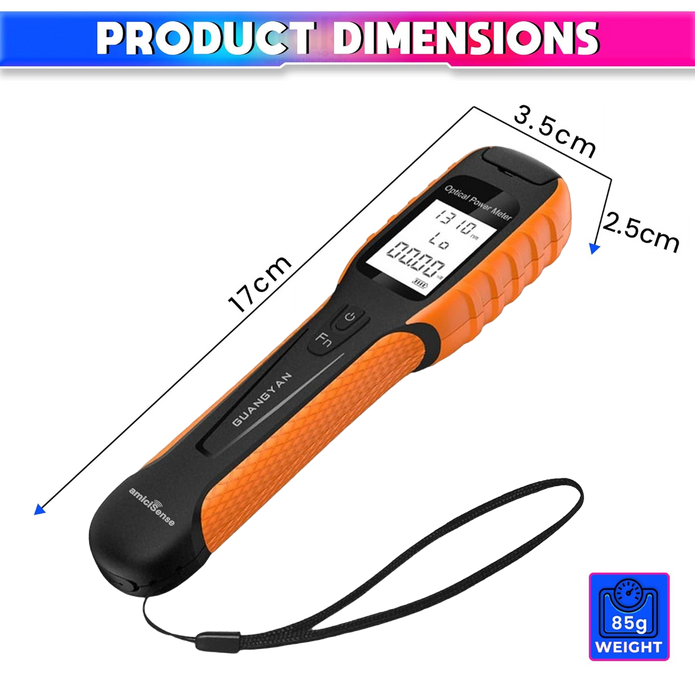

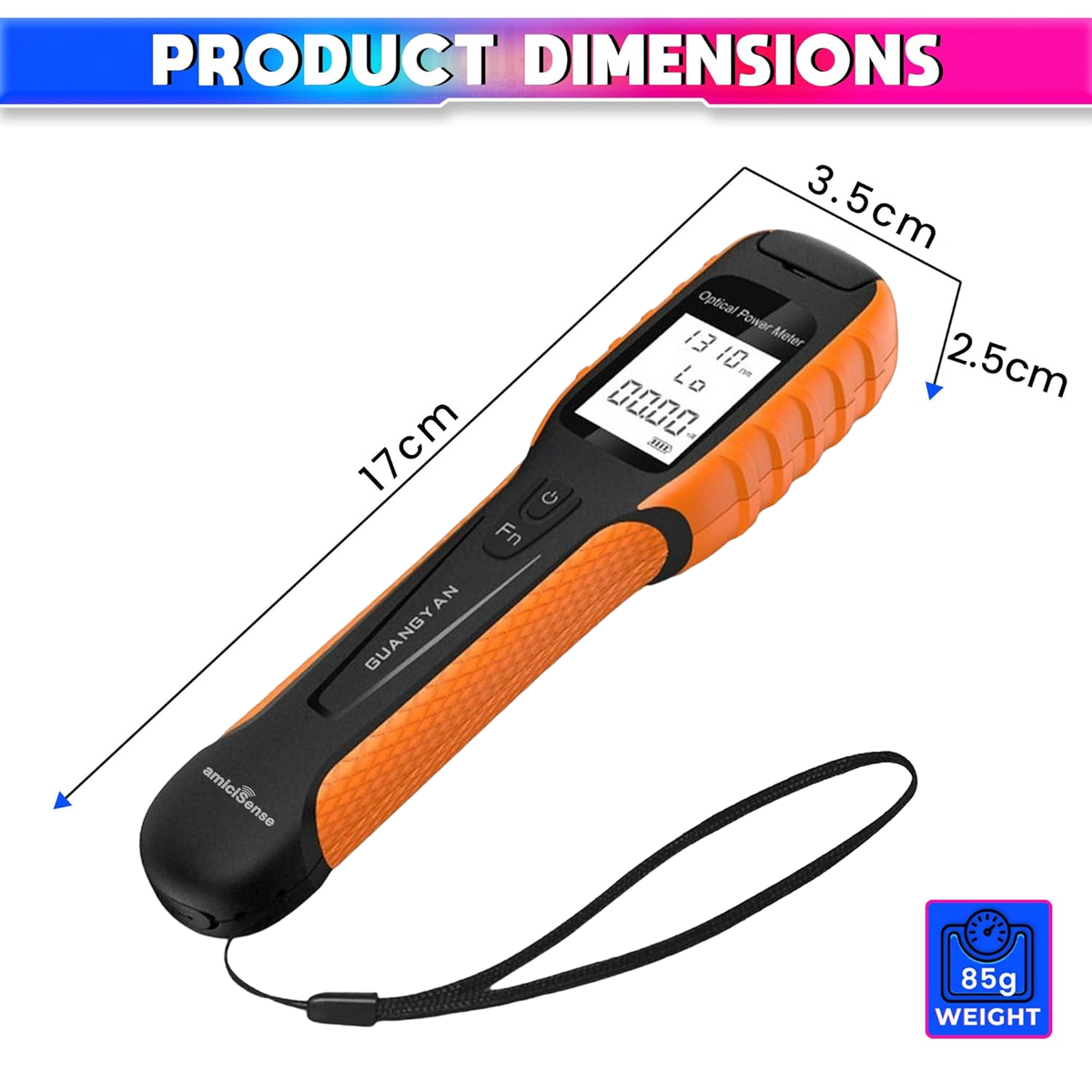

- Size: 34 x 17 x 125mm/1.3 x 0.7 x 4.9"
