Know before you buy
-
Supply 5V–24V DC
Works with Arduino, Raspberry Pi, PLCs and relay modules.
-
Non-metallic pipes, ≥10mm OD
Plastic, rubber or glass. It won't sense through metal pipes.
-
-20°C to 105°C
Suits hot water, cold coolant and chemical lines.
-
Three wires: VCC, GND, OUT
Simple on/off signal for your controller.
Features that make it useful
-
No contact with the liquid
No corrosion, contamination or mechanical wear.
-
No drilling or cutting
Fix it to the outside of the pipe with the included screws or adhesive.
-
Stable switching signal
For pump automation, overflow prevention and level monitoring.
-
1-year warranty
From amiciKart.

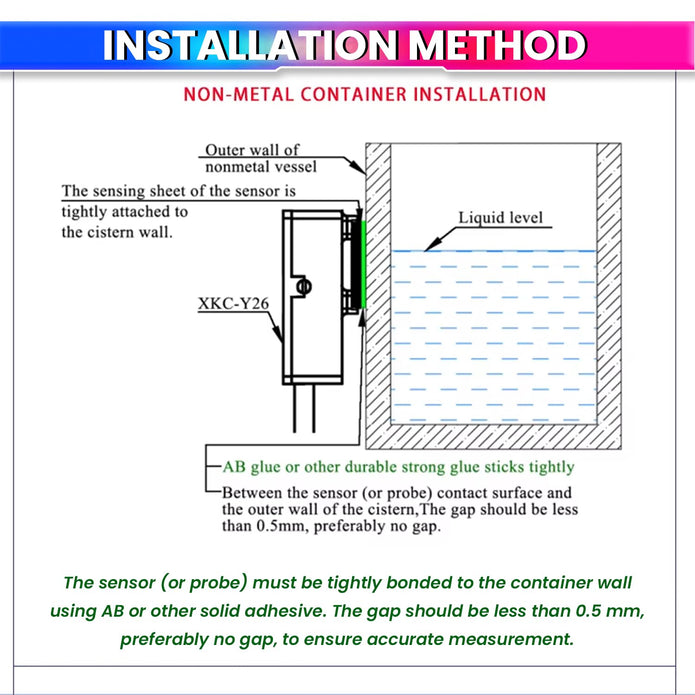

How to use
-
Pick the sensing point
Choose a spot on a non-metallic pipe or tank with an outer diameter of at least 10mm.
-
Mount the sensor
Fix it flat against the outside using the included screws or adhesive.
-
Wire it up
Connect VCC and GND to a 5V–24V DC supply and OUT to your controller input, with power off.
-
Test
Fill and empty the pipe to check the output switches as expected.
Non-Contact Liquid Level Sensor 5–24V DC
amiciKart · capacitive · mounts outside the pipe · 5V–24V DC · non-metallic pipes ≥10mm OD · -20°C to 105°C
A capacitive liquid level sensor that detects water, oil or chemicals through the wall of a non-metallic pipe, without touching the liquid. It fits plastic, rubber or glass pipes with an outer diameter of 10mm or more, runs on 5V–24V DC,...
Sale price
Rs. 999.00
-45%
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
Non-Contact Liquid Level Sensor 5–24V | External Water Level Detection Sensor
Sale price
Rs. 999.00
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability

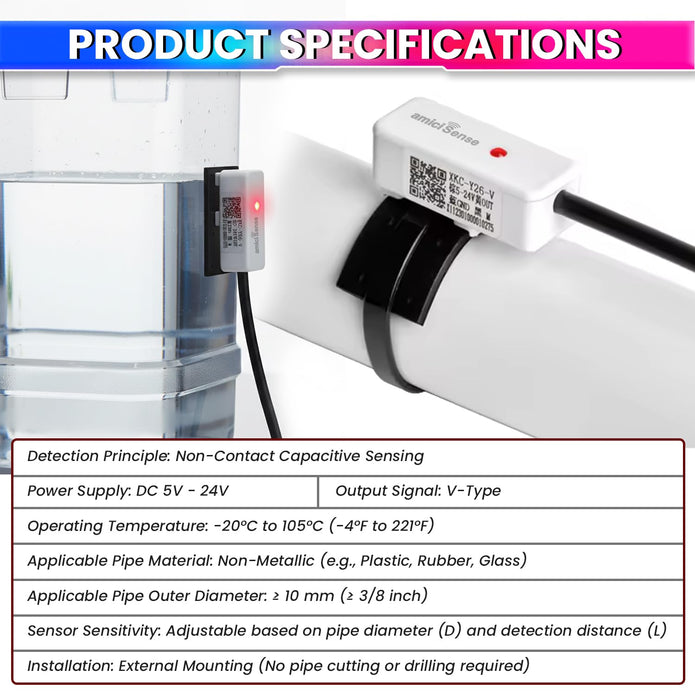

Specifications
| Brand | amiciKart |
|---|---|
| Type | Non-contact capacitive liquid level sensor |
| Supply voltage | 5V–24V DC |
| Wiring | VCC, GND, OUT |
| Output | On/off signal |
| Pipe material | Non-metallic: plastic, rubber, glass |
| Pipe size | Outer diameter 10mm or more |
| Liquids | Water, oil, chemicals |
| Operating temperature | -20°C to 105°C |
| Mounting | External, screws or adhesive (included) |
| Warranty | 1 year |
Frequently asked questions
Does it touch the liquid?
No. It senses through the pipe wall, so there is no contact, corrosion or contamination.
Will it work on a metal pipe?
No. It is for non-metallic pipes such as plastic, rubber or glass.
What can I connect it to?
Arduino, Raspberry Pi, PLCs, relay modules and most automation controllers, on a 5V–24V DC supply.
How small a pipe can it fit?
Pipes with an outer diameter of 10mm or more.
Full Product Description
Non-Contact Liquid Level Sensor 5–24V DC
A capacitive liquid level sensor that detects water, oil or chemicals through the wall of a non-metallic pipe, without touching the liquid. It fits plastic, rubber or glass pipes with an outer diameter of 10mm or more, runs on 5V–24V DC, and gives an on/off signal output through three wires (VCC, GND, OUT). Use it for pump control, overflow protection and dry-run prevention with Arduino, Raspberry Pi, PLCs or relay modules. Rated for -20°C to 105°C. 1-year warranty.
- No contact with the liquid: No corrosion, contamination or mechanical wear.
- No drilling or cutting: Fix it to the outside of the pipe with the included screws or adhesive.
- Stable switching signal: For pump automation, overflow prevention and level monitoring.
- 1-year warranty: From amiciKart.
