Know before you buy
-
6.5–100V · up to 100A
Wide DC input for solar/EV/battery panels.
-
4 params: V · I · W · kWh
Up to 10kW power and 9999 kWh energy.
-
Overload / threshold alarm
Alarm when the load passes your set power threshold.
-
kWh retained after power cut
Energy (kWh) is saved automatically.
Features that make it useful
-

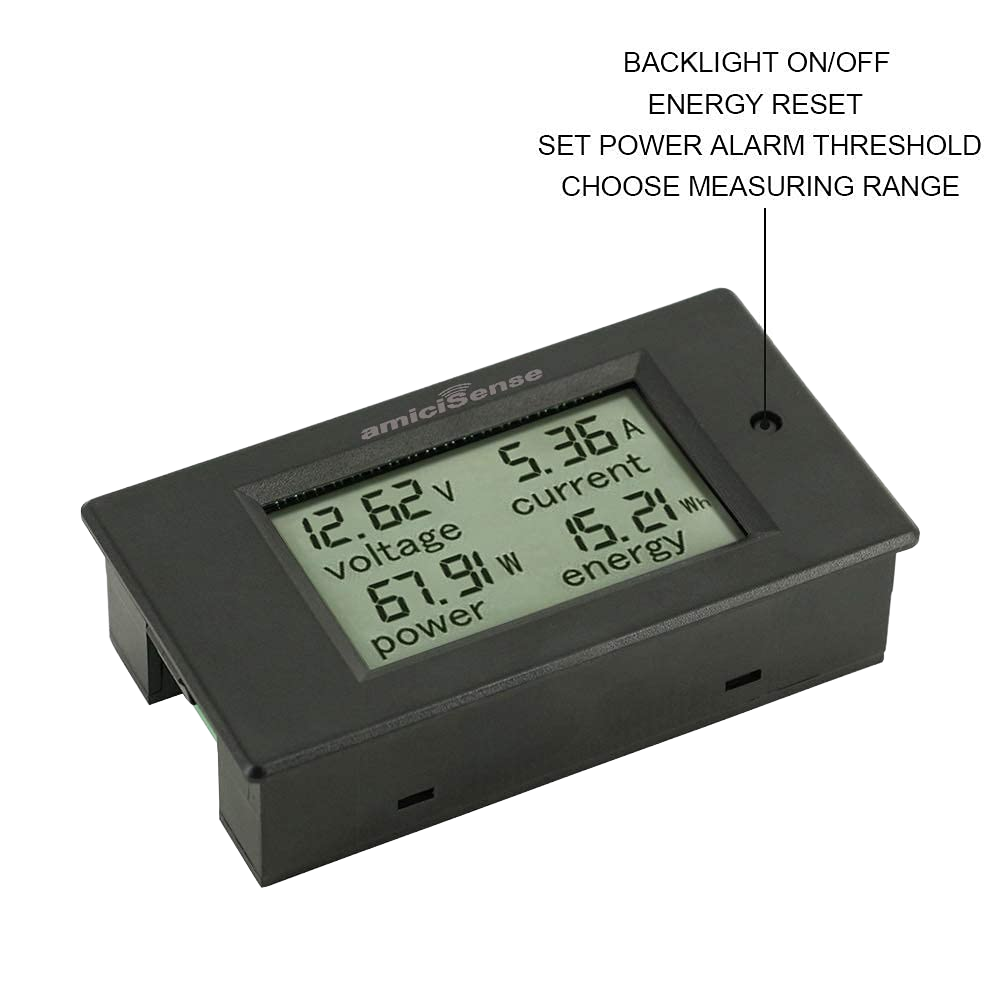

Blue backlit LCD
Backlight toggle with button.
-

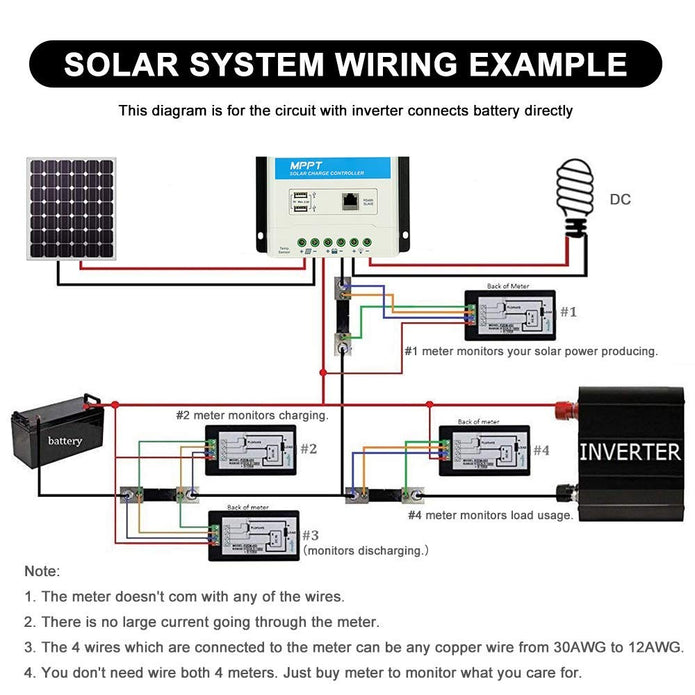

12/24/48/72V system examples
Works on 12, 24, 48 and 72V systems within the 6.5–100V range.
-

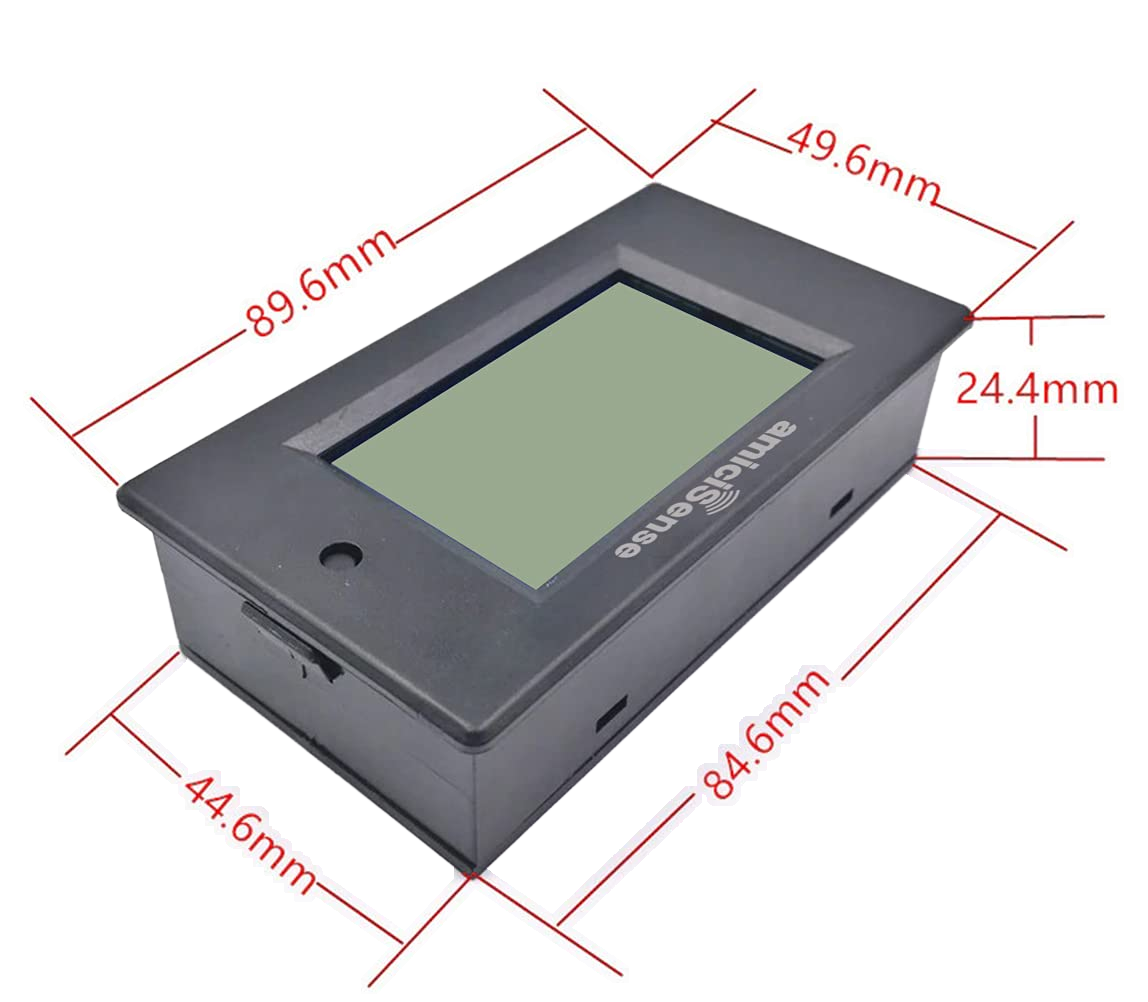

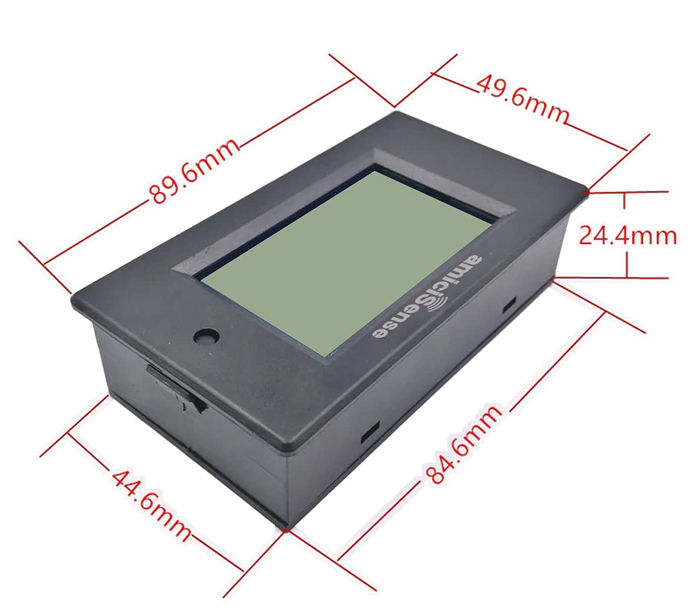

~137 g compact
Fits neatly in panels and enclosures.
-
1-year warranty · India support
980-970-9898 / care@amicikart.com.
How to use
-
Check your DC bus is within 6.5–100V and 100A
Stay within 6.5–100V DC and 100A.
-

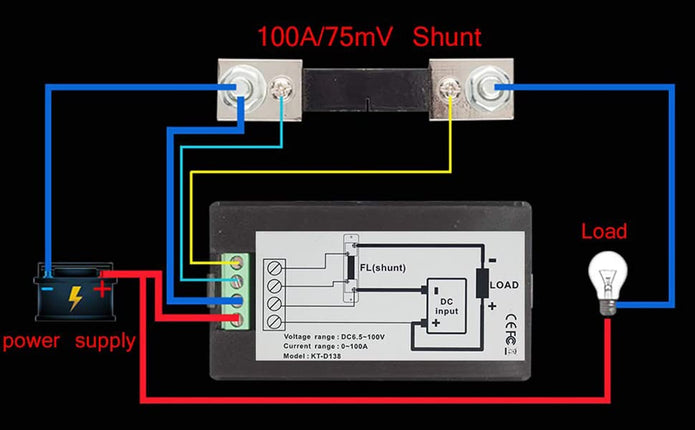

Wire into the DC path; mount display
Qualified DC install.
-

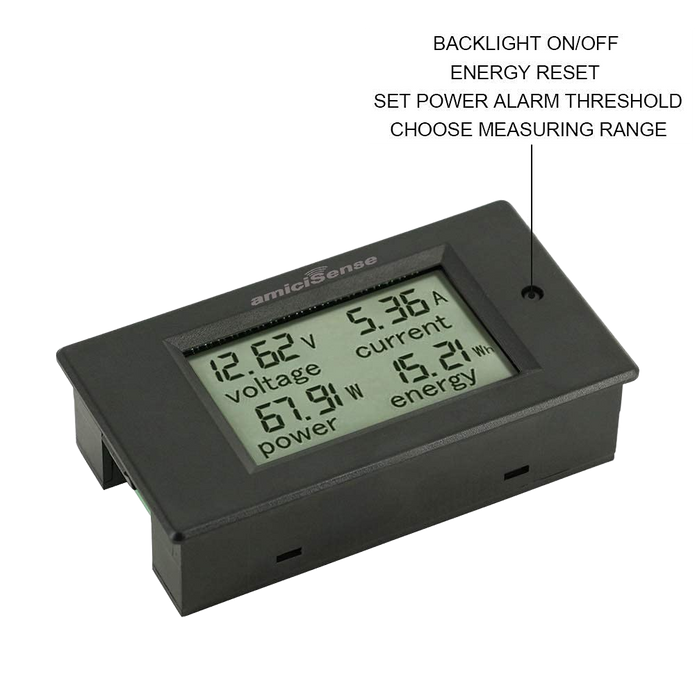

Set the alarm threshold; check V/I/W/kWh and the backlight
kWh should be kept after a power cycle.
DC 4-in-1 Energy Meter 6.5-100V 100A
amiciSense · V/I/W/kWh · 10kW max · blue backlight LCD · overload alarm · data save

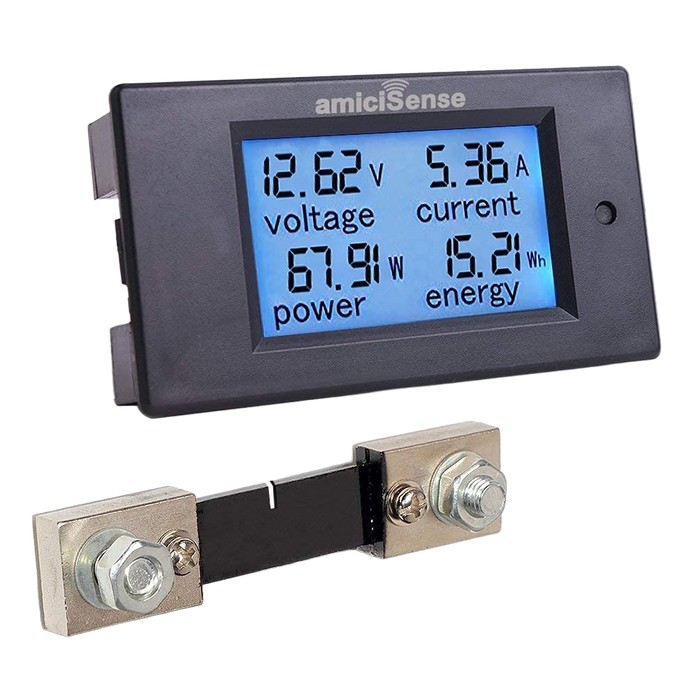

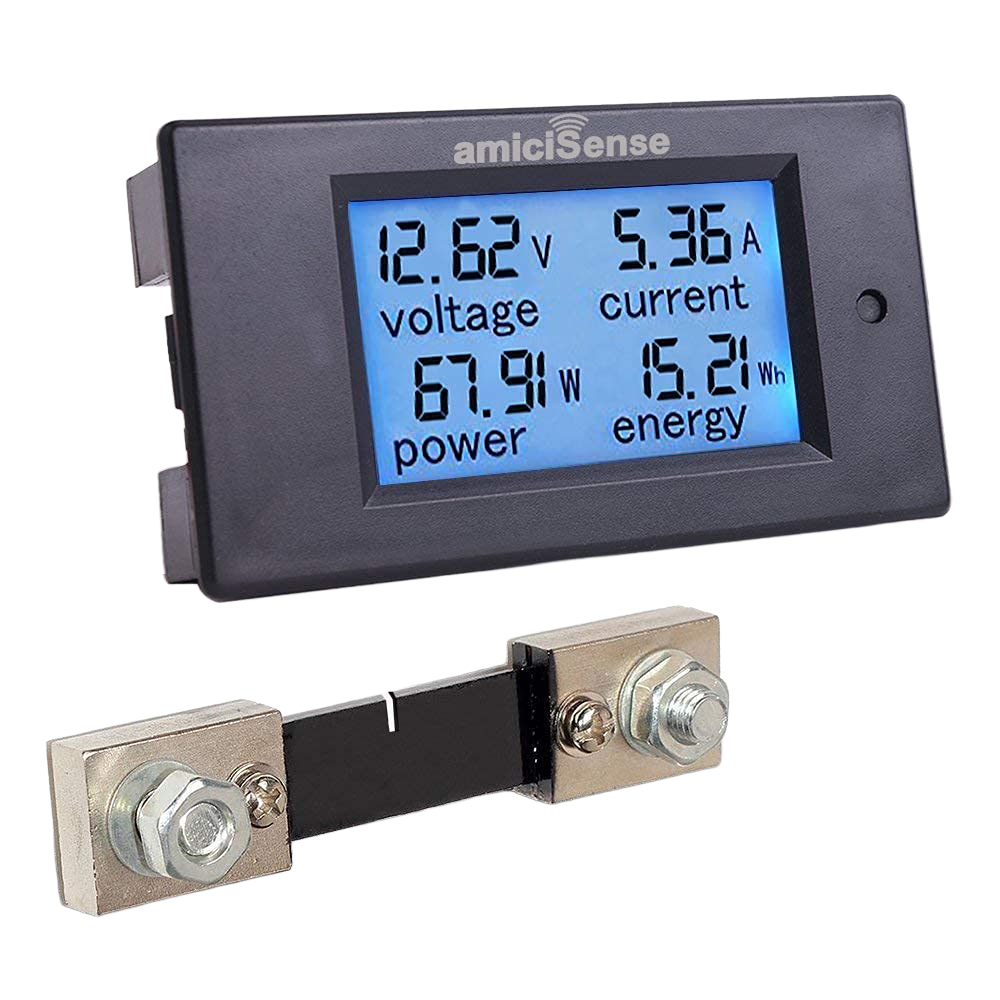

DC panel meter showing voltage (6.5–100V), current (up to 100A), power (up to 10kW) and energy (up to 9999 kWh) on a blue-backlit LCD. For 12/24/48/72V DC systems. Overload alarm; kWh kept after power loss. ~137 g.
Sale price
Rs. 1,999.00
-34%
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Increments of 1
Minimum of 1
Maximum of
DC 4-in-1 Energy Meter, 6.5–100V 100A (10kW) Power Meter Voltage, Current, Power & kWh Meter with Digital Display
Sale price
Rs. 1,999.00
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,999.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xEN-MTR-051 |
|---|---|
| Brand | amiciSense |
| Device class | DC 4-in-1 voltage/current/power/energy meter |
| Voltage | 6.5–100V DC |
| Current | Up to 100A |
| Power | Up to 10kW |
| Energy | Up to 9999 kWh |
| Display | Blue backlit LCD; toggle on/off |
| Protection | Overload alarm / power threshold |
| Memory | kWh auto-save on power loss |
| Weight | 137 g |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
What does it measure?
Voltage, current, active power, and cumulative kWh on one display.
What are the ranges?
6.5–100V, up to 100A, up to 10kW, up to 9999 kWh.
Is this the same as the coulomb counter?
No — different product (1xEN-MTR-051). Coulomb meter is Ah/% bi-directional capacity; this is V/I/W/kWh energy meter.
Full Product Description
DC 4-in-1 Energy Meter 6.5-100V 100A
DC panel meter measuring voltage (6.5–100V), current (up to 100A), active power (up to 10kW), and energy (up to 9999 kWh) on one blue-backlit LCD. Compatible with 12/24/48/72V DC systems. Overload alarm / power threshold protection; kWh retained after power loss. ~137 g.
- Blue backlit LCD: Backlight toggle with button.
- 12/24/48/72V systems: All within the 6.5–100V range.
- ~137 g compact: Fits neatly in panels and enclosures.
- 1-year warranty · India support: 980-970-9898 / care@amicikart.com.
