What voltage range does this voltmeter support, and will it work on my 12V bike battery?

Yes, it works perfectly on a standard 12V motorcycle battery. The meter supports DC 5V to 100V, so it is compatible with 6V, 12V, 24V, 48V, and 72V battery systems including bikes, cars, scooters, e-bikes, UPS units, and inverters.

Does this voltmeter need a separate power supply, or does it draw power directly from the battery being measured?

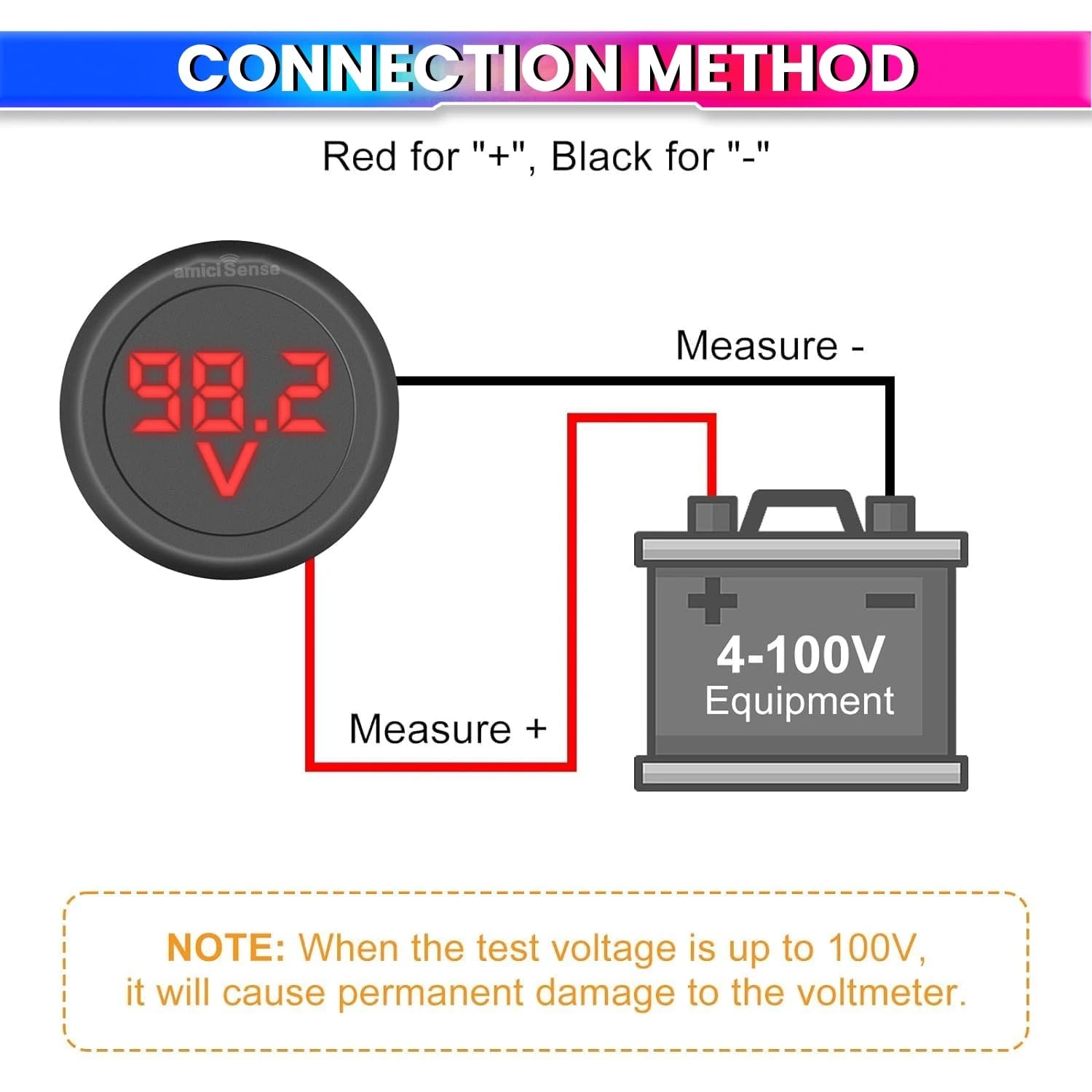

This is a 2-wire voltmeter that draws its operating power directly from the circuit being measured — no separate power supply is needed. Simply connect the positive wire to the positive terminal and the negative wire to the negative terminal of your battery or circuit.

What is the display accuracy and resolution of this voltmeter?

The 3-digit LED display shows voltage with a resolution of 0.1V (e.g., 12.4V), giving you a precise enough reading for battery health monitoring. Typical accuracy for this class of mini voltmeter is ±1% ± 0.1V.

What is the panel cutout size required to mount this voltmeter on a dashboard or enclosure?

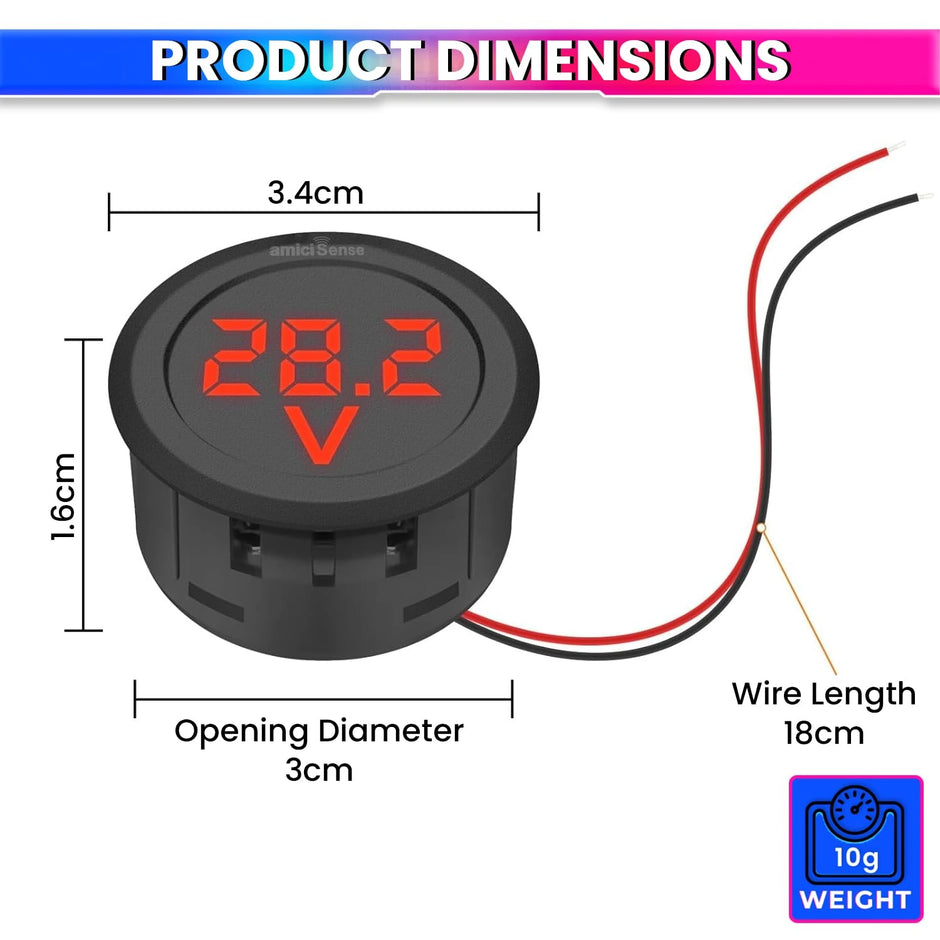

The voltmeter has a 30mm round body diameter, requiring a 30mm circular cutout on your dashboard, panel, or enclosure for flush mounting. It includes a mounting bezel/ring to secure it firmly in place after installation.

Will this voltmeter drain my bike battery if left connected when the vehicle is parked?

The meter consumes a very small quiescent current (typically under 20mA) to power its display. For long-term parking, it is advisable to connect it via a switched ignition line so it powers off with the vehicle, preventing any gradual battery drain over days or weeks.

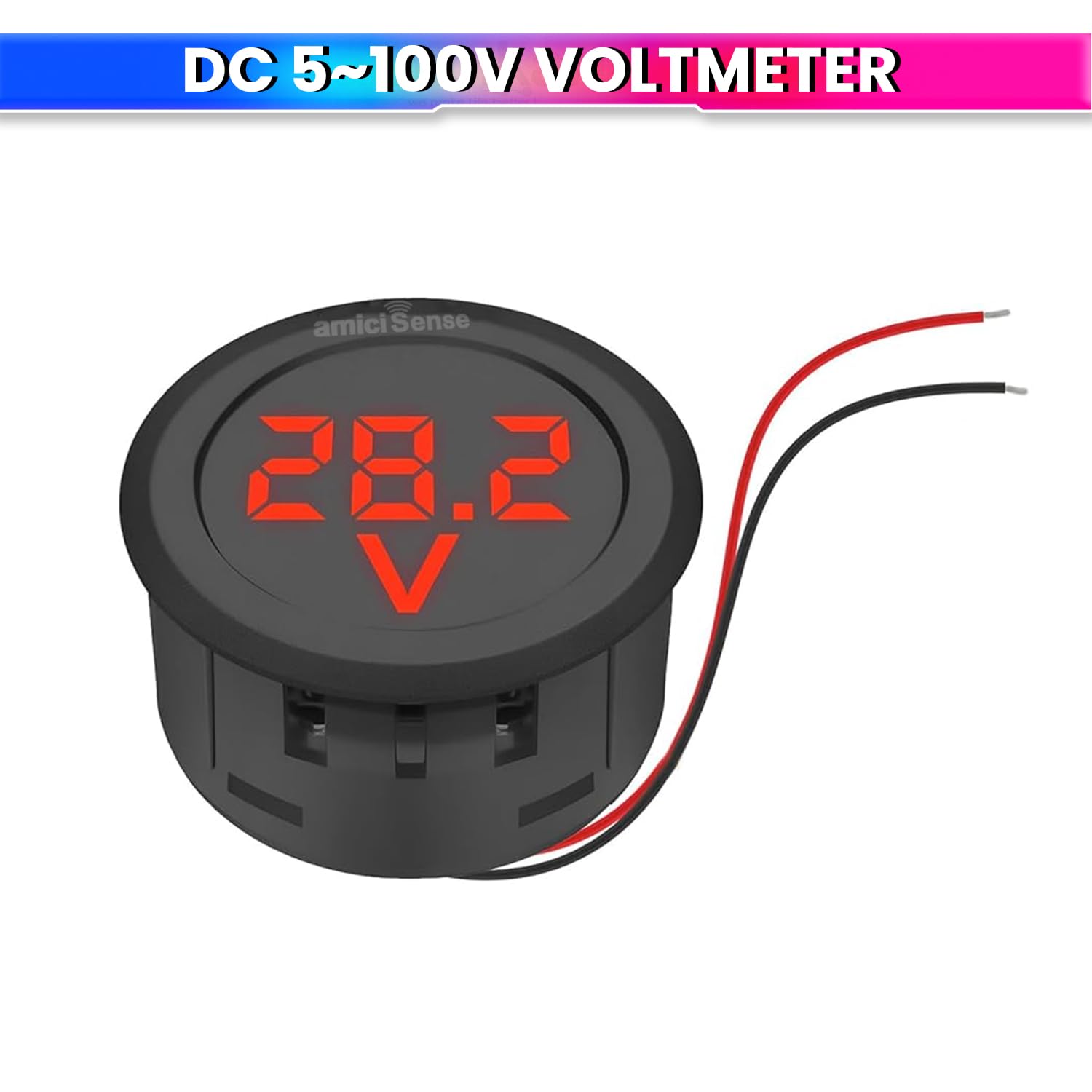

DC 5–100V Mini LED Voltmeter 3-Digit Green Display Bike & Vehicle Battery Voltage Monitor

DC 5–100V Mini LED Voltmeter 3-Digit Green Display Bike & Vehicle Battery Voltage Monitor

Name: DC 5–100V Mini LED Voltmeter 3-Digit Green Display Bike & Vehicle Battery Voltage Monitor
Brand: amiciKart
SKU: 1xDC-VOL-IND-RD
Price: 289.00 INR
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 289.00 -48% Rs. 550.00 (MRP Inclusive of All Taxes)

Rs. 289.00

DC 5–100V Mini LED Voltmeter 3-Digit Green Display Bike & Vehicle Battery Voltage Monitor

Rs. 289.00 Rs. 550.00 (MRP Inclusive of All Taxes)

Rs. 289.00

Chat on WhatsApp

Superfast Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive 1-year product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Wide Voltage Range:- Measures DC 5–100V, ideal for bike, car, scooter, UPS, inverter, and DIY battery monitoring.

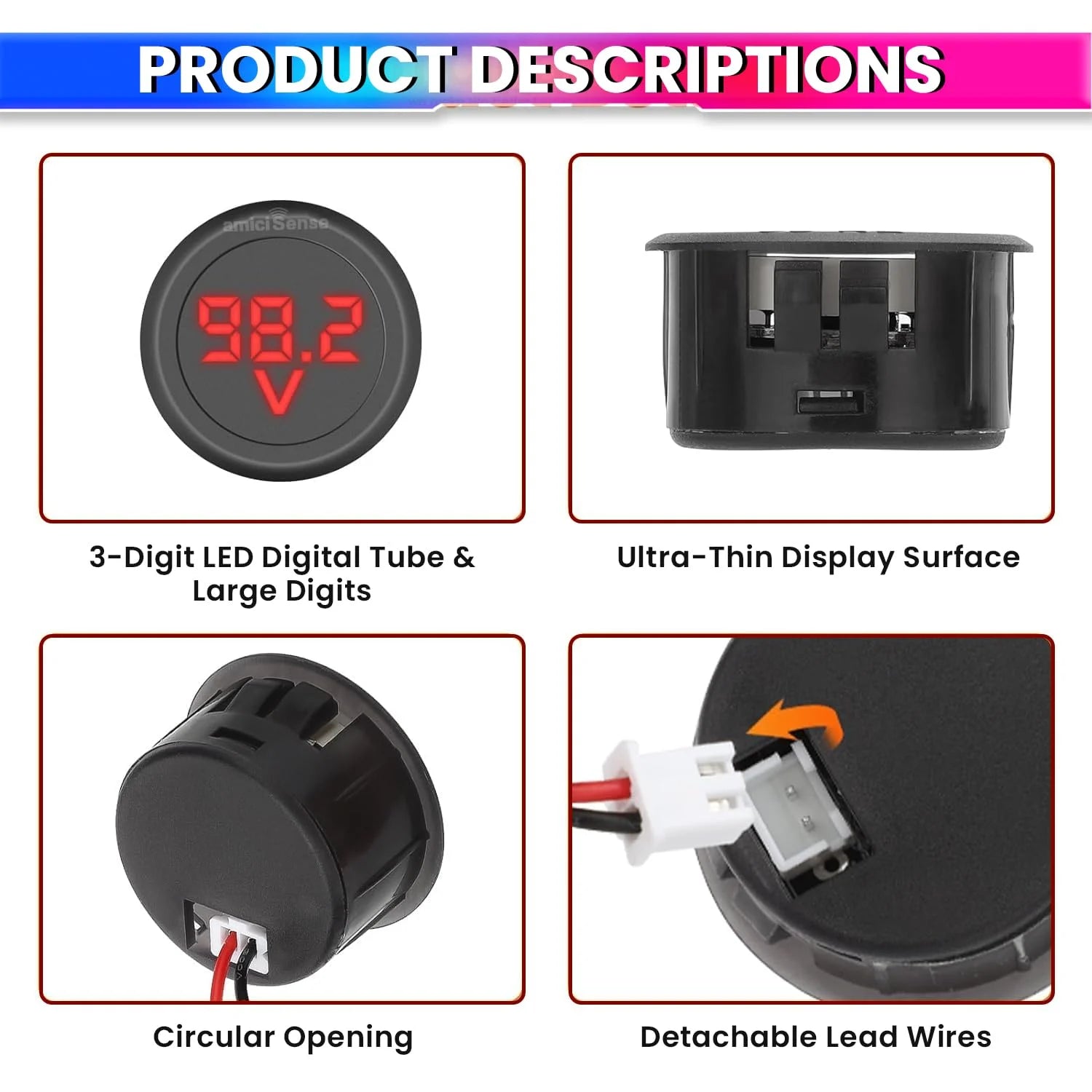

Bright LED Display:- Clear 3-digit green LED ensures easy readability even in dark conditions.
Compact & Easy to Install:- 30mm diameter with simple 2-wire connection for quick mounting in dashboards or panels.

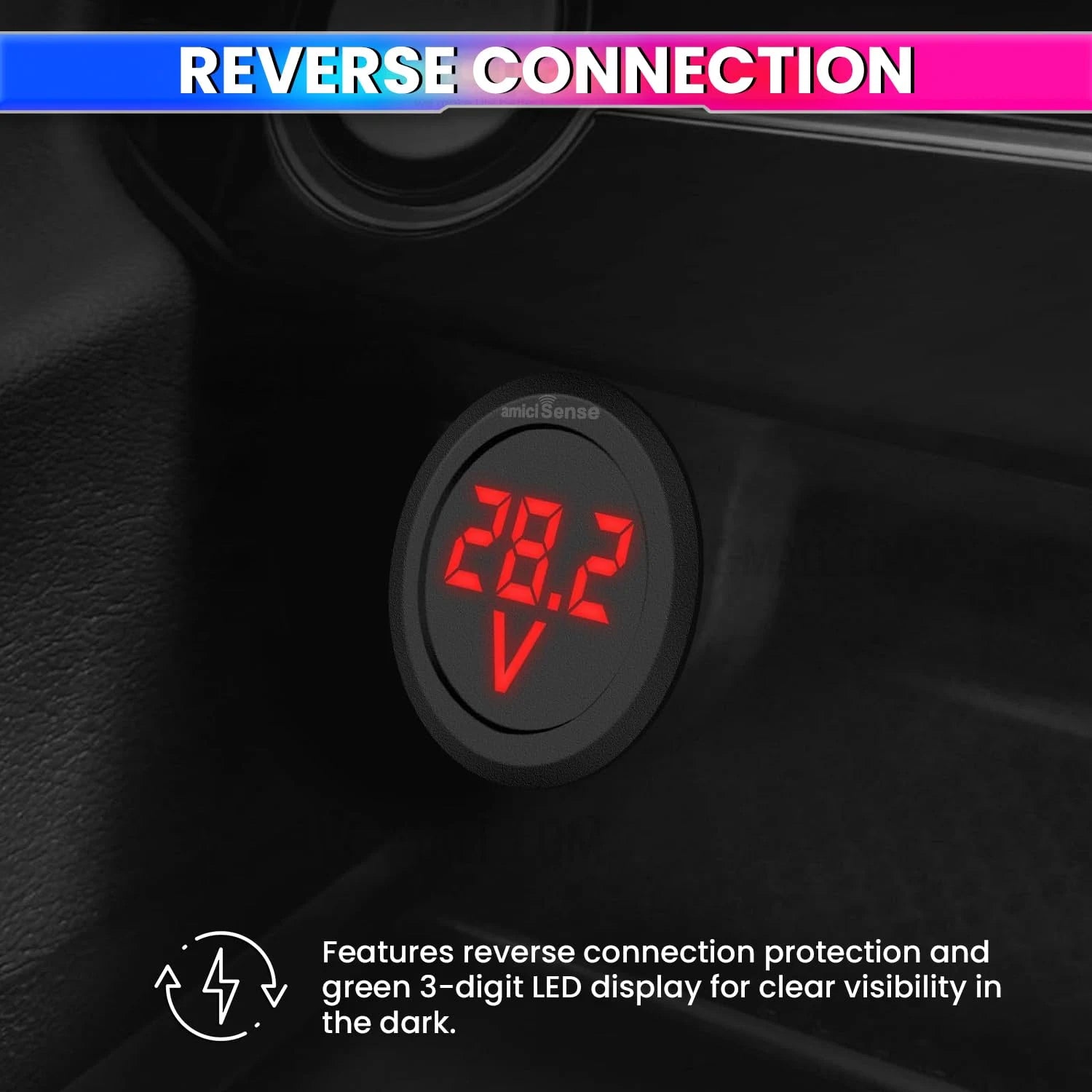

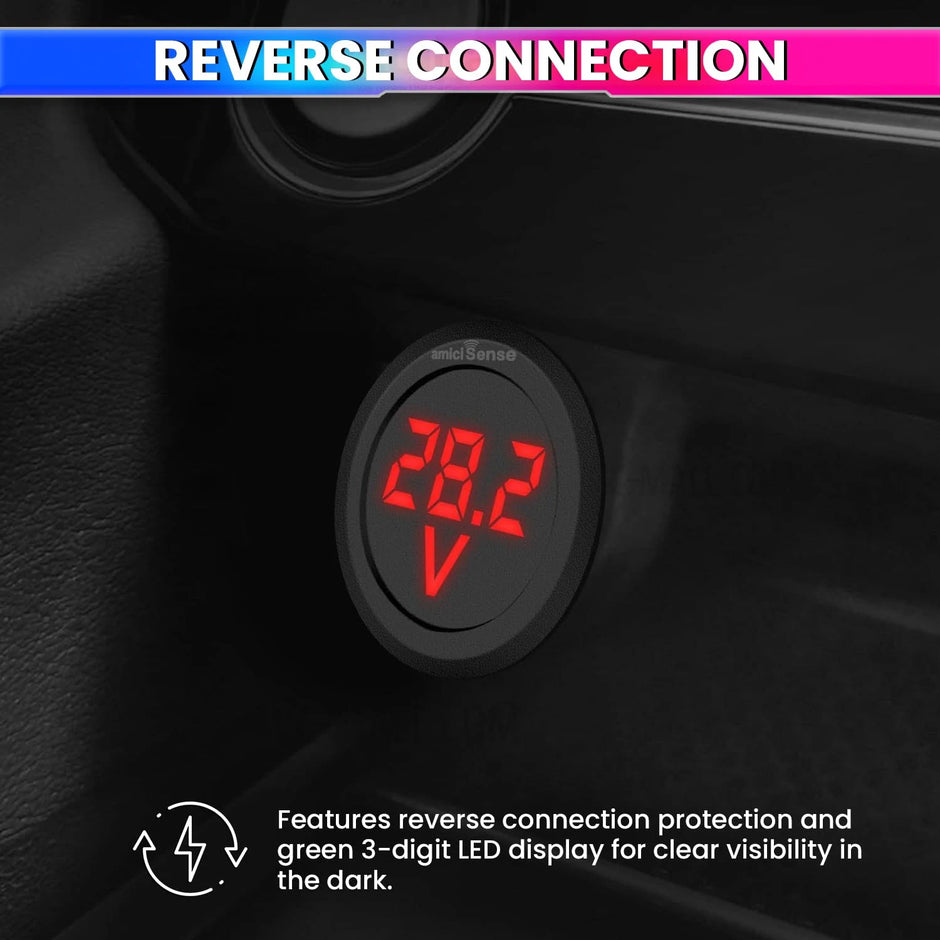

Reverse Polarity Protection:- Prevents damage from incorrect wiring for worry-free use.
1-Year Warranty & Dedicated Support:- For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

Description

The amiciSense DC 5–100V LED Voltmeter is a compact and reliable battery voltage monitor designed for bikes, cars, and DC systems.

Its bright 3-digit green LED display ensures clear readings in any lighting, while the 2-wire installation and reverse polarity protection make it simple and safe to use.
