Know before you buy
-
220V AC, 100A, 20kW
For AC loads up to 100A and 20kW.
-

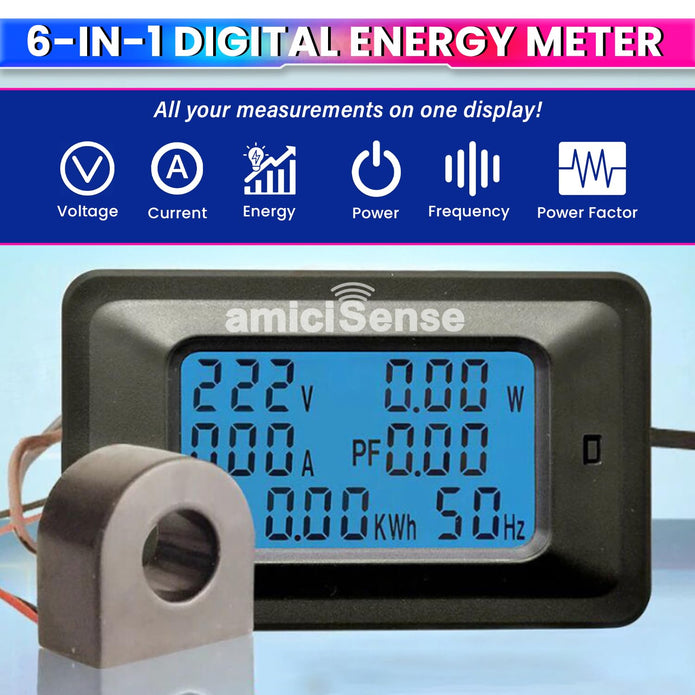

Six measurements
Voltage, current, active power, energy, frequency and power factor.
-
Keeps data when power is off
Stored energy can be reset to zero when you need.
-
Wired into mains
Switch off before wiring. If you are unsure, use a qualified electrician.
Features that make it useful
-
Large LCD
Shows voltage, current, active power and energy together.
-
Switchable blue backlight
Short-press the button to turn the backlight on or off.
-
Overload power setting
Long-press 3 seconds to enter the overload power setting.
-
Clear accumulated energy
Long-press 5 seconds to reset the energy count.
-
1-year warranty
Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.

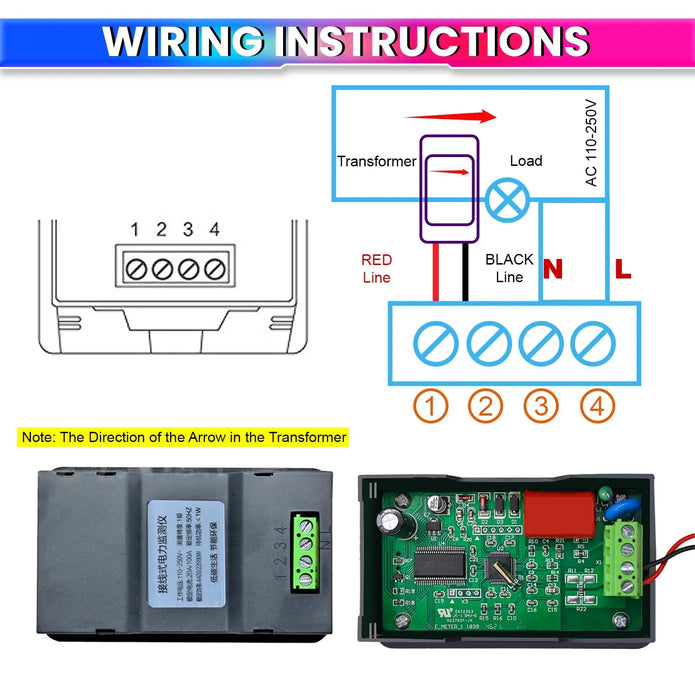

How to use
-
Switch off the supply
Turn off the circuit at the breaker before connecting or disconnecting the meter.
-
Wire it in, or have it wired
Connect the meter to the 220V AC circuit you want to monitor, keeping within 100A and 20kW. If you're unsure about the wiring, have a qualified electrician install it.
-

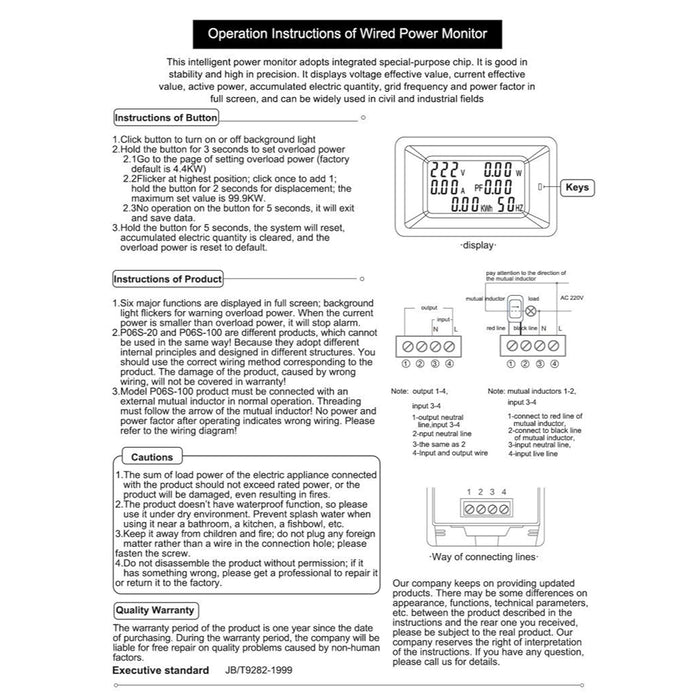

Set up with the button
Short press: backlight on/off. Long press 3 seconds: overload power setting. Long press 5 seconds: clear accumulated energy.

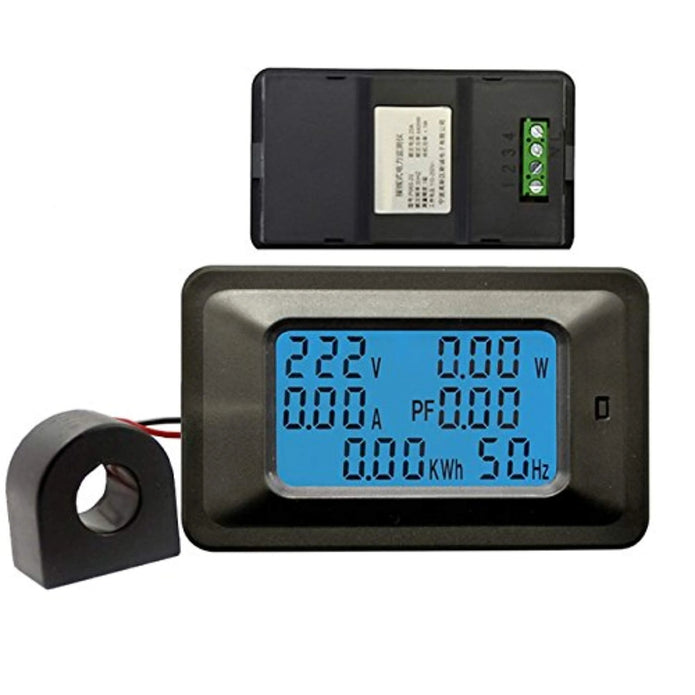

Digital Energy Meter 220V AC, 20kW 100A, Blue Backlight
amiciKart · 220V AC grid · 100A · 20kW · voltage, current, power, energy, frequency, PF · data memory
A 6-in-1 digital energy meter for 220V AC grid supplies, rated 100A and 20kW. Its large LCD shows voltage, current, active power and energy at the same time, and it also measures frequency and power factor. Energy data is stored when the...
Sale price
Rs. 1,799.00
-41%
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Increments of 1
Minimum of 1
Maximum of
AC 20KW 100A 6-in-1 Digital Energy Power Meter with Blue Backlight LCD & Data Memory Function
Sale price
Rs. 1,799.00
Regular price
Rs. 3,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,799.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1x100AMP |
| Type | 6-in-1 digital AC energy meter |
| Supply | 220V AC grid |
| Rated current | 100A |
| Rated power | 20kW |
| Readings | Voltage, current, active power, energy, frequency, power factor |
| Display | Large LCD, blue backlight (switchable) |
| Memory | Energy data stored at power-off, resettable to 0 |
| Button | Short press: backlight · 3 s: overload power setting · 5 s: clear energy |
| Warranty | 1 year |
| Support | 980-970-9898 / care@amicikart.com |
Frequently asked questions
What is the maximum power?
20kW, at up to 100A.
What supply is it for?
220V AC grid supplies.
Will I lose my readings in a power cut?
No. Energy data is stored when the power goes off.
How do I reset the energy count?
Long-press the button for 5 seconds.
Can I install it myself?
It connects to mains wiring. Switch off the supply first, and if you're unsure, have a qualified electrician install it.
Full Product Description
Digital Energy Meter 220V AC, 20kW 100A, Blue Backlight
A 6-in-1 digital energy meter for 220V AC grid supplies, rated 100A and 20kW. Its large LCD shows voltage, current, active power and energy at the same time, and it also measures frequency and power factor. Energy data is stored when the power goes off, the blue backlight can be switched on or off, and you can set an overload power level. It comes with a 1-year warranty.
- Large LCD: Shows voltage, current, active power and energy together.
- Switchable blue backlight: Short-press the button to turn the backlight on or off.
- Overload power setting: Long-press 3 seconds to enter the overload power setting.
- Clear accumulated energy: Long-press 5 seconds to reset the energy count.
- 1-year warranty: Support by WhatsApp, call or email at 980-970-9898 or care@amicikart.com.
Important: This meter is wired into mains. Switch off the supply at the breaker before connecting or disconnecting it, and if you're unsure about the wiring, have a qualified electrician install it.
