Know before you buy
-
Single-phase, 50–300V AC
Suits standard 230V mains, solar inverters and generators.
-
Six readings at once
Voltage, current, active power, energy, frequency and power factor.
-
Three-phase needs three meters
It measures one phase. Fit one meter per phase for a three-phase supply.
-
Wired into mains
Switch off before wiring. If you are unsure, use a qualified electrician.
Features that make it useful
-
Up to 99.99A and 30,000 W
0.01A resolution for detailed consumption tracking.
-
Resettable kWh counter
Reset energy readings per billing cycle, tenant or load test.
-
Multi-colour LCD
Clearly readable inside dark electrical panels.
-
Panel-mount
Fits into electrical enclosures for permanent monitoring.
-
1-year warranty
Support at 980 970 9898 or care@amicikart.com.

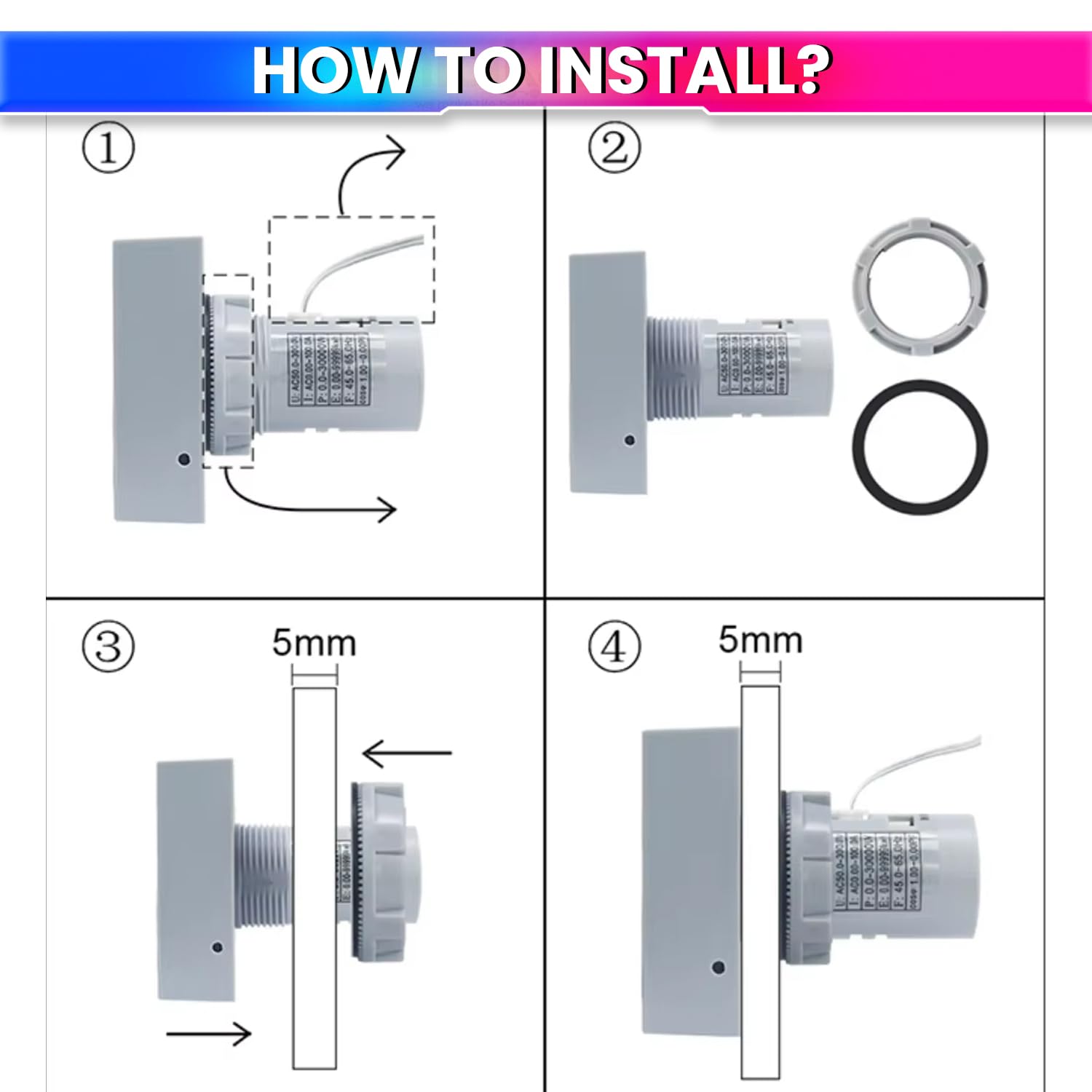

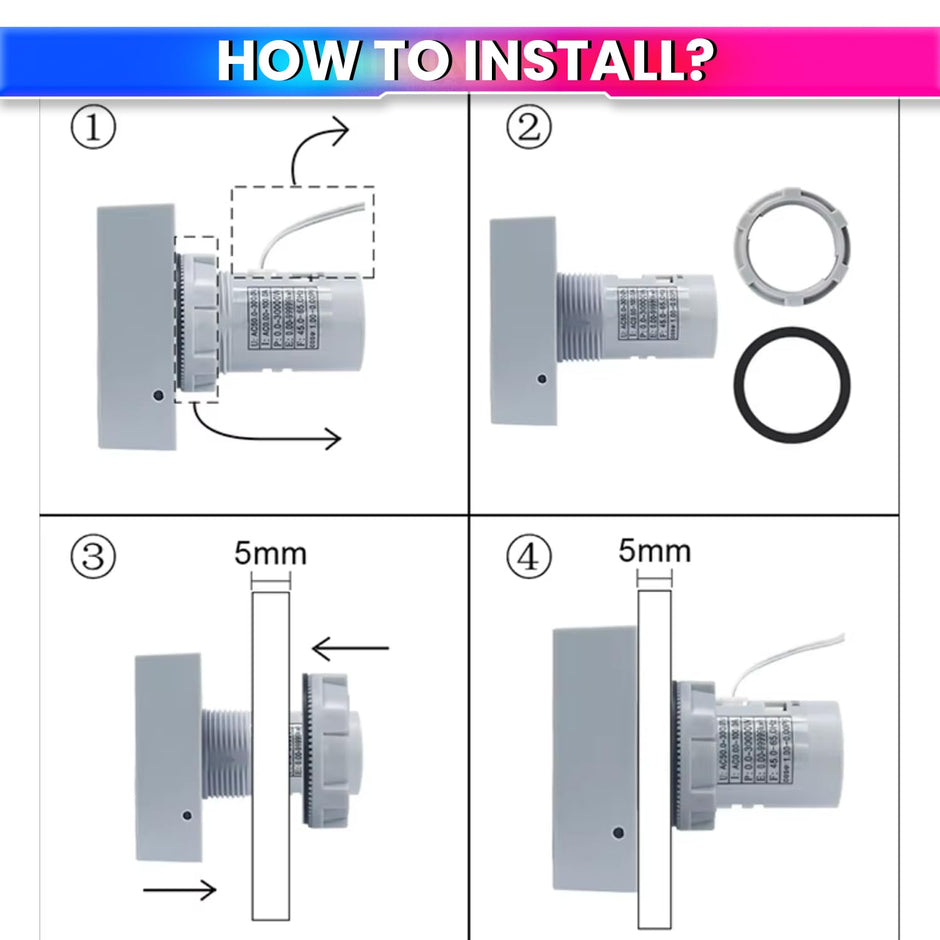

How to use
-
Switch off the supply
Turn off the circuit at the breaker before fitting or wiring the meter.
-

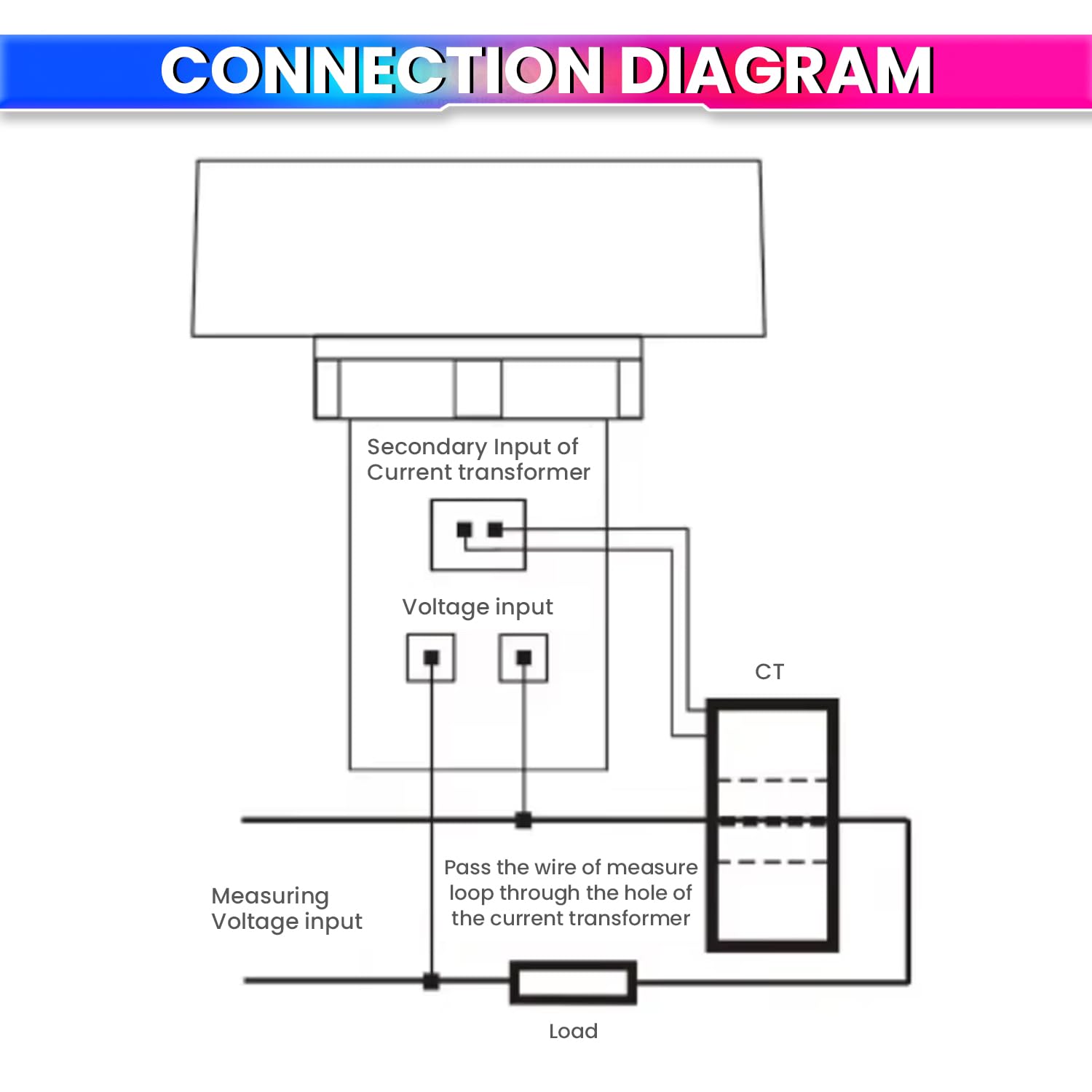

Fit and wire it
Mount the meter in the panel and connect it to the single-phase circuit you want to monitor. If you're unsure about the wiring, have a qualified electrician install it.
-
Power on and read
Restore the supply to see all six readings. Reset the kWh counter when you start a new billing or test period.

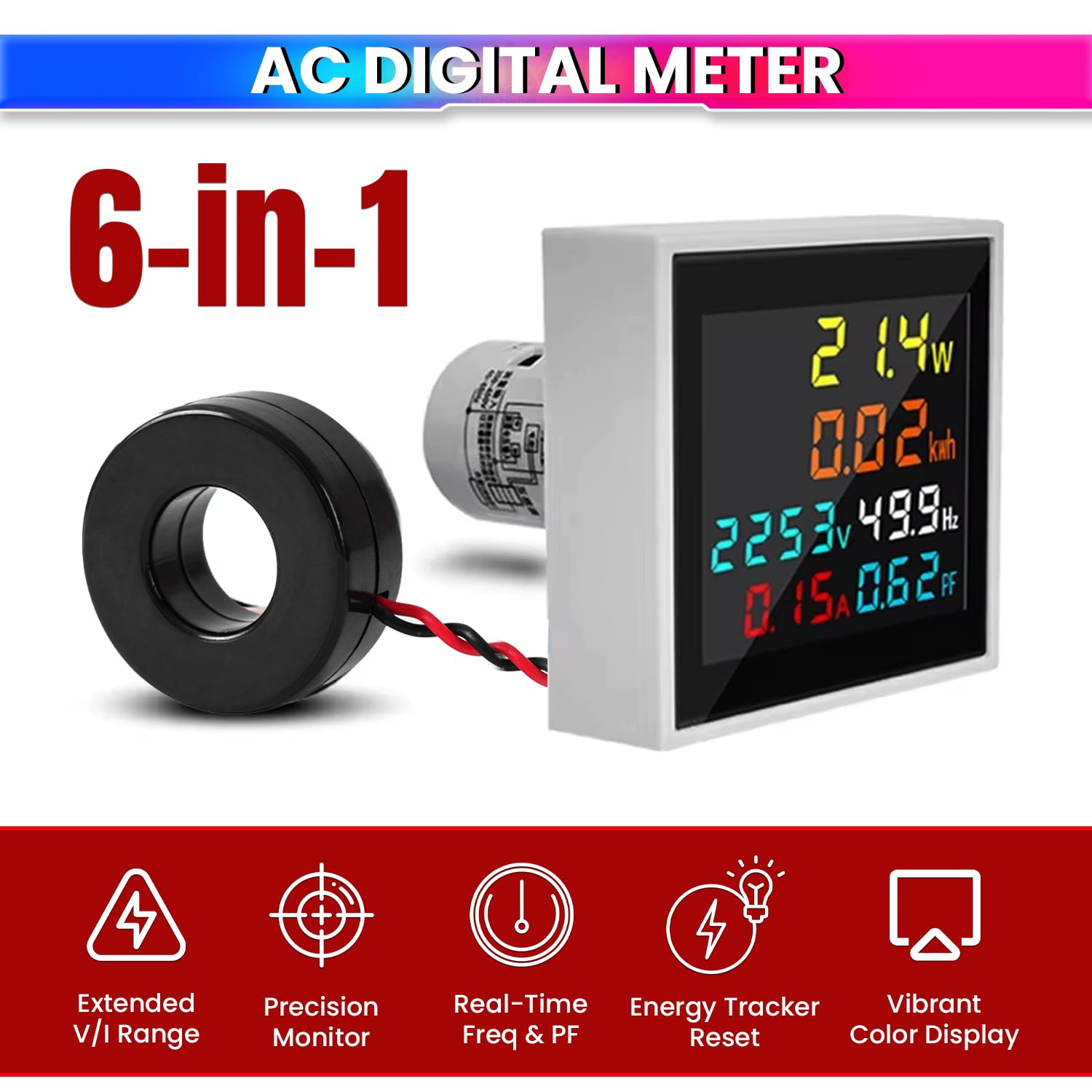

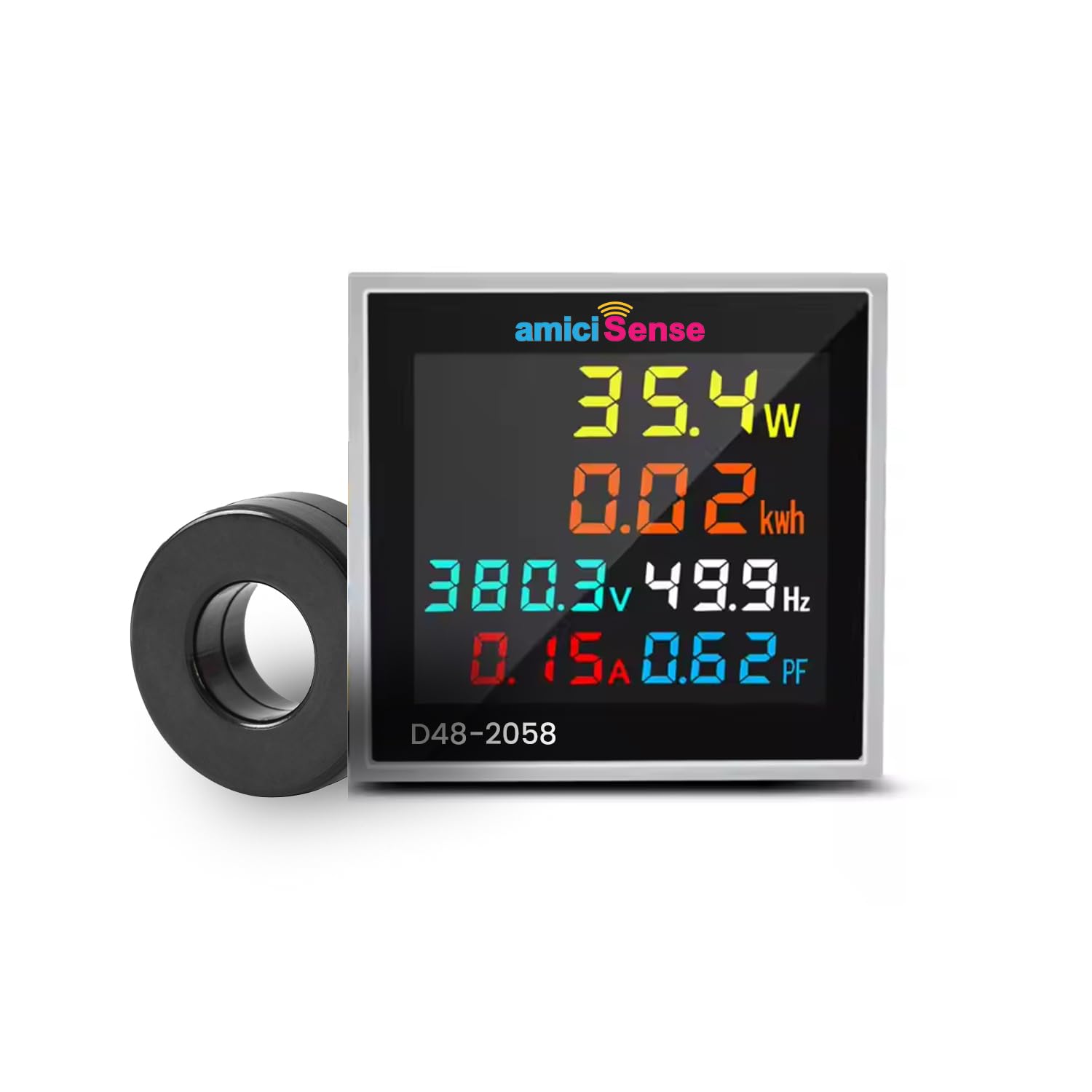

6-in-1 Digital AC Power Meter, Single-Phase, 50–300V, 100A
amiciKart · single-phase · 50–300V AC · up to 99.99A · up to 30,000 W · V, A, W, kWh, Hz, PF · colour LCD
A single-phase panel-mount digital AC power meter that shows six readings at once on a colour LCD: voltage (50–300V AC), current (up to 99.99A), active power (up to 30,000 W), energy (up to 99,999 kWh), frequency and power factor. It has...
Sale price
Rs. 1,699.00
-33%
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,699.00
Unit price
Increments of 1
Minimum of 1
Maximum of
6-in-1 Digital AC Power Meter, Voltmeter, Ammeter, kWh Power Frequency 50–300V, 100A Energy Meter
Sale price
Rs. 1,699.00
Regular price
Rs. 2,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,699.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Manuals & videos

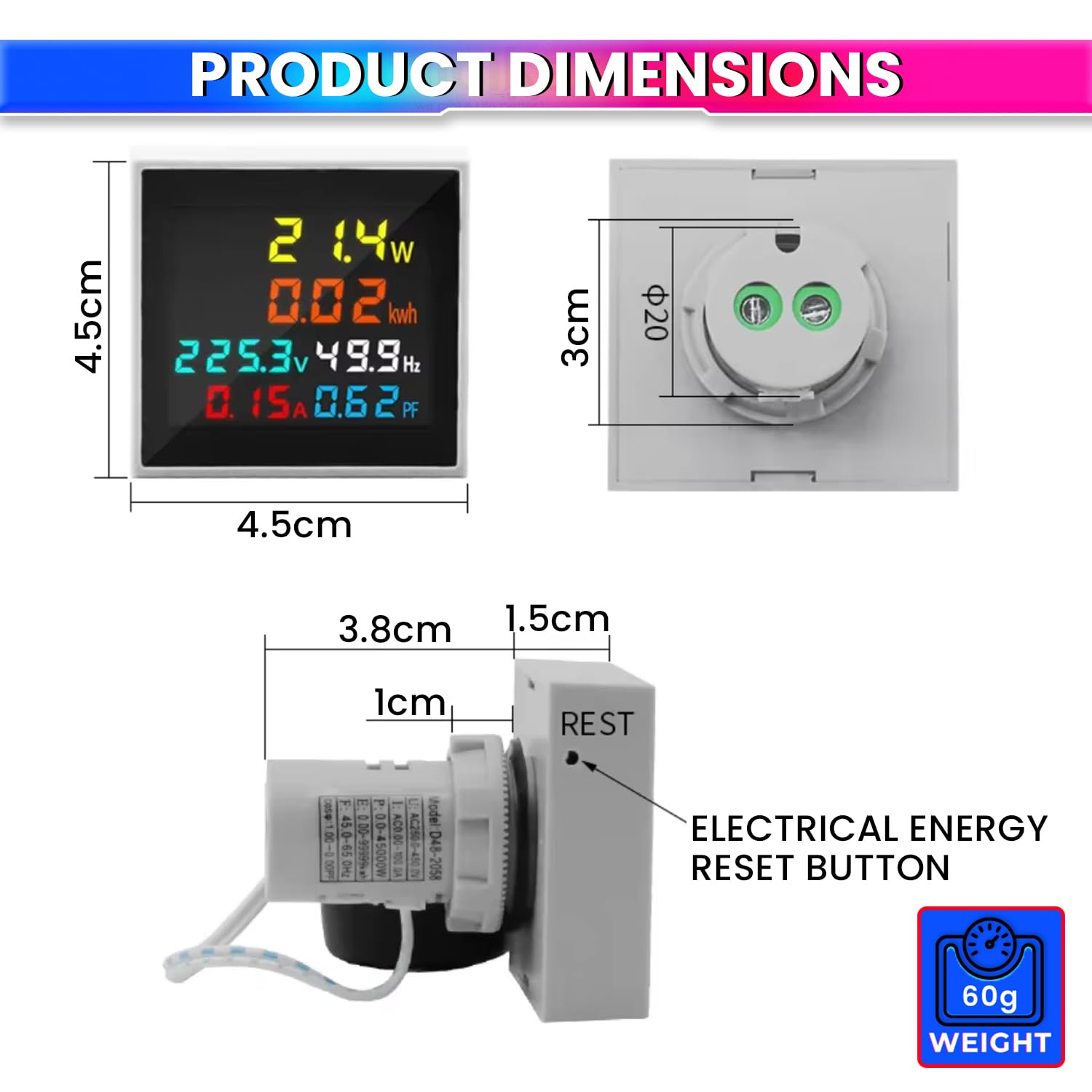

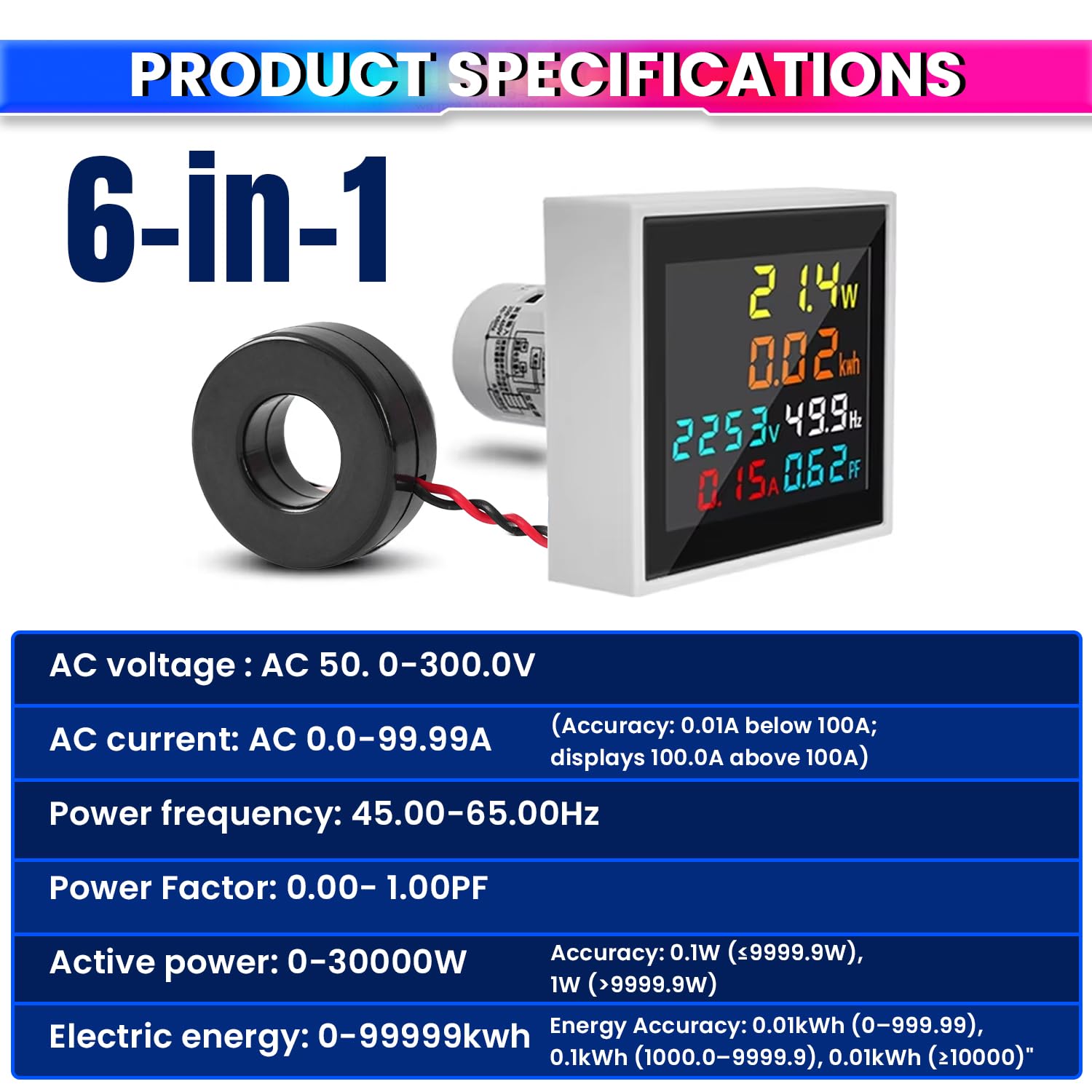

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xELEC-6IN1-MTR |
| Type | Single-phase digital AC power meter (panel-mount) |
| Phase | Single-phase only |
| Voltage range | 50–300V AC |
| Current | Up to 99.99A, 0.01A resolution |
| Active power | Up to 30,000 W |
| Energy | Up to 99,999 kWh, resettable |
| Other readings | Frequency, power factor |
| Display | Multi-colour LCD |
| Warranty | 1 year |
| Support | 980 970 9898 / care@amicikart.com |
Frequently asked questions
Can I use it on a three-phase supply?
It measures a single phase. To monitor a three-phase supply you need three meters, one on each phase.
Will it work on Indian 230V mains?
Yes. It covers 50–300V AC, which includes standard 230V mains.
What is the maximum current?
Up to 99.99A, with active power up to 30,000 W.
Can I reset the energy reading?
Yes. The kWh counter is resettable.
Can I install it myself?
It connects to mains wiring. Switch off the supply first, and if you're unsure, have a qualified electrician install it.
Full Product Description
6-in-1 Digital AC Power Meter, Single-Phase, 50–300V, 100A
A single-phase panel-mount digital AC power meter that shows six readings at once on a colour LCD: voltage (50–300V AC), current (up to 99.99A), active power (up to 30,000 W), energy (up to 99,999 kWh), frequency and power factor. It has 0.01A current resolution and a resettable kWh counter. To monitor a three-phase supply, use three meters, one per phase. It comes with a 1-year warranty.
- Up to 99.99A and 30,000 W: 0.01A resolution for detailed consumption tracking.
- Resettable kWh counter: Reset energy readings per billing cycle, tenant or load test.
- Multi-colour LCD: Clearly readable inside dark electrical panels.
- Panel-mount: Fits into electrical enclosures for permanent monitoring.
- 1-year warranty: Support at 980 970 9898 or care@amicikart.com.
Important: This meter is wired into mains. Switch off the supply at the breaker before connecting or disconnecting it, and if you're unsure about the wiring, have a qualified electrician install it.
