What is the measurement range of this digital voltmeter, and does it work on both single-phase and 3-phase systems?

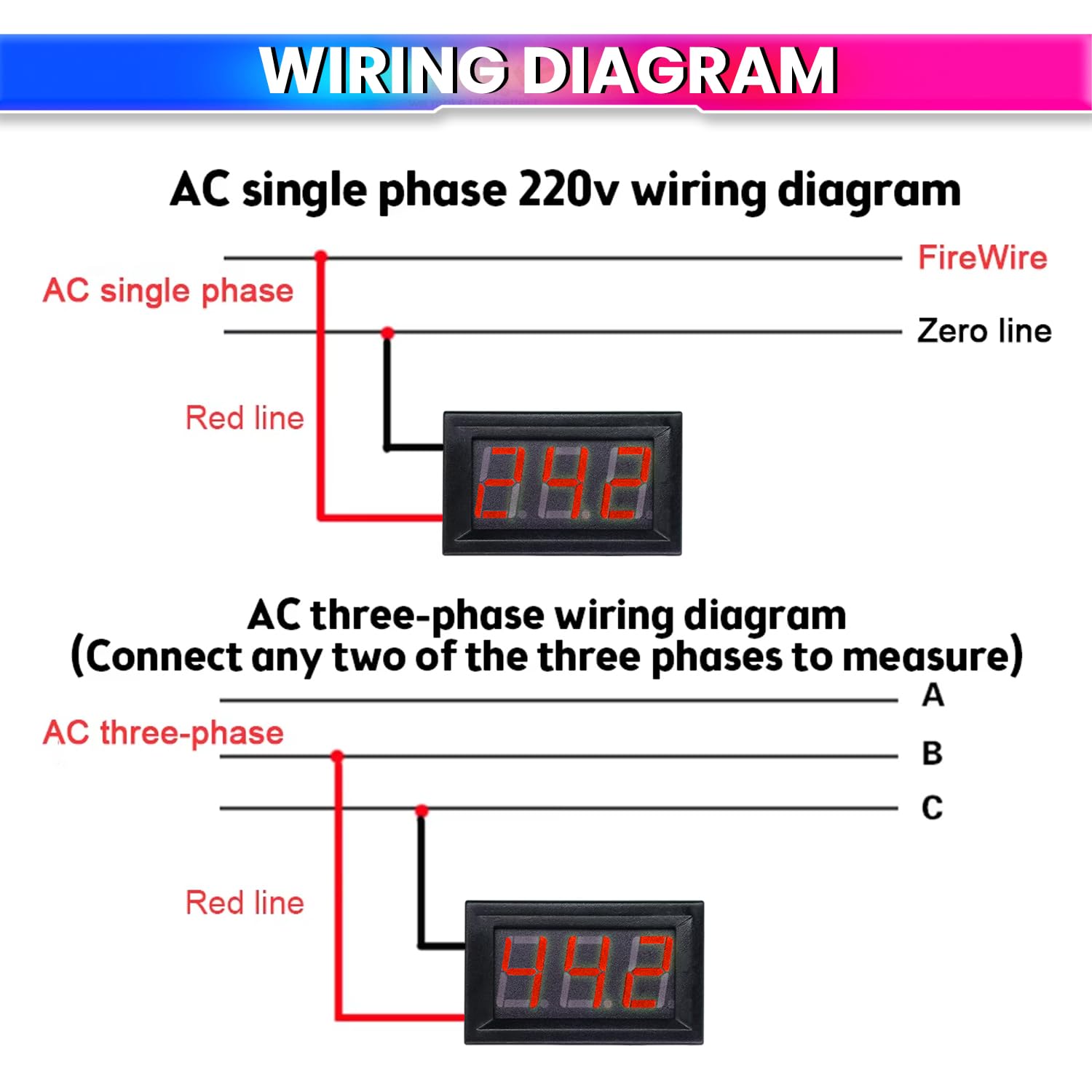

This voltmeter measures AC voltage from 30V to 500V, making it compatible with standard single-phase supplies (110V/230V) as well as 3-phase industrial systems up to 500VAC. It measures line-to-neutral or line-to-line voltage depending on how you wire it into your panel.

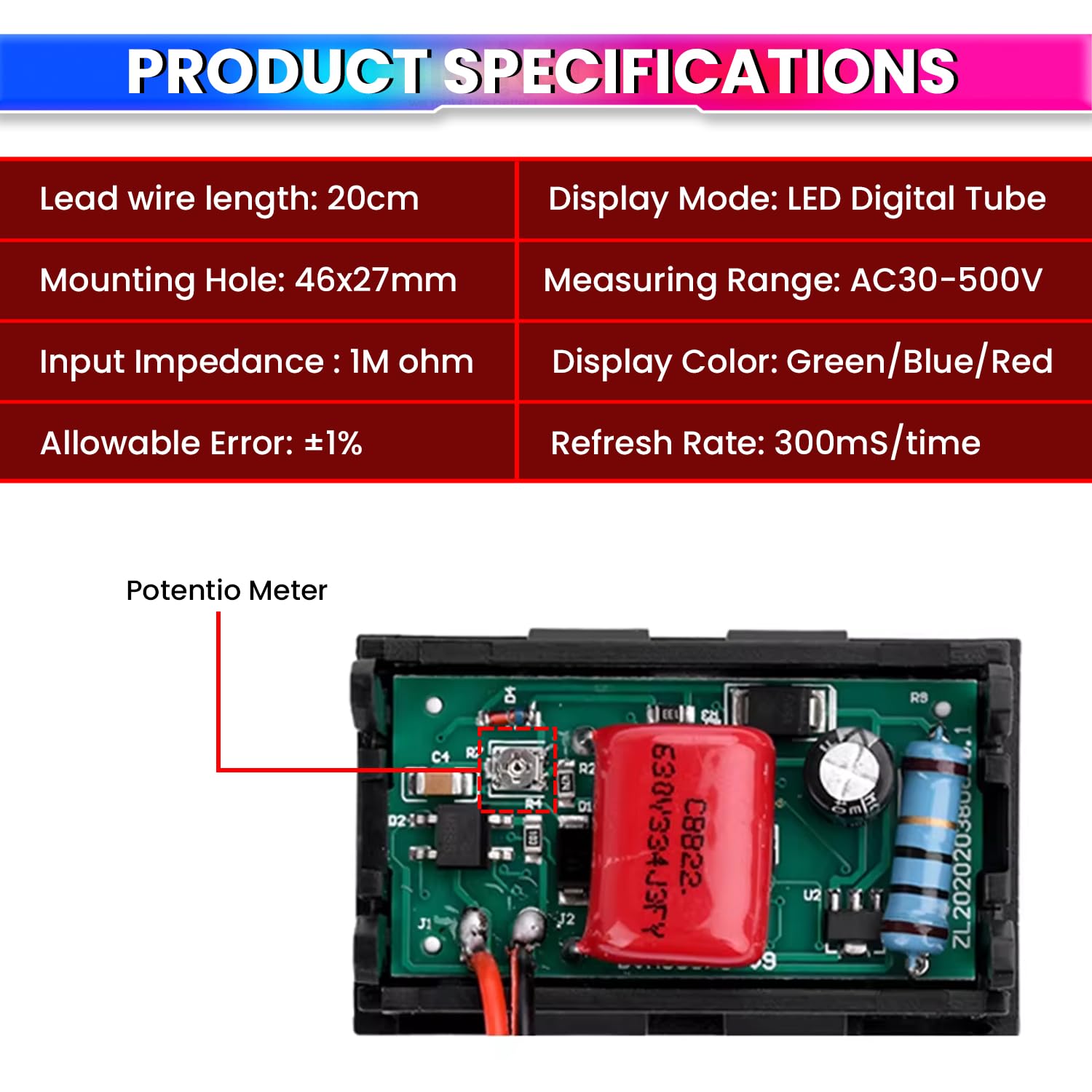

How do I use the built-in potentiometer to calibrate the voltmeter?

Connect the voltmeter to a known, stable reference voltage source, then use a small flathead screwdriver to gently adjust the onboard potentiometer until the display matches the reference reading. This allows you to compensate for any minor variance and ensure accurate readings specific to your installation.

What are the panel cutout dimensions required to mount this voltmeter?

This voltmeter is designed for standard 22mm × 22mm square panel cutout mounting, which is common in most DIN-rail enclosures and electrical distribution boards. Please verify the exact cutout dimensions against the physical unit before installation, as minor manufacturing tolerances may apply.

Does this voltmeter require a separate power supply, or does it draw power directly from the measured line?

This voltmeter is self-powered — it draws its operating power directly from the AC line being measured (30–500VAC), so no separate auxiliary power supply is needed. Simply connect the two measurement terminals to the live and neutral (or line-to-line) conductors and the display activates automatically.

Is this voltmeter suitable for outdoor use or only for indoor panel installations?

This unit is designed primarily for indoor panel and enclosure mounting. It does not carry an IP65 or weatherproof rating, so direct exposure to rain, moisture, or dust is not recommended. For outdoor applications, it should be housed inside a sealed IP-rated enclosure to ensure safe and reliable operation.

3-Digit Digital Voltmeter, 30–500VAC with Potentiometer Calibration for Accurate Monitoring

3-Digit Digital Voltmeter, 30–500VAC with Potentiometer Calibration for Accurate Monitoring

Name: 3-Digit Digital Voltmeter, 30–500VAC with Potentiometer Calibration for Accurate Monitoring
Brand: amiciKart
SKU: 1xACV-DSPLY-500V
Price: 299.00 INR
Availability: InStock

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Rs. 299.00 -86% Rs. 2,000.00 (MRP Inclusive of All Taxes)

Rs. 299.00

3-Digit Digital Voltmeter, 30–500VAC with Potentiometer Calibration for Accurate Monitoring

Rs. 299.00 Rs. 2,000.00 (MRP Inclusive of All Taxes)

Rs. 299.00

Chat on WhatsApp

Superfast Shipping

30-Day Easy Returns

No questions asked return policy

1-Year Warranty

Comprehensive 1-year product warranty for peace of mind

Best Price Guarantee

Found it cheaper? We’ll match the price

Wide Voltage Range – Measures voltages from 30VAC to 500VAC, making this digital voltmeter ideal for various electrical applications and monitoring high voltage systems.

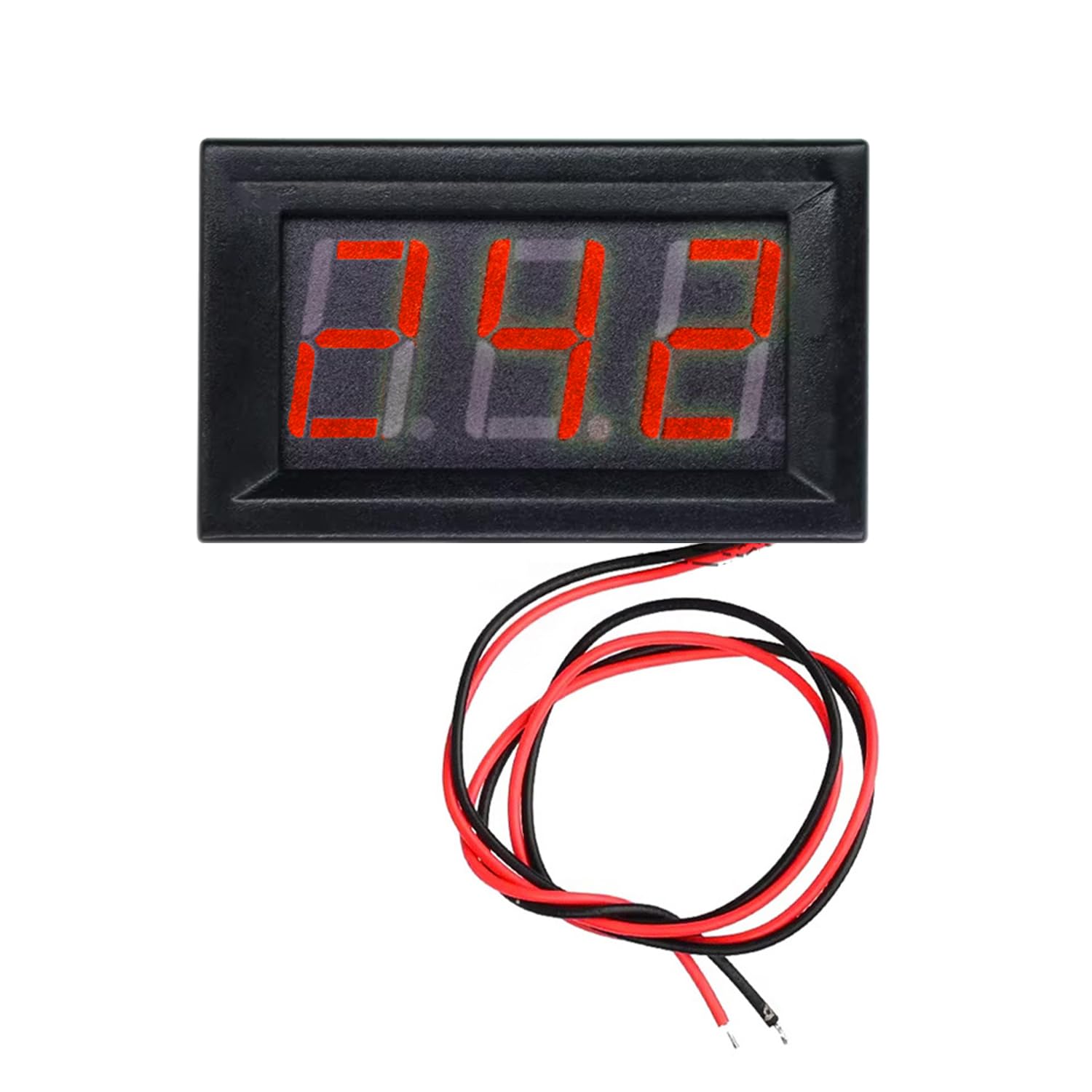

Easy-to-Read Red LED Display – Features a bright red 3-digit LED display for clear and easy reading of voltage levels, even in low-light environments.
Precise Calibration – Equipped with a built-in potentiometer for fine-tuning and calibration, ensuring accurate voltage readings every time.
Compact & Durable Design – Designed for durability, this voltmeter is compact and robust, perfect for use in various industrial and home electrical projects.
Simple Installation – Easy to install with clear connections, allowing for seamless integration into your existing electrical systems. Ideal for DIY enthusiasts and professionals alike.
1-Year Warranty & Dedicated Support – For technical assistance or product support, reach out to us via WhatsApp, call, or email: 📞 980-970-9898 | ✉️ care@amicikart.com.

Description

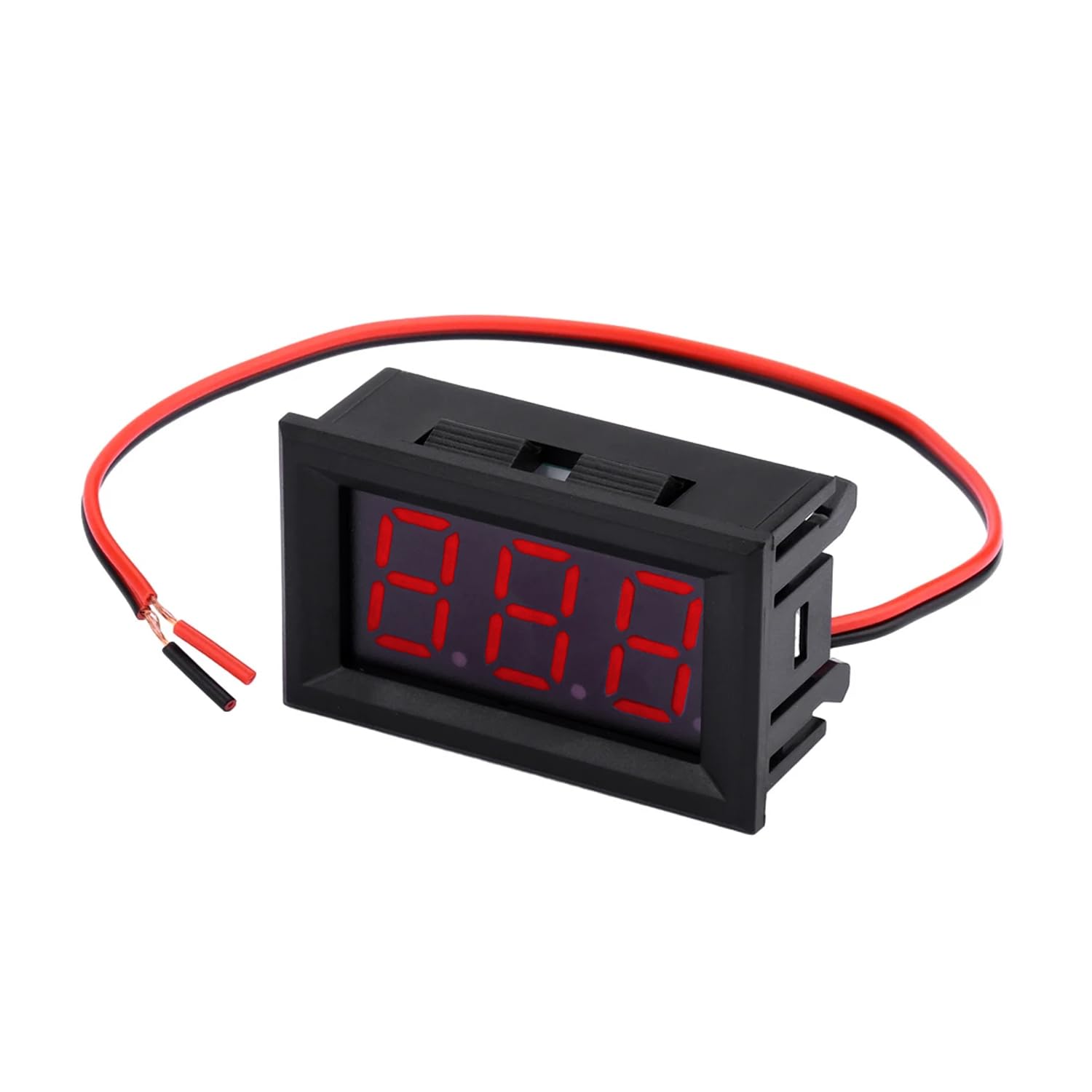

This 3-Digit Digital Voltmeter is designed for accurate and reliable monitoring of AC voltage across a wide range of 30VAC to 500VAC. Equipped with a bright red LED display, it provides clear, easy-to-read measurements in any lighting condition.

The integrated potentiometer allows precise calibration, ensuring accurate readings tailored to your setup.
Compact yet durable, this voltmeter is built to perform in both industrial environments and home electrical projects. Its simple installation process makes it suitable for technicians, engineers, and DIY enthusiasts.

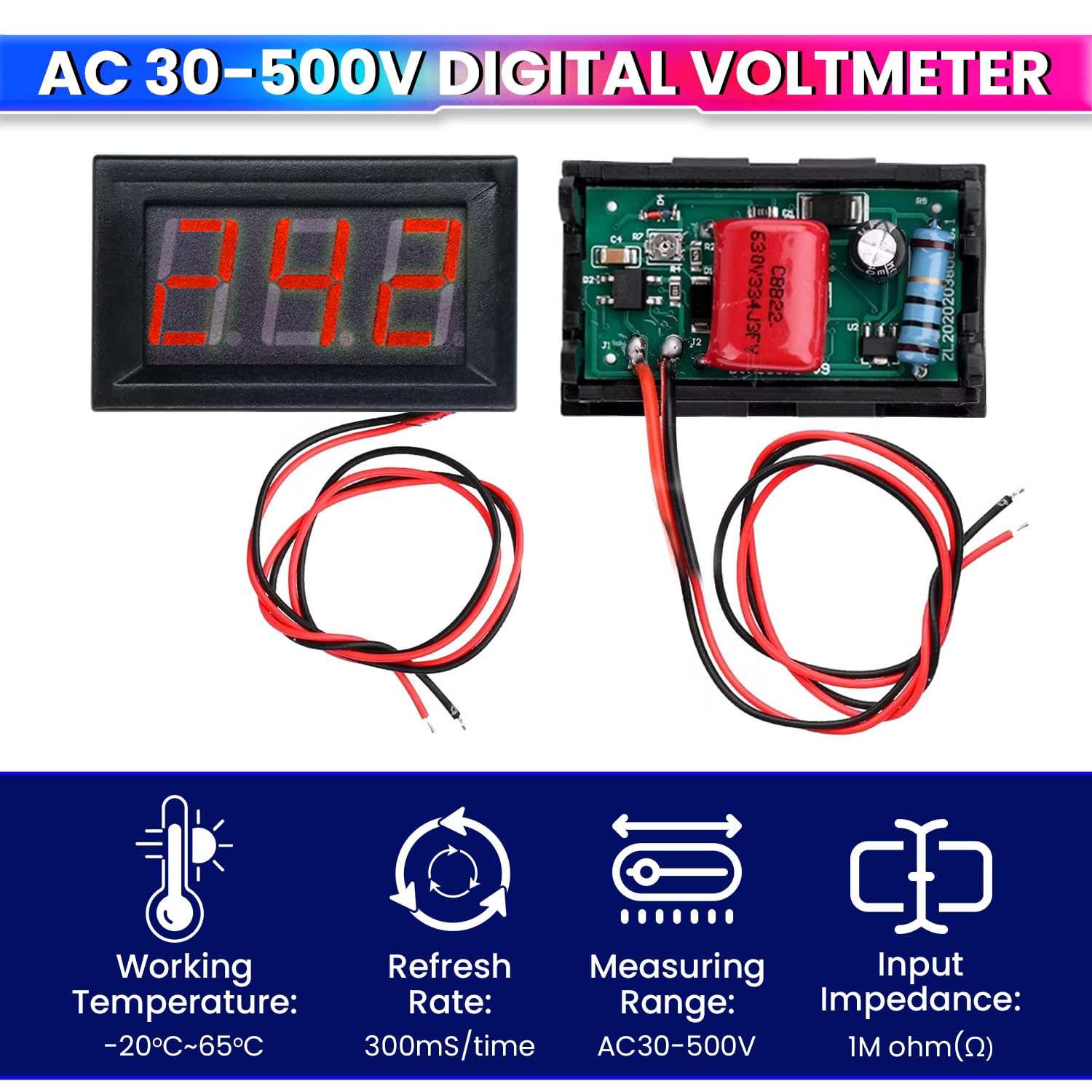

Specification:
1. Measuring range: AC30-500V
2. Power supply range: no additional power supply, directly use the measured voltage as the power supply, range: AC30V-500V
3. Maximum input: AC500V.

NOTE: Input voltages higher than 500V may be permanently damaged!
4. Allowable error: ~1%
5. Input impedance: 1M ohm
6. Refresh rate: about 300mS/time
7. Display Mode
8. Three "0.56" LED digital tube
