Know before you buy
-
Measure 0–200A · 0–60V
Measures up to 200A and 60V.
-

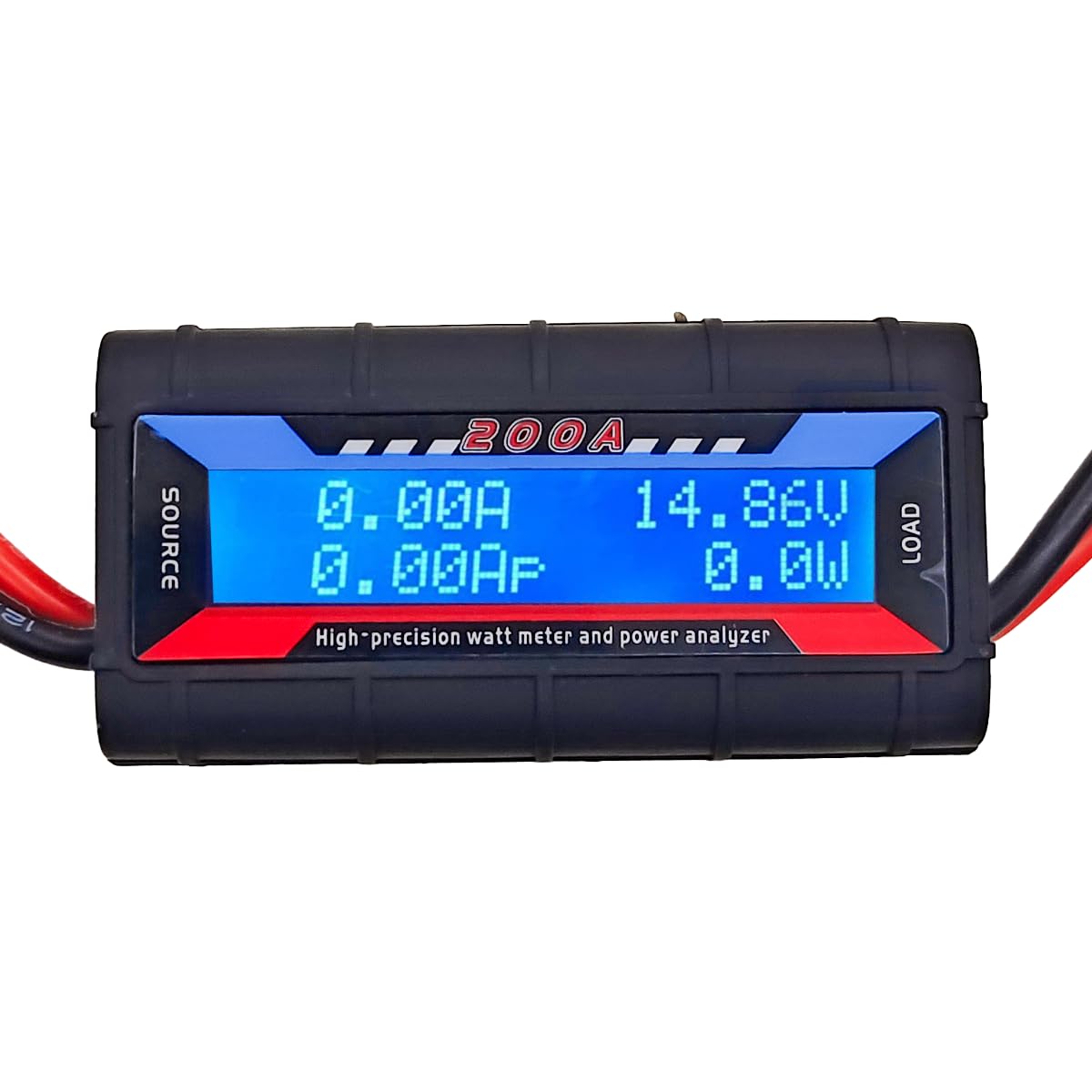

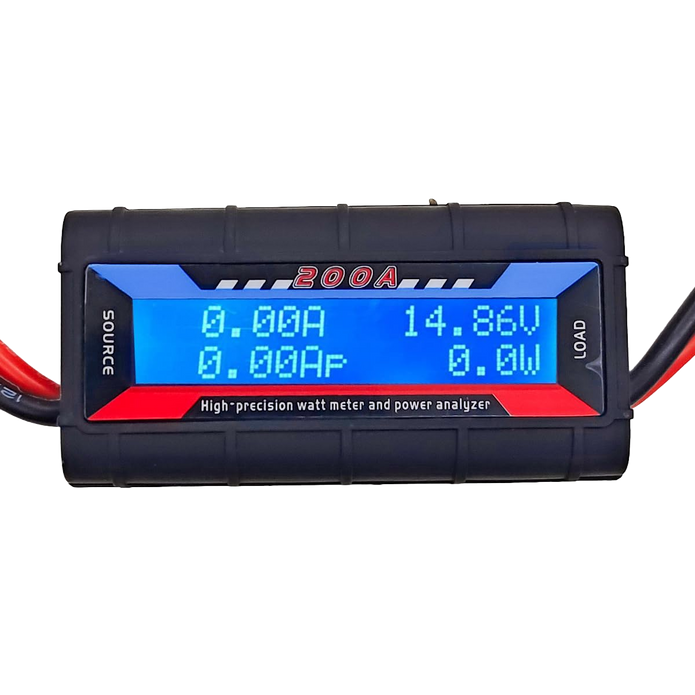

8 parameters on one LCD
A · V · W · Ah · Wh · Ap · Vm · Wp.
-
Meter supply / shunt not specified
How the meter is powered and whether a shunt is included are not specified.
-
DIY DC install care
Observe polarity and protective devices on high-current DC.
Features that make it useful
-
Solar · wind · battery · e-bike
Use cases.
-
Cumulative Ah / Wh logging
Battery health / energy tracking.
-

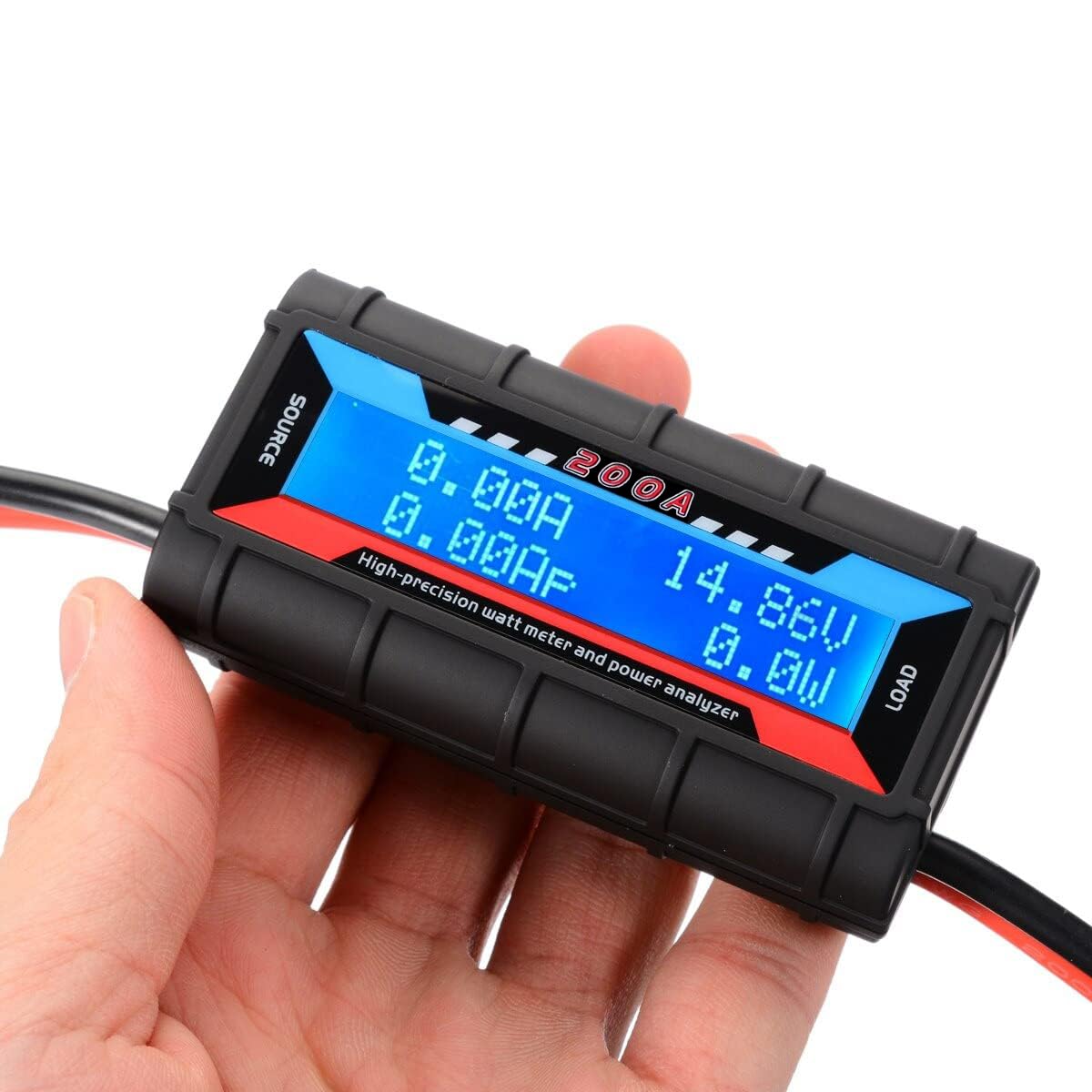

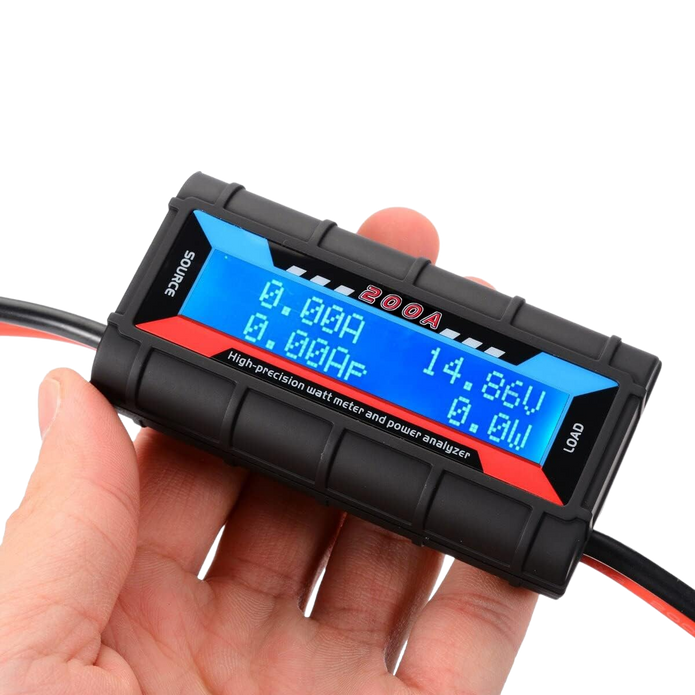

Backlit LCD
Readable in low light / rooftop checks.
-
Fine resolution
0.01A · 0.01V · 0.01Wh · 0.001Ah.
How to use
-
Check your pack/array is within 0–60V and 200A
Do not exceed the 0–60V / 0–200A measuring range.
-
Wire per device diagram with correct polarity
Follow the wiring diagram supplied with the meter, including any shunt connection.
-
Read live values; use cumulative Ah/Wh for session tracking
Reset practice per on-device UI if provided.

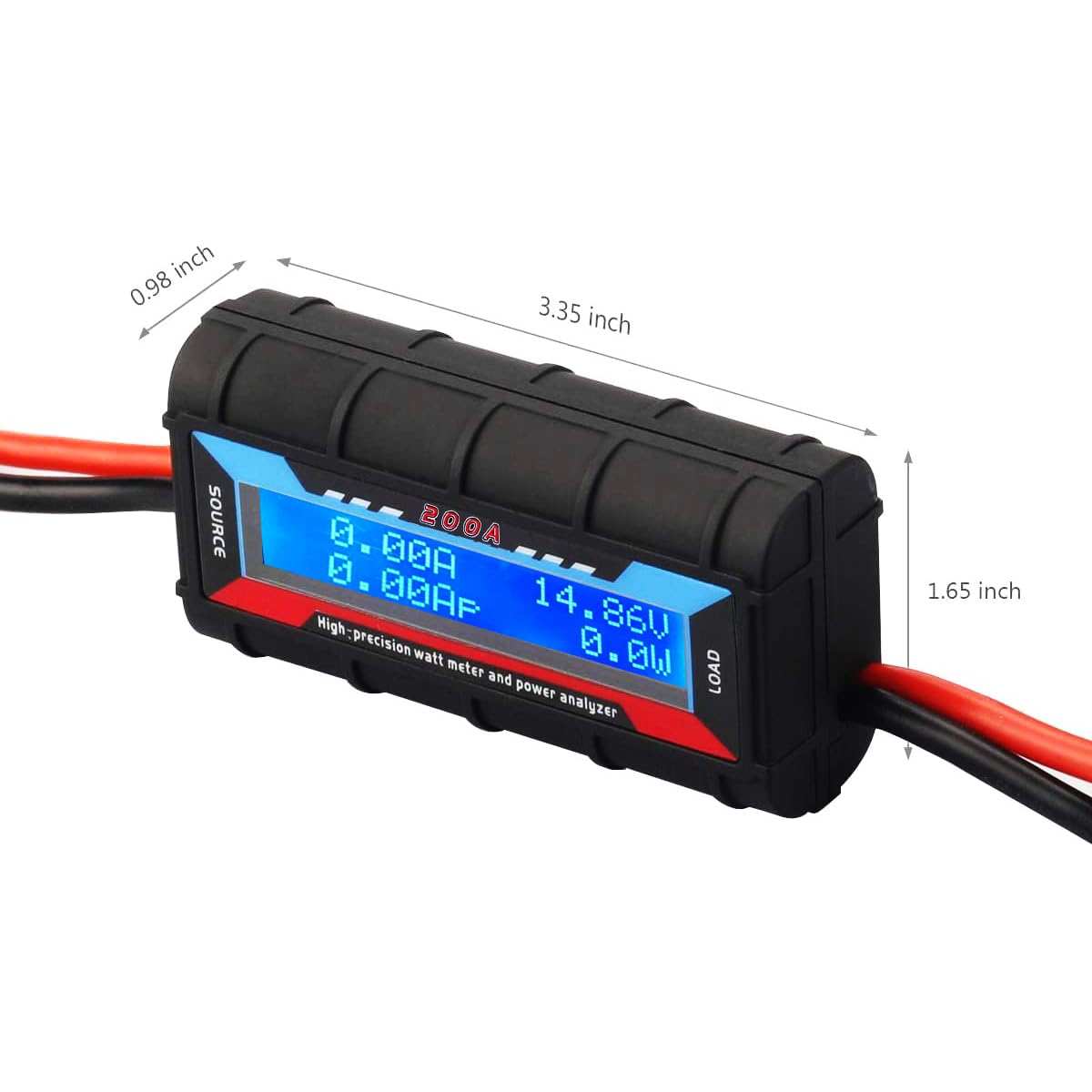

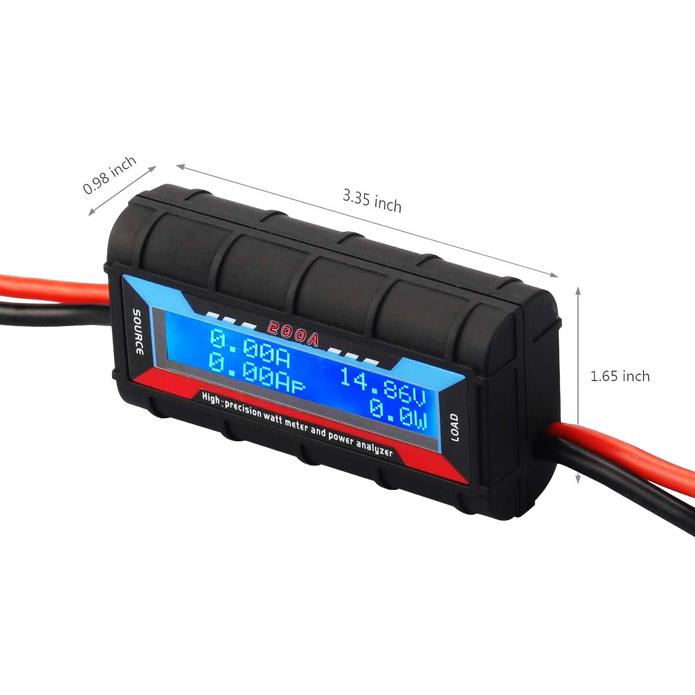

200A Solar/Wind DC Power Analyzer 0–60V
amiciSense · Measure 0–200A · 0–60V · 8 params · Backlit LCD · DIY DC
DC watt, battery and solar/wind analyser: 0–200A (0.01A), 0–60V (0.01V), energy to 6554Wh (0.01Wh), plus Ah, W, peak A, min V and peak W on one backlit LCD. Meter supply voltage and shunt inclusion are not specified.
Sale price
Rs. 849.00
-62%
Regular price
Rs. 2,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 849.00
Unit price
Increments of 1
Minimum of 1
Maximum of
200A Solar Wind Power Analyzer, DC Watt Meter & Battery Tester with LCD Display
Sale price
Rs. 849.00
Regular price
Rs. 2,200.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 849.00
Unit price
Superfast Shipping
Orders are processed before 2 PM on dispatch days.
5% OFF on all orders
Use code
10% OFF on new launch
Use code
10% OFF on purchase of ₹5000+
Use code
Couldn't load pickup availability
Specifications
| SKU | 1xSOLAR-POW |
|---|---|
| Brand | amiciSense |
| Device class | DC watt meter / solar-wind power analyzer |
| Measure current | 0–200A (resolution 0.01A) |
| Measure voltage | 0–60V (resolution 0.01V) |
| Energy | 0–6554Wh (resolution 0.01Wh) |
| Other params | W · Ah (0.001Ah res) · Peak A · Min V · Peak W |
| Display | Backlit LCD |
| Accuracy / certification | Not specified |
| Warranty | 1 year; support 980-970-9898 / care@amicikart.com |
Frequently asked questions
Is measure voltage the same as supply that powers the meter?
Not necessarily. The measuring range is 0–60V; the voltage that powers the meter is not specified.
Does the kit include a 200A shunt?
Shunt inclusion is not specified. Contact support before ordering if you need one.
Is this the 300A bi-directional meter?
No. This is the 0–60V / 0–200A analyser (1xSOLAR-POW); the 300A bi-directional meter is a separate product.
Can I use it on a 48V battery bank?
A 48V pack can rise close to or above 60V while charging — stay within the 0–60V measuring limit.
Full Product Description
200A Solar/Wind DC Power Analyzer 0–60V
DC watt / battery / solar-wind analyser: measures 0–200A (res 0.01A), 0–60V (res 0.01V), energy to 6554Wh (res 0.01Wh), plus Ah (res 0.001Ah), W, peak A, min V and peak W on one backlit LCD. The meter supply voltage and whether a shunt is included are not specified.
- Solar · wind · battery · e-bike: Common DC use cases.
- Cumulative Ah / Wh logging: Battery health / energy tracking.
- Backlit LCD: Readable in low light / rooftop checks.
- Fine resolution: 0.01A · 0.01V · 0.01Wh · 0.001Ah.
